Product Type	Radio-controlled clock
Brand	Velleman
Model	WC30D
Category	Watch
Power supply	1 x 1.5 V battery type R6/LR6C (not included)
Dimensions	Ø 30 x 4 cm
Weight	± 750 g
Display	Analog hands
Main functions	Radio-controlled clock via DCF signal (Frankfurt, Germany), automatic summer/winter time switching, large readable dial
Synchronization	Automatic via DCF receiver; manual forced reception possible
Manual adjustment	Manual adjustment button [C] for exact time
Reset	Short-circuit pins [A] with a metal object
Warranty	24 months for consumer products (see Velleman terms)
Maintenance	Soft lint-free cloth; avoid alcohols and solvents
Safety	Keep out of reach of children; protect from moisture, dust, shocks
Spare parts and repairability	Replaceable battery; repair by Velleman or authorized dealer
General information	Manual available in multiple languages at www.velleman.eu

Frequently Asked Questions - WC30D VELLEMAN

How to install the battery and start the clock?

First remove the locking tab located in the battery compartment. Insert a 1.5 V battery type R6/LR6C observing polarity. All hands will move to 12:00, then the clock will attempt synchronization with the DCF signal.

Which battery to use for the WC30D watch?

Use a 1.5 V battery type R6 (LR6C). The battery is not included. Follow the polarity indications in the compartment.

How does time synchronization work?

The watch automatically receives the DCF signal transmitted from Frankfurt (Germany). Place it near a window for better reception. Synchronization may take up to 15 minutes, and the signal is often stronger at night.

Why is the clock not displaying the correct time?

The reception of the DCF signal can be disrupted by obstacles such as concrete, metal, or near magnetic fields. Make sure you are in an open area near a window. Otherwise, perform a manual adjustment or forced reception.

How to perform a manual time adjustment?

Press and hold the manual adjustment button [C] for about 3 seconds until the hands move. Release a few minutes before the exact time, then press briefly to adjust. The clock starts 7 seconds after the last adjustment.

What to do if automatic synchronization fails?

You can force synchronization by pressing and holding the reception button [B] for about 3 seconds. The hands will go to 12:00, then the clock will try to receive the signal again. If successful, it will display the correct time; otherwise, it will resume the previously stored time.

How to completely reset the clock?

Short-circuit the two reset pins [A] with a metal object (e.g., a paperclip). The hands will move to 12:00 and the memory will be cleared. The clock will then attempt to synchronize with the atomic clock.

Where to install the WC30D watch for better reception?

Place it near a window, in an office or a room that is not overly insulated. Avoid basements, cellars, and locations near motors or devices generating magnetic fields (e.g., speakers).

How to clean the clock?

Use a soft, lint-free cloth. Never use alcohol, solvents, or abrasive products. Regular cleaning helps maintain appearance and proper functioning.

What is the warranty period for this product?

The Velleman consumer warranty is 24 months from the date of purchase. It covers manufacturing or material defects. Keep your proof of purchase. See the manual for full terms.

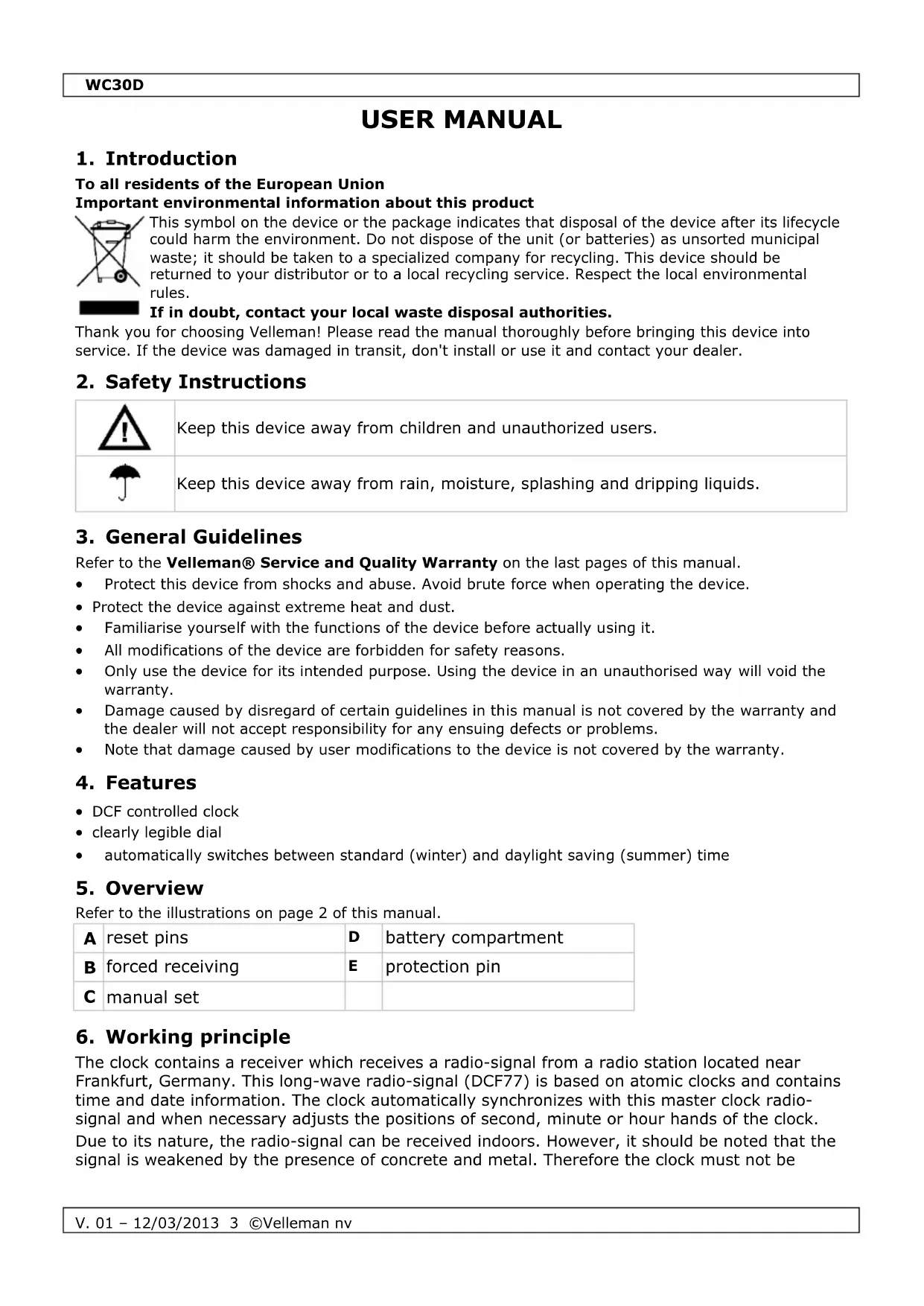

USER MANUAL WC30D VELLEMAN

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

!	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• Protect this device from shocks and abuse. Avoid brute force when operating the device.
• Protect the device against extreme heat and dust.
  Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
  Note that damage caused by user modifications to the device is not covered by the warranty.

4. Features

• DCF controlled clock
• clearly legible dial
• automatically switches between standard (winter) and daylight saving (summer) time

5. Overview

Refer to the illustrations on page 2 of this manual.

A	reset pins	D	battery compartment
B	forced receiving	E	protection pin
C	manual set

6. Working principle

The clock contains a receiver which receives a radio-signal from a radio station located near Frankfurt, Germany. This long-wave radio-signal (DCF77) is based on atomic clocks and contains time and date information. The clock automatically synchronizes with this master clock radio-signal and when necessary adjusts the positions of second, minute or hour hands of the clock. Due to its nature, the radio-signal can be received indoors. However, it should be noted that the signal is weakened by the presence of concrete and metal. Therefore the clock must not be

WC30D

installed in concrete basements or inside metal cages. In large concrete office buildings or apartments, the clock should be located near a window for better reception.

Also avoid installing the clock near strong magnetic fields or other devices that generate a lot of electrical noise (e.g. engines)

7. Operation

Important:

• Remove the protection pin before first use! Dispose of it in a safe way.

• Do not attempt to reinsert the pin afterwards as this will surely damage the clock.

• Insert a battery in the battery compartment (see below). All hands will move forward towards 12:00. Note: when the original position of the second hand is between 11:55 and 12:00, the second hand will make a full turn before stopping at 12:00. The same happens with the minute hand when the original position is between 11:52 and 12:00.

• Choose a location for the clock (see section Working principle).
• Wait until the clock receives the synchronization signal from the master clock. This might take up to 15 minutes. Note that the received signal is usually stronger at night time.
• Once synchronized, the hands will start moving towards the correct time.
• When the clock doesn't receive the radio-signal, it will start running showing the wrong time. However, it will keep attempting to synchronize.

Manual setting

It is possible to set the time manually, e.g. for use in places where no radio-signal is received.
- Press and hold the manual set button [C]. After ± 3 seconds the minutes and hour hands start moving. Hold down the manual set button [C] and release a couple of minutes before desired time setting. Press the manual set button [C] repeatedly until the desired time indication is reached. When no press is detected within 7 seconds, the clock starts running.

Forced receiving

• To force the clock to synchronize, press and hold the forced receiving button [B] for ± 3 seconds. The current time is stored in memory and all hands will start moving towards 12:00. The clock attempts to synchronize with the master clock.
• When synchronization is successful, the hands will move towards the correct time. If it fails however, the hands will move towards the time that was memorized.

Reset

• To reset the time and memory, use a piece of metal (e.g. a blank paperclip) to short circuit the two metal reset pins [A].
• All hands will move to the 12:00 position and the memory is cleared. The clock will attempt to synchronize to the master clock

8. Cleaning and maintenance

• Wipe the device regularly with a moist, lint-free cloth.
• Do not use alcohol or solvents.

9. Battery

• Insert a new 1.5V AA battery in the battery compartment [D] in accordance with the polarity markings inside the battery compartment.

10. Technical Specifications

power supply	1 x1.5V AA-battery LR6C (not incl.)
dimensions	Ø30x4cm
weight	±750g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.

WC30D

For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu.

The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

10. Specifications techniques

© INFORMACJA O PRAWACH WŁASNOŚCI

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
