USER MANUAL ADDH10 DAITSU

Illustration of a device being assembled into a box, showing internal components and wiring (no text or symbols)

Illustration of a hand inserting a component into a rectangular device (no text or symbols visible)

Line drawing of a portable air conditioner unit with cooling fins and wheels (no text or symbols)

Illustration of a portable air purifier with control panel and hose (no text or symbols)

Nivel del agua

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

Line drawing of a portable air conditioner unit with wheels and ventilation slots (no text or symbols)

Advertencia

Safety Precautions 14

Parts Name....16

Operation Instructions

Operation Method....17

Drainage Option 20

Maintenance

Clean and Maintenance....21

Malfunction

Troubleshooting....22

Long term storage 23

Electric schematic diagram....23

Specifications 24

(Graphics in this manual are only for reference. Please refer to actual products for specific details.)

Operation Area

Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
Place the dehumidifier on a smooth and level floor. invalids. Do not allow children to use it as a toy.
A dehumidifi er operating indoors will have no effect in drying an adjacent enclosed area, such as a closet.
Place the dehumidifier in an area where the temperature will not below 5 °C or above 32 °C.

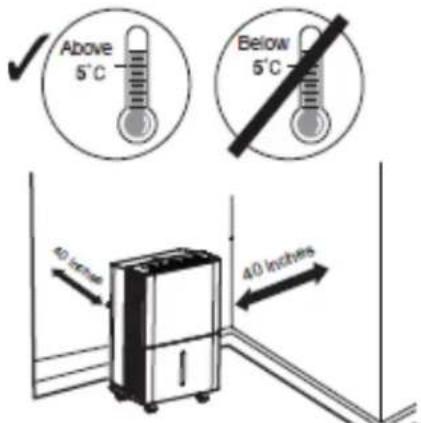

- Allow at least 40 inches of air space on all sides of the unit.
Close all doors, windows and other outside openings of the room to improve the working effect.
Please keep the air inlet/outlet clean and not blocked.
Do not use a dehumidifier in a bathroom.
Avoid direct sunlight

Note:

The dehumidifier has rollers to aid placement. Do not attempt to roll the dehumidifier on carpet or over objects. Otherwise, water may spill out from the bucket or the dehumidifier may get stuck by the objects.

Safety Precautions

Before operation, please check the power cord if it complies with the requirement indicated on the nameplate.
■ Make sure the power cord is not pressed by any hard object.
Do not remove the power plug or move unit by pulling the power cord.
Do not use any heating application near the dehumidifier.
Do not remove the power plug in wet hands.
Please use grounded power cord and make sure it's well connected and not damaged.
Children and disabled people are not allowed to use the dehumidifier without supervision.
- Keep children from playing or climbing on the dehumidifier.
Do not place the dehumidifi er under dripping objects.
■ Memory function is included in this dehumidifier. When nobody is taking care of the unit, please turn it off and remove the power plug or disconnect power.

Correct
Wrong

Above 5°C Below 5°C 40 inches 40 inches

Safety Precautions

Do not repair or disassemble the unit by yourself.
Damaged power cord must be replaced by qualified technicians or manufacturer.
If abnormal condition occurs (e.g. burned smell), please disconnect power at once and then contact local dealer.
■ Dehumidifier can not be disposed of everywhere. It you want to get rid of this dehumidifier, please check with local handling disposal or information service center about what to do.

Parts Name

Front Side

Control Panel

Front Grille

Water Bucket

Rollers

Back Side

Air Filter

Power Plug

Accessories:

1. Drain Hose(5m): Adhered to the outside of unit before ex-factory.
2. Two drainage Joint and castors: Put them into accessories packing bag.
   Note: Drain hose and drainage joint and castors will be needed for drain hose.
   Please save them well.

Operation Method

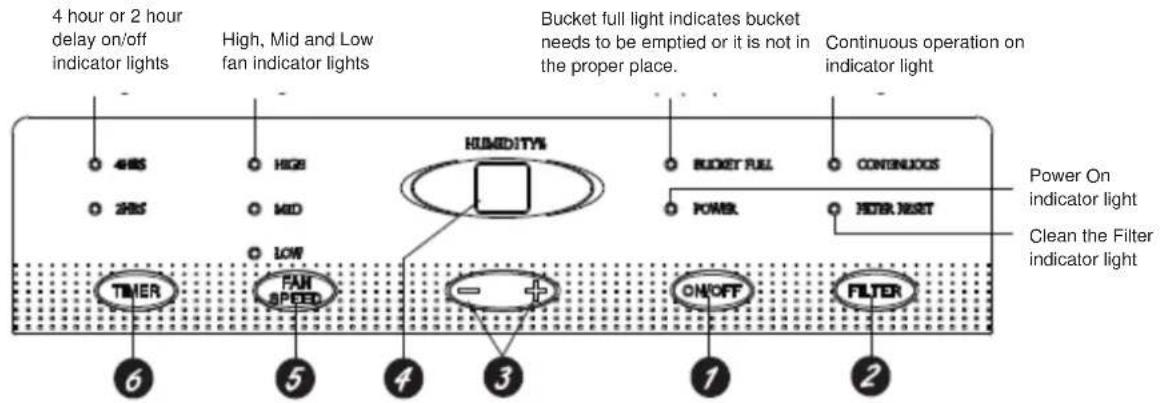

4 hour or 2 hour delay on/off indicator lights High, Mid and Low fan indicator lights Bucket full light indicates bucket needs to be emptied or it is not in the proper place. Continuous operation on indicator light HUMIDITYN 4HRS HIGH 2HRS MID POWER CONTINUOUS HETER NEXT POWER On indicator light Clean the Filter indicator light TIMER FAN SPEED ON/OFF FILTER 6 5 4 3 1 2

Notes:

Water bucket must be correctly installed for the dehumidifier to operate.
Do not remove the bucket while unit is in operation.
If you want to use drain hose to drain water away, please install the hose according to section "Drainage method".
Each time pressing the effective button on the control panel will give out a "beep" sound.
When power is connected, power indicator on the control panel will be on and dehumidifier gives out a "beep" sound simultaneously.

Operation Method

ON/OFF Pad

Press to turn the dehumidifier on and off.

FILTER Pad

After 250 hours of operation, the Clean the Filter indicator light will glow to remind you to clean the filter. Remove the filter and clean it. Press to turn off the Clean the Filter light. See the Care and Cleaning section.

Humidity Set ControlPads

The humidity level can be set within a range of 80% RH (Relative Humidity) to 35% RH (Relative Humidity) in 5% reduce or at CO for continuous operation.

NOTE: If CO (Continuous) is selected, the dehumidifier will operate continuously at its maximum dehumidification settings if attached to a hose to drain or until the bucket is full.

For drier air, press the - pad and set to a lower percent value (%). For damper air, press the + pad and set to a higher percent value (%). When you first use the dehumidifier, set the humidity control to 45% or 50%.

Allowat least 24 hours for the dehumidifier to achieve the humidity level. If you still have damper air than desired, set the humidity level to a lower setting or select Continuous for maximum dehumidifi cation.

This unit has 3-min lag due to the device for protecting circuit. In order to prolong the compressor's working life, the compressor will not start until the unit has run for 3 minutes.

Display

4 Shows the set % humidity level while setting, then shows the actual (+/- 5% accuracy) room % humidity level.

FAN SPEED Pad

5 Controls the fan speed. Press to select High or Mid or Low fan speed. Set the fan control to High for maximum moisture removal. When the humidity has been reduced and quiet operation is preferred, set the fan control to Mid or Low.

TIMER Pad

6 If unit is turned on and running in timer mode for 2hr or 4hr, can turn off the unit. When unit stand by and running in timer mode for 2hr or 4hr can turn on the unit.

Other Instructions

BUCKET FULL Light

1 Glows when the bucket is ready to be emptied, or when the bucket is removed or not replaced in the proper position.

2 Alarm

If the bucket is full or missing for more than three minutes, an alarm will soundfor about 10 seconds to remind you to empty and replace the bucket.

Auto Shut Off

3 The Water Level Control Switch shuts off the dehumidifier when the bucket is full, or when the bucket is removed or not replaced in the proper position.

Auto Defrost

4 When frost builds up on the evaporator coils, the compressor will cycle off and the fan will continue to run until the frost disappears.

Power Outage

5 In the case of a power outage or interruption, the unit will automatically restart, in the settings last used, after the power is restored.

Drainage Option

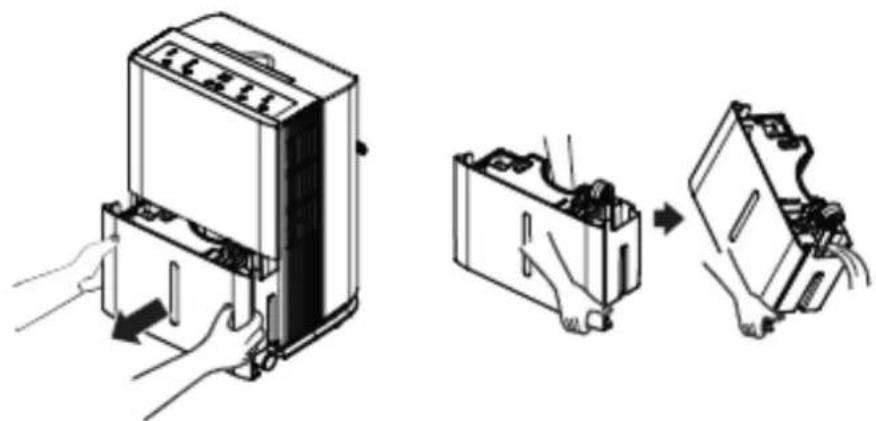

Option 1 Emptying Manually

1. When the bucket is removed, the unit will shut off. Empty and replace the bucket.

Illustration of a device being assembled into a box, showing internal components and wiring (no text or symbols)

Important: Do not use the hose if using the water tank to collect water. When the hose is connected, water will be drained out through it onto floor instead of into the tank.

NOTES:

Do not remove the bucket while the unit is in operation or it has just stopped. Otherwise it may cause some water to drip from the draining pan.
The bucket must be in place and securely seated for the dehumidifier to operate.
Please keep the drain rubber plug carefully. To prevent the water from flowing out of the water tank, make sure that the rubber plug has been firmly inserted into the drain joint before starting up the unit.

Option 2 Gravity Drain Hose

1. Water will automatically flow into a floor drain by attaching a 14mm inner diameter hose (not included).

1) Open the drain cover on the side of the unit.
2) Pull out the rubber stopper on drainage joint.
3) Connect the hose to the drain tie-in, and lead it to the floor drain.

Illustration of a hand inserting a small device into a rectangular box (no text or symbols visible)

Line drawing of a portable air conditioner unit with wheels and a handle, no text or symbols present

Line drawing of a portable refrigerator with a piping bag attached (no text or symbols)

Water Level

1. The dehumidifer will turn of automatically when the bucket is full, or when the bucket is removed or not placed in the proper position.
2. The bucket must be replaced in the proper position for the dehumidifier to work. The light will be on and the dehumidifier will not run if the bucket is not in the proper position.

Clean and Maintenance

Warning

Before cleaning, turn off the dehumidifier and disconnect power. Otherwise it may lead to electric shock.
Do not wash the dehumidifier with water, or it may lead to electric shock.
Do not use volatile liquid(such as thinner or gasoline) to clean dehumidifier. Otherwise it will damage unit's appearance.

1. Grille and Case

To clean the case:

When there is dust on the case, use soft towel to dust it off; When the case is very dirty(greasy), use mild detergent to clean it. To clean the grille:Use a dust catcher or brush.

2. Water Bucket

Every few weeks, clean the bucket to prevent growth of mold, mildew and bacteria. Use soft brush to clean the bucket and then rinse it.

3. Air Filter

Dehumidifier will remind you to clean the air filter when it has been operating for 250 hours. If it is used in dusty places, clean the air filter more often.

To remove:

1. Press both sides of air-in grille, pull it along the arrow direction and then pull the air-in grille upwards.
2. Pull the filter from the middle clasps, bend the filter to let it separate from upper clasps and then remove the filter.

To clean:

Clean the filter in warm, soapy water. Rinse it and let the filter dry before replacing it.

Grille

Buttons

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

Warning

Do not operate the dehumidifier without a filter. Otherwise the evaporator will catch dust and affect unit's performance.
Do not dry the air filter with fire or electric hair dryer. Otherwise the air filter may be unshaped or caught on fire.

Problem Possible Causes	Causes What To Do
Dehumidifier does not start	The humidifier is unplugged	• Make sure the dehumidifier's plug is pushed completely into the outlet.
	Dehumidifier has reached its preset level or bucket is full.	• The dehumidifier automatically turns of when either condition occurs. Change to a lower setting or empty the bucket and replace properly.
	Bucket is not in the proper position.	• The bucket must be in place and securely seated for the dehumidifier to operate.
	Power failure.	• There is a protective time delay (up to 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal dehumidifying for 3 minutes after it is turned back on.
Dehumidifier erdoes not dry the air as it should	Did not allow enough time to remove the moisture.	• When first installed, allow at least 24 hours to maintain the desired dryness.
	Airflow is restricted. • Make sure there are no curtains, blinds or furniture blocking the front or back of the dehumidifier. See the Choosing a Location section.
	Dirty filter. •	See the Care and Cleaning section.
	The Humidity Control may not be set low enough.	• For drier air, press the “-” pad and set to a lower percent value (%) or at CO (continuous) for maximum dehumidifi cation.
	Doors and windows may not be closed tightly.	• Check all doors, windows and other openings are securely closed.
	Clothes dryer may be blowing moisture-laden air into the room.	• Install the dehumidifier away from the dryer. The dryer should be vented to the outside.
	Room temperature is too low.	• Moisture removal is best at higher room temperatures. Lower room temperatures will reduce the moisture removal rate. Models are designed to be operated at temperatures above 5°C.
Dehumidifier erruns too much	Area to be dehumidifier ed is too large.	• The capacity of your dehumidifier may not be adequate.
	Doors and windows are open.	• Close all doors and windows to the outside.
Frost appears on the coils	Dehumidifier has been recently turned on, or room temperature is below 5°C.	• This is normal. Frost will usually disappear within 60 minutes. See the Automatic Defrost section.
Controls cannot be set	The compressor will turn off and the fan will automatically continue to run for approximately 3 minutes at a fixed setting.	• This is normal. Wait approximately 3 minutes and set the fan as desired.
Fan noise	There is sound created when wind passing the unit. That is the sound of wind.	• This is normal.
Water on floor Hose	connection may be loose.	• Check the hose connection. See the Removing Collected Water section.
	Intend to use the bucket to collect water, but a hose is attached.	• Disconnect the hose if using the bucket to collect water. See the Removing Collected Water section.

Long term storage

When you do not use the unit for along period, we suggest you to take following steps to store the unit in a good condition:

Make sure there is no water left in the water tank and take off the draining hose
Take off the power cord and plug and warp them well.
Clean the unit and packed it well to keep it from dust.

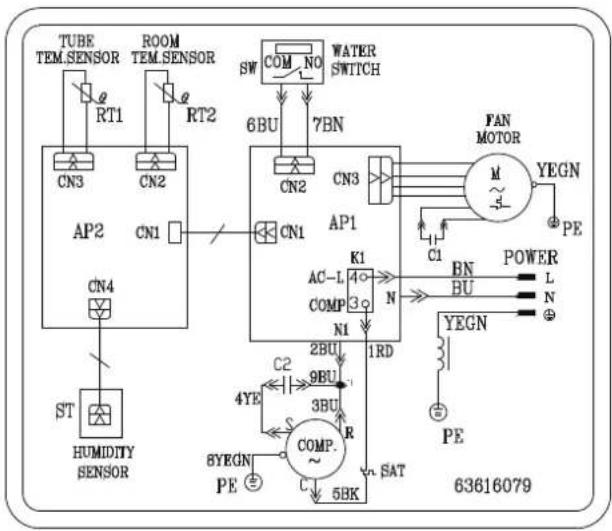

Electric schematic diagram

ADDH-10

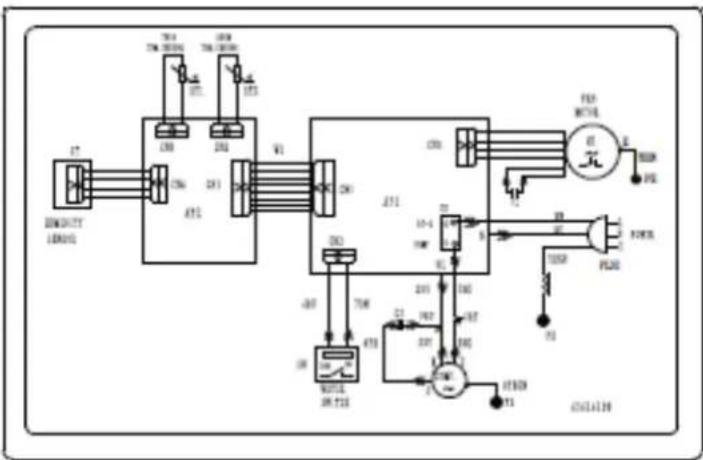

ADDH-12

ADDH-20

Specifications

Model ADDH-10 ADDH-12
Rated Voltage 220-240 V~
Rated Frequency 50Hz
Rated Power 330 W 330 W
Moisture Removal 10 L/DAY 12 L/DAY
Sound Power Level 53dB(A) 53dB(A)
Operating Temperature 5 °C- 35 °C
Weight	12.5 kg	12.5 kg
Tank capacity 4,0 l (Automatic stop at about 3.6L)

TABLES DES MATIÈRES

Mode d'emploi

1 Bouton ON/OFF (MARCHE/ARRÊT)

Illustration of a device being assembled into a box, showing internal components and wiring (no text or symbols)

Illustration of a hand inserting a small electronic device into a rectangular box (no text or symbols visible)

Line drawing of a portable air conditioner unit with wheels and a handle, no text or symbols present

Line drawing of a stainless steel industrial water heater with a piping outlet (no text or symbols)

Niveau d'eau

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

Avertissement

Above 5°C Below 5°C 40 inches 40 inches

Illustration of a device being assembled into a box, showing internal components and wiring (no text or symbols)

Illustration of a hand inserting a small device into a rectangular box (no text or symbols visible)

Line drawing of a portable air purifier with handle and wheels (no text or symbols)

Line drawing of a portable air purifier with handle and wheels (no text or symbols)

Nível de água

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

Illustration of a portable air conditioner unit with control panel and wheels (no text or symbols)

Advertência

Above 5°C Below 5°C 40 inches 40 inches

Nota:

Illustration of a device being assembled into a box, showing internal components and wiring (no text or symbols)

Illustration of a hand inserting a small electronic device into a rectangular box (no text or symbols visible)

Line drawing of a portable air conditioner unit with cooling fins and wheels (no text or symbols)

Line drawing of a portable air purifier with a side-mounted outlet and base mount (no text or symbols)

Livello dell'acqua

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

Illustration of a portable air conditioner unit with control panel and wheels (no text or symbols)

Attenzione
