ADD12 - Humidifier DAITSU - Free user manual and instructions

Product type	Air dehumidifier
Brand	Daitsu
Model	ADD12
Dehumidification capacity	12 L/day (at 30°C, 80% RH)
Power supply	220-230 V ~ 50 Hz
Power consumption	190 W
Water tank capacity	6.0 L (auto shut-off at 5.5 L)
Net weight	12.5 kg
Dimensions (H x W x D)	545 x 380 x 261.5 mm
Operating modes	Dehumidification, Laundry, Silent
Humidity setting	50%, 60%, 70% or continuous
Air filter	Washable (cleaning recommended every 2 weeks)
Refrigerant	CFC-free
Operating temperature	2°C to 38°C
Continuous drain	Possible via hose (inner diameter 15 mm)
Safety functions	Automatic shut-off when tank full, compressor protection (3 min delay), overheat protection
Noise level in silent mode	Very low (not specified)
Maintenance	Clean the filter regularly, wipe the unit with a soft cloth
Included accessories	Water tank, air filter, user manual

Frequently Asked Questions - ADD12 DAITSU

How to install the Daitsu ADD12 dehumidifier?

Place the unit on a flat and stable surface, at least 30 cm from walls. Plug the power cord into a 220-230 V socket. Open the air vent before use. Make sure the water tank is properly inserted.

How to empty the water tank?

When the tank full indicator lights up, gently press on the sides of the tank and pull it out. Empty the water and firmly replace the tank until it clicks. Wait 30 minutes after stopping before removing the tank to avoid residual water spills.

What to do if the tank full indicator lights up even though the tank is empty?

Check that the tank is properly positioned. If the problem persists, clean the float and the bubble wrap inside the tank. Do not remove the bubble wrap as it helps detect the water level.

How to use the laundry mode?

Press the '1/0' button until the laundry indicator lights up. This mode activates high airflow for fast drying of laundry. Place the unit at a reasonable distance from the laundry and avoid water dripping onto the unit. This mode is also the only usable mode if the temperature is below 15°C or above 35°C.

How to clean the air filter?

Remove the filter by pressing the tabs. Gently vacuum the surface. If the filter is very dirty, wash it with lukewarm water and a mild detergent, rinse and dry completely before putting it back. Cleaning is recommended every two weeks.

Can I use a hose for continuous drainage?

Yes, the unit is equipped with an opening for continuous drainage. Use a hose with an inner diameter of 15 mm. Cut the pre-cut opening on the side of the unit, insert the hose firmly and ensure the drain line is sloped downward. Regularly check that the hose is not clogged.

What to do if the unit does not turn on?

Check that the power cord is properly connected. If the tank full indicator flashes, empty the tank and replace it. Make sure the ambient temperature is between 2°C and 38°C. If the problem persists, contact an authorized service center.

The unit makes an unusual noise, is that normal?

A refrigerant noise at startup or when changing modes is normal until the circulation stabilizes. If the unit is used in a small room or on a wooden floor, an echo may occur. If the noise persists, contact customer service.

What is the operating temperature range?

The dehumidifier operates between 2°C and 38°C. Outside this range, the unit may not work properly and the protection device activates. Use only laundry mode if the temperature is below 15°C or above 35°C.

How to store the dehumidifier for a long period?

Unplug the unit, wrap the power cord and secure it to the holder. Empty and dry the water tank. Clean the air filter. Pack the unit to protect it from dust and store it upright in a cool, dry place.

USER MANUAL ADD12 DAITSU

Please read rules for safe operation and instructions carefully.

PRESTACIONES

\section*{3}

Especillas 3

Structure and Principle

Structure and Principle

Press the switch once to start operation, press it again to stop operation.

1. touche"O

When use the unit, please observe the following safety precautions:

How dehumidifying works 37

Structure of dehumidifier 37

OPERATION

Operation panel 38

Switch function 39

Operation steps 39-40

Draining the water 40-41

MAINTENANCE

Caring for the dehumidifier 42

Storing the dehumidifier 42

Notation for safe operation 43

Removing breakdowns 43-44

APENDIX

Electric Schematic Diagram 45

Structure and Principle

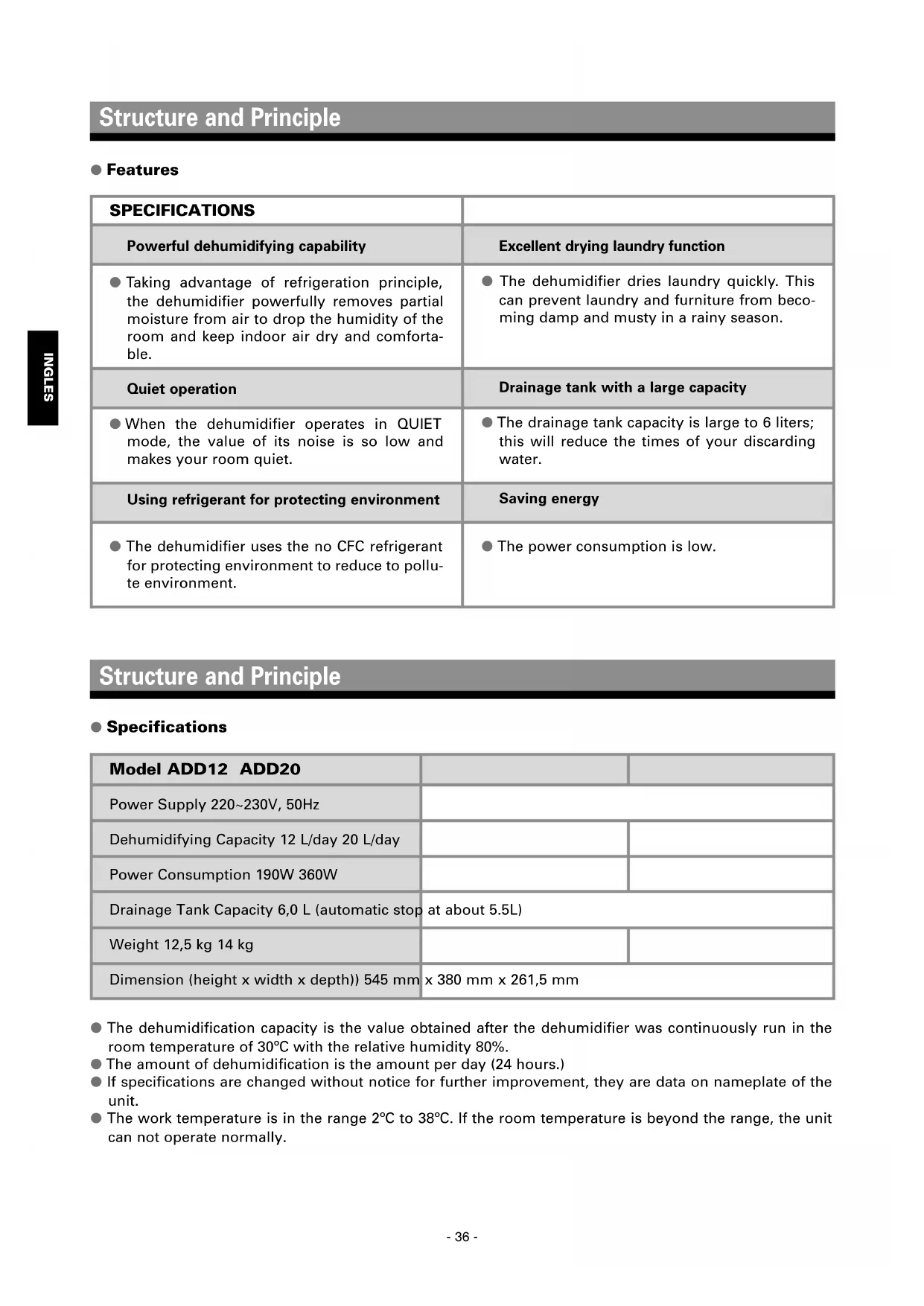

Features

SPECIFICATIONS
Powerful dehumidifying capability	Excellent drying laundry function
● Taking advantage of refrigeration principle, the dehumidifier powerfully removes partial moisture from air to drop the humidity of the room and keep indoor air dry and comfortable.	● The dehumidifier dries laundry quickly. This can prevent laundry and furniture from becoming damp and musty in a rainy season.
Quiet operation	Drainage tank with a large capacity
● When the dehumidifier operates in QUIET mode, the value of its noise is so low and makes your room quiet.	● The drainage tank capacity is large to 6 liters; this will reduce the times of your discarding water.
Using refrigerant for protecting environment	Saving energy
● The dehumidifier uses the no CFC refrigerant for protecting environment to reduce to pollute environment.	● The power consumption is low.

Structure and Principle

Specifications

Model ADD12 ADD20
Power Supply 220~230V, 50Hz
Dehumidifying Capacity 12 L/day 20 L/day
Power Consumption 190W 360W
Drainage Tank Capacity 6,0 L (automatic stop at about 5.5L)
Weight 12,5 kg 14 kg
Dimension (height x width x depth)) 545 mm	x 380 mm x 261,5 mm

The dehumidification capacity is the value obtained after the dehumidifier was continuously run in the room temperature of 30^ with the relative humidity 80% .
The amount of dehumidification is the amount per day (24 hours.)
- If specifications are changed without notice for further improvement, they are data on nameplate of the unit.
- The work temperature is in the range 2^ to 38^ . If the room temperature is beyond the range, the unit can not operate normally.

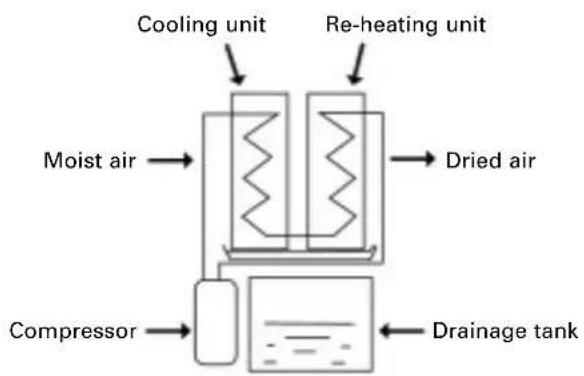

- How dehumidifying works

If you pour cold water into a cup, the air around the cup is cooled, and drops of water form on the surface of the cup. The dehumidifier takes advantage of this phenomenon to remove moisture.

It draws in room air, cools it with a cooling unit, and changes the humidity to drops of water.
The drops of water fall into a drainage tank.
The dehumidified air is re-heated by a heating unit and discharged.

Steps ①,② and ③ are repeated to remove humidity from the room.

After the air passes through the re-heating unit, its temperature will rise a little, so that the temperature of the room will rise appreciably. This is normal phenomenon.

Structure and Principle

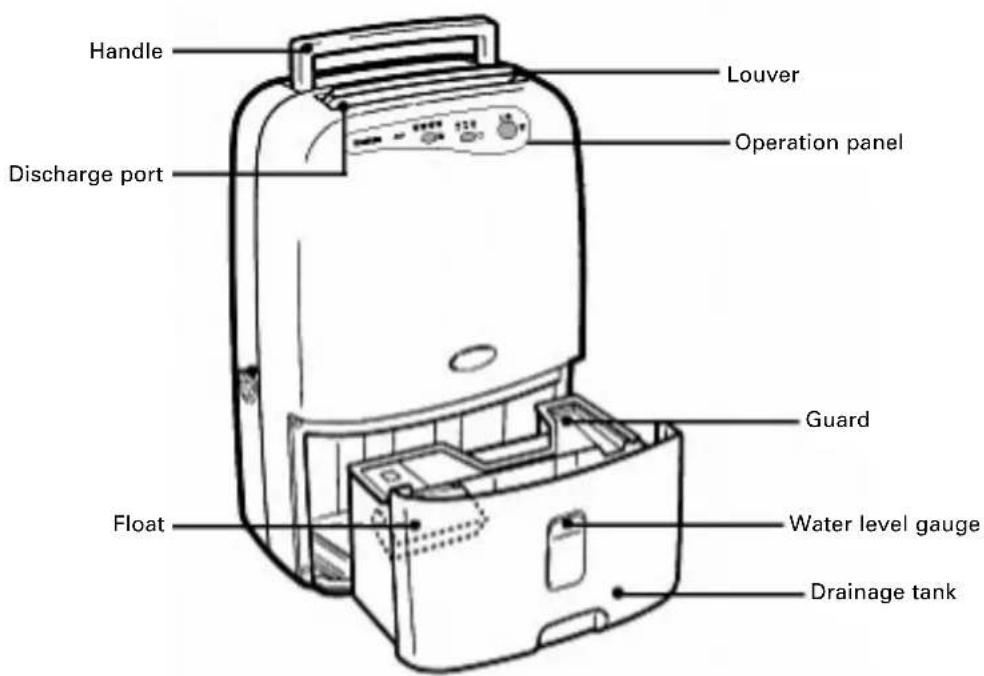

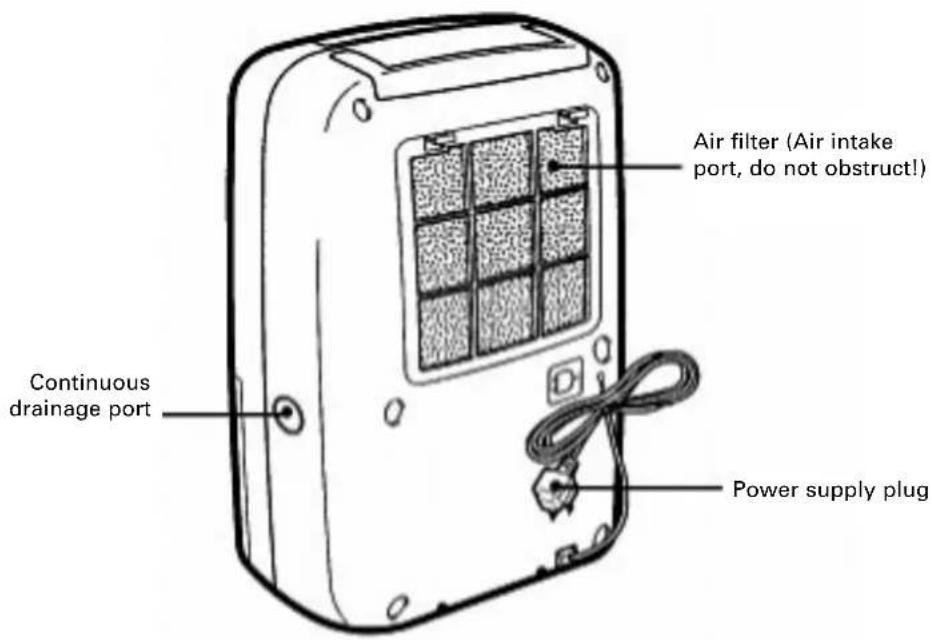

Structure of dehumidifier

Operation

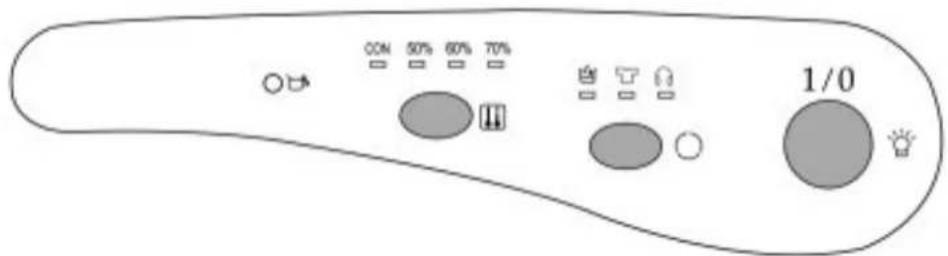

Operation panel

Indicator lamp

1. "Tank full indicator lamp

It will light when the drainage tank is full or positioned incorrectly. Empty the water out of the drainage tank, and make sure the tank is positioned properly.

1. "": Power indicator lamp

It will light when the unit is plugged in.

1. " ", " ", "": mode indicator lamp

When "lamp or "lamp or "lamp is lighted, it respectively indicates that operation is in DEHU-MIDIFY, LAUNDRY or QUIET mode.

1. "50%", "60%", "70%": Humidity indicator lamp

When "50%" lamp, "60%" lamp or "70%" lamp is lighted, it respectively indicates that the current setting humidity is "50%, "60% or "70%.

1. "CON": Continuously dehumidity indicator lamp

When "CON" lamp is lighted, it indicates that the operation is in CONTINUOUS mode.

- Switch function

1. "1/0" switch

Press the switch once to start operation, press it again to stop operation.

1. "O"switch

Each time the switch is pressed, the operation mode changes in the order of "DEHUMIDIFY", "LAUNDRY" and "QUIET" and the corresponding mode indicator lamp will change with the operation mode.

1. "switch

Press the switch to set the humidity of the room, which can be set in order of "50%", "60%" "70%" and "continuous", and the corresponding humidity indicator lamp will lights to display your setting humidity. When the relative humidity of the room is lower than your setting humidity, the operation will stop automatically. After the operation is started, the default operation mode is the continuous mode, the operation is continuous in the continuous mode until the unit is stopped or automatically stopped for the drainage tank is full.

Operation

Operation steps

1. Plug the power supply plug into the outlet and press the "1/0" switch

2. Open the louver by hand

• Use single phase 220~230V AC power supply.
• Wipe dust off of the power supply plug and insert the plug firmly, all the way to the rubber section, if there is a dust on the plug, or the plug is not fully inserted in the outlet, electrical shock and/or fire may result.

• Never scratch, cut, or damage the power supply cord.
  After the power supply plug is plugged into the outlet, " lamp will light.

• Before operation runs, please check and make sure the louver has been opened, or it will result in the temperature of the unit too high and cause accident. (There are 6 levels to be chosen.)

Operation

3. Switch the operation mode

• Press the "1/0" switch, the unit operates in CONTINUOUS mode automatically.
• DEHUMIDIFY mode: Press "O" switch until the "B" lamp lights. Operation is continue with the amount of discharged air at the middle level.
• Modo SECAR COLADA: Press "O" switch until the "F". lamps lights, Operation is continue with the amount of discharged air at the high level. This is appropriate for enhanced dehumidifying, drying clothes or other items (when the indoor temperature is below 15^ or above 35^ , the protection device is actuated, the unit only can operate in LAUNDRY mode and pressing "O" switch is ineffective.
• QUIET mode: Press "O" switch until the "63" lamp lights. Operation is continue with the amount of discharged air at the low level. This suppresses operation noise when dehumidifying (Under the condition of high temperature and high humidity, please avoid operating the unit in QUIET mode, as this can decrease the life of the unit.)

4. Stop operation

When the "1/0" switch is pressed during the unit runs:

• Dehumidifying stops.
• Never stop the unit by unplugging the power supply cord.

Operation

Draining the water

The drainage tank is full

If the drainage tank becomes full (approx. 5.5 liters), the "Lamp lights to alert the user, operation stops automatically. Empty the water from the drainage tank and discard it.

Drainage steps

1. Remove the drainage tank Lightly pressing on the sides of the tank with both hands, pull it gently out.

Take hold of the handle, and then remove the tank.

Notation for drainage

• Do not remove the bubble packing from the float on the unit. The float on the unit will no longer be able to detect without the bubble packing when the water level is full, and water may leak from the water tank onto household furniture. This can cause electrical shock and/or short-circuiting.

• If the drainage tank is dirty, wash it with cold or lukewarm water. Do not use detergent, scouring pads, chemically treated dustcloths, gasoline, benzene, thinner, or other solvents to clean it, as these can scratch and damage the tank and cause water to leak.

Operation

Drainage steps

Notation for drainage

2. Discard the water Guard Drain water from this point 3. Place back the drainage tank

● When place back the drainage tank, press the tank firmly into place with both hands. If the tank is not positioned properly, the “Tank Full” sensor will be activated, and the dehumidifier will not operate. Check to make sure the guards are firmly attached to the tank. If they are not, the drainage tank will be harder to remove. ● If the drainage tank is removed while the unit is in operation, or immediately after operation has stopped, water which is still in the cooling unit may drip out on the base plate. Wait at least 30 minutes before removing the drainage tank. (If water has dripped, wipe it up.)

Operation

Draining the water

Continuous drainage of water

The unit has a continuous drainage port. Using a commercial hose (with an inner diameter of 15mm ), the water in the drainage tank can be continuously drained out of the continuous port of the unit. When setting up the equipment for continuous drainage, always stop operation first and unplug the power supply plug.

1. Disconnect the drainage tank and open the continuous drainage port. Use nippers or a similar tool to cut away the continuous drainage port in the side of the main unit.

2. Push the hose into the continuous drainage port. Pass a commercial hose (with an inner diameter of 15mm) through the continuous drainage port, and press it firmly into the drainage port in the main unit, make sure water does not leak. The level height of drain piping should always be not higher than the one of the drainage port, also drain piping should always be not plugged up, so the condensed water can be drained out successfully.

3. Return the drainage tank to its original position. Check the hose periodically to make sure it is still connected and has not been obstructed.

Maintenance

Caring for the dehumidifier

Clean the main unitl

Wipe it with a soft cloth

Gasoline, benzene, thinners, scouring powder, chemically treated dustcloths, and detergents may damage the main unit and should not be used.

Clean the air filter

The air filter should be cleaned approximately once two week.

1. Remove the air filter.

Press downward on the tabs on the air filter to remove it.

2. Clean the air filter.

Run a vacuum cleaner lightly over the surface of the air filter to remove dirt. If the air filter is very dirty, wash it with warm water and a neutral cleaning solvent and dry it thoroughly.

3. Attach the air filter.

Insert the lower tabs of the air filter into the main unit and press the air filter until you hear the tabs click into place.

Maintenance

Storing the dehumidifier

When the unit is not to be used for a long period of time

1. Fold up the power supply cord and secure it to the holder.
2. Discard any water left in the drainage tank and wipe away any remaining drops with a cloth.
3. Clean the air filter.
4. Store the unit.

Package the unit to keep it free of dust, and keep it upstanding and store it at a cool and dry place.

Notation for safe operation

When use the unit, please observe the following safety precautions:

1. When the unit works in LAUNDRY mode, keep it an appropriate distance away from the clothings, and prevent the water from dropping onto it.

2. Before clean the unit or when do not use it for along period of time, unplug the power supply cord.

3. Do not wash the unit with water also put the unit close to water, explosive or flammable things.

4. Do not set the unit close to heat-generating devices or near inflammable and dangerous article.

5. Never put your fingers or objects into the intake or discharge ports.

6. Do not sit or stand on the unit.

7. Discard water that has collected in the tank timely.

8. Do not run the dehumidifier in an closed area such as inside closets, or fire can take place.

9. Do not use the unit for special purposes such as edible items, objects of art or scientific materials are stored.

10. Install drain piping in a downhill grade to make sure that condensed water can be drained continuously.

11. If the supply cord is damaged, it must be replaced by the manufacture or its service agent or a similarly qualified person in order to avoid a hazard.

Maintenance

- Removing breakdowns

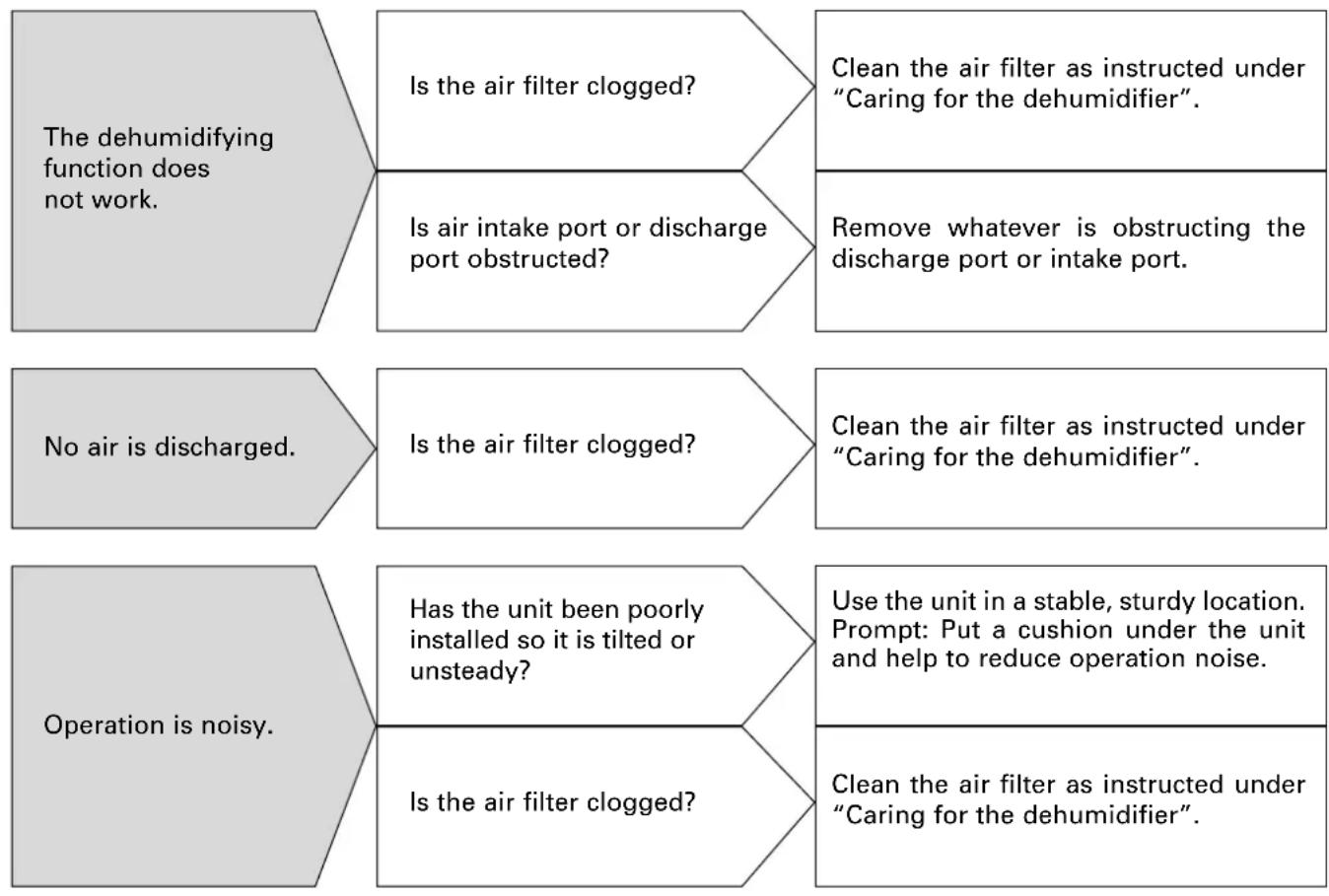

If a condition listed below occurs, please check the following items to help you to save your time and cost.

Condition Cause	What to do
The unit does not operate.	Has the power supply cord been disconnected? Plug the power supply cord into the outlet.
	Is the “灯” lamp blin-king?(The tank is full or in a wrong position.) Discard the water in the drainage tank, and then reposition the tank.
	Is the temperature of the room above 38°C or below 2°C. The protection device is actuated and the unit can not be started in case operation is under the bad environment (in that case, please do not use the dehu-midifier).

Maintenance

• After the above condition has occurred and corresponding step is used but the breakdown can not be removed or other breakdown occurs, please contact the authorized service centers.

Maintenance

- Removing breakdowns

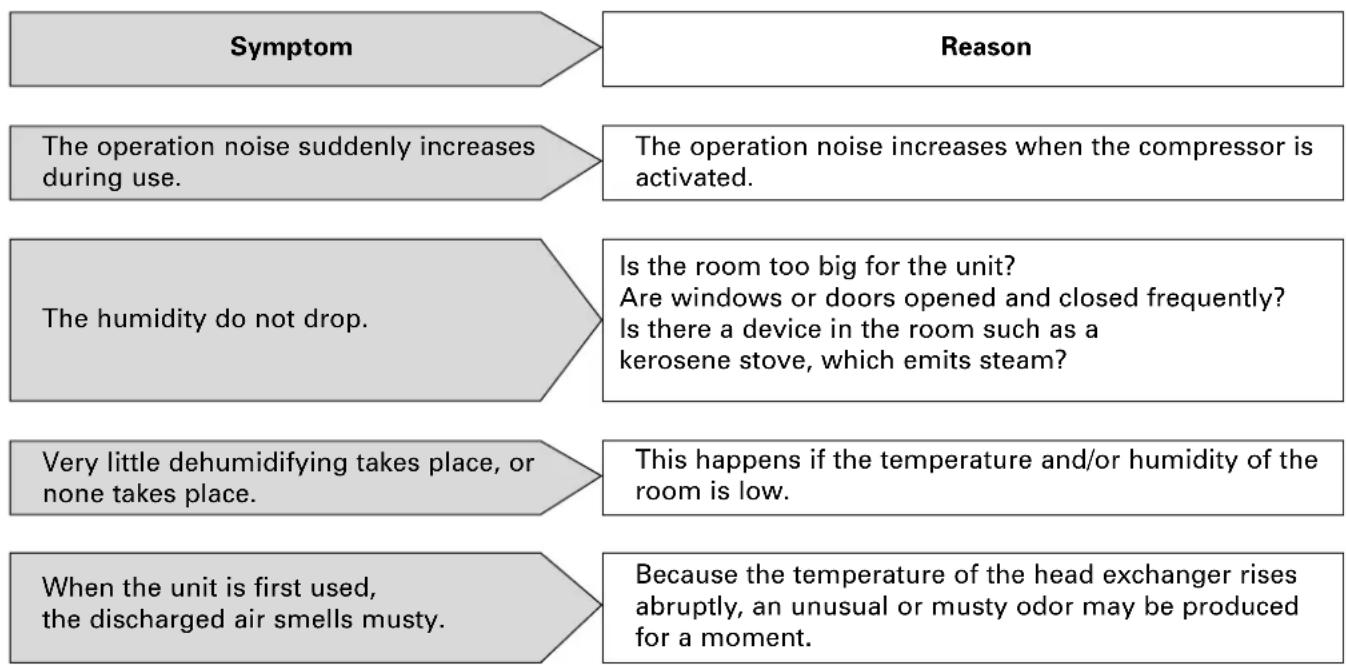

The following symptoms do not indicate a breakdown.

Maintenance

The unit echoes.

If the unit is used in a room with wood flooring or in a small room, it may echo.

When operation is started or the operation mode is changed, an unusual noise is heard in main unit.

The refrigerant may take some sound until circulation stabilizes.

There are some stains left in the drainage tank.

This is water left from the dehumidifying test conducted at the factory, it does not indicate a problem.

The unit only can run in laundry mode and it is ineffective to press mode switch.

When the temperature of the room is above 35^ or below 15^ the protection device is actuated, so that the unit only can run in LAUNDRY mode (the fan speed is high).

The fan is running and the compressor does not work.

If the unit is started within 3 minutes after the unit stops, the protection device is actuated, so that the compressor is started automatically after a delay of 3 minutes; or the automatic defrosting operation is activated and the compressor stops.

APENDIX

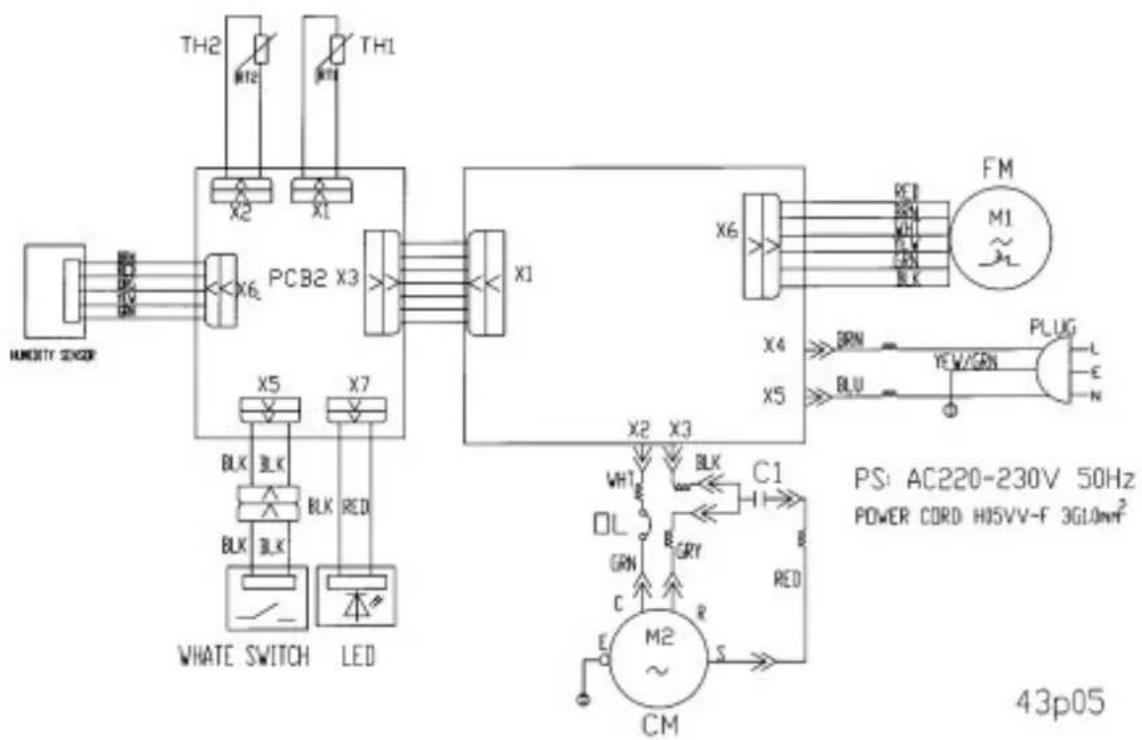

Electric Schematic Diagram
