USER MANUAL ADDH20 DAITSU

• Capacidad depósito 4,0 l (paro automático a 3,6 l aprox.)13 ENGLISH CONTENT Operation Notices Operation Area p. 14
• Safety Precautions p. 14

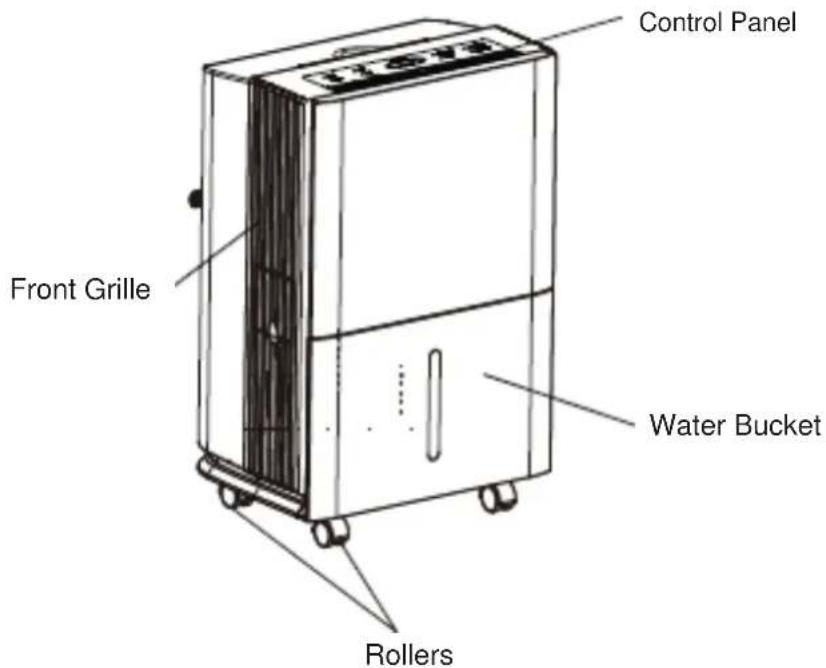

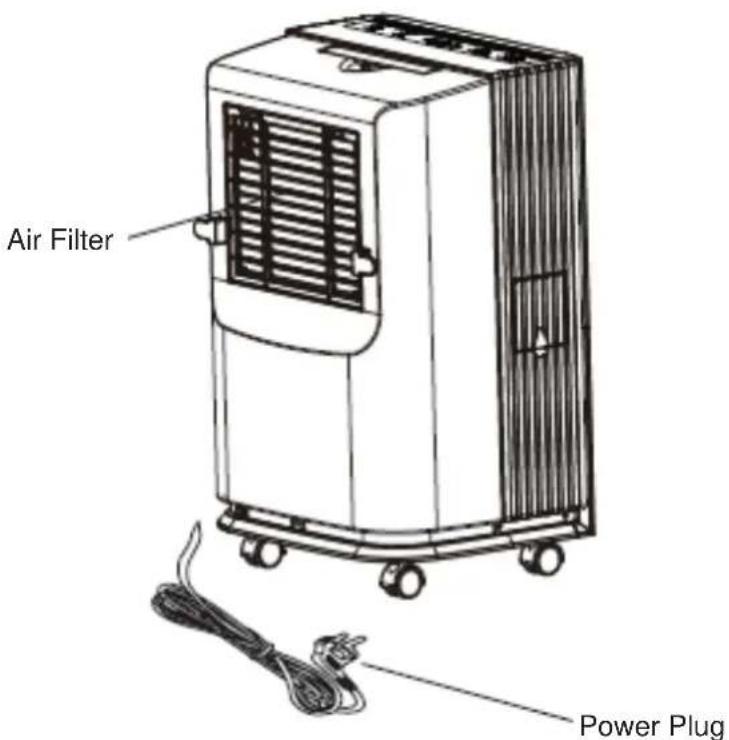

• Parts Name p. 16

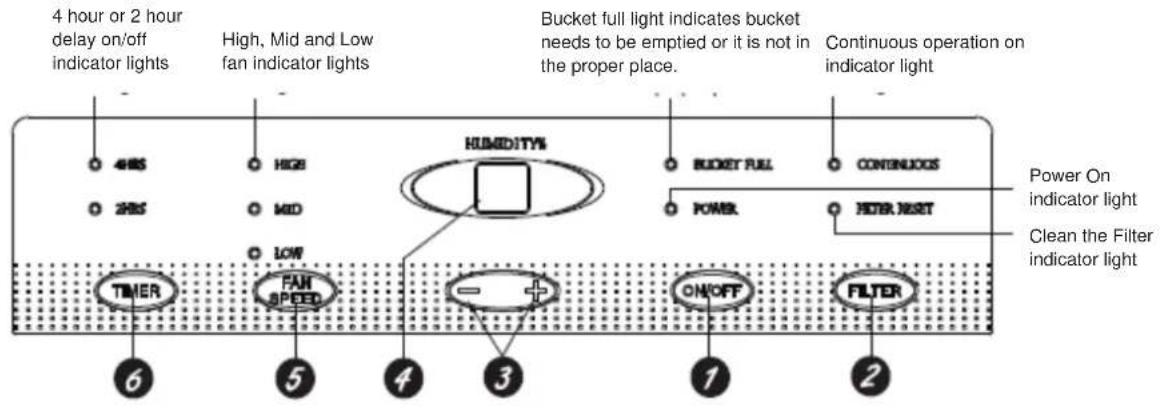

• Operation Instructions Operation Method p. 17
• Drainage Option p. 20
• Maintenance Clean and Maintenance p. 21
• Malfunction Troubleshooting p. 22
• Long term storage p. 23

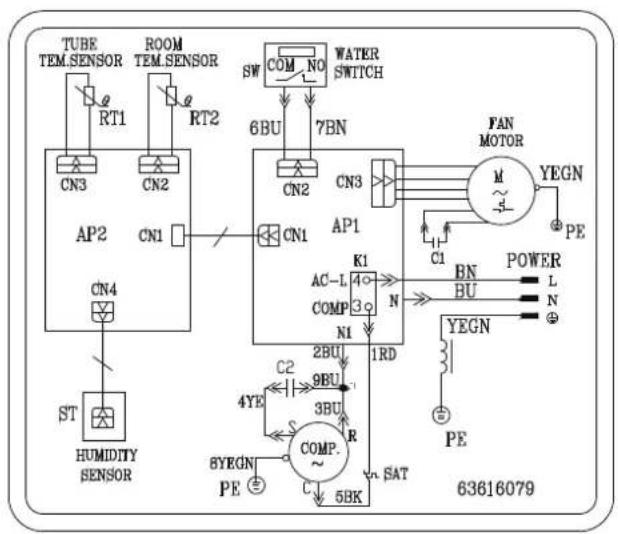

• Electric schematic diagram p. 23

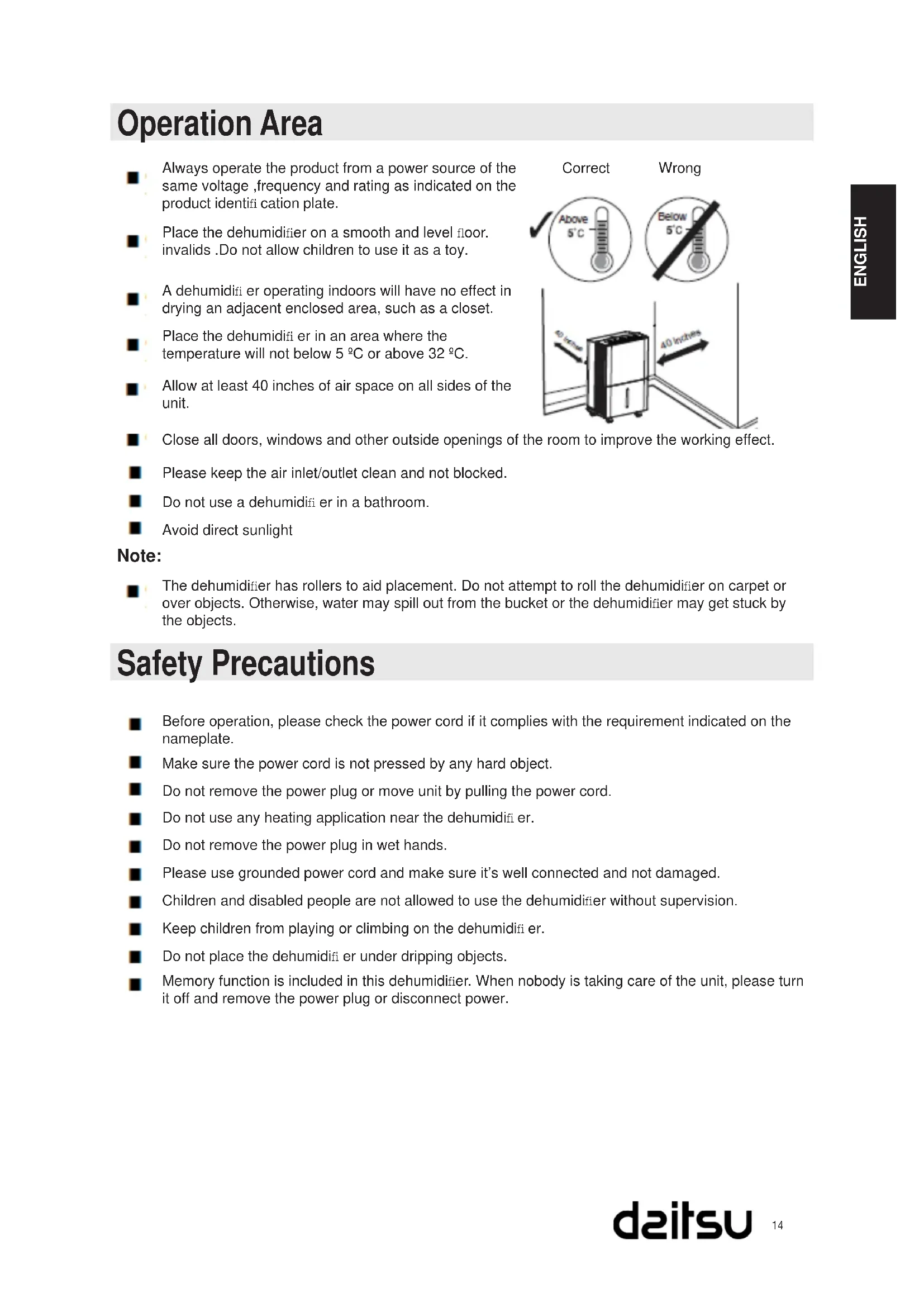

• Specifi cations (Graphics in this manual are only for reference. Please refer to actual products for specifi c details.)14 ENGLISH Operation Area Always operate the product from a power source of the same voltage ,frequency and rating as indicated on the product identifi cation plate. Correct Wrong Place the dehumidifi er on a smooth and level fl oor. invalids .Do not allow children to use it as a toy. A dehumidifi er operating indoors will have no effect in drying an adjacent enclosed area, such as a closet. Place the dehumidifi er in an area where the temperature will not below 5 ºC or above 32 ºC. Allow at least 40 inches of air space on all sides of the unit. Close all doors, windows and other outside openings of the room to improve the working effect. Please keep the air inlet/outlet clean and not blocked. Do not use a dehumidifi er in a bathroom. Avoid direct sunlight Note: The dehumidifi er has rollers to aid placement. Do not attempt to roll the dehumidifi er on carpet or over objects. Otherwise, water may spill out from the bucket or the dehumidifi er may get stuck by the objects. Safety Precautions Before operation, please check the power cord if it complies with the requirement indicated on the nameplate. Make sure the power cord is not pressed by any hard object. Do not remove the power plug or move unit by pulling the power cord. Do not use any heating application near the dehumidifi er. Do not remove the power plug in wet hands. Please use grounded power cord and make sure it’s well connected and not damaged. Children and disabled people are not allowed to use the dehumidifi er without supervision. Keep children from playing or climbing on the dehumidifi er. Do not place the dehumidifi er under dripping objects. Memory function is included in this dehumidifi er. When nobody is taking care of the unit, please turn it off and remove the power plug or disconnect power.15 ENGLISH Safety Precautions Do not repair or disassemble the unit by yourself. Damaged power cord must be replaced by qualifi ed technicians or manufacturer. If abnormal condition occurs (e.g. burned smell), please disconnect power at once and then contact local dealer. Dehumidifi er can not be disposed of everywhere. It you want to get rid of this dehumidifi er, please check with local handling disposal or information service center about what to do.16 ENGLISH Parts Name Front Side Back Side Accessories: 1.Drain Hose(5m): Adhered to the outside of unit before ex-factory. 2.Two drainage Joint and castors: Put them into accessories packing bag. Note: Drain hose and drainage joint and castors will be needed for drain hose. Please save them well. Control Panel Front Grille Water Bucket Rollers Power Plug Air Filter17 ENGLISH Operation Method 4 hour or 2 hour delay on/off indicator lights High, Mid and Low fan indicator lights Bucket full light indicates bucket needs to be emptied or it is not in the proper place. Continuous operation on indicator light Power On indicator light Clean the Filter indicator light Notes: Water bucket must be correctly installed for the dehumidifi er to operate. Do not remove the bucket while unit is in operation. If you want to use drain hose to drain water away, please install the hose according to section “Drainage method”. Each time pressing the effective button on the control panel will give out a “beep” sound. When power is connected, power indicator on the control panel will be on and dehumidifi er gives out a “beep” sound simultaneously. Operation Method ON/OFF Pad Press to turn the dehumidifi er on and off. FILTER Pad After 250 hours of operation, the Clean the Filter indicator light will glow to remind you toclean the fi lter. Remove the fi lter and clean it. Press to turn off the Clean the Filter light. See the Care and Cleaning section. Humidity Set ControlPads The humidity level can be set within a range of 80% RH (Relative Humidity) to 35% RH (Relative Humidity) in 5% reduce or at CO for continuous operation. NOTE: If CO (Continuous) is selected, the dehumidifi er will operate continuously at its maximum dehumidifi cation settings if attached to a hose to drain or until the bucket is full. For drier air, press the - pad and set to a lower percent value (%).For damper air, press the + pad and set to a higher percent value (%).When you fi rst use the dehumidifi er, set the humidity control to 45% or 50%. Allowat least 24 hours for the dehumidifi er toachieve the humidity level. If you still havedamper air than desired, set the humiditylevel to a lower setting or select Continuousfor maximum dehumidifi cation.18 ENGLISH This unit has 3-min lag due to the device for protecting circuit .In order to prolong the compressor’s working life, the compressor will not start until the unit has run for 3 minutes. Display Shows the set % humidity level while setting, then shows the actual (+/– 5% accuracy) room % humidity level. FAN SPEED Pad Controls the fan speed. Press to select High or Mid or Low fan speed. Set the fan control to High for maximum moisture removal. When the humidity has been reduced and quiet operation is preferred, set the fan control to Mid or Low. TIMER Pad If unit is turned on and running in timer mode for 2hr or 4hr,can turn off the unit. When unit stand by and running in timer mode for 2hr or 4hr can turn on the unit. Other Instructions BUCKET FULL Light Glows when the bucket is ready to be emptied,or when the bucket is removed or not replacedin the proper position. Alarm If the bucket is full or missing for more than three minutes, an alarm will soundfor about 10 seconds to remind you to empty and replace the bucket. Auto Shut Off The Water Level Control Switch shuts off the dehumidifi er when the bucket is full, or when the bucket is removed or not replaced in theproper position. Auto Defrost When frost builds up on the evaporator coils,the compressor will cycle off and the fan willcontinue to run until the frost disappears. Power Outage In the case of a power outage or interruption,the unit will automatically restart, in the settings last used, after the power is restored.20 ENGLISH Drainage Option Option 1 Emptying Manually p. 24

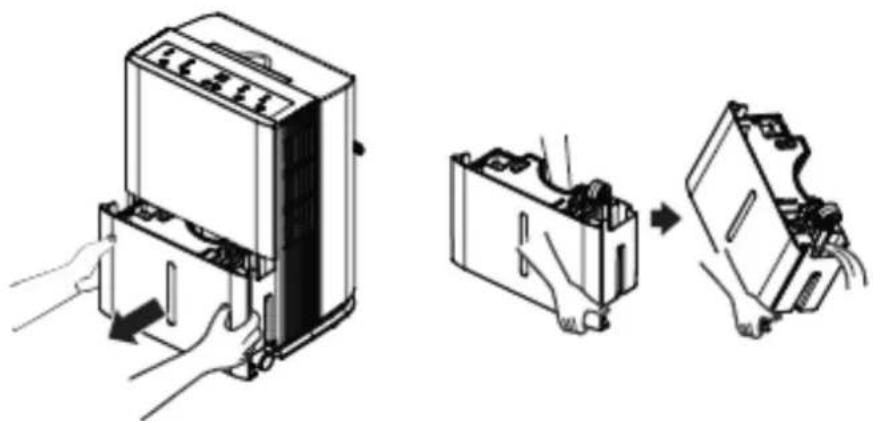

1. When the bucket is removed,the unit will shut off. Empty and replace the bucket.

Important: Do not use the hose if using the water tank to collect water. When the hose is connected, water will be drained out through it onto fl oor instead of into the tank. NOTES: Do not remove the bucket while the unit is in operation or it has just stopped. Otherwise it may cause some water to drip from the draining pan. The bucket must be in place and securely seated for the dehumidifi er to operate. Please keep the drain rubber plug carefully.To prevent the water from fl owing out of the water tank, make sure that the rubber plug has been fi rmly inserted into the drain joint before starting up the unit. Option 2 Gravity Drain Hose

1. Water will automaticallyfl ow into a fl oor drain by attaching a 14mm inner diameter

hose (not included).

1) Open the drain cover on the side of the unit.

2) Pull out the rubber stopper on drainage joint.

3) Connect the hose to the drain tie-in. and lead it to the

fl oor drain. Water Level 1.The dehumidifi er will turn of f automatically when the bucket is full, or when the bucket isremoved or not placed in the proper position. 2.The bucket must be replaced in the proper position forthe dehumidifi er to work. The light will be on and the dehumidifi er will not run if the bucket is not in theproper position.21 ENGLISH Clean and Maintenance Warning Before cleaning, turn off the dehumidifi er and disconnect power. Otherwise it may lead to electric shock. Do not wash the dehumidifi er with water, or it may lead to electric shock. Do not use volatile liquid(such as thinner or gasoline) to clean dehumidifi er. Otherwise it will damage unit’s appearance.

To clean the case: When there is dust on the case, use soft towel to dust it off; When the case is very dirty(greasy), use mild detergent to clean it.

Every few weeks, clean the bucket to prevent growth of mold, mildew and bacteria. Use soft brush to clean the bucket and then rinse it.

Dehumidifi er will remind you to clean the air fi lter when it has been operating for 250 hours. If it is used in dusty places, clean the air fi lter more often.

o remove: 1.Press both sides of air-in grille, pull it along the arrow direction and then pull the air-in grille upwards. 2.Pull the fi lter from the middle clasps, bend the fi lter to let it separate from upper clasps and then remove the fi lter. To clean: Clean the fi lter in warm, soapy water. Rinse it and let the fi lter dry before replacing it. Grille Buttons Warning Do not operate the dehumidifi er without a fi lter. Otherwise the evaporator will catch dust and affect unit’s performance. Do not dry the air fi lter with fi re or electric hair dryer. Otherwise the air fi lter may be unshaped or caught on fi re.22 ENGLISH Problem Possible Causes What To Do Dehumidifi er does not start The humidifi er is umplugged

• Make sure the dehumidifi er’s plug is pushed completely into the outlet. Dehumidifi er has reached its preset level or bucket is full.

Bucket is not in the proper position.

• The bucket must be in place and securely seated for the dehumidifi er to operate. Power failure.

• There is a protective time delay (up to 3 minutes) to prevent tripping of the compressor overload. For this reason, the unit may not start normal dehumidifying for 3 minutes after it is turned back on. Dehumidifi er does not dry the air as it should Did not allow enough time to remove the moisture.

• When fi rst installed, allow at least 24 hours to maintain the desired dryness. Airfl ow is restricted. • Make sure there are no curtains, blinds or furniture blocking the front or back of the dehumidifi er. See the Choosing a Location section. Dirty fi lter. • See the Care and Cleaning section. The Humidity Control may not be set low enough.

• For drier air, press the “ - ” pad and set to a lower percent value (%) or at CO (continuous) for maximum dehumidifi cation. Doors and windows may not be closed tightly

• Check all doors, windows and other openings are securely closed. Clothes dryer may be blowing moisture-laden air into the room.

The dryer should be vented to the outside. Room temperature is too low

• Moisture removal is best at higher room temperatures. Lower room temperatures will reduce the moisture removal rate. Models are designed to be operated at temperatures above 5°C. Dehumidifi er runs too much Area to be dehumidifi ed is too large.

The capacity of your dehumidifi er may not be adequate. Doors and windows are open.

• Close all doors and windows to the outside. Frost appears on the coils Dehumidifi er has been recently turned on, or room temperature is below 5°C.

• This is normal. Frost will usually disappear within 60 minutes. See the Automatic Defrost section. Controls cannot be set The compressor will turn off and the fan will automatically continue to run for approximately 3 minutes at a fi xed setting.

This is normal. W ait approximately 3 minutes and set the fan as desired. Fan noise There is sound created when wind passing the unit. That is the sound of wind.

This is normal. Water on fl oor Hose connection may be loose.

• Check the hose connection. See the Removing Collected W ater section. Intend to use the bucket to collect water, but a hose is attached.

• Disconnect the hose if using the bucket to collect water . See the Removing Collected Water section.23 ENGLISH Long term storage When you do not use the unit for along period, we suggest you to take following steps to store the unit in a good condition: Make sure there is no water left in the water tank and take off the draining hose Take off the power cord and plug and warp them well. Clean the unit and packed it well to keep it from dust. Electric schematic diagram ADDH-10 ADDH-12 ADDH-20 J124 ENGLISH Specifi cations Model ADDH-10 ADDH-12 Rated Voltage 220-240 V~ Rated Frequency 50Hz Rated Power 330 W 330 W Moisture Removal 10 L/DAY 12 L/DAY Sound Power Level 53dB(A) 53dB(A) Operating Temperature 5 ºC- 35 ºC Weight

Tank capacity 4,0 l (Automatic stop at about 3.6L)25 FRANÇAIS
