USER MANUAL TA 7280 W GRUNDIG

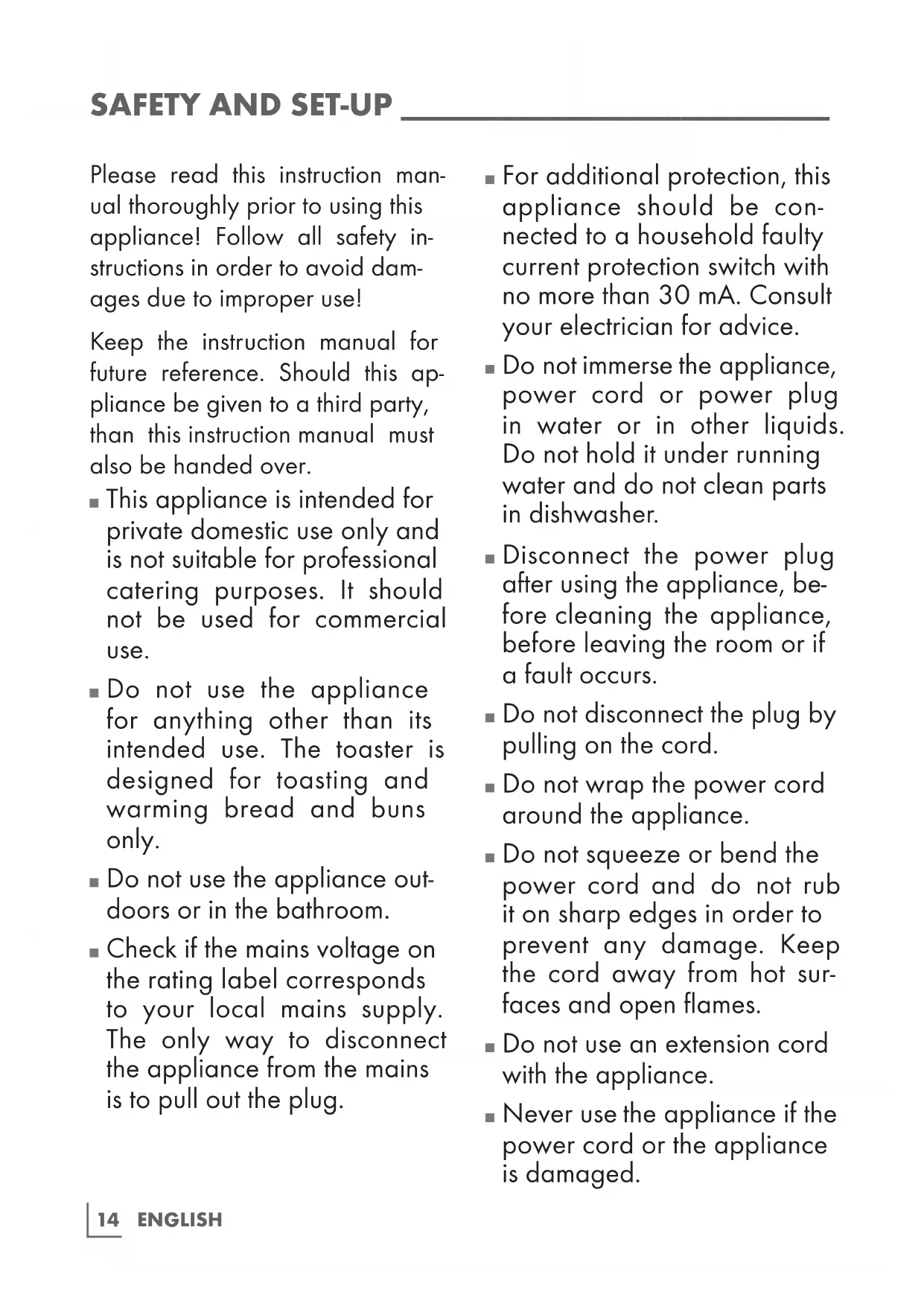

Please read this instruction man- ual thoroughly prior to using this appliance! Follow all safety in- structions in order to avoid dam- ages due to improper use! Keep the instruction manual for future reference. Should this ap- pliance be given to a third party, than this instruction manual must also be handed over.

This appliance is intended for private domestic use only and is not suitable for professional catering purposes. It should not be used for commercial use.

Do not use the appliance for anything other than its intended use. The toaster is designed for toasting and warming bread and buns only.

Do not use the appliance out- doors or in the bathroom.

Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

For additional protection, this appliance should be con- nected to a household faulty current protection switch with no more than 30 mA. Consult your electrician for advice.

Do not immerse the appliance, power cord or power plug in water or in other liquids. Do not hold it under running water and do not clean parts in dishwasher.

Disconnect the power plug after using the appliance, be- fore cleaning the appliance, before leaving the room or if a fault occurs.

Do not disconnect the plug by pulling on the cord.

Do not wrap the power cord around the appliance.

Do not squeeze or bend the power cord and do not rub it on sharp edges in order to prevent any damage. Keep the cord away from hot sur- faces and open flames.

Do not use an extension cord with the appliance.

Never use the appliance if the power cord or the appliance is damaged.15 ENGLISH

Our GRUNDIG Household Ap- pliances meet applicable safety standards, thus if the appliance or power cord is damaged, it must be repaired or replaced by the dealer, a service cen- tre or a similarly qualified and authorized service person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks to the user.

Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by im- proper handling.

Always keep the appliance out of the reach of children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervi- sion or instruction concerning use of the appliance in a safe way and understand the haz- ards involved. Children shall not play with the appliance. Cleaning and user mainte- nance shall not be made by children without supervision.

Do not leave the appliance unattended while it is in use. Extreme caution is advised when the appliance is being used near children and peo- ple with limited physical, sen- sory or mental capabilities.

Before using the appliance for the first time, clean all parts. Please see details in the “Cleaning and care” section.

Dry the appliance and all parts before connecting it to mains supply and before at- taching the parts.

Never operate or place any part of this appliance on or near to hot surfaces such as gas burner, hotplate or heated oven.

The bread can catch fire be- cause of overheating. Never use the appliance in or near to combustible, inflammable places, materials and furni- ture. Do not let the appliance come into contact with or be- come covered by inflammable materials such as curtains, tex- tiles, walls, etc.16 ENGLISH

Do not use paper, cardboard, plastic in or under the appli- ance.

Use bread slices which are suitable for the bread slots.

Operate the appliance with delivered parts only.

Do not use the appliance with damp or wet hands.

Always use the appliance on a stable, flat, clean, dry and non-slip surface.

Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.

Position the appliance in such a way that the plug is always accessible.

Avoid contacting hot surfaces as the outer casing becomes warm during use. There is the danger of burning.

Do not stick any foreign ob- jects into the appliance.

This appliance must not be op- erated with an external clock timer or separate remote con- trol system.

When using for the first time, smoke can develop due to production residues. However, this does not mean the appli- ance is defective. The first time you switch it on, use the appli- ance as you normally would, but without bread. Ensure for proper room ventilation.

To avoid the risk of fire, fre- quently remove crumbs from the crumb tray.

Do not use the toaster without the crumb tray in place.

Do not use this product with any foodstuff product contain- ing sugar or with products containing jam or preserves.

Do not toast the bread with ex- tremely runny ingredients such as butter.

Do not attempt to extract any jammed toast, muffins, bagels, bread or any other item with a knife or any other object, as contact with live elements may cause electric shock.17 ENGLISH

If the toaster begins to emit smoke during operation, im- mediately stop the toasting process. Should bread get stuck in the toaster always un- plug the appliance before you pull out the bread. Be careful the bread may be very hot.

Do not use any tools or ob- jects in the appliance. Metal objects could cause short cir- cuits or an electric shock. Do not damage the heating ele- ments and mechanics.

Do not use the appliance as a source of heat.

Do not attempt to dislodge bread when the appliance is switched on.18 ENGLISH Dear Customer, Congratulations on the purchase of your new GRUNDIG Stainless Steel Toaster TA 7280/ TA 7280 W/G. Please read the following user notes carefully to ensure you can enjoy your quality product from GRUNDIG for many years to come. A responsible approach! GRUNDIG focuses on contractu- ally agreed social working condi- tions with fair wages for both internal employees and suppliers. We also attach great importance to the efficient use of raw materials with continuous waste reduction of several tonnes of plastic every year. Furthermore, all our acces- sories are available for at least 5 years. For a future worth living. For a good reason. Grundig. Controls and parts See the figure on page 3.

Preparation 1 Remove all packaging and sticker materials and dispose of them according to the applicable local regulations. 2 Before using the appliance for the first time, clean the appliance (See the “Cleaning and care” section). 3 Make sure that the appliance is in an upright position and on a stable, flat, clean, dry and nonslip surface. Note

When using the appliance for the first time, smoke can develop due to production residues. However, this does not mean the appliance is defective. The first time you switch it on use the appliance as you normally would but without bread. It is recommended to use the medium set- ting of the browning control

. Ensure for proper room ventilation. Toasting 1 Connect the power plug into the wall socket. 2 Insert only one slice of bread in each of the two bread slots

select the de- sired degree of browning between 1 and 7. Notes

Pushing 1 from the browning control

will give the lightest degree of browning and push- ing 7 the darkest.

The browning degree can vary depending on the type of bread.

When toasting several slices of bread consecu- tively, the toaster will become hotter and there- fore the bread will gradually become darker. Therefore select an appropriate browning de- gree. Let the toaster cool down after each toast- ing process for minimum 30 seconds. OPERATION ______________________________19 ENGLISH OPERATION ______________________________

The browing degree of one slice is darker than two slices, although the browning control

set to the same level. 4 Press the start lever

until it automatically snaps into place. – The toasting process begins. The indicator light of the stop button

and the button of the browning control level

illuminates during the toasting process. Notes

If the power plug is not connected to the wall socket, the start lever

does not snap into place.

The degree of browning can also be adjusted during the toasting process with the browning control

5 The appliance automatically switches off as soon as the set degree of browning has been reached. – The start lever

springs back up and the stop button

light goes off. The toast slices are pushed upwards and can be taken out of the toaster. Notes

To cancel the toasting process before it has fin- ished, press the stop button

springs back up and the toast slices can be taken out of the toaster.

After the start lever

springs back up, you can use the high-lift function by pushing the start lever

Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot. 6 Disconnect the appliance from the wall socket. Note

If toast slices get stuck in the toaster, switch the toaster off immediately by pressing the stop button

. Pull the power plug out of the wall socket. Let the toaster cool down completely. Carefully try to take the bread out of the toaster without damaging the sensitive heating ele- ments and other parts. Do not use any electro- conductive objects to remove the bread from the toaster. Toasting frozen bread 1 Follow the steps from 1 to 4 of the “Toasting” section. 2 Press the defrost button

illuminate and the toast- ing process begins. Note

is pressed, the toasting process takes longer than with normal toasting. 3 The appliance automatically switches off as soon as the set degree of browning has been reached. – The start lever

lights go off. The toast slices are pushed upwards and can be taken out of the toaster. Notes

To cancel the toasting process before it has fin- ished, press the stop button

springs back up and the toast slices can be taken out of the toaster.

After the start lever

springs back up, you can use high-lift function by pushing the start lever

Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot.20 ENGLISH 4 Disconnect the appliance from the wall socket. Warming up already toasted bread 1 Follow the steps from 1 to 4 of the “Toasting” section. 2 Press the reheat button

– The indicator lights of the reheat button

illuminate and the warming up process begins. 3 The appliance automatically switches off as soon as the set degree of warming has been reached. The start lever

springs back up; re- heat button

lights go off. The toast slices are pushed upwards and can be taken out of the toaster. Notes

To cancel the toasting process before it has fin- ished, press the stop button

springs back up and the toast slices can be taken out of the toaster.

After the start lever

springs back up, you can use high-lift function by pushing the start lever

Be very careful when taking the toast slices out of the toaster as the metal parts of the toaster and also the bread can become very hot. 4 Disconnect the appliance from the wall socket. Warming up buns This toaster is equipped with an external warm- ing rack

Do not toast bread and warm up buns at the same time.

Do not warm up toast slices on the warming rack

If you accidentally activate the wrong mode (defrost instead of reheat or reheat instead of defrost), then the selected mode must be can- celled first by pressing the stop button

be- fore you can select the right mode. 1 Put the warming rack on the housing

and place it into the gaps 2 Place the buns on the warming rack

3 Connect the power plug into the wall socket. 4 Using the browning control

select the de- sired degree of warming. 5 Press down the start lever

– The indicator light of the stop button

il- luminates and the warming up process be- gins. 6 Turn the buns in order to reach a consistent browning. 7 The appliance automatically switches off as soon as the set degree of warming has been reached. – The start lever

springs back up; and the stop button

To stop the warming up process before it has finished press the stop button

8 After warming up the buns take them off the rack and and put the warming rack by the warming rack handles off. 9 Disconnect the appliance from the wall socket. Caution

The buns and the housing

of the toaster can become very hot during and directly after the toasting process. Do not touch them with bare hands.21 ENGLISH Cleaning and care Caution

Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the ap- pliance.

Never put the appliance or power cord in water or any other liquids. 1 Turn the appliance off and disconnect it from wall socket. 2 Let the appliance cool down completely. 3 Remove the crumbs after each use by pulling out the crumb tray

. Before pushing back the crump tray in the appliance make sure that the tray is dry. Do not let bread crumbs accumulate inside the toaster, they may cause fire. 4 Turn the toaster upside down and shake it slightly to remove bread crumbs from inside. 5 Use a damp soft cloth and a small mild cleanser to clean the housing

of the appli- ance. Dry the housing thoroughly. Note

Before using the appliance after cleaning, dry all parts carefully using a soft towel. Storage If you do not plan to use the appliance for a long period of time, please store it carefully. Make sure the appliance is unplugged, cooled down and completely dry. Wrap the power cord around the cable coil on the bottom of the toaster. Store the appliance in a cool, dry place. Make sure the appliance is kept out of the reach of children. Environmental Note This product has been made from high-quality parts and materials which can be re-used and are suitable for recycling. Therefore, do not dispose of the prod- uct with normal household waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. This is indicated by this symbol on the product, in the operating manual and on the packaging. Please consult your local authorities to find out where the nearest collection point is. Help protect the environment by recycling used products. Technical data Power supply: 220-240 V

, 50/60 Hz Power: 730-870 W Technical and design modifications reserved. INFORMATION ___________________________22
