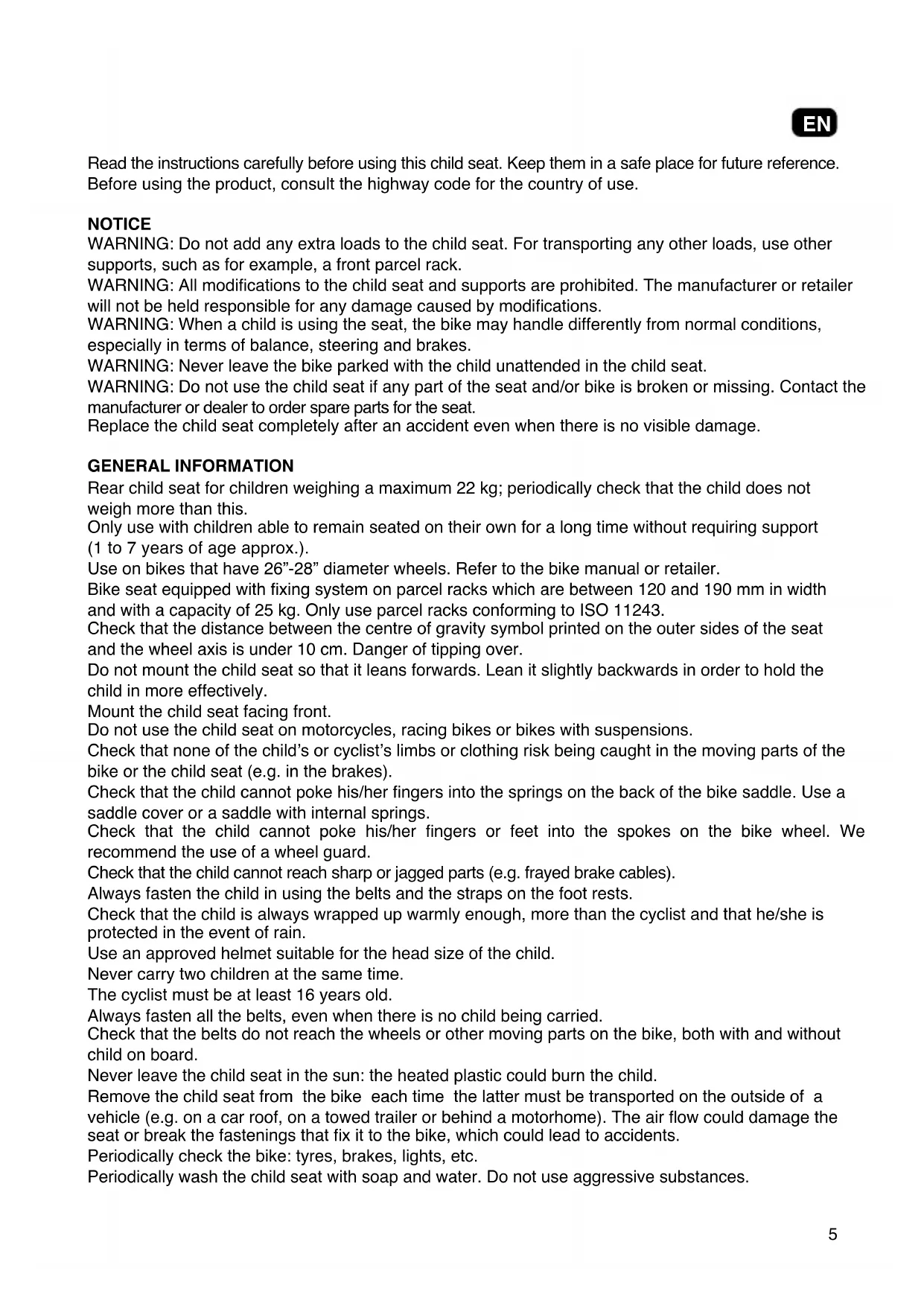

Read the instructions carefully before using this child seat. Keep them in a safe place for future reference.

Before using the product, consult the highway code for the country of use.

NOTICE

WARNING: Do not add any extra loads to the child seat. For transporting any other loads, use other supports, such as for example, a front parcel rack.

WARNING: All modifications to the child seat and supports are prohibited. The manufacturer or retailer will not be held responsible for any damage caused by modifications.

WARNING: When a child is using the seat, the bike may handle differently from normal conditions, especially in terms of balance, steering and brakes.

WARNING: Never leave the bike parked with the child unattended in the child seat.

WARNING: Do not use the child seat if any part of the seat and/or bike is broken or missing. Contact the manufacturer or dealer to order spare parts for the seat.

Replace the child seat completely after an accident even when there is no visible damage.

GENERAL INFORMATION

Rear child seat for children weighing a maximum 22kg ; periodically check that the child does not weigh more than this.

Only use with children able to remain seated on their own for a long time without requiring support (1 to 7 years of age approx.).

Use on bikes that have 26"-28" diameter wheels. Refer to the bike manual or retailer.

Bike seat equipped with fixing system on parcel racks which are between 120 and 190mm in width and with a capacity of 25kg . Only use parcel racks conforming to ISO 11243.

Check that the distance between the centre of gravity symbol printed on the outer sides of the seat and the wheel axis is under 10cm . Danger of tipping over.

Do not mount the child seat so that it leans forwards. Lean it slightly backwards in order to hold the child in more effectively.

Mount the child seat facing front.

Do not use the child seat on motorcycles, racing bikes or bikes with suspensions.

Check that none of the child's or cyclist's limbs or clothing risk being caught in the moving parts of the bike or the child seat (e.g. in the brakes).

Check that the child cannot poke his/her fingers into the springs on the back of the bike saddle. Use a saddle cover or a saddle with internal springs.

Check that the child cannot poke his/her fingers or feet into the spokes on the bike wheel. We recommend the use of a wheel guard.

Check that the child cannot reach sharp or jagged parts (e.g. frayed brake cables).

Always fasten the child in using the belts and the straps on the foot rests.

Check that the child is always wrapped up warmly enough, more than the cyclist and that he/she is protected in the event of rain.

Use an approved helmet suitable for the head size of the child.

Never carry two children at the same time.

The cyclist must be at least 16 years old.

Always fasten all the belts, even when there is no child being carried.

Check that the belts do not reach the wheels or other moving parts on the bike, both with and without child on board.

Never leave the child seat in the sun: the heated plastic could burn the child.

Remove the child seat from the bike each time the latter must be transported on the outside of a vehicle (e.g. on a car roof, on a towed trailer or behind a motorhome). The air flow could damage the seat or break the fastenings that fix it to the bike, which could lead to accidents.

Periodically check the bike: tyres, brakes, lights, etc.

Periodically wash the child seat with soap and water. Do not use aggressive substances.

MOUNTING THE CHILD SEAT

Do not carry out mounting operations with the child in the seat.

Make sure you have all the components before proceeding with assembly (fig. A).

Gently pull the knob (8) towards you and turn it anti-clockwise to open the clasps on the support plate.

Place the child seat on the parcel rack (fig. B).

Warning: Check that the distance between the centre of gravity symbol printed on the outer sides of the seat and the wheel axis is under 10 cm. Danger of tipping over.

Gently pull the knob (8) towards you and turn it completely clockwise to lock the clasps onto the parcel rack (fig. C).

Warning: after locking the clasps, check that the child seat cannot move back and forth on the parcel rack.

Warning: Periodically check that the clasps are tight to the parcel rack: clasps can become loose with use.

Hook the additional safety belt (1) to the bike frame (fig. D).

WARNING: the additional safety belt must always be hooked to the bike frame.

Taking the child seat off the bike

Unhook the additional safety belt (1).

Gently pull the knob (8) towards you and turn it anti-clockwise to open the clasps on the support plate.

Lift the child seat off the parcel rack.

ADJUSTING THE CHILD SEAT

Before using the seat, check to make sure that the safety belts and foot rest positions are fitted to your child's size.

The safety belts must be positioned just above the child's shoulders.

The child should be able to completely rest his or her feet on the foot rests.

Do not adjust the safety belts or the foot rests while the child is in the seat.

Adjusting the safety belts

Remove the belt through the hole in the backrest.

Insert the safety belt through the hole in the backrest at the desired height (fig. E).

Repeat the same operation for the other safety belt.

Adjusting the foot rests.

Turn the locking lever (9) behind the foot rest upwards (fig. F).

Move the foot rest (11) upwards or downwards to the desired position.

Close the locking lever (9) by pushing it downwards until you hear a click.

Repeat the same operation for the other foot rest.

FINAL CHECK

Push the bicycle for several meters by hand, checking to make sure that no moving parts touch the child seat, that none of the safety belts stick out around the wheel, and that the bicycle brakes and pedals still work properly.

PLACING THE CHILD IN THE SEAT

Press the button on the large central buckle (2) until you hear a click showing that the hook has been released (fig. G).

Pull upwards to extract the buckle.

Seat the child.

Pull the safety belts down over the child's head (fig. H).

Fasten the large central buckle to the opening nearest the child (fig. 1). Push the buckle all the way into the opening until you hear a click.

Adjust the belt holders (3 and 4) on the safety belt so that the belt adheres to the child's body (fig. L).

Place the child's feet in the foot rests.

Close the strap (10) and fasten it to the pin on the back of the foot rest (fig. M).

When travelling, periodically check that the child is properly belted.

REMOVING THE CHILD FROM THE SEAT

Loosen the straps (10) restraining the child's feet.

Press the button on the large central buckle (2) until you hear a click showing that the hook has been released.

Pull upwards to extract the buckle.

Pull the safety belts up over the child's head.

GUARANTEE

For the guarantee clauses, visit the website www.belllli.com.

RECYCLING

1. PA + PP
2. PC + ABS
3. PA
4. PA
5. See label
6. PP
7. PP
8. PA + steel
9. PP
10. PE
11. PP
