Product type	Milk frother
Brand	Solis
Model	Cremalatte 869
Weight	approx. 1.20 kg
Minimum capacity	150 ml
Maximum capacity	350 ml (for froth)
Functions	Hot/cold milk froth, milk heating, hot/cold chocolate, mixing
Included attachments	2 attachments (with serration for froth, without serration for mixing)
Pot material	Glass
Control	Touch with display
Safety	Automatic shut-off, pot presence detection
Pot cleaning	Dishwasher (top rack)
Motor block cleaning	Soft cloth, do not immerse
Warranty	2 years (with proof of purchase)
Customer service (Switzerland)	091 802 90 10
Heating plate	Yes
Filling marks	MIN 150 ml, MAX 350 ml

Frequently Asked Questions - Cremalatte 869 Solis

What if the appliance does not start?

Check that the appliance is properly plugged in and the outlet is powered. Make sure the glass pot is correctly placed on the heating plate. If the problem persists, contact Solis customer service.

Why is the milk not frothing?

Use semi-skimmed milk (1.5% fat) and cold. Check that the serrated attachment is correctly installed. Adding chocolate or cocoa can reduce froth.

How to clean the milk frother?

Unplug the appliance and let it cool. Wash the pot and lid with warm soapy water or in the dishwasher (top rack). Rinse the attachments under running water. Clean the motor block with a soft, dry cloth.

Can I put the glass pot in the dishwasher?

Yes, the glass pot can be washed in the dishwasher (top rack). However, frequent washing may affect its appearance and markings.

How much milk should I use for frothing?

Fill the pot between the MIN (150 ml) and MAX (350 ml) marks. Do not exceed 350 ml to avoid overflow during frothing.

How to prepare hot chocolate?

Place the attachment (with or without serration), pour cold milk (between MIN and MAX), add up to 20 g of chocolate or cocoa powder, close, and select the heating/mixing program (chocolate symbol). The appliance stops automatically after approx. 5 to 7 minutes.

Can the appliance operate without the glass pot?

No, the appliance is designed to operate only with the supplied glass pot. A safety switch prevents operation if the pot is not correctly placed.

How to choose the right attachment?

Use the serrated attachment to froth milk (hot or cold). Use the attachment without serration to heat or mix milk without froth (e.g., hot chocolate).

Is the appliance suitable for commercial use?

No, the Solis Cremalatte 869 is intended for household use only. Commercial use is not recommended and would reduce the warranty to 12 months.

What to do in case of malfunction or defect?

Consult the 'Problems and solutions' section of the manual first. If the problem persists, contact Solis customer service (in Switzerland: 091 802 90 10). Do not attempt to repair the appliance yourself.

USER MANUAL Cremalatte 869 Solis

Exterior view of a modern glass coffee maker with a black handle and digital display (no visible text or symbols)

Illustration of a hand holding a ring above a cylindrical object with an arrow indicating upward motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

MAX 250ml MIN

Illustration of a hand pressing down a circular object with a downward arrow, next to a cylindrical container (no text or symbols)

Line drawing of a coffee maker with a lid and base, showing the process (no text or symbols)

Solis

Diagram showing three steps of a hand washing a water tap, with one step using a tool to clean the surface.

Two-step diagram showing a hand pouring liquid into a container with a lid, no text or symbols present.

Abb. 17 Abb. 18

▲ PROBLEMBEHEBUNG

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

SOLIS

091

HELPLINE:

802

90

Solis of Switzerland AG

Illustration of a hand pressing down on a circular object with a downward arrow (no text or symbols)

Illustration of a coffee maker with a stand mixer and fan base (no text or symbols)

Solis

fig. 4 fig. 5 fig. 6

Diagram showing three steps of a hand washing a water tap, with one step using a tool to clean the surface.

fig. 14 fig. 15 fig. 16

Two-step diagram showing a hand pouring liquid into a container with a lid, no text or symbols present.

fig. 17 fig. 18

▲ DEPANNAGE

Solis of Switzerland SA

Solis-Haus • CH-8152 Glattbrugg-Zurich • Suisse

Illustration of a hand holding a ring above a cylindrical object with an arrow indicating upward motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

MAX 250ml MIN

Illustration of a hand pressing down a circular object with a downward arrow, next to a cylindrical container (no text or symbols)

Line drawing of a coffee maker with a lid and base, showing the process (no text or symbols)

Solis

Diagram illustrating three steps of a hand washing a water tap, showing the process with a valve and a device.

Fig. 14 Fig. 15 Fig. 16

Two-step diagram showing a hand pouring liquid into a container with a lid, no text or symbols present.

Fig. 17 Fig. 18

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

SOLIS HELPLINE: 091 802 90 10

Solis of Switzerland SA

Solis-Haus • CH-8152 Glattbrugg-Zurigo • Svizzera Telefono [phone] • Fax [phone] [e-mail] • www.solis.ch • www.solis.com

▲ IMPORTANT SAFETY PRECAUTIONS

Please read through this user manual thoroughly before using your Solis Cre-malatte so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent electric shock, neither the motor base nor the power cord or plug must come into contact with water or other liquids. Water can enter the housing and damage the appliance! Should the motor base resp. the power cord or plug come into contact with liquids, use dry rubber gloves to pull the power plug from the socket.
2. Do not operate or unplug the appliance with wet or moist hands or feet.
3. Before using the appliance, check that the voltage stated on the type plate matches your mains voltage.
4. Place the appliance while in function on a solid, stable, clean and dry surface, like a table or work top. Vibration during operation may cause the appliance to move. Therefore do not place the milk frother near the edge of a bench or table during operation. Do not use the appliance outdoors.
5. Do not leave the power cable hanging over table edges so that it can be pulled. Make sure that it does not come into contact with hot surfaces, such as hotplates or a radiator, or that it comes into contact with the appliance. Fully unwind the cord before use.
6. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.
7. Never carry the appliance by the power cable and do not place it on the power cable.
8. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.
9. Unplug the appliance when it is not in use or unattended and before cleaning. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maximum. For professional advice consult an electrician.

10. Do not make any adjustments to the appliance, cable, plug or accessories.

11. Do not leave the milk frother unattended when in use. Incorrect use may cause injury!

12. Never take hold of an appliance that has fallen into water. Always take the plug out of the power socket before removing the appliance from the water. Do not use the appliance again until you have had it's ability to function safely checked by Solis or a Solis approved service centre.
13. Never place the milk frother in a place where it could fall into water (e.g. next to a sink).
14. Place the appliance so that it is never exposed to direct sunlight.
15. Never put sharp or pointed objects and tools into the appliance openings. The appliance may become damaged – danger of electric shock!
16. Do not shake or relocate the appliance while it is in operation.
17. Use the Solis Cremalatte only for frothing or stirring resp. heating up milk or hot chocolate.
18. Use the appliance only as described in this manual. Never switch the appliance on without the glass jug in place or with an empty glass jug. Improper use can cause personal injury.
19. Only use with the provided accessories, or accessories recommended by Solis, incorrect accessories can lead to damage of the appliance.
20. This appliance is only for domestic use and is not suitable for commercial use. Do not use in moving vehicles or boats.
21. Check your milk frother before every use.
22. In order to avoid electric shock, do not use the appliance if the cable or plug are damaged or the appliance is otherwise faulty, dropped or damaged. Never attempt repairs yourself, but take your appliance to Solis or a Solis approved service centre in order to get it inspected or mechanically and electrically repaired.
23. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people (incl. children) must not use the milk frother except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. The appliance must not be operated or cleaned by children under the age of 8.
24. Always keep the appliance and power cord out of the reach of children.

25. Children must not clean the appliance except when supervised by a grown-up person responsible for their safety.

26. Children must not be allowed to play with the milk frother. Keep the packaging material incl. plastic bags out of reach from children. Suffocation hazard!

27. Keep the appliance away from children during use – the milk and the milk jug as well as the heater plate will become very hot! Therefore, touch neither the heater plate nor the glass jug resp. its bottom during and shortly after use. Hold the jug only by its handle!
28. The appliance is equipped with a safety system: The milk frother will only work if the glass jug is correctly positioned on the heater plate. The blender element has to be placed on the pin in the jug.
29. Never start the appliance using a remote or timer.
30. Use only the included glass jug and lid and the included blender elements. Improper accessories can cause electric shock, fire or personal damage and damage the appliance itself.
31. Before shifting, disassembling, assembling or cleaning the appliance, always switch it off with the ON/OFF button. Pull the plug from the socket and wait for the blender element to come to a full stop. Please pull the plug if the appliance is not in use.
32. Please let the appliance cool down between uses.
33. Please be careful when frothing milk – never bring fingers, hands, hair, clothing, jewelry and kitchen utensils near the moving blender elements. Do not handle any objects in the glass jug during use.
34. Always keep the lid closed during use. The appliance will keep running after it is switched off – therefore, open the lid only after it has stopped!
35. The glass jug must not be used on a normal stove top.
36. Only this included glass jug must be placed on the heater plate, never place any other containers, pots, pans etc. on it.
37. Pull the plug after every use. Only then is the appliance definitely switched off.
38. Caution: The jug is made of glass. If the glass breaks, be careful not to hurt yourself and under no circumstances reuse the jug!

39. Keep the appliance clean. Always switch the appliance off and pull the plug before cleaning it and storing it away. Please refer to the „Cleaning And Care” section of this manual.

40. Before the first use, remove all packaging materials and stickers resp. labels and rinse the glass jug, the blender elements and the lid in warm dish water with a soft dish cloth. Please refer to the „Cleaning And Care“ section on page 55 of this manual.

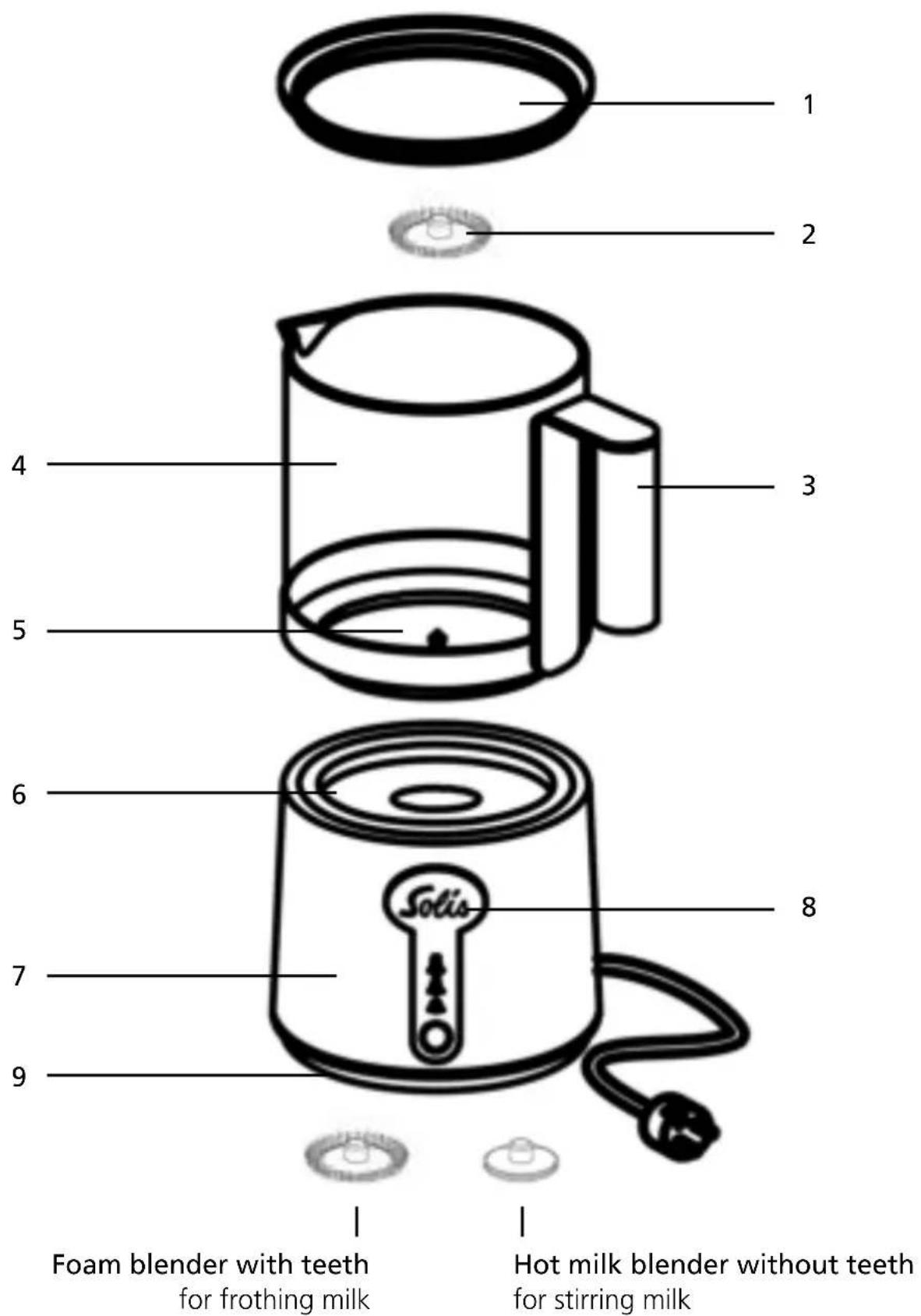

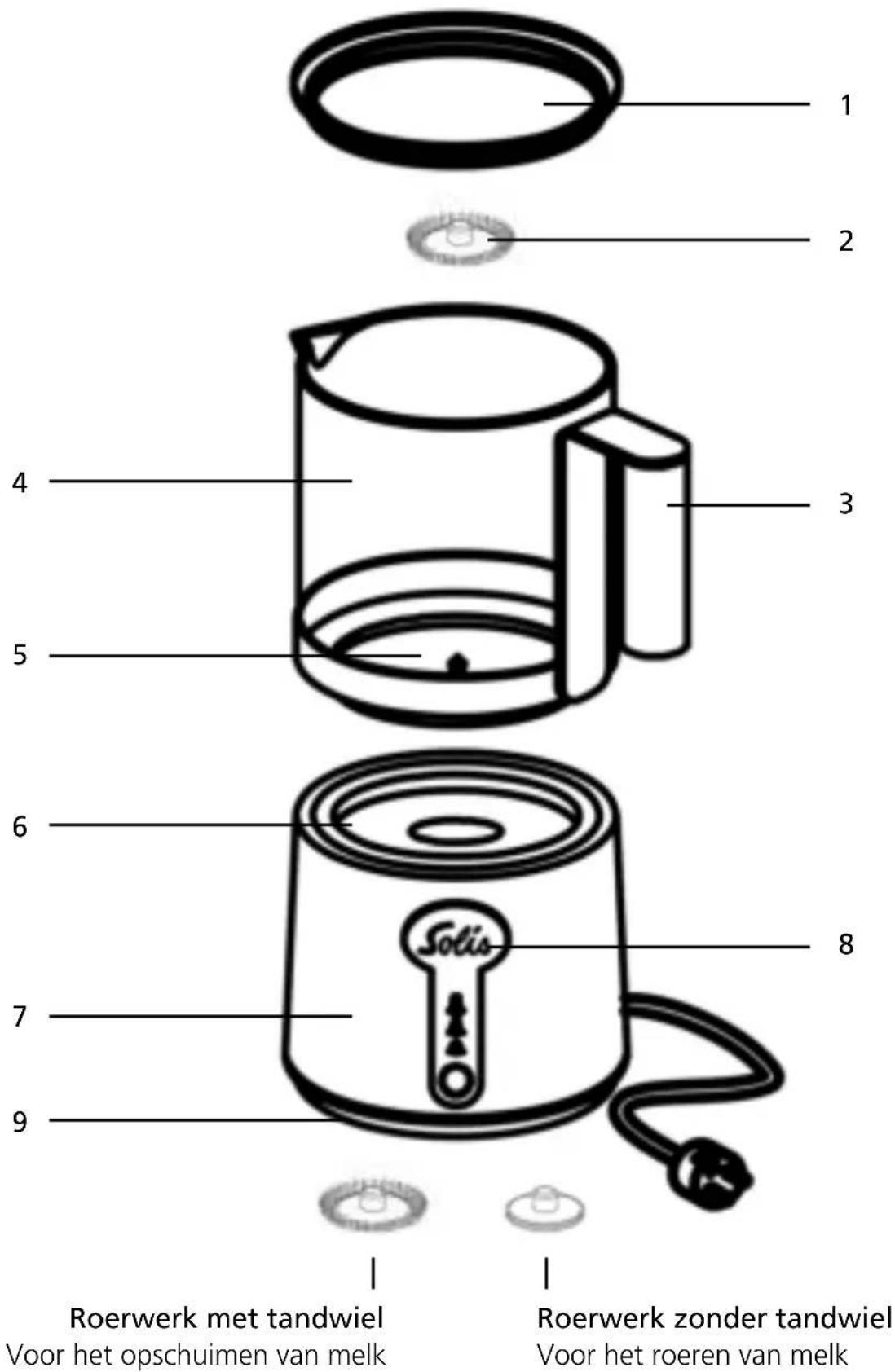

▲ APPLIANCE DESCRIPTION

1 2 3 4 5 6 7 8 9 Foam blender with teeth for frothing milk Hot milk blender without teeth for stirring milk

1 Lid
2 Foam blender
with teeth, for frothing milk
3 Glass jug handle
4 Glass jug
with filling level indicator (MIN and MAX marking)
5 Jug bottom
with receptor pin for blender elements
6 Heater plate
with safety switch and temperature sensor
7 Motor base
8 Control panel
with display and touch sensitive function selector
9 In appliance base:
Hot milk blender, without teeth and spare foam blender, with teeth

■ THE RANGE OF FUNCTIONS OF YOUR SOLIS CREMALATTE

for preparing hot chocolate

(heating to approx. 70^ C)

for heating and frothing milk

(heating to approx. 60^ C)

for frothing milk resp. mixing the milk with chocolate/cocoa

powder without heating

(cold)

■ YOU CAN CHOOSE FROM 5 PREPARATION METHODS

Preparation	Blender	Function
warm frothed milk	foam blender, with teeth
cold frothed milk	foam blender, with teeth
warm milk, not frothed	hot milk blender, without teeth
hot chocolate, not frothed	foam blender, with teeth / hot milk blender, without teeth
cold chocolate not frothed	foam blender, with teeth / hot milk blender, without teeth

THE FILLING LEVEL INDICATOR ON THE GLASS JUG

• 350 ml (MAX)

maximum capacity so that the milk does not overspill when frothing

• 250 ml

• 150 ml (MIN)

minimum capacity that has to be filled to make milk

(liquid level lines up with frothing possible

• Place the motor base on a dry and even work top, out of the reach of children, near a wall power socket.
• If the appliance has been used already and is still warm, let it cool down.
• Check if the heater plate and the bottom of the jug are clean and dry.

■ MAKING FROTHED MILK, HOT OR COLD

Illustration of a hand holding a ring above a cylindrical object with an arrow indicating upward motion (no text or symbols)

Illustration of a hand using a tool to press down a cylindrical object (no text or symbols present)

MAX 250ml MIN

fig. 1 fig. 2 fig. 3

Illustration of a hand pressing down a circular object with a downward arrow, next to a cylindrical object (no text or symbols)

Illustration of a coffee maker with a lid and base, showing its mechanical setup (no text or symbols)

Solis

fig. 4 fig. 5 fig. 6

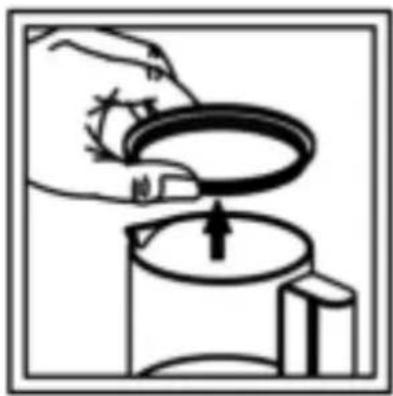

• Lift the lid off the glass jug (fig. 1).

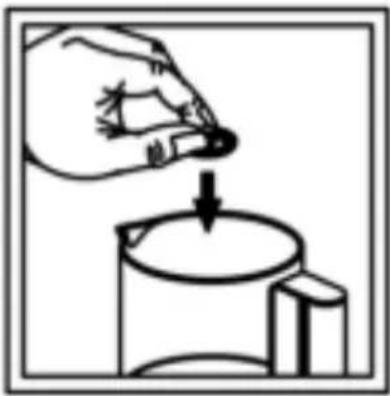

• Place the toothed foam blender on the pin in the glass jug (fig.2).

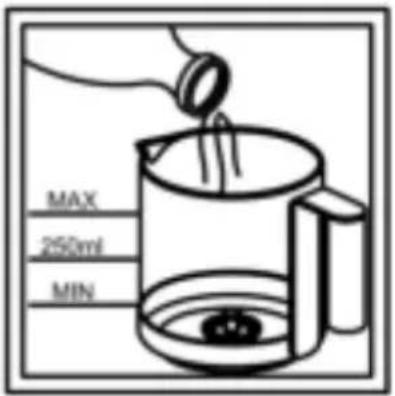

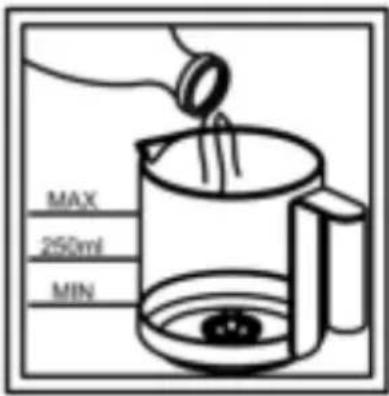

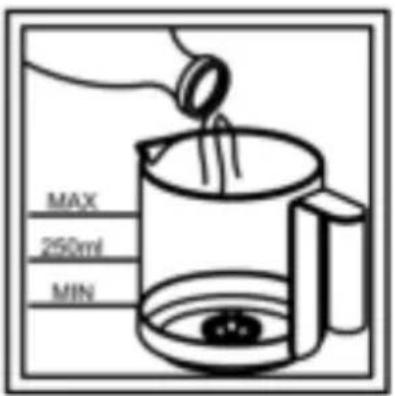

• Fill the glass jug with cold milk. Look for the MIN and MAX markings. If you pour in too much milk – more than 350 ml – the milk, which increases in volume when heated, might spill out of the jug (fig. 3).

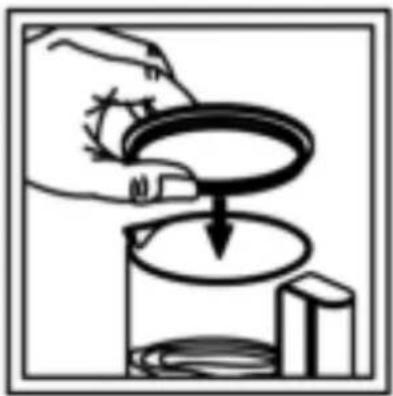

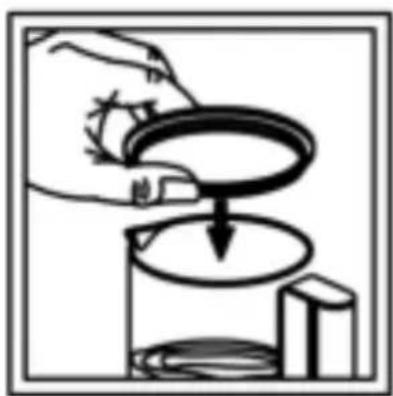

• Place the lid back on the glass jug (fig. 4).

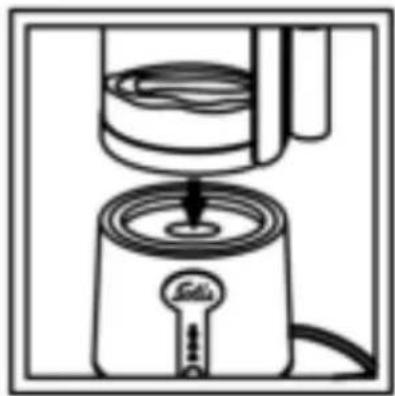

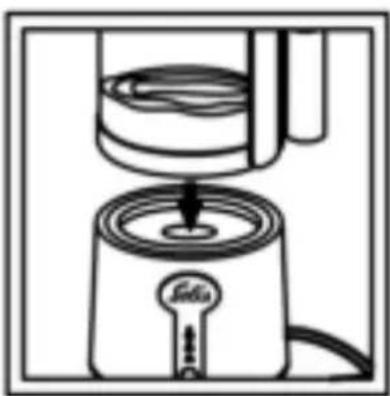

• Place the glass jug on the heater plate of the appliance base, using the handle. Plug the power plug into a suitable wall outlet (fig. 5).

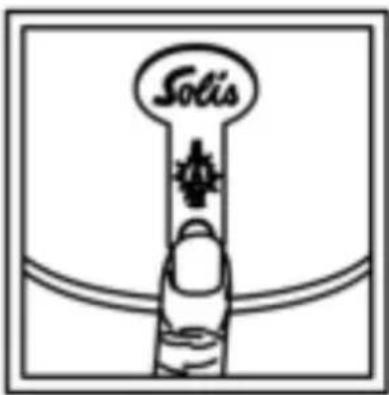

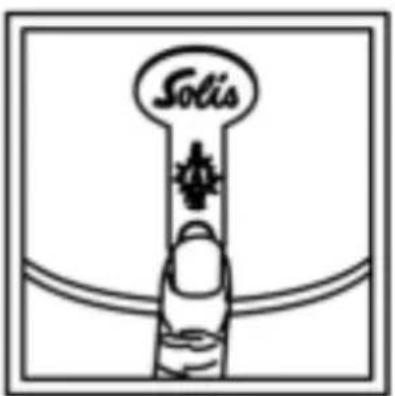

- Touch the sensor button repeatedly until the right symbol lights up in the display (fig. 6.):

Frothing without heating

Frothing and heating

• The magnet motor will drive the blender element in the glass jug. Depending on the function, the heater plate and the glass jug will heat up additionally.
• After approx. 90 to 360 seconds, the appliance will stop automatically and the function symbol will go out. The milk is frothed and can be poured resp. spooned onto your espresso/coffee. Before that, please remove the lid.
• If you wish to switch the appliance off before the automatic stop, simply touch the function button another time.

Tips:

• Let the frothed milk sit for a while so that it becomes more firm and stable.
• Spoon the frothed milk onto your espresso to make it stay compact.
• Depending on what kind of coffee you want to make, pour the remaining milk that has not been frothed into your coffee:

Cappuccino consists of one third hot espresso, one third hot milk and one third frothed milk.

Latte Macchiato consists of one espresso, a bit of hot milk and a lot of frothed milk.

Caffè Latte consists of a double espresso in a big cup, that is then filled up with hot milk. Only add a little or no frothed milk at all.

• For best results, use cold, low-fat milk (1,5% fat) from the fridge for your frothed milk.
• Cold frothed milk works well for cold milky coffee or Cappuccino Freddo and is very refreshing on hot days. For cold frothed milk, use the toothed foam blender on the 🔒 setting.

■ MAKING HOT CHOCOLATE

fig. 7 fig. 8 fig. 9

fig. 10 fig. 11 fig. 12

Solis

fig. 13

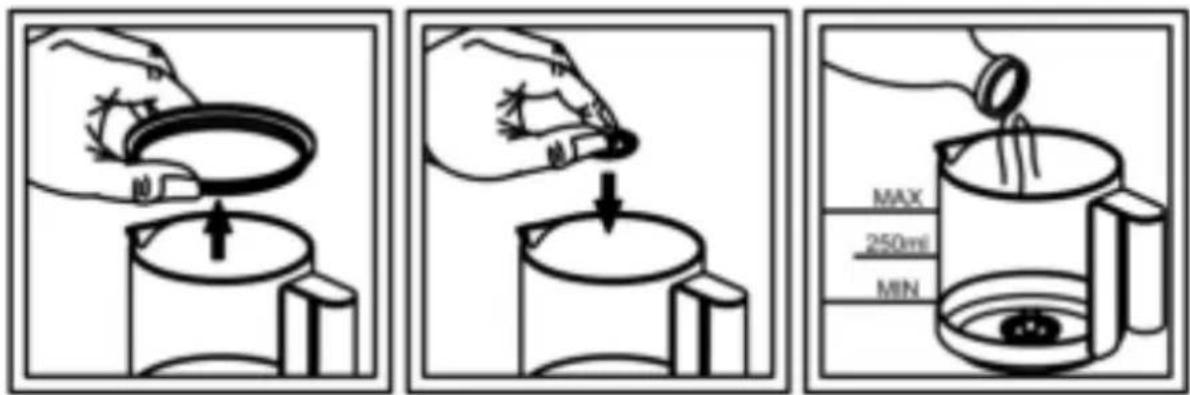

• Lift the lid off the glass jug (fig. 7).
• Place either of the blender elements on the pin in the glass jug (fig. 8).
• Fill the glass jug with cold milk. Look for the MIN and MAX markings (fig. 9).

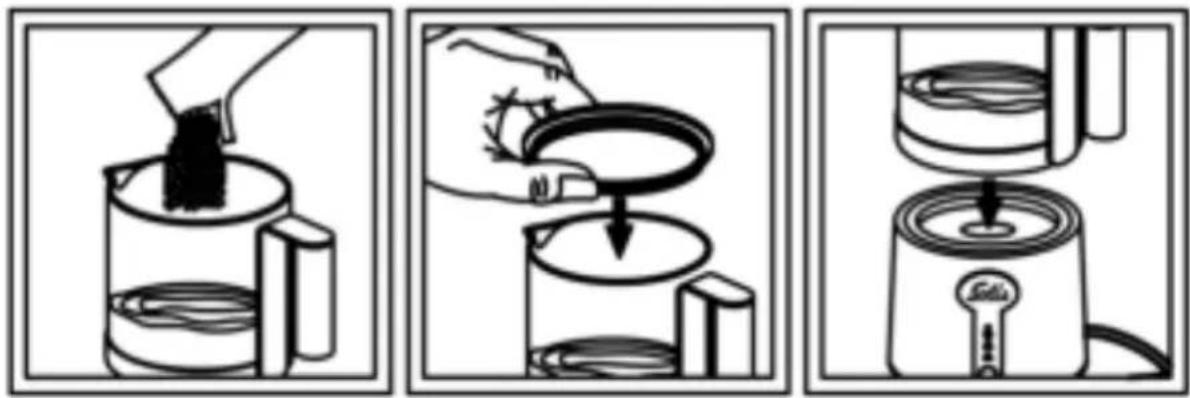

• Sprinkle a maximum of 20 g chocolate or cocoa powder into the glass jug (fig. 10).

- Place the lid back on the glass jug (fig. 11).

- Place the glass jug on the heater plate of the appliance base using the handle. Plug the power plug into a suitable wall outlet (fig. 12).

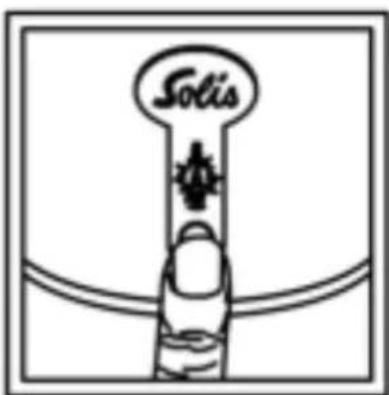

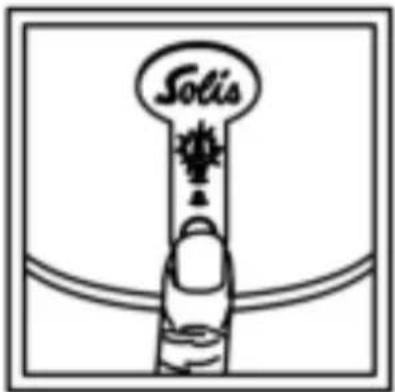

- Touch the sensor button repeatedly until the right symbol lights up in the display:

Stirring and heating (fig. 13)

- The magnet motor will drive the blender element in the glass jug, the heater plate and the glass jug will heat up additionally.

- After approx. 300 to 420 seconds, the appliance will stop automatically and the function symbol will go out. The glass jug now contains delicious hot chocolate you can pour from the jug into a cup. Before doing that, remove the lid from the jug.

- If you wish to switch the appliance off before the automatic stop, simply touch the function button another time.

FINISH FROTHING MILK / MAKING CHOCOLATE

• After making frothed milk, hot milk or hot chocolate, always pull the plug and let the appliance cool down.

- We recommend cleaning the accessories and the motor base right after they have cooled down to prevent milk and chocolate residues from drying up.

- If you wish to use the appliance again, you have to let it cool down completely before.

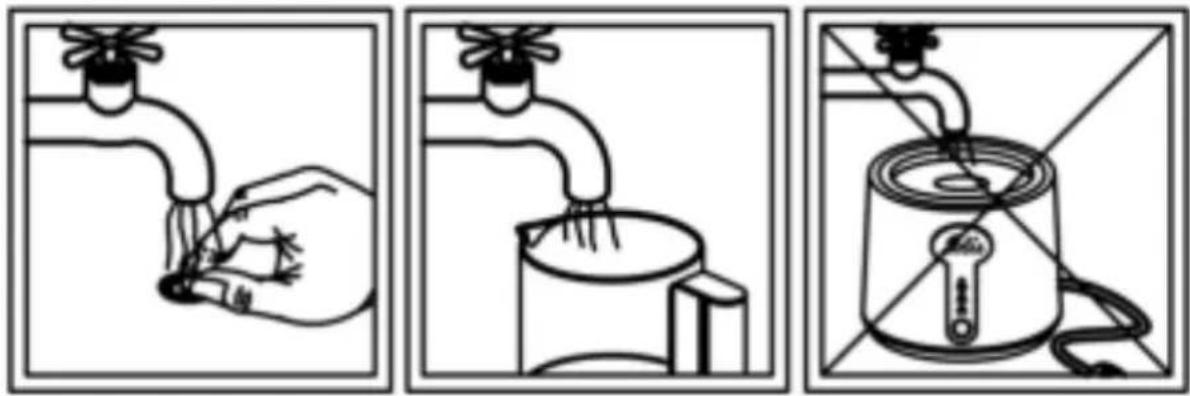

▲ CLEANING AND CARE

• Always pull the plug and let the appliance cool down before cleaning. Caution: The heater plate and the glass jug are hot after use!

- Remove the blender element from the cool glass jug and rinse it carefully under running water (fig. 14).

- After that, you should hand-wash the jug and the lid in warm water with some mild detergent and a soft sponge or cloth, then re-rinse and carefully dry it (fig. 15). You can clean the jug (not the lid, the blender elements and under no circumstances the motor base) in the top drawer of the dish washer. Over time, this might lead to signs of wear on the material and the print.

- Never use aggressive or abrasive detergents or solutions or any other hard resp. scratching objects to clean parts of the appliance. They might damage the surface.

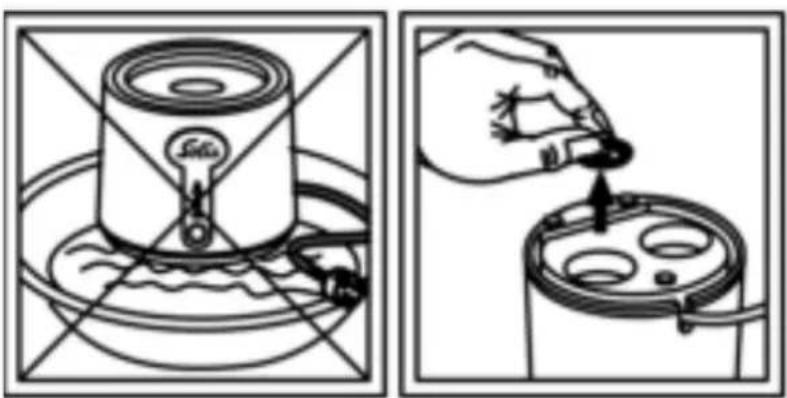

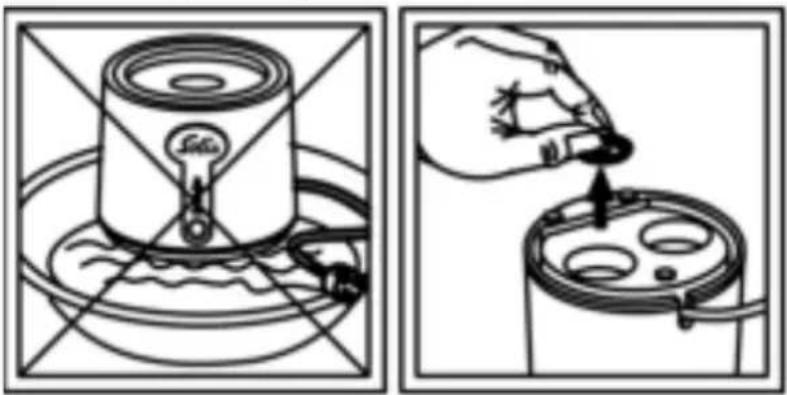

- Clean the motor base and the heater plate only with a wet cloth. Never submerge the motor base with the power plug and cord in liquid or hold it under running water (fig. 16 and 17).

- Store the spare blender elements in the bottom of the motor base resp. place one blender element back in the glass jug. Like that, they are always at hand (fig. 18).

Three-step diagram showing a hand washing a faucet, cleaning a container with a brush, and using a water dispenser to clean the surface.

fig. 14 fig. 15 fig. 16

Two-step diagram showing a container being inserted into a pot, with no visible text or symbols.

fig. 17 fig. 18

▲ TROUBLESHOOTING

PROBLEM: When pressing the function button, the appliance does not switch on, no symbol lights up and the appliance does not work.

• Check if the power plug is correctly plugged in and if the socket is supplied with power.
• Check if the power cord and plug are damaged. Should this be the case, bring the appliance to Solis or a service center authorized by Solis to have your power cord replaced.
• Check if the glass jug is correctly positioned.

PROBLEM: The milk does not froth.

• Check if the milk is fat-reduced (1,5% fat) and cold.
• Check if the foam blender element is correctly placed in the jug and ensure that you have used the toothed foam blender.
• When adding chocolate / cocoa powder, the milk will only froth a little bit if at all.

▲ TECHNICAL SPECIFICATIONS

Model-No. F280UA, type 869

Product description Milk frother

Voltage/frequency

Output

Dimensions (H x ∅)

Capacity

Weight approx. 1,20 kg

Technical changes reserved.

DISPOSAL

EU 2002/96/EC

Directions for proper disposal of the product according to EU directive 2002/96/EU

Please dispose of this appliance like a cooling device. At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

Simple black-and-white icon of a telephone handset inside a circle (no text or symbols)

SOLIS

HELPLINE:

091 802 90 10

(Only for customers in Switzerland)

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

Solis of Switzerland Ltd

Solis-House • CH-8152 Glattbrugg-Zurich • Switzerland Phone [phone] • Fax [phone] [e-mail] • www.solis.ch • www.solis.com

▲ BELANGRIJKE VEILIGHEIDSVOORSCHRITEN

▲ PRODUCTBESCHRIJVING

Illustration of a hand holding a ring above a cylindrical object with an arrow indicating upward motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a downward arrow (no text or symbols)

MAX 250ml MIN

Illustration of a hand pressing down a circular object with a downward arrow, next to a cylindrical container (no text or symbols)

Line drawing of a coffee maker with a lid and base, showing the process (no text or symbols)

Solis

Simple line drawing of a hand pouring dark granular material into a glass container (no text or symbols)

Illustration of a hand pressing down a circular object with a downward arrow, next to a cylindrical container (no text or symbols)

Line drawing of a coffee maker with a lid and base, showing the process (no text or symbols)

Three-step diagram showing hand washing a pipe, pouring into a container, and using a water tap to clean the lid.

Two-step diagram showing a hand pouring liquid into a container with a lid, no text or symbols present.

afb. 17 afb. 18

▲ PROBLEEMOPLOSSINGEN

Simple black-and-white line drawing of a telephone handset inside a circle (no text or symbols)

SOLIS HELPLINE:

091 802 90 10

Solis of Switzerland AG

Solis-House • Glattbrugg-Zürich, Zwitserland

Telefoon [phone] • Fax [phone]

[e-mail] • www.solis.ch • www.solis.com

2 JAAR GARANTIE

For the other countries:

For Belgium:

For the Netherlands:

[phone]

r Austria:

0800 22 03 92

For Switzerland:

[phone] 724 0702

For the other countries:

[phone]
