Product type	Electric grater / Food processor
Brand	Solis
Model	Slice & More 8401 (FB-333A)
Dimensions (L x H x D)	13.0 × 30.0 × 19.0 cm
Weight	2.08 kg
Power supply	Mains, voltage indicated on rating plate (230 V ~ 50 Hz)
Power	Not specified
Number of speeds	2 (normal and high) + stop
Filling chute capacity	Suitable for vegetables and foods cut into pieces
Main functions	Slice finely and coarsely, grate, grind, chop
Drums included	5 numbered drums (1: fine slicing, 2: coarse slicing, 3: grinding/grating, 4: coarse grating, 5: fine grinding)
Included accessories	2 storage boxes with lid, pusher
Motor block material	Plastic (not specified)
Drum material	Stainless steel (sharp blades)
Care and cleaning	Disassemble after use; removable parts washable in hot water (max 50 °C); wipe motor block with damp cloth; do not immerse motor
Safety	Automatic shut-off if overloaded; do not use without drum and support; 2 min pause after 2 min continuous use; non-slip suction feet
Spare parts and repairability	Contact Solis or authorized after-sales service; do not repair yourself
General information	Household use only; keep manual; dispose according to WEEE directive

Frequently Asked Questions - Slice & More 8401 Solis

How to assemble the Slice & More 8401 grater?

Place the motor block on a stable surface. Insert the chosen drum from the back into the support. Place the support on the motor (chute at 1 o'clock) then turn it counterclockwise until you hear a click (12 o'clock position). Plug in and use.

What foods can I prepare with this appliance?

You can slice, grate, grind and chop vegetables, fruits, hard cheeses, nuts, chocolate, breadcrumbs, cooked potatoes, garlic, etc. Do not use for very hard or fibrous foods.

How to choose the appropriate speed?

Use position I (normal speed) for soft foods and position II (high speed) for harder foods. The switch allows changing from one to the other during operation.

What to do if the appliance jams or slows down?

Immediately turn off the appliance and unplug it. Wait for it to stop completely. Remove the pusher and check if food is blocking the chute. Never use your hands or an utensil. If necessary, disassemble the drum to clean it.

How to safely clean the drums?

The blades are very sharp. Wash the drums in hot water (max 50 °C) with a brush and dish soap. Dry thoroughly. Never clean the motor block with water; wipe it with a slightly damp cloth.

What is the recommended continuous use time?

Do not exceed 2 minutes of continuous use. After 2 minutes, take a 2-minute break to prevent motor overheating.

Can I use the appliance without the pusher?

No, always use the provided pusher to push food into the filling chute. Never insert your hands or other objects; risk of serious injury.

How to store unused drums?

The 5 drums can be stored in the 2 provided storage boxes (2 drums per box). Keep them in a dry place away from light.

What to do in case of unusual smell or noise?

Turn off and unplug the appliance immediately. Do not reuse it until it has been checked by Solis or an authorized after-sales service. Do not attempt to repair it yourself.

Is this appliance suitable for children?

No. Children under 8 years old must not use or clean the appliance. Persons with reduced capabilities must be supervised. Keep the appliance and cord out of reach of children.

USER MANUAL Slice & More 8401 Solis

Exterior view of a modern stainless steel coffee maker with a circular vent and side grilles (no visible text or symbols)

▲ DEUTSCH 04
▲ FRANÇAIS 20
ITALIANO 36
▲ ENGLISH 52
▲ NEDERLANDS 68

D

Two cylindrical metal storage tanks with perforated internal structures, labeled 'G' (no text or symbols on the tanks themselves)

D

Close-up of a black electronic device with a circular vent and metallic base (no visible text or symbols)

SCHRITT 2:

Two mechanical components with arrows indicating direction, one black and one metallic, showing different orientations (no text or symbols)

SCHRITT 3:

Two black mechanical components with a curved arrow indicating rotation or movement, shown from different angles (no text or symbols present)

D

INBETRIEBNAHME

Close-up of a mechanical device with a black lever and metallic body, showing a curved arrow indicating rotation (no text or symbols visible)

SCHRITT 3:

Diagram showing a device with two components and directional arrows indicating movement or transformation (no text or symbols present)

D

Close-up of a black electronic device with a circular speaker grille and base mount (no visible text or symbols)

Two mechanical components with arrows indicating direction, one black and one metallic, no visible text or symbols.

31ème ETAPE :

Two black industrial vacuum cleaner units with rotating arm, shown from different angles (no text or symbols visible)

▲ MISE EN SERVICE

Close-up of a mechanical device with a lever and handle, no visible text or symbols

3ième ETAPE :

Diagram showing two views of a kitchen appliance with arrows indicating motion or transformation (no text or symbols)

▲ NETTOYAGE ET ENTRETIEN

F

Five metallic cylindrical containers with perforated surfaces, arranged in a row (no text or symbols visible)

Two cylindrical metal storage containers with perforated surfaces, one showing internal structure (no text or symbols)

Top-down view of a black electronic device with a circular vent and metallic base (no visible text or symbols)

PASSO 2:

Two mechanical components with arrows indicating direction, one black and one metallic (no text or symbols)

PASSO 3:

Two black mechanical components with a curved arrow indicating rotation or change, shown from different angles (no text or symbols present)

▲ MESSA IN FUNZIONE

Close-up of a black mechanical device with a curved arrow indicating rotation (no text or symbols visible)

PASSO 3:

Diagram showing a device with two components and directional arrows indicating movement or transformation (no text or symbols present)

Please read through this user manual thoroughly before using your Solis Multigrater Slice & More, so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent electric shock, neither the motor unit nor the power cord and the power plug must come into contact with water or other liquids. Risk of electric shock! Should the motor unit resp. the power cord or the power plug come into contact with water, use dry rubber gloves to immediately pull the power plug from the socket. Do not use the appliance again before having it checked for functionality and safety by Solis or a service centre authorised by Solis.
2. Do not operate the appliance resp. pull or connect the plug with wet or moist hands or feet.
3. Before using the appliance, check that the voltage stated on the type plate of your appliance matches your mains voltage. We do not recommend operating the appliance with a multi-way plug adapter.
4. Do not make any adjustments to the appliance, cable, plug or accessories.
5. Only use the appliance as described in this manual for cutting, grating, chopping and shredding vegetables and other foods. Do not use the appliance outdoors and protect it from moisture and wetness.
6. Do not leave the power cable hanging over table edges to prevent the appliance from being pulled down. Make sure that neither the appliance nor the power cord or plug comes into

contact with hot surfaces, such as hotplates or a radiator, or that they come into contact with the appliance itself.

1. Install the power cord so that nobody can trip over it. Keep clear of pointed objects.
2. Always fully unwind the power cord before connecting the power plug to the power socket.
3. Never carry the appliance by the power cord and do not place anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.
4. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.
5. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances.
6. The appliance has to be placed on a smooth, solid, even, dry, stable and moisture resistant work surface.
7. Keep a minimum safety distance of 20 cm between the appliance and walls, curtains or other materials and objects and make sure that the air around the appliance can circulate freely.
8. Never cover the appliance with cloths or the like while it is in use. The air inlet and outlet openings must never be obstructed. Do not place anything on the multigrater.
9. Never place the appliance in such a way that it might fall into water or come into contact with water (e.g. in or next to a sink).

10. The appliance is not designed for outdoor use. The appliance must not come into contact with rain. Do not use in vehicles or on boats.

11. Unplug the appliance when it is not in use or unattended, and before cleaning. We recommend the use of a residual current device (RCD safety switch) to ensure additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30 mA maximum. For professional advice consult an electrician.

12. Before pulling the power plug of the appliance out of the power socket, always make sure that the appliance is not in use.
13. Do not make any changes to the appliance, the power cord, the plug or the accessories.
14. Incorrect use may cause injury!
15. Never reach for an appliance that has fallen into water or other liquids. Always use dry rubber gloves to pull the plug before taking it out. Do not start using it again before having it checked for functionality and safety by Solis or a service centre authorized by Solis.
16. Place the appliance so that it is never exposed to direct sunlight.
17. Never insert any objects or tool into appliance openings. The appliance may become damaged – danger of electric shock!
18. Please switch the appliance off, wait for it to come to a full stop and pull the plug before attaching or removing parts resp. cleaning the appliance.
19. Never use the appliance without foods or vegetables resp. let it run idly.
20. Always make sure that the appliance is correctly assembled before connecting it to a power socket and starting to use it.

21. Never reach into the funnel! You might be seriously injured! Always use the tamper to push the vegetables / the foods down during use, never insert any other objects into the funnel.

22. Do not shake or move the appliance while it is in use. Never move the appliance while it is filled with foods and switched on resp. connected to the power! Always switch the appliance off and pull the plug before moving it.

23. Only use the appliance as described in this manual. Only use with the provided accessories or accessories recommended by Solis, incorrect accessories or misuse can lead to damage of the appliance, fire, electric shock or personal damage.
24. Never use the appliance with an external timer switch or remote control.
25. The appliance is only suited for household use and not for commercial use.
26. Remove and discard all packaging materials and potential stickers or labels (except for the type plate) before using the appliance for the first time.
27. Check your multigrater before every use to make sure that the appliance itself, the cutting drums, the power cord and the power plug are without damage and that no parts have come loose.
28. To prevent electric shock, do not use the appliance if cord or power plug are damaged or if the appliance has other faults, has fallen down resp. is damaged in any other way or if parts have come loose. Never attempt repairs yourself but take the appliance to Solis or a service centre authorized by Solis in order to get it inspected, repaired or mechanically and electrically maintained, in order to avoid a hazard.
29. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people and children must not use the multigrater except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done

by unsupervised children. Under no circumstances must the appliance be used or cleaned by children under the age of 8. The appliance and its power cord have to kept away from children under the age of 8.

1. Keep the appliance and the power cord away from children and pets.
2. Children must be supervised to prevent them from playing with the appliance.
3. Always switch the appliance off before pulling the plug, otherwise the appliance might be damaged.
4. Do not place anything on the appliance while it is in use or in storage.
5. Pull the plug after every use. Only then, the appliance is fully switched off.
6. The appliance has to be cleaned after every use. Please refer to the notes given in the section "Cleaning and maintenance" on page 64 of this manual.
7. Only clean the appliance chassis with a dry or slightly moist cloth. Never use aggressive, abrasive or acidic detergents for cleaning.
8. Always hold the multigrater by its base when lifting or moving it. Always switch the appliance off first, pull the plug and empty out the funnel / the cutting drum. Please be very careful when moving the appliance and do not shake or throw it; it might be damaged.
9. Should you notice a strange smell or sound, switch the appliance off and pull the plug. Do not start using it again before having its functionality and safety checked by Solis or a service centre authorised by Solis.

10. Never touch the grating blades in the cutting drums. They are extremely sharp and might hurt you!

11. Keep long hair, jewellery and clothing items etc. away from the rotating cutting drum and the funnel.

12. Never use the appliance without the inserted cutting drum or without the correctly mounted cutting drum holder with funnel.
13. If you have used the appliance continually for 2 minutes, you should definitively take a break of 2 minutes to prevent the motor from overheating.
14. Caution: When cleaning or removing resp. installing parts, the appliance has to be at a complete standstill and be switched off as well as disconnected from the power. Otherwise, there is the risk of injury.

▲ APPLIANCE DESCRIPTION

A Motor unit
B ON/OFF toggle switch with 2 speed settings and red function light

I normal speed

II high speed

C Cutting drum holder with funnel (removable) and tamper (removable)
D Cutting drum (placed in the holder)
E On appliance bottom: 2 suction feet and 2 anti-slip feet; cord storage
F Power cord

Accessories:

1 Cutting drum for slicing (thin) (marked with the no. 1)
2 Cutting drum for slicing (thick) (marked with the no. 2)
3 Cutting drum for grinding and grating (marked with the no. 3); ideal for hard cheese, nuts, chocolate, breadcrumbs etc.
4 Cutting drum for coarse shredding (marked with the no. 4); ideal for apples, carrots, celery, cheese etc.
5 Cutting drum for grinding (marked with the no. 5); ideal for apples, carrots, radish, chocolate etc., but also ideal for boiled potatoes or garlic

23145

Number markings on each cutting drum

G 2 storage containers with lid for 2 cutting drums each; food-safe (suitable for food storage)

G

▲ BEFORE FIRST USE

Before using your multigrater for the first time, remove all potential stickers and labels (apart from the type plate).
- Disassemble the appliance as described in the chapter "Disassembling the Multigrater" (see page 63).
- Rinse all parts of the multigrater apart from the motor unit with warm water (not above 50 °C) and some detergent. Make sure not to hurt yourself on the sharp grating blades in the cutting drums. Best use a dishwashing brush for the cutting drums. Dry all parts carefully.
• Wipe the motor unit clean with a soft, slightly moist towel.
- When all parts are completely dry, reassemble the multigrater as described in the chapter "Assembling the Multigrater".

▲ ASSEMBLING THE MULTIGRATER

STEP 1:

- Place the motor unit on a smooth, dry, stable, moisture resistant and even work surface, near a power outlet.

Black industrial fan or speaker device with circular vent and metallic base (no visible text or symbols)

STEP 2:

- Choose a suitable cutting drum. Push the cutting drum into the holder from behind, until it touches the front end of the holder.

Two mechanical components with arrows indicating direction, one black and one metallic, no visible text or symbols.

STEP 3:

- a) Place the cutting drum holder in the motor unit, the funnel has to positioned at 1 o'clock. b) Then, turn the funnel in a counter clockwise direction (towards "Lock") into the 12 o'clock position, so that it audibly locks into place.

Two black mechanical components with metallic fittings, shown from different angles (no text or symbols visible)

▲ STARTING UP

1. If the appliance is cleaned and completely assembled and placed on a smooth, dry, stable and moisture resistant work surface, plug the power plug into a power outlet. Place a bowl under the opening of the cutting drum.
2. Switch the appliance on with the ON/OFF toggle switch, the red function light in the switch lights up. If you set the switch to the position I, the drum rotates at a normal speed. If you set the switch to the position II, the drum rotates very quickly. Fill the funnel with the foods you wish to chop. The foods might need to be washed, peeled and cut into pieces small enough to fit into the funnel. Use the tamper to slowly push the foods down the funnel. Do not apply too much pressure. It suffices to gently push the foods down. Reduce the pressure if the appliances seizes or the motor spins too slowly. A potential blocking must only be removed while the appliance is switched off and disconnected from the power. Use only the tamper to push the foods down the funnel. Never insert any other objects or even your hand into the funnel!
3. If the foods have been processed but you still have more to chop, take the tamper out of the funnel and fill it with food. After that, gently push the foods down with the tamper.
4. Caution: Use only the tamper to push food down the funnel. Never reach into the funnel with other items or your hands. Risk of appliance damage or injuries! Also, never remove potential blockings with your hands or kitchen tools! To remove blockings, always switch the appliance off, pull the plug and wait for the appliance to come to a full stop. Never reach into the cutting drum to remove processed foods while the appliance is in use resp. connected to the power and avoid contact with the sharp cutting blades.
5. When all required foods have been grated resp. chopped, switch the appliance off with the ON/OFF switch (position 0), wait for the appliance to come to a full stop and pull the plug.
6. After usage, disassemble the appliance and clean it as described in the chapters "Disassembling the Multigrater" (see page 63) and "Cleaning and maintenance" (see page 64).

Caution: Never use the appliance while it is empty, meaning without any food in the funnel.

If you have used the appliance continuously for 2 minutes, you should definitely take a break of 2 minutes to prevent the motor from overheating.

▲ DISASSEMBLING THE MULTIGRATER

STEP 1:

- Switch the appliance off with the ON/OFF toggle switch (position 0), wait for the cutting drum to come to a complete stop and pull the power plug.

STEP 2:

Turn the funnel to the right, towards "OPEN", to a 1 o'clock position.

Close-up of a mechanical device with a lever and handle, showing no visible text or symbols.

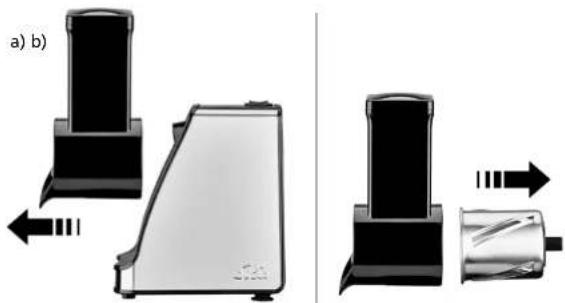

STEP 3:

• a) Pull the cutting drum holder out of the motor unit. b) Pull the cutting drum out of the back of the drum holder.

Diagram showing two views of a device with arrows indicating movement or transformation (no text or symbols present)

▲ CLEANING AND MAINTENANCE

• The appliance should be cleaned after every use.
- Before cleaning, switch the appliance off with the ON/OFF toggle switch (position 0), wait for the appliance to come to a stop and pull the plug.
- Disassemble the appliance as described in the chapter "Disassembling the Multigrater" (see page 63).
• Caution: The grating blades in the cutting drums are very sharp!
- All removable parts can be cleaned in water, the motor unit however must never be submerged in water or any other liquid.
- You can clean the removable parts in warm (not above 50 °C) dish water with a sponge resp. clean the cutting drums with a dishwashing brush. After that, dry all parts carefully.
- Clean the motor unit with a slightly moist towel and some mild detergent.
• Make sure that all parts are completely dry before reassembling the appliance.
- In general, do not use any aggressive or scouring detergents or metal sponges, as these might damage the surface.

▲ STORAGE

• Check, if the appliance is disconnected from the power and clean and dry.
• Best store the appliance fully assembled and in an upright position in a dry, dark space, best in the original packaging. Do not place anything on the appliance.
• The 4 cutting drums that are not installed into the appliance can be safely and hygienically stored in the two storage containers – two cutting drums fit into each of the containers.
  • Always keep the appliance and the power cord out of the reach of children.

▲ TECHNICAL SPECIFICATIONS

Model no. FB-333A, Type 8401
Product description Electric Multigrater
Voltage/Frequency 220–240 V\~ / 50 / 60 Hz
Output 350 Watts
Rotation 160 rpm (setting I) / 180 rpm (setting II)
Specifications approx. 13,0 x 30,0 x 19,0 cm (W x H x D)
Weight approx. 2,08 kg
Technical changes reserved.

▲ DISPOSAL

EU 2012/19/EU

Information for correct disposal of the product in accordance with the European Directive EU 2012/19/EU.

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

SOLIS HELPLINE

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction ever occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require. The contact addresses can be found at the end of this manual.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.

▲ APPARAATBESCHRIJVING

Close-up of a black electronic device with a circular vent and metallic base (no visible text or symbols)

STAP 2:

Two mechanical components with arrows indicating direction, one black and one metallic (no text or symbols)

STAP 3:

Two black mechanical components with metallic bases, shown from different angles (no text or symbols visible)

▲ INGEBRUIKNAME

Close-up of a black mechanical device with a lever and handle, showing a curved arrow indicating rotation (no text or symbols visible)

STAP 3:

Diagram showing a device with three views (a, b) and directional arrows indicating movement or transformation (no text or symbols present)

▲ REINIGING EN ONDERHOUD

▲ Solis customer service

Please contact us in advance of sending in products for return or repair. We will gladly give you the respective address. Alternatively, you can simply visit www.solis.com.

▲ Solis Klantendienst Helpline

Address for return shipment of

goods differs - please refer to:

Address for return shipment of

goods differs – please refer to

www.solis.com

+41 - 91 - 802 90 10

@ [e-mail]

www.solis.com
