USER MANUAL RCD1572 ROTEL

Stereo Compact Disc Player

This symbol is to alert the user to the presence of uninsulated dangerous voltages inside the product's enclosure that may constitute a risk of electric shock.

This symbol is to alert the user to important operating and maintenance (service) instructions in this manual and literature accompanying the product.

This Class B digital apparatus complies with Canadian ICES-003.

Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). The crossed wheelie bin symbol indicates compliance and that the products must be appropriately recycled or processed in accordance with these directives.

This symbol means that this unit is double insulated. An earth connection is not required.

Pin Assignments

Balanced Audio (3 pole XLR):

Pin 1: Ground / Screen

Pin 2: In phase / +ve / Hot

Pin 3: Out of phase / -ve / Cold

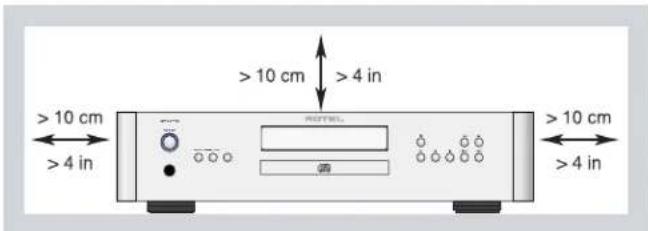

>10 cm >4 in ROTEL >10 cm >4 in >10 cm >4 in

>10 cm >4 in

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and interlock failed or bypassed. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user serviceable parts inside the player; leave all servicing to qualified service personnel.

WARNING!

To reduce the risk of electrical shock, fires, etc.:

1. Do not remove screws, covers or cabinet.
2. Do not expose the unit to rain or moisture.
3. Do not touch the power cord or plug with wet hands.

Important Safety Instructions

Notice

The RS232 connection should be handled by authorized persons only.

WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not expose the unit to dripping or splashing. Do not place objects filled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from the wall. Take the unit to a qualified service person for inspection and necessary repairs.

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The apparatus should be used in non tropical climate.

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Touching uninsulated terminals or wiring may result in an unpleasant sensation.

You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit.

WARNING: The rear panel power cord connector is the mains power disconnect device. The device must be located in an open area that allows access to the cord connector.

The unit must be connected to a power supply only of the type and voltage specified on the rear panel. (USA: 120V/60Hz, EC: 230V/50Hz)

Connect the component to the power outlet only with the supplied power supply cable or an exact equivalent. Do not modify the supplied cable. Do not use extension cords.

The mains plug is the disconnect of the unit. In order to completely disconnect the unit from the supply mains, remove the main plug from the unit and the AC power outlet. This is the only way to completely remove mains power from the unit.

The batteries in the remote control shall not be exposed to excessive heat such as sunshine, fire or the like. Batteries should be recycled or disposed as per state and local guidelines.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.(TV, radio, etc.)
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for additional help.

Caution

This device complies with part 15 of the FCC Rules. Operation is subject to the following to conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio or TV communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and the television tuner.
• Connect the unit to an AC power outlet on a different electrical circuit.
• Consult your authorized Rotel retailer for assistance.

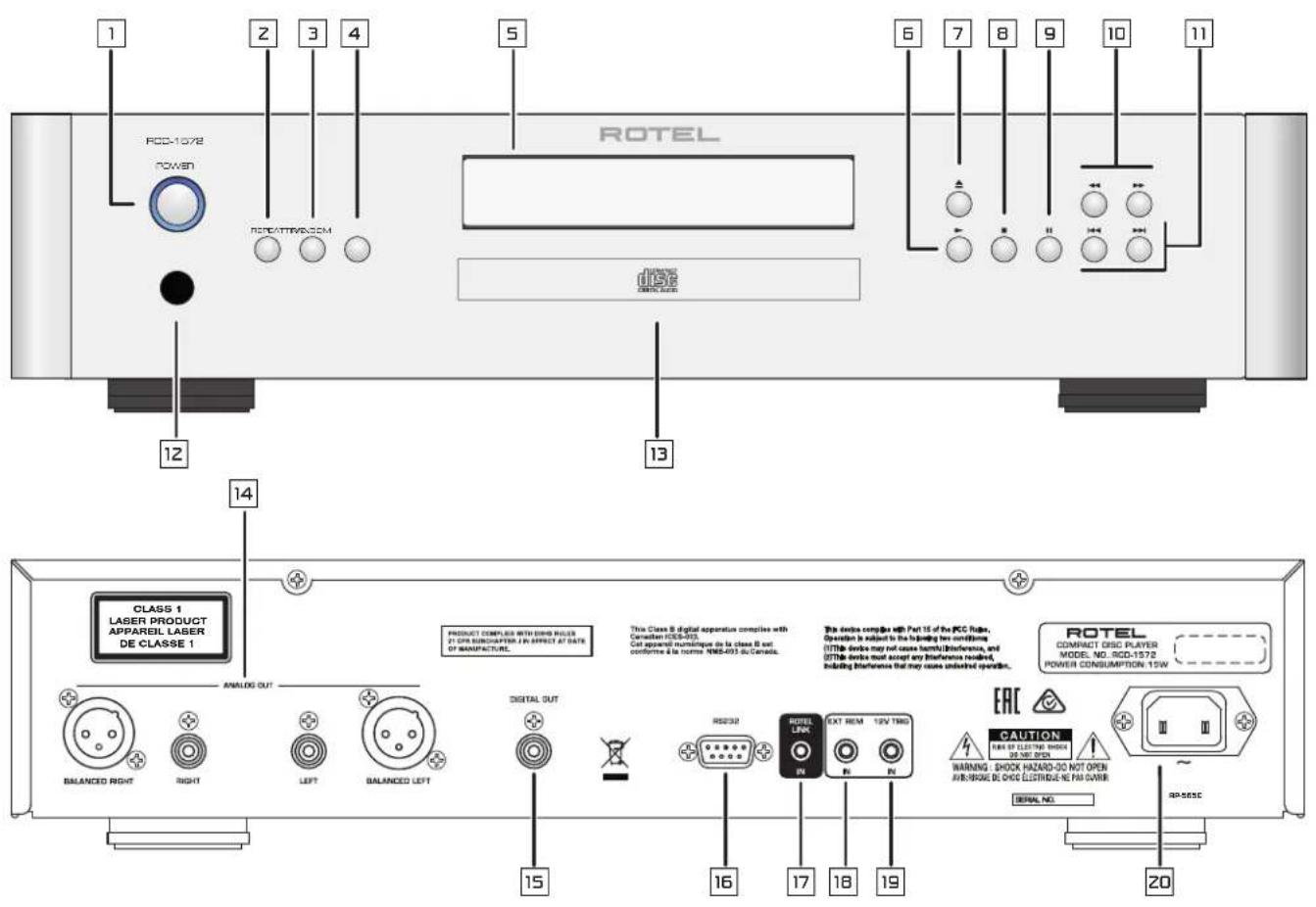

Figure 1: Controls and Connections Bedieningselementen en aansluitingen Commandes et Branchements Controlli e connessioni Bedienelemente und Anschlüsse Kontroller och anslutningar Controles y Conexiones
Органы управления и разъемы

1 2 3 4 5 6 7 8 9 10 11 ROTEL ROTTEL RCC-1572 POWER ROTETR/RAMCOM DISC DIMENSIONS 12 13 14 CLASS 1 LASER PRODUCT APPAREL LASER DE CLASSE 1 PRODUCT COMPLIES WITH ONIS RUSSEL 21 DTR SUBCHAPTER 1A EFFECT AT DATE OF MANUFACTURE. This Class B digital aperture complies with Canadian (CES-30). Cat apparel multistique de la class B est. conforme à la norme NWS-493 du Canada. The device complies with Part 15 of the ICC Index. Operation is subject to the following two conditions: DITTB device may not cause laminar/BLUVERENS, and DITTB device must accept any bluverance required, including bluverance that may cause undetected operation. COMPACT DISC PLAYER MODEL NO. SCD-1572 POWER CONSUMPTION: 15W ANALOG OUT BALANCED RIGHT RIGHT LEFT BALANCED LEFT DIGITAL OUT RS232 OUT INT EXT REM 12V THG EAC CAUTION RUN OF CUSTINE SHOCK SOLDERS WARNING: SHOCK HAZARD-DO NOT OPEN AVIR/SHOCK DE CHOC ELISTINDUE NE PAI COVER SERIAL NO. APSSSC 20

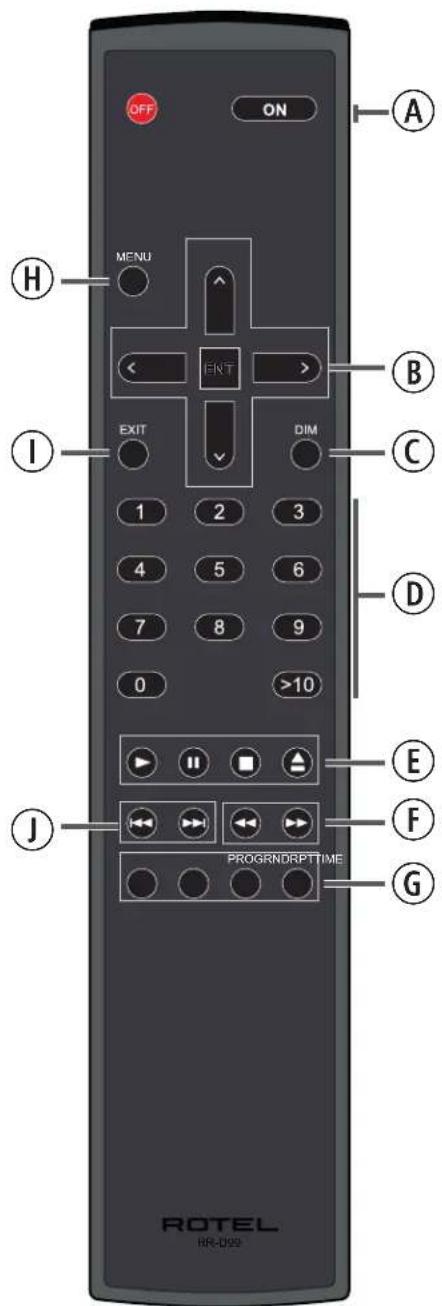

Figure 2: RR-D99 Remote Control Télécommande infrarouge RR-D99 Fernbedienung RR-D99 Mando a Distancia RR-D99
Afstandsbediening RR-D99 Telecomando RR-D99 RR-D99 fjärrkontroll Пульт ДУ RR-D99

OFF ON A MENU ENT B EXIT DIM C 1 2 3 4 5 6 7 8 9 0 >10 D E F J PROGRNDRPTIME G ROTEL HR-000

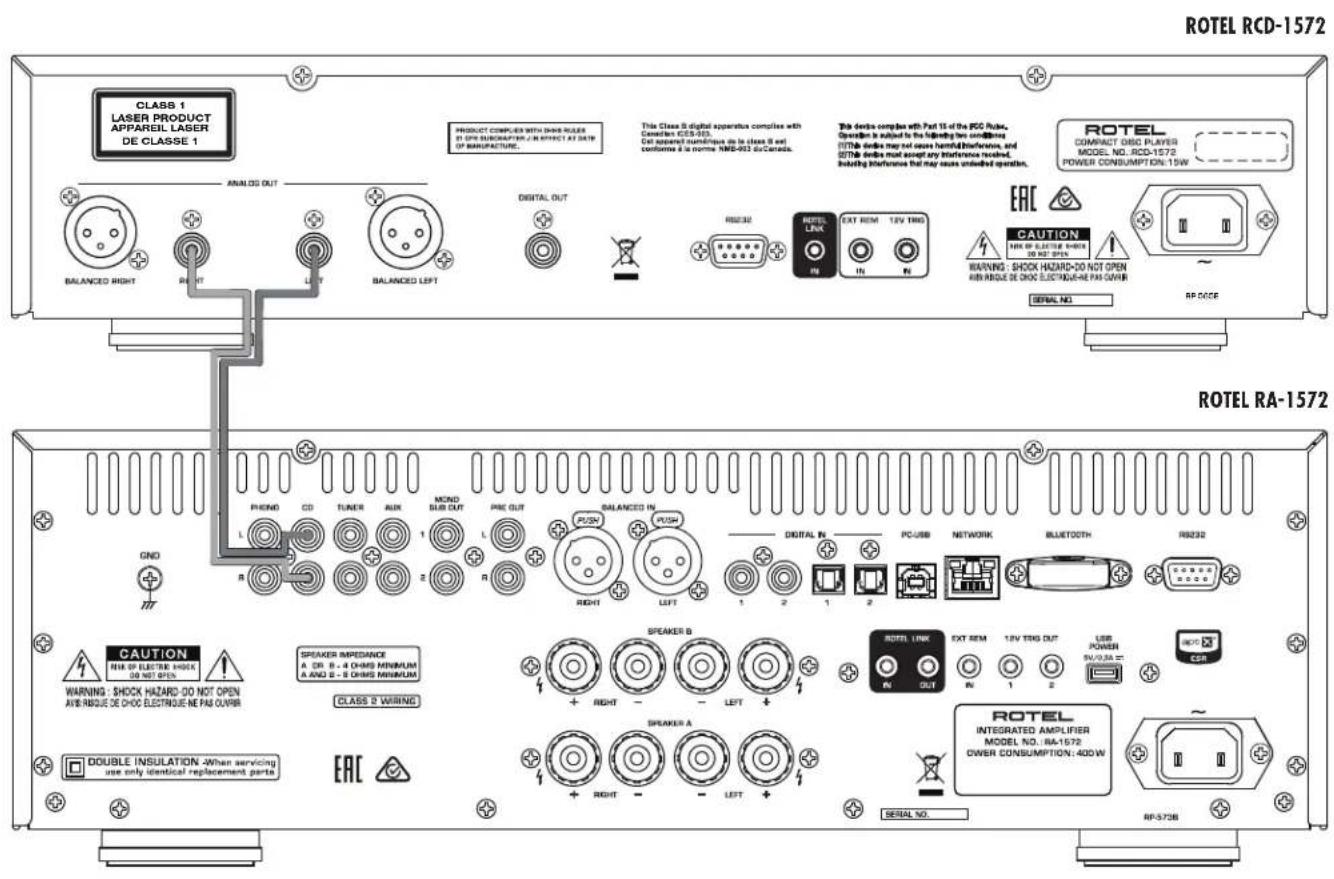

Figure 3: Analog RCA Outputs Connection Connexion Sorties analogiques RCA Analoge RCA Ausgänge Anschluss Conexión de Salidas Analógicas RCA
Analoge RCA uitgangen aansluiting Connessione di uscite audio analogiche RCA Analoga RCA utgångar anslutning Аналогового RCA выхода соединения

ROTEL RCD-1572 CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 ANALOG OUT BALANCED RIGHT BALANCED LEFT PRODUCT COMPLIES WITH SHAK RULES IN OFF SUBSCRIPTION / IN EFFECT AT DATA OF MANUFACTURE. This Class B digital apparatus comlives with Canadian ICS-903. Cut antenna numbers do to class B set conforms it is norme NMD-903 duCanada. This device complies with Part 15 of the SSC Rule, Operation is enabled to the following two conditions (1) This device may not cause harmful interference, and 8) This device must accept any interference resolved, including interference that may cause undetected operation. ROTEL CONTRACT DISC PLAYERS MODEL NO. RCD-1572 POWER CONSUMPTION: 15W EAC CAUTION WARNING : SHOCK HAZARD-DO NOT OPEN AIR RAGUE DE CHOC ELECTRIQUE-AE PAS OUTFR SERIAL NO. RP-00CE ROTEL RA-1572 PHOND CD TUNER AUX MON SUB OUT PBC OUT BALANCED IN L PUSH RIGHT LEFT Digital IN PCUSB NETWORK BLUETOOTH RS232 SPEAKER B OUT EXT REM 12V TRG OUT N 1 2 USER POWER N/O/3A = CCR NOT CCR SPEAKER A RIGHT LEFT + DOUBLE INSULATION -When servicing use only identical replacement parts ERC ROTTEL INTEGRATED AMPLIFIER MODEL NO. RA-1572 OWNER CONSUMPTION: 400W SERIAL NO. RP-573B

Figure 4: Balanced Outputs Connection Connexion Sorties symétriques Symmetrische Ausgänge Anschluss Conexión de Salidas Balanceadas
Gebalanceerde uitgangen aansluiting Connessione di uscite audio bilanciate Balanserade utgångar anslutning БАЛАНСНЫЕ ВЫХОДЫ СОЕДИНЕНИЯ

ROTEL RCD-1572 CLASS 1 LASER PRODUCT APPARELL LASER DE CLASSE 1 PRODUCT COMPLIES WITH SHAK RELS IN UP/UNCHAP either A IN EFFECT AT DATE OF MANUFACTURE. This Class B digital apparatus complies with Canadian ICSB-303. Cat appear mandrapiere de la class B cat confirms à la norme NMB-403 dc/Canada. Tip devices complies with Part 15 of the PCC Route. Operation is subject to the following line conditions: (1)The device may not cause harmful interference, and (2)The device must accept any interference caused, including interference that may cause unshed operation. BALANCED RIGHT RIGHT LEFT BALANCED LEFT DIGITAL OUT RS232 ROTEL LINK EXT REM 12V THG IN IN ROTEL CONNECT DISC PLAYER MODEL NO.: RCD-1572 POWER CONSUMPTION 15W EAC WARNING: SHOCK HAZARD-30 NOT OPEN AUS REQUT OF CHOC ELECTRIQUE-RF PAS OUTR PP 3006 ROTEL RA-1572 PHONO CO TUNER AUX MOND SUB OUT POS OUT BALANCED IN L 1 L R 2 R RIGHT RIGHT LEFT Digital IN PCUSS NETWORK BLUTTOOTH RE33P 1 2 1 2 CAUTION HOR ELECTRIC HOURS DO NOT OPEN WARNING: SHOCK HAZARD-30 NOT OPEN AVENISQUE DE CHOC ELECTRICAIRE PAS OUTRIN PEAKER IMPEDANCE A OR B = 4 CHMS MINIMUM A AND B = 8 CHMS MINIMUM CLASS 2 WIRING SPEAKER B + RIGHT - + LEFT + RED OUT INT OUT USB POWER SW/CMA ESR DOUBLE INSULATION .When servicing use only identical replacement parts EAC SPREADER A + RIGHT - + LEFT + SERIAL NO. ROTTEL INTEGRATED AMPUIFIER MODEL NO.: RA-1572 OWER CONSUMPTION: 400W NF-3738

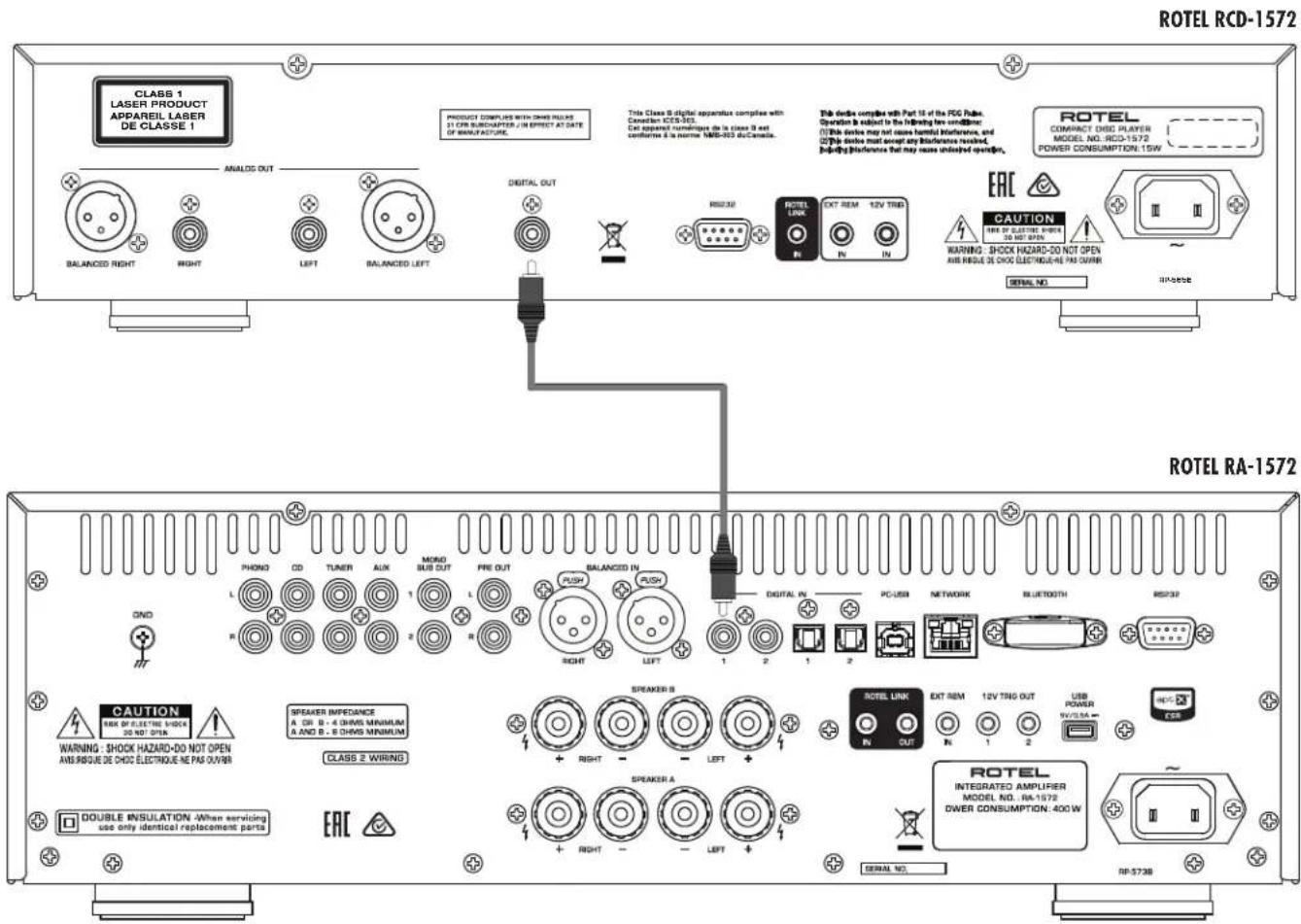

Figure 5: Digital Output Connection Connexion Sortie numérique Digitalausgang Anschluss Conexión de Salida Digitale
Digitale uitgangsaansluiting Connessione di uscita digitale Digitala utgångsanslutningen Подключение цифровые выходы

ROTEL RCD-1572 CLASS 1 LASER PRODUCT APPAREIL LASER DE CLASSE 1 ANALOG OUT BALANCED RIGHT RIGHT LEFT BALANCED LEFT PRODUCT COMPLIVES WITH OTHER PLANS 11 CM SUBCHAPTERS IN EFFECT AT DATE OF MANUFACTURE. Digital OUT Title Class B digital apparatus complies with Casingen RCS-ND. Cell apparel numbrings do is class B net conformers 8 to normal 100/30 du Casingen. RSD3D ROTEL LINK OUT REM 12V THG IN IN EAC CAUTION WARNING: SHOCK HAZARD-20 NOT OPEN AIR HOLE DE CHOC ELECTRIOHE HE PAN GURM SERIAL NO. IR-PAGE ROTEL RA-1572 PHONO CD TUNER AUX MONO SUB OUT PRE OUT BALANCED IN L PUSH PUSH RIGHT LEFT 1 2 1 2 DIGITAL IN PC-USB NETWORK BLUTTOOTH RSP3D CAUTION SEE OF FLAT THE WIREK DO NOT OPEN WARNING: SHOCK HAZARD-DO NOT OPEN AVES RAGUE DE CHOC ELECTRIOHE NE PAS OUT/RB CLASS 2 WIRING SPEAKER IMPEDANCE A: GB - 4 OHRS MINIMUM A AND B - 6 OHRS MINIMUM SPEAKER A DOUBLE INSULATION -When servicing use only identical replacement parts EAC SPEAKER B RIGHT LEFT + + RIGHT - + LEFT + + RIGHT - + LEFT + SERIAL NO. ROTTEL INTEGRATED AMPLIFIER MODEL NO. RA-1572 DWER CONSUMPTION: 400W RP-573B

Figure 6 : Rotel Link and 12V Trigger Connections

Branchements Rotel Link et trigger 12 V Rotel Link- und 12V-Trigger-Anschlüsse Conexiones Rotel Link y para Señal de Disparo de 12V

Important! : The 12V trigger cables will override the Rotel Link commands. Do not connect the 12V trigger cable if Rotel Link is connected.

When making connections be sure to:

√ Turn off all the components in the system before hooking up any components, including loudspeakers.
√ Turn off all components in the system before changing any of the connections to the system.

Remarques importantes

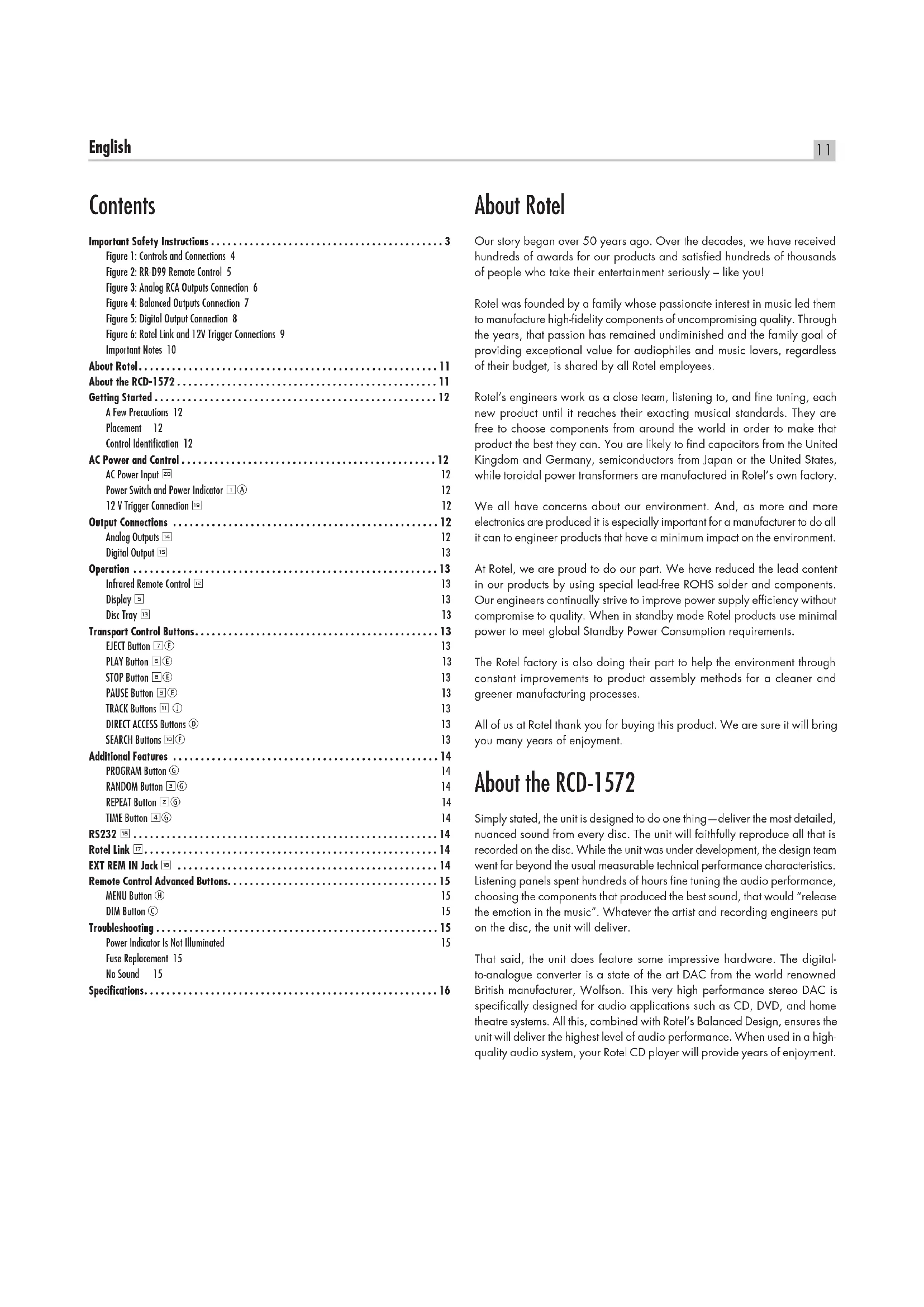

Important Safety Instructions....3

Figure 1: Controls and Connections 4

Figure 2: RR-D99 Remote Control 5

Figure 3: Analog RCA Outputs Connection 6

Figure 4: Balanced Outputs Connection 7

Figure 5: Digital Output Connection 8

Figure 6: Rotel Link and 12V Trigger Connections 9

Important Notes 10

About Rotel....11

About the RCD-1572....11

Getting Started....12

A Few Precautions 12

Placement 12

Control Identification 12

AC Power and Control....12

AC Power Input 12

Power Switch and Power Indicator 1① 12

12 V Trigger Connection 19 12

Output Connections 12

Analog Outputs 14 12

Digital Output 13

Operation 13

Infrared Remote Control 12 13

Display 5 13

Disc Tray 13 13

Transport Control Buttons....13

EJECT Button ☐⑧ 13

PLAY Button ☐① 13

STOP Button ☐① 13

PAUSE Button ☐① 13

TRACK Buttons 11 ① 13

DIRECT ACCESS Buttons ① 13

SEARCH Buttons ☐① 13

Additional Features 14

PROGRAM Button ① 14

RANDOM Button 3⑥ 14

REPEAT Button ☐⑤ 14

TIME Button 4⑥ 14

RS232 16 14

Rotel Link 17....14

EXT REM IN Jack 18 14

Remote Control Advanced Buttons....15

MENU Button ⑧ 15

DIM Button © 15

Troubleshooting....15

Power Indicator Is Not Illuminated 15

Fuse Replacement 15

No Sound 15

Specifications....16

About Rotel

Our story began over 50 years ago. Over the decades, we have received hundreds of awards for our products and satisfied hundreds of thousands of people who take their entertainment seriously – like you!

Rotel was founded by a family whose passionate interest in music led them to manufacture high-fidelity components of uncompromising quality. Through the years, that passion has remained undiminished and the family goal of providing exceptional value for audiophiles and music lovers, regardless of their budget, is shared by all Rotel employees.

Rotel's engineers work as a close team, listening to, and fine tuning, each new product until it reaches their exacting musical standards. They are free to choose components from around the world in order to make that product the best they can. You are likely to find capacitors from the United Kingdom and Germany, semiconductors from Japan or the United States, while toroidal power transformers are manufactured in Rotel's own factory.

We all have concerns about our environment. And, as more and more electronics are produced it is especially important for a manufacturer to do all it can to engineer products that have a minimum impact on the environment.

At Rotel, we are proud to do our part. We have reduced the lead content in our products by using special lead-free ROHS solder and components. Our engineers continually strive to improve power supply efficiency without compromise to quality. When in standby mode Rotel products use minimal power to meet global Standby Power Consumption requirements.

The Rotel factory is also doing their part to help the environment through constant improvements to product assembly methods for a cleaner and greener manufacturing processes.

All of us at Rotel thank you for buying this product. We are sure it will bring you many years of enjoyment.

About the RCD-1572

Simply stated, the unit is designed to do one thing—deliver the most detailed, nuanced sound from every disc. The unit will faithfully reproduce all that is recorded on the disc. While the unit was under development, the design team went far beyond the usual measurable technical performance characteristics. Listening panels spent hundreds of hours fine tuning the audio performance, choosing the components that produced the best sound, that would "release the emotion in the music". Whatever the artist and recording engineers put on the disc, the unit will deliver.

That said, the unit does feature some impressive hardware. The digital-to-analogue converter is a state of the art DAC from the world renowned British manufacturer, Wolfson. This very high performance stereo DAC is specifically designed for audio applications such as CD, DVD, and home theatre systems. All this, combined with Rotel's Balanced Design, ensures the unit will deliver the highest level of audio performance. When used in a high-quality audio system, your Rotel CD player will provide years of enjoyment.

Getting Started

A Few Precautions

WARNING: To avoid potential damage to your system, turn off ALL the components in the system when connecting or disconnecting the loudspeakers or any associated components. Do not turn the system components back on until you are sure all the connections are correct and secure.

Please read this manual carefully. In addition to installation and operating instructions, it provides valuable information on various unit system configurations as well as general information that will help you get optimum performance from your system. Please contact your authorized Rotel dealer for answers to any questions you might have. In addition, all of us at Rotel welcome your questions and comments.

Save the shipping carton and all enclosed packing material for future use. Shipping or moving the unit in anything other than the original packing material may result in severe damage to your unit.

If included in the box please complete the owner's registration card or register on line. Also be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is required.

Placement

Use common sense when placing the unit in a cabinet or when stacking other equipment. Make sure that the shelf or cabinet can support its weight. Do not stack heavy components on top of the unit. Avoid placing the unit where it may be subject to excessive heat such as on top of a large power amplifier or near a heat register. For best performance, avoid placing the unit where it may be subject to vibration, such as near a speaker.

Control Identification

This manual shows illustrations of the front and rear panels and the RR-D99 remote control. Each item in the illustrations is identified with a call out. Through out this manual the items referred to in the text are identified by the corresponding call out. The items on the front and rear panels are identified with a number call out, such as 1. The items on the remote control are labeled with a letter call out, such as Ⓐ.

AC Power and Control

AC Power Input 20

Your unit is configured at the factory for the proper AC voltage in the country where you purchased it (either 120 volts or 230 volts). The AC line configuration is noted on a decal on the back panel.

NOTE: Should you move your CD player to another country, it may be possible to reconfigure it for use on a different line voltage. Do not attempt to perform this conversion yourself. Opening the enclosure of the unit exposes you to dangerous voltages. Consult a qualified service person or the Rotel factory service department for information.

NOTE: Some products are intended for sale in more than one country and as such are supplied with more than one AC cord. Please use only the cord appropriate for your country/region.

RCD-1572 should be plugged directly into a polarized wall outlet using the supplied cable or other high current compatible cable as recommended by your authorized Rotel dealer. Do not use an extension cord.

Be sure the power switch on the front panel of the unit is turned off (in the "out" position). Then, connect the supplied power cord to the AC power receptacle on the rear of the unit and the AC power outlet.

If you are going to be away from home for an extended period of time such as a month-long vacation, it is a sensible precaution to unplug your CD player (as well as other audio and video components) while you are away.

Power Switch and POWER Indicator 1①

Press the front panel Power Switch button, to turn the unit on. The Power Indicator light is illuminated when the unit is on. Press Power Switch button again to turn the unit off.

When the power switch is in the ON position, the remote control ON and OFF buttons may be used to activate the RCD-1572 or put it in Standby mode. In Standby mode the power LED remains illuminated, but the display is turned off.

NOTE: If you are using a switched outlet to turn on and off your CD player, you should leave the power switch in the "ON" position. When AC power is applied to the unit, it will power up in fully active mode.

12V Trigger Connection 19

See Figure 6

The unit can be activated by a 12 volt trigger signal. The trigger input accepts any control signal (AC or DC) ranging from 3 volts to 30 volts. When a cable is connected to the 12V input and a trigger signal is present, the CD Player is activated. When the trigger signal is turned off, the unit goes into standby mode. The front panel power indicator will remain illuminated, but the display goes dark and the unit will not operate.

NOTE: When using the 12V Trigger feature, leave the POWER button in the ON position.

NOTE: If you are using other units in the series with Rotel Link, please use the Rotel Link connection to turn the units on or off. Do not connect both the Rotel Link and 12V trigger cables. The 12V trigger's power on or off features will override the Rotel Link features.

Output Connections

The RCD-1572 unit gives you a choice of two different kinds of output connections — an analog outputs signal from the built-in D/A converter for use with conventional analog audio components and a coax digital output which provides an unprocessed digital data signal for use with outboard D/A converters or digital processors.

NOTE: To prevent loud noises that could damage your speakers, turn off all the system components when you make any signal connections.

Analog Outputs 14

See Figure 3 and 4

A pair of standard RCA jacks and XLR balanced connectors supplies an analog output signal from the RCD-1572 to the source inputs of an audio preamplifier, integrated amplifier, or receiver. You should choose only one

method of analog connection from the RCD-1572. Do not connect both the RCA and XLR at the same time.

Select high quality audio interconnect cables. Connect the left and right channel outputs of the RCD-1572 to the corresponding inputs on the preamplifier or other component.

Digital Output 15

See Figure 5

If you are using an outboard D/A converter or other digital processor, you will need an unprocessed digital data stream from the RCD-1572. Using a standard 75 ohm coax digital cable, connect the RCD-1572's coax digital output to the digital input connector on the outboard D/A converter.

Operation

The unit can be operated using its front panel buttons or from corresponding buttons on the supplied infrared remote control. Specific instructions for each of these controls are detailed below. Most of the buttons are duplicated on the front panel and on the IR remote control. However, there are a few exceptions where the buttons are only available on one or the other. These exceptions are noted in the instructions.

Infrared Remote Control 12

Before using the IR remote control, it is necessary to install two "UM-4/AAA" batteries (supplied). Remove the plastic cover on the back of the IR remote, install the batteries (observing the + and - polarity indications), and reinstall the cover.

To use the IR remote control, aim it at the IR sensor 12 located in the lower left corner of the RCD-1572 front panel.

Display 5

A back-lit display on the front panel of the unit provides useful information about the status of the unit, activation of special features, and track/time information for the disc being played. Each of these indicators is described in the detailed operating instructions that follow.

2 ▶ 0:00:06

Tracks: 12 ☐ 0:44:34

Disc Tray 13

A motor-driven disc loading tray located in the center of the unit, accepts a compact disc. Press the eject button then place the disc into the tray, label-side up. Make sure the disc is properly centered before loading. The disc can be ejected by pressing the eject button again.

Transport Control Buttons

These buttons provide basic control functions for the disc transport mechanism. Except where noted, all functions are available on the unit front panel and the IR remote control.

EJECT Button 7⑧

To open the tray loading mechanism press the EJECT button ▲ The tray will open allowing the CD to be loaded label side up. To close the tray press the EJECT button ▲ again.

If no disc is loaded when the tray is closed the display will read "No Disc". When a disc is loaded, the display will indicate the number of tracks on the disc and the total time of the disc in hours, minutes and seconds.

PLAY Button ☐ E

After the disc is loaded, press the PLAY button ▶ to start playing the disc. The number of the track being played and the elapsed time will be shown in the display, along with the PLAY indicator. Normally, the disc will start playing with the first track. However, you can select a different track using the TRACK buttons or the DIRECT ACCESS buttons (see below) before pressing the PLAY button ▶ to start playing a different selection.

STOP Button ☐ E

Press the STOP button ■ once to stop disc play. Press the PLAY button ▶ to resume disc play where it was stopped. If the STOP button ■ is pressed twice, disc play stops, the display shows STOP indicator. When the PLAY button ▶ is pressed after pressing the STOP button ■ twice, the disc begins playing from the first track or the first programmed track in PROGRAM mode (see below).

PAUSE Button 9⑧

This button is used to temporarily suspend play. The disc continues to spin and play will be resumed from the current position. The PAUSE indicator will light in the display. To resume playing the disc, press the PAUSE button again or press the PLAY button ▶.

TRACK Buttons 11①

These buttons are used to select tracks on the disc. When a disc is playing, pressing the TRACK button advances to the beginning of the next track. Pressing the TRACK button returns to the beginning of the current track. Pressing the TRACK button twice quickly in succession returns to the beginning of the previous track. The new track number appears in the display.

These buttons are also used to select a track before pressing the PLAY button ▶ or when memorizing tracks for the PROGRAM play mode (see below). These selections are made by continuously pressing the TRACK buttons until the desired track is reached.

In PROGRAM mode, the TRACK buttons advance or reverse to the next track in the memorized selection list.

DIRECT ACCESS Buttons ⑭

Remote Only

These ten numeric buttons (labelled 0 through 9) are used to directly access a track from the IR remote control instead of stepping through the tracks using the TRACK buttons.

The first nine tracks on a disc can be selected by pressing the corresponding button. For example, to play the third track, press the 3 button on the remote control.

When accessing track numbers greater than 9, enter the 2 digit track number on the remote control.

NOTE: The >10 button is not used for this model.

The number of the selected track will appear in the main numeric area at the center of the display.

SEARCH Button 10⑤

These fast forward and fast reverse buttons ← all→ fast searching through the currently playing disc. One press of these buttons will fast forward or fast reverse at 2X normal speed. Pressing these buttons repeatedly will fast forward or fast reverse at 4X and 8X normal speed. Pressing the PLAY button returns the player to normal speed. While the fast search function is active, you will hear high-speed audio.

Additional Features

These convenience features add extra functionality to the RCD-1572, including the ability to memorize a group of tracks to be played, to repeat a disc, program, or track over and over, to play the tracks on a disc in random order, and to select from several available time displays.

PROGRAM Button ©

Remote Only

This button, labeled PROG, allows you to memorize as many as 20 tracks on the current disc for playback in a specific order. For example, you could instruct the RCD-1572 to play track 5, followed by track 3, followed by track 8.

To begin a program:

1. Insert a disc into the tray loader. The RCD-1572 will read the contents of the disc.
2. Press the PROG button on the remote control. The PROGRAM indicator will light up in the display, along with "PROG-01" indicating that the unit is waiting for the first track to be memorized.
3. Enter the first track number using the DIRECT ACCESS buttons. Your selection will be memorized automatically. Press PROG button again then the display indicator will change to "PROG-02". Continue entering the rest of your selections using the DIRECT ACCESS buttons.

Once you have memorized a play list, the RCD-1572 remains in PROGRAM mode until you eject the disc or press and hold the PROG button for 3 seconds. If you press the PLAY button ▶, the memorized program will play instead of the entire disc, starting with the first selection in the memorized list.

When a PROGRAM has been memorized, most functions that would normally affect the entire disc operate on just the memorized program. For example, the TRACK buttons advance to the next track in the memorized program, not the next track on the disc. Likewise, the REPEAT button (see below) continuously plays the memorized program, not the entire disc.

NOTE: The Random button does not function when playing a program. To activate the Random button the unit must exit Program playback.

NOTE: Direct track access is not available when in the PROGRAM mode.

RANDOM Button 3⑥

This instructs the CD player to play tracks from the entire disc in random order. Once all of the selections have been played once, the disc will stop playing, unless the REPEAT Button (see below) has been engaged, in which case the random play will continue until the STOP button is pressed.

REPEAT Button ☐⑤

This button allows you to repeat the current track or the entire disc continuously until the feature is cancelled by disengaging the REPEAT button or pressing the STOP button ■ The REPEAT button steps sequentially through the available options. Press the button once and the RCD-1572 will repeat just the current track. Press the button a second time and the RCD-1572 will repeat the entire disc. Press the button a third time to cancel the REPEAT function.

As noted above, REPEAT can be used in conjunction with the RANDOM play feature.

NOTE: The REPEAT function is automatically cancelled when the disc is ejected.

TIME Button 4⑥

Normally, the RCD-1572 displays the elapsed time of the currently playing track. The TIME button allows you to step through two alternative time displays. Pressing the button once displays the time remaining in the current track, which counts down as the track continues playing. Pressing the button a second time displays the time remaining on the entire disc (or memorized program). Pressing the button a third time reverts to the standard elapsed time display.

NOTE: If a disc has CD Text information on it, pressing the play button during playback will alternate between standard disc information and any CD Text data being shown on the display.

RS232 16

The unit can be controlled via RS232 for integration with automation systems. The RS232 input accepts a standard straight DB-9 Male-to-Female cable.

For additional information on the connections, software, and operating codes for RS232 control of the RCD-1572, contact your authorized Rotel dealer.

Rotel Link 17

See figure 6

This 3.5 mm stereo mini-jack (labeled ROTEL LINK IN) can optionally attach to Rotel network enabled products with ROTEL LINK OUT connections. This allows the attached Rotel products to communicate with each other and be controlled via the Rotel App (available for download on the iTunes ^® store).

EXT REM IN Jack 18

This 3.5mm mini-jack receives command codes from industry-standard infrared receivers via hard-wired connections. This feature could prove useful when the unit is installed in a cabinet and the front-panel sensor is blocked. Consult your authorized Rotel dealer for information on these external repeaters and the proper wiring of a jack to fit the mini-jack receptacle.

Remote Control Advanced Buttons

MENU Button Ⓗ

Remote Only

By pressing the MENU button, you can enter the following setup menu:

• DISPLAY DIMMER: Changes the display brightness.

- POWER LED DIMMER: Changes the Power LED brightness.

NOTE: These settings are stored permanently even after the RCD-1572 is powered off.

- VERSION: Shows the current software version.

- AUTO POWER OFF: The unit can be configured to automatically power off if unused for a specified period. If the CD is stopped for the specified "Auto Power Off" time the unit will automatically go to STANDBY mode. The Auto Power Off timer will be restarted if the CD starts to play. The default for Auto Power Off is set to DISABLE.

Valid settings include: DISABLE, 30 mins, 60 mins, 90 mins.

NOTE: Some regions require the AUTOMATIC POWER OFF default setting to be 20 minutes. This can be changed in the SETUP MENU to any of the available options. For questions about the AUTOMATIC POWER OFF settings please contact your authorized Rotel dealer.

NOTE: Some products cannot detect ANALOG signal inputs and the unit may power off if there is no digital audio source detected or user action with the remote control or front panel. Analog input signal detection is not available in all models which may cause the unit to inadvertently power off. In this case the Automatic Power Off should be set to DISABLED.

- EXIT: Exits this SETUP menu.

From the remote control, press the up/down arrow buttons to change the contents of the menu, and press ENT to enter the settings or confirm.

NOTE: You can also access the SETUP menu without the remote control. Press the STOP button on the front panel for 5 seconds. Press the TRACK buttons to change the contents of the menu and press STOP button to enter the settings or confirm.

DIM Button ©

Remote Only

Press the DIM button sequentially to change the DISPLAY brightness.

NOTE: Adjustments made using the © button are temporary only and not saved after powering off the RCD-1572.

Troubleshooting

Most difficulties in audio systems are the result of incorrect connections, or improper control settings. If you encounter problems, isolate the area of the difficulty, check the control settings, determine the cause of the fault and make the necessary changes. If you are unable to get sound from the unit, refer to the suggestions for the following conditions:

Power Indicator Is Not Illuminated

The Power Indicator and the basic items in the display window should be illuminated whenever the unit is plugged into the wall power outlet and the Power button is pushed in. If it does not light, test the power outlet with another electrical device, such as a lamp. Be sure the power outlet being used is not controlled by a switch that has been turned off.

Fuse Replacement

If another electrical device works when plugged into the power outlet, but the Power Indicator and the display still will not light when the unit is plugged into the wall outlet, it indicates that the internal power fuse may have blown. If you believe this has happened, contact your authorized Rotel dealer to get the fuse replaced.

No Sound

Check the cables between the unit and the amplifier inputs to be sure they are connected properly. Be sure the correct amplifier input is selected. Be sure the tape monitor system of the amplifier has not been activated. Check the wiring between the amplifier and the speakers.

Specifications

Total Harmonic Distortion + Noise 0.002% @ 1kHz

Frequency Response (±0.5 dB) 20 - 20,000 Hz

Channel Balance ± 0.5 dB

Channel Separation > 115 dB @ 10kHz

Signal to Noise Ratio (A Weighting) > 118dB

Dynamic Range > 99 dB

Digital to Analog Converters Wolfson 24 bit/192kHz DAC

Analog Output Level / Impedance (OdBfs)

Unbalanced (RCA) 2.2 V / 100 Ohms

Balanced (XLR) 4.4 V / 200 Ohms

Digital Output 0.5 V, Peak to Peak

Load Impedance 75 Ohms

Power Requirements

USA 120V, 60 Hz

EC 230V, 50 Hz

Power Consumption 15 Watts

Standby Power Consumption < 0.5 Watts

Dimensions (W x H x D) 431 x 104 x 320 mm

17 × 4 × 12 ^3/_5 ins

Front Panel Height 2U / 3 ^1/2 ins / 88.1 mm

Weight (net) 6.7 kg, 14.8 lbs.

All specifications are accurate at the time of printing. Rotel reserves the right to make improvements without notice.

Rotel and the Rotel HiFi logo are registered trademarks of The Rotel Co, Ltd., Tokyo, Japan.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING : SHOCK HAZARD-DO NOT OPEN AVIS: RISQUE DE CHOC ÉLECTRIQUE-NE PAS OUVRIR

This Class B digital apparatus complies with Canadian ICES-003.

>10 cm >4 in POTEL >10 cm >4 in >10 cm >4 in >10 cm >4 in

>10 cm >4 in

INFORMATIONS IMPORTANTES CONCERNANT LES APPAREILS LASER

Bouton SEARCH (RECHERCHE) 22

2 ▶ 0:00:06 Tracks: 12 ☐ 0:44:34

Bouton SEARCH (RECHERCHE) 10 F

This Class B digital apparatus complies with Canadian ICES-003.

>10 cm >4 in HOTEL >10 cm >4 in >10 cm >4 in

>10 cm >4 in

WICHTIG FÜR LASERPRODUKTE

Ausgangsanschlüsse....28

This Class B digital apparatus complies with Canadian ICES-003.

>10 cm >4 in

IMPORTANTE PARA PRODUCTOS LÁSER

Botones DIRECT ACCESS ©

This Class B digital apparatus complies with Canadian ICES-003.

>10 cm >4 in POTEL >10 cm >4 in >10 cm >4 in

> 10 cm > 4 in

ALGEMENE WAARSCHUWING!

The Rotel Co. Ltd. Tokyo, Japan.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING : SHOCK HAZARD-DO NOT OPEN AVIS: RISQUE DE CHOC ÉLECTRIQUE-NE PAS OUVRIR

This Class B digital apparatus complies with Canadian ICES-003.

>10 cm >4 in >10 cm >4 in >10 cm >4 in

>10 cm >4 in

IMPORTANTI INFORMAZIONI PER I PRODOTTI LASER

This Class B digital apparatus complies with Canadian ICES-003.

>10 cm >4 in ROTEL >10 cm >4 in >10 cm >4 in

>10 cm >4 in

VIKTIGT FÖR LASERPRODUKTER

>10 cm >4 in ROTEL >10 cm >4 in >10 cm >4 in >10 cm >4 in

>10 cm >4 in

2-11-4, Nakane, Meguro-ku,

Tokyo, 152-0031

Japan

Rotel of America

Sumiko

6655 Wedgwood RD N, Suite 115

Maple Grove, MN 55311

USA

Phone: [phone] (option 2)

E-mail: [e-mail]

Rotel Canada

Kevro International

902 McKay Rd. Suite 4

Pickering, ON L1W 3X8

Canada

Tel: [phone]

Rotel Europe

Dale Road

Worthing, West Sussex BN11 2BH

England

Phone: [phone]

Fax: [phone]

Rotel Deutschland
