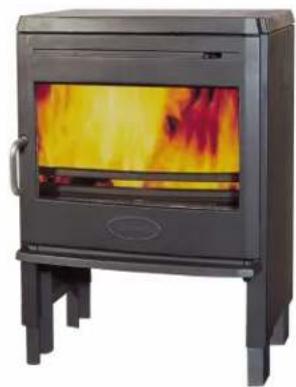

Houtkachel 350CB, 350CB3, 350CB3/WB, 360CB en 360CB3

Dovie®

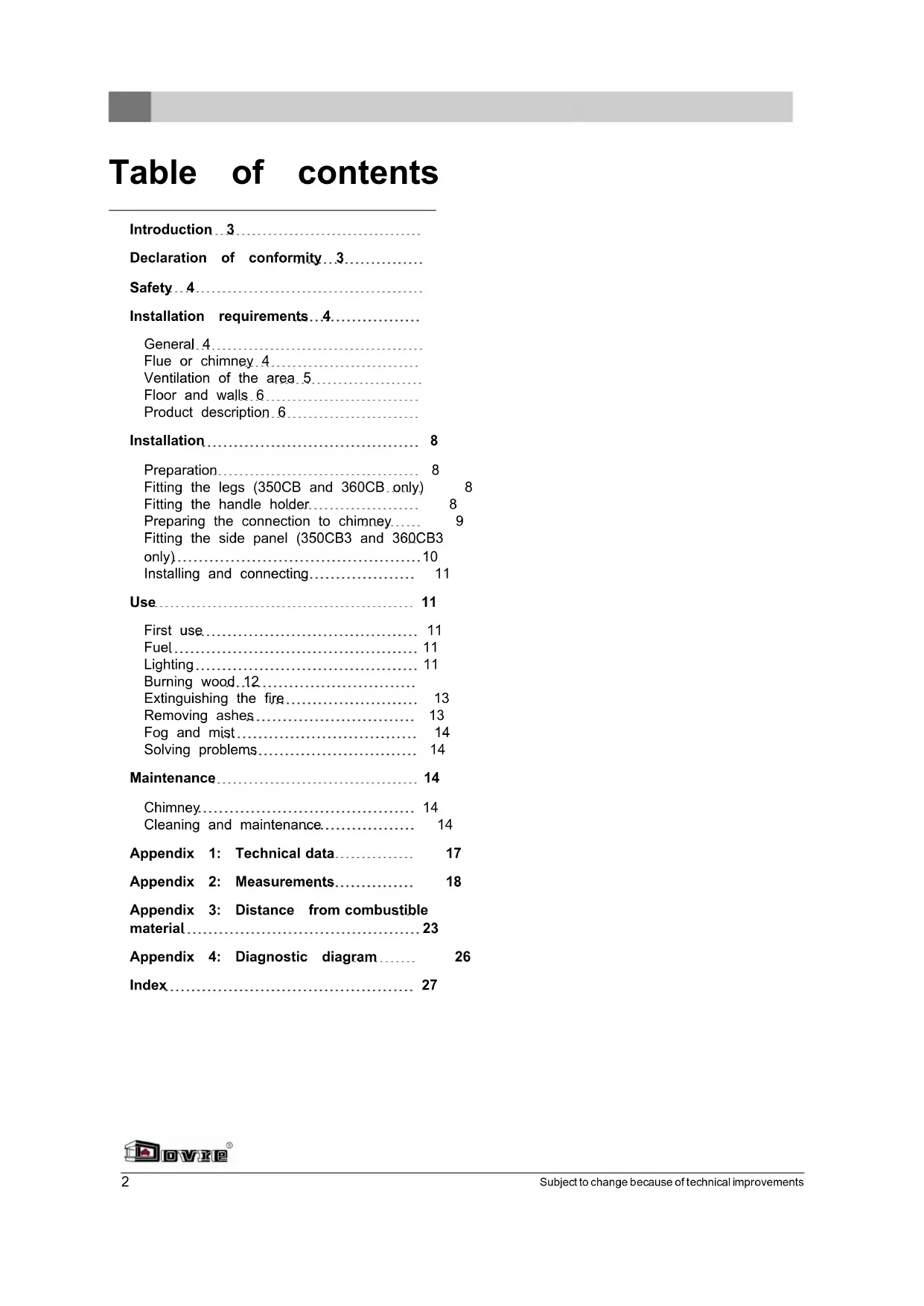

Inhoudsopgave

Inleiding 3

Line drawing of a hand holding a tool next to a door, with no text or symbols present

Model 350CB3 en 360CB3

1 2 3 4 5 6 7 09.20015.079

Line drawing of a U-shaped mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with a central circular component and two mounting brackets (no text or symbols)

Illustration of layered geological strata with no visible text or symbols

Illustration of a textured surface with layered patterns and a blue rectangular block, no text or symbols present.

Illustration of fragmented, irregularly shaped objects with internal patterns, no text or symbols present

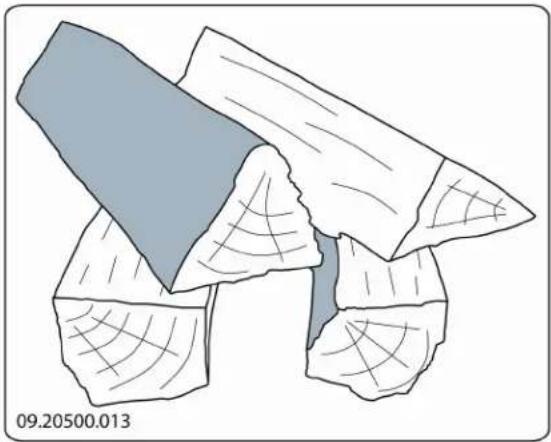

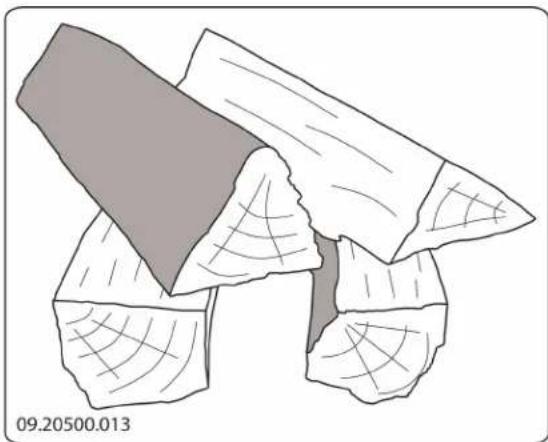

Stoken met hout

Technical line drawing of a structural framework with a tool and arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Architectural line drawing of a building interior with circular and angular components, no text or symbols present

Declaration of conformity 3.

Safety 4

Installation requirements...4.....

General 4

Flue or chimney 4

Ventilation of the area 5

Floor and walls 6

Product description 6

Installation 8

Preparation 8

Fitting the legs (350CB and 360CB_only) 8

Fitting the handle holder 8

Preparing the connection to chimney.... 9

Fitting the side panel (350CB3 and 360CB3

only)....10

Installing and connecting.... 11

Use 11

First use.... 11

Fuel 11

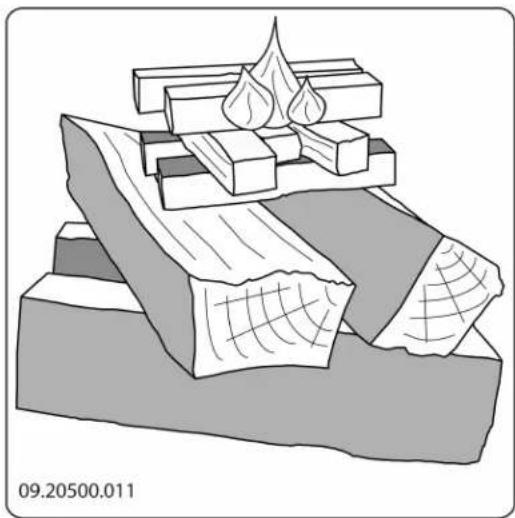

Lighting.... 11

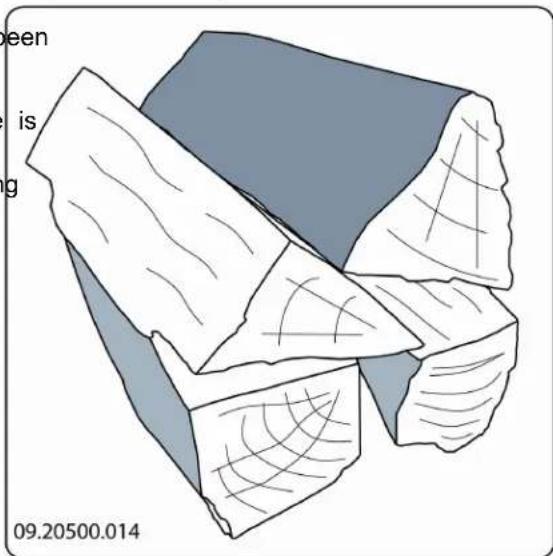

Burning wood.12....

Extinguishing the fire.... 13

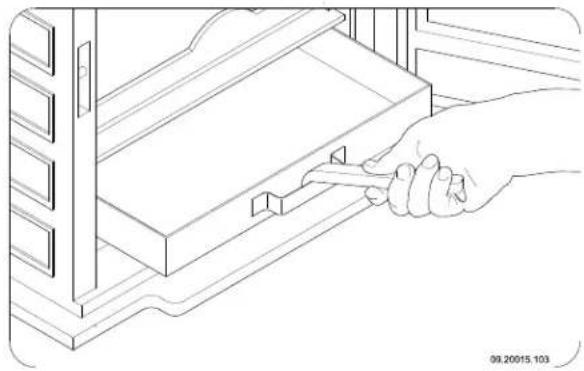

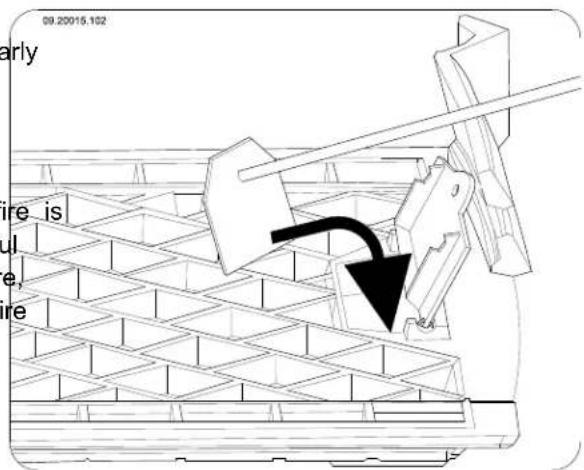

Removing ashes 13

Fog and mist.... 14

Solving problems.... 14

Maintenance 14

Chimney.... 14

Cleaning and maintenance.... 14

Appendix 1: Technical data.... 17

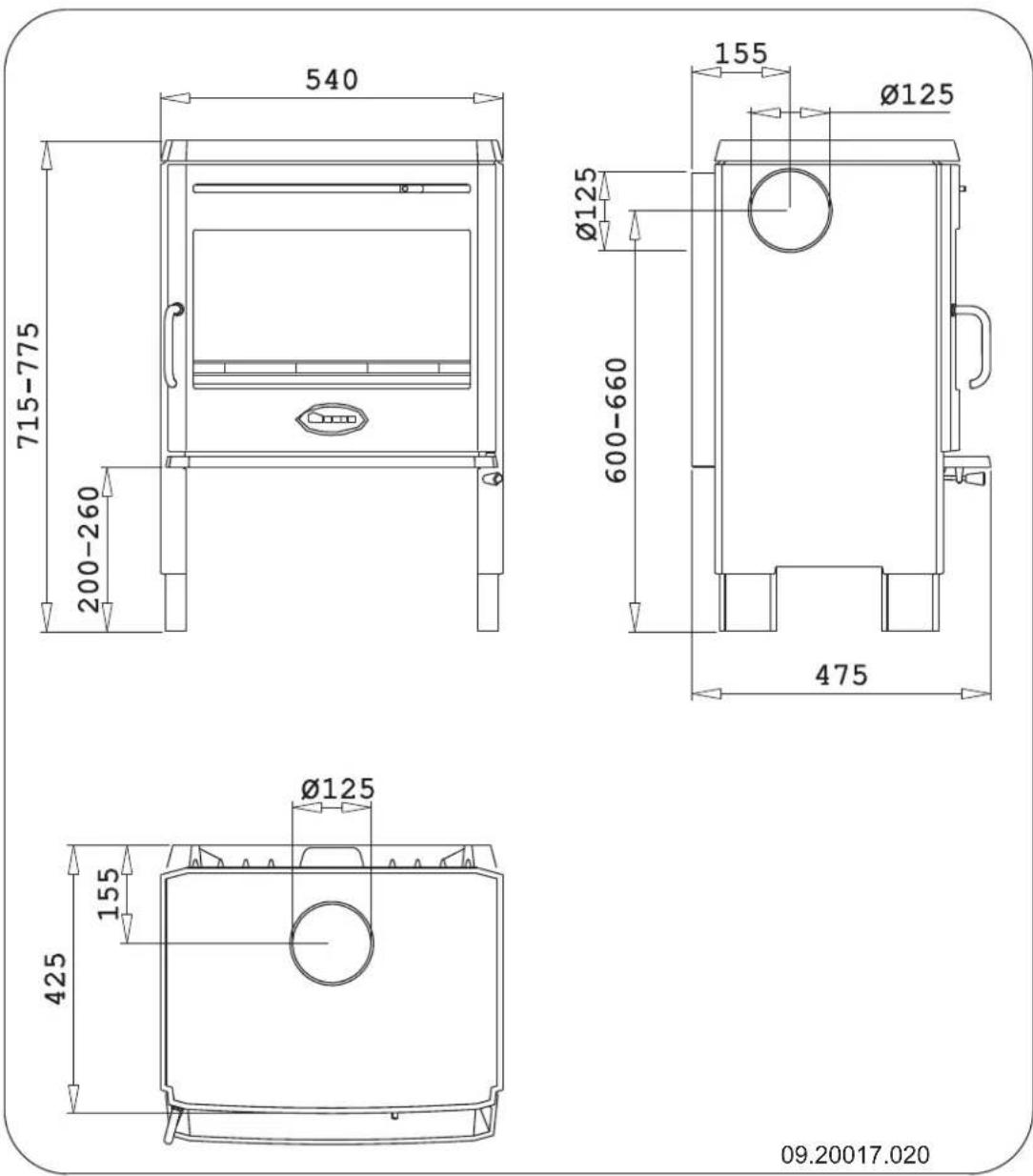

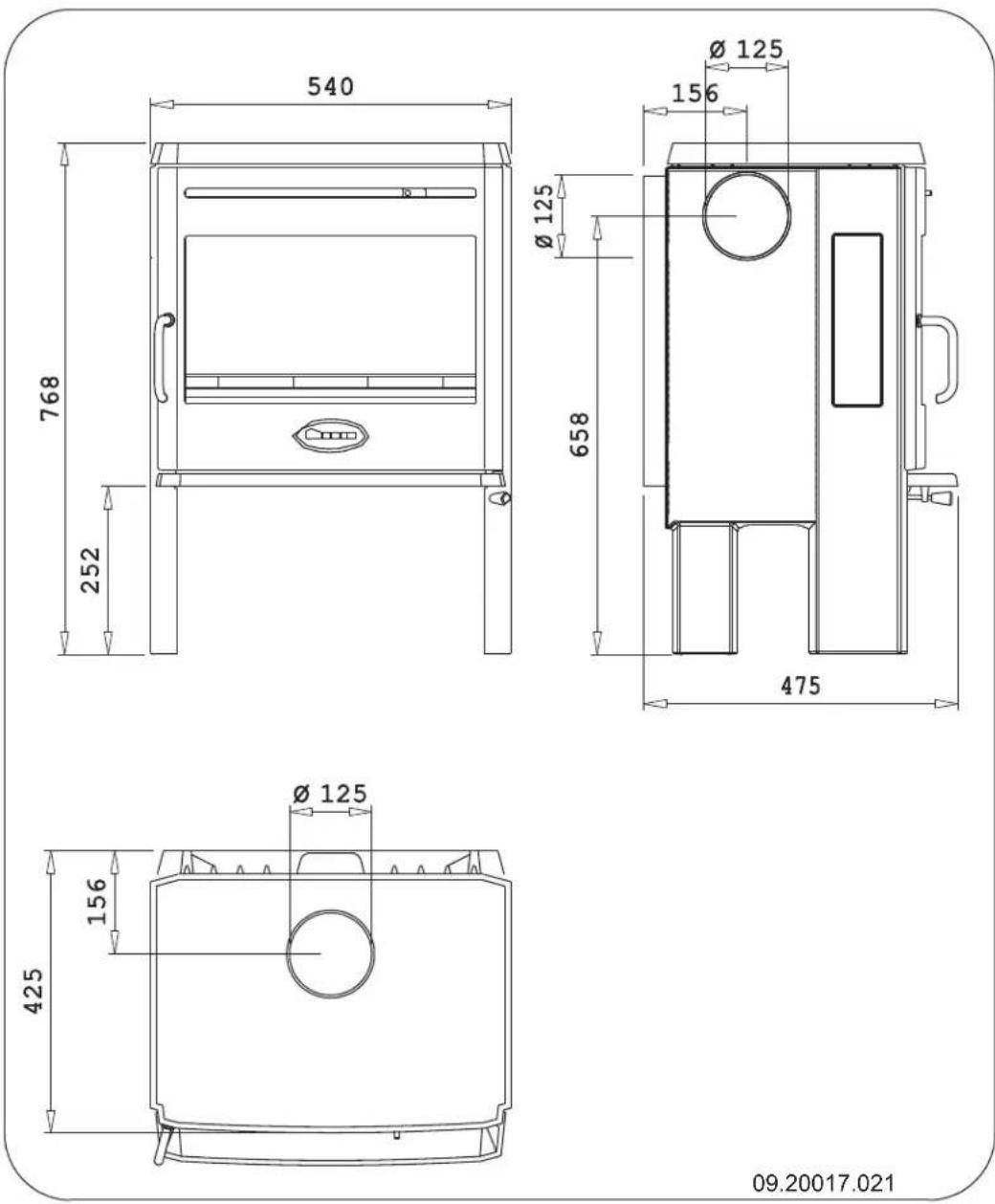

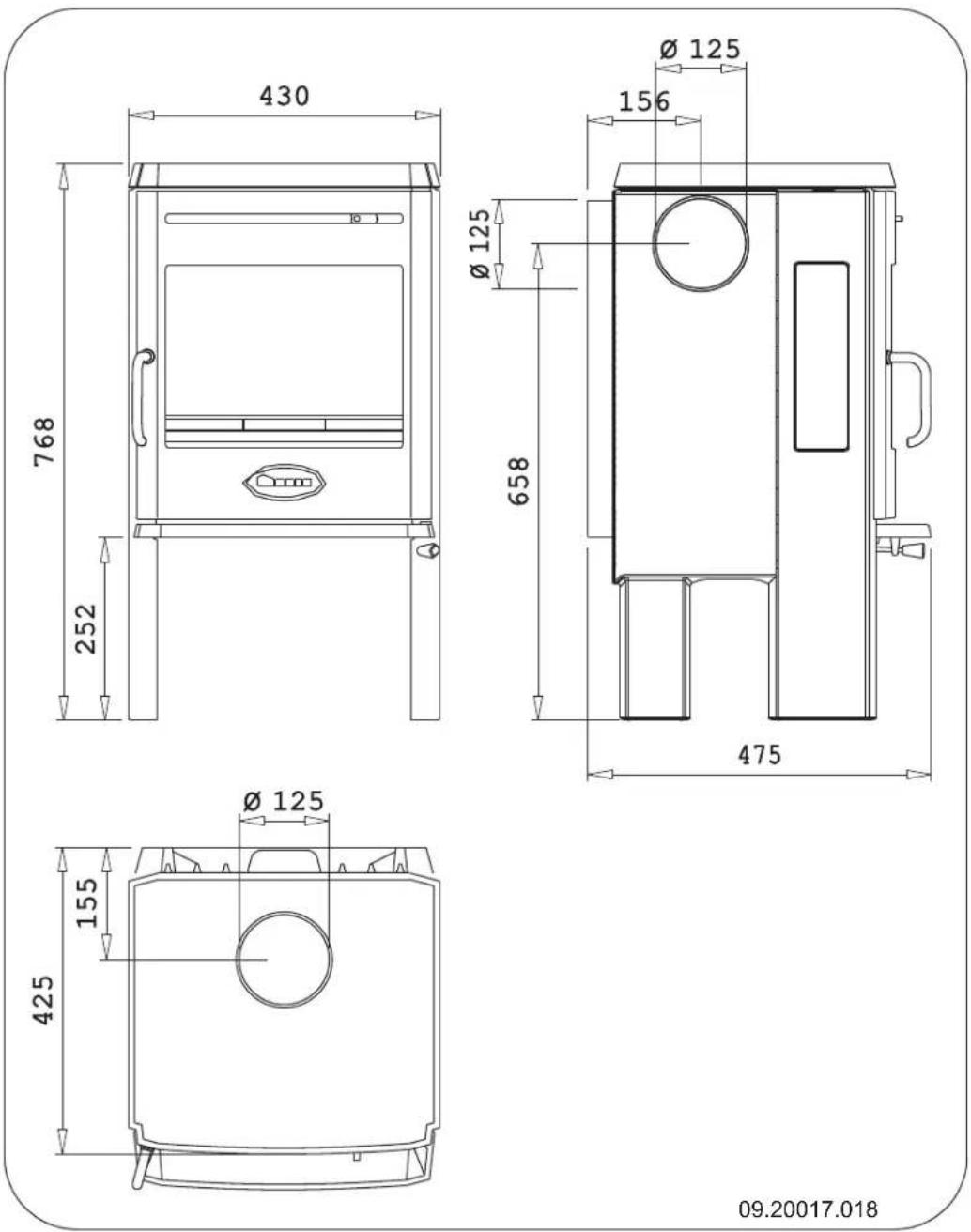

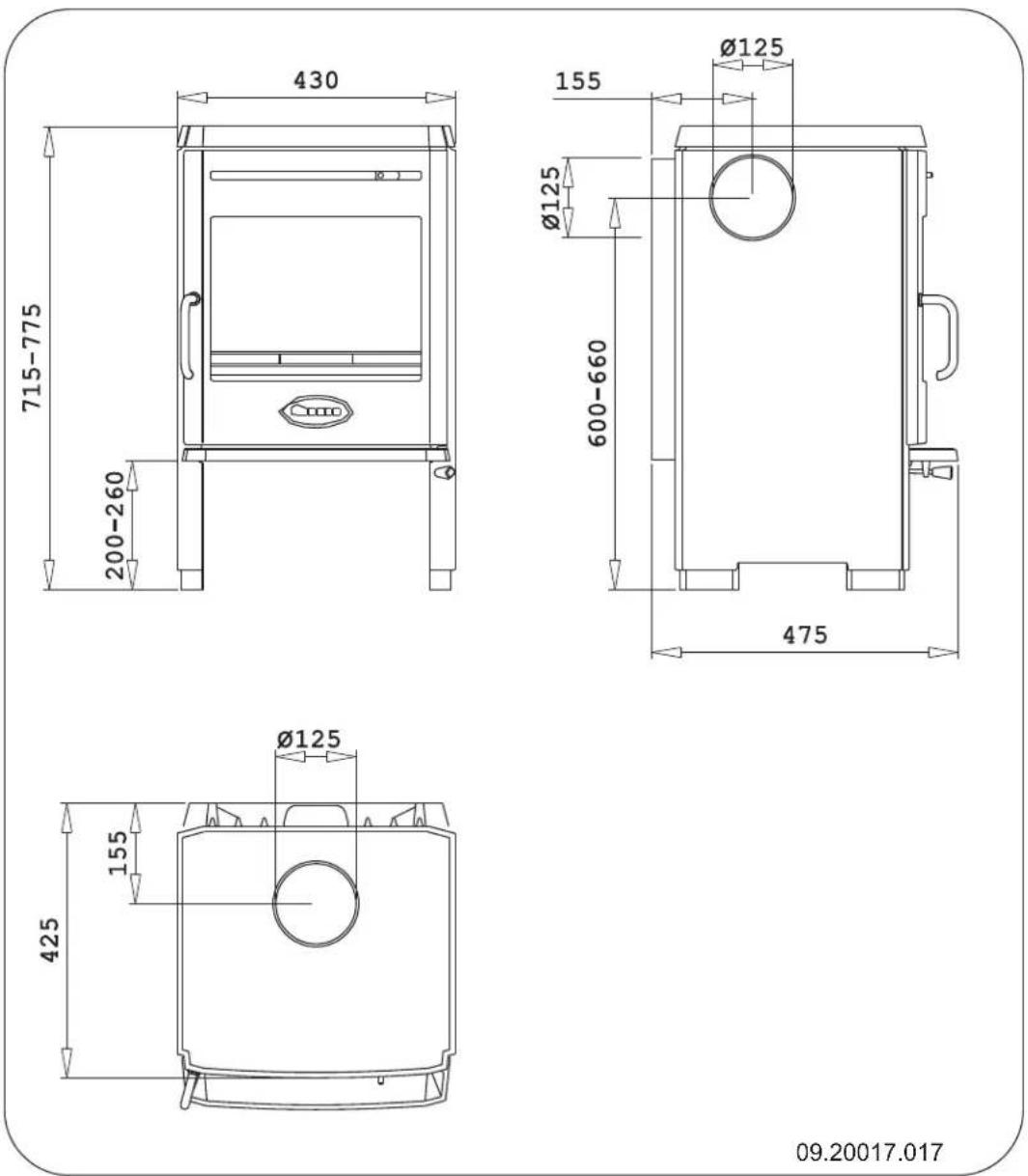

Appendix 2: Measurements.... 18

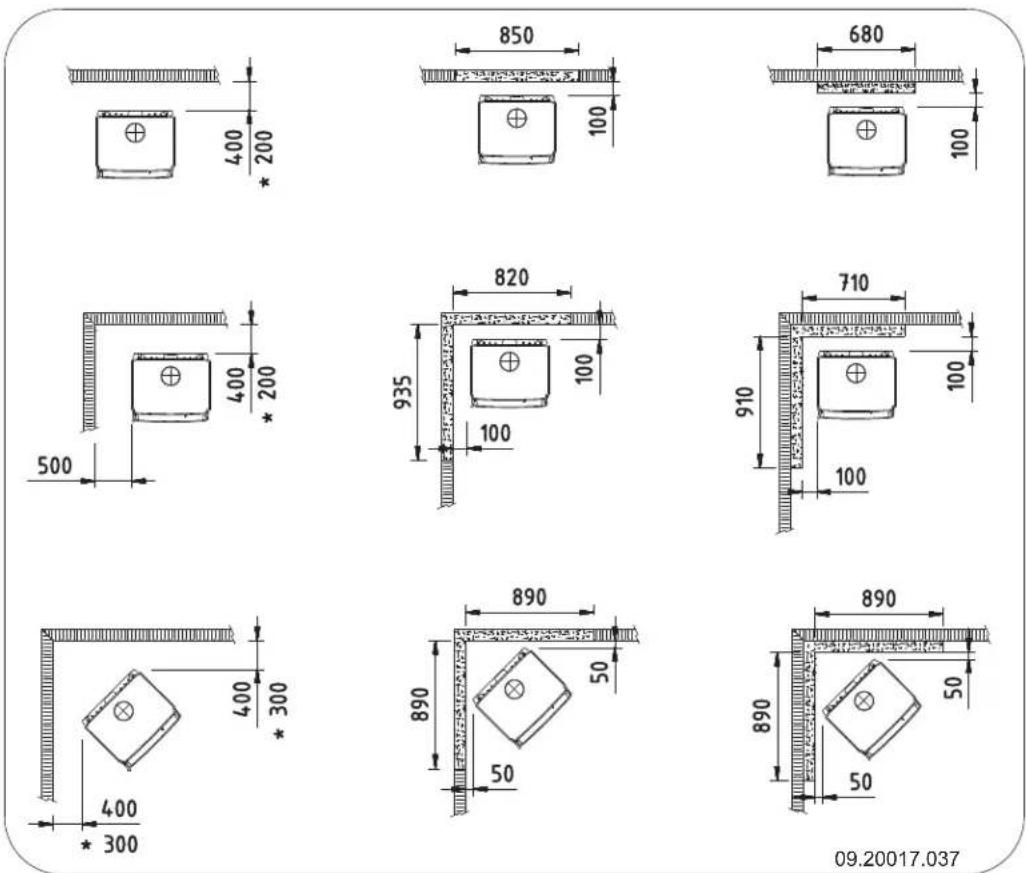

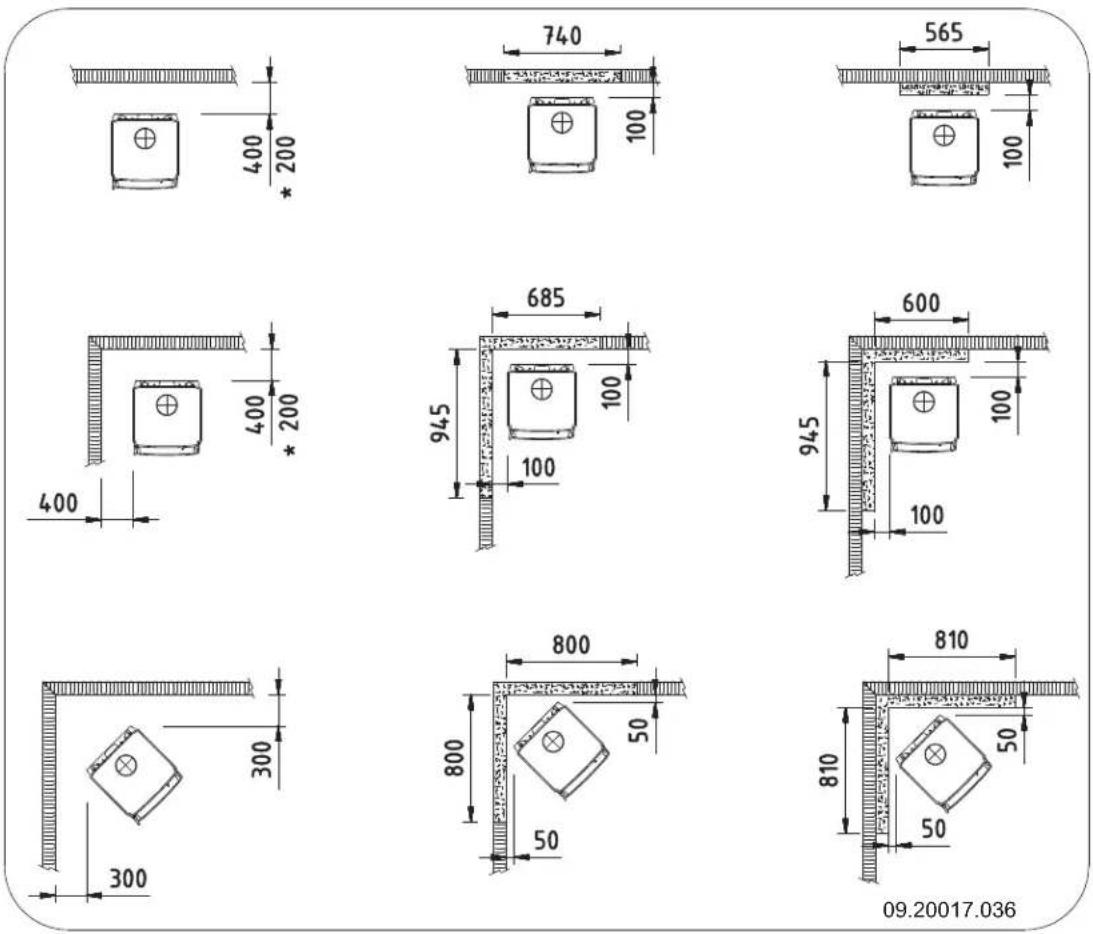

Appendix 3: Distance from combustible

material 23

Appendix 4: Diagnostic diagram.... 26

Index 27

Introduction

Dear user,

In buying this DOVRE heating appliance, you have chosen a high quality product. This product is part of a new generation of energy saving and environmentally friendly heating appliances. These appliances make optimal use of convection heat as well as thermal radiation (radiant heat).

Your DOVRE appliance has been manufactured with state-of-the-art production equipment. In the unlikely event of a malfunction, you can always rely on DOVRE for support and service.
The appliance is not to be modified; always use original parts.
The appliance is intended for use in a living room. It must be connected hermetically to a well-functioning chimney.
We advise you to let an authorized and competent installation company install the appliance. 360CB and 360CB3 have been produced in conformity with EN 13240.
▶ DOVRE cannot be held liable for any problems or damage resulting from incorrect installation.
Observe the following safety rules when installing and using the appliance.
Notified body: 2013
The undersigned
Dovre nv, Nijverheidsstraat 18 B-2381 Weelde hereby declares
that the wood stoves 350CB, 350CB3, 350CB3/WB, 350CB and 360CB3 have been produced in conformity with EN 13240.
Weelde 03-09-2005

In this manual, you can read how the DOVRE heating appliance can be installed, used and maintained safely. Should you require additional information or technical data, or should you experience an installation problem, please contact your supplier first.

T. Gehem

Gehem

© 2012 DOVRE NV

Due to continuous product improvement, specifications of the appliance supplied may vary from the description in this brochure without prior notice.

DOVRE N.V.

⚠️ Please note: All safety regulations must be complied with strictly.

⚠️ Carefully read the instructions for installation, use and maintenance before you start using the appliance.

The appliance must be installed in accordance with the laws and requirements of your country.

All local regulations and the regulations relating to national and European standards must be observed when installing the appliance.

Read the instructions for installation, use and maintenance supplied with the appliance.

It is preferable to have the appliance installed by an authorized and competent installation company. They will be aware of the applicable regulations and requirements.

The appliance is designed for heating purposes. All surfaces, including the glass and the connecting tube, can get very hot (over 100°C)! For operation, use a so-called "cold hand" or an oven glove.

Don't place any curtains, clothes, laundry or other combustible materials on or near the appliance.

Don't use flammable or explosive substances near the appliance when it is in use.

Avoid a chimney fire by having the chimney swept regularly. Never burn wood with an open door.

In the case of a chimney fire: close all air in of the appliance and alert the fire brigade.

⚠️ If the glass in the appliance is broken or cracked, it must be replaced before you can use the appliance again.

Make sure there is adequate ventilation in the room where the appliance is installed. The combustion will be incomplete in case of insufficient ventilation, which results in toxic gases being produced and spread through the room. See the chapter "Installation requirements" for more information on ventilation.

Installation requirements

General

The appliance must be connected tightly to a well-functioning chimney.

For the connection measurements: see the appendix "Technical data".

Ask the fire brigade and/or your insurance company about any specific requirements and regulations.

Flue or chimney

The flue or chimney is needed for:

▶ Disposing of the combustion gases through natural draught.

The warm air in the flue or chimney is lighter than the outside air so it rises.

The intake of air, needed for the combustion of fuel in the appliance.

A poorly functioning flue or chimney can cause smoke to escape into the room when the door is opened. Damage caused by smoke emissions into the room is not covered by the warranty.

Do not connect multiple appliances (such as a boiler for central heating) to the same flue, unless local or national regulations allow this.

Ask your installer for advice regarding the flue. Refer to the European norm EN13384 for a correct calculation for the flue.

The flue must satisfy the following requirements:

The flue or chimney must be made of fire resistant material, preferably ceramics or stainless steel.

The flue or chimney must be airtight and well cleaned and guarantee sufficient draught.

A draught/vaccuum of 15 - 20 Pa during normal operation is ideal.

Starting from the flue spigot, the flue must run as vertically as possible. Changes in direction and horizontal pieces disrupt the outward flow of combustion gases and may cause the deposit of soot.

The interior measurements should not be too big, prevent the combustion gases from cooling down too much, thereby reducing the draught.

The flue or chimney must ideally have the same diameter as the connection collar.

For the nominal diameter: see the appendix "Technical data". If the smoke channel is well insulated, the diameter may be slightly bigger (up to 2x the section of the connection collar)

The section (area) of the smoke channel must be

constant. Wider segments and (in particular) narrower segments disrupt the outward flow of combustion gases.

When using a cover plate or exhaust hood: make sure that the cover does not restrict the flue outlet and that the cap does not impede the outward flow of combustion gases.

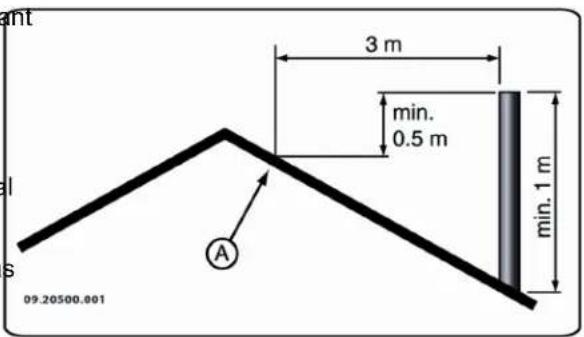

The chimney must end in a zone that is not affected by surrounding buildings, adjacent trees other obstacles.

The chimney part outside the house must be insulated.

The chimney must be at least 4 metres high.

As a rule of thumb: 60 cm above the ridge of the roof.

If the ridge of the roof is more than 3 metres away from the flue: stick to the measurements in the following figure. A = the highest point of the roof within a distance of 3 metres.

ant 3 m min. 0.5 m min. 1 m 09.20500.001 A

Ventilation of the area

For good combustion, the appliance needs air (oxygen). That air is supplied via adjustable air inlets from the area where the appliance is installed.

The combustion will be incomplete in case of insufficient ventilation, which results in toxic gases being produced and spread through the area.

As a rule of thumb, the air supply should be 5.5 cm ^2 /kW. Extra ventilation is needed when:

The appliance is in an area that is well insulated.

There is mechanical ventilation, for example a central extraction system or an extraction hood in an open kitchen.

You can provide extra ventilation by having a flow ventilation louvre installed in the outside wall.

Make sure that other air consuming appliances (such as tumble-driers, other heating appliances or a bath room fan) have their own supply of outside air, or are switched off when you use the appliance.

Floor and walls

The floor on which the appliance is placed must sufficient load bearing capacity. For the appliance weight: see the appendix "Technical data".

Protect a flammable floor from heat radiation by means of a fireproof protective plate. See the appendix "Distance from combustible material".

Remove combustible material such as linoleum, carpets/rugs and similar materials below the fireproof protective plate.

Keep enough distance between the appliance and combustible materials such as wooden walls and furniture.

The connecting tube radiates heat too. Ensure that there is sufficient distance or a shield between the connecting tube and combustible material.

The rule of thumb for a single-walled tube is a distance of 3x the diameter. If a lining shell is fitted around the tube, a distance of 1x the diameter is permissible.

Carpets and rugs must be at least 80 cm away Air slide for secondary combustion air, air-wash air from the fire.

Protect a flammable floor from possible falling ^3 . Fire basket ash in front of the fire with the aid of a fireproof

protective plate. The protective plate must comply with national standards.

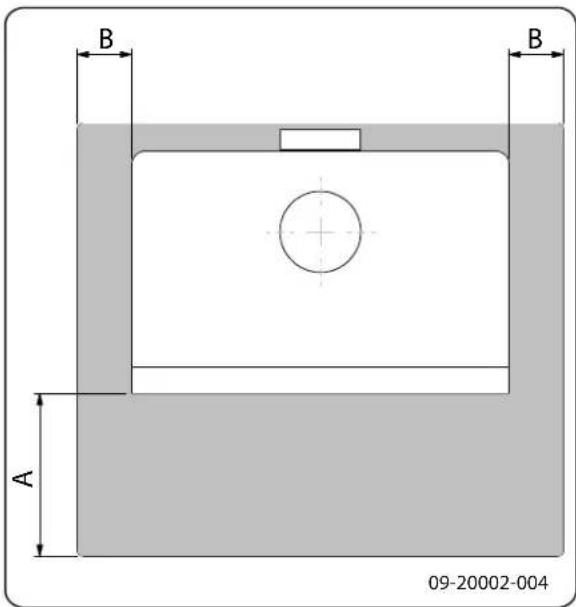

For the dimensions of the fireproof protective plate: see the appendix "Distance from combustible material".

For further requirements in connection with safety: see the appendix "Distance from combustible material".

Product description

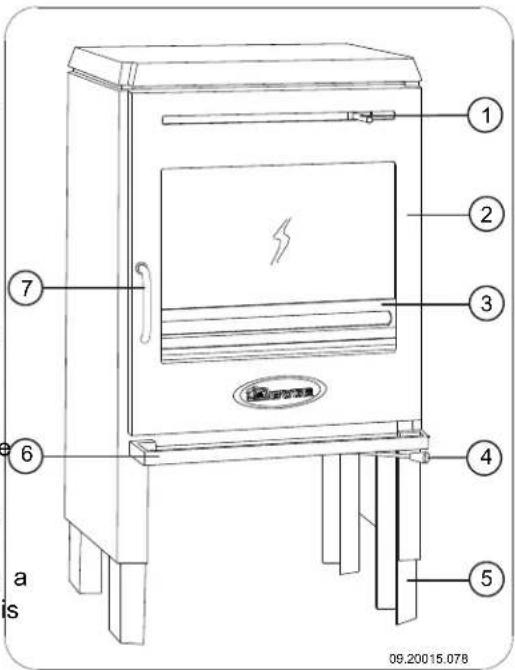

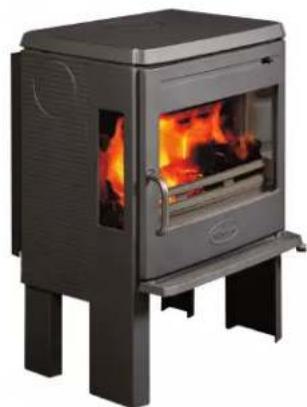

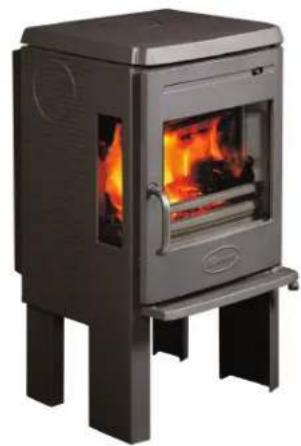

Model 350CB and 360CB

1 2 3 4 5 6 7 a is 09.20015.078

1. Door

2. Air slide for primary combustion air

3. Adjustable leg
4. Ashtray
5. Bolt

Features of model 350CB and 360CB

The appliance is supplied with height-adjustable legs.
The appliance can be connected to the chimney at the rear, at the upper side or at the side.
The appliance is supplied with a detachable handle.

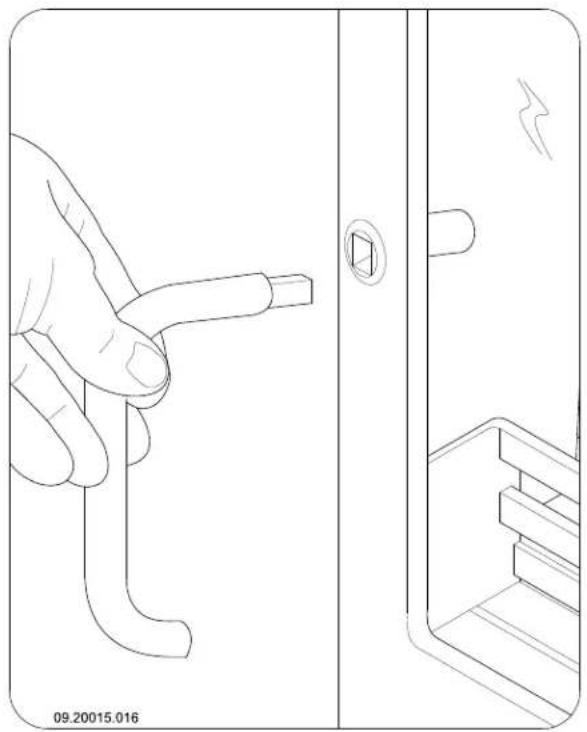

In order to open the door, insert the detachable handle into the door; see the following figure.

Line drawing of a hand holding a tool next to a door, with no text or symbols present

In order to prevent the handle becoming warm during use, the handle can be placed in the handle holder underneath the appliance's ash tray. 1.

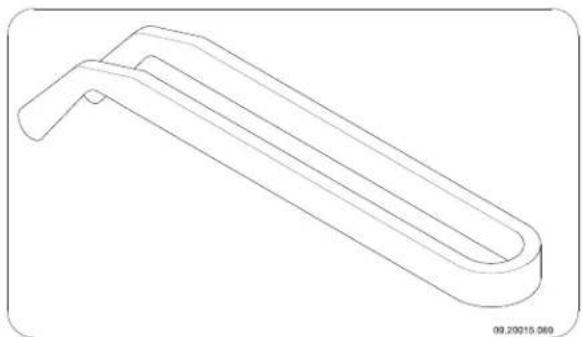

In order to remove the ash pan, the appliance is fitted with a cast-iron detachable handle, the so-called "cold hand"; see the following figure.

Line drawing of a U-shaped mechanical component (no text or symbols)

The appliance is supplied with a scraper for removing excess ash.

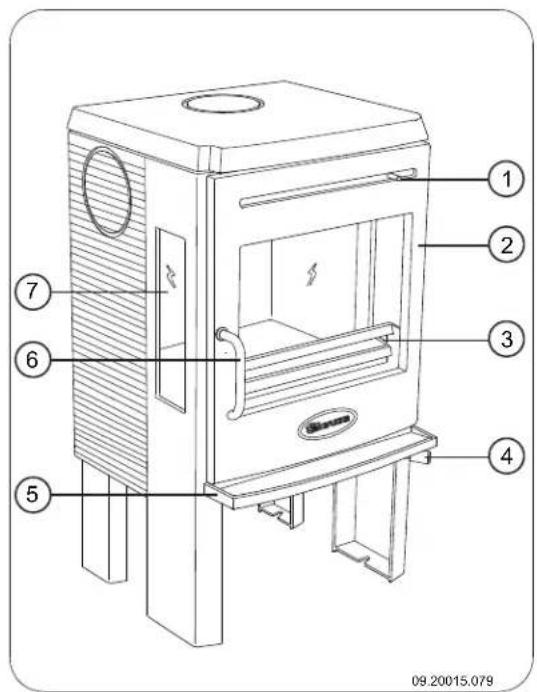

Model 350CB3 and 360CB3

1 2 3 4 5 6 7 09.20015.079

1. Air slide for secondary combustion air, air-wash air

s2. Door 3. Fire basket
4. Air slide for primary combustion air
5. Ashtray
6. Bolt
7. Side glass

Features of model 350CB3 and 360CB3

These models have the same features as models 350CB and 360CB, with the exception of the following points:

The appliance is not height-adjustable.
You can replace the side glass (7) with a side panel. In this case, the minimum distance between the side and combustible material decreases from 80 cm to 40 cm. The side panel is supplied as standard.

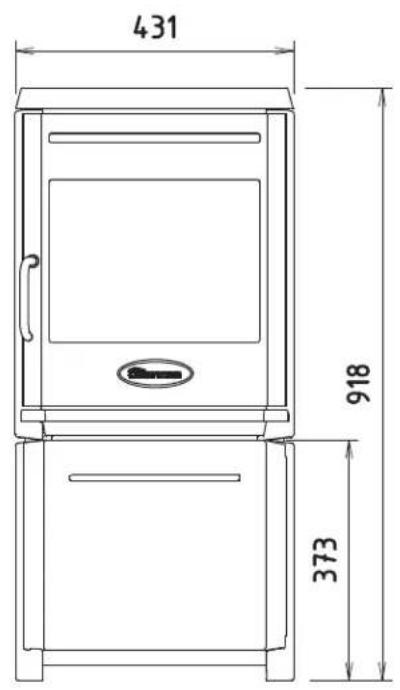

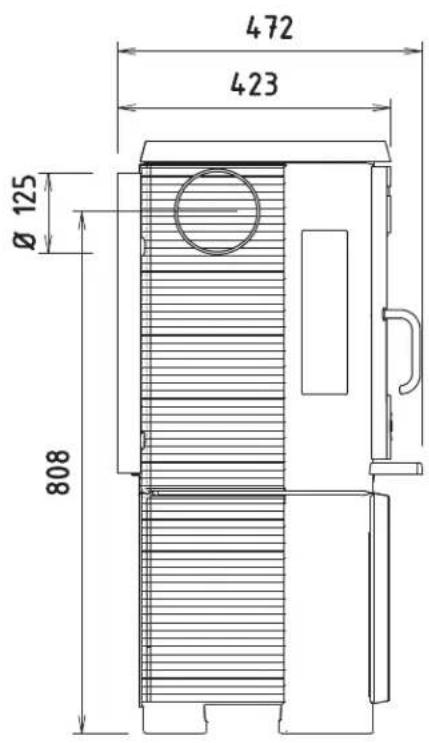

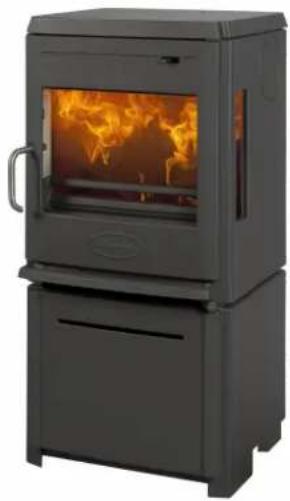

Model 350CB3/WB

Features of model 350CB3/WB

This model has the same features as model 350CB3.

The appliance is installed with a log compartment that is shut off by a door.

Installation

Preparation

▶ Please check the appliance for damage caused during transport or any damage or defects immediately after delivery.

If you detect damage caused during transport or any other damage or defects, do not use appliance and notify the supplier.

Remove the removable parts (fire-resistant inner plates, fire basket, ash pan, fire grate) from the appliance before you start installing the appliance.

By removing removable parts, it is easier to move the appliance and to avoid damage.

Note the location of those removable parts, so that you have no difficulties in installing the P parts in the right place later on.

1. Open the door.

2. Remove the fire-resistant inner plates.

Cast iron inner plates protect the combustion chamber and dissipate heat to the environment.

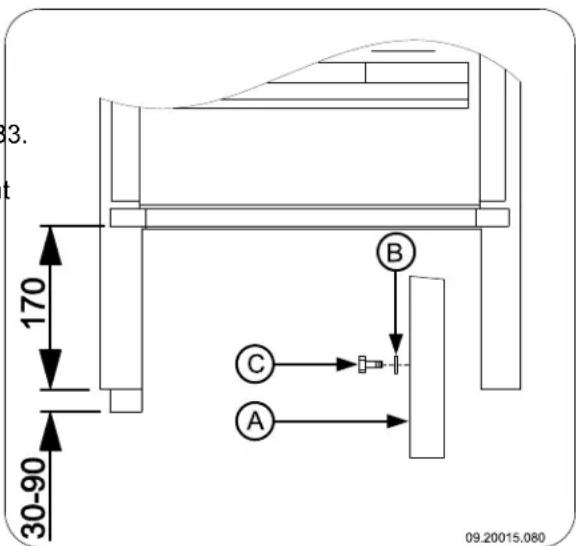

Fitting the legs (350CB and 360CB only)

If desired, you can fit the appliance with height-adjustable legs. Fit the legs to the appliance; see the following figure.

3. t 170 30-90 B C A 09.20015.080

theTilt the appliance on its back.

1. Fit the height-adjustable legs (A) to the desired height using the bolts M6 (C) and washer (B) provided.
2. Fit the appliance on the newly-fitted legs in the original position.

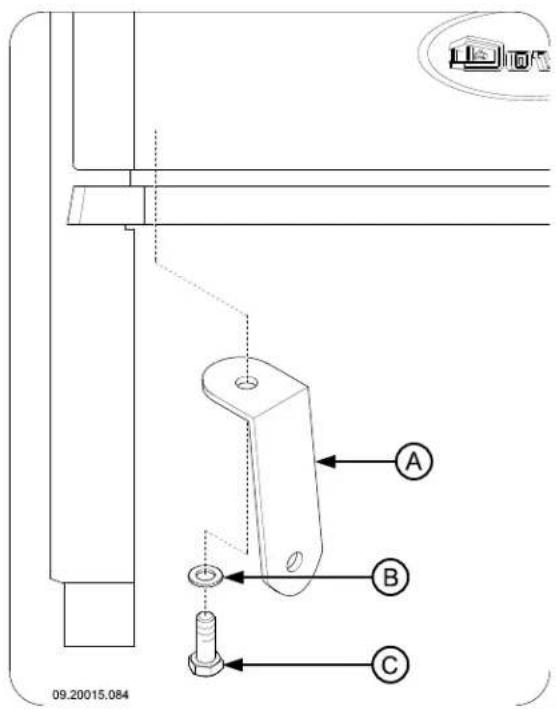

Fitting the handle holder

Fit the handle holder provided (A) to the base of the appliance using the washer (B) and the bolt M8 (C); see the following figure.

09.20015.084 A B C

Preparing the connection to chimney

When connecting the appliance to the chimney you have the choice of connecting via either the upper side, the side or the rear. See the paragraphs "Connecting to the top side or on the side" and "Connecting to the rear".

The appliance is not supplied with a flue gas opening.

▶ Sealant and materials supplied.

For Germany, the appliance is supplied with a connection collar with a diameter of 130 mm.

When connecting to the upper side an opening has to be made in the heat shield. At the spot when the opening has to be made an incision has been made in the heat shield.

Preparation for connection at the rear side

Make the necessary opening in the heat shield.

1. Unhook the heat shield from the appliance.
2. Make the opening in the heat shield by cutting the pre-cut section out of the heat shield using plate shears.
3. Replace the heat shield back onto the appliance.

Connecting to the upper side, re side or on the side

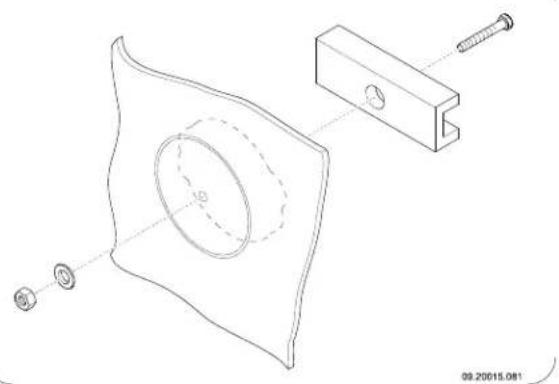

First make the flue gas opening in the appliance by removing the connection cover. Use the equipment provided: the tension piece, the washer, the nut and bolt; see following figure.

Technical line drawing of a mechanical assembly with mounting bracket, screw, and circular component (no text or symbols)

1. In the centre of the connection cover, drill a hole with a diameter of 10 mm.
2. Place the tension piece and the bolt on the inner side of the connection cover.
3. Slide the washer over the bolt and tighten the nut onto the bolt.

On enamelled appliances, place a piece of cardboard measuring a minimum of 20 cm by 20cm between the washer and the appliance to protect against chipping of the enamel.

1. Tighten the nut by hand. Use a small amount of grease to make it easier to turn the nut.

1e Using a ring spanner, tighten the nut so that the connection cover breaks out.

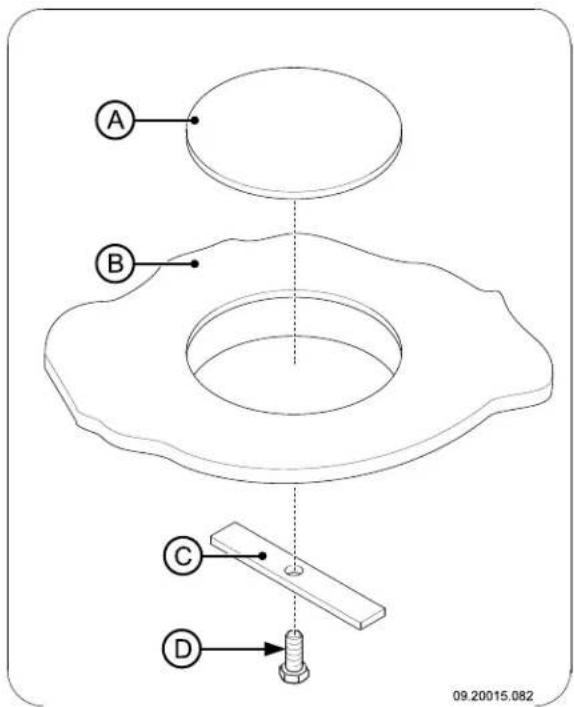

1. Once made a flue gas opening can be closed off again with the supplied shut-off cover (A). Use the mounting plate (C) and bolt M6x25 (D) to fit the cover to the appliance (B); see the following figure.

A B C D 09.20015.082

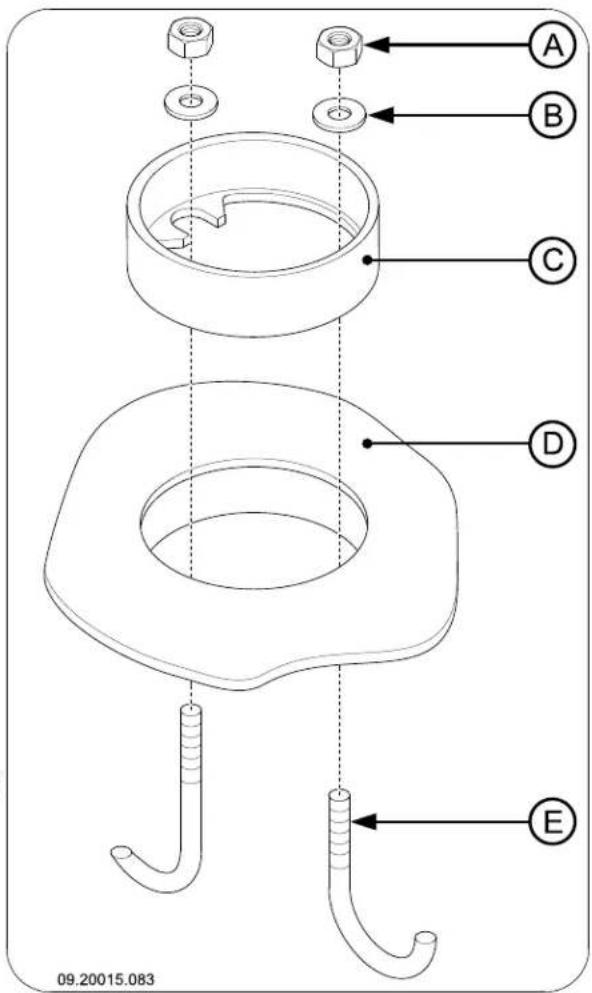

1. Fit the connection collar (C) to the flue gas opening (D) using the two brackets supplied (E) and the fixing materials (A) and (B); see the following figure.


A B C D E 09.20015.083

1. Use the supplied stove sealant to seal the connection collar and the cover to the appliance.

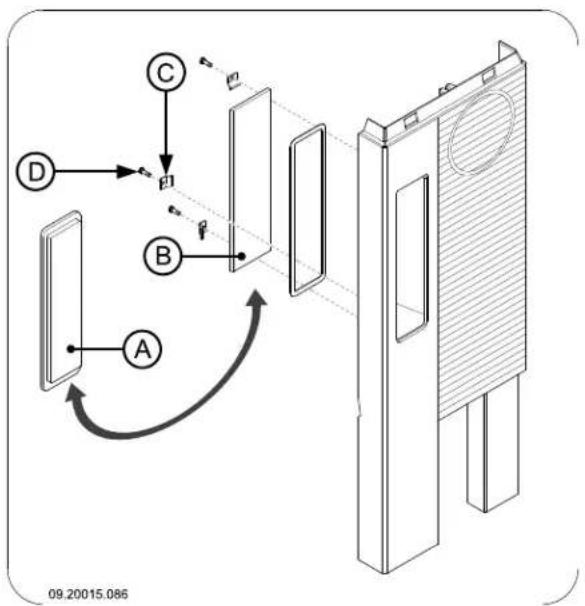

Fitting the side panel (350CB3 and 360CB3 only)

If required, you can replace the side glass with a closed side panel that is supplied as standard; see the following figure for installation instructions.

In this case, the minimum distance between the side and combustible material decreases from 80 cm to 40 cm.

Installing and connecting

1. Install the appliance in the right place, and make sure it is level.

2. Connect the appliance hermetically to the flue.

3. In the case of connection to outside air: connect the outside air supply to the connector you have fitted to the appliance.

4. Install all the parts you removed in the right places in the appliance.

Never use the appliance without the fire-resistant inner sheets.

The appliance is now ready for use.

Use

First use

When you use the appliance for the first time, make an intense fire and keep it going for a good few hours.

This will cure the heat-resistant paint finish. This may you can check whether the flue has enough draught result in some smoke and odours. You could open by lighting a ball of paper above the baffle plate. A cold windows and doors for a while in the area where there often does not have enough draught and appliance is located. consequently, some smoke may escape into the room

Fuel

This appliance is only suitable for the burning of natural wood; sawn and chopped wood that is

sufficiently dry.

Do not use other fuels, as they can lead to serious damage to the appliance.

You are not allowed to use the following fuels, as they pollute the environment and because they heavily soil the appliance and flue, which may lead to a chimney fire:

▶ Treated wood, such as scrap wood, painted wood, impregnated wood, preserved wood, plywood and chipboard.

Plastics, scrap paper and domestic waste.

Wood

Hardwood, such as from oaks, beeches, birches and fruit trees, is the ideal fuel for your stove. This type of wood burns slowly with calm flames. Softwood contains more resins, burns faster and gives off more sparks.

Use dried wood that contains no more than 20% moisture. The wood must have dried for at least 2 years.

Saw the wood to size and split it when it is still fresh. Fresh wood is easier to split, and split wood dries more easily. Store the wood under a roof where the wind has wind free access.

Do not use damp wood. Damp logs do not produce heat as all of the energy is used in the evaporation of the moisture. This will result in a lot of smoke and soot deposits on the door of the appliance and in the chimney. The water vapour will condense in the appliance and can leak away through chinks in the appliance, causing black stains on the floor. It may also condense in the chimney and form creosote. Creosote is a highly flammable compound and may cause a chimney fire.

1. Stack two layers of medium sized logs crosswise1. Slowly open the door of the appliance.
2. Stack two layers of kindling crosswise on top of 2. Spread out the charcoal bed evenly across the the logs. bottom of the fire compartment.

3. Stack a few logs on the charcoal bed.

4. Place a firelighter cube in the lower layer of kindling and light the cube according to the instructions on the packaging.

Illustration of layered geological strata with a central depression (no text or symbols)

1. Close the door of the appliance and open the primary air inlet and the secondary air inlet of

appliance. The primary air inlet is open if the operating knob has been pulled out. The secondary air inlet is open if air slider (C) has slid left; see following figure.

1. Let this fire develop into a good blaze until there glowing bed of charcoal. You can then add fuel and adjust the appliance, see the chapter "Stokin with wood".

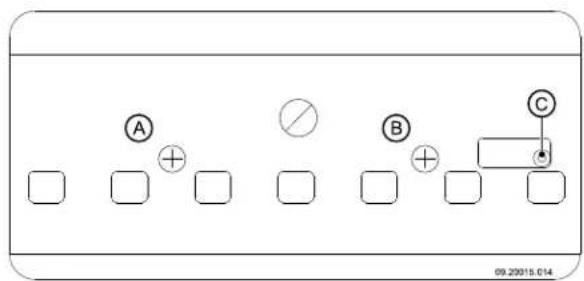

A + - B + - C 09.2015.014

Burning wood

After you have followed the instructions for lighting

Open stacking

Illustration of a broken stone with visible grain patterns and a blue rectangular block, no text or symbols present.

If the logs are stacked openly, the wood will burn quickly as the oxygen can reach each log easily. If you want to use the stove for a short while, make an open stack.

Compact stacking

If the logs are stacked tightly, the wood will burn more slowly as the oxygen can only reach some logs easily. If you want to burn wood for a longer period, make a compact stack.

1. Close the door of the appliance.

2. Close the primary air inlet and leave the secondary air inlet open.

Fill the appliance up to one third capacity.

Advice

Never burn wood with an open door.

Regularly burn wood with intense roaring fires If you frequently have low intensity fires, tar pl and creosote may be deposited in the chimney

Tar and creosote are highly combustible substances. Thicker layers of these substances might catch fire when the temperature in the chimney increases suddenly and steeply. Therefore it is necessary for the fire to regularly burn very intensely, so that layers of tar and creosote disappear.

Low intensity fires also cause tar deposits on the stove window and door.

When the outside temperature is not very low it is better to burn wood intensely for a few hours instead of having a low intensity fire for long period of time.

▶ Control the air supply with the secondary air inlet

The secondary air inlet not only supplies air to the fire but to the glass as well, so that it does not get dirty so quickly.

Open the primary air inlet for the time being if the supply by the secondary air inlet is inadequate or if you want to fan the fire.

It is better to add a small amount of logs regularly than to add many logs at the same time.

Extinguishing the fire

Do not add fuel and just let the fire go out. If a fire damped down by reducing the supply of air, harmful substances will be produced and released. Therefore, let the fire go out naturally. Keep an eye on the fire until it has gone out. When the fire has died completely, all air inlets can be closed.

Removing ashes

After the wood has been burnt, a relatively small amount of ashes is left over. This bed of ashes is a good insulating layer for the bottom of the fire compartment and improves combustion. Therefore, you can leave a thin layer of ashes on the bottom of the fire compartment.

However, the air supply through the bottom of the fire compartment must not be impeded and no ash should be allowed to accumulate behind a cast iron inner plate. Therefore, remove any excess ash frequently.

ev: Open the door of the appliance.

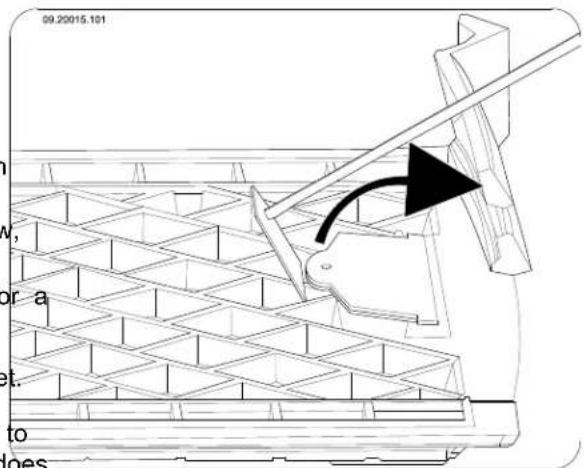

1. Use the supplied scraper to open the de-ashing grate; see the following figure.

09.20015.101 a v, or a et. to oes

1. Using the scraper, sweep the redundant ashes

the through the de-ashing grate into the ashtray or ifunderneath; see the following figure.

09.20015.102 early ire is ul e, re

1. Close the ash removal port.
2. Remove the ash pan using the cast-iron "cold hand" and empty the ash pan; see the following figure.

Line drawing of a hand inserting a component into a rack (no text or symbols)

1. Install the ashtray and close the appliance door.

Fog and mist

Fog and mist hinder the flow of flue gases through flue. Smoke can blow back and cause a stench. If not strictly necessary, it is better not to use the stop in foggy and misty weather.

Solving problems

Refer to the appendix "Diagnostic diagram" to solve any problems in using the appliance.

Maintenance

Follow the maintenance instructions in this chapter to keep the appliance in good condition.

Chimney

In many countries, people are legally required to have their chimney checked and maintained.

At the beginning of the heating season: have the chimney swept by an expert.
During the heating season and after the chimney has not been used for a long time: have the chimney checked for soot deposits.
After the heating season: seal off the chimney with a ball of paper.

Cleaning and maintenance

Do not clean the appliance when it is still warm.

▶ Clean the exterior of the appliance with a dry lint-free cloth.

At the end of the heating season, you can clean the interior of the appliance thoroughly:

If necessary, first remove the fire-resistant inner plates.
If necessary, clean the air supply ducts.
Remove the baffle plate at the top of the appliance and clean it. See the chapter "Installation" for instructions on removing and installing the baffle plate.

Checking fire-resistant inner plates

The fire-resistant inner plates are consumables and subject to wear. Check the fire-resistant inner plates frequently and replace them when necessary.

See the chapter "Installation" for instructions on removing and installing the inner plates.

The insulating vermiculite inner plates may develop hairline cracks, but that does not affect their performance adversely.

Cast-iron inner plates go a long way if you frequently remove the ash that may pile up behind them. If accumulated ash behind a cast-iron plate is not removed, the plate cannot dissipate the heat anymore to its surroundings and that may cause the plate to warp or crack.

Never use the appliance without the fire-resistant inner plates.

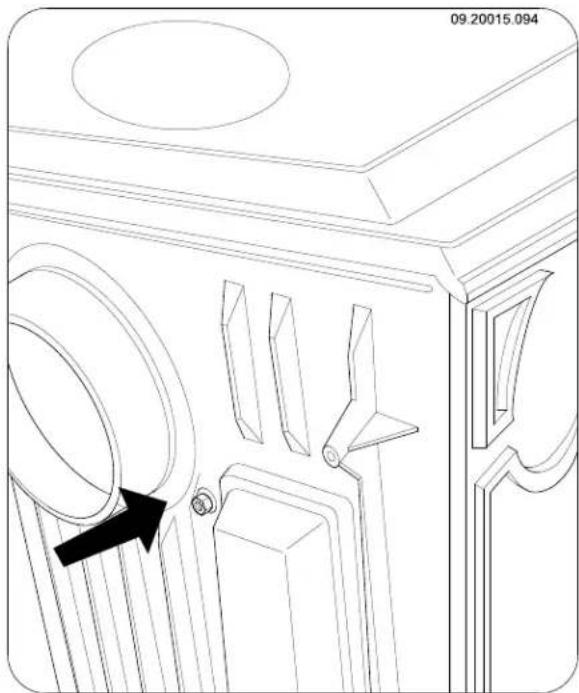

Removing the baffle plate

The baffle plate is secured with a bolt located between the rear connection and the secondary air duct. The 'bolt is fixed to the baffle plate.

1. Remove the nut on the rear side; see the following figure.

Technical line drawing of a mechanical component with circular features and a black arrow indicating a specific feature (no text or symbols present)

1. Pull the baffle plate forwards so that the bolt comes free from the rear side.

2. Remove the baffle plate via the front door.

As the baffle plate has notches on both sides of it, the baffle plate can be taken along the ridges on the side walls and removed from the appliance without a problem.

Cleaning glass

Dirt clings less easily to well-cleaned glass. Proceed as follows:

1. Remove dust and loose soot with a dry cloth.

2. Clean the glass with stove window cleaner:

a. Apply stove window cleaner to a kitchen sponge, rub down the entire glass surface give the cleaning agent time to react.

b. Remove the dirt with a moist cloth or kitchen tissue.

1. Clean the glass again with a normal glass cleaning in good condition and works well. The sealing rope product. is subject to wear and needs to be replaced in time.

2. Rub the glass clean with a dry cloth or kitchen tissue ▶ Check the appliance for air leaks. Close any chinks with stove sealant.

Do not use abrasive or aggressive products to clean the glass.

▶ Wear household gloves to protect your hands.

If the glass in the appliance is broken or cracked, it must be replaced before you can use the appliance again.

Make sure that no stove window cleaner runs between the glass and the cast-iron door.

Lubrication

Although cast-iron is slightly self-lubricating, you will still have to lubricate moving parts frequently.

Lubricate the moving parts (such as guide systems, hinge pins, latches and air slides) with heat resistant grease that is available in the specialist trade.

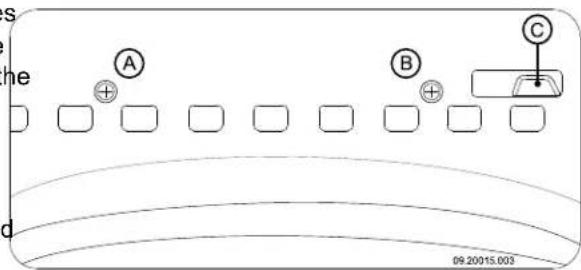

Adjusting the air slider

If the air slider (C) of the secondary air inlet does not move easily, you can adjust the air slider using the two screws (A) and (B) in the front plate; see following figure.

s he A B C 09.20015.003

Touching up the finish

Small areas of damaged paint finish can be touched up with a spraying can of special heat-resistant paint and finish available from your supplier.

Checking the seal

▶ Check whether the sealing rope of the door is still ning in good condition and works well. The sealing rope is subject to wear and needs to be replaced in time.

Check the appliance for air leaks. Close any chinks with stove sealant.

Let the sealant harden fully before you start a fire in the appliance, because otherwise any moisture in the sealant will form bubbles in the sealant and cause a new air leak.

Appendix 1: Technical data

Model	350CB and 350CB3	360CB and 360CB3	350CB3/WB
Nominal output 6 kW 8 kW 6 kW
Flue connection (diameter) 125 mm 125 mm	125 mm
Flue connection Germany (diameter) 130 mm	130 mm 110 mm
Weight +/- 95 kg +/- 130 kg +/- 130 kg
Recommended fuel	Wood	Wood	Wood
Fuel property, max. length	30 cm	40 cm	30 cm
Mass flow of flue gases	6.6 g/s	8.2 g/s	6.6 g/s
Temperature increase measured in measuring section	298 K	297 K	298 K
Temperature measured downstream from the flue spigot	442	438	442
Minimum draught	12 Pa 10 Pa	12 Pa
CO emission (13%Q)	0,10 %	0,10 %	0,10 %
NOx emission (13%Q)	125 mg/Nm3	90 mg/Nm3	125 mg/Nm3
CnHm emission (13%Q)	82 mg/Nm3	113 mg/Nm3	82 g/Nm3
Particulate emission	10 mg/Nm3	39 mg/Nm3	10 mg/Nm3
Particulate emission in accordance with NS3058-NS3059	3.58 gr/kg	7.86 gr/kg	3.58 gr/kg
Efficiency	77 %	75 %	77 %

Appendix 2: Measurements

350CB

09.20017.017

350CB3

430 768 252 Ø 125 156 Ø 125 658 475 Ø 125 155 425 09.20017.018

350CB3/WB

431 918 373

472 423 Ø 125 808

Technical line drawing of a rectangular device with a circular hole and dimension label (155), no readable text or symbols present.

09.20017.019

360CB

540 715-775 200-260 Ø125 Ø125 600-660 155 Ø125 475 Ø125 425 155 Ø125 09.20017.020

360CB3

540 768 252 Ø 125 156 Ø 125 658 475 Ø 125 156 425 09.20017.021

Appendix 3: Distance from combustible material

350CB, 350CB3, 350CB3/WB - Minimum distances in millimetres

* Protective (insulated) connection pipe
	Combustible material
	Incombustible material, thickness 100 mm

360CB en 360CB3 - Minimum distances in millimetres

09.20017.037

* Protective (insulated) connection pipe
	Combustible material
	Incombustible material, thickness 100 mm

350CB, 350CB3, 350CB3/WB, 360CB and 360CB3 - Fireproof protective plate dimensions

B A 09-20002-004

Minimal dimensions of fireproof protective plate

	A (mm)	B (mm)
Din 18891 500 300
Germany 500 300
Finland 400 100
Norway 300 100

Appendix 4: Diagnostic diagram

					Problem
●					Wood does not keep burning
	●				Gives off insufficient heat
		●			Smoke emissions into the room when adding wood
			●		Fire in appliance is too intense, is hard to adjust
				●	Deposit on the glass
					Possible cause Possible	solution
●	●	●		●	Insufficient draught	A cold flue usuallyfails to create sufficient draught. Follow the instructions for lighting in the "Use" chapter; open a window.
●	●	●		●	Wood too damp Use wood with no more than 20% moisture.
●	●	●		●	Pieces of wood too big	Use smallpieces of kindling. Use split logs no larger than 30 cm in circumference.
●	●	●	●	●	Wood stacked up incorrectly	Stackup the wood in a way that allows an adequate air flow between the logs (open stacking, see "Burning wood")
●	●	●		●	Chimney does not work properly	Check whether the chimney meets the requirements: at least 4 metres high, right diameter, well insulated, smooth inside, not too many bends, no obstructions in chimney (bird'snest, too much soot deposit), hermetically tight (no chinks).
●	●	●		●	Chimney stack incorrect Sufficiently high above the roof, no obstacles in its vicinity
●	●	●	●	●	Air inlets set incorrectly Open the air	inletscompletely.
●	●	●		●	Appliance connected to chimney incorrectly	Connection should be hermetically tight.
●	●	●		●	Vacuum in area where appliance is installed	Switch off extraction systems.
●	●	●		●	Insufficient supply of fresh air	Provide an adequate air supply; if necessary use connection to outside air.
●	●	●		●	Adverse weather conditions? Inversion (reversed air flow in chimney)We recommend you don't use the appliance in the case of inversion. because of a high outside temperature install an extra hood on the flue to increase the draught if need be extreme wind velocities
		●			Draught in the living room	Avoid draught in the living room, do not place the appliance near a door or heating air ducts.
				●	Flames touch the glass	Make sure the wood does not lie too close to the glass. Slide the primary air inlet cover closer to the "Closed" position.
			●		Appliance is leaking air Check the door seals and the appliance joints.

Index

A

Adding fuel 13

Adding wood smoke emissions into the roam 26.....

Air inlets.12. adjusting 15.

Air leak 15....

Air supply for fire 13....

Ash pan open 14

Ashes remove 13

B

Baffle plate removing 14....

Burning wood 12..... add fuel.... 13 adding logs.... 12 appliance is hard to adjust.... 26 fire is too intense.... 26 insufficient heat.... 14, 26

C

Carpet 6

Chimney height....5 sweep....14

Chinks in appliance.... 15

Clean glass....15

Cleaning appliance.... 14

Combustible material distance from.... 23

Connecting to the chimney 9

Connection measurements 18

Connection collar fitting 10

Connection cover removing 9

Connection to chimney rear side 9

Control air supply.... 13

Cover on flue 5

Creosote....13

D

Damp wood 11

De-ashing grate removal....13

Door sealing rope.... 15

Draught 17

Drying of wood.... 11

E

Efficiency.... 17

F

Filling height.... 13

Finishing coat, maintenance 15

Fire extinguishing....13 lighting....11

Fire-resistant inner plates maintenance....14

Fire-resistant inner sheets warning.... 11

Fire going out 13

Fire safety distance from combustible material.... 23 floor.... 6 furniture.... 6 walls.... 6

Floors fire safety....6 load bearing capacity....6

Flue connection diameter.... 17 connection to.... 11 maintenance.... 14 requirements.... 4

Flue gas mass flow....17

Flue gas opening shutting off....9

Fog, do not burn wood.... 14

Fuel

adding 13
adding wood.13....
necessary amount 14
suitable.11
unsuitable 11

G

Glass

clean 15....
deposit 26

H

Handle holder

fitting.8....

Heat shield

making opening.9....
removing 9

Heat, insufficient.14

Heat,insufficient.26

Hood on the flue 5

|

Installation

measurements 18

K

Kindled fire 11

Kindling....26

L

Legs

fitting 8

Lighting....11

Load bearing capacity of floor 6

Lubricant.... 15

Lubricate 15

M

Maintenance

chimney....14

clean glass 15

cleaning the appliance.... 14

fire-resistant inner plates 14

lubrication.15....

sealing 15

Measurements..18.

Mist, do not burn wood 14

N

Nominal output.... 14, 17

0

Open

ash pan 14

P

Paint finish 11

Particulate emission.... 17

Prevent a chimney fire 13

Primary air inlet 12

R

Removal of ashes.... 13

Remove ashes 13

s

Scraper for removing ash 7

Screens

clean 15
deposit 26

Sealing rope for door 15

Secondary air inlet.... 12

Side glass

replacing....10

Side panel

fitting....10

Smoke

on first use.... 11

Smoke emissions into the room.... 4, 26

Softwood 11

Solving problems 14, 26

Stacking logs....12

Storing wood 11

Stove window cleaner.... 15

Suitable fuel 11

Supply of outside air.... 5 connection to.... 11

Sweep chimney....14

T

Tar....13

Temperature 17

Temperature increase

measuring section 17

U

Unsuitable fuel 11

V

Ventilation .5

rule of thumb.5....

Ventilation louvre 5

W

Walls

fire safety.6....

Warning

chimney fire 4,11,13......

combustible materials 4

fire-resistant inner plates..11.

glass broken or cracked 4,15

hot surface 4

regulations 4

stove window cleaner 15

terms and conditions for insurance 4

ventilation 4-5

Weather conditions, do not burn wood.... 14

Weight....17

Wood 11

damp....11

does not keep burning 26

drying....11

right sort 11

storing....11

Table des matières

Introduction 3

Line drawing of a hand holding a tool next to a door, with no text or symbols present

Line drawing of a U-shaped mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with a central circular component and two bolts (no text or symbols)

Illustration of layered geological strata with visible stratification and a central fracture (no text or symbols)

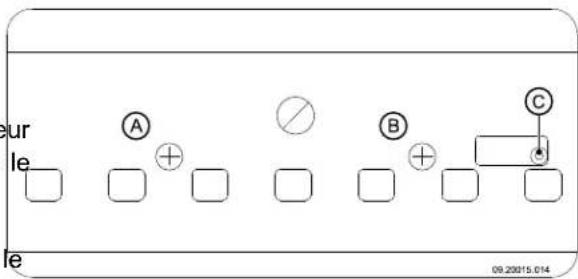

cur le A + - C B + - e 09.20015.014

Illustration of broken stone pieces with visible grain patterns (no text or symbols)

Illustration of fragmented, irregularly shaped objects with internal patterns (no text or symbols)

Technical line drawing of a structural framework with a tool and arrow indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install a cabinet panel (no text or symbols present)

Architectural line drawing of a room interior with window and doorways, showing structural details (no text or symbols)

Technical line drawing of a rectangular device with a circular hole and dimension label (155), no readable text or symbols present.

09.20017.019

360CB

09.20017.020

360CB3

540 768 252 Ø 125 156 Ø 125 658 475 Ø 125 156 425 09.20017.021

Line drawing of a hand holding a tool next to a door, with no text or symbols present.

Line drawing of a U-shaped mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with bolt, nut, and housing (no text or symbols)

Illustration of layered geological strata with visible grain patterns and a central drop (no text or symbols)

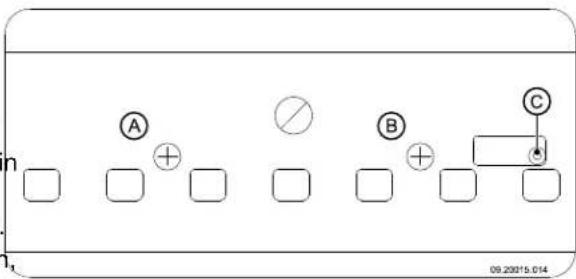

A B C 09.20015.014

Heizen mit Holz

Illustration of a mechanical component with textured surfaces and a blue rectangular block (no text or symbols)

Illustration of a broken stone or mineral sample with visible grain patterns and texture (no text or symbols)

Technical line drawing of a structural framework with a tool and arrow indicating direction (no text or symbols)

Line drawing of a hand inserting a tool into a rack (no text or symbols)

Architectural line drawing of a building interior with circular and angular components, no text or symbols present

Line drawing of a hand holding a tool next to a door, with no text or symbols present

Line drawing of a U-shaped mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with a central circular component and a bracket, showing mounting holes and a screw (no text or symbols)

3D diagram of layered geological or material structure with no visible text or symbols

Illustration of fragmented paper or stone fragments with visible grain patterns (no text or symbols)

Illustration of fragmented, irregularly shaped objects with grid patterns, no text or symbols present

Line drawing of a hand inserting a tool into a rack (no text or symbols)

Technical line drawing of a mechanical component with circular features and a black arrow indicating a specific feature (no text or symbols present)

Line drawing of a hand holding a tool next to a door, with no text or symbols present

Line drawing of a U-shaped mechanical component (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components (no text or symbols)

Illustration of layered geological strata with no visible text or symbols

Illustration of a broken stone or carpet with visible grain patterns and a date stamp (09.20500.013) in the corner.

Line drawing of a hand inserting a tool into a rack or shelf (no text or symbols)

Technical line drawing of a door frame with circular opening and handle, showing structural details (no text or symbols)

Technical line drawing of a rectangular device with a circular hole and dimension label (155), no readable text or symbols present.

09.20017.019

360CB

540 715-775 200-260 Ø125 Ø125 600-660 155 Ø125 475 Ø125 425 155 Ø125 09.20017.020

360CB3

540 768 252 Ø 125 156 Ø 125 658 475 Ø 125 156 425 09.20017.021
