USER MANUAL BL89 Duronic

Creative Consumer Electronics

Close-up of a black and white kitchen blender with clear glass interior (no text or symbols visible)

Soup Maker - BL89

PLEASE READ ALL THE INSTRUCTIONS BEFORE USE

duronic.com

duronic

@duronicmedia

Duronic

@duronicmedia

DURONIC

Contents

English Manual 5

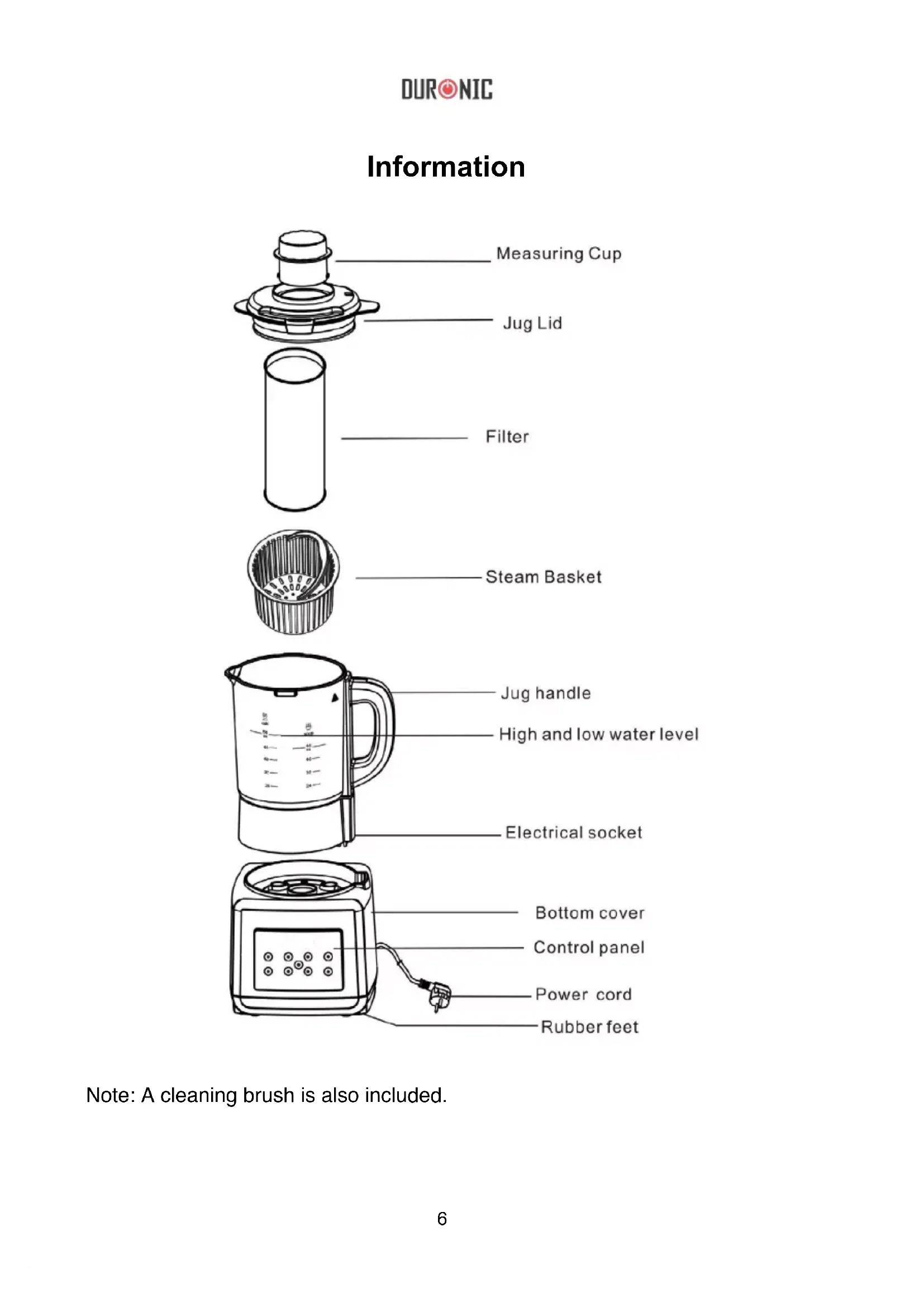

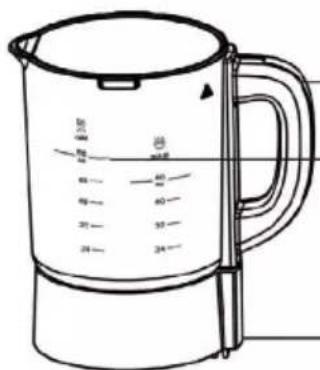

High and low water level

Electrical socket

Bottom cover

Control panel

Power cord

Rubber feet

Note: A cleaning brush is also included.

Getting Started In The Box
Remove the soup maker from the box. Remove any packaging from the product.	Soup maker power baseSoup maker jug with built-in bladeJug lidMeasuring cupInstruction manualFilter, steam basketSponge & brush

Features
2 automatic soup settings	Blender function
Reheat function	Keep warm function
Smoothie function	2 soup type settings
Illuminated buttons	Audible warnings
Non slip suction feet	Locking lid with food chute
Built in blending/mixing blade	Alarm when soup is ready

Safety Instructions

When using electrical appliances, basic safety precautions should always be followed.

1. Check the voltage indicated on the rating label corresponds with that of your local network before connecting the appliance to the main power supply.
2. This soup maker is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge. They should be given supervision and instructions of the use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the soup maker.
4. If the supply cord is damaged, a qualified engineer must replace it in order to avoid a hazard. Alternatively send the unit to the authorized after-sales service center for repair.

5. Take care to keep hands, loose clothing and other items away from the rotating blades.

6. Do not use the soup maker if the rotating blades are damaged.

7. Do not use the soup maker without the lid being securely clipped into place.
8. Do not immerse the soup maker (jug, cord or motor housing) in water or any other liquids.
9. This appliance contains no user-serviceable parts. All repairs should be carried out by a qualified engineer only. Improper repairs may result in injury.
10. Do not operate the soup maker after a malfunction or if it has been dropped or damaged in any way.
11. Do not leave the soup maker unattended whilst connected to the main power supply.
12. This appliance must be unplugged from the power supply after use and whilst any maintenance such as cleaning is carried out.
13. Always use the soup maker on a stable, heat-resistant surface.
14. Ensure there is sufficient ventilation around the soup maker to allow the hot steam to escape.
15. The body of the jug becomes hot during use. Always use the handle to hold the jug.
16. Do not use the soup maker for any purpose other than that for which it has been designed.
17. Ensure that the supply cord is kept away from heat or sharp edges that could cause damage.
18. Do not allow the supply cord to hang over the edge of work surfaces or tabletops.
19. The soup maker is intended for domestic use only. It should not be used for commercial purposes.
20. Do not use any accessories or attachments with this appliance other than those recommended by the supplier.
21. Clean the soup maker thoroughly after use.

Instructions For Use

The soup maker has been designed to create either smooth or chunky soup. It also features a reheat function allowing precooked soups to be reheated. It is fitted with several safety features including an interlocking lid, temperature sensor, and a safety cut-off switch in the motor.

The built-in blades mean that the soup maker can also be used as a blender

to make smoothies, purees, dips and dressings.

Before using the soup maker for the first time, wipe down the jug and lid with a damp cloth using a mild detergent.

Caution: The jug contains very sharp blades and should be handled with care at all times. Do not immerse the unit or jug in water or any other liquids.

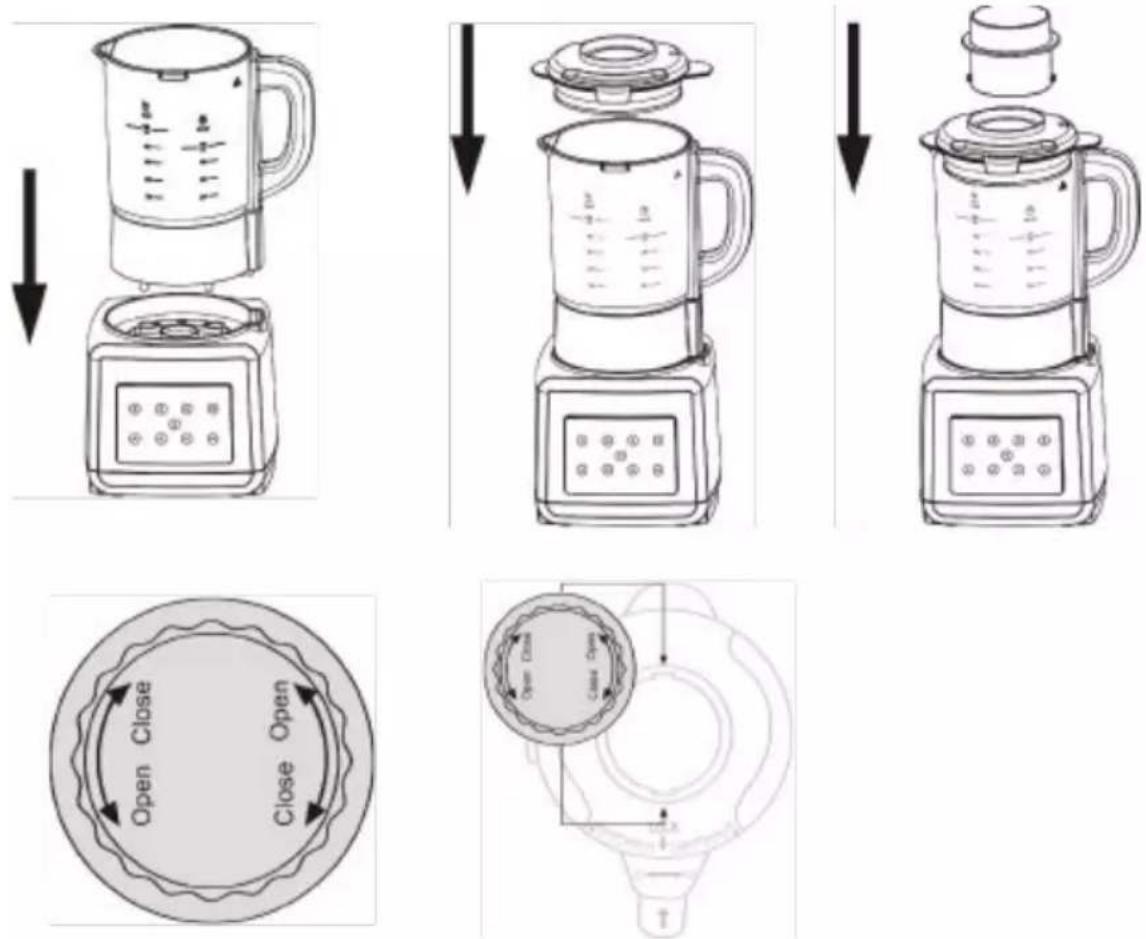

1. Place the base unit of the soup maker on a heat-resistant, stable surface. Carefully position the jug on the base unit aligning the connections in the base of the jug handle with those in the base unit. The jug should sit securely on top of the base unit.

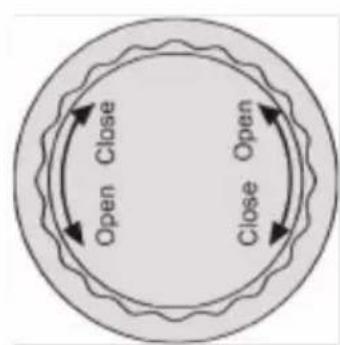

2. Fit the lid to the soup maker by aligning the lock open symbol on the lid with the arrow on the handle.
3. Ensure the measuring cup is fitted to the top of the lid.

1. When everything is positioned correctly, connect the soup maker to the mains power supply and press the Start/Stop button to turn the soup maker on. The button will illuminate indicating the soup maker is on.

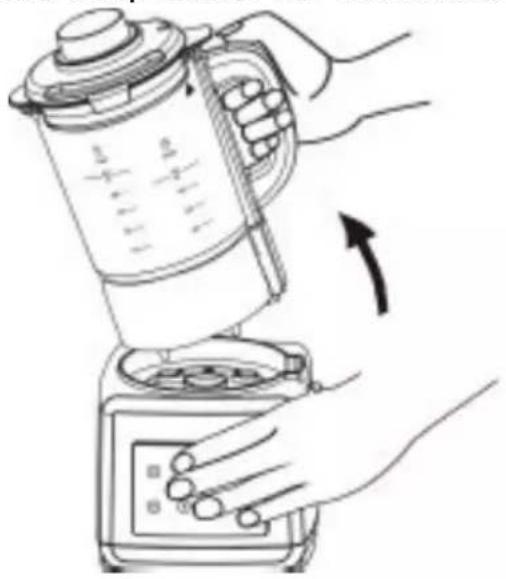

IMPORTANT: Ensure that the arrow on handle of the jug aligns with the lock symbol and arrow on the lid. Failure to do so will trigger the alarm and all lights will flash. The soup maker will not function if the lid is fitted incorrectly.

Illustration of hands using a portable kettle to press or install a digital device (no text or symbols visible)

1. To start the cooking process choose a soup function based on which type of soup you wish to make.

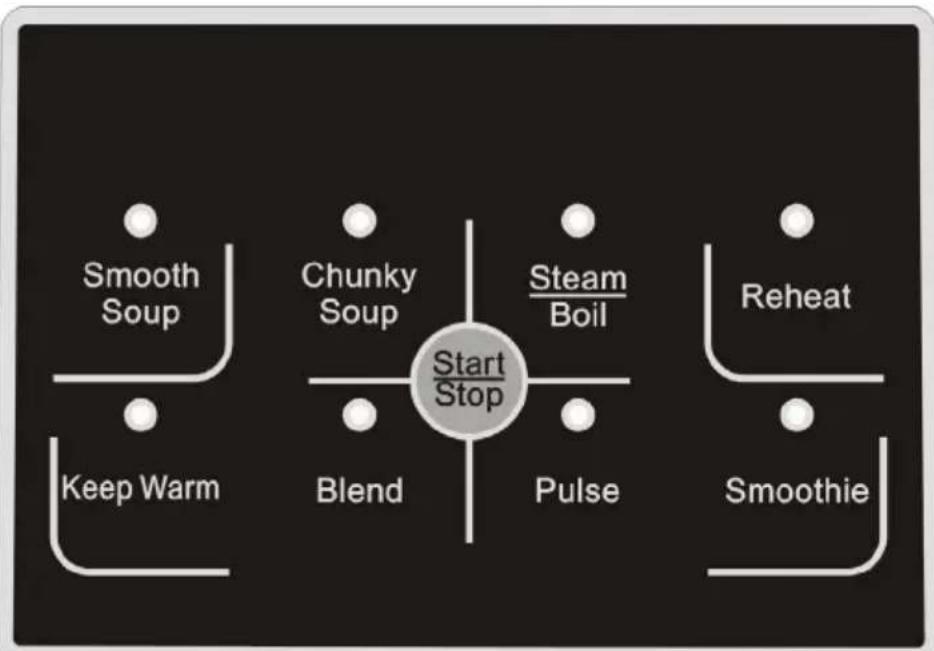

Buttons

Option Description Time
Smooth Soup Heat and blend soft vegetables, fruit etc	25-30 mins
Chunky Soup Heat and blend hard, unboiled vegetables, fruit, beans etc	22-30 mins
Steam/Boil Steam and boil foodsuch as eggs, potatoes etc	15 mins
Reheat Reheat leftovers or soup etc	12 mins
Keep Warm Keep soup, milk, hot chocolate etc warm	120 mins
Blend Blend, mix vegetables or fruit etc	100 sec
Pulse Quick blend n/a
Smoothie Blend contents to a smoothie consistency	2 mins and 40 secs

Note: The above cooking times are for reference only.

The above pre-set programs rely on uninterrupted operation. Any interruption will result in the cancellation of the program. Restarting will result in the cooking stages being repeated which may affect the finished result.

If you need to add additional ingredients during the cooking process you can remove the measuring cup stopper and insert food without interrupting the program.

1. Press the "Start/Stop" button to turn on. The indicator will flash. Choose the appropriate program to confirm and the soup maker will begin.
2. Smooth soup and chunky soup will take around 22-30 minutes to cook.
   When the cooking or blending is complete, the soup maker will beep for several seconds and the indicators will blink.
3. During the cooking process, if the indicators blink and beep continuously, it

means there is a problem with the operation or there is a malfunction. Check the following:

1. Check that the lid is secure
2. Check that the jug is correctly placed on the main body

3. The base and motor could have over-heated. Allow the jug and motor to cool for 5 minutes. Reassemble and retry.

4. Pulse function: After pressing the "Start/Stop" button to turn on the machine, press the "Pulse" button to activate the pulse function.

5. Steam function: Pour up to 1400ml of water into the jug. Place the food into the steam basket, making sure it is above the water level. Food should take around 15 minutes to steam.

6. Boiling: Pour up to 800ml of boiling water into the jug. Place the steaming basket into the jug, making sure that the food is immersed in water.

7. Smoothie: The smoothie function will blend contents to a smoothie consistency. It will automatically stop once the program has finished. To stop the cycle at any time press the smoothie button again, or press the Start/Stop button.

8. Making soup: Chop all of your ingredients into approximately 2-3cm cubes and add to the soup maker jug.

Caution: It is not recommended to use raw meats in the soup maker. Any meat or fish must be pre-cooked. Do not add any frozen ingredients. Ensure all ingredients are at room temperature.

For A Smooth Soup:

Place all of your ingredients into the jug and then add your liquid or stock to the required level.

For A Chunky Soup:

Insert the filter into the jug, ensuring that the filter is secure. There is a circular ridge in the base of the jug to indicate correct placement of the filter. The lid will hold the filter in place. Add your chopped ingredients to the jug (OUTSIDE of the filter) and then add your liquid or stock to the jug to the required level.

Note: All liquids added to the soup maker must be at room temperature and must not be above the maximum or below the minimum levels marked on the side of the jug. Do not use the Smooth Soup or Chunky Soup functions to reheat the soup.

WARNING: Ingredients that contain high levels of starch or sugar can easily stick to the heating plate and burn. Take extra care.

The cooking time for ingredients stored at a room temperature of 18 °C is approximately 20-30 minutes.

Note: the above timing relies on uninterrupted operation. Restarting will result in the cooking stages being repeated which may affect the final recipe.

Any ingredients which need to be added during the cooking process can be added through the food chute in the center of the lid. Do not unlock or remove the lid as this will stop the program.

To completely stop the program at any time, simply press the Start/Stop button. Once the program has finished, the soup maker beep and stop heating.

WARNING: Heat/steam will be emitted from the lid. Care must be taken when removing the lid and food chute. Your soup can be poured straight from the jug.

To reheat previously prepared soup, simply set up the soup maker as previously described and add the cooked soup to the jug ensuring the volume is no more than the maximum level. Connect the soup maker to the main power supply and press the Start/Stop button. Ensure that the lid is correctly fitted and press the reheat button.

The soup maker will heat the soup until it reaches the optimum temperature of 50^ C -60°C, ready to serve. The alarm will then sound.

The time taken to complete this process will depend on the original temperature and volume of the soup added but should take approximately 5-8 minutes.

Note: the reheat process is NOT a cooking function; all soup used with this function must be precooked.

The keep warm function will keep the soup or liquid at 50^ C and will lightly blend every 10 minutes to avoid the soup burning. The program can run for 2 hours, allowing you to enjoy your soup at your convenience.

The soup maker can also be used as a blender. Simply set up the soup maker as before and add your ingredients for blending.

Note: It is important that your ingredients reach a minimum depth of 3-4cm so that the blade can blend them easily.

Connect the soup maker to the mains power supply and press the Start/Stop button. Make sure the lid is correctly fitted and press the blend button to start the BLEND program.

The blend cycle is a repeating 20-25 seconds high-speed blend with a slight rest. To stop the cycle press Start/Stop button.

Note: If the lid is removed during the blending process, the program you have chosen will stop working. Press the Start/Stop button again to reactivate the program.

Cleaning and Maintenance

• This appliance is unsuitable for dishwasher use.
• Always disconnect the soup maker from the mains power supply before cleaning.
• Do not immerse the soup maker in water or any liquids.
• Clean the surface of the base unit and the outside of the jug with a soft, damp cloth. Rinse the lid in warm, soapy water.
• To clean the inside of the jug, rinse to remove any remaining soup or large food particles. Wipe away any food remains using a soft cloth and mild detergent before rinsing again.

Caution: The blades inside the jug are not removable and are very sharp; extreme caution should be taken when cleaning the inside of the jug.

- For removal of stubborn stains, simply assemble the soup maker as previously described and add 800ml of water and a small amount of mild detergent. Fit the lid and switch the soup maker on. Press the BLEND button and the blades will rotate to clean the jug. You can stop the cleaning process at any time by switching off the appliance.

If the base of the jug becomes wet, make sure that the connectors are completely dry before reusing the jug. If the connectors are still wet, the water will damage the electric connections.

Line drawing of a hand pouring liquid into a kettle using a pipette (no text or symbols)

Illustration of a measuring cup placed on a surface with a showerhead (no text or symbols)

Line drawing of a washing machine with two circular components (no text or symbols)

Troubleshooting

Problems Solutions
The unit is not working and is beeping	1. The jug is not fitted to the base correctly.2. The lid is not fitted correctly.
The unit has stopped in mid-program during the operation	1. The lid is loose.2. The jug is loosely connected to the base.
Ingredients are too large after the cycle is complete	1. Chop the ingredients into small pieces before adding.2. The wrong soup cycle has been used for the volume added.3. The filter is clogged.4. Some food requires longer to cook; select any heating function until food is fully cooked.
Food is burnt and stuck to the bottom	1. Caused by high sugar or starch. Use foods with a lower sugar or starch level.

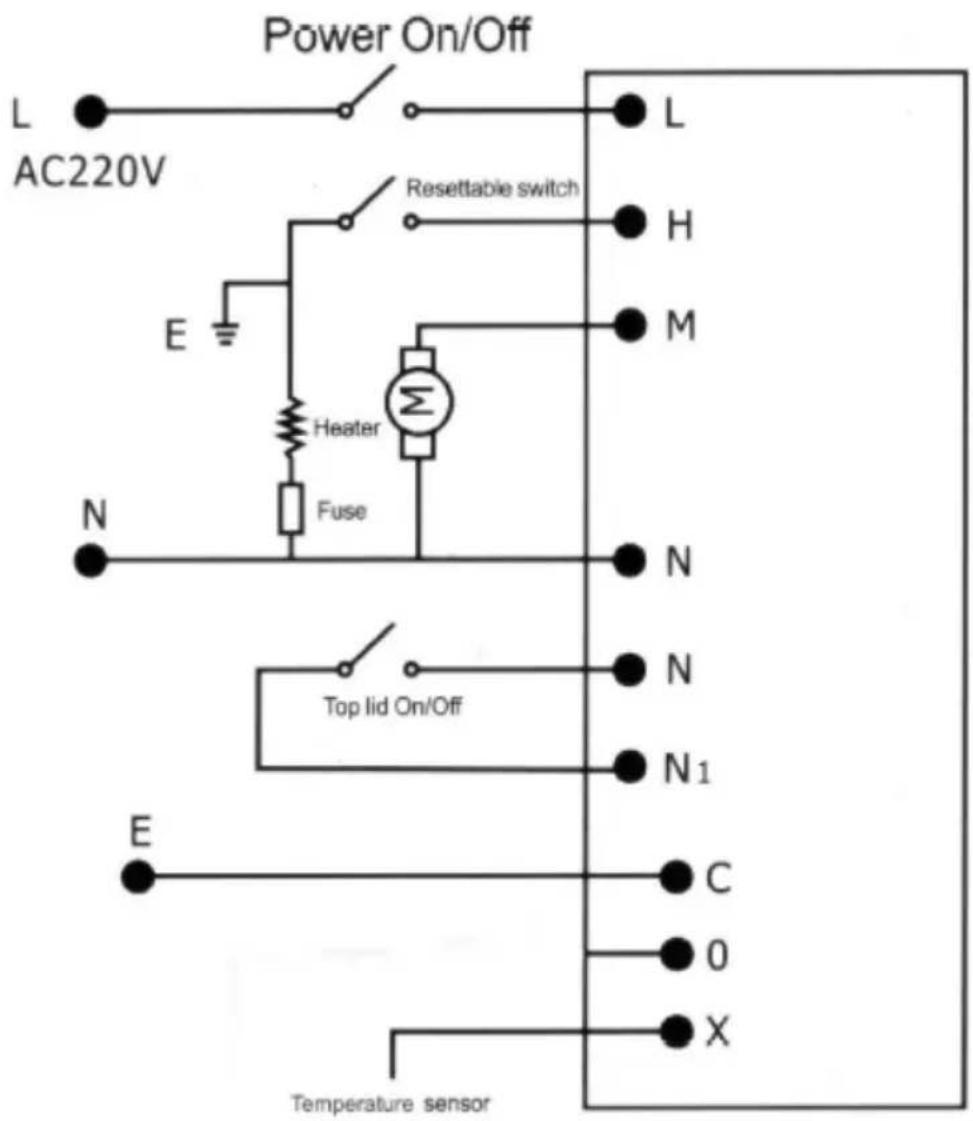

Electric Diagram

Power On/Off L AC220V Resettable switch E Heater Fuse N N Top lid On/Off N1 E C 0 X Temperature sensor

Recipes

BROCCOLI AND POTATO SOUP

Ingredients

• 225g cheddar cheese, grated
• 4 garlic cloves, crushed
• 1 medium onion, diced
• 60ml extra virgin oil
• 1 tbsp sea salt
• 2 tsp freshly ground black pepper
• 900g peeled potato, chopped into small chunks
• Half a broccoli, stems peeled and florets separated. Chop into small chunks
• 800ml vegetable stock
• 1½ tsp lemon zest

Method

Place all of the ingredients in the jug, turn on the soup maker and select "Smooth Soup". The soup will take around 25 minutes to cook. Simmer until the vegetables are tender. Taste and adjust seasoning accordingly.

LEEK AND POTATO SOUP

Ingredients

• 1 tbsp olive oil
• 1 onion, diced
• 1 clove of garlic, crushed
• 2 medium potatoes, peeled and cubed
• 2 medium leeks, sliced
• 700ml water (or chicken stock)
• 3 tbsp double cream (optional)
• Sea salt and freshly ground black pepper to season

Method

Add 700ml water and the chopped potatoes and leeks to the jug, then select the “Smooth Soup” function. Allow the soup to boil for around 8 minutes. Remove the measuring cup and add the olive oil immediately followed by the onion and garlic. Do not remove the lid otherwise the cooking will stop. The soup takes around 25 minutes to cook. Season accordingly. Finally add the double cream and hold the “Pulse” button for several seconds until mixed through.

BROCCOLI AND STILTON SOUP

Ingredients

• 25g butter
• 1 tbsp olive oil
• 1 onion, diced
• 1 leek, chopped
• 350g broccoli, cut in to small florets
• 1 small potato, peeled and roughly chopped
• 700ml water
• 4 tbsp double cream
• Salt and freshly milled black pepper
• 125g stilton, rind removed, crumbled

Method

Place the butter and olive oil in the soup maker along with the broccoli, potato and water. Turn on the soup maker and select the “Smooth Soup” function. After 30 seconds, add the onion and leek and cook until softened and smooth. This will take around 20 minutes. Finally, add the double cream, season well and add the cheese. Stir until just melted. Do not allow to boil.

CREAM OF VEGETABLE

Ingredients

• 1 large carrot (peeled) and chopped into small chunks
• 1 large turnip, chopped into small chunks
• 1 large potato (peeled) and chopped into small chunks

• 2 sticks of celery, chopped

• 5 cabbage leaves roughly chopped

• Small chicory roughly chopped
• 500ml Stock
• 50g butter
• 25g plain flour

Method

Chop all of the vegetables and add to the soup maker. Add stock to reach the MAX SOUP level. Add the flour and butter. Select the "Smooth Soup" function and allow to cook.

CARROT AND GINGER SOUP

Ingredients

• 6 large carrots, peeled and chopped
• 1 onion, peeled, chopped
• 2cm piece fresh ginger, peeled and grated
• 1 tbsp olive oil
• 800ml chicken stock
• 20g fresh coriander chopped

Method

Put all ingredients in the soup maker, turn on and select the "Smooth Soup" function. This soup takes around 25 minutes to cook. You will need to cook for slightly longer than the pre-set program allocates. Serve hot with crusty bread.

ROAST CHICKEN SOUP

Ingredients

• 1 medium onion, roughly chopped into small chunks
• 1 medium carrot, diced
• 100g frozen peas
• 150g roast chicken, shredded
• 12 tsp dried sage

• 1ltr Stock

• 3 tbsp Greek yoghurt

• 1 clove garlic, crushed
• Lemon juice

Method

Chop the vegetables and chicken. Add all but the last 3 ingredients to the soup maker. Add stock to reach the maximum level. Select the “Smooth Soup” function. While the soup is cooking, crush the garlic and mix into the yoghurt along with the lemon juice. Chill the yogurt mixture and garnish the soup once fully cooked.

TOMATO AND BASIL SOUP

Ingredients

• 1 medium onion, chopped
• 1 stick celery, chopped
• 1 carrot, diced
• 1 clove of garlic, crushed
• 1 large tin of tomatoes
• 1 litre of stock
• 2 tbsp double cream
• Handful of fresh basil leaves

Method

Chop the vegetables and add all but the cream and basil to the soup maker. Add stock to reach the maximum level. Select the “Smooth Soup” function. When finished, add the cream and basil and press the “PULSE” function to blend.

MEXICAN CHICKEN

• 1 medium onion, chopped
• 2 cloves of garlic, crushed
• 1 red chilli (chopped very fine)
• 1 small tin of tomatoes
• 14 tsp ground cumin
• 1 cooked chicken breast, shredded
• 1 litre of stock
• 2 tsp lime juice

Method

Insert the filter to the soup jug. Chop the vegetables and shred the chicken to your preferred size. Add all but the lime juice to the soup maker. Add the tomatoes and chilli to the inside of the filter. Add enough stock to reach the MAX level. Select the “Chunky Soup” option. When finished, add lime juice to taste and select the “PULSE” function to blend.

FRESH FRUIT SMOOTHIE

Ingredients

• 125ml orange juice
• 12 cantaloupe melon, cut into small pieces
• 150g raspberries (fresh or frozen)
• 200g pineapple chunks, cut into small pieces (fresh or tinned, drained)
• 2 oranges, peeled and segmented
• 200g strawberries, hulled and halved
• 1 mango, peeled stoned and cut into small pieces
• 1 banana, peeled and cut into small pieces
• 6-10 small ice cubes

Method

Layer the ingredients in the jug in the order listed. Fit the lid and select the "Blend" function from the pre-set menu. Blend until it reaches a Smoothie consistency.

TROPICAL SMOOTHIE

Ingredients

• 440ml water
• 75g granulated sugar
• 330ml concentrated orange juice
• 550ml milk or coconut milk
• 2 tsp vanilla extract

Method

Combine the water and sugar and stir until sugar is completely dissolved. Stir in remaining ingredients. Pour the mixture into jug. Turn the soup maker on

and select the "Blend" function. Mix until thickened or for about 10 minutes, depending on your preferred consistency.

HOT CHOCOLATE

Ingredients

• 800ml milk
• 4 tsp cocoa powder
• 200g milk chocolate, broken into small pieces
• Mini marshmallows
• Whipped cream

Method

Place all the ingredients in the soup maker. Turn on the soup maker, select the “Reheat” function and let it mix and simmer for about 5 minutes (the hot chocolate is around 70^ C). Serve in mugs with whipped cream and marshmallows on top.

Tip: Keep the hot chocolate warm in the soup maker by using the reheat setting.

MAYONNAISE

• 1 tbsp lemon juice
• 2 egg yolks
• Pinch chilli powder
• 2 cloves garlic, peeled and crushed
• Pinch salt
• 1 litre olive oil

Method

Place the lemon juice, egg yolks, chilli, garlic and salt into the jug, turn on the soup maker, then select the “Blend” function. While mixing, gradually add the oil through the hole in the lid. Process until the sauce emulsifies, which should take around 5 minutes.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with BS:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

CE

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.

Follow Us

DURONIC

Diagram showing three-step cooking process of a blender with digital kitchen and oven, labeled in Chinese.

A B C D E F G H I J K L M N O P Q R S T

Line drawing of a hand using a portable blender to press or adjust the dish (no text or symbols present)

Panneau de contrôle

L AC220V Resettable switch E Heater Fuse N L H M N Top lid On/Off N1 E C 0 X Temperature sensor

Recettes

Line drawing of a hand using a portable blender to press or install a digital device (no text or symbols visible)

Line drawing of a hand pouring liquid into a kettle using a pipette (no text or symbols)

Illustration of a measuring cup placed on a surface with a showerhead (no text or symbols)

Line drawing of a washing machine with two circular components (no text or symbols)

Fehlersuche

Power On/Off L AC220V Resettable switch E Heater Fuse N N Top lid On/Off N1 E C 0 X Temperature sensor

Rezepte:

Technical line drawing of a mechanical component with a flanged base and central housing (no text or symbols)

Taza de medición

Tapa de la jarra

Filtro (Opcional)

Cesta del vapor (Opcional)

Line drawing of a portable electronic device with a cable and connector (no text or symbols)

Cubierta inferior

Tablero de control

Line drawing of hands using a portable blender to press or spread (no text or symbols present)

Tiene 8 tipos de funciones:: Smooth Soup, Chunky Soup, Steam/Boil, Reheat, Keep Warm, Blend, Pulse y Smoothies.

Line drawing of a hand pouring liquid into a kettle using a pipette (no text or symbols)

Illustration of a measuring cup placed on a surface with a showerhead (no text or symbols)

Line drawing of a washing machine with two circular components (no text or symbols)

Power On/Off L AC220V Resettable switch E Heater Fuse N N Top lid On/Off N1 E C 0 X Temperature sensor

Recetas

Illustration of a hand using a portable blender to press or install a digital device (no text or symbols visible)

Line drawing of a hand pouring liquid into a kettle using a pipette (no text or symbols)

Illustration of a measuring cup placed on a surface with a showerhead (no text or symbols)

Line drawing of a washing machine with two circular components (no text or symbols)

Power On/Off L AC220V Resettable switch E Heater Fuse N N Top lid On/Off N1 E C 0 X Temperature sensor

Ricette:

Illustration of a hand using a portable water heater to press or install a digital device (no text or symbols visible)

Line drawing of a hand pouring liquid into a kettle using a pipette (no text or symbols)

Illustration of a measuring cup placed on a surface with a showerhead (no text or symbols)

Line drawing of a washing machine with two circular components (no text or symbols)

Power On/Off L AC220V Resettable switch E Heater Fuse N N Top lid On/Off N1 E C 0 X Temperature sensor

Przepisy
