USER MANUAL BL1200 Duronic

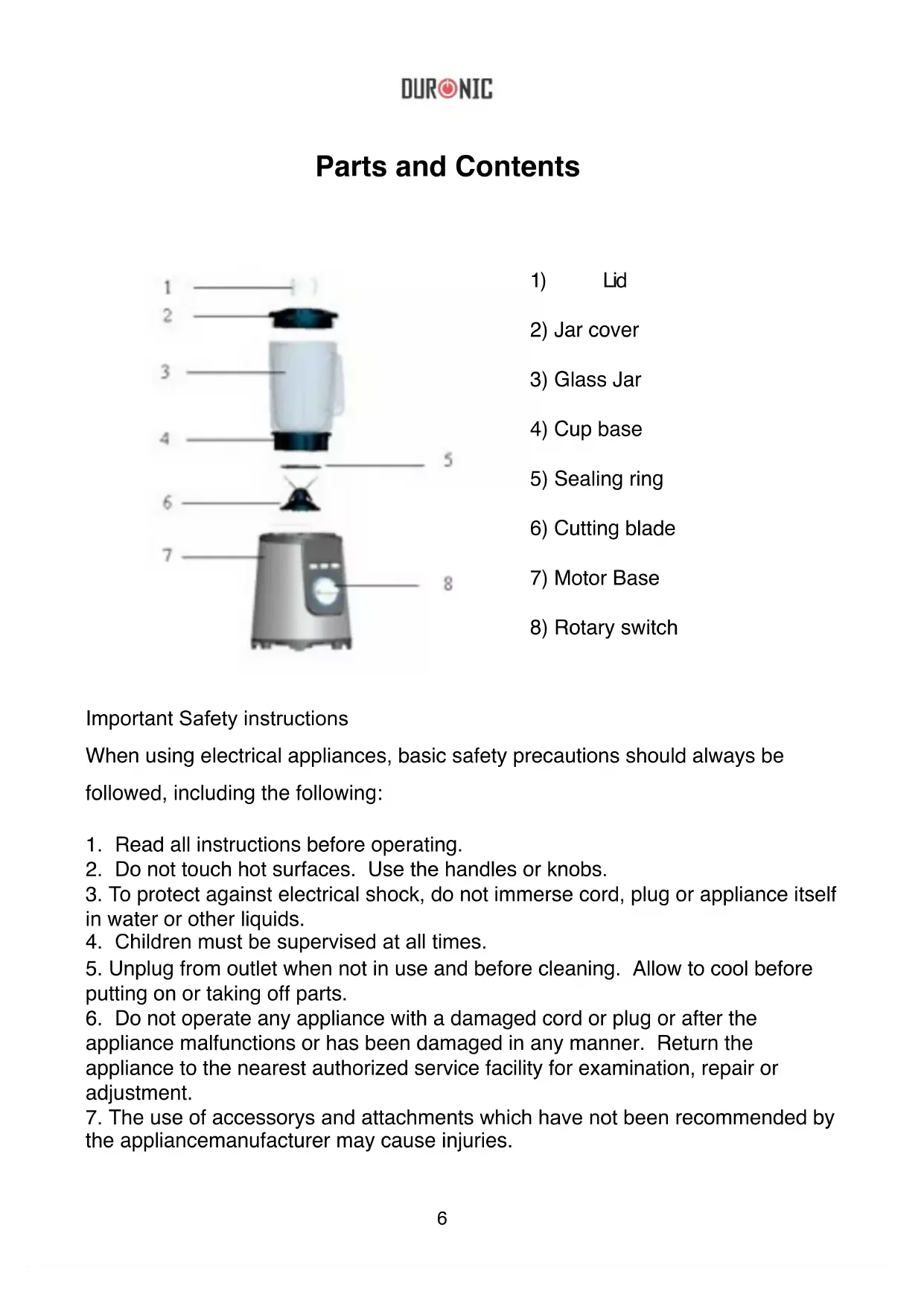

English Manual6 Parts and Contents Important Safety instructions When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before operating.

2. Do not touch hot surfaces. Use the handles or knobs.

3. To protect against electrical shock, do not immerse cord, plug or appliance itself

in water or other liquids.

4. Children must be supervised at all times.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before

putting on or taking off parts.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessorys and attachments which have not been recommended by

the appliancemanufacturer may cause injuries.

1. Mount the Lid (1) onto Jar Cover (2). (make sure all capitals are consistent)

2. Secure the Jar Cover onto Jar and press down.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Always attach plug to appliance first, then plug cord into wall outlet. To

disconnect, turn any control to OFF position, then remove plug from wall outlet.

12. Oversized foods or metal utensils must not be inserted in the appliance as

they may cause a fire or risk of electrical shock.

13. Make sure that the device is not covered or touching flammable material

including curtains, draperies, walls and the like when in operation.

14. Do not clean with metal scouring pads. Pieces can break off the pad and

touch electrical parts, involving a risk of electrical shock.

15. Extreme caution should be exercised when using containers constructed

of other material other than metal or glass.

16. Do not store any materials other than manufacturers recommended

accessories in this unit when not in use.

17. Do not place any of the following materials inside the unit: Paper,

cardboard, plastic etc.

18. Do not operate the appliance for longer than 1 minute at a time.

After that the appliance needs to cool down to avoid overheating.

19. If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

20. This appliance is not intended for use by persons (including children) with

reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.8 Inserting the Jar How To Use

1. Make sure that the blender is switched off (Switch in the ‘0’ setting).

2. Place the jar assembly on to the motor base (7) and press down until

1. Place the ingredients you wish to process into the jar.

2. Put the Jar Cover on the jar and close securely. Place the Lid into the

hole in the Jar Cover and turn clockwise to lock.

3. Switch on the motor base:

After using the blender, always move the switch into the ‘0FF’ setting and pull out the mains plug. Speed Setting Smoothie Speed Setting: MIN-MAX Ice Crush OFF Auto-Clean Use Fruit and yogurt or fruit and milk based drinks; Fruit or vegetable drinks For more solid consistency – for mixing liquids and solid ingredients For ic e crushing Stop operation Puree fruit and vegetable, make baby food, smooth soups, make hummus and auto clean for auto clean glass jar and blade9 Useful Tips Specication - To achieve the best results when pureeing solid ingredients, place small portions into the glass jar one by one instead of placing a large quantity all at once. - If you are processing solid ingredients, cut them into small pieces (2-3cm) rst. - When mixing solid ingredients start off rst with a small amount of liquid. Gradually add more and more liquid through the opening in the Jar cover. - Always place your hand on top of the blender when you are operating the device. - For stirring solid or very thick liquid ingredients we recommend that you use the blender in impulse mode to prevent the blades from becoming stuck.

3. Operation: max 1 min and need stop 1min, run 10 times and rest more 30

minute. This process will ensure your blender motor has a long life. Motor Base Never immerse the motor base in water. Clean with a damp cloth. Cleaning Empty the glass jar and fill it with water. Place the glass jar on the motor base and press the Auto-clean button. Empty the glass jar and rinse until clean. If you need to give the jug a deep clean you may need a BL1200 jug spanner to open the blade part. This is available from www.duronic.com10 FAQ Can the base of the jug be opened for extra cleaning? This is possible, however it is not recommended. If the base of the jug is opened, then the seal is weakened which may result to leakage. We advise using the auto clean function to clean the blender. Once cleaned, allow the jug to completely dry up before storing away for future use. We advise storing the jug away with the lid separated as leaving the lid on will trap moisture and will leave your jug with a slight odour of the food which you blended. However, If in the case there is no choice but to clean the jugs blade, then we advise you to first purchase a silicone rubber ring for the BL1200 which is available at www.duronic.com. Sometimes the old ring is enough to use one more time, however if it leaks then a new silicone rubber ring will be required to seal the base of the jug properly. In order to separate the blade, you will need the lid of the jug, which connects to the base – once connected, rotate anti-clockwise to unscrew the blade off the jug. Please note: This all depends on how frequently the blender is used. E.g. If you are a frequent user then you may need to change the parts once every year. However, less frequent users will almost never need to do this. Can I blend frozen fruits?

es, you may use frozen fruits, however it is advised that you defrost the frozen fruits for 1-2 hours prior use. Why is there a strange smell during blending? This is normal and fades away with time. The unit has a powerful motor which is brand new and factory installed. As you are the first user of the unit, you will receive a slight odour coming from the motor. However, with regular usage the odour will disappear.11 Can I blend hot soup? Blending hot soup will create a large amount of heat output. There is a cap on the lid you need to take off to allow this heat to leave. Also the jug must not be fully lled up. Only up to 50% at a go will ensure soup does not come out of the jug. With regular use you will nd out what level is best to ll the jug as it really depends on the content you blend.

• Blending hot soup? Please read the next section.

Warning: please follow below instructions strictly for blending hot soup!

- the max. capacity must be less than 50% (max. 0.9L). - the temperature of hot soup must be less than 60℃. - take off the lid (part 1) before blending. What can I do to take care of the jug? We do not recommend washing a jug immediately after blending hot soup. It’s a chemical reaction between hot glass and cold water which will crack, or sometimes even break the glass. This will happen to any glass jug, so please let your jug cool down before attempting to wash it. When storing the jug away after use, allow the jug to completely dry up before storing away for future use, This is essential to maintain the blade. Leaving water inside the jug may build up rust on the blade which may damage the blade in the future. We advise storing the jug away with the lid separated as leaving the lid on will trap moisture and will leave your jug with a slight odour of the food which you blended.12 Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions contained in

this operating manual.

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee

7. Valid in the UK only

This product is tted with BS:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.131415 Manuel d’utilisation en français16 Liste des éléments Instructions de sécurité Lorsque vous utilisez des produits électriques, des précautions basiques de sécurité doivent toujours être observées.
