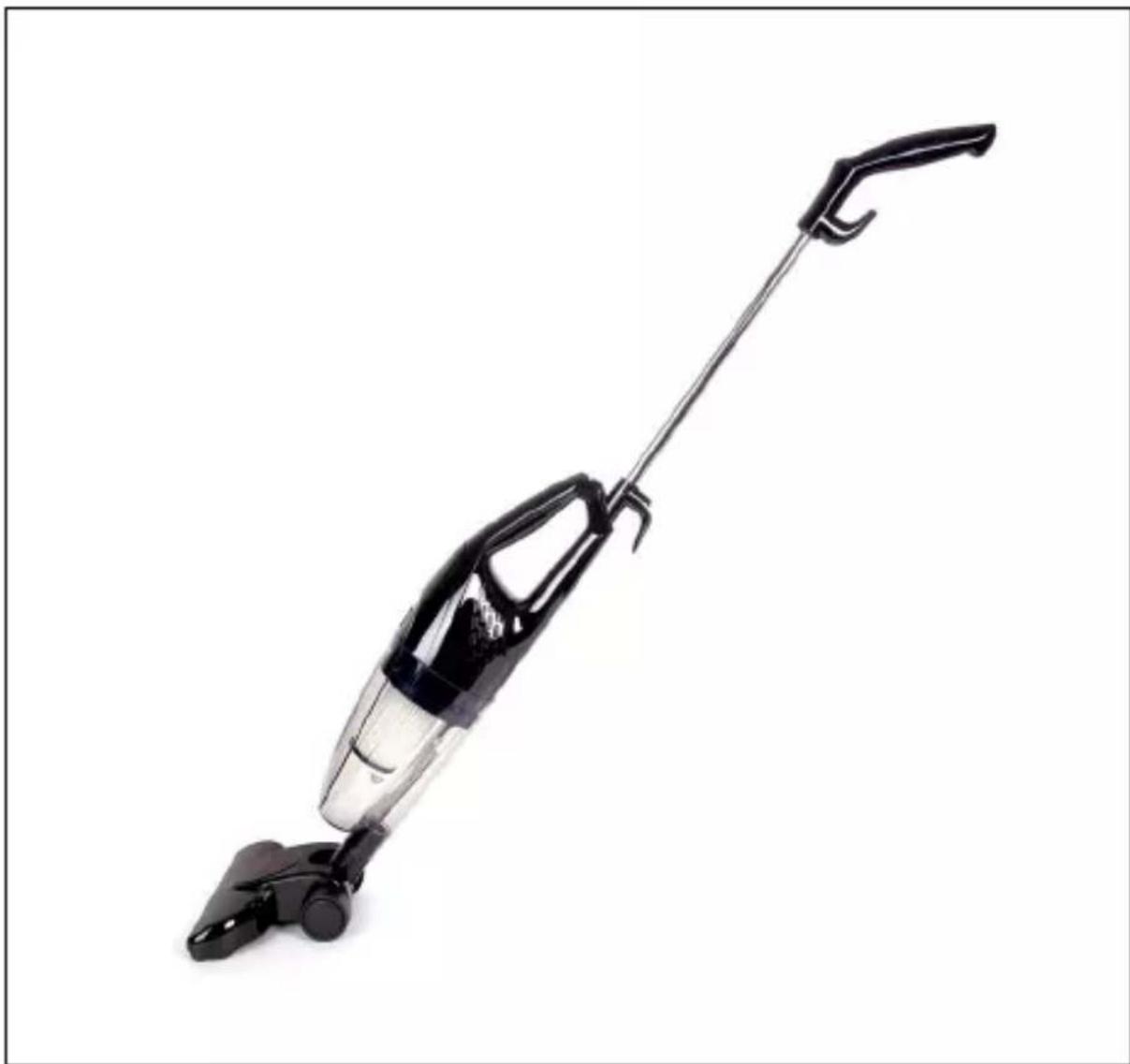

VC7 - Vacuum Cleaner Duronic - Free user manual and instructions

Product type	Stick vacuum / hand vacuum
Brand	Duronic
Model	VC7
Usage	Household only
Power supply	Mains (220-240 V, 50/60 Hz)
Power	600 W (estimated)
Dust tank capacity	0.5 L (estimated)
Weight	2.5 kg (estimated)
Dimensions (approx.)	30 x 20 x 20 cm (estimated)
Filter	Washable in cold water, do not use washing machine or hair dryer
Included accessories	Floor brush (with 2-position turbo head), sofa brush, 2-in-1 brush, suction hose, metal tube
Accessories sold separately	Turbo brush, parts 8 and 9 (not specified)
Main functions	Hand or stick vacuum, ON/OFF switch, removable dust tank
Safety	Do not vacuum liquids, hot objects (ash, matches) or sharp objects. Do not use without tank or filter. Unplug before maintenance. Keep out of reach of children.
Maintenance and cleaning	Empty and clean the tank regularly. Clean the filter at least twice a year with cold water. Dry completely before reinstalling.
Warranty	1 year (Shine-Mart Ltd), valid in the EU upon presentation of proof of purchase

Frequently Asked Questions - VC7 Duronic

How do I assemble the vacuum in stick mode?

Insert the floor brush into the vacuum, then insert the handle into the main unit. Plug in and use the ON/OFF switch.

How do I empty the dust tank?

Unplug the vacuum. Press the tank locking mechanism, tilt to remove. Separate the central filter, empty the tank, then reinstall the filter and tank.

How do I clean the filter?

Unplug the vacuum. Remove the tank, pull the filter holder and remove the filter. Rinse it under cold running water. Tap to remove excess water. Let dry completely before reassembling. Do not use a washing machine or hair dryer.

Why is suction weak?

Possible causes: dirty filter (clean it), full tank (empty it), blocked hose (remove blockages).

Can the vacuum pick up liquids?

No, never vacuum water or other liquids. This could damage the appliance and pose a risk of electric shock.

What to do in case of overheating?

Turn off the vacuum and let it cool for 30 minutes. Overheating is normal with prolonged use.

What accessories are included?

Floor brush (2-position turbo head), sofa brush, 2-in-1 brush, suction hose, metal tube.

How to use the floor brush?

The turbo head has two positions: one for hard floors (low position) and one for textiles (high position). Select the one that matches your floor.

What is the required voltage?

The correct voltage is indicated on the appliance label. Use only a socket matching that voltage (usually 220-240 V in Europe) to avoid damaging the motor.

What is the warranty period?

The vacuum is warranted for 1 year from the date of purchase by Shine-Mart Ltd (owner of Duronic). The warranty covers electrical or manufacturing defects, but not normal wear, misuse, or repairs by non-experts.

USER MANUAL VC7 Duronic

Creative Consumer Electronics

Vacuum Cleaner - VC7

Contents

English Manual 5

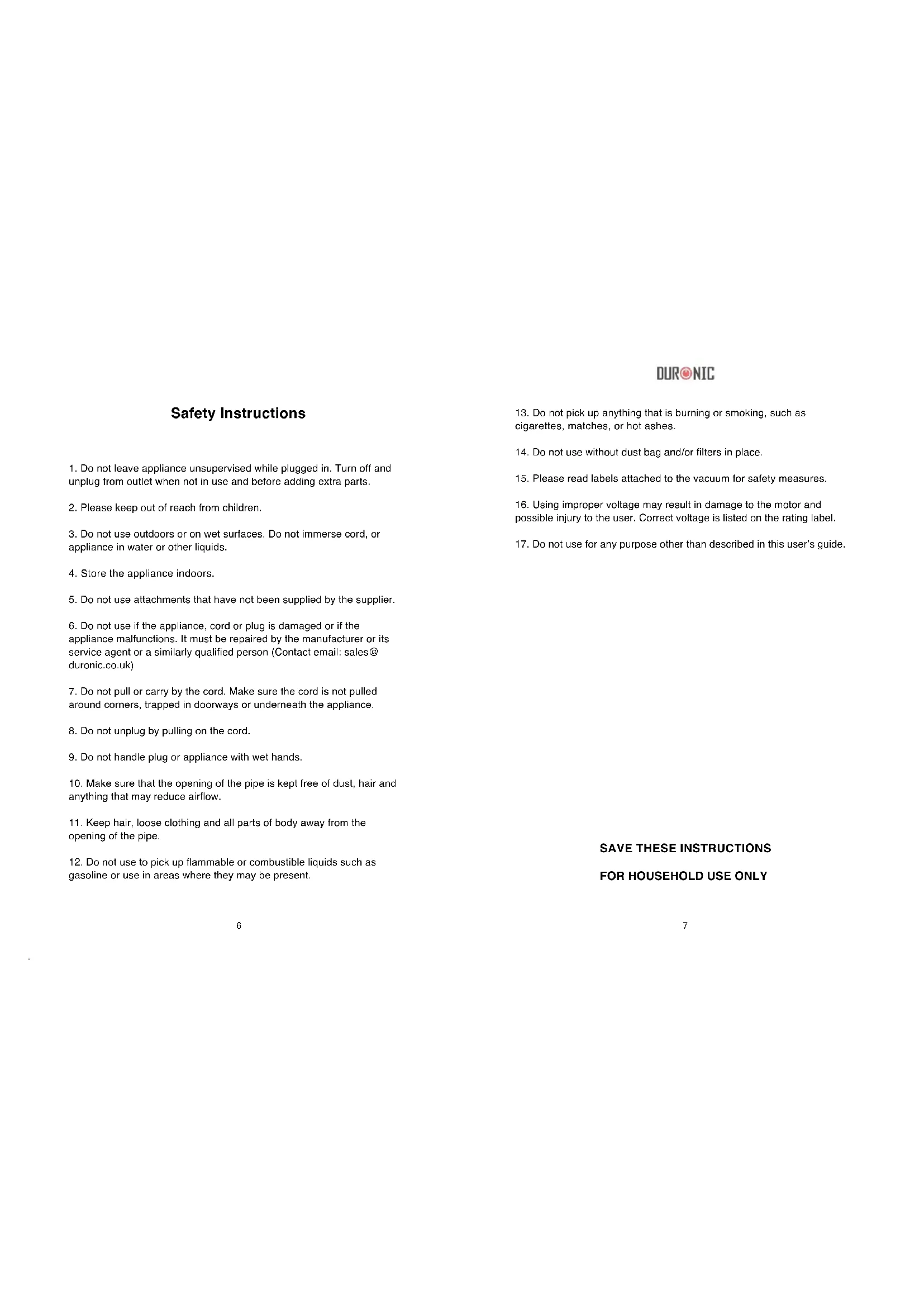

1. Do not leave appliance unsupervised while plugged in. Turn off and unplug from outlet when not in use and before adding extra parts.
2. Please keep out of reach from children.
3. Do not use outdoors or on wet surfaces. Do not immerse cord, or appliance in water or other liquids.
4. Store the appliance indoors.
5. Do not use attachments that have not been supplied by the supplier.
6. Do not use if the appliance, cord or plug is damaged or if the appliance malfunctions. It must be repaired by the manufacturer or its service agent or a similarly qualified person (Contact email: sales@ duronic.co.uk)
7. Do not pull or carry by the cord. Make sure the cord is not pulled around corners, trapped in doorways or underneath the appliance.
8. Do not unplug by pulling on the cord.
9. Do not handle plug or appliance with wet hands.
10. Make sure that the opening of the pipe is kept free of dust, hair and anything that may reduce airflow.
11. Keep hair, loose clothing and all parts of body away from the opening of the pipe.
12. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.

DUR NIC

1. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
2. Do not use without dust bag and/or filters in place.
3. Please read labels attached to the vacuum for safety measures.
4. Using improper voltage may result in damage to the motor and possible injury to the user. Correct voltage is listed on the rating label.
5. Do not use for any purpose other than described in this user's guide.

SAVE THESE INSTRUCTIONS

Product Parts Preparation

1. Handle (with on/off switch)
2. Metal Tube
3. On/off Switch
4. Dust Cup Release Button
5. Main body
6. Dust cup
   7.Floor Brush
   8.Hose
7. Sofa brush
   10.2 in 1 brush

(Parts 8 + 9 sold separately together with a turbo brush).

SAFETY ADVICE AND WARNING:

1. Domestic use only.
2. Use the appliance only on the voltage specified on its rating plate
3. Do not vacuum the following things

1 Water or liquids
2. Lit matches, cigarette ends or hot ash
3 Sharp objects

1. Keep the appliance far away from heat sources
2. Check hose regularly, if damaged in any way, repair or replace it immediately.
3. If the cable is damaged please contact Duronic for spare parts or assistance

Assembling for handheld use:

1. Insert one of the two small brushes into the dust cup

1. Hold the body with your hand
2. You can also connect the small brush and dust cup with the hose

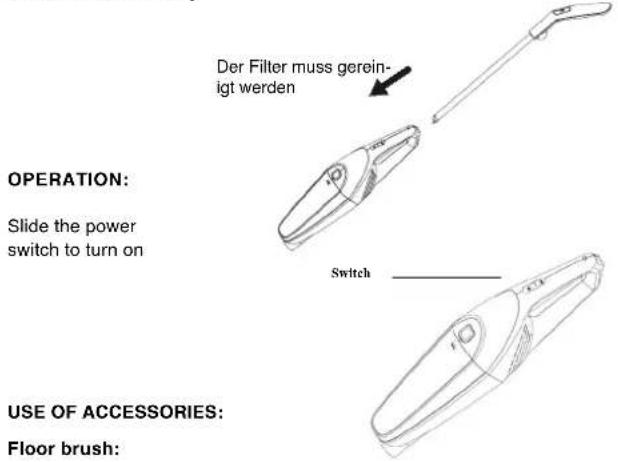

Assembling for cleaning the floor:

1. Insert floor brush into the dust cup

1. Insert stick into body

The turbo brush has two positions: one for hard/even surfaces and one for soft/ textile surface.

Crevice nozzle & Brush nozzle:

For cleaning radiators, corners, edges and small gaps etc.

Maintenance:

1. Empty and clean the dust cup
2. Always operate the vacuum cleaner with dust cup installed.
3. Disconnect from electrical outlet before empting dust
4. Make sure the dust cap is emptied when full. Press dirt cup release button then tilt dirt cup down and away from unit.

DUR@NIC

1. Grasp filter from the center, pull filter out of dirt cup then empty the tank into waste basket.

Cleaning Filter:

1. Filter should be rinsed clean at last twice a year or when it becomes visibly solid
2. Always operate the cleaner with filter installed; use without may reduce suction or cause damage the motor
3. Disconnect from electrical outlet before removing filter
4. Do not use a washing machine for rinsing filter - do not dry with a hairdryer
5. Pull filter supporter upwards to remove filter
6. Rinse filer in cool tap water
7. Make sure filter is completely dry before re-assembling

Problems And Solutions

Problem	Cause Solution
Weaksuction	Dust in the filter	Remove dust from the filter
	Dust cup is full	Replace the dust cup or empty completely
	Obstacles in the tube	Remove all obstacles
Over-heat of the body	This is normal if vacuum was being operated for a long period of time. Switch off and allow to cool down for 30 minutes.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products.

NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained.

The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.
Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and fear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shina-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee 7. Valid in the UK only

This product is fitted with BS 1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste. The use of this mark does not mean that the document has been disposed of.

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
