USER MANUAL Digisight N750UA PULSAR

I N S T R U C T I O N S

ENGLISH / FRANÇAIS / DEUTSCH / ESPÁNOL / ITALIANO / PYCCKM

Class 1 Laser Product

Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

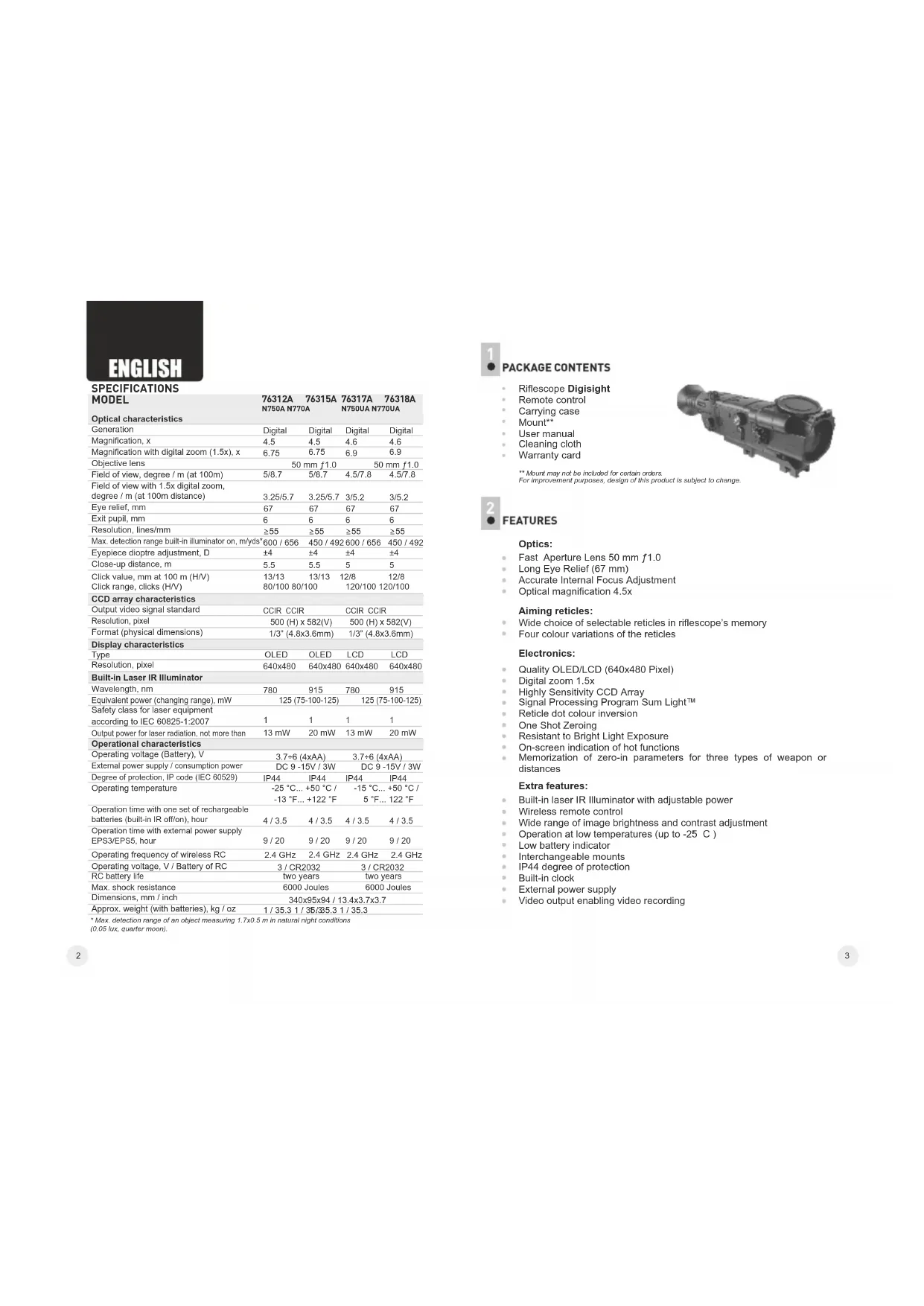

SPECIFICATIONS MODEL	76312A N750A N770A	76315A N750UA N770UA	76317A N750UA N770UA	76318A N770UA
Optical characteristics
Generation	Digital	Digital	Digital	Digital
Magnification, x	4.5	4.5	4.6	4.6
Magnification with digital zoom (1.5x), x	6.75	6.75	6.9	6.9
Objective lens	50 mm f1.0		50 mm f1.0
Field of view, degree / m (at 100m)	5/8.7	5/8.7	4.5/7.8	4.5/7.8
Field of view with 1.5x digital zoom, degree / m (at 100m distance)	3.25/5.7	3.25/5.7	3/5.2	3/5.2
Eye relief, mm	67	67	67	67
Exit pupil, mm	6	6	6	6
Resolution, lines/mm	≥55	≥55	≥55	≥55
Max. detection range built-in illuminator on, m/yds*	600 / 656	450 / 492	600 / 656	450 / 492
Eyepiece dioptrate adjustment, D	±4	±4	±4	±4
Close-up distance, m	5.5	5.5	5	5
Click value, mm at 100 m (H/V)	13/13	13/13	12/8	12/8
Click range, clicks (H/V)	80/100	80/100	120/100	120/100
CCD array characteristics
Output video signal standard	CCIR CCIR		CCIR CCIR
Resolution, pixel	500 (H) x 582(V)		500 (H) x 582(V)
Format (physical dimensions)	1/3" (4.8x3.6mm)		1/3" (4.8x3.6mm)
Display characteristics
Type	OLED	OLED	LCD	LCD
Resolution, pixel	640x480	640x480	640x480	640x480
Built-In Laser IR Illuminator
Wavelength, nm	780	915	780	915
Equivalent power (changing range), mW	125 (75-100-125)		125 (75-100-125)
Safety class for laser equipment according to IEC 60825-1:2007	1	1	1	1
Output power for laser radiation, not more than	13 mW	20 mW	13 mW	20 mW
Operational characteristics
Operating voltage (Battery), V	3.7+6 (4xAA)		3.7+6 (4xAA)
External power supply / consumption power	DC 9 -15V / 3W		DC 9 -15V / 3W
Degree of protection, IP code (IEC 60529)	IP44	IP44	IP44	IP44
Operating temperature	-25 °C... +50 °C / -13 °F... +122 °F		-15 °C... +50 °C / 5 °F... 122 °F
Operation time with one set of rechargeable batteries (built-in IR off/on), hour	4 / 3.5	4 / 3.5	4 / 3.5	4 / 3.5
Operation time with external power supply EPS3/EPS5, hour	9 / 20	9 / 20	9 / 20	9 / 20
Operating frequency of wireless RC	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz
Operating voltage, V / Battery of RC	3 / CR2032		3 / CR2032
RC battery life	two years		two years
Max. shock resistance	6000 Joules		6000 Joules
Dimensions, mm / inch	340x95x94 / 13.4x3.7x3.7
Approx. weight (with batteries), kg / oz	1 / 35.3 / 36.335.3 / 35.3

PACKAGE CONTENTS

Riflescope Digl
Remote control.
Carrying case: Mounting
Mounts
User manual Clearing elot
Warranty card

** Mount may not be included for certain orders.

For improvement purposes, design of this product is subject to change.

FEATURES

Optics:

Fast Aperture Lens 50 mm f1.0
Long Eye Relief (67 mm)
Accurate Internal Focus Adjustment
Optical magnification 4.5x

Aiming reticles:

Wide choice of selectable reticles in riflescope's memory
Four colour variations of the reticles

Electronics:

Quality OLED/LCD (640x480 Pixel)
Digital zoom 1.5x
Highly Sensitivity CCD Array
Signal Processing Program Sum Light
Reticle dot colour inversion
One Shot Zeroing
Resistant to Bright Light Exposure
On-screen indication of hot functions
- Memorization of zero-in parameters for three types of weapon or distances

Extra features:

Built-in laser IR Illuminator with adjustable power
Wireless remote control
Wide range of image brightness and contrast adjustment
Operation at low temperatures (up to -25 C)
Low battery indicator
Interchangeable mounts
IP44 degree of protection
Built-in clock
External power supply
Video output enabling video recording

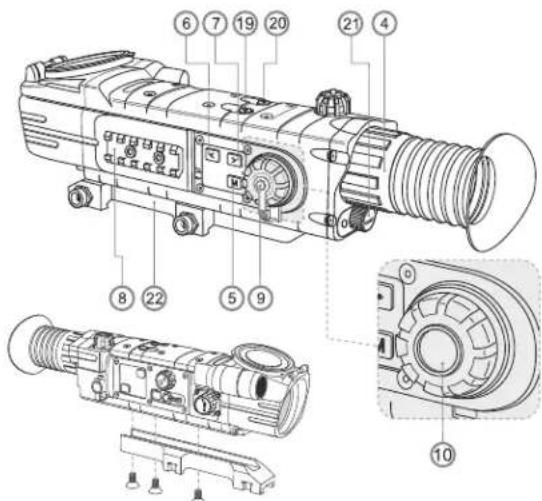

COMPONENTS AND CONTROL ELEMENTS

1 Objective lens.
2 Lens cap.
③ Five-position main switch (OFF-ON-IR -IR -IR).
Eyepiece adjustment ring.
5 "M" button (MENU).
6" button (LEFT).
7"▶”button (RIGHT).
Weaver rail.
9 Cover of windage/elevation knob.
10 Windage/elevation knob.
11 "Sum LightTM" button (enhanced sensitivity).
12 "Autocontrast" button (enhanced contrast)
13 "Power" jack connection to external power supply.
14 Video output.
15 Button to switch between brightness and contrast adjustment modes.
16 Lens focus knob.
17 Display brightness/contrast control knob.
18 Built-in laser IR Illuminator.
19 "SCR" button - digital zoom activation.
20 "INV" button - inversion of reticle's dot colour (green/red).
21 Battery compartment.
22 Mount.

Wireless remote control:

23 "ON" button.
24 "IR" button.
25 "ZOOM" button.

DATA PANEL ICONS:

Reticle moving directions
X=00 Y=00	Reticle's X and Y coordinates
Autocontrast mode
SumLightTM mode
Brightness and contrast adjustment
00:00 AM	Clock
Low battery indicator
Clock setup
1.5x digital zoom
IR·IR:IR:	IR Illuminator power level
Indication for external power supply
One shot zeroing
Activation of wireless remote control
Limiting frame
Auxiliary cross
PAL/NTSC video output signal selection
Reticle selection
Weapon selection

DESCRIPTION

The Digisight is designed for observation and shooting in twilight or nighttime. In complete darkness (no stars or the Moon) use of the built-in IR (or laser) Illuminator is highly recommended. Your riflescope is a versatile device designed for a wide range of professional and amateur applications such as hunting, sports shooting, night video recording and observation.

The rifscope has been designed for long-term usage. To ensure longevity and performance, please adhere to the following:

Before use make sure that you have installed and fixed the mount according to the instructions of the section "Installation of mount".
Store with the lens cap on in the carrying case.
Switch off the scope after use
The riflescope cannot be submerged in water.
Attempts to disassemble or repair the scope will void the warranty!
Clean the scope's optical surfaces only if necessary, and use caution. First, remove (by blowing with a blower brush or canned air) any dust or sand particles. Then proceed to clean by using camera/lens cleaning equipment approved for use with multicoated lenses. Do not pour the solution directly onto the lens!
The rifesccope can be used in various operating temperatures. However, if it has been brought indoors from cold temperatures, do not turn it on for 3 to 4 hours. This will prevent external optical surfaces from fogging.
If the scope is unable to mount onto the rifle securely, or you have doubts about the mounting system, see a qualified gunsmith. Using the weapon with a poorly mounted scope can lead to inaccurate target shooting!
To ensure reliable performance, it is recommended to carry out regular technical inspections of the unit.
Do not leave batteries in the unit if it is not going to be used for an extended period (1 month or more)
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

INSTALLATION OF BATTERIES

Unscrew and remove the battery cover (21).
Install four AA batteries according to the marking on the battery compartment cap.
Replace and screw back the battery cover tightly.
Battery charge level is displayed on the data panel. In case of complete battery discharge, a red icon is flashing on the data panel and in the centre of the display.

Note: to ensure long and reliable operation it is recommended that you use quality rechargeable batteries with a capacity of at least 2500 mAh. Please do not use batteries of different types or batteries with various charge levels.

EXTERNAL POWER SUPPLY

The rifesccope can be powered with an external DC power supply (2.1mm pin) with stabilised voltage ranging from 9V to 15V (max. consumption power 3W) or a 12V vehicle socket.

External power supply (AC/DC) is to be connected to "Power" (13) jack located on the right side of the device.

Note: the central pin of the power supply that you connect to the "power" jack of the rifle scope, must have marking "+"

The power supply may have marking

Connection of an external power supply (icon - on the data panel) automatically cuts off power supply from batteries.

External power supply DOES NOT charge the batteries in the riflescope! Attention! We suggest that you use battery packs EPS3 or EPS5 ensuring from 9 to 20 hours of continuous operation.

OPERATION

Installation of mount

Before using the riflescope you need to install the mount.

The riflescope can be used with various mount types such as Weaver, Europ-. prism, Los, Side mount, MAK adapter etc. that allow the scope to be installed on different types of rifles.

The mounting holes in the base of the rifesccope enable the mount to be installed in one of the multiple positions. The choice of the mounting position helps the user to ensure the correct eye relief depending on the rifle type.

• Attach the mount to the base of the rifesccope using a hex-nut wrench and screws (see installation scheme on page 5).
  Install the scope on the rifle and check if the position is suitable for you;
  If you are happy with its position, remove the scope, unscrew the screws halfway, apply some thread sealant onto the thread of the screws and tighten them fully (do not overtighten). Let the sealant dry for a while.
  The riflescope is ready to be installed on a rifle and to be zeroed.

Note: changing the mount position may require a slight re-zeroing.

Starting the scope and image setup

Install the batteries according to the directions in Section 7 or connect an external power supply.
Open the lens cap (2).
Turn on the riflescope turning the selector switch (3) to the "ON" position within a couple of seconds the display will light up.
Adjust sharpness of display symbols with the dioptre focus knob (4). After this adjustment no further dioptre adjustment should be required, regardless of distance or other factors.

To adjust the display brightness, rotate the knob (17). Brightness level from 0 to 20 is shown next to the icon in the upper part of the display and then on the data panel.
Press button (15) to switch to display contrast setup mode. Contrast level from 0 to 20 is shown next to the icon in the upper part of the display and then on the data panel.
Subsequent press of the button "INV" (20) changes colour mode of the as follows:

1st press - main part of the reticle is black, additional part is red;
2nd press - main part of the reticle is black, additional part is green;
3rd press - main part of the reticle is white, additional part is green;
4th press - main part of the reticle is white, additional part is red.

Choose a still object that is, for instance, 100 metres away.
- Rotate the lens focus knob (16) to achieve best possible image sharpness. To quickly adjust for a target 100m away, set the lens focus knob (16) opposite mark "100" on the lens focus knob.
- Warning! Focusing range may vary depending on the illuminance level in the daytime mark "100 m" on the lens focus knob equates to around 10 metres.
To increase 4.5x magnification up to 6.8x, activate 1.5x digital zoom by pushing "SCR" (19) button.
In low light conditions or in complete darkness turn on the built-in laser IR Illuminator (18). The IR Illuminator has three power degrees - choose the required one by turning the selector switch (3) to one of the three positions IR- IR:IR:
When finished, turn off the riflescope by turning the selector switch (3) to the "OFF" position.
Close the lens cap (2).

ZEROING

The riflescope features two zeroing methods - traditional zeroing and "one shot" zeroing.

Zeroing should be done at operating temperatures, by following the order of these steps:

Traditional zeroing:

• Mount the rifle with the riflescope installed on a bench rest.
• Set a target at a distance of about 100m.
  Adjust the rifscope according to the instructions of Section 9 "OPERATION".
• Aim the firearm at the target using the mechanical sight.
  Using live ammunition, take 3-4 shots, continually aiming at the same hit point on the target.
• Examine the target and determine if the aiming point coincides with point of impact, if you determine it's necessary to make corrections, you will need to adjust your aiming point.

To do this, unscrew the knob cover (9), push the knob (10) to hear a click.
First push of the knob enables vertical movement of the reticle ( ), appears
on the data panel), second push enables horizontal movement (iconΦ).
Another push of the knob lets you quit this mode.
Check the accuracy of your adjustments by firing 3 or 4 control shots.
The scope should now be zeroed-in for the specified distance.

One shot zeroing:

Follow first four steps, set forth in subsection "Traditional zeroing".
Take a shot. If the point of impact does not match the target centre push the "M" (5) to enter main menu and choose with / (6,7) buttons menu option "Zeroing" marked by icon.
- On the right of the icon appears icon ; auxiliary cross (C) appears in the centre of the aiming reticle.
- Holding the reticle in the aiming point, by rotating the windage/elevation knob (10) move the auxiliary cross (C) horizontally or vertically relative to the reticle until the auxiliary cross matches the point of impact (P) (see pic.). To switch between movement direction push the knob (10) to hear a click. When moving directions of the reticle changes, the active coordinate changes its colour from white to red.

Note: the aiming reticle can move only within the red limiting frame (see pic.) that defines the click range - 80 clicks horizontally, and 100 clicks vertically (models 76312A/76315A); 120 clicks horizontally, and 100 clicks vertically (models 76317UA/76318UA).

• Exit the menu option "Zeroing" by holding the "M" button pressed for one second. The reticle will now move to the point of impact.
  Make another shot - the point of impact should now match the aiming point.
  The rifscope should now be zeroed-in for the specified distance.

Note: zeroing parameters (coordinates X;Y) are saved in the riflescope's memory as number 1 in the menu option "Weapon choice". If you want to zero in the riflescope using another weapon or another distance, select option 2 or 3 (details in the menu option "Weapon choice" section 11) and do the zeroing.

MAIN MENU

Main menu includes the following options:

Reticle selection in the riflescope's memory
Weapon selection
One shot zeroing" mode (refer to section 10 for details)
Video output selection/disable
Clock set up
Activation of wireless remote control (see section 15 for details).

Menu operation

Short or long press of navigation buttons - switching between menu options.

Short press of the button "M" - entering the menu and submenu.

confirmation of choice.

Long press of the button "M" - exiting the menu and submenu

depending on the cursor position).

Reticle selection in the riflescope's memory

• This menu option allows selection of one of the reticles saved in the riflescope's memory.
  Choose the icon - and press "M"
  Press buttons 一 select a reticle from the list (reticle name is shown next to its order number).
  Confirm your choice by pressing the button "M".

List and description www.pulsar-nv.com of the reticles can be found at

IMPORTANT!

Please note that due to peculiarities of OLED display technology (models 76312A and 76315A), after upload of a new reticle, you may notice on the riflescope's display residual "ghost image" of the previous reticle.

The "ghost image" looks like semitransparent white lines. The image may appear if a new reticle does not contain elements (such as lines, circles, bars etc.) of the previous reticle. After a while the "ghost image" becomes less noticeable.

We do not take any responsibility for the claims in connection with

"ghost image" arisen due to multiple change of reticles.

Weapon choice

This menu option allows selection of three variants of zeroing parameters for various types of weapons or for various distances.
- Select icon with the buttons / , then choose a number out of the list (1; 2; 3).
- Confirm your choice by pressing the button "M". The number of the selected variant of the weapon (distance) to use is shown on the data panel in the lower portion of the display.

Note. Originally the reticle for all the three variants is located in the display centre (coordinates X = 0;Y = 0 ). Further on, each type of weapon (distance) requires individual zeroing.

Selection/disable of video output signal

• Press the button "M" (5) and select icon 一 using the "4" (6) and "▶" (7) buttons.
• Using the "▶" (6) and "▶" (7) buttons the required video output signal - PAL or NTSC.
  To exit the main menu, keep the button "M" pressed for one second. Or wait 10 seconds to exit automatically.

Clock Set Up

Press "M" and select icon in the menu.
- Move the cursor with the navigation buttons to select time format "24" or "AM/PM".
Press "M" to proceed to hour setup. Set the hour with the navigation buttons. You can keep the button pressed until the required value shows up.
- Press "M" to proceed to minute setup. Set the minute according to instructions above.
To exit main menu, hold "M" pressed for one second. Or wait 10 seconds to exit automatically.

Note: time settings will be kept in the memory of the scope for two months after removal of batteries.

Indication of hot functions

Switching IR Illuminator's operating modes, brightness and contrast adjustment, activation of the "Sunlight", "Autocontrast" and "Zoom" functions are shown as large pop-up icons in the upper part of the display.

IMAGE SETUP

The riflescope has a number of modes to enhance image quality:

Autocontrast mode and Sum LightTM mode:

Mode "Autocontrast" allows rapid image contrast enhancement (button 12), marked by icon).
Mode "Sum LightTM" activates enhanced sensitivity algorithm for operation in low light conditions or complete darkness (button (11), marked by S icon).

SumLightTM

After the rifscope is switched on for the first time, the Sum Light™ activates automatically. The use of Sum Light™ substantially increases sensitivity of the CCD array thus enabling observation in low light without using the IR Illuminator.

When using the unit at a sufficient level of night illumination, the Sum LightTM function can be deactivated manually using the menu. Hereafter on activation the DFA75 retains the function status before it was turned off.

However please note that higher sensitivity causes an increased noise level in the picture, lower frame rate; image slows down, if the fishescope is rapidly moved from one side to the other, the picture may be blurred for a moment. Neither of these effects is a flaw of the unit. After the SumLight™ Signal Processing Program is activated, light dots (pixels) may appear in the field of view which is explained by operation peculiarities of this function. This is not a defect either.

USE OF THE ADDITIONAL WEAVER 7/8" RAIL

The rifscope is fitted out with an additional Weaver rail (8) located on the left side of the body. With the help of this rail you can attach accessories like: - accessory Pulsar - 940 IR Flashlight (940 nm);
external power supply EPS3
- video recorder CVR640 etc.

VIDEO OUT JACK

"Video out" jack (14) is designed to connect external recording devices and to transmit video signal to monitors, TV sets etc.

• Select a suitable video output standard - PAL or NTSC (refer to section 11 "Main Menu").
• Connect an external signal receiver to the "Video out" jack (14) and turn on the scope.

WIRELESS REMOTE CONTROL

The wireless remote control duplicates activation of the scope, IR Illuminator and digital zoom.

The unit has three buttons:

• "ON" button (23) - turning on/off the scope (keep pressed for two seconds to turn on the scope);
• "IR" button (24) - turning on/off the IR Illuminators, powers settings selection;
  "Zoom" button (25) - activation/deactivation of digital zoom.

To start using the wireless remote control you will need to activate it:

Turn on the scope and select menu option "RC activation", marked by icon in the data panel.
Press the "M" (5) button, a message "WAIT" will show up and countdown will start within which you need to press any button of the RC.
If the activation is successful, a message "COMPLETE" will show up next to icon. The RC is ready for use. If the RC does not work, replace the battery. To do this, unscrew the screws on the rear panel of the RC, remove the cover, pull out the old battery and insert a new CR2032 battery.

TECHNICAL INSPECTION

It is recommended that you inspect the rifle scope before every use. Make sure to check for the following:

Visually inspect that the unit is free from any physical damage; cracks, dents or signs of corrosion which may disqualify it from proper use.
Check the sturdiness and proper fit of the mounting system.
Ensure that the objective lens, eyepiece and the IR Illuminator are free of cracks, grease spots, dirt, water stains and other residue before use.
- Visually inspect the condition of the battery and the battery compartment; the battery should be free of electrolyte and oxidation residue, especially where the battery makes contact with metal.
- Verify the proper function of the following: selector switch, display brightness adjustment knob and other operation buttons.
Verify the smoothness of the objective lens focus knob, dioptrc focus knob.

TECHNICAL MAINTENANCE

Technical maintenance should be done at least twice a year, includes the following steps:

Clean the outside metal and plastic surfaces from dust, dirt and moisture; wipe the scope with a soft lint free cloth.
Clean the battery compartment's electric contact points using an oil-free solvent.
Inspect the eyepiece lens, the objective lens and the IR Illuminator and gently blow off any dust and sand, and clean using lens cleaner and a soft cloth; see section 6 "GUIDELINES FOR OPERATION".

STORAGE

Always store the unit in its carrying case in a dry, well-ventilated space. For prolonged storage, remove the batteries.

TROUBLESHOOTING

Listed below are some potential problems that may occur when using the scope. Carry out the recommended checks and troubleshooting steps in the order listed. Please note that the table does not list all of the possible problems. If the problem experienced with the scope is not listed, or if the suggested action meant to correct it does not resolve the problem, please contact the manufacturer.

problem	possible cause(s) corrective action
The rifescope will not turn on.	Batteries have been wrongly installed.	Reinstall the batteries with the correct polarity orientation.
	Oxidized contact points in the battery compartment due to "haaky" batteries or contact points becoming exposed to a chemically-reactive solution.	Clean the battery compartment, focusing on the contacts.
	The batteries are empty.	Install fresh batteries.
The roticle is blurred and cannot be focused with the diopetre knob.	The diopetre cannot be adjusted to your eyesight.	If you wear prescription glasses with a range of +/-4, keep glasses on when looking through the eyepiece.
With a crisp image of the reticle, the image of the observed target that is at least 30 m away is blurred.	Dust and condensate are covering the outside optical surfaces after the rifoscope was brought in from the cold into a warm environment, for example.	Clean the lens surfaces with a blower and soft lens cloth.Let the rifoscope dry by leaving it in a warm environment for 2-3 hours.
The aiming point shifts after fitting rounds. The rifoscope will not focus.	The rifoscope is not mounted securely or the mount was not fixed with thread sealant.	Check that the rifoscope has been securely mounted, make sure that the same type and calibre bullets are being used as when the scope was initially zeroed; if your rifoscope was zeroed during the summer, and is now being used in the winter (or the other way round), a small displacement of the aiming point is possible.
The rifoscope will not focus.	Wrong settings.	Adjust the rifoscope according to the instructions given in the Section 9 "OPERATION" and check the surfaces of the eyepiece and objective lenses and clean them if necessary from dust, condensation, frost, etc; to prevent fogging in cold weather, apply a special anti-fog solution.
	The scope is used in day light at long working distance
		Check focusing of the scope in night conditions.
The rifoscope cannot be started with wireless remote control.	Remote control is not activated.	Activate the remote according to instructions in section 15.Install a new CR2032 battery.
After the built-in laser IR Illuminator is activated, you may see a slightly grainy, non-uniform pattern which does not impact detection range and efficiency of observation.	This is normal for eye safe laser illuminators.	This is not a defect.
Residual "ghost image" after reticle change can be noticed on the display.	This effect attributes to the peculiarity of OLED display technology.	This is not a defect.

Peculiarities of CCD array

CCD arrays employed in Pulsar digital night vision devices, feature high quality. However certain pixels (or groups of pixels) with increased luminosity (lighter or darker) are allowed. These defects can be seen when conducting observation not only in the nighttime but in the day time too, especially if Sum LightTM function is active. Presence of light and dark pixels and other minor defects of a CCD array (up to 4%) are acceptable in accordance with regulations of the array producer. Visibility on the screen of light pixels also depends on the type of CCD array, heating temperature during operation.

FRANÇAIS

SPECIFICATIONS MODELE
76312A 76315A 76317A 76318A N750A N770A N750UA N770UA

You could also use the following search terms to find all the available information:

ATTENTION!

REVELATION DES DEFAULTS

OCO6EHHOCTN3KCNPIYATAUIN

PnueHIO HO BIDENH NpeDHA3HcEN Hn DIIATeIbHO IcN0IbOBAHIN.
IaI O6bcneHNe DOJIROBEcHOctn INNOH pa5OToCnOc6bOCTn
Heo6OdImo PnpDEPKBtBa CnDEyUHX PEKOMeHaaJi:

IpeHnAonmKcNpyataunnpueena y6eintecb,HToBlyyctahOBnnn n3aФNKCpOBaJI KPOHHTeIH cornaCHO yka3AHnM p3dena "YCTaHOBaK kPOHHTeHa"
XpaHnTe npuueC 3aKpbIToN KpbIuKoO bBeKtNbA N B YexJe.
BbiknHcHpePiHcHne HcHcHb3BbHa. PInpIeH ne pIepdHa3HaeHn dIa nporpykHeJIa
CamaoctoTaeIbHO pEmoHTnpoBaTb mpa36npaTb rapaTHmHb npiuen zanpeuaaetcra?
Hapykhyo YNCTKY ONTNHECKHX DETANEI PNOA3BOIDNE OCHb AkiypaTHO NTOJbKO B CNYae Heoo6DnMOCTBn. BHAHane OCTOPOXHO yADNIET (CMAXHNTINCNDYTE) COTNTHNIO NOEPEXHOKINNbI INNCOK, NOCEOCYUECTBNITE YNCTKY. NOnb3yHTECB NCTOIN XNONATO6yMAxHOH CANDFtKOH (BATO IN DEpeBBHnONAOQH), CNUEANlBbIMM CPEDCTBAMN DINH3 C MHROCFOHNHBMN NOKPbTNMn.
PnHJEN MOKET EKCNYATNPOBATBCR BIMPOKOM DnANAOche TEMNEPATy. ECINI INP603CNNHYATNPOBACRA XOHOJE N 6B1N BHECEH B TENTNO NOMUHHE, He BbHMMAIE IEO M3Xe7XA B THeVEHc H MeMeee 2-3 YACOB, 3TO NOB3OHNT PNeD0TBPATITNBORNEHKeONHcATA HA BHEUNHX ONNUECKHX ANEMETHAX.
EcnBam He ydanoB JERKO HADeKHO (6e3 JIOCTa, cTPORBOJnHNN CTBoNA) YCTAHOBHT pNpuean H pykBe NnY Bac MHeOTcCOMHEHBA B PABINBHOCT KPENEKA -063aTeJIbHO 06paHTeCB B CNEUAN3HPoBAHHyO opkyeHHyo MaCTepCKyO. CTePNbSA C HEPaBUNbHO yCTAHOBJENHBIM PNpceIOM CHNKaET TOHOCb IOnaHaHN B ceNB!
Igno 06ecneHnE 630TKa3HOCTn paObTo, npdynpxDHeHn ycTpaHHeN pNpHn, Bbl3BaBaoUnx pXeJXeBPMeHHn M3HOC mBbxoH n3 CTOPOyOB n DaeJIe, HeoXoHmO CBOeBPMeHHo npObouHTBXTHnCckn OcmOTn o6cbnyKBAHne npueJe.
Pn DAnntelbHOM XpaHEHMn (CbbIe OdHOrO Mecra) BbHHMaTeB SaTapeHm3 pRmuEa.
Batapeh EN DoHNbH NoDBeRbTcBye3MePHEOMHy HArpeByo TOnCHeHOrO CBeta, ORHa INNoDooBbHX HCTOHNKOB.

YCTAHOBKA BATAPEI

OyKpyTHePyKU KbIuIKoKHTeHepa6aTeJI (21) CHMIMITE KbIuIKU. YCTAHOPNTB6aTAPEn BCOOTETCTBNCmAKADOBKOHa KbIuIKUe
Noctabte Kpbikky KOthEnepa BaTapeHn Ha MeTo n 3abePHTe pyky Do Tex nop, Noka Kpbikka He npKmETcra IIOTHo K Kopny cy pIuena. YpOBeH zapra OTObpaKaTeCn HA INHOpMaUHOHn NaHen ). PnNnHOM p3pndeBaTapeHn HnHOpMaUHOHn NaHeHn N B cHTpe DnCnNeM MRAE TNIKTORPAMMa KPACHORUbeta.

Ipumuehue: dna obecneuhen npdoonkumenbho u cmaabnbo paobomblpuzena pekoemohemyc uocnlb0eamb kayceemehnble akkymymopb muna AA emkocmbno He meene 2500 mAe. H ecnobnyume pahomunnbte nemeHmbnu manuha unu bamaepu c paohmb ypoaem Zapra.

BHEWHEE NITAHNE

PIMENMOKETpaOtaTBOTBHEHRONCTOCHNAINTAHNA（UTekep2.1MM） MNENTABOMOBNbHOcTNIANAOH BXOHBx HANPAKENHOTB 9Bdo15B. NTOpeBnEMARMOuHcHToDB3T.

NCTOCHIK BHEUHIEI NTATAHIA (AC/DC) CNEJYET NIOKHTOCHAT K pa3bEMy "Power" [13]. HAXODJIeMVCsB TbJIHOB YACTn PABON NAHENI NPM60a.

BHMHANe! B I TEKEPE NITAHN NOJIKHOAEMOM K PnIeJe YCHTpaHbH KOKTAKT DOJIKHeB 6bIt *

Bo3MoXHa MapKnpoBKa Ha wTeKepe nn nCTouHnke nTaNHT-

PnN ONDKIOHENI NCTOCHNA BHEUHrO NITAHN HA IHOPMauINHOHNI HANII NOBNTCR NIKTOrpAMMA -NITAHNE OT AKKyMUTOPOBOTKNIOHTTCR.

BO Bpme pa60tby 10 HcTnHka BHEwHrO pTAnH 3apAka kAKyMnTAPoB 0eUcIeCTBnETcR!

PEKOMEHYEM cONNBJOBATbIcTOHNI BHEWHERIO NITAHIER EPS3 mII EPS5,06eCneuBAHouEOT NO 9D 2O cAcB ABTOHMHO PAoBOtBu.

3KCNyATAU

YcTaHOBka KPOHHTeHa:

Npeed hanaon 3cknnyataun npuena Ha Hero Heo6xOIMO yctaHOBt b KPOHSeH.

PmIeU MoKet IcNOLbO8aTcBc PaaHINHbIM NtANM KPOHHTeHa -Weaver, EApO-npIma, Iocb, bokOB, aadTepOM MAK n dp., no3BOJHOUMn yCTaOHOBMb TpueJe HA MHOme TNbI opyXm.

HauHnne KpEnexhBx THe3 B OCHOBAHm npuJen a No3BOIeT yCTAOHbTb KPOHsTeH N BOH n3 HEckONbKHX NOIOXeHn. Bb6Op NOIOXeHn KPOHsTeHa NOMaTeO EocBeHcTb PpaUNbHOe NOIOXeHn YdaJIeHn BByxoHDoro 3paKaBa 3ABNCMOCTN OT TINApOyKn.

C NOMOJIbIO UeCTIRPAHHOI KIOUHa N BHTOB PnBnHTHe K OCHOBAHNO pRcEHa (CM.PMC.Ha cTp.75);
YCTAHONBITE pnpIe H paynbe I yDIOCTOBEPbTecb YyO6CTBe BbIpaHORIOIPOJXENKIE,3aTeM CHIMNTE pnpIe;
PnOHTKpyTHe BnHTb, HAneCtHepe3b6oBOn PnKCatOp Ha pe3b6y BnHTOB N 3aKpyTHe IN. DaIte PnKcatOpBy BbcOxHyTB TeHeHMe HEKOtOpOro BpEmEH.
PnueJ roTOB dIy yCTaHOBKn Ha opyKne.
Pocne npboy yctahOBK BauWero npuEHa npOyHKHeo6xDmBOblIOHHTb peKoMeHdaUHpa3eHa "PnCtpeKa npCuEa KOpJxN OpyKHO"PpMueHaeH.Pn CmEHE NOXeHHK PcoHuaTeHHa, BO3MOxHo,

BknIOueHne HnacTpoKa n3o6paXeHHa

YCTAHOBITE 6aTapeB B COOTBETCTBN C ykasaHIMMa paadena "YctahOBKa 6aTapeN INN NOKIOHOHTE BHEUHN NCTOHTHK TITAHAR CORNAOPEKOMEHDAIINM.
OTKpoITe KpbIuKy obBeKTnBa (2).
BkIIOHJIpe npieJ, nopeBHy nepeKlIOUATEJIb (3) B noIOJOKeHHe "ON" - cepe3 HeckoJIbKO cekyHd zaropITc dncJIen.

HactpoTe pe3koe 136paXeHHe CMBONOB Ha DCNnnee BpaueHem Kofbaa DnontpHHo NDcTPOKn OKynpa (4).Iocne DaHHo HAcTpOKn, He3aBNCmO TO dCTAHmU IN pynxycNO, Bpaatb Kofbu DnontpHHo NDcTPOKn (4) He tpeSyctc.
Длретулровдякости дспгь врашaite pyk (17).Уровьн rapкости -о 0do20-otobpaKaTeСчрaba otПКТогрмьВ ВерхенЧачддспь.
ДиNepeKIOHENB PEXKIM PERYNPOBKN KOHTPACTA DHCNPIER HAXMITE KHOKNY (15).B BEPXHeJ CHACIN DCNPIER NOBHTC NIKTORPAMMA ）， cnpaba O Hee-YPOBbE KbHTPACTA-OT0do20.

PocneobatelbHm Haknatem Ha KONKY "INV" (20) Bbl MoKeTe CMEHtB pEKHM Zeta pRnEILHOI METK;

1-eHakatne- OCHOBHAACTb METKn CHPa, DIOJONIHHTeBHAACTb METKn Kpchar;
2-e HAKATNE-OCHOBHABACTBEETKHEPA,DOONIHHTBHAACTB METK3JELHEA
e-hakatne-OOHOBHARACTB METK6ENH,DOONJHHTELBHARACTB METK3EJIHAR;
4-e Haxatne-OCHOBHAR qACTb METK6eNA,DOONJHTENbHAR qACTb METKKPACHA.

Bb6BePHTe HEnOdBnKbHb O6BeKT Na6IIOHeNHa yJaTeHHb Ha HekTOTOP pACCToHN.HaNPmED.100M.
POBOPOTM pyKn FOyCINPOBKn (16) 06bEeKNBa Do6eTeCb
MAKCNMAJIbHOrO KaeCTBa H3o6pKeHn. DIn B6bCTpoHcAHTPOKn Ha
UEJIb, HAOxHJUOCHa PaCCTOHNN 100 METPOB, yCTaONBE MetKy
pyKN FOyCINPOBKn (16) 06bEeKNBa HAnPoTNB OTMeKN "100".
BHMANHe JdNHOCTb FOyCINPOBKn HmEHReTcB 3 ABNCMOCTn OT
YPOBn OBSeIeHHoCTn - B dHEBbIX YCOBHNkMaTka"100M"Ha pyKe
FOyCINPOBKn COOTBetCTByET DaCTAHNIOKO NO 10 M.
IyBENHHeH KPAHTOCHn PNP60pa AKNBMPYNE HAXATNEM KHONK "SCR" (19) 1.5xuΦpOBon 3ym. B peyntate yBENHHeHc coCTaBNT OKJIO 6,8 kpat.
BycnoBHX HeOCTaTOHOH HOHOOCBEeHHoCTn IIN NOBbIeHnA KaecTbHa6NIOEHN BKNOHTE Nae3epHB NK-OCBETHTenB (18).NKOCBETNTB NEMET TPN YPOBTH MOHCHTN -BbI6EPnHYKHB, yctAHOBN BEpeKnHOATeB (3)BNONIOKeHNR LR:
OOKOHAHNI MCBIOBAHBYBIKIOIHTPEPICNJ,NOBEPHBNEpeKINQATEb3 (B)NIOLOXHEME"OFF".
3akpoTe KpbuKy (2) 06bekTnBa.

PNTCTPEJIKA PNIUEJIA K OPYKNUO

B npuepe pean30bA BO3MOXHOCTb npCTpenK DByM METoaMn - TpnduHOBHM MeTODOM "OdHoro BbCTPena". Pnpctpenky
peKOMeHNyTc npOnBDOHTm TemPePAType, 6ln3Ko K TempePAType
kCNnYTAATm npUeNA B CneDyHOeM nopRDKe.

TpaHnHOHHbMeTOI pncTepeKn:

YcTaHOBnTeOpyKHeC npUeNoH na npUeNbHOM CTaHKe.
YCTAHOBNTe MmueHb Ha npctpeINBaEMyO daJIbHOCTb, HApIMep, 100 M.
HactpoTe npuue cornacho peKomeHdaqun pa3deNa

"3Kcnnyataa".

HaBeDnTe opyXne Ha zHTp MmueHn No MexaHnueckomy npuJeNy.
CSeNae 3-4 BbctpeLa, TzateIbHo Ondoo6paHO npuIeINBaHcB TOcKpyPueiEINBAHH.
OnpeHnTe KUHOCTb CTpeBbI bN NOIOXeHHe cpeHn TOKn nonaHaHn (CTT).PnO kTOHOHEHN CTN B KaKyo-Ni6o CTOpOHy Gonee YcH Ma H doNyCTMHy BeINHHy, BpaueHem Dncka BbBepok (10),doBeHTecb COMeueHnCT Tcn pInuEhBOH ToKoH.
Длг STORO OTKYTTE KbIbUky DnCKA BbIBePOK(9),HdKMITE HaNCHC (10)do 电Nka. 萘Boe HaxaTHne NO3BONReT NpTeMecNTb MetKy no BEPTKINH(BBEXHXNEOBOM YTYNoBtBcNIKTORPAMMA 日 ，NOBTOPHE HAXATNE DO UeHTKa No3BOBReT NpeMecNTb METKy NO rOpN3OTAHIN (NORBITcNIKTORPAMMA )（CM.puc.).NoBTOPHoe Haxatne ObecTeHIT BxXOD n3peKIMAA.
PpOBepbTe npabnBHOCTb BbIEbpKn NOBTOPOHcTpeNbo
Pnue npncptpeH Ha Bb6paHHyIO dNcTaHcHIO.

PnctpeIka MeTODOM "ODHOro BbIcTpena"

BbIyIINHHe nepBle YetbIpe nyHtA, nepeUcMcnHbIe B noDpa3dene "TpaIaONHIOHNbMeTOpNCTPepKn"
CdenaIte BbIcTpe. Ecn ToKa nonaHaHHe CoBnA c TocKo npuIeINBaHna, HxKaTHEM KhoKN "M" BoNDte B MeHO npuENa n KhoKAM (6,7) BblepTe NyHKTg PnpCTpenKa"(O603HaaeTcN NIKTORpAMMO
Cnpaba OTIKKPTPAMMBI NOBNTCNIKKTOrpAMMA ；nONOPHbKpCT (K) B cHTpe pniuehbo MeTKi.
YdePKBBA MTeKy B ToKpe NpuEJIbAHnR, BpaUeHHeM DnCKa BbIePOK nepeDbVaIte OnOpHbI KpCt (K) NO OcM X Y OTHOCIEJbHO MTeKN Do Tex nop, KpCt HE COBMeCTNTC r TocKoINonAaHn (P). (CM.PNC.)
MnCMeHbHaNaPabHeHnDvKHeHnMeTKnCBepTKaJIbHOHa RopnOHTaHbHoe HAnKMITE Ha DnCK BbIbEpoK Do UeTnKa. Pn CMeHe HnPaBHeHn DvKeHn MeTKn, AKnBHHa KoOpDHaTa MeHReT cBcNoRo HA KpaChbN.

BHNAMHIE! PrnuehJIbHa METK MAOeT MEpeDIBrAeTcBcT OIbKo B INpeJdax KpachOH OrpaHHTeBIO paMkn (cm. pnc.), KOtopaa ONpeJedanET dNana30N bVBePOK - 80 no Ropn3OHTANm IN 10KnIKOB

no Beptrkani (Moenn 76312A/76315A); 120 no ropnzohtanu 100 kmkOB no Beptrkani (Moenn 76317UA/76318UA).

BbIHTeN3NoMeHIOEpncTePknKa, yDpeKXBAB KHONKY M B TeHHeOdHO CEyHdb. MeTKa NepemecTnCTB ToKHy nonadHn
CdaenabeTne NOPTbHbY BcCTPen -Tepeb TOKa nOpaJdHaNn DOnKHa COnaNaBcB TOckoR pNlEJIbAHBaN.
PnueI npncptpeH Ha BbippaHHyIO nCTaHIO.

PnmeHne:napameTpbl npntpeIkn (koopDnHaTb X;Y) 3aNcBBAOTCB NAMTb pnpIeNa ND HOMePOM 1 BnyHKTe "BbIbOp opyKna. EcnB BxOHTte npntpeIbn pnpIeHa dpYrOm opyKnn nHn Ha DpyHyTOuNTAHHIO, Bb6epHTe HMOe2 nHn 3 (noDpOHe cm. nyHK T "BbIbOp opyKna" pa3dena 11).

OCHOBHOEMEHIO

Функунан MeHIO BKNIOHaeT B Ce6a CneIyUOuNe NpHTbI:

BbI6Op MeTKn n3 naMRTn npuceJa
Bb6op opykna
PnncTeIka npueia OdHM BbICtpenom (cm. pa3en 10)
Bb6op cTaHapTa BnueocnHana/0TKnKHeHne BnueoBbIXOda
HactpoKa yacob
AknBaunBecnpoBOHOrO Ny (cm. pa3en 15)

Pa6ota c MeHIO

KOPKTOE INN DINTIELBOE HAXATME KHOIOK HABRAGUNA / - NEPEMSENE MEXKU NYHKAMN MEHIO.

KOPOTKO HAKATME KHOIKI K“BxOД B MEHОи NOДМEHIO, NOДТВЕРЖЕНИЕ ВБИБОа.

ДИПЕТБОННОВЕСКАТЕМОНУМСРОВЕСК 过B3A8CIMOCNTNTOIPOLOKHENYKUPCDA.

Bb6op MetKn n3 naTn np6opa

HnIyNtN03BONETBbPbT MetKu N3 HAp6oMetok, 1aNCAHbX B nAMrTn pRcJEA.

Bb6epTe B MeHIO NKTOrpaMMy- n HaxMnTE "M".
KONKAMM Bb6epTe METky N3 CnNcKa (npraKobH HOMep OTo6paKaetcPdOcmCnKTOrpaMMo-），HaDnCnEE To6paKaetcBb6pHaHAA MeTka.
IoTBePnTe BbIbOp HxKaTneM KHOKN "M".

CnncOKONNCaHMe METOKMOXHOHaHTNaCaHTe www.pulsar-nv.com

BHIMAHIE?
B CBnC oOc0eHHocTmN TEXHOONM OLED dncnpeeB (modnn 76312A n 76315A), nocne CMeHbI MetKN Ha DCnCnne npnuea Bbl MoKte T 3aMeHTb CneDbI OT pRdbDuye MeTK N BuDe N OynP03paHbIX 6BeBix NnH. CneBly MOrY NOBtBC B Tom Cnyae, eCN HOBa MEkTa HE cOpEKNr HEKOTOPBX 3JIEMENTOB (TAKHe KAK LNNH, Kpyn, UtpnXn I np.) PneBdyuey MeTK. Yeepz HeKOTOpoe Bpem CneBly OT MeTOK CTahOBaTc MeHee 3aMeTHbIMN. NoRbNeHme CneDob HA DCnCnnee Nocne HeoDHokpaTHoH CMeTK MeTK He RbIaTeC 6pakOM K kapraHTnHbI cnyai He paccMatpNbAetc.

Bb6op opykn

Даньнунгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдяпгдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярбдярьхларынгдярьхларынгдярьхларынгдярьхларынгдярьхларынгдярьхларынгдярьхларынгдярьхларынгдярьхларынгдярьхларынгдярьхларынgснштчынгснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgснштчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчынgсншtчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын gснштчын
KHOIIKAMN ▲▶BbIePnte MBHIO NIKTORpAmMy 3aTEM BblbepTe HOMOp n 3cnkca (1;2,3)
PnTBePnTe BbOp HkataHm KHONK "M"Homep Bb6paHHoro BapmaHTa MCNOLbyeMoRo OpyKn (Ductanu) OTo6paKaetcHa HnΦopMaOHNOH NaneHn BHXKHe Tactn DnCtIe.
PnmuueaHne. NepBoHaaybHo MeKa dJa Bcex Tpx BapnaHTOB paacnoNooKeBA BcHTEpeDncIeR (KoOpDHaHbX=O;Y=0). DaJe eJn KaKdOro BapnHaTaOpxNIA (DnCTaHUN) OcyUeCTBnRETCr OTDeJIbHAR npNCtpeNka.

Bb6op cTaNapTa BnDeocnHa

HaxMMTe KONKy "M" N KONKAMN △/BbIepeNTe NKTKorpaMMy
Bb6epnte KONKAMH HxKhbl cTaNapr BbXoNDHO BnDEOCINHanaPAL NNI NTSC.
IJIbYbIXOaB rIbABHOe MEHyo UyepKINBaIte KHOKNy M" HaxaToi OHy CEkyHdy, IJIbIOpoXnTe 10 CekyHd - BIXoD B rIbABHOe MeHIO 6ydet npOn3BeHd ABOTMaTHuCeKn.

Hactpoikka yacob

HaxMMTe Ha KHONKy "M" (5)и BBiBepuTE NIKTOrpAMMy
KhONKAMI ▲ repemeuaite KypccknBbibopa foPMAta BpeHemn “24”m6o“AM/PM”.
Haxmte“M"npeXoKaKhactpoKe3haeHna Yaca.HactpoTe o nOMOuIbKOHNOK/■.DnayyckopeHHoroNepenmtBBAHn npaMeTPO yapedxNBate KONky HauKaToJdoNoRbHeHnyHKHO 3HAeHHo
Hakmte M" nperepexoHa K hactpoke 3aueHHn MHyT. Hactpoe Hanaonfno OHncanHbI pndyIeem TnyKHe.
Длвьхда мподмehо "Чась"Вглавhoe Мнho у dedжьаite Kноку "M"нakото Oнdy sekyн'dу n6o noDoxdte 10 cekyHd dЯnt abTomatneckoro BxdoJa.

PpmeHnne: nocne n3BneHn6 BaTapei daHHbIe o TeKyueM BpeMeHH coXpaHOTcB NamrTH npuTeaB TeYeHne DByx MecraeB.

HnDnkaunpaobtI"topaunx"dyhknm.

IpeekIOueHnepeKMOBpa6oTb BCTpoeHHoro NK-ocBteNTen, peryIPOBBA JpKOCTN KOHTPACTBa, BVdeOcINHnA, BKNOCHENy FHyKUHN "Sunlight", "Autocontrast" and "Zoom" otobpaKaOTC B BVDe ykpyHHeHHbX BCNbIbIAOuX NIKTOrpAMM B EpxHNeactn DcNcNner.

HACTPOKAN306PAKEHHN

B pinnie nme meetcBa Dpexima bctpo nactpoinno6paekhenia - Autocontrastu Sum LightTM:

• Autocontrast (BO3MOXKHOCTb ABOTAMHTHECKFOY YCNJHNEHYK KOHTPACTA), KONKIA (12) (O603HAUYETCR NIKTORPAMMOI 1);
  Sum LightTM (AKTBAUAM ANIOPITMTN NOBILUHNEY YBCBTNEJIHOCTM) KONKIA (11) (06O3HAeCTA TIKOTPAMMMS).

Функи SumLightTM NeeocobHoctN.

Pn npBOM BkIOUeHm npIeena ABToMaTneCKn AKTNBUPyeTCaYHKUma Sum Light TM, KOtOpa n03 BO JIET C Yue C T BE H O yB EIN NHT b YcBCTBnTeNbOCTb NC-Matpnsu B Cnyae CHNKeHn yPOBnA OCBeHeHOCn, 6bnAoRaYemC TAnOBTuBCO3MOxHbIM Ha5KnOHeBn BCNOBmX HmKoOcBeSeHHocn 6e3 IcNoNs3OBAHnN NoCDbTKn.

PnncnoB3oBAHm npuIeI npn DoCTaTOHOM yOpBHe HoHHOOceEHHOCTN pYHKNUMO KMOXHO OTKNIHOHTb BpyHYU Ope3 MEHO.BdaJIhHeIeM npn BkNIOueHem 3AnOMHaETcN cOeJeHHe COcTOrHHe pYHKNUpeD BkNIOHEHMnpuIeNA.

BHMMHHe! PnB Gooee BbICOKY YCBCTBNTELBOHOCTNPOHCXODIT yBENHHeYyOBH YA HIO60PaeHHcN CHMxAETCA HAToTa CMEHb KApOBo, NIO6PaeHHe3AmeDJIaTcR -nPn pe3KOM NpeMeEeuHHN pNp5oBa NIO6PaeHHeMOeT "CMAbIbATbCR, TAKHe RNeHHe He RABTOCT DEeKtAMHe. HaCNcnee PnpueA MOY 6bTb BYNBbCBeTAAHcNE6BeJI ToKTH (NIKCEHN), KOINIECTBO TOVEK MOEY BENHHTBCr PnB BKHOeHHN FyHKm SumLightTM-3TO CB3AHO cOCo6EHNOCTHM paBObTI daHHOy FyHKUIn n DEeKToM TAOKE He RABTOCTC.

NcNoJIb3OBAHNE DOnoJIHHTeJIbHOIJIaHKn WEAYER 7/8

PpIeIbO6OpYIOBAn DOnONHHTeBbHO NIIaHKOWeaver (8), HaxoJIaUeIcA Ha IeBOI cTOPOE KOpNca. C ee nOMIoBb BO bMoKeTe yCTAHOBt DOONHHTeBbHBe AkeCCCeCyapb, TAKIE KaK:

-DOONHHTeBbHbN UK-ΦoHaPb;
-MCTOUHNI BHeIHeRo NITAHN EPS3
-BnDopeKOpDiep CVR640 n np.

PA3bEMVIDEOOUT

Pa3bEM "Video out" (14) npedhaHauen nI pyn noIqKHeHnBHeHHx BnDE03ANCbBAIOXuX yCtpoCTN BbBOda N3OpaKeHn HA MOHTOP.

Bb6BePte CTaHApT BbXIOHO BINOeOcIRHANA - PAL INI NTSC (cm. COOTBECTBYIOUIN PYNKT pA3Dena11 "OCHOBHOE MEHO").
NdoCoedHnITHe K p3aEBMy "Video out" (14) Bnuoeo3aHnCbBaOooee yctpOJCTBO N BkHIOHTe PnIeUe.

NYIbT DnCTAHUHOHHOYNPABJIENH

BecnpoBDHOIpybTmCTAHIOHHOYnpaBHeHHy6npyeFyHKuIN BKNIOHENPn60pa,IK-OCBETeINrNcΦpOBO3yma.

Ha npIbTe mEeTc Tpn KhoNk

KhoNkA“ON”（23）-BkIOHcyHe/BkIOHcyHe npIcna（dIra BkIOHcyHe/BybIKIOHcyHe ydEpxKBaTb DBe cekyDbl)。
KONKAI "IR" (24) - BKJIOHcEHHe/BbIKIOHcEHMe IK-OCBETHTeR, 3M3EHOHEYPOBHNOUHCHOT.
Khonka "Zoom" (25) - BKNIOeHne/BbIKIOeHne UΦpOBOrO 3yma.

IpeepaHauanompa60tbicNyeroHeo6xOIMAOKTHINPOBAtb,tn3TO:

BknIOuHTe npueJn Bbl6epNTe NyHKT MeHO
"AKTNaNnIpy"(NkTOpamMa).
HaxMnTE KONKY M", NOBNTC COO6UHNHE "Wait" n HauHTcR oBaPaTHbO TcETe BPeMeHN, B TEHeHNE KOtOPORo HAXMnTE N yedepkBaTe B TeHeHNE DByX cekHy IIO6y KnOKY TND.
B Cyuayae ycehwhoh kntbuaaun Bo3ne NIKTOIpaMaMbbl BBOHTTCA COOOUHcene "Complete", PNTbst KNTbuaaH aN TOTOB K pA6Ote.

EcJH N D Ye pa6baTe3, 3aMeHHTe 6aTaapeIO. JnI 3TOI OTKpyTHTE BNTbHa TbHbON NaHENI N DY, CHIMMTE 3aJHOIO KpbIiKy, I3BJEkNTe CTApyo IN BCTabTe HOyIO 6aTaapeIO CR2032.

TEXHNUECKN OCMOTP

ПгТХИЧЕСКOMOCМOTpe,PEKOMeHДуЕМOMпeрДКждьМ Вь�ДOM Ha OXOTy,поровьтse:

BHeuHn Bn npuea (TpeunHb, rny6okne BMrTHb n Cnebl KoppoHn He donyckaoTc).
NpabInbHocBn HAdEkoCTb KpeNneHnpuIeHa NOpyKm (IOoPbKATaKHe NoDyCKAOTc).
CtoTHHn HIN3 OhBeKITbA, OkynpA INK-nOcbETM (TpeuINbI, JxipOBbe THTHa, rpg3bN dpyrIn HaneIte He OdyckaOTc).
CoCTOHHNE 3NEMEHOB INIHTAHIN 3NIEKTPYNCKHX KONTAKTOB 6aTapeHOROTCEKA (6aTapeHKe Hn EHNKHBbBTpa3PRAKeHb; CneDb 3NkTPOHNTa, coneH OKCNHEH He DONYCKAOTc).
JaHexKHOCTbCpa6BaTbHAnnpeKeKIOUQATEnpeKHMOBpaObTb,peyIITopAp RkoctN,KHONOYUPaBnENHa

PnabHocb xOda pykN pOKyCnpOBKn OBeKTHBa N KOJIba OkyIpa.

TEXHNUECKOE O6CJYKBAHNE

TexHHeNeckoe 06cNyKINbAHne NPOBDoNTcHRe PHepe DByx pa3 BToD iAaKNIOUaeTcR B BYnIOHNHEH M3NOKeHbHbX HIOE NYKTOB:

OCHHTHe HApKHeIe NOBepxHOCTn MeaJIINHECKHX IN IINACTMACCOBbIX DeTaneO TbHn, Ipr3n IN Bnarn, IpotpIne IN XN JIOINATOpyMaMKHO canpeTKoI.

Pouctnite 3eKTPueckene KOTAKTbGt TaapeBHORO oTCeka, noJIb3yrcb IIO6BM HeKHPBmOp OPAHcHECKM PACTBOPTIETEM.
OCMOTPNTe NINH3bl OKynpa,OBbEKTNBA INK-OCBETNIIRA;OCTOPOXHO cMAXHTNEIbJIb IN ECOK,ecNI Heo6xODIMMO,NOCHNTNE IN HApYKHHe NOEPXHOCTN.

XPAHEHNE

XpaHnTe npuEeBceTbKO BTOK Bo CxHJIe, B CYXOM, XopoOo BEHTnHpyEmOM nomeueHH. Pp DnIeTbHom xpaHeHH oBa3aTeMbHO 3NBeKmTe 6aTaepi nHTAHyA.

BbIBJIeHNE HENCPABHOCTEIN

B TaBnIepe PnBBeHEn CnKoC03MOxHbX npO6Bm, KOTOpBE MOyT B03HNHYb npn 3KnPnyataunnpueta. Ipon3BcEInTe peKOMHeYmyIO npOBepky nncpAekneHMe B nopAke, kyaaHaHHOM B TaBnIe. PpN HauJIHmDeEeKToB, He pueHcNEHbX B TaBnIe, mnpN He BO3MOxHOCTn CaMOCTOrTeBHO vctpaHbDteEeF, pnpuen cneJeVt BEpybTbe DmoHOTA.
