USER MANUAL Classic Deluxe 18.2030.00.00 Bourgini

• Only use oil or liquid fat - never solid fat

• Do not contaminate the oil with water - Thoroughly remove excess ice from frozen products - After rinsing, thoroughly pat dry food for frying using kitchen towel - Never use the deep fryer outside (due to the rain!) - Thoroughly dry the inner pan after cleaning MISES EN GARDE POUR FRITEUSES À PAROI FROIDE ATTENTION

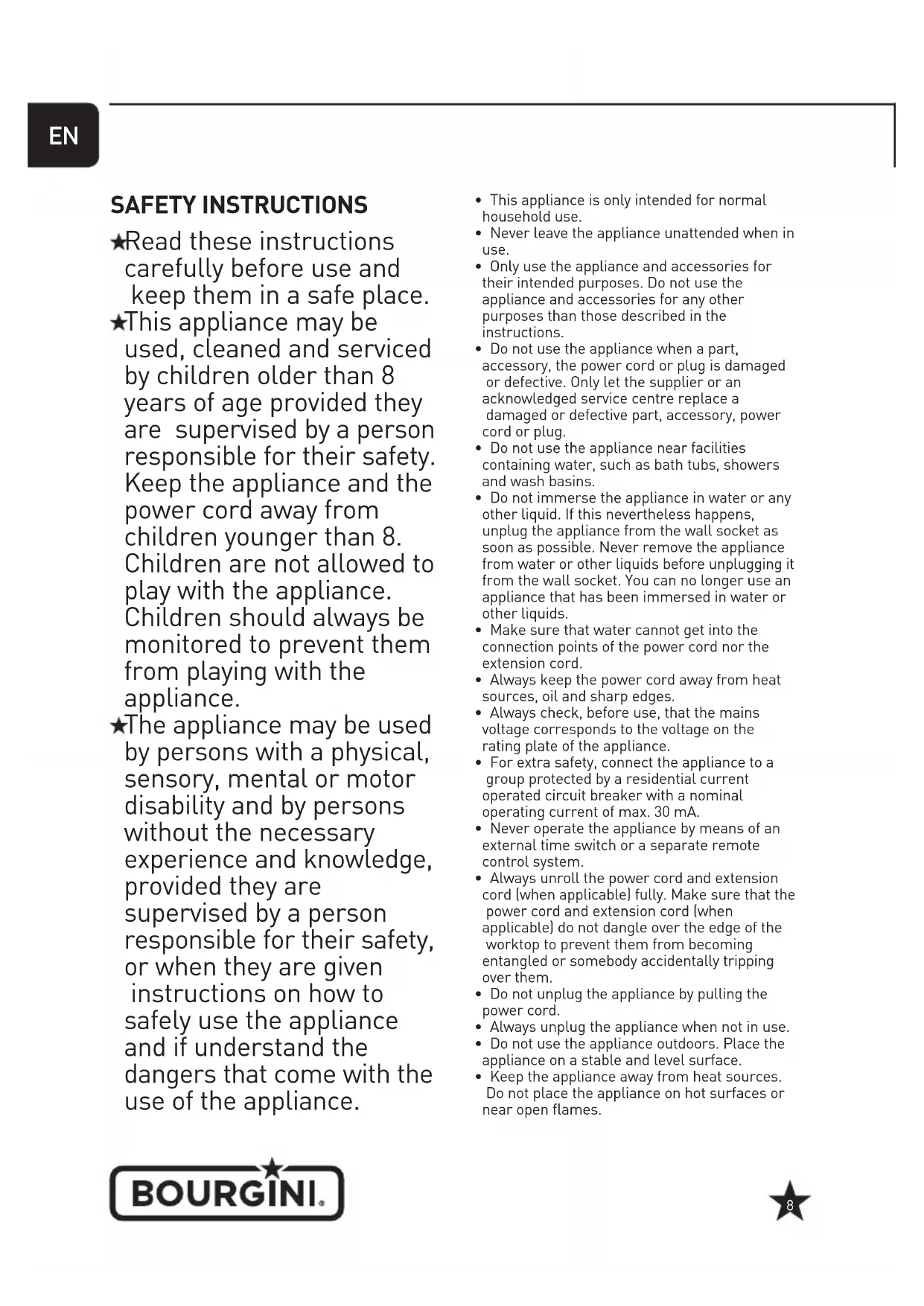

7SAFETY INSTRUCTIONS Read these instructions carefully before use and keep them in a safe place. This appliance may be used, cleaned and serviced by children older than 8 years of age provided they are supervised by a person responsible for their safety. Keep the appliance and the power cord away from children younger than 8. Children are not allowed to play with the appliance. Children should always be monitored to prevent them from playing with the appliance. The appliance may be used by persons with a physical, sensory, mental or motor disability and by persons without the necessary experience and knowledge, provided they are supervised by a person responsible for their safety, or when they are given instructions on how to safely use the appliance and if understand the dangers that come with the use of the appliance.

• This appliance is only intended for normal household use.

• Never leave the appliance unattended when in use.

• Only use the appliance and accessories for their intended purposes. Do not use the appliance and accessories for any other purposes than those described in the instructions.

• Do not use the appliance when a part, accessory, the power cord or plug is damaged or defective. Only let the supplier or an acknowledged service centre replace a damaged or defective part, accessory, power cord or plug.

• Do not use the appliance near facilities containing water, such as bath tubs, showers and wash basins.

• Do not immerse the appliance in water or any other liquid. If this nevertheless happens, unplug the appliance from the wall socket as soon as possible. Never remove the appliance from water or other liquids before unplugging it from the wall socket. You can no longer use an appliance that has been immersed in water or other liquids.

• Make sure that water cannot get into the connection points of the power cord nor the extension cord.

• Always keep the power cord away from heat sources, oil and sharp edges.

• Always check, before use, that the mains voltage corresponds to the voltage on the rating plate of the appliance.

• For extra safety, connect the appliance to a group protected by a residential current operated circuit breaker with a nominal operating current of max. 30 mA.

• Never operate the appliance by means of an external time switch or a separate remote control system.

• Always unroll the power cord and extension cord (when applicable) fully. Make sure that the power cord and extension cord (when applicable) do not dangle over the edge of the worktop to prevent them from becoming entangled or somebody accidentally tripping over them.

• Do not unplug the appliance by pulling the power cord.

• Always unplug the appliance when not in use.

• Do not use the appliance outdoors. Place the appliance on a stable and level surface.

• Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.

8• Make sure your hands are dry before you touch the appliance.

• Unplug the appliance before assembling or disassembling it and before cleaning or servicing the unit.

• Engine driven appliances: beware of sharp and/or moving parts. Always keep your hands away from the moving parts when using, cleaning or servicing the appliance.

• Heating devices: wait until the appliance has cooled down before you touch the housing and parts of the unit. Be extra careful during cleaning and servicing. ASSEMBLY The deep fryer consists of the following:

• Electric operating panel with thermostat and temperature light & power light

• Lid with filter and viewing window

• Reset button with reset pen (at the back) Assembly:

• The appliance must be cooled down before assembly.

• Do not put the plug in the socket during assembly

• Place the removable tank in the appliance.

• Place the filter on the bottom of the removable tank.

• Fit the electric operating panel on the appliance. Positioning:

• There should be enough space around the appliance to let the heat escape.

• Make sure there is enough ventilation.

• Place the appliance on a stable and level surface. DEEP-FRY SAFELY!

• Always unplug the appliance when it is not in use or when you are servicing the appliance.

• The plastic part of the handle can melt if it comes into contact with hot oil or liquid fat. Do not, therefore, immerse the handle of the basket in hot oil or liquid fat. If this does happen, the oil or liquid fat must immediately be replaced.

• Beware of spatters. Prevent spatters. See further down in this document.

• Beware of hot parts. The accessible surfaces can get hot when the deep fryer is in use.

• Make sure your hands are dry before you touch the appliance.

• Do not move the appliance when the power is on, when the housing is still hot or when the oil or liquid fat is still hot.

• Clean the appliance and accessories. See “Cleaning and servicing”. SPATTERS The deep fryer has a ‘cold zone’. This zone is located in the bottom of the appliance. The ‘cold zone’ is a zone into which the larger bits of food sink. The lower temperature in this zone prevents the bits of food from burning. Deep fryers with a ‘cold zone’ are sensitive to water, because the heating element is immersed in oil or liquid fat. There are various ways in which water can come into contact with the oil or liquid fat:

• A lot of food naturally contains water. This applies especially to potatoes.

• Condensation from hot steam.

• Frozen food can contain ice particles.

• The food was not dried properly after it was washed.

• The removable tank was not properly dried after it was cleaned.

• The wrong type of oil or liquid fat is used. See General Tips. If water comes into contact with hot oil or liquid fat, there could be excessive spattering, foaming or even overflowing. To prevent this as far as possible, a special safety filter was developed to further decrease the temperature of the ‘cold zone’ resulting in greater distribution of the water particles.

• Try as far as possible to prevent water from coming into contact with the hot oil or liquid fat as a result of one of the above mentioned causes.

• Change the oil or liquid fat regularly.

• Clean the safety filter regularly. Make sure that the openings in the safety filter are not obstructed. USE

• First fully unfold the handle of the basket outwards until it locks into place. Make sure that, when folded, the handle does not hang in the oil or fat, as this could damage the plastic handle.

• Fill the removable tank with oil or liquid fat. Make sure that the level of the oil or liquid fat is between the minimum and maximum markings on the tank.

9• Insert the plug into the socket at this point, and not before.

• The appliance is switched on by turning the thermostat to the desired temperature. The temperature can be set between 150°C and 190°C. Please refer to the food packaging for the desired temperature and cooking time. See General Tips for guidelines on selecting the right temperature.

• While the appliance is on, the temperature light will go on and off. The appliance is fitted with a thermostat which keeps the oil or liquid fat at the desired temperature. The temperature indicator light will remain on while the deep fryer heats the oil or liquid fat. The temperature indicator light will go off once the oil or liquid fat has reached the desired temperature.

• Allow the appliance to preheat for approximately 15 minutes with the oil or liquid fat at the desired temperature.

• Put the food in the basket and subsequently place the basket in the appliance. Be extra careful and watch out for spatters. Then put the lid on the appliance.

• Check regularly whether the level of the oil or liquid fat is between the minimum and maximum markings on the tank. Do not put too much food in the basket. If necessary, add oil or liquid fat. As soon as the food is done:

• Shake the basket using the handle to remove excess oil or liquid fat.

• Leave the basket to rest for a while on the hook of the removable tank to remove excess oil or fat.

• Empty the basket on a plate or dish, or similar, using the handle.

• Switch the appliance off after using it, unplug it and wait for the appliance to cool down.

• When the appliance is not being used, store it in a dry place.

• Make sure that children do not have access to stored appliances. GENERAL TIPS

• Only use oil or liquid fat. The appliance is not suitable for solid fat.

• Use a vegetable oil, such as ground nut oil, corn oil or soya oil for the most tasty results.

• For the healthiest results, thaw the food before use and frequently replace the oil or liquid fat.

• Deep-fry precooked chips only once.

• To prevent poor frying results, do not place too much food in the basket.

• Always replace the oil or liquid fat after deep- frying raw food such as chicken legs.

• After using the deep fryer, sift the food remains from the oil or liquid fat. It will keep the oil or liquid fat fresh much longer.

• Always pre-fry fresh chips. Deep-fry the chips approx. 5 10 minutes at 170°C. Shake the chips loose and leave them to cool in a dish for a short while. Then deep-fry the chips again approx. 2-4 minutes at 175°C. Deep-fry temperature Item Temperature (°C) Chips (pre-fry) 170 Chips (finish off) 175 Cheese croquettes 170 Potato croquettes 175 Meat croquettes 175 Fish croquettes 175 Fish 170 Fish fingers 180 Cheese frittera 180 Frinkandel sausages 180 Chicken 170

HOW TO RESET THE APPLIANCE

The deep fryer can be reset as follows if the appliance doesn’t work. The cause is often the use of solid fat or too little oil. The overheating protection switches the heating element off when this occurs. The safety system can be restored as follows:

• Press the reset button at the front of the electric operating panel with the reset pen to reset the appliance.

• Check whether the operating panel is securely fastened to the baseboard on the housing. The deep fryer has a safety switch that switches off the heating element when it is not properly fixed to the pan.

CLEANING AND MAINTENANCE

• Leave the oil or fat to cool down completely before cleaning the pan. Do not move the pan before the oil/fat has cooled down completely.

• If the deep fryer will not be used for a long period of time, it is recommended to store the oil/fat in the refrigerator. Filter the oil/fat before storing it.

• Unplug the appliance and wait for it to cool down before cleaning and/or servicing.

• Do not immerse the appliance or parts in water or any other liquid.

• Do not use any acerbic or abrasive cleaning liquids.

• Only the removable tank can be cleaned in a dishwasher. Do not clean the appliance and the other parts in the dishwasher.

• Check the appliance for possible damage on a regular basis.

• Wipe the exterior of the appliance with a soft, damp wiping cloth. Thoroughly dry the exterior of the appliance. Clean the accessories:

• Take apart the appliance.

• Take apart the lid and clean it with a soft, damp wiping cloth and a few drops of washing-up liquid. Then dry it thoroughly with a dry cloth.

• Clean the appliance and the electric operating panel with a soft, damp wiping cloth and a few drops of washing-up liquid. Then dry it thoroughly with a dry cloth.

• Clean the basket and the safety filter in soapy water. Then rinse with running water and dry thoroughly with a dry cloth.

• Clean the removable tank in soapy water or in the dishwasher. Then rinse with running water and dry thoroughly with a dry cloth.

• Assemble the appliance.

• Store the deep fryer in a dry and well-ventilated place out of the reach of children. If storing for a long period of time, it is recommended to store the deep fryer in its original packaging.

REPLACING OIL OR LIQUID FAT

After having used the appliance four, maximum five times, replace the oil or liquid fat as follows:

• Remove the lid, the basket and the electric operating panel from the appliance.

• Remove the removable tank from the appliance.

• Remove the safety filter from the pan.

• Pour the oil or liquid fat in a container and take it to a recycling point.

• Then clean the removable tank and the filter with soapy water and dry them thoroughly.

• Assemble the appliance.

• Only fill the removable tank with fresh oil or liquid fat when you are going to use the deep fryer again. WASTE DISPOSAL Electrical appliances, accessories and their packaging must be reused as much as possible in an environmentally sound manner. Do not dispose of these items together with your normal rubbish. Only for EU countries: According to the European 2002/96/EG WEEE Guideline on the disposal of old electric and electronic appliances, the appliances that are no longer used must be collected and recycled in an environmentally sound manner.

BOURGINI SERVICE AND WARRANTY

The warranty is valid for a period of 2 years from the date of purchase as stated on your purchase receipt, which also your proof of warranty. Please turn to your retailer to claim your warranty. The warranty shall not apply if the product is subjected to incorrect use,, improperly disassembled, damaged by falls, impacts or similar, or if damage is caused due to failure to descale in good time products that are manufactured for use with water. Should a certain product be provided with specific warranty terms and conditions, these shall receive priority over general terms and conditions. The warranty shall not apply to indirect damages. Should you have any questions regarding the use of the product, please consult our website at www.bourgini.com DISCLAIMER Changes reserved; specifications are subject to change without stating grounds for doing so.
