Classic Fryer & Fondue 1L 18.1010.00.00 - Deep fryer Bourgini - Free user manual and instructions

Product type	Deep fryer and fondue pot
Brand	Bourgini
Model	Classic Fryer & Fondue 1L 18.1010.00.00
Capacity	1 liter (for deep frying or fondue)
Temperature range	70 °C to 180 °C
Recommended number of people (fondue)	6 people
Main functions	Deep frying, Chinese fondue (hot pot), Bourguignonne fondue, keep warm
Included accessories	Frying basket, lid with window and metal grease filter, fork rest, 6 fondue forks
Tank coating	Non-stick, easy to clean
Light indicators	On/off indicator
Thermostat	Adjustable, temperature maintenance
Stability	Non-slip feet
Safety	Automatic shut-off? (not specified), splash protection, locking lid
Maintenance	Basket, fork rest, and forks dishwasher-safe; tank cleaned with a damp cloth; grease filter washable with soapy water
Warranty	2 years, subject to general terms and conditions
Waste collection	Compliant with WEEE directive (2002/96/EC) – mandatory recycling
Intended use	Household use only

Frequently Asked Questions - Classic Fryer & Fondue 1L 18.1010.00.00 Bourgini

How to clean the metal grease filter?

Open the filter compartment by pulling the holding tab upwards. Remove the metal filter and soak it in a solution of water and dish soap. Rinse well and put it back once dry.

Can I use the deep fryer to prepare fondue?

Yes, in fondue mode, remove the lid. Use the fork rest and the six provided forks. You can make Chinese fondue (with broth) or Bourguignonne (with oil). Set the temperature between 140 °C and 180 °C.

What is the ideal temperature for making fries?

For fresh fries, pre-cook at 170 °C for 5 to 10 minutes, then cool and re-fry at 175 °C for 2 to 4 minutes. For frozen fries, follow the instructions on the package.

How to know if the oil is at the right temperature?

Use the adjustable thermostat (70-180 °C). The appliance has an on/off indicator light. For deep frying, preheat for about 10 minutes. You can also use a cooking thermometer.

How much oil should I put in the deep fryer?

Fill the tank until the level is between the indicated minimum and maximum marks. Do not exceed the maximum mark to avoid splashing.

Are the accessories dishwasher-safe?

Yes, the basket, fork rest, and forks can be washed in the dishwasher. The tank with its cord must never be immersed; clean it with a damp cloth.

Can we make fondue with cheese or chocolate?

Yes, you can heat cheese or chocolate in the tank. However, discard these ingredients after use and clean the tank thoroughly before using it for oil or broth.

What are the important safety precautions?

Never leave the appliance unattended. Do not immerse the appliance in water. Unplug after use. Beware of hot oil splashes. Place the appliance on a stable surface away from water.

How to know if the warranty is applicable?

Keep the receipt, it serves as a warranty certificate. The 2-year warranty covers manufacturing defects but not damage due to misuse, dropping, or non-professional disassembly.

Can I use solid fat instead of oil?

Yes, if you use solid fat, melt it first at a low temperature (thermostat at minimum) before raising the temperature. Make sure the fat is liquid before adding food.

USER MANUAL Classic Fryer & Fondue 1L 18.1010.00.00 Bourgini

Exterior view of a modern kitchen electric fryer with open lid and basket filled with food (no visible text or symbols)

Exterior view of a modern flatbread grill with cutlery and a 'KOLONINE' brand logo (no text-heavy elements)

18.1010.00.00 Classic Fryer & Fondue 1.0L

F.1

Diagram of a star-shaped object with a handle and scale, labeled with numbers 9 and 10 (no text or symbols on the object itself)

F.2

Technical diagram of a car air conditioner housing with labeled components

Bourgini service and warranty EN 11

Mode d'emploi FR 12

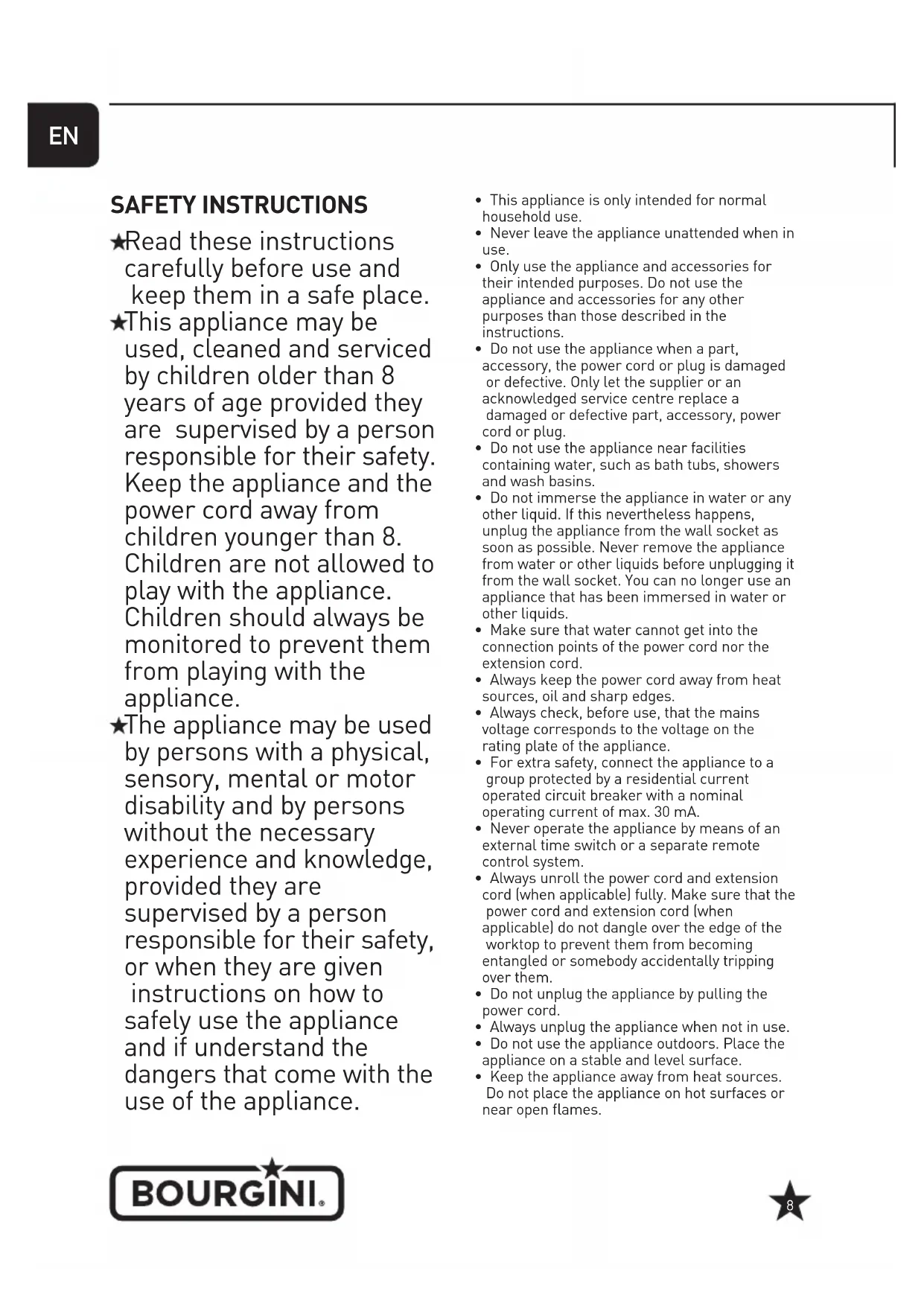

★Read these instructions carefully before use and keep them in a safe place.
★This appliance may be used, cleaned and serviced by children older than 8 years of age provided they are supervised by a person responsible for their safety. Keep the appliance and the power cord away from children younger than 8. Children are not allowed to play with the appliance. Children should always be monitored to prevent them from playing with the appliance.
★The appliance may be used by persons with a physical, sensory, mental or motor disability and by persons without the necessary experience and knowledge, provided they are supervised by a person responsible for their safety, or when they are given instructions on how to safely use the appliance and if understand the dangers that come with the use of the appliance.

• This appliance is only intended for normal household use.
• Never leave the appliance unattended when in use.
• Only use the appliance and accessories for their intended purposes. Do not use the appliance and accessories for any other purposes than those described in the instructions.
• Do not use the appliance when a part, accessory, the power cord or plug is damaged or defective. Only let the supplier or an acknowledged service centre replace a damaged or defective part, accessory, power cord or plug.
• Do not use the appliance near facilities containing water, such as bath tubs, showers and wash basins.
• Do not immerse the appliance in water or any other liquid. If this nevertheless happens, unplug the appliance from the wall socket as soon as possible. Never remove the appliance from water or other liquids before unplugging it from the wall socket. You can no longer use an appliance that has been immersed in water or other liquids.
• Make sure that water cannot get into the connection points of the power cord nor the extension cord.
• Always keep the power cord away from heat sources, oil and sharp edges.
• Always check, before use, that the mains voltage corresponds to the voltage on the rating plate of the appliance.
• For extra safety, connect the appliance to a group protected by a residential current operated circuit breaker with a nominal operating current of max. 30 mA.
• Never operate the appliance by means of an external time switch or a separate remote control system.
• Always unroll the power cord and extension cord (when applicable) fully. Make sure that the power cord and extension cord (when applicable) do not dangle over the edge of the worktop to prevent them from becoming entangled or somebody accidentally tripping over them.
• Do not unplug the appliance by pulling the power cord.
  • Always unplug the appliance when not in use.
• Do not use the appliance outdoors. Place the appliance on a stable and level surface.

• Keep the appliance away from heat sources. Do not place the appliance on hot surfaces or near open flames.

• Make sure your hands are dry before you touch the appliance.

• Unplug the appliance before assembling or disassembling it and before cleaning or servicing the unit.
• Engine driven appliances: beware of sharp and/or moving parts. Always keep your hands away from the moving parts when using, cleaning or servicing the appliance.
• Heating devices: wait until the appliance has cooled down before you touch the housing and parts of the unit.

Be extra careful during cleaning and servicing.

APPLICATION

The Bourgini Fryer & Fondue 1.0L is an electrically heated pan with a dual function:

1. Deep-frying chips, snacks, fish, etc.
   For this function, the Fryer & Fondue is fitted with a filter lid with viewing window, a deep-fry basket and a washable metal fat filter.
2. Fondue for 6 people with the fondue ring and 6 fondue forks included.

To fondue, remove the lid for easy access to the fondue pan from all sides.

The adjustable thermostat has a range from 140^ C – 180^ C for deep-frying, Chinese fondue (hotpot) and traditional oil fondue.

The inner pan has an anti-stick coating for easy cleaning. The on/off light indicates whether the plug is in the socket. The anti-slip feet keep the pan stable on the counter or worktop.

Besides deep-frying and fonduing, the Fryer & Fondue is also suitable for keeping soups and sauces warm.

ASSEMBLY (see picture F.1, p.2)

The Fryer & Fondue consists of the following:

1. Deep-fry basket
2. Removable lid
3. Viewing window
4. Metal fat filter
5. Min/max oil level indicator
6. Button to open the lid
7. On/off indicator light
8. Adjustable thermostat
9. Support ring
10. Fondue forks (6)

POSITIONING

• The appliance must be cooled down before assembly.
• Do not put the plug in the socket during assembly.
• Clean the appliance and accessories. See "Cleaning and servicing".
• There should be enough space around the appliance to let the heat escape.
• Make sure there is enough ventilation.
• Place the appliance on a stable and level surface.
• Do not position the appliance on flammable tablecloths or flammable cloth mats and placemats.

DEEP-FRY AND FONDUE SAFELY!

• Always unplug the appliance when it is not in use or when you are servicing the appliance.
• Beware of spatters. Avoid spatters. See further down in this document.
• Beware of hot parts. The accessible surfaces can get hot when the Fryer & Fondue is in use.
• Make sure your hands are dry before touching the appliance.
• Do not move the appliance when the power is on, when the housing is still hot or when the ingredients are still hot.
• Make sure the cord is placed in such a way that no one accidentally pulls it or trips over it. Prevent the Fryer & Fondue from falling over with hot contents!

FILLING

• The Fryer & Fondue pot has a minimum and maximum fill line. Fill the pan to a level that is between these lines and maintain this level while deep-frying and fonduing.
• Note: overfilling can cause spattering. Insufficient filling may cause overheating.
• Change the oil regularly.
• Other ingredients such as cheese, chocolate or broth should be discarded after each use and freshly added for the next use.

GENERAL USAGE

• Leave the lid on the pan when frying.
• Take the lid off the pan when fonduing by opening the lid fully and lifting it straight upwards.
• Fill the Fryer & Fondue. Make sure that the level of the oil or fat is between the minimum and maximum markings on the pan.
• Insert the plug into the socket at this point, and not before.
• The appliance is switched on by turning the

thermostat to the desired temperature. The temperature can be set between 70°C and 180°C. Please refer to the food packaging for the desired temperature and cooking time.

• The appliance is equipped with a thermostat to keep the ingredients at the required temperature.
• Allow the appliance to preheat to the desired temperature for approximately 10 minutes. First heat up the cold pan to around 120°C, then turn the thermostat to the required temperature after 5 minutes.
• After use, switch off the appliance, unplug it and wait for it to cool down.
• When the appliance is not being used, store it in a dry place.

SPECIFIC INSTRUCTIONS FOR DEEP-FRYING

• Use liquid or solid deep-frying fat or deep-frying oil. When using solid fat, first turn the thermostat to the lowest level to let it melt. Only turn up the thermostat once the fat has melted.
• Fill the basket with food, then place the basket in the appliance. Be extra careful and watch out for spatters when doing so. Then close the lid.
• Do not put too much food in the basket. Add extra oil or fat if necessary.
• Ensure that no water (e.g. ice from frozen foods) enters the oil. This will cause powerful oil spatters!

As soon as the food is done:

• Shake the basket using the handle to remove excess oil or fat.
• Leave the basket to rest for a while on the hook of the removable pan to remove excess oil or fat.
• Empty the basket on a plate or dish using the handle.
• Use a vegetable oil, such as ground nut oil, corn oil or soya oil for the most tasty results.
• For the healthiest results, thaw the food before use and frequently replace the oil or liquid fat.
• Deep-fry pre-cooked chips only once.
• Always replace the oil or liquid fat after deep-frying raw food such as chicken legs.
• After using the deep fryer, sift the food remains from the oil or fat. It will keep the oil or fat fresh much longer.
• Always pre-fry fresh chips. Deep-fry the chips approx. 5-10 minutes at 170^ . Shake the chips loose and leave them to cool in a dish

for a short while. Then deep-fry the chips again approx. 2-4 minutes at 175^ C.

Deep-fry temperature

Food Temperature (°C)

Chips (pre-fry) 170

Chips (finish off) 175

Cheese croquettes 170

Potato croquettes 175

Meat croquettes 175

Fish croquettes 175

Fish 170

Fish fingers 180

Cheese frittera 180

Fricadelle sausages 180

Chicken 170

CHANGING THE OIL OR FAT

After having used the appliance four, or a maximum of five times, replace the oil or fat as follows:

• Take the lid of the appliance and take out the basket.
- Pour the oil or fat in a container and take it to a recycling point.
- Clean the pan, then dry it thoroughly.
- Assemble the appliance.
- Only fill the removable tank with fresh oil or fat when you are going to use the deep fryer again.

SPECIFIC INSTRUCTIONS FOR FONDUING

CHINESE FONDUE (HOTPOT)

• A Chinese fondue, also known as a hotpot or Asian fondue, is essentially the heating up/cooking of food in hot soup (water-based soup).
• Just like with cheese fondue, you can use boiled potato cubes, pieces of cooked meat/poultry (no raw meat!), sturdy vegetables such as carrots, cauliflower and broccoli florets, bell peppers, bean sprouts and mushrooms. Be sure to blanch the raw vegetables in advance (place in boiling water for a few minutes, and subsequently cool in cold water). Very thinly sliced beef steaks do not need to be pre-cooked. Tofu and omelette rolls are also popular.
• The fondue is water-based soup. This can be fresh soup or soup from a can/package. Follow the instructions on the package. Use

BOURGÍNI.

approximately 1.5 litres of soup. The soup can be prepared in the Fryer & Fondue (fresh soup) and/or warmed up. Leave the soup for at least fifteen minutes to achieve optimum flavour.

• Set the thermostat to 140°C, then bring the soup to a boil. Set the thermostat just high enough to keep the soup at a boil.
• After the fondue is finished, the soup is also served and eaten.

TRADITIONAL OIL FONDUE

• Use olive oil, or vegetable oil such as sunflower oil or peanut oil. Fill the pan to the minimum fill line with oil. Season the oil to taste with pepper and salt and/or spices.
• Meat is very suitable for traditional fondue. Almost all meat is suitable for cooking in the fondue oil, such as beef, pork, chicken, turkey, veal, and lamb. Sausages are also suitable for the fondue pan.
• Use approx. 200g of meat per person.
• Cut the meat into cubes of no more than about 3cm, as it will otherwise take too long to cook.
• Marinate and/or season the meat in advance.
• Set the thermostat to the "oil fondue" setting and turn it back down if the oil is foaming or bubbling too much.
• Ensure that no water (e.g. ice from frozen foods) enters the oil. This will cause powerful oil spatters!
• Test each type of meat to determine how long it should be immersed to be fully cooked. Do not eat undercooked meat!

CLEANING AND MAINTENANCE

• Unplug the appliance and wait for it to cool down before cleaning and/or servicing.
• Do not use any acerbic or abrasive cleaning liquids.
• Do not use any sharp objects.
• The basket, the support ring and the forks can be cleaned in a dishwasher. The pan, cord and plug must never be submerged in water. Using a damp towel, wipe the pan clean. Dry the pan thoroughly after cleaning.
• The pan can be cleaned by filling the pan with water and a detergent up to the minimum level and switching the pan to the lowest temperature for ten minutes. Do not let the water boil! Subsequently leave the pan to cool, unplug it and rinse well with cold water.
• Regularly check the appliance for any damage.

• Cleaning the metal fat filter (see picture F.2, p.2)

• Open the filter compartment on top of the lid by pulling up the tab.

• Take the metal filter out and clean it in hot soapy water. Then rinse it well and put it back.

WASTE DISPOSAL

Electrical appliances, accessories and their packaging must be reused as much as possible in an environmentally sound manner. Do not dispose of these items together with your normal rubbish. Only for EU countries:

According to the European 2002/96/EG WEEE Guideline on the disposal of old electric and electronic appliances, the appliances that are no longer used must be collected and recycled in an environmentally sound manner.

BOURGINI SERVICE AND WARRANTY

The warranty is valid for a period of 2 years from the date of purchase as stated on your purchase receipt, which also your proof of warranty. Please turn to your retailer to claim your warranty. The warranty shall not apply if the product is subjected to incorrect use,, improperly disassembled, damaged by falls, impacts or similar, or if damage is caused due to failure to descale in good time products that are manufactured for use with water. Should a certain product be provided with specific warranty terms and conditions, these shall receive priority over general terms and conditions. The warranty shall not apply to indirect damages. Should you have any questions regarding the use of the product, please consult our website at www.bourgini.com

DISCLAIMER

Changes reserved; specifications are subject to change without stating grounds for doing so.

CONSIGNES DE SÉCURITÉ

Frites (friture) 175

The Bourgini Company B.V.

Raadhuisstraat 6

4835 JB Breda

Netherlands

November 2017 V1 18.1010.00.00
