USER MANUAL Compact 28125 UNOLD

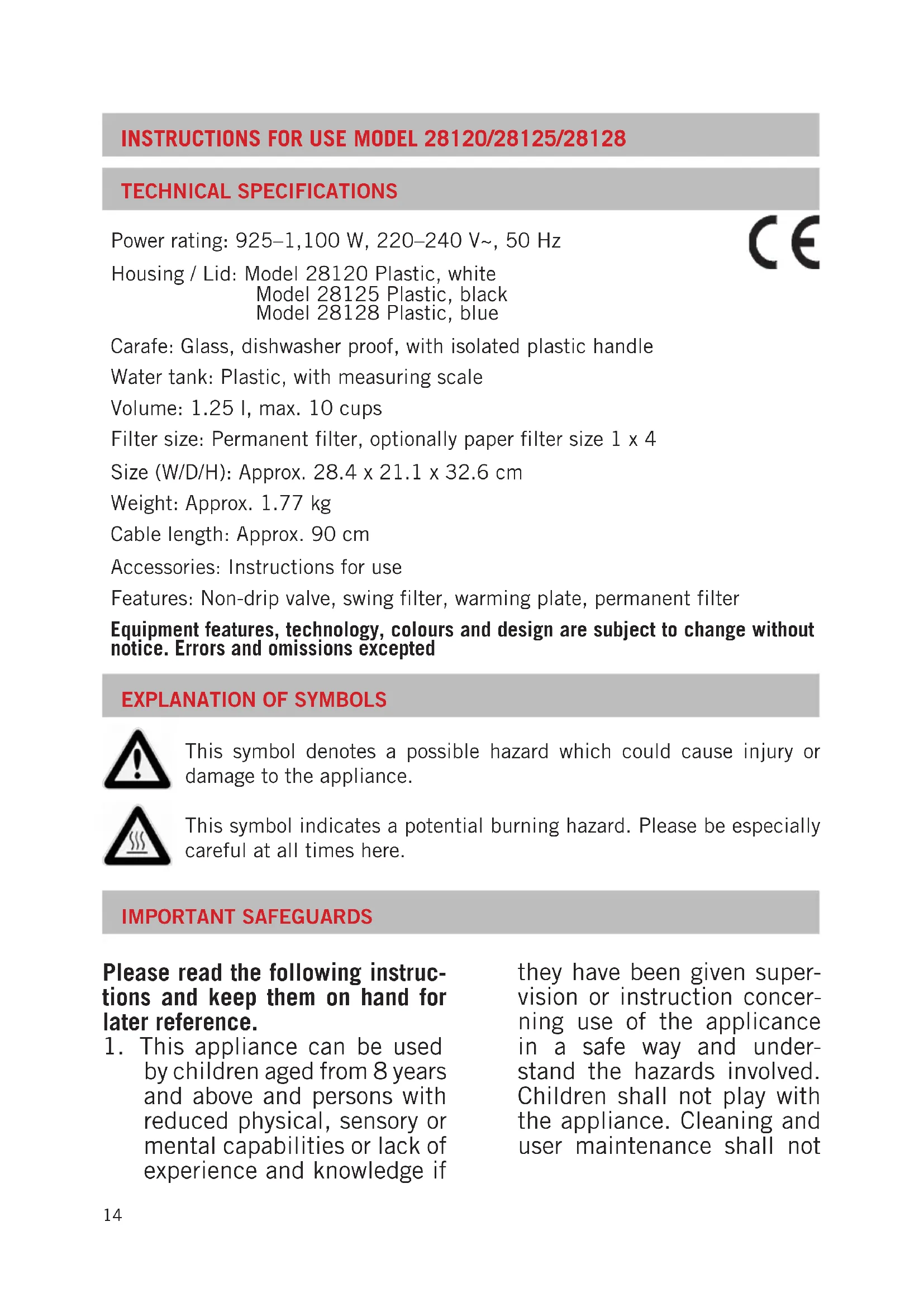

This symbol denotes a possible hazard which could cause injury or damage to the appliance. This symbol indicates a potential burning hazard. Please be especially careful at all times here. IMPORTANT SAFEGUARDS Please read the following instruc- tions and keep them on hand for later reference.

1. This appliance can be used

by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super

vision or instruction concer- ning use of the applicance in a safe way and under

stand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not15 be made by children without supervision.

2. Children of less than 3 years

should be kept away unless continuously supervised.

3. Children aged from 3 years

and less than 8 years shall only swith on/off the appli

ance provided that it has been placed or installed in its intended normal opera

ting position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

4. Children should be super

vised in order to ensure that they do not play with the appliance.

5. Keep the appliance out of

the reach of children.

6. Connect appliance only to an

AC power supply with voltage corresponding to the voltage on the rating plate.

7. Do not operate this appli

ance with an external timer or remote control system.

8. For reasons of electrical

safety, never immerse the appliance or the power cord in water or other liquids.

9. For reasons of electrical

safety, do not clean the appliance in the dishwasher.

10. The switch and power cord

should never come into contact with water or other liquids. In case this ever happens, all parts must be completely dry before opera

ting the appliance again.

11. Never touch the appliance or

power cord with wet hands.

12. This appliance is intended

to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by client in hotels, motels and other working environ

ments; bed and breakfast type envi

13. For safety reasons, never

place the appliance on hot surfaces, a metal tray or a wet surface.

14. Do not place the appliance

or power cord near open fla

mes during operation.

15. Always use the coffeemaker

on a level, uncluttered and heatresistant surface.

16. The appliance is approved

for household use only and may be used only for brew

ing coffee, never for heating milk or other liquids or kee

17. Make sure that the power

cord does not hang over the edge of the countertop or table, since this can cause accidents, for example if small children pull on the cord.16

18. Route the power cord so that

there is no possibility of the cord being pulled or tripped over.

19. Do not wrap the power cord

around the appliance and avoid kinking of the power cord to prevent damage.

21. When in use, never cover

the coffeemaker, since this could cause the appliance to overheat.

22. Only use fresh, cold water to

brew coffee. Fill the water container at least up to the lowest marking (4 cups) and do not overfill.

ance until after you have filled the water tank with water.

24. In case of repeated use,

allow the appliance to cool off at least 5 minutes bet

25. Never use the coffee pot in

the microwave; it is not sui

as long as it is in operation, to prevent injuries.

27. Make sure that all users,

especially children, are aware of the danger of injury from emerging steam and hot splashing water – danger of burns!

28. Do not use the appliance

with accessories of other manufacturers or brands, to prevent damage.

29. Unplug the appliance from

the power supply after use and prior to cleaning. Never leave the appliance unatten

ded when it is plugged in to the power supply.

30. Check the appliance, the

plug and the power cord regularly for wear or damage. In case of damage to the power cord or other parts, please send the appliance or the power cord for inspec

tion and repair to our after sales service.

31. Unauthorized repairs can

result in serious risks to the user and void the warranty. The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties. CAUTION: The appliance becomes very hot during operation and maintains the heat during some time after disconnection. Never open the housing of the appliance. This can result in elec

1. Make sure that your coffeemaker

is clean and descaled at all times.

2. Keep coffee beans and ground

coffee in a tightly closed can and store in a cool, dark place, but not in the refrigerator.

3. For optimal coffee taste we

recommend grinding the coffee beans right before use.

4. Use only fresh water.

5. Coffee tastes best when it‘s freshly

brewed. If coffee is kept warm too long, it can become bitter.

6. The lid can remain closed when

pouring coffee from the pot. BEFORE USING THE COFFEEMAKER FOR THE FIRST TIME

1. Carefully unpack your coffee

and the permanent filter in warm soapy water, rinse them with clear water and dry them thoroughly.

3. Wipe the surface of the appliance

with a damp cloth and dry it.

4. Before using the appliance for the

first time or after a longer period, fill the water container up to the maximum with clear cold water and run it two or three times with water only.

1. Make sure that the plug is con-

nected with a receptacle and that the appliance is switched off.

2. To open the water tank tilt up the

lid. Pour the desired volume of cold water into the water reservoir and close the lid.

3. Please note that the water tank

has a small hole at the top, for safety reasons. The water tank cannot be filled with more than the maximum capacity of the coffee pot, so it cannot overflow during the brewing process.

4. Please observe the markings and

do not overfill. The labelling on the water container corresponds to the number of cups (cup volume approx. 125 ml). Please keep in mind that a certain por- tion of the water may evaporate during brewing.

5. To open the filter holder, pull the

swing filter out by using the small handle at the upper left side.

PREPARATION OF COFFEE18

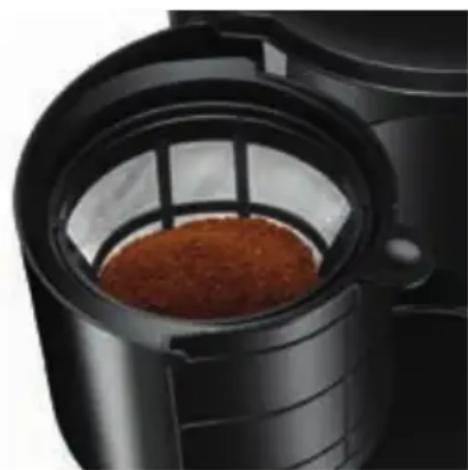

6. If you prefer to use filter paper

(size 1x4) remove the permanent filter from the filter holder and place a filter paper into the filter cone after having folded the lower edge. The filter paper must not project over the filter holder.

7. Fill the desired amount of ground

coffee into the permanent or paper filter, depending on your taste 5-7 g (approx. 1 measuring spoon) of medium ground coffee. If the coffee is ground too fine, the filter may be clogged up and the coffee may overflow.

8. Turn the swing filter back until it

9. Place the carafe with the lid on

10. Plug the power cord into an

(I/O). The red pilot light will turn on to indicate that the coffeema- ker is switched on and that brew- ing has started.

12. When the brewing process is fini-

shed and the filter is empty you can remove the carafe.

13. You can also remove the carafe

during brewing. The drip stop valve prevents the coffee from dripping out of the filter. In this case you should place the carafe on the hotplate again after having poured out your coffee to conti- nue brewing and to prevent the filter from overflowing.

14. If the appliance is not switched

off, the warming plate keeps warm. 35 minutes after ending of the brewing, the appliance will switch off automatically.

15. Do not leave the empty glass

press ON/OFF-switch to O. The red pilot light will go off.

Before cleaning, always turn off the appliance and unplug it from the electrical outlet. Allow the appliance to cool before cleaning it.

1. Turn out the swing filter and

remove the permanent filter resp. the used filter paper. Empty the permanent filter resp. throw away the paper filter with the coffee grounds.

2. Never immerse the appliance in

water or any other liquid.

3. The removable parts such as

carafe, lid and permanent filter can be cleaned in warm soapy water or in the dishwasher (this may cause some discoloration, which will, however, not affect the performance of the coffee maker). We recommend cleaning by hand.

4. For easier cleaning the lid of the

carafe can be removed. Hold the lid vertically and then tilt it towards one side, until the hol- ding notch releases from the19 handle. To reinstall the lid, pro- ceed in reverse order.

5. Clean the surface of the appliance

abrasive cloths/liquid, as this will damage the surface. DESCALING

1. Decalcifying the coffee machine

prolongs its life span and reduces power consumption. For decalci- fication only use products espe- cially made for decalcification of coffee makers. Always follow the instructions on the packet. Repeat this procedure if necessary.

2. Let the appliance cool down after

decalcification. Then run it at least two times with the maximum quantity of fresh cold water to remove any residues of the decal- cifying agent which might affect the coffee taste. GUARANTEE CONDITIONS We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the re- sponsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs only in Germany and Austria. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment. The instruction booklet is also available for download: www.unold.de20
