USER MANUAL ICM 15210 DELONGHI

Instructions for use

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard.
With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please follow the instructins provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow: Earth

Blue: Neutral

Brown:Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol ± or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

i Please note:

This symbol identifies important advice or information for the user.

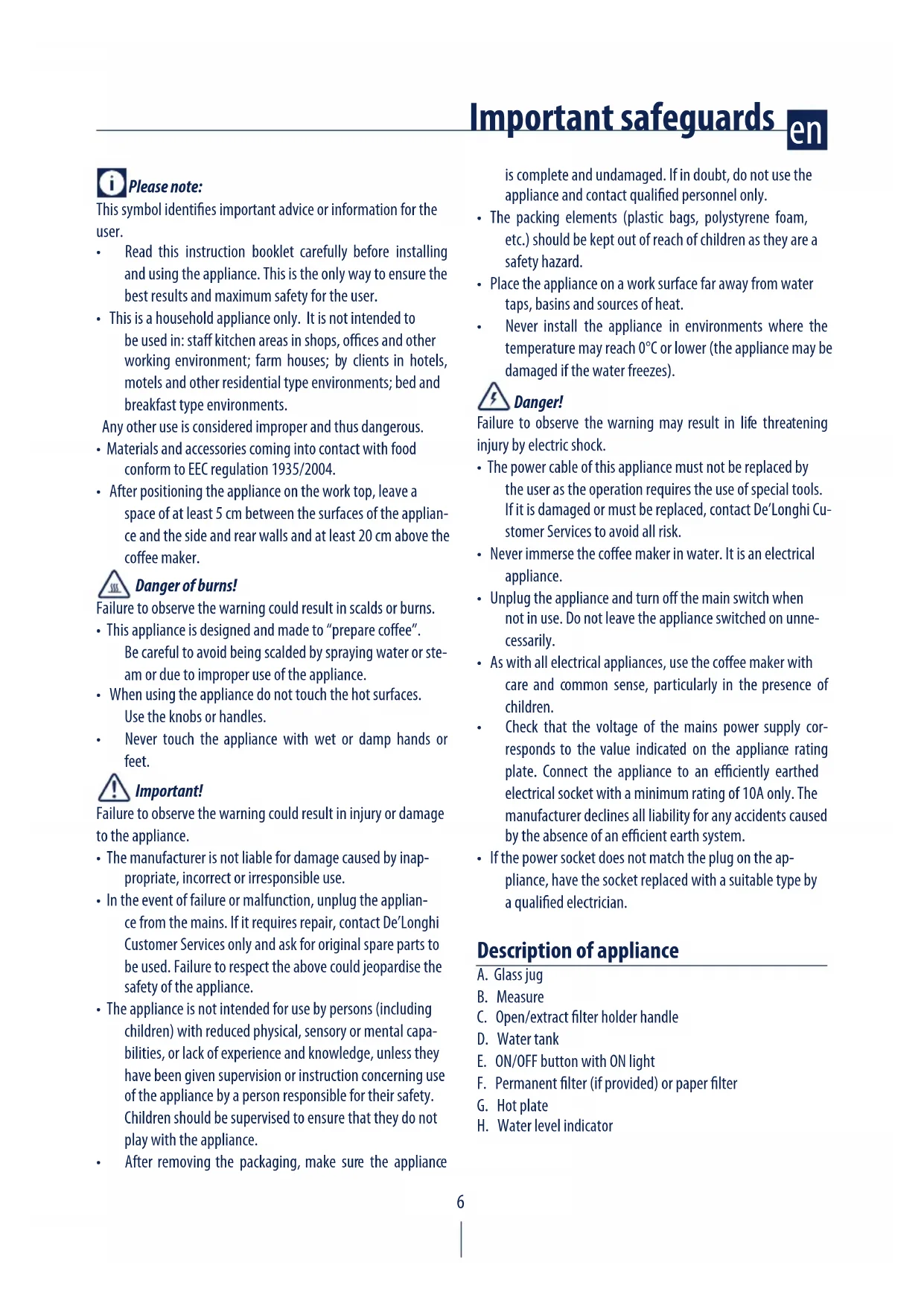

• Read this instruction booklet carefully before installing and using the appliance. This is the only way to ensure the best results and maximum safety for the user.
• This is a household appliance only. It is not intended to be used in: staff kitchen areas in shops, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

Any other use is considered improper and thus dangerous.

• Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.
  After positioning the appliance on the work top, leave a space of at least 5cm between the surfaces of the appliance and the side and rear walls and at least 20~cm above the coffee maker.

Danger of burns!

Failure to observe the warning could result in scalds or burns.

• This appliance is designed and made to "prepare coffee". Be careful to avoid being scalded by spraying water or steam or due to improper use of the appliance.
• When using the appliance do not touch the hot surfaces. Use the knobs or handles.
• Never touch the appliance with wet or damp hands or feet.

Important!

Failure to observe the warning could result in injury or damage to the appliance.

• The manufacturer is not liable for damage caused by inappropriate, incorrect or irresponsible use.
• In the event of failure or malfunction, unplug the appliance from the mains. If it requires repair, contact De'Longhi Customer Services only and ask for original spare parts to be used. Failure to respect the above could jeopardise the safety of the appliance.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
  After removing the packaging, make sure the appliance

is complete and undamaged. If in doubt, do not use the appliance and contact qualified personnel only.

• The packing elements (plastic bags, polystyrene foam, etc.) should be kept out of reach of children as they are a safety hazard.
• Place the appliance on a work surface far away from water taps, basins and sources of heat.
• Never install the appliance in environments where the temperature may reach 0^ or lower (the appliance may be damaged if the water freezes).

Danger!

Failure to observe the warning may result in life threatening injury by electric shock.

• The power cable of this appliance must not be replaced by the user as the operation requires the use of special tools. If it is damaged or must be replaced, contact De'Longhi Customer Services to avoid all risk.
• Never immerse the coffee maker in water. It is an electrical appliance.
• Unplug the appliance and turn off the main switch when not in use. Do not leave the appliance switched on unnecessarily.
• As with all electrical appliances, use the coffee maker with care and common sense, particularly in the presence of children.
• Check that the voltage of the mains power supply corresponds to the value indicated on the appliance rating plate. Connect the appliance to an efficiently earthed electrical socket with a minimum rating of 10A only. The manufacturer declines all liability for any accidents caused by the absence of an efficient earth system.
• If the power socket does not match the plug on the appliance, have the socket replaced with a suitable type by a qualified electrician.

Description of appliance

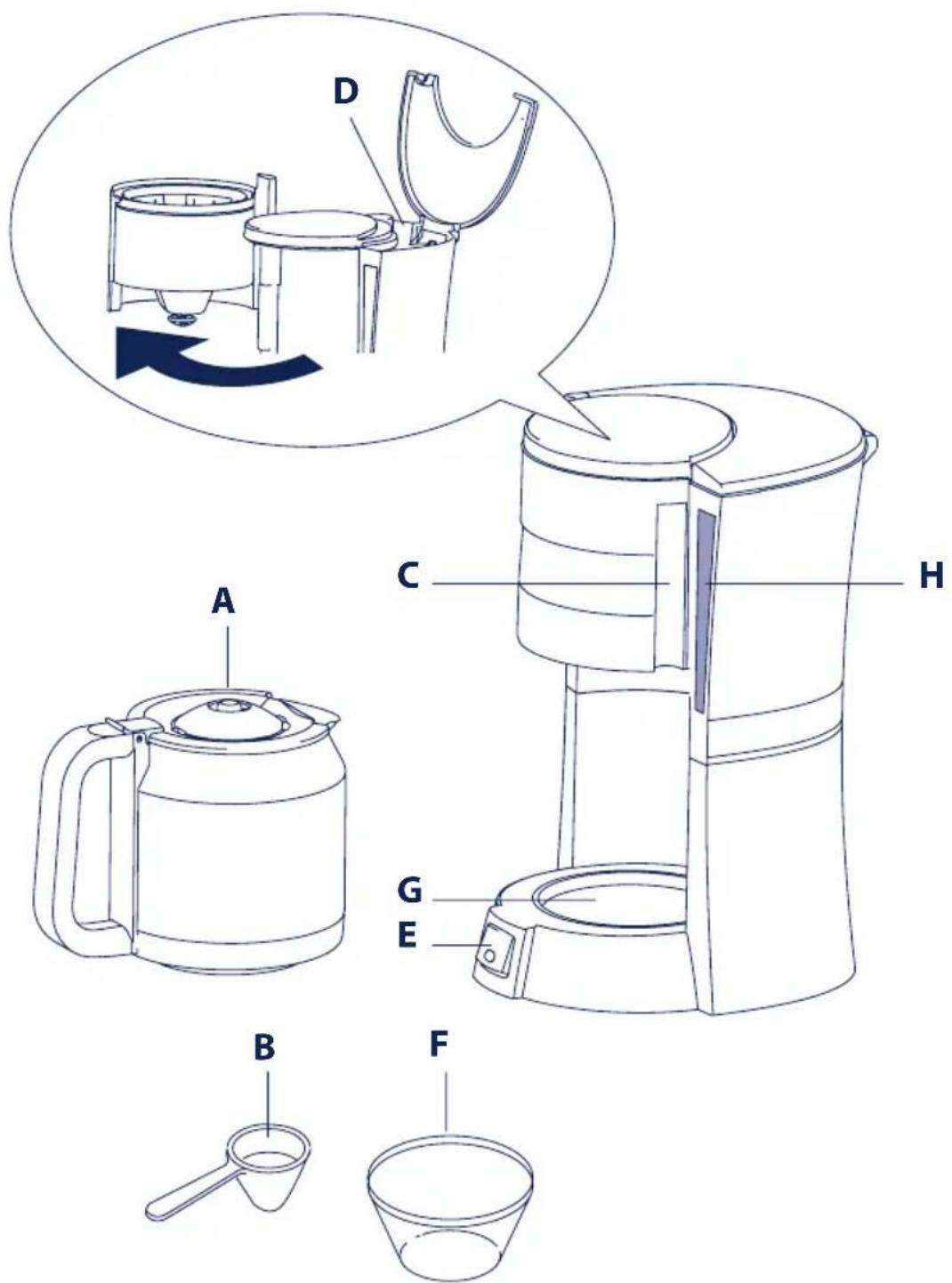

A. Glass jug
B. Measure
C. Open/extract filter holder handle
D. Water tank
E. ON/OFF button with ON light
F. Permanent filter (if provided) or paper filter
G. Hot plate
H. Water level indicator

How to make drip coffee

Please note: the first time the appliance is used, all accessories and the internal circuits must be washed through by making at least two jugs of coffee without using pre-ground coffee.

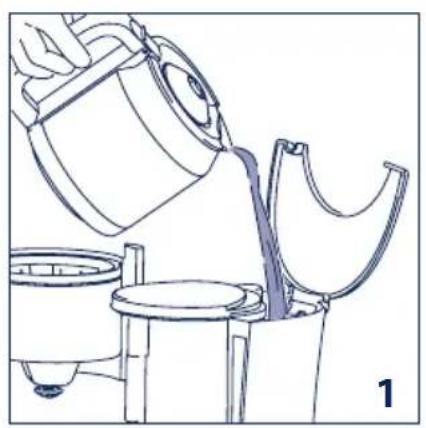

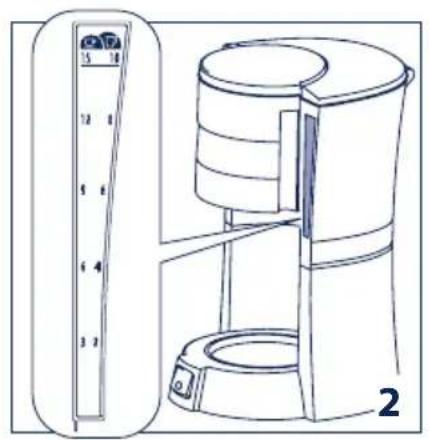

• Open the door at the front by pulling the handle (C) and use the jug to pour clean cold water into the water tank (D) (fig. 1) up to the level indicated for the number of cups of coffee to be prepared. Check the level of water in the tank through the level window (H) (fig. 2). You are recommended to use the jug provided as a measure as the maximum capacity of the jug and the tank are the same.

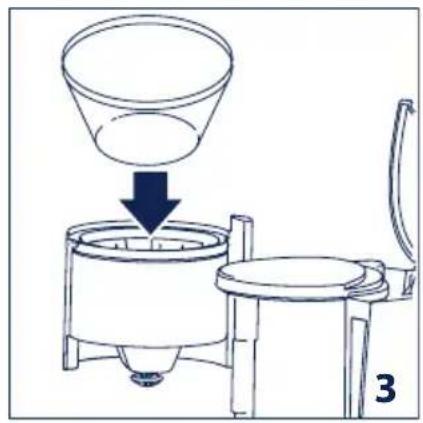

• Position the permanent filter (F) (if present) in the filter holder (fig. 3). In versions without permanent filter, use the paper filter (size 1x4).

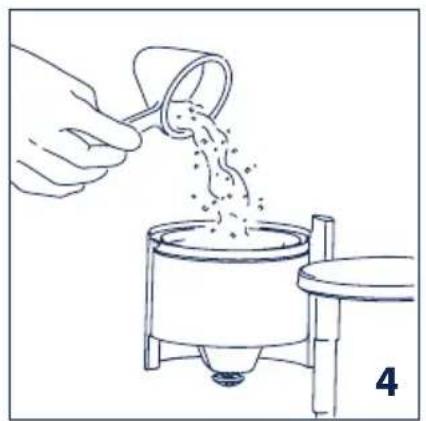

• Place the pre-ground coffee in the filter using the measure (B) provided and level evenly (fig. 4). See the table for recommended quantities. Use good quality, medium pre-ground coffee for drip coffee makers.

Recommended quantities:

No. small cups No.	large cups No. measures (*)
15	10	10
12	8	8
9	6	6
6	4	4
3	2	2

(*) 1 level measure = 1 tablespoon (5 g)

The quantities given in the table are indicative and should be adapted to your personal taste and the type of coffee. Never exceed the maximum quantity of 10 measures. The type of blend has a considerable influence on the coffee you make. You should therefore try various types of coffee to find the one best suited to your taste.

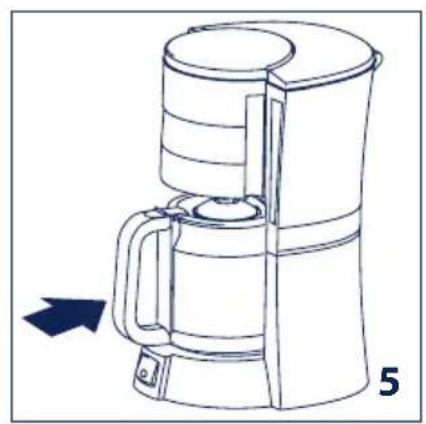

• Close the door at the front of the appliance and place the closed jug on the plate (fig. 5).

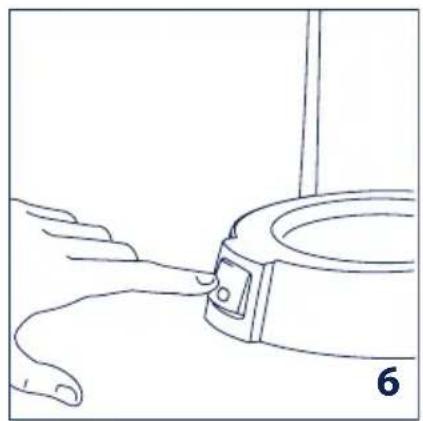

• Press the ON/OFF button (E) (fig. 6). The light on the switch indicates that the coffee maker is operating. Coffee delivery will start after a few seconds. It is completely normal for the appliance to give off steam while the coffee is percolating.
• If you leave the ON/OFF button pressed after percolation has finished, the plate (G) will keep the coffee at the ideal temperature. To turn the plate off press the button again.

Please note: removing the jug before all the coffee requested has been delivered does not interrupt coffee making, but merely blocks flow into the jug. If you want to pour out a little coffee immediately, you should do so as rapidly as possible in order to avoid the coffee overflowing.

Cleaning and maintenance

Before maintenance or cleaning of the appliance, turn off, unplug from the mains socket and allow to cool.

• Do not use solvents or abrasive detergents to clean the coffee maker. Just wipe with a soft damp cloth.
• Never immerse the coffee maker in water. It is an electrical appliance.

Descending

If the water in your area is hard, limescale builds up over time. These deposits may affect correct operation of the appliance. You are recommended to descale the coffee maker every 60 co fee making cycles. To descale, always use special commercially available descaling products for drip coffee makers.

1. Dilute the product in the jug, following the instructions on the descaler pack:
2. Pour the solution into the water tank;
3. Place the jug on the warming plate;
4. Press the ON/OFF button, percolate the equivalent of one cup then turn the appliance off:
5. Leave the solution to work for 15 minutes, then repeat operations 4 and 5.
6. Turn the appliance on and deliver the water until the tank is completely empty.
7. Rinse by operating the appliance with water only at least 3 times (3 complete tanks of water).

Failure to clean as described above invalidates the guarantee.

Technical data

Mains voltage: 220-240V -50/60Hz

Absorbed power: 900W

Weight: 1,55 kg

Disposing of the appliance

In compliance with European directive 2002/96/EC, the appliance must not be disposed of with household waste, but taken to an authorised waste separation and recycling centre.

The appliance complies with the following EC directives:

Low Voltage Directive 2006/95/EC and subsequent
amendments;
EMC Directive 2004/108/EC and subsequent amendments

Troubleshooting

Problem Probable	cause Solution
The coffee takes longer to brew.	The coffee maker needs to be descaled.	scale the machine as described in the section DE-SCALING.
The coffee has an acidic ta-ste.	Insufficient rinsing after descaling. Rinse the machine as described in the section DE-SCALING.

i Nota Bene:
