USER MANUAL Vita Sport SOEHNLE

Instruction manuals can also be found on the SOEHNLE homepage at: www.soehnle.com

1. Proper use 11
2. Safety information 12
   3.Description of the device and operating elements 14
3. Operation 15
4. Care instructions 16
   6.Problems-Causes-Troubleshooting 16
5. Technical information 16
   8.Declaration of conformity 17
6. Disposal 17
7. Service Hotline 17
8. Guarantee 18

1. Proper use

Thank you for your purchase of this device.

With this massager you will be able to massage yourself or other persons.

Massage is one of the oldest known healing methods. Massages with this device can be relaxing or vitalizing and have proven effects in the treatment of sore muscles, muscle tension, circulatory problems, and fatigue.

The device is not a replacement for medical or physiotherapeutic treatment – it is only an addition to such. Please consult your physician if you are unsure whether this massager is suitable for you.

This massager is not designed for medical and commercial use.

In order to be able to utilize all the benefits of your massager, please thoroughly read these instructions and observe the notes on care and safety. You will then be able to enjoy this massager for a long time.

Please store these instructions for future use.

Further information can be found at our website at www.soehnle.com.

2. Safety information

Danger

• This device uses mains voltage. Therefore, the same safety regulations apply as for any other electric device.

• Operate the device only with the stated supply voltage.

• Inspect all components of the device for faultless condition prior to each start-up of the device. In the event of a defect or malfunction, switch the device off immediately and disconnect the power plug from the power network. Repairs must be performed exclusively by authorized customer service technicians. Never open the device. The individual components of this device may not be disassembled, repaired or modified.

Use the device only in dry rooms and with

a dry body - never in the bathtub, shower, above filled sinks, in pools, saunas, or outdoors.

• Disconnect the device from the power network prior to cleaning it.

When cleaning, please ensure that no liquids enter the switches and buttons and that the device is used only in an absolutely dry condition.

• Never use this device with

• electronic medical devices, e.g. pace makers, electronic life-support systems, e.g. heart/lung machines, or mobile electronic medical devices, e.g. electrocardiographs.

This device may cause malfunctions in the above-mentioned electronic medical devices.

Warnings

• Consult a physician prior to use if

• you suffer from an illness (e.g. flu, varicose veins, fever, thrombosis, hepatitis, diabetes, infections, sciatica, herniated discs, or similar)
  you recover from surgery.

• Never use the device with open wounds, burns, hematoma, swellings, or similar conditions.

• Never treat joints, the spine, head, and other sensitive body parts.

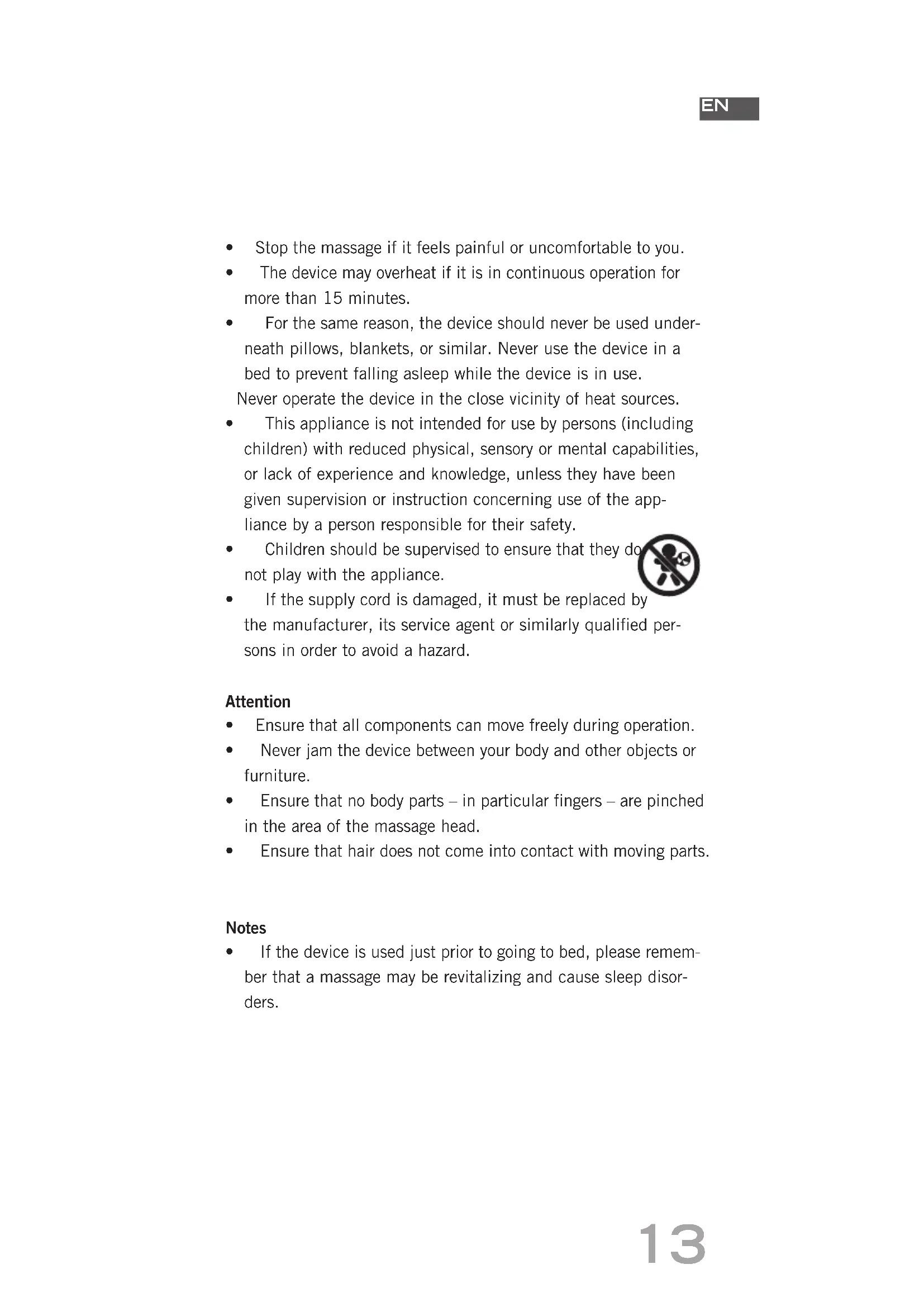

• Stop the massage if it feels painful or uncomfortable to you.

• The device may overheat if it is in continuous operation for more than 15 minutes.

• For the same reason, the device should never be used underneath pillows, blankets, or similar. Never use the device in a bed to prevent falling asleep while the device is in use. Never operate the device in the close vicinity of heat sources.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Attention

• Ensure that all components can move freely during operation.
• Never jam the device between your body and other objects or furniture.
• Ensure that no body parts – in particular fingers – are pinched in the area of the massage head.
• Ensure that hair does not come into contact with moving parts.

Notes

• If the device is used just prior to going to bed, please remember that a massage may be revitalizing and cause sleep disorders.

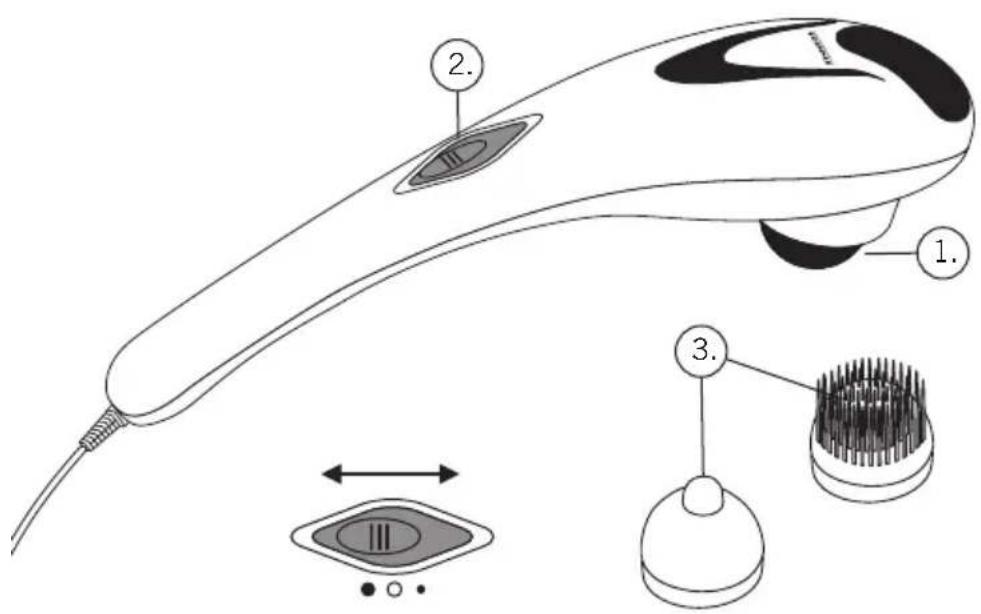

3. Description of the device and operating elements

1. Massage head
2. Sliding switch: Levels: Light massage / Off / Strong massage
3. Replaceable massage attachments: Brush attachment, pointed attachment, surface attachment

4. Operation

Ensure that the device is switched off prior to connecting the power plug.

Switch the device on by pushing the switch to "Light massage" or "Strong massage".

Use one or both hands to touch the device to the area of your body that is to be massaged. You may sit, stand, or lie down and massage yourself or another person. The intensity of the massage can be changed by pushing on the massager with more or less intensity. Do not massage any single body part for more than 3 minutes, at which time you should change to other body parts. A massage should not last longer than 10 to 15 minutes.

If desired, use one of the enclosed massage attachments. The massage attachments are being screwed on and can be replaced with any of the enclosed massage attachments.

5. Care instructions

Disconnect the power plug from the power outlet prior to cleaning the device.

Clean only using a damp cloth and mild cleaning agents.

Never use abrasive and corrosive cleaning agents and never submerge the device in water.

Only use the device if it's completely dry.

6. Problems - Causes - Troubleshooting

Problem Cause	Troubleshooting
Massage head does not vibrate	Device not connected to the power network	Insert power plug into the power outlet and switch device on.
	Device not switched on	Switch on.
	Overheating protection triggered	Separate device from power network; wait at least 15 minutes before reconnecting to the power network and switching the device back on.

7. Technical information

Dimensions \~ 85/160/375 mm

Weight 880g

Rated power 25 W

Rated voltage 230V 50Hz

The device is equipped with double protective insulation and corresponds to protection class II.

8. Declaration of conformity

SOEHNLE herewith declares that this device is in compliance with the basic requirements and all other relevant regulations of applicable European directives.

9. Disposal of used electronic devices

After its service life, please dispose of this device according to the Directive on Waste Electrical and Electronic Equipment 2002/96/EC (WEEE).

The symbol on the product or its packaging informs

you that this product cannot be treated as normal household waste, but must be returned at a collection point for recycling electronic and electrical devices.

10. Consumer service

The following contacts are available should you have any questions or comments:

Germany Tel: [phone]

International Ph.: [phone]

Monday through Friday 09:00 a.m. to 12:00 noon

You can find the contact person for your country under the menu point "Service / Internationale Kontakte" (Service/International Contacts) on the SOEHNLE homepage www.soehnle.com.

11. Guarantee

SOEHNLE guarantees rectification of faults based on material or production errors, free of charge, either by repair or replacement, for 3 years as of the date of purchase. Please retain the receipt of purchase and guarantee slip. In case of a guarantee claim, please return the device, guarantee slip and receipt of purchase to your seller.

Guarantee slip

Name, first name

Street

Postal code, city/town

Purchase date

Reason for claim

Seller

ItoJKe npuHHe He donyckaetc3Kcnnyataaun npnbopa noi noDyko, OdejnoM nT.n. HkOrda He nCnoJIb3yTe np6op, Jexa B NoCTeN, NocOJIbky He ncknUoyeHO, YTO Bbl MoXeTe 3aCHyTb.

HnkOrda He nCnoB3OBaTb np6Op B6n3n NCTOCHIKOB TENNOBOJ 3Heprnn.

• IcnoIb3OBAHne 3TOro np6opa NuaAMN (BkIouaJeTee) c OrpaHnueHHbIMN qn3nueckmN, CEHCOPhIMN nN dyuWeBHbIMN BO3MOxHOCTaMn nn HeIOCTaTOUHbIM ONbITOM n 3HaHnA Mn DOnyckaetcra TOnbKO pRn COOTBeTCTByIOUeM Ha3Ope nn OobJcHEnyx kacateJIbHo IcNoIb3OBAHnRA np6opa nnOCOM, ObecneuBaIOUeM 6e3ONaCHOCTb IcNoIb3OBAHnRA np6opa.

HeobxOIMO oBecneuHTb HeBO3MOXHOCTb Hrpbl DetTe c npibopom.

HnB Koem cIyue He nCnoJIb3OBA Tb a6pa3NHBhIe N eKHe MOUne CpeDCTba Hr He ONyCKa Tb np6Op B Body.

HaunhaTb noB3OBaTbcra np6opom TOnbko nocne ero nonHoro BblcIxAHn.

Pa3Mepbl \~85/160/375MM

Bec ~880 r

HOMnHaBbHa MoUHOCTb 25BT

HomHaHbHoe HapJxKeHne 230B\~50

Pn60p nMeet DBOHyIO 3aIHTHyIO I3OJIaIIO

COOTBETCTBYET KIACCY 3aunntb2

8.Дeкnapaци COOTBeTCTBnA

Hactoim M npma SOEHNLE 3aBnEe, TTo daHbI np6op HaxoNTcB COOTBeTCTBm C OCHOBOONaRaIOUIMn Tpe6OBaHNMAI IN PPOUMM COOTBeTCTByIOUIMN ONPeDeJIeHNMAI NCIOJIb3yEmbIX EBpOeKnx DnpeKtNB.

9. YtJIn3aunr nCNoJb30BaHHbIX 3JIeKTpOpnp6OpOB

IoxkaanyiCtA, yTuHn3npyuTe 3ToT np6Op nocJe OKOHuaHra erO cPoka cnjxkbB B COOTBeTCTBmN C npedncaHnem KacaTeNbHO CTapbIX 3JIeKtpuecknx N 3JIeKTPoHHbIX np6OpOB EC 2002/96/EC - WEEE (Waste Electrical and Electronic Equipment).

CnmboHa n3deJnn Hn erO ynaKOBKe yka3bIbaeT Ha To, YTO C 3TNM
n3deJnEM cJeDyET o6paTaBcH He KaK CO CTaHdapTHbIM bItOBbIM
Mycopom,a cdaBaTb erO B nyHKT npHMe BTOpUHOrO cbIpBra
3JIeKTpnuCecknx n 3JIeKTPOHHbIX pnp6OpOB.

10. Cnyx6a noTppe6nteJe

CneDyUoUe KOHTaKTHbIe Nua OxOTHO OTBeT TaHa BaHn BOpocblnn Hn HnuaTNBbl:

TeJ.: (08 00) 5 34 34 34

MekdyHapodHBiKoHTaKT Ten.: [phone]

C noheJeBnka no nTnuy C 09:00 do 12:00

Ha domaшнй стравице SOEHNLE www.soehnle.com в понке мени «Service/Internationale Kontakte»（CepBuc: мждунаровыkoHTaKtbl) Bbl moxe Te CBra3aTbCЯ COHTaKTHbIM NlUcOM Ha ra3bike Baшen страви.

11.Гаразня

Фирma SOEHNLE rapaHTnpuyet B TeueHne 3 neT co dHЯ npodaxn 6ecnnaTHoe yCTpaHene HeoCTaTKOB BCNEcTBne OuINbOK MaTePnaIOB nI IN pOn3BOJCTBa NocpeDCTBOM peMOHTa IIN 3aMeHb.I PoxaJIyIcTa, TzateJIbHO COxpaHITe Yek n rapaHTnHbI TaIOH. B rapaHTnHOM cnyae Heo6xoJIMO Bo3BpaTITb npi6Op BmEcTe C rapaHTnHbIM TaIOHOM I TOBapHbIM YekOM BaUeMy npodabuy.

TapaHTnHbI TaIOH

Фампma,Имя

yinca

NoTOBbI INHeKc, HaceJIeHHbI nyHKT

Data npodaJn

OchOBaHne npTeH3n

PpOdaBeu

SOEHNLE

Quality & Design by

Leifheit AG

Leifheitstrasse

56377 Nassau/Germany

Service +49 (0)26 04 - 977 - 0

www.soehnle.com
