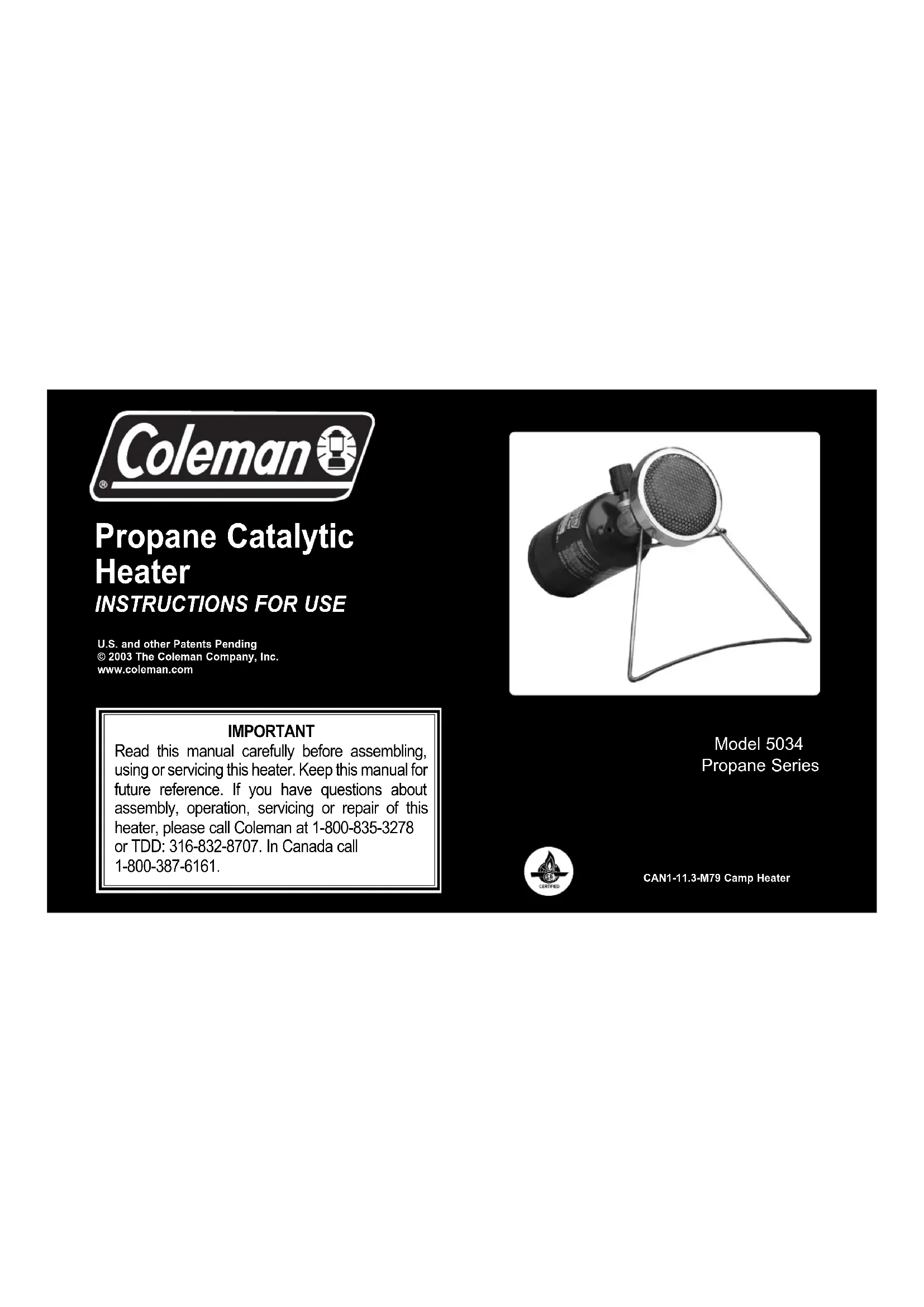

USER MANUAL SurvivalCat COLEMAN

Propane Catalytic Heater

INSTRUCTIONS FOR USE

U.S. and other Patents Pending

© 2003 The Coleman Company, Inc.

www.coleman.com

IMPORTANT

Read this manual carefully before assembling, using or servicing this heater. Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of this heater, please call Coleman at 1-800-835-3278 or TDD: 316-832-8707. In Canada call 1-800-387-6161.

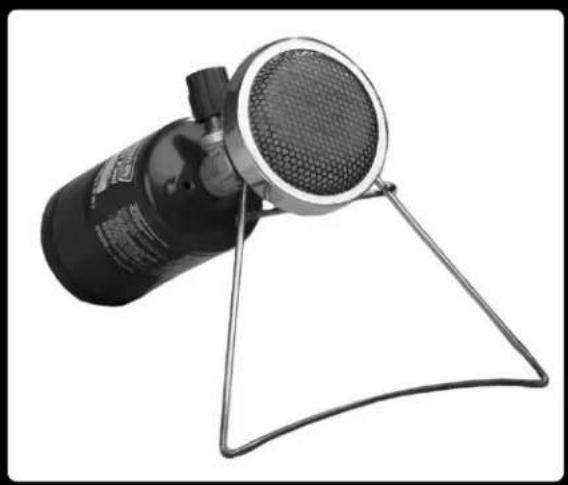

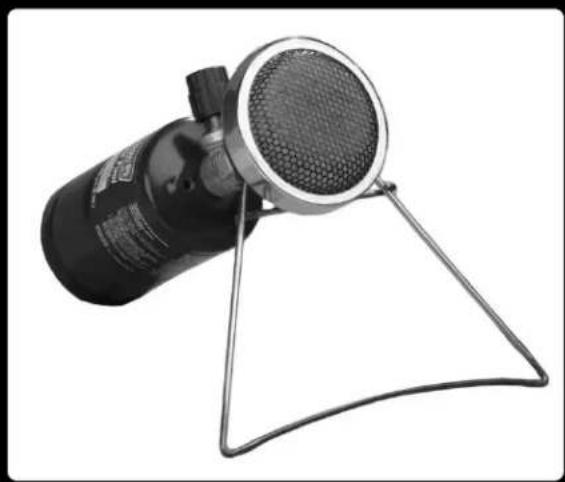

Black and white photo of a portable gas stove with mesh grille and metal frame (no text or symbols visible)

Model 5034

Propane Series

CAN1-11.3-M79 Camp Heater

Contents

General Safety Information

To Set Up

To Light

To Turn Off

To Store

Things You Should Know

Replacement Parts List

Warranty

General Safety Information

FOR YOUR SAFETY

If you smell gas:

1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.

FOR YOUR SAFETY

Do not store or use gasoline or other liquids with flammable vapors in the vicinity of this or any other appliance.

Warning

• THIS APPLIANCE CONSUMES AIR

• When used in any inside area, provide a fresh air opening of at least three square inches (19 square centimeters).
• Never operate the heater while sleeping.
• Do not use other burning appliances inside.

This manual contains important information about the assembly, operation and maintenance of this heater. General safety information is presented in these first few pages and is also located throughout the manual. Particular attention should be paid to information accompanied by the safety alert symbol “▲ DANGER”, “▲ WARNING”, “▲ CAUTION”.

Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product.

Safety precautions are essential when any mechanical or propane fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage.

The following symbols shown below are used extensively throughout this manual. Always heed these precautions, as they are essential when using any mechanical or propane fueled equipment.

General Safety Information cont.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage.

DANGER

Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn and/or asphyxiation.

Only persons who can understand and follow the instructions should use or service this heater.

DANGER

• EXPLOSION - FIRE HAZARD

• Never store propane near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).
• Propane is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
• Never install or remove propane tank while catalytic heater is lighted, near flame, pilot lights, other ignition sources or while catalytic heater is hot to touch.
• During operation, this product can be a source of ignition. Never use the catalytic heater in spaces that contain or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals. Minimum clearances from combustible materials: 18 inches.
• Provide adequate clearances around air openings into the combustion chamber.

WARNING

We cannot foresee every use which may be made of our products. Check with your local fire safety authority if you have questions about use.

Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about these.

- Never refill disposable cylinders.

- Use the preset regulator that came with the catalytic heater. Do not attempt to adjust.

General Safety Information cont.

WARNING

• This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is normally added to help detect leaks and can be described as a “rotten egg” smell. The odorant can fade over time so leaking gas is not always detectable by smell alone.
• Propane gas is heavier than air and leaking propane will sink to the lowest level possible. It can ignite by ignition sources including matches, lighters, sparks or open flames of any kind many feet away from the original leak. Use only propane gas set up for vapor withdrawal.
• Propane gas should be stored or used in compliance with local ordinances and codes or with ANSI/NFPA 58. Turn off propane when not in use.

CALIFORNIA PROPOSITION 65:

WARNING: This fuel, and byproducts of combustion of this fuel, contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.

WARNING

• BURN HAZARD

• Never leave catalytic heater unattended when hot or in use.
• Keep out of reach of children.

CAUTION

• SERVICE SAFETY

• Keep all connections and fittings clean. Inspect propane cylinder and catalytic heater propane connections for damage before attaching.
• During set up, check all connections and fittings for leaks using soapy water. Never use a flame. Bubbles indicate a leak. Check that the connection is not cross-threaded and that it is tight. Perform another leak check. If there is still a leak, remove the cylinder and contact Coleman for service or repairs.
• Use as a heating appliance only. Never alter in any way or use with any device or part not specifically designed and sold for this product.

To Set Up

NOTE: Use 16.4 oz disposable propane cylinders only. Do not connect to bulk propane systems. The LP-gas cylinder(s) used with catalytic heaters must be constructed and marked in accordance with the specifications for LP-gas cylinders of the U.S. Department of Transportation or Transport Canada, CAN/CSA B339.

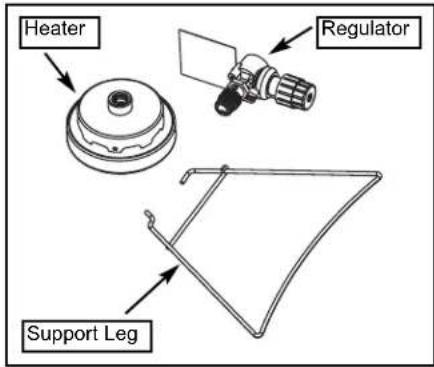

■ Unit includes Heater Assembly, Regulator Assembly, and Support Leg. Propane tank is not included.

Heater Regulator Support Leg

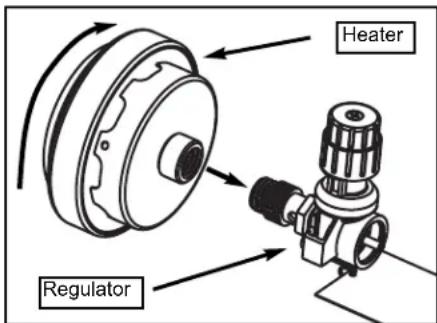

■ Attach Heater Assembly to Regulator Assembly hand tight.

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical assembly diagram showing a clamping device with a flanged housing and connecting rod (no text or symbols)

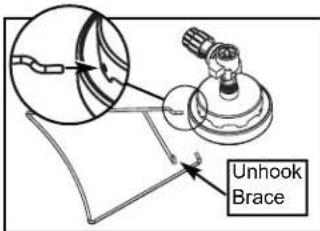

■ Unhook Brace. Insert wire in receiver hole.

Unhook Brace

■ Align Support Wire with Hole.

Technical line drawing of a mechanical assembly with no visible text or symbols

■ Insert Support Wire into Hole.

Technical line drawing of a mechanical component with no visible text or symbols

CAUTION

• SERVICE SAFETY

- Keep all connections and fittings clean. Inspect propane cylinder and heater propane connections for damage before attaching. - During set up, check all connections and fittings for leaks using soapy water. Bubbles indicate a leak. Never use a flame.

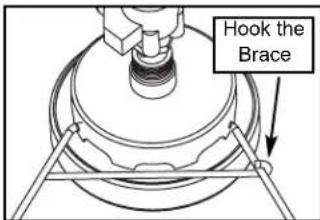

■ Hook the Brace.

Hook the Brace

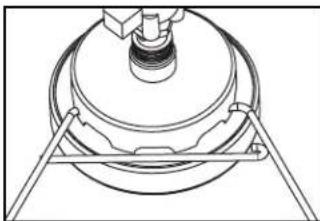

■ Support Brace assembled.

Line drawing of a mechanical device with a central knob and triangular base (no text or symbols)

To Set Up cont.

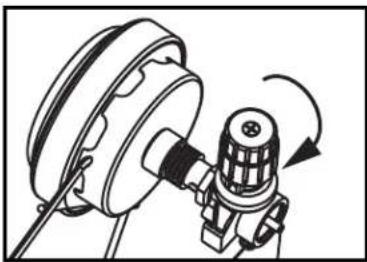

■ Turn HEATER VALVE to OFF.

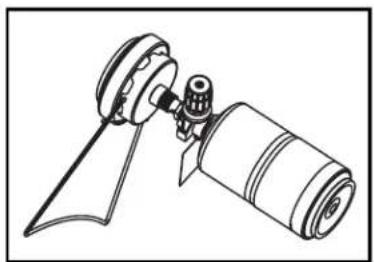

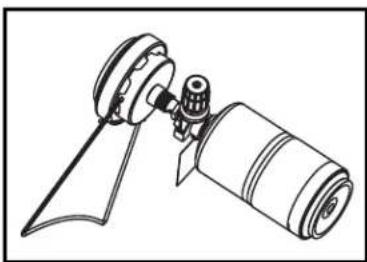

■ Attach CYLINDER to HEATER outdoors.
■ Position HEATER as shown on flat surface.

Mechanical assembly diagram showing a rotating component with a knob and shaft (no text or symbols)

Diagram showing a mechanical device with a lever and rotating component (no text or symbols)

Line drawing of a mechanical device with a lever and cylindrical body (no text or symbols)

To Light

! DANGER

• EXPLOSION - FIRE HAZARD

• Propane is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
- Always attach or detach propane source outdoors; never while heater is lighted, near flame, pilot lights, other ignition sources or while heater is hot to touch.
- This heater is red hot during use and can ignite flammables too close to the burner. Keep flammables at least 18 inches from the sides and 18 inches from the top of the heater. Keep gasoline and other flammable liquids and vapors well away from heater.

WARNING

• BURN HAZARD

• Never leave heater unattended when hot or in use.
• Keep out of reach of children.

To Light cont

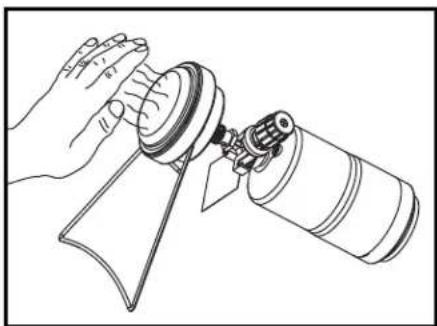

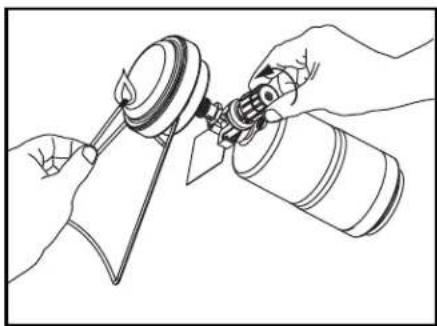

■ Hold match as shown. Turn valve to LIGHT position and hold for 8-10 seconds.

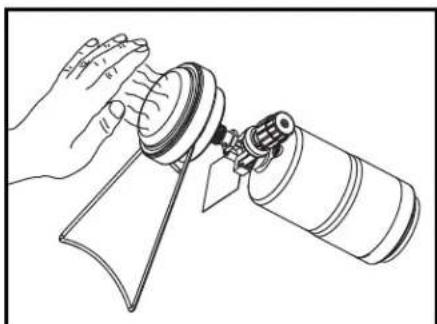

■ Heater will ignite with a brief visible flame. Continue to hold VALVE at LIGHT position for an additional 10 seconds. Release knob. It will return to ON position. Heater is NOT adjustable.

■ NOTE: Heater is designed to be lit with the valve fully open until it reaches full output. Observe heat build up for a few minutes to ensure heater is lit. If heater fails to develop substantial heat, turn heater "OFF" and repeat lighting procedure.

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols present)

Line drawing of a hand using a spray gun to lift a cylindrical container (no text or symbols)

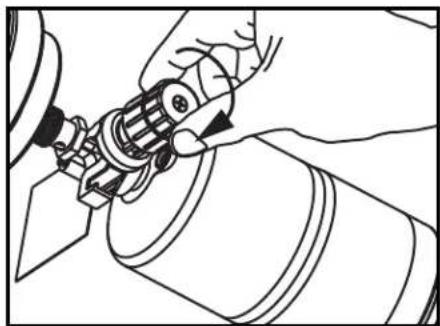

To Turn Off

■ Turn FUEL VALVE to OFF.
■ Allow HEATER to cool for 10-15 minutes.

Line drawing of a hand operating a mechanical device with a tool (no text or symbols)

To Store

! DANGER

• EXPLOSION - FIRE HAZARD

- Never store propane near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).

To Store cont

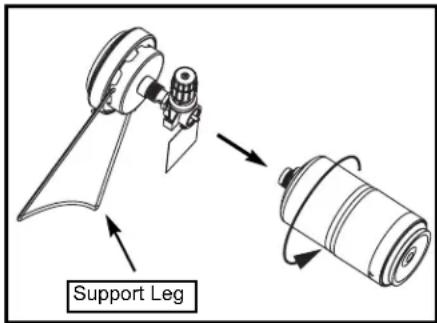

■ Make sure Heater is cool.
■ Take unit outdoors away from any ignition sources. Remove Cylinder from Heater.
■ Replace plastic cap on cylinder.
■ Store propane cylinder consistent with the instructions and warnings on the cylinder.
■ The Support Leg is removable for storage.

■ The regulator is removable for storage.

Support Leg

Heater Regulator

Things You Should Know

1. This is a catalytic heater. Burning occurs within the pad at a lower temperature than a normal flame due to evenly distributed platinum. But, heat guard and burner rim still get hot enough to burn you. Be careful.
2. During the seasons when your catalytic heater is not needed in your vehicle, you should remove the propane cylinder and heater from your vehicle and store properly elsewhere until cold weather returns.
3. Do not use heater for cooking or warming items, this can destroy combustion and catalyst. This heater has a low burn temperature (no flame) but it can still burn clothing, sleeping bags, etc., that might fall on the burner surface.
4. To avoid damage to the catalyst, do not allow head pad to come in contact with or around silicone based hand creams, paints, etc.
5. Do not touch the gray ceramic fiber head pad or poke a hole into it.
6. Do not attempt cleaning the head assembly.
7. For repair service call one of the numbers listed below for location of your nearest Coleman Service Center. If heater must be mailed to Service Center, attach your name, address, and a description of problem to product and and send to Service Center either by UPS or Parcel Post insured with shipping and insurance prepaid. Do not mail propane cylinders. If necessary to write the Service Center or factory, refer to your heater by model number.
8. If not completely satisfied with performance of this product, please call one of the numbers listed below.
9. As with any new heating appliance, a small amount of smoke may be seen during the initial operation as a result of residual manufacturing oils being heated. This is normal. Coleman suggests the owner operate the heater for 30 minutes when first purchased. This will also familiarize the owner with all the features of the heater.

The Coleman Co., Inc.

3600 N. Hydraulic

Wichita, KS 67219 U.S.A.

1-800-835-3278

TDD: 316-832-8707

Sunbeam Corporation (Canada) Limited

5975 Falbourne Street

Mississauga, Ontario

Canada L5R 3V8

800 387-6161

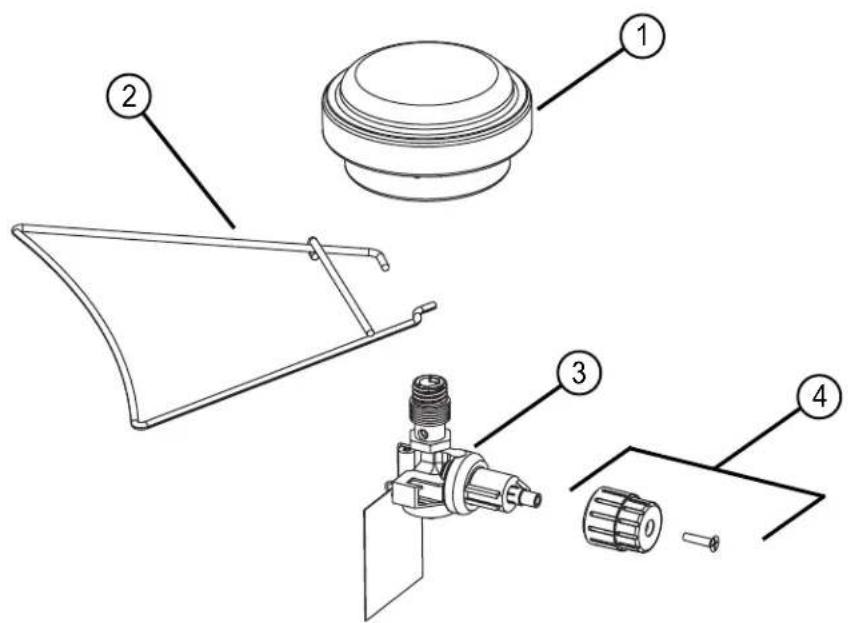

Replacement Parts List

No.	Part No.	Description
1	5034-2021	Heater Assembly
2	5034-1191	Support Leg
3	5034-2041	Regulator Assembly
4	5034-1261	Control Knob & screw

Technical diagram of a mechanical assembly with numbered parts for identification

Warranty

Coleman Limited Five-Year Warranty

Coleman will repair or replace, at its option, this product or any component found to be defective in materials or workmanship within five years of the original retail purchase. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferrable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman dealers, service centers, or retail stores offering Coleman products do not have authority to alter, modify or in any way change the terms or conditions of this warranty.

WHAT IS NOT COVERED

■ Cost of shipment to Coleman
■ Normal wear and tear, including chips, scratches, abrasion, discoloration or fading from use or exposure to sunlight
■ Damage caused by misuse, abuse, neglect, alterations, repairs by unauthorized persons, use of non-Coleman accessories or parts, or failure to follow recommended care or maintenance instructions
■ Products used for commercial purposes or in profit or non-profit instructional or rental operations
■Mantles, generators, light bulbs, batteries or fuel
■ CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, OR EXPENSES, INCLUDING DAMAGES TO PROPERTY. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

IMPLIED WARRANTIES

Any implied warranties, either statutory or otherwise, including implied warranties of merchantability and fitness for a particular purpose, shall be limited to the duration and terms of the express warranties set forth in this limited warranty. Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from from state to state or province to province.

HOW TO OBTAIN WARRANTY PERFORMANCE

Take the product to an authorized Coleman Service Center. If one is not conveniently located, attach a tag to the product which includes your name, address, telephone number and description of the problem. Include a copy of the original sales receipt. Carefully package the product and send either by UPS or Parcel Post insured with shipping and insurance prepaid to: USA: The Coleman Company Inc., 3600 N. Hydraulic, Wichita, KS 67219, or CANADA: Sunbeam Corporation (Canada) Limited, 5975 Falbourne Street, Mississauga, Canada L5R 3V8. Please do not mail products with fuel in tanks, or with disposable propane cylinders. Remove glass globes from lanterns.

If you are located outside the United States or Canada, return this product to the place you purchased it, or to any other retailer seller of similar Coleman products, and request warranty assistance. If you are unable to obtain warranty assistance, then you may call any of the following Coleman offices for further assistance:

www.coleman.com

For products purchased in the United States:

The Coleman Co., Inc.

3600 N. Hydraulic

Wichita, KŠ 67219 U.S.A.

1-800-835-3278

TDD: 316-832-8707

For products purchased in Canada:

Sunbeam Corporation (Canada) Limited

5975 Falbourne Street

Mississauga, Ontario

Canada L5R 3V8

1 800 387-6161

Coleman®

Black and white photo of a portable gas jet with mesh grille and metal stand (no text or symbols visible)

Mechanical assembly diagram showing a gear and valve mechanism (no text or labels)

Mechanical assembly diagram showing a rotating component with a flanged housing and a pin (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

ATTENTION

• ENTRETIEN DE SÉCURITÉ

Line drawing of a satellite or radar system with a central body and antenna (no text or symbols)

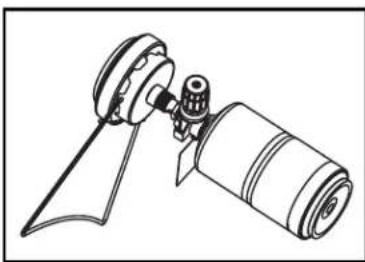

Assemblage (suite)

Mechanical assembly diagram showing a rotating component with a knob and shaft (no text or symbols)

Diagram showing a mechanical device with a lever and a cylindrical component, both rotating around it (no text or symbols present)

Line drawing of a mechanical device with a lever and cylindrical body (no text or symbols)

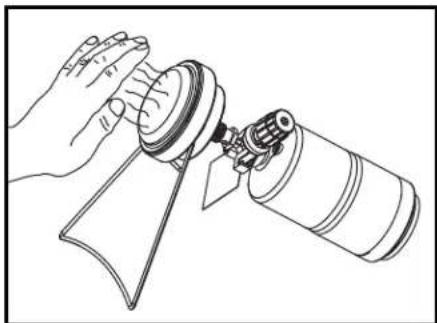

Allumage
