USER MANUAL Northstar COLEMAN

SCALE:NAME:DATE: DRAWN BY: APPROVED BY: REVISIONFINISHSPEC.: DATE NAME ECN NO.MODIFICATIONSgramsg/cm3 This drawing contains proprietary information and trade secrets of The Coleman Company, Inc. Unauthorized use or copying is prohibited.

0 TO 6mm = ±0.1 >6 TO 30mm = ±0.2 >30 TO 80mm = ±0.3 >80 TO 180mm = ±0.4 >180mm = ±0.5 ANGULAR = ± 3° PART NO.:

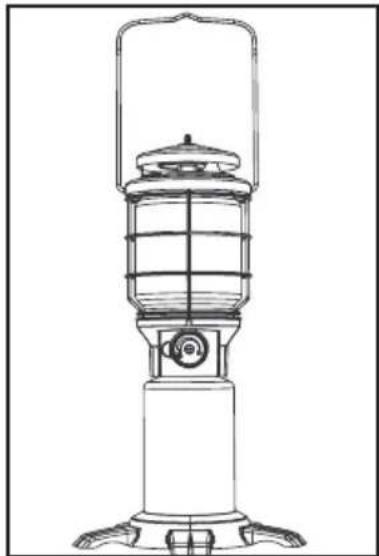

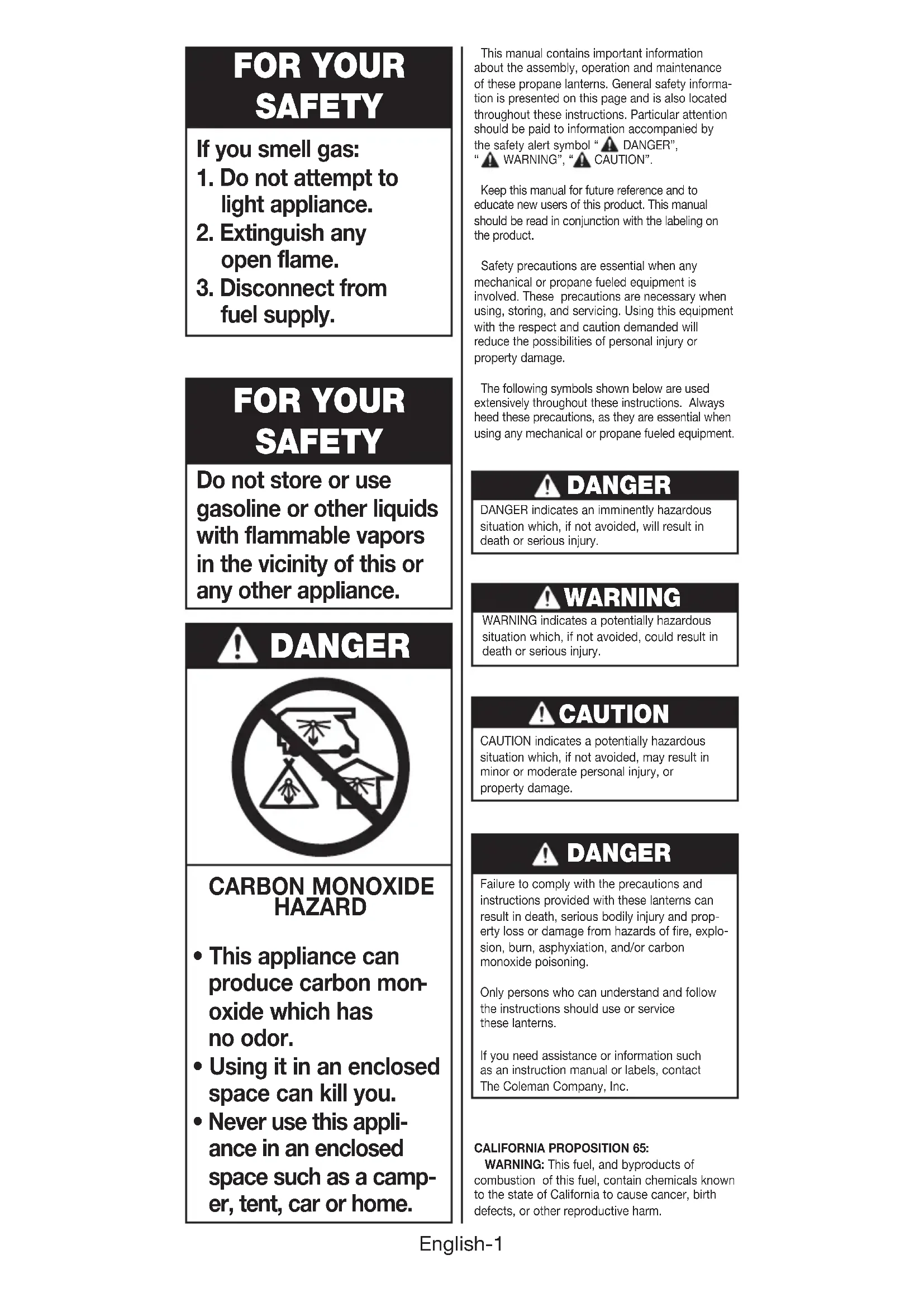

1. Do not attempt to

fuel supply. FOR YOUR SAFETY Do not store or use gasoline or other liquids with flammable vapors in the vicinity of this or any other appliance. FOR YOUR SAFETY CARBON MONOXIDE HAZARD

oxide which has no odor.

• Using it in an enclosed space can kill you.

• Never use this appli- ance in an enclosed space such as a camp- er, tent, car or home. DANGER This manual contains important information about the assembly, operation and maintenance of these propane lanterns. General safety informa-tion is presented on this page and is also located throughout these instructions. Particular attention should be paid to information accompanied by the safety alert symbol “ DANGER”, “ WARNING”, “ CAUTION”. Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precautions are essential when any mechanical or propane fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage. The following symbols shown below are used extensively throughout these instructions. Always heed these precautions, as they are essential when using any mechanical or propane fueled equipment. CALIFORNIA PROPOSITION 65:

WARNING: This fuel, and byproducts of

combustion of this fuel, contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage. Failure to comply with the precautions and instructions provided with these lanterns can result in death, serious bodily injury and prop- erty loss or damage from hazards of fire, explo- sion, burn, asphyxiation, and/or carbon monoxide poisoning. Only persons who can understand and follow the instructions should use or service these lanterns. If you need assistance or information such as an instruction manual or labels, contact The Coleman Company, Inc. DANGER DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. WARNINGEnglish-2

• EXPLOSION - FIRE HAZARD

• Never store propane near high heat, open flames, pilot lights, direct sunlight, other igni- tion sources or where temperatures exceed 120 °F (49 °C).

• Propane is heavier than air and can accumu- late in low places. If you smell gas, leave the area immediately.

• Never install or remove propane tank while lantern is lighted, near flame, pilot lights, other ignition sources or while lantern is hot to touch.

• During operation, this product can be a source of ignition. Never use the lantern in spaces that contain or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals. Minimum clearances from combustible materials: 12 inches from the sides and 48 inches from the top.

• Do not obstruct the flow of combustion or ventilation air.

• Proper lantern operation produces a bright white light. WARNING

• Never leave lantern unattended when hot or in use.

• Keep out of reach of children. DANGER

• CARBON MONOXIDE HAZARD

• This lantern is a combustion appliance. All combustion appliances produce carbon mon- oxide (CO) during the combustion process. This product is designed to produce extreme- ly minute, non-hazardous amounts of CO if used and maintained in accordance with all warnings and instructions. Do not block air flow into or out of the lantern.

• Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery eyes, headaches, dizziness, fatigue and possibly death. You can’t see it and you can’t smell it. It’s an invisible killer. If these symptoms are present during operation of this product get fresh air immediately!

• For outdoor use only.

• Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas. This lantern consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. CAUTION

• Use only propane set up for vapor withdrawal.

• Keep all connections and fittings clean. Inspect propane cylinder and lantern propane connections for damage before attaching.

• During set up, CHECK FOR LEAKS in one or more ways: Apply soapy water to connec- tions. Look for bubbles. Listen for hiss of escaping gas. Feel for extreme cold. Smell for rotten egg odor. Never use a flame. Do not use if leaking.

• Use as a lighting appliance only. Never alter in any way or use with any device or part not expressly approved by Coleman.

• Never use as a space heater.

• Always use in upright position. Protect cylin- der from excess heat. Technical Characteristics Input: 5,000 BTU/h Category: Pressure regulated propane Fuel:

16.4 oz. disposable propane cylinders

Regulator: 2600 Not for home or recreational vehicle use. We cannot foresee every use which may be made of our products. Check with your local fire safety authority if you have questions about use. Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about these.

• Never refill disposable cylinders.

• Use the preset regulator that came with the lantern. Do not attempt to adjust.

accessories or parts

• During lantern set-up, check all fittings for leaks using soapy water. Never use a flame. WARNING

• This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odor

ant is normally added to help detect leaks and can be described as a ”rotten egg” smell. The odorant can fade over time so leaking gas is not always detectable by smell alone.

• Propane gas is heavier than air and leaking pro

pane will sink to the lowest level possible. It can ignite by ignition sources including matches, light- ers, sparks or open flames of any kind many feet away from the original leak. Use only propane gas set up for vapor withdrawal.

• Propane gas should be stored or used in compli- ance with local ordinances and codes or with ANSI/NFPA 58. Turn off propane when not in use. WARNING DANGERTo Set Up DANGER

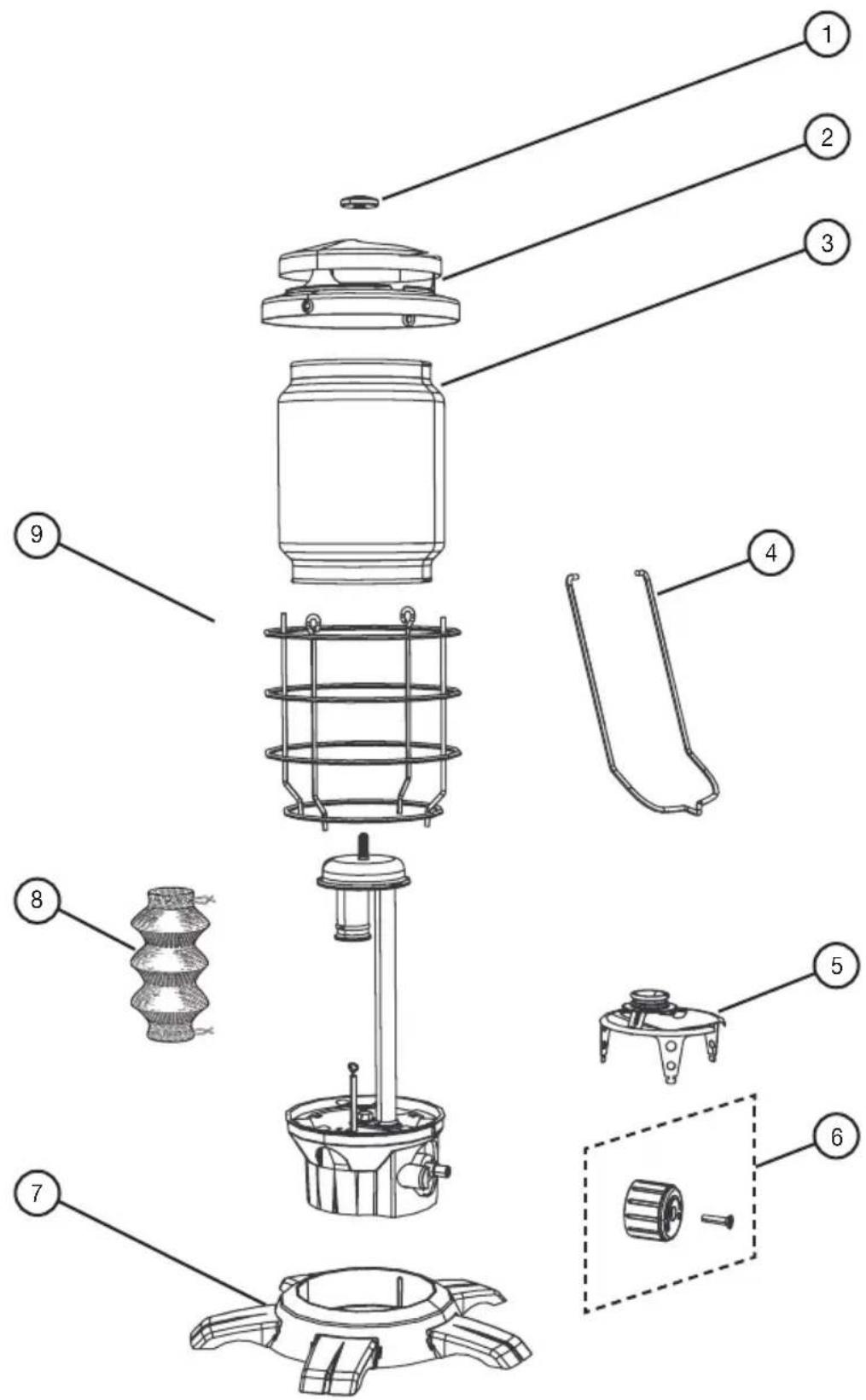

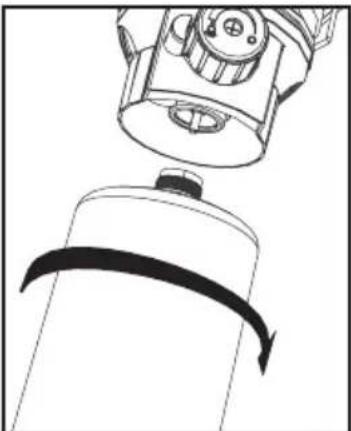

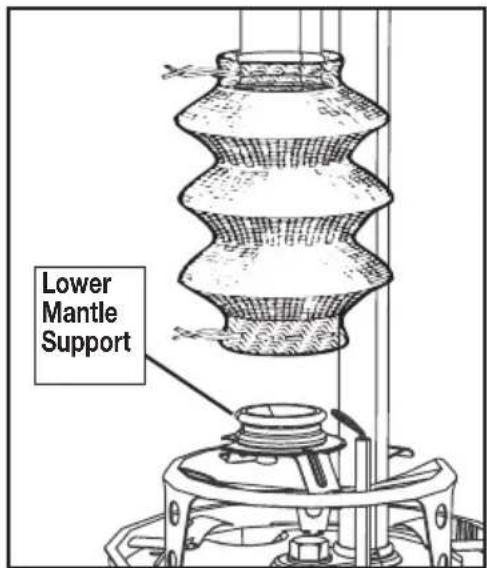

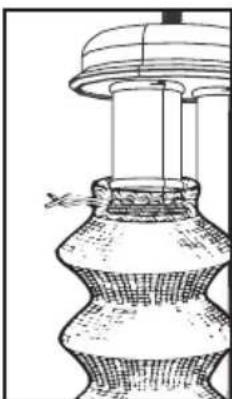

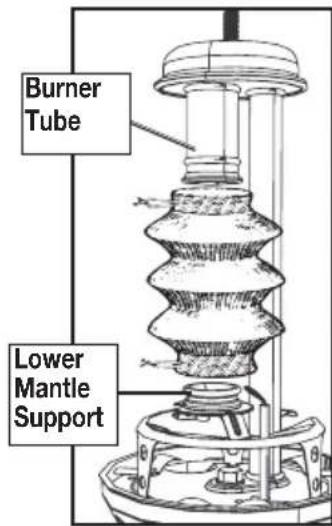

• CARBON MONOXIDE HAZARD• For outdoor use only.• Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas. This lantern consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. English-3 Always use genuine Coleman #95 size mantles. If using Insta-Clip II tabbed mantles, follow the instructions on the mantle package.If using original wire clip mantles, attach MANTLE to BURNER TUBE AND LOWER MANTLE SUPPORT. Be sure clips engage grooves. ■ Take lantern outdoors away from ignition sources. ■ Turn fuel valve off.Remove protective cap from top of propane cyl inder. Save cap for use in storing. Screw propane cylinder into lantern. Take care not to cross-thread. Hand tighten only. ■ Note: Use Coleman 16.4 oz. disposable propane cylinders. The LP-gas cylinder(s) used with lanterns must be constructed and marked in accordance with the specifications for LP-gas cylinders of the U.S. Department of Transportation or Transport Canada, CAN/CSA B339. ■ Unfold cylin der base as shown. ■ Place cylinder securely in lantern base. CAUTION

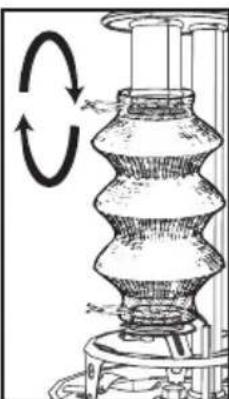

• Keep all connections and fittings clean. Inspect propane cylinder and lantern propane connections for damage before attaching.• During set up, check all connections and fittings for leaks using soapy water. Bubbles indicate a leak. Never use a flame. To Tie On Mantles ■ Twist clips. Burner Tube

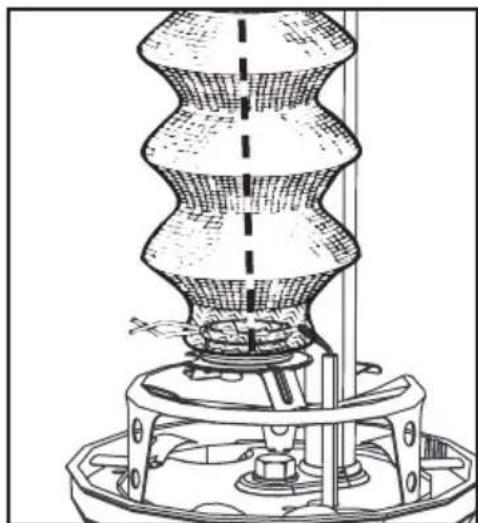

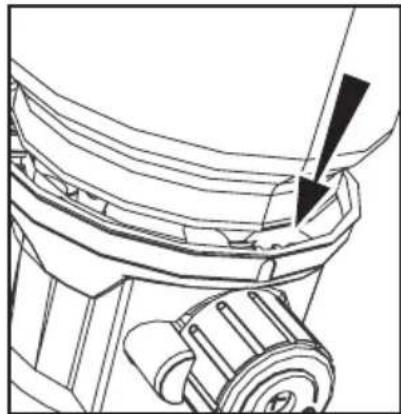

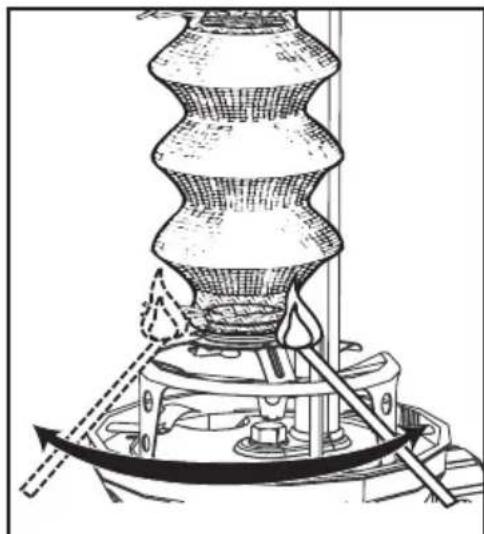

• Replace any mantle with a hole in it. A hole can cause lantern to overheat and create a hazard. Never operate lantern without heat shield. WARNING Lower Mantle SupportEnglish-4 ■ Twist clips.Light mantle evenly and leave to burn. Once man-tle has been burned it is very fragile. Be careful not to touch it with your finger or match. ■ Replace VENTILATOR and GUARD/GLOBE ASSEMBLY. Position guard wire into notch in frame.NOTE: When re-installing globe onto lantern be sure not to contact mantle clip. Mantle may be dislodged from groove. Lower Mantle Support To Light DANGER

• EXPLOSION - FIRE HAZARD
• Propane is heavier than air and can accumu-late in low places. If you smell gas, leave the area immediately.• Always attach or detach propane source outdoors; never while lantern is lighted, near flame, pilot lights, other ignition sources or while lantern is hot to touch.• Always light and use lantern outdoors.• This lantern must not be exposed to flam-mable vapors or liquids during lighting.• This lantern is very hot during use and can ignite flammables too close to the mantles. Keep flammables at least 12 inches from the sides and 48 inches from the top of the lantern. Keep gasoline and other flammable liquids and vapors well away from lantern.Always light and use lantern outdoors; never inside house, camper, tent or other unventilated or enclosed areas.If you smell gas:1. Do not attempt to light appliance.2. Extinguish any open flame.3. Disconnect from fuel supply.4. Call 1-800-835-3278. WARNINGWARNING

• Never leave lantern unattended when hot or in use.

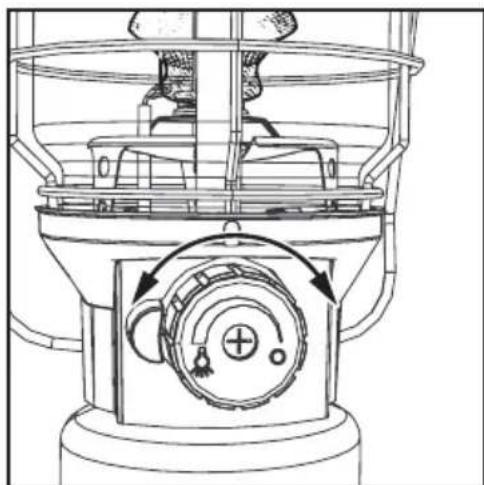

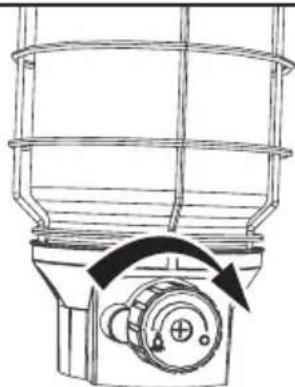

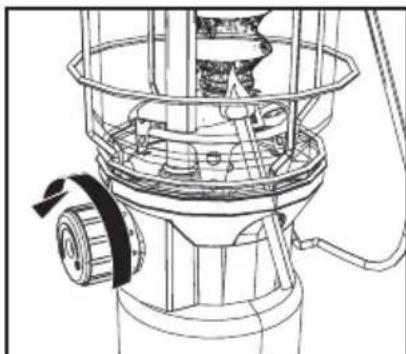

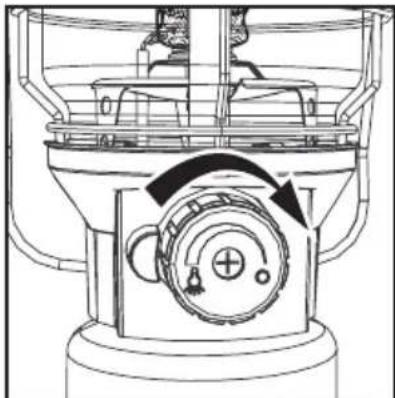

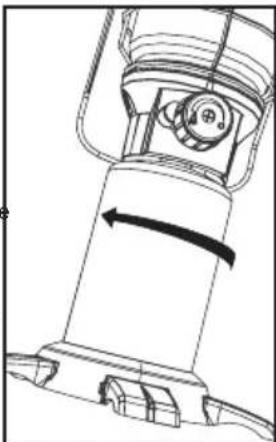

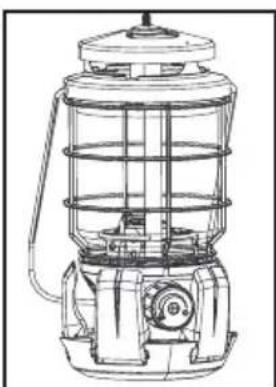

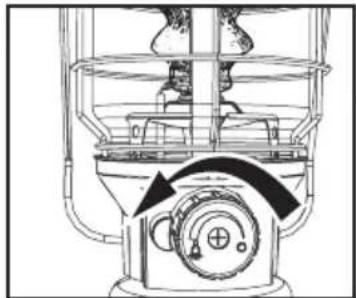

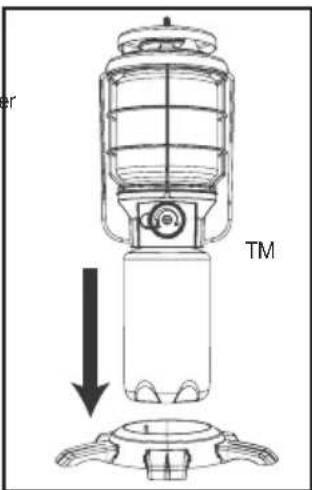

• Keep out of reach of children. ■ Brightness may be adjusted with fuel valve. To Turn Off ■ Turn fuel valve off. To Store English-5 ■ Turn fuel valve on. Push the red igniter button and a spark should jump between the electrode and lower mantle support and ignite the mantle. NOTE: If lantern does not light after pushing the igniter button a few times, repeat above step after turning fuel valve completely off. If the lantern is wet due to rain, high humidity, etc., the valve may not spark. Use match lighting procedure as follows. INSTASTART™ Electronic Ignition Match Lighting ■ Push lighted match through lighting hole, hold near mantle and open fuel valve fully. ■ Make sure lan- tern is cool. ■ Move lantern away from flame (including pilot lights) and other ignition sources. ■ Remove propane cylinder from lantern. ■ Replace protective cap on propane cylinder. ■ Invert base and place on collar for storage. ■ The lantern may be carried by the handle.English-6 Warranty www.coleman.com1. It is unsafe and illegal in some places to store or use liquid propane cylinders of greater than 1.14 kg (2.5 lbs.) water capacity (approximately 465g [1 lb.] propane) in occupied enclosures.2. Always have a spare set of Coleman Mantles. Once burned, a mantle is fragile and can be damaged if touched or dropped.3. Wipe lantern clean with soft cloth and mild dish deter gent. Do not use abrasives.4. The usual storage areas for camping and picnic equipment are the basement, attic, or garage. To avoid the accumulation of dust, cobwebs, etc., that is common in these storage areas, place your lantern in a plastic bag and seal it with a rubber band.5. During operation, carry the lantern using the bail.6. If your lantern burns with a yellow smokey flame, check the burner and air tube for spider webs.7. If not completely satisfied with the performance of this product, please call one of the numbers listed on the cover of this manual. Things You Should Know DANGER

• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames, pilot lights, direct sunlight, other igni-tion sources or where temperatures exceed 120 °F (49 °C).• The cylinder must be disconnected when the lantern is in storage. Limited Three Year Warranty The Coleman Company, Inc. (“Coleman”) warrants that for a period of three (3) years from the date of original retail purchase, this product will be free from defects in material and workmanship. Coleman, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman dealers, service centers, or retail stores selling Coleman products do not have the right to alter, modify or in any way change the terms and conditions of this warranty.What This Warranty Does Not Cover This warranty does not cover normal wear of parts, parts that are not genuine Coleman parts, or damage resulting from any of the following: negligent use or misuse of the product; commercial use of the product; use contrary to the operating instructions; disassembly, repair or alteration by anyone other than Coleman or an authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes. Warranty void if damage to the product results from the use of a part other than a genuine Coleman part. COLEMAN SHALL NOT BE LIABLE FOR DEFECTS THAT ARE CAUSED BY THE USE OF UNAUTHORIZED PARTS OR SERVICE. COLEMAN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE WARRANTY OR CONDITIONS. SOME STATES, PROVINCES, OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.How to Obtain Warranty Service Your product must be under warranty in order to obtain warranty service. If your product is defective and is within your warranty period, contact us at 1-800-835-3278 (TDD 1-316-832-8707) in order to receive a return authorization. Do not return product to Coleman without authorization. You will be directed to attach a tag to the product that includes your name, address, daytime telephone number and description of the problem. Include a copy of the original sales receipt. Carefully package the product and send insured by UPS, FedEx Ground or Parcel Post with shipping and insurance prepaid to:For products purchased in the United States: The Coleman Company, Inc.3600 North Hydraulic Wichita, KS 67219 U.S.A.For products purchased in Canada:Sunbeam Corporation (Canada) LimitedDBA Jarden Consumer Solutions20B Hereford Street Brampton, ON L6Y 0M1 The cost of transporting the product to Coleman for warranty service is the responsibility of the purchaser. Do not mail products with fuel in tanks, or with disposable propane cylinders. Remove glass globes from lanterns and wrap separately. DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE. If you have any questions regarding this warranty please call 1-800-835-3278 or TDD 1-316-832-8707 in the United States or 1-800-387-6161 in Canada.Parts List English-7 Item Part No. Description 1 5010001776 Ventilator Nut 2 5010001777 Ventilator Black 3 2000026615 Globe (Clear) 4 5010001778 Bail Handle 5 5010001779 Heat Shield 6 5010001780 Knob w/screw 7 5010001781 Base 8 #95 Size Tube Style Mantle 9 5010001782 Globe Guard
