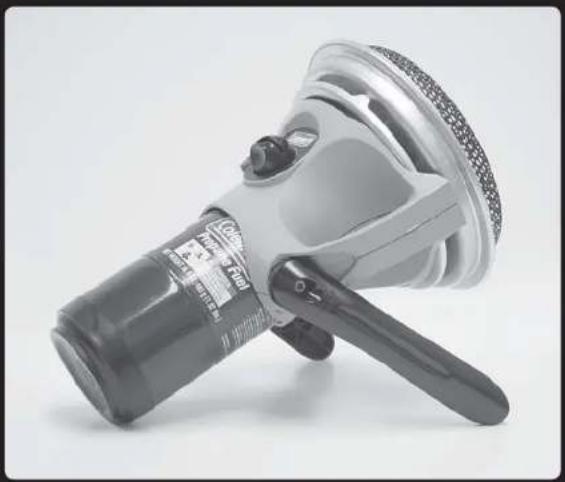

Model 5038 Propane Series U.S. Patent 6,213,761 and other patents pending © 2009 The Coleman Company, Inc. www.coleman.com IMPORTANT Read this manual carefully before assembling, using or servicing this heater. Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of this heater, please call Coleman at 1-800-835-3278 or TDD: 316-832-8707. In Canada call 1-800-387-6161.2 Contents General Safety Information To Set Up To Light To Turn Off To Store Things You Should Know Replacement Parts List Warranty Safety precautions are essential when any mechanical or propane fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage. The following symbols shown below are used extensively throughout this manual. Always heed these precautions, as they are essential when using any mechanical or propane fueled equipment. General Safety Information If you smell gas:

1. Do not attempt to light appliance.

2. Extinguish any open flame.

3. Disconnect from fuel supply.

Do not store or use gasoline or other liquids with flammable vapors in the vicinity of this or any other appliance.

THIS APPLIANCE CONSUMES AIR

• When used in any inside area, provide a fresh air opening of at least six square inches (39 square centimeters).

• Never operate the heater while sleeping.

• Do not use other burning appliances inside. This manual contains important information about the assembly, operation and maintenance of this heater. General safety information is presented in these first few pages and is also located throughout the manual. Particular attention should be paid to information accompanied by the safety alert symbol “ DANGER”, “ WARNING”, “ CAUTION”. Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. DANGER DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage.3 General Safety Information cont.

• EXPLOSION - FIRE HAZARD t/FWFSTUPSFQSPQBOFOFBSIJHIIFBUPQFOGMBNFT pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C). t1SPQBOFJTIFBWJFSUIBOBJSBOEDBOBDDVNVMBUFJOMPX places. If you smell gas, leave the area immediately. t/FWFSJOTUBMMPSSFNPWFQSPQBOFUBOLXIJMFDBUBMZUJD heater is lighted, near flame, pilot lights, other ignition sources or while catalytic heater is hot to touch. t%VSJOHPQFSBUJPOUIJTQSPEVDUDBOCFBTPVSDF of ignition. Never use the catalytic heater in spaces that contain or may contain volatile or airborne combustibles, or products such as gasoline, solvents, QBJOUUIJOOFSEVTUQBSUJDMFTPSVOLOPXODIFNJDBMT Minimum clearances from combustible materials: 24 inches. t1SPWJEFBEFRVBUFDMFBSBODFTBSPVOEBJSPQFOJOHT into the combustion chamber. DANGER Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn and/ or asphyxiation. Only persons who can understand and follow the instructions should use or service this heater. DANGER WARNING We cannot foresee every use which may be made of our products. Check with your local fire safety authority if you have questions about use. Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about these. t/FWFSSFGJMMEJTQPTBCMFDZMJOEFST t6TFUIFQSFTFUSFHVMBUPSUIBUDBNFXJUIUIF catalytic heater. Do not attempt to adjust. WARNING t5IJTQSPEVDUJTGVFMFECZQSPQBOFHBT1SPQBOF gas is invisible, odorless, and flammable. An PEPSBOUJTOPSNBMMZBEEFEUPIFMQEFUFDUMFBLT and can be described as a “rotten egg” smell. The PEPSBOUDBOGBEFPWFSUJNFTPMFBLJOHHBTJTOPU always detectable by smell alone. t1SPQBOFHBTJTIFBWJFSUIBOBJSBOEMFBLJOH QSPQBOFXJMMTJOLUPUIFMPXFTUMFWFMQPTTJCMF*U can ignite by ignition sources including matches, MJHIUFSTTQBSLTPSPQFOGMBNFTPGBOZLJOENBOZ GFFUBXBZGSPNUIFPSJHJOBMMFBL6TFPOMZQSPQBOF gas set up for vapor withdrawal. t1SPQBOFHBTTIPVMECFTUPSFEPSVTFEJO compliance with local ordinances and codes or with ANSI/NFPA 58. Turn off propane when not in use. CALIFORNIA PROPOSITION 65:

WARNING: This fuel, and byproducts of

combustion of this fuel, contain chemicals LOPXOUPUIFTUBUFPG$BMJGPSOJBUPDBVTFDBODFS birth defects, or other reproductive harm.

• BURN HAZARD tNever leave catalytic heater unattended when hot or in use. tKeep out of reach of children. WARNING

• SERVICE SAFETY t,FFQBMMDPOOFDUJPOTBOEGJUUJOHTDMFBO*OTQFDU propane cylinder and catalytic heater propane connections for damage before attaching. t%VSJOHTFUVQDIFDLBMMDPOOFDUJPOTBOEGJUUJOHT GPSMFBLTVTJOHTPBQZXBUFS/FWFSVTFBGMBNF #VCCMFTJOEJDBUFBMFBL$IFDLUIBUUIFDPOOFDUJPO is not cross-threaded and that it is tight. Perform BOPUIFSMFBLDIFDL*GUIFSFJTTUJMMBMFBLSFNPWF the cylinder and contact Coleman for service or repairs. t6TFBTBIFBUJOHBQQMJBODFPOMZ/FWFSBMUFS in any way or use with any device or part not specifically designed and sold for this product. CAUTION4 To Set Up NOTE: Use 16.4 oz disposable propane cylinders

POMZ%POPUDPOOFDUUPCVMLQSPQBOFTZTUFNT5IF

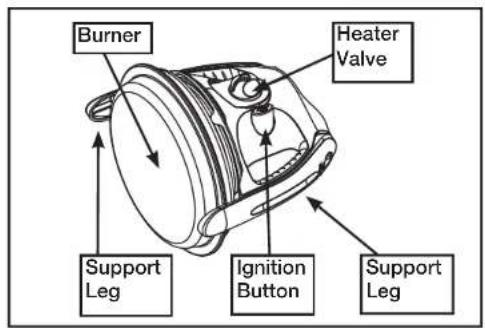

LP-gas cylinder(s) used with catalytic heaters must CFDPOTUSVDUFEBOENBSLFEJOBDDPSEBODFXJUI the specifications for LP-gas cylinders of the U.S. Department of Transportation or Transport Canada, CAN/CSA B339. Ƶ The unit is completely assembled. Features identified are Burner, Heater Valve, Support Legs, and Ignition Button (Electronic Ignition only). 1SPQBOFUBOLJTOPUJODMVEFE ƵAttach CYLINDER to HEATER outdoors. Ƶ Turn HEATER VALVE to OFF. Support Leg BurnerHeater ValveSupport Leg Ignition Button CAUTION t4&37*$&4"'&5:t,FFQBMMDPOOFDUJPOTBOEGJUUJOHTDMFBO*OTQFDUQSPQBOFcylinder and heater propane connections for damage before attaching. t%VSJOHTFUVQDIFDLBMMDPOOFDUJPOTBOEGJUUJOHTGPSMFBLTVTJOHTPBQZXBUFS#VCCMFTJOEJDBUFBMFBL/FWFSVTFBGMBNFƵ Rotate both Support Legs into operating position. Ƶ Position HEATER as shown on flat surface. To Light WARNING

Never leave heater unattended when hot or in use. tKeep out of reach of children.

• EXPLOSION - FIRE HAZARD t1SPQBOFJTIFBWJFSUIBOBJSBOEDBOBDDVNVMBUFJOMPXplaces. If you smell gas, leave the area immediately.t"MXBZTBUUBDIPSEFUBDIQSPQBOFTPVSDFPVUEPPSTnever while heater is lighted, near flame, pilot lights, other ignition sources or while heater is hot to touch.t5IJTIFBUFSJTSFEIPUEVSJOHVTFBOEDBOJHOJUFflammables too close to the burner. Keep flammables at least 24 inches from the sides and 24 inches from the top of the heater. Keep gasoline and other flammable liquids and vapors well away from heater. DANGER5 Ƶ NOTE: Heater is designed to be lit with the valve fully open until it reaches full output. Observe heat build up for a few minutes to ensure heater is lit. If heater fails to develop substantial heat, turn heater “OFF” and repeat lighting procedure. Electronic Ignition Ƶ Turn valve to HI position and repeatedly push red ignition button until heater ignites. Ƶ Heater will ignite with a brief visible flame after 10-12 seconds. Ƶ Heater is adjustable to “HI” and “LOW”. To Light cont To Turn Off Ƶ Turn FUEL VALVE to OFF. Ƶ Allow HEATER to cool for 10-15 minutes. To Store DANGER

Never store propane near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C). Ƶ.BLFTVSF)FBUFSJT cool. Ƶ5BLFVOJUPVUEPPSTBXBZ from any ignition sources. Remove Cylinder from Heater. Ƶ Replace plastic cap on cylinder. Ƶ Store propane cylinder consistent with the instructions and warnings on the cylinder. To Store cont Things You Should Know

1. This is a catalytic heater. Burning occurs

within the pad at a lower temperature than a normal flame due to evenly distributed platinum. But, heat guard and burner rim still get hot enough to burn you. Be careful. 5IFDBUBMZUJDQSPDFTTUBLFTBQQSPYJNBUFMZ minutes to reach full heat output. %POPUVTFIFBUFSGPSDPPLJOHPSXBSNJOH items, this can destroy combustion and catalyst. This heater has a low burn temperature (no flame) but it can still burn clothing, sleeping bags, etc., that might fall on the burner surface.

4. To avoid damage to the catalyst, do not

allow head pad to come in contact with or around silicone based hand creams, paints, etc.

5. Do not touch the gray ceramic fiber head

QBEPSQPLFBIPMFJOUPJU

6. Do not attempt cleaning the head assembly.

Match Light Ƶ Hold match as shown. Ƶ Turn valve to HI position. Ƶ Heater will ignite with a brief visible flame after 10-12 seconds. Ƶ Heater is adjustable to “HI” and “LOW”.6

7. For repair service call one of the numbers

listed below for location of your nearest Coleman Service Center. If heater must be mailed to Service Center, attach your name, address, and a description of problem to product and and send to Service Center either by UPS or Parcel Post insured with shipping and insurance prepaid. Do not mail propane cylinders. If necessary to write the Service Center or factory, refer to your heater by model number.

8. If not completely satisfied with performance

of this product, please call one of the numbers listed below.

9. As with any new heating appliance, a small

BNPVOUPGTNPLFNBZCFTFFOEVSJOHUIFJOJUJBM operation as a result of residual manufacturing oils being heated. This is normal. Coleman suggests the owner operate the heater for 30 minutes when first purchased. This will also familiarize the owner with all the features of the heater. The Coleman Company, Inc. 3600 N. Hydraulic Wichita, KS 67219 U.S.A. 1-800-835-3278

Part No.5038-12815038-12615035-1491DescriptionSupport Leg w/ hardware (Left)Support Leg w/ hardware (Right)Control Knob & screw Things You Should Know cont.

2Limited Five Year Warranty The Coleman Company, Inc. (“Coleman”) warrants that for a period of five years from the date of original retail purchase, this product will be free from defects in NBUFSJBMBOEXPSLNBOTIJQ$PMFNBOBUJUTPQUJPOXJMMSFQBJSPSSFQMBDFUIJTQSPEVDU or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman dealers, service centers, or retail stores selling Coleman

products do not have the right to alter, modify or in any way change the terms and conditions of this warranty. What This Warranty Does Not Cover This warranty does not cover normal wear of parts, parts that are not genuine Coleman

parts, or damage resulting from any of the following: negligent use or NJTVTFPGUIFQSPEVDUDPNNFSDJBMVTFPGUIFQSPEVDUVTFDPOUSBSZUPUIFPQFSBUJOH JOTUSVDUJPOTEJTBTTFNCMZSFQBJSPSBMUFSBUJPOCZBOZPOFPUIFSUIBO$PMFNBOPSBO authorized service center. Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes. Warranty void if damage to product results from the use of a part other than a genuine Coleman

authorized Coleman service center by visiting www.coleman.com or calling 1-800-835- 3278 or TDD 316-832-8707 in the United States or 1 800 387-6161 in Canada. If a service center is not conveniently located, attach to the product a tag that includes your name, address, daytime telephone number and description of the problem. Include a copy of UIFPSJHJOBMTBMFTSFDFJQU$BSFGVMMZQBDLBHFUIFQSPEVDUBOETFOEFJUIFSCZcourier or insured mail with shipping and insurance prepaid to: For products purchased in the United States: The Coleman Company, Inc. 3600 North Hydraulic Wichita, KS 67219 For products purchased in Canada: Sunbeam Corporation (Canada) Limited DBA Jarden Consumer Solutions 20B Hereford Street Brampton, ON L6Y 0M1 The costs of transporting the product to Coleman or an authorized service center for warranty service is the responsibility of the purchaser. %POPUNBJMQSPEVDUTXJUIGVFMJOUBOLTPSXJUIEJTQPTBCMFQSPQBOFDZMJOEFST DO NOT RETURN THIS PRODUCT TO THE PLACE OF PURCHASE. If you have any questions regarding this warranty please call 1-800-835-3278 or TDD 316-832-8707 in the United States or 1 800 387-6161 in Canada. Warranty
