Product type	Multifunctional electronic pressure cooker
Brand	Trebs
Model	Comfortcook 99206
Capacity	6 liters
Power supply	220 V - 50 Hz
Rated power	1000 W
Working pressure	0 - 70 kPa
Pressure limitation	90 kPa
Keep warm	60 - 80 °C
Delayed programming	1 to 24 hours
Cooking functions	Rice, soup, stew, meat, fish, steam, porridge, legumes
Display	Digital screen with menu and time indicators
Safety	7 devices: open/close, pressure control, pressure limitation, anti-blocking, evacuation, temperature limitation, over-temperature control
Inner pot material	Steel with non-stick coating
Care and cleaning	Clean the inner pot, lid, sealing ring, valve, anti-blocking valve, drain pipe and floating valve after each use; do not use metal sponge
Spare parts and repairability	Sealing ring, floating valve, anti-blocking valve, drain pipe; contact after-sales service for any repair
Approximate weight	5 kg (estimated)
Dimensions (approx.)	30 x 30 x 30 cm (estimated)
Warranty	See manufacturer's conditions

Frequently Asked Questions - Comfortcook 99206 TREBS

How to open the lid of the Trebs Comfortcook 99206 pressure cooker?

To open the lid, press gently on the handle and turn it clockwise, then lift the handle. Make sure the floating valve has dropped after cooking.

What types of dishes can I cook with this pressure cooker?

This pressure cooker offers preset programs for rice (F1), soup (F2/F3), stew (F4), meat (F5), fish (F6), as well as modes for legumes, porridge and steam cooking.

How to manually adjust the cooking time?

Press the « Time setting » key then use the « + » and « - » buttons to adjust the duration in minutes. You can also program a delayed cooking up to 24 hours.

What to do if the screen displays an error code (E1, E2, E3, E4)?

E1: circuit cut; E2: short circuit; E3: overheating; E4: switch signal error. Cut the power and contact after-sales service if the problem persists.

How to clean the floating valve and the anti-blocking valve?

For the floating valve, move it gently, remove food residues and clean it with water. For the anti-blocking valve, pull it upwards to remove it, clean it and put it back by pressing.

What is the maximum amount of food to put in the inner pot?

The amount of food should not exceed 4/5 of the pot height. For foods that swell (beans), do not exceed 1/5. For cereals, the water ratio is 1:1; for porridge, 8 parts water to 1 part legumes.

How to use the keep warm function?

After cooking, the appliance automatically switches to keep warm mode (display shows « B »). You can stop it by pressing the « Cancel warming » key. The keep warm temperature is between 60 and 80 °C.

What to do if the lid does not close properly?

Check that the sealing ring is properly placed. If the support bar is blocked by the floating valve, push it by hand. Then close the lid by turning counterclockwise until you hear a 'click'.

Is the pressure cooker safe for daily use?

Yes, it is equipped with 7 safety devices: open/close, pressure control and limitation, anti-blocking, emergency evacuation, temperature limitation and control. Follow the instructions for safe use.

Can I use metal utensils in the inner pot?

No, the inner pot has a non-stick coating. Use plastic or wooden spoons to avoid scratching the surface. Do not clean with metal sponges.

USER MANUAL Comfortcook 99206 TREBS

Manual electric pressure cooker

Manuel elektrikli Düdklü Tencere

(Picture 10)
(Picture 11)

(Picture 10)
(Picture 11)

A. Brief Introduction of product

Micro-computer electric pressure cooker is a kind of newly designed cooking utensil, and it adopts the most advanced technology and combines the advantages of common pressure cooker, rice cooker and stewing cooker, also makes up the disadvantages of the common one. Electric pressure cooker is the most idea utensil of the modern family, as it is novel-shaped, advanced-structured, safe, full functional, easy to operate.

Compared with the other cookers, it has the following advantages:

A. The cooking speed is much quicker when it is compared with the electric cooker. It saves about 20% of time and more than 20% of electricity when making the meal; It saves about 40% of time and more than 50% of electricity when making the porridge and soup.

B. Compared with the common electric pressure cooker, it is safer and also has the 7 kinds of safety protection devices to avoid the danger of explosion and burning of food.

C. Compared with stewing, it saves more time and it is the full functional cooking professional, for it can adjust automatically according to personal preference.

D. Compared with micro-wave oven, it can keep the full food nutrition and will not evaporate the moisture and no potential radiation.

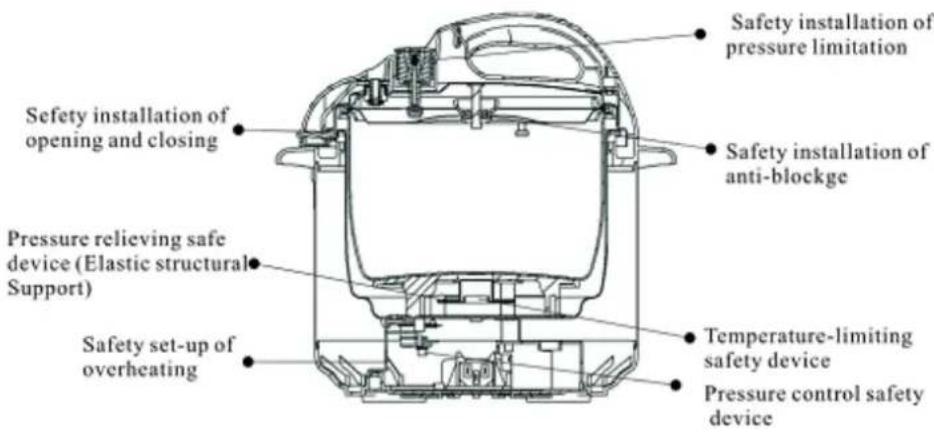

B. Safety Installation

It has 7 kinds of safety devices

1. Safety device for opening and closing-It will make sure it can't be pressed when the lid and body can't match well and it can't be opened when there is pressure inside it.

2. Pressure control safety device-In the course of using, when the pressure higher than that the preset pressure ,the power will cut off automatically to make sure the pressure is stable can be used in safety state.

3. Pressure-limiting safety device-When the temperature and pressure controller don't work anymore and exceed the maximum pressure, the pressure-limiting safety device starts working, and venting valve will exhaust automatically.

4. Anti-blockage It can prevent the food from clogging and make sure the air will be drained smoothly.

5. Pressure relieving safety device-There is elastic structural support at the bottom of the heating plate. When all the above safety devices don't work, and also the pressure in the inner pot comes up to the maximum pressure, the inner pot will move down automatically to be away from the gallbladder, and the air will be exhausted from the edge of the lid, so that it will not cause explosion.

6. Temperature-limiting safety device-When there is nothing in the inner pot during the improper using and the temperature is higher than the presetting temperature, the power will cut off automatically and also it can restore automatically when the temperature goes down.

7. Over temperature safety device-When the inner temperature comes up to the maximum temperature, it will cut off the power automatically and can't restore any more.

(Picture 1)

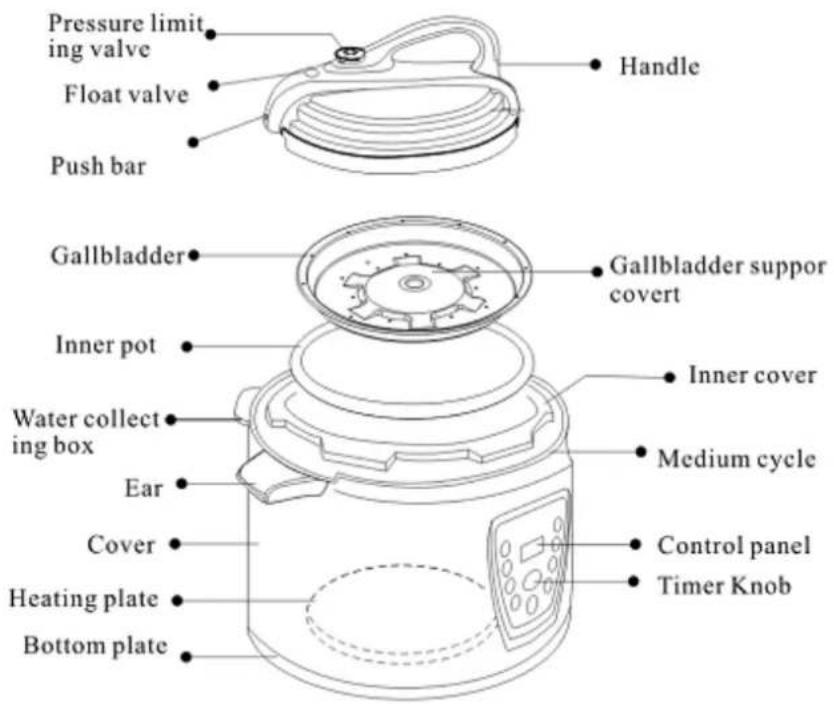

C. Components Name

Accessories:
Measuring cup

Meal spoon

Power cord
(Picture 2)

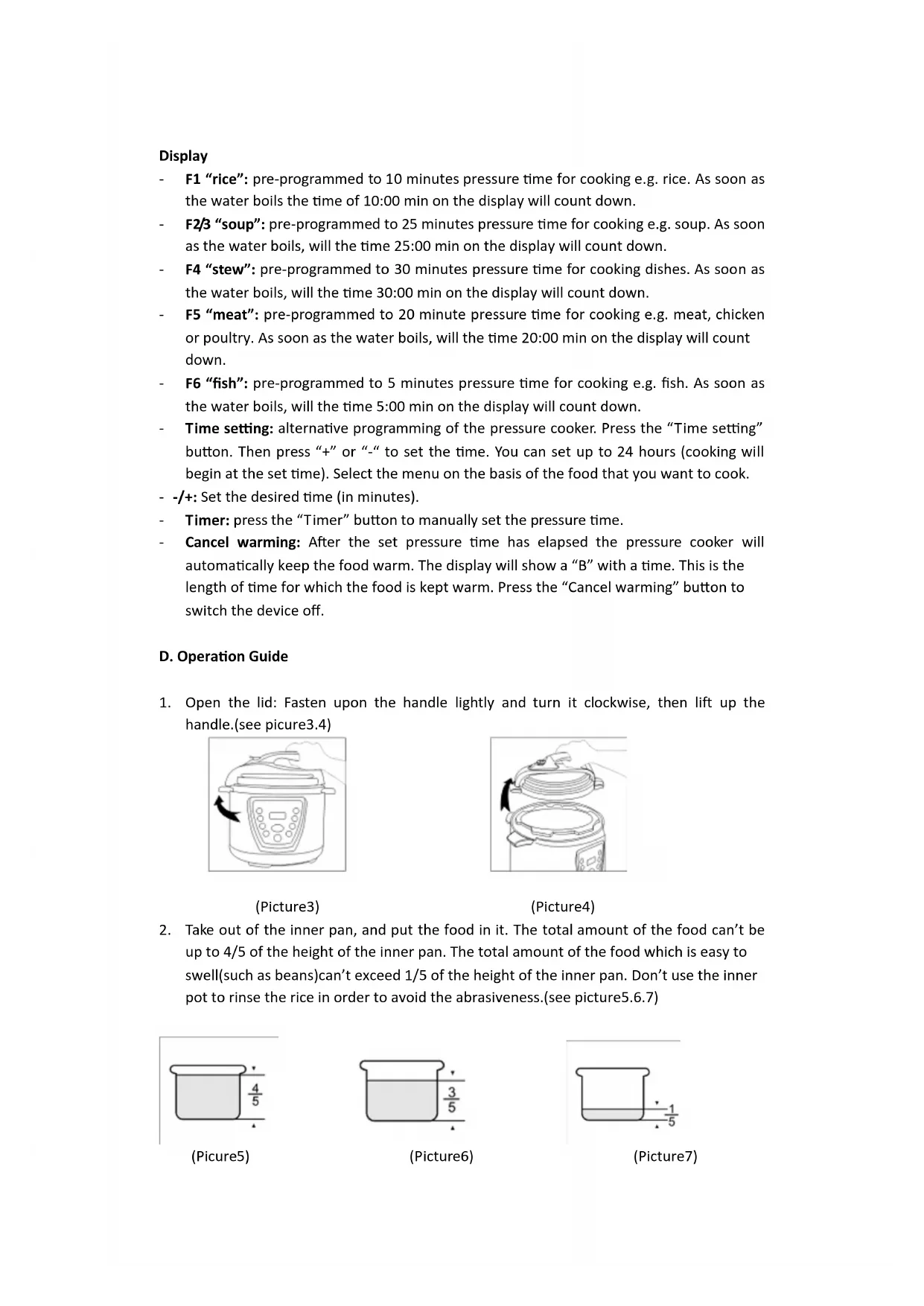

Display

• F1 "rice": pre-programmed to 10 minutes pressure time for cooking e.g. rice. As soon as the water boils the time of 10:00 min on the display will count down.
  F2/3 "soup": pre-programmed to 25 minutes pressure time for cooking e.g. soup. As soon as the water boils, will the time 25:00 min on the display will count down.
• F4 "stew": pre-programmed to 30 minutes pressure time for cooking dishes. As soon as the water boils, will the time 30:00 min on the display will count down.
• F5 "meat": pre-programmed to 20 minute pressure time for cooking e.g. meat, chicken or poultry. As soon as the water boils, will the time 20:00 min on the display will count down.
• F6 "fish": pre-programmed to 5 minutes pressure time for cooking e.g. fish. As soon as the water boils, will the time 5:00 min on the display will count down.
• Time setting: alternative programming of the pressure cooker. Press the "Time setting" button. Then press "+" or "-" to set the time. You can set up to 24 hours (cooking will begin at the set time). Select the menu on the basis of the food that you want to cook.
• -+ : Set the desired time (in minutes).
  Timer: press the "Timer" button to manually set the pressure time.
• Cancel warming: After the set pressure time has elapsed the pressure cooker will automatically keep the food warm. The display will show a "B" with a time. This is the length of time for which the food is kept warm. Press the "Cancel warming" button to switch the device off.

D. Operation Guide

1. Open the lid: Fasten upon the handle lightly and turn it clockwise, then lift up the handle.(see picture3.4)

(Picture3)

(Picture4)

1. Take out of the inner pan, and put the food in it. The total amount of the food can't be up to 4/5 of the height of the inner pan. The total amount of the food which is easy to swell(such as beans)can't exceed 1/5 of the height of the inner pan. Don't use the inner pot to rinse the rice in order to avoid the abrasiveness.(see picture5.6.7)

(Picture5)

(Picture6)

(Picture7)

1. In cooking, he quantity of the meal which the cooker (4L,5L,6L) can accommodate is 6cups,8cups,10cups and 12cups respectively, and the proportion rate between the water and meal is 1:1. When making the porridge, the proportion rate between the water and meal is 8:1. And of course you can adjust the proportion rate of the water and meal according to your preference and cooking experiences.
2. Before putting the inner pan into the inner cover, please clean the bottom plate and the heating plate, and make sure there is nothing on the surface .Make a few of rotation of inner pan to make sure that it can match the heating plate very well.(see picture8.9)

(Picture8)

(Picture9)

1. Close the lid. Before closing, please check the gallbladder has been already put in the inner pot and also rotate slightly the gallbladder support cover with hand to make sure it is evenly put on the steel ring. Then take hold of the handle and turn the lid anti-clockwise to close the lid until you hear "click".

2. Put the exhaust valve on the full sealed position, and check if the float valve has been down or not.(see picture10.11)

3. Switch on the power, it will show "----".

4. Set the parameter and start heating.

Set the pre-set time, (if you don't want to preset the time in advance, so this step is needless), press "time setting" button, and this button will be on light, and press the "+" or

" - "to set the time. The longest time you can preset is 24 hours (after presetting the time, then it begins heating).

Please select the menu according to the food you want to cook.

a. Press the "Function select" button to choose the menu on the control panel, you can choose F1"rice", F2/3"soup/sauce, F4 "stew", F5 "chicken/meat", F6 "fish".

b. When the food in pot was heated to the working pressure and into the pressure-keeping state:

If you choose the menu on the control panel, it shows "F0:00"(For example, selecting "cooking": it shows "F1:10", "F1" is the code for cooking, "10" is the pressure-keeping time), Meanwhile the pressure-keeping light is on.

If you choose the "pressure-keeping/time-setting" function, it shows "00:10"(when it into the working state, "00" will change into the moving "10" to scan. Press the "+" can adjust to the pressure-keeping time that you needed.

Please refer to "COOKING GUIDE" for details (see picture12).

The displayer shows "60:00" when it finishes the process of pressure keeping, and it rings 3 times, it will enters into warm-keeping state when finish cooking. You can cancel the functions by pressing the "Warm-keeping/Cancel" button in the course of cooking.

Food	rice	Cooking GuideMeatChicken Beef	Soup	Rice	Stew
Time forkeeping pressure	5 minutes	20minutes	25minutes	10minutes	30minutes
		(Picture12)

1. Open the lid and take out of the food. When the warm-keeping light is flashing, then you can take out of the food. Please move the pressure limitation valve to the position of exhausting, until the float valve is down.

Grip the lid handle, clockwise rotation to the position of open lid, then reveal up the lid and you can take out the food.

*When cooking the spoon meat(porridge, viscous pill),it should be cooled down naturally until the float valve is down, then can release the air. Also the wet towel can be put on the lid to accelerate the cooling.

*Users can adjust the time suitably in accordance with food, personal preference and cooking experience.

*When finish cooking the soup and porridge, the float valve is down and then it is ready to be opened. The soup and porridge will be more delicious if you keep them heating up and boiling for 3-5 minutes with the lid open.

E. Clean and Maintenance

1. Before cleaning, please switch off the power.
2. Then take out the inner pan and lid, and firstly use the household detergent for cleaning, and then clean water, at last use the dry cloth to wipe out the water.
3. The following parts should be included when cleaning: seal ring, pressure-limiting valve, anti-blockage lid, releasing pipe and float valve.

*Cleaning of Seal ring: Hands clutching the edge of seal ring to pull upward, after cleaning, press down the seal ring towards the edge of supporting lid, take the seal ring to targeting the middle of the lid steel ring then press down: check if the round very easily, then can use it. Please note that it can't be put contrarily.(see picture15.16)

(Picture15)

(Picture16)

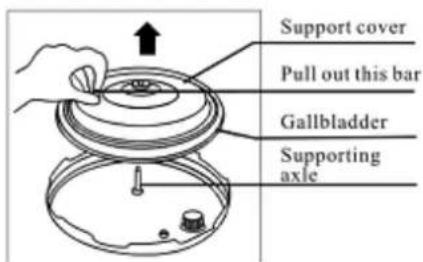

*Cleaning of anti-blockage cover: Pull out the anti-blockage cover upward, and then press it down after cleaning.(see picture17.18)

(Picture17)

(Picture18)

*Cleaning of float valve: Move slightly the float valve core up and down with hand, also remove the food particles in the small ring of the float valve and clean them with water.(see picture19)

(Picture 19)

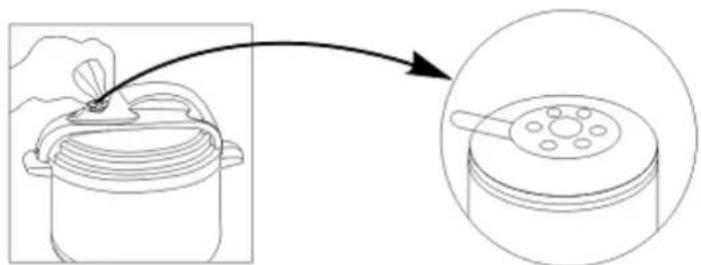

*Cleaning of exhaust valve: Lift up the exhaust valve, and clean it with water, then place it back to the exhaust valve holder.(see picture20)

1. Every time after using, please dump away the water stored in the water collecting box, and then clean it with water, install back the box after wiping away the water spot.
2. Please don't use water to clean the body of the cooker machine directly.
3. Please don't use the metal wire or thick materials to wash the inner pan in order to avoid the abrasion of nonstick coat of the inner pan.
4. Please wipe well the machine and keep it in a dry place when it isn't used.

(Picture20)

F. Points for attention the course of using

1. When moving, don't touch the handle directly in order to avoid the drop-out of the lid.
2. Please use our products in strict accordance with the stipulations started in our manual. And don't put the cooker near the flammable materials or in the wet place.
3. Please use it carefully and don't damage the seal ring which can't be replaced by other rubber ring, and also cannot use the drag washer to increase the sealing performance.
4. Please close the ld well before using, or if there is any serious consequence rising from this, we don't undertake any responsibility.
5. Please clean the anti-blockage cover regularly, and keep the exhaust value and float value unimpeded.
6. Please don't open the lid by force before the float value is down..
7. Please don't put any weight on the exhaust value which can't be substituted with any other materials.
8. Don't use the wipe cloth to clog the margin between the lid and inner cover.
9. There is nonstick coat in the inner pot, so please try to use wooden or plastic spoon in order to avoid abrasion. The inner pot can't be put on the other kitchen range for heating and also it can't be replaced by other vessels.
10. When the exhaust value works, please keep your hand and face away from it and don't touch the lid to prevent from scalding.
11. The cooker is not suitable for children and disables to use, and keep children away from it in the course of using.
12. In case of any abnormal condition, please switch off the power immediately, and contact with us for assistance. Don't disassemble the cooker by yourself, and can't use the other electronic components for replacement. We don't take any responsibilities for the serious consequence resulting from this.
13. If the wire is out of service, please replace it with the special one or contact with us for assistance.
14. It is imperative that the steam discharge pipe of the pressure regulator should be checked regularly in order to make sure that it will not be blocked.

Show code	E1	E2	E3	E4
Fault	sensor cut circuit	sensor short circuit	over temperature	Signal switch failure

G. Common malfunctions and Ways of solving problems

If the following symptom happens in the course of using, it is not completely the problem of our products. Please have a double check before sending it for maintenance.

Symptom	Reason	Methods
The indicator is not on	Haven't switched on the power.	*Please check if there is power or not *Please check if the switch is on or not
Can't close the lid	The gallbladder isn't placed well.	Place the gallbladder well
	The push bar is locked by the float value.	Move the push bar with hand
Can't open the lid	The float value is not down after exhausting the air.	Use chopsticks to press the float value slightly
Leakage of the lid	Didn't close the lid well	Please close the lid well
	Didn't put the seal ring in it	Please put well the seal ring
	There is food particles in the gallbladder	Please clean the seal ring
	There is breakage on the gallbladder	Please change a new one
Leakage of float valve	There is food residue in the small ring of the float valve	Clean small ring of the float valve
	There is breaking on the small ring of the float valve	Please change a new one
The float valve can't go up	The exhaust valve isn't moved to the sealed position.	Place it correctly
	There is not enough food and water	Put enough food and water
	There is breakage on the small ring of the float valve	Contact with us for assistance
Can't make the food ripe or it takes a long time	The cooking time is too short	Proportionally prolong the cooking time
	There's food residue between the inner pan and heating plate	Check abd remove the residue
	The heating plate and inner pan distort	Contact with us for assistance
	The heating plate doesn't work well	Contact with us for assistance
Can't keep warm automatically	The parts for keeping warm is broken	Contact with us for assistance
Feel like electric shock when touching the cover	Leakage of electricity	Contact with us for assistance

If the problems still exist after the above-checking, please contact right away with us. Thank you for your support.

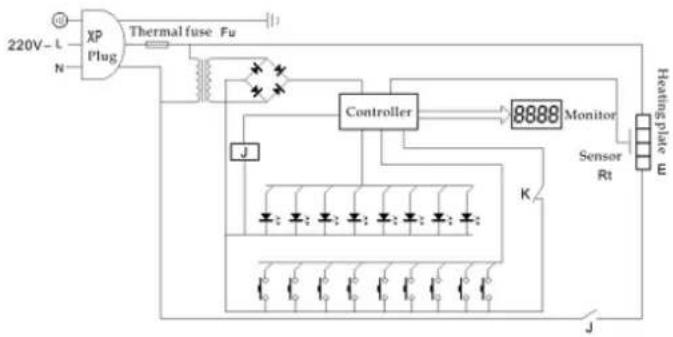

H. Electronic Illustrative Diagram

I. Specification Sheet

Type	Power	Rate	Capa city	Caliber	Working pressure	Limiting pressure	Warm-keeping temperature	Appointment Timing
99206	220V-50Hz	1000W	6L	20cm	0-70k pa	90k pa	60~80°C	1~24hours

Notice:

Thank you choose our electric pressure cooker, it is our honor that you can become our customer. Manual of content only to users to maintenance and reference. This manual maybe you can found the technical or typographical errors, so we will regularly revised handbook. The revised content will be incorporated into the new version. If the change in the information manual, please forgive us without further notice.

f there is difference in the contents of this manual with the purchase of electricity pressure cooker ,the Company reserves the final right to interpret.
