Product type	Heart-shaped waffle maker
Brand	Trebs
Model	13100
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Dimensions (L x W x H)	110 x 195 x 250 mm
Weight	1.4 kg
Capacity	5 waffles
Cooking type	Non-stick plates
Adjustable thermostat	Yes, positions 1 to 5
Indicator lights	Orange (heating) and green (ready)
Material	Metal and plastic
Cleaning	Non-abrasive damp cloth; do not immerse
Safety	Automatic shut-off? Not specified; do not leave unattended
Warranty	24 months (manufacturing defects)
Use	Household use only
Spare parts	Not user-replaceable
Included accessories	None (user manual)
Max temperature	Approximately 200°C (estimate)

Frequently Asked Questions - 13100 TREBS

Why does my waffle maker emit smoke on first use?

This is normal: the heat removes manufacturing residues. Let it heat empty for about 5 minutes, then let it cool and clean the plates with a damp cloth.

How to clean the waffle maker plates?

Unplug the appliance and wait for it to cool. Use a non-abrasive damp cloth. Never use steel wool or scouring pads, as this would damage the non-stick coating.

Can I use an extension cord?

No, it is not recommended to use an extension cord. Plug the waffle maker directly into a wall outlet.

How long does it take to preheat the waffle maker?

Preheating takes about 5 minutes. The indicator light changes from orange to green when the appliance is ready.

How much batter should I use?

Fill the lower plate evenly. Do not pour too much batter to avoid overflow when closing.

Can I use metal utensils to remove the waffles?

No, use non-metallic utensils (wood, silicone) to avoid scratching the non-stick coating.

Does the waffle maker turn off automatically?

No, it does not have automatic shut-off. You must unplug it after use and never leave it unattended.

Can I wash the plates under water?

No, never immerse the appliance in water. Clean only with a slightly damp cloth.

What is the power and voltage of the waffle maker?

Power: 1000 W, voltage: 220-240 V ~ 50/60 Hz.

What should I do if my waffle maker does not heat up?

Check that the outlet works and the cord is not damaged. If the problem persists, contact Trebs customer service.

USER MANUAL 13100 TREBS

Waffle maker heart shaped

Model 13100

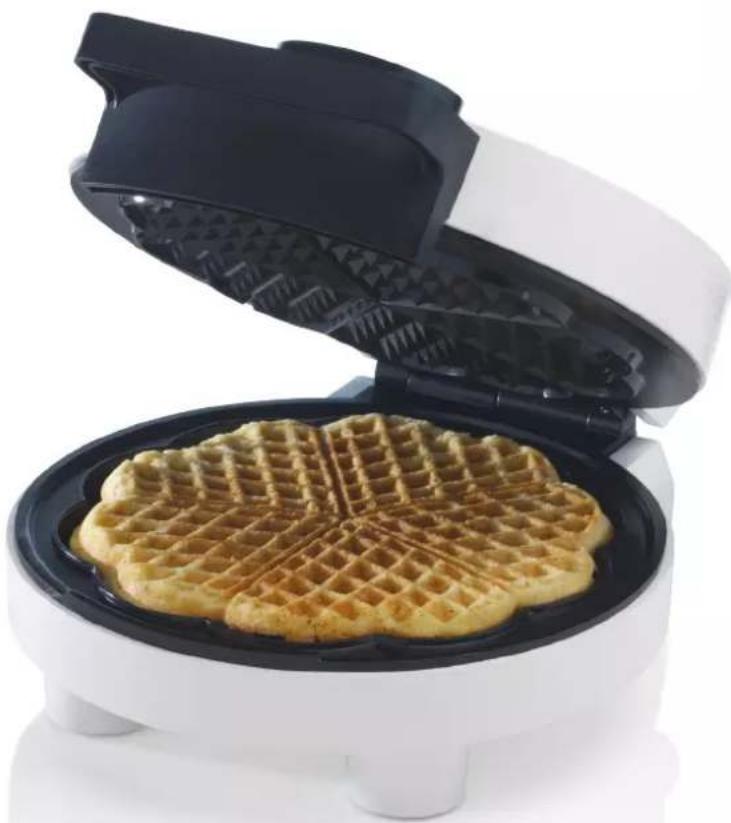

White waffle oven with golden crust and black side panel, no visible text or symbols

Manual waffle maker heart shaped Handleiding wafelijzer hartvormig Bedienungsanleitung Herzwaffeleisen Mode d'emploi pour gaufrier en forme de coeur Manual del máquina para gofres con forma de corazón Macchina per waffle a forma die cuore: manuale d'uso Manual för hjärtformat väffeljärn Kalp şekilli waffle makinesi Kullanma Kilavuzu

Index

English 3

Nederlands 8

Deutsch 13

Français 18

Español 23

Italiano 28

Svenska....33

Türkçe 38

English

IMPORTANT SAFETY REGULATIONS

Please read all safety regulations carefully before using the product.

1. This appliance is intended for use in households and similar areas, any professional usage is considered to be improper use and may result in personal injury or damage to property. Trebs is not liable for damage caused by improper use.
2. Keep the appliance and its cord out of reach of children less than 8 years.
3. Never submerse the appliance in water or any other liquid.
4. Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
5. Do not use the appliance if the plug, main cord or the appliance itself is damaged.
6. Regularly check the cable for any damage. If the cable is damaged, it must be replaced by the manufacturer or supplier. The cable may only be repaired by a qualified person to prevent dangerous situations.
7. No parts of this appliance may be replaced by the user.
8. This product is not suitable for children younger than 8 years old.
9. This product is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or with a lack of knowledge and experience, unless they're under the supervision of or have received instructions regarding the device from a person responsible for their safety.
10. Do not place the appliance on a hot surface and do not let the mains cord come into contact with hot surfaces.
11. Always unplug the appliance when problems occur and during cleaning.
12. Don't use any electrical extension cord for this appliance.
13. Always make sure the appliance is positioned safely on a flat surface before operation.
14. Do not touch plate or cooking area while in operation, these areas are hot.
15. Use the product in a well-ventilated area. Keep at least 10 - 15 centimeters of clear space on all sides of the product to allow for sufficient air circulation.
16. Allow the appliance to be thoroughly cooled before handling the appliance.
17. Do not leave the appliance while it is in operation. This device is not intended to be triggered by an external timer or separate remote control system.

Device

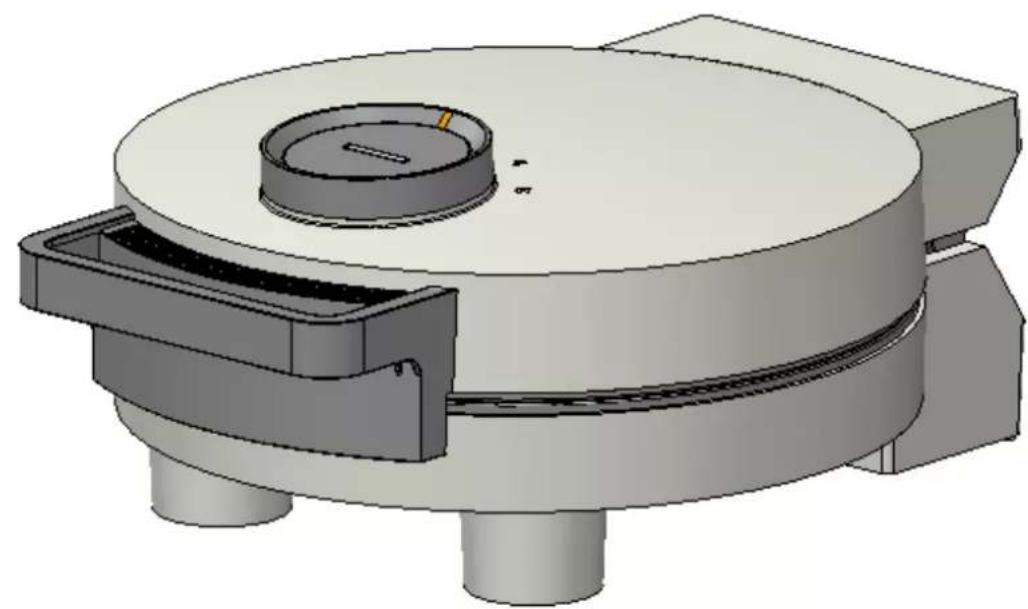

3D CAD model of a mechanical component with cylindrical and rectangular parts, no visible text or symbols

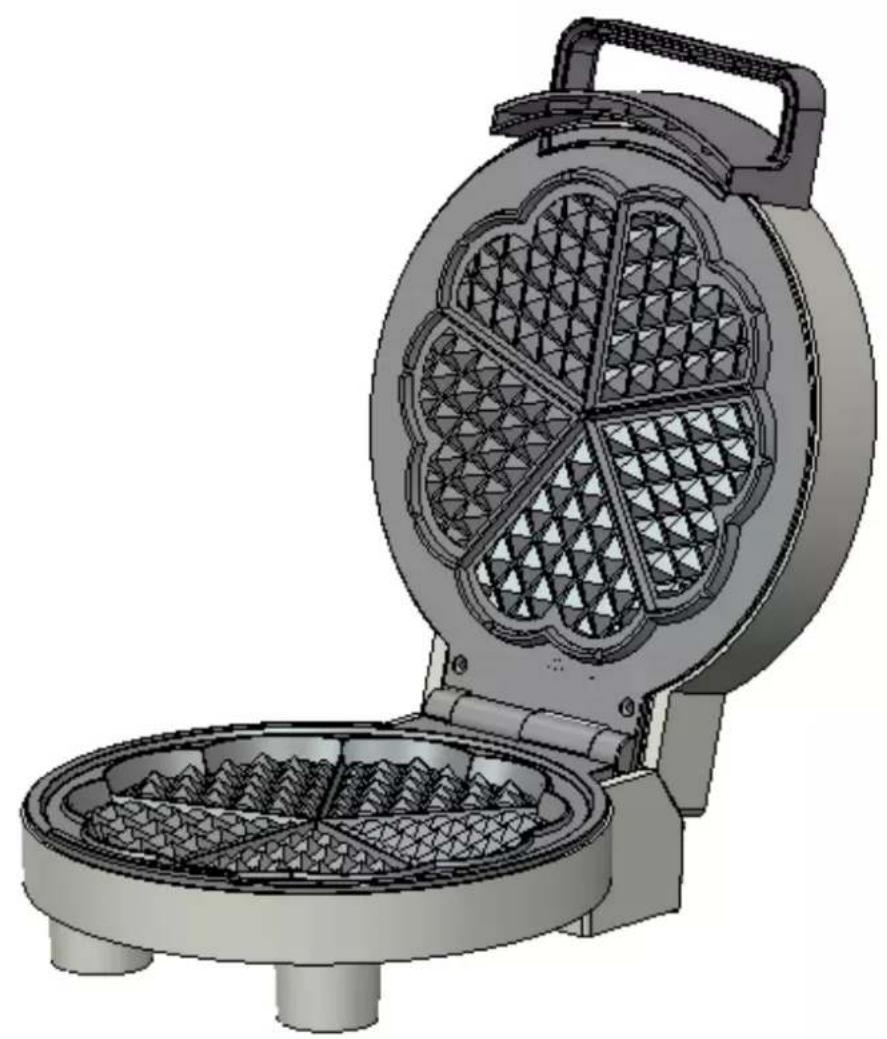

Illustration of a waffle grater with open lid and side panels (no text or symbols)

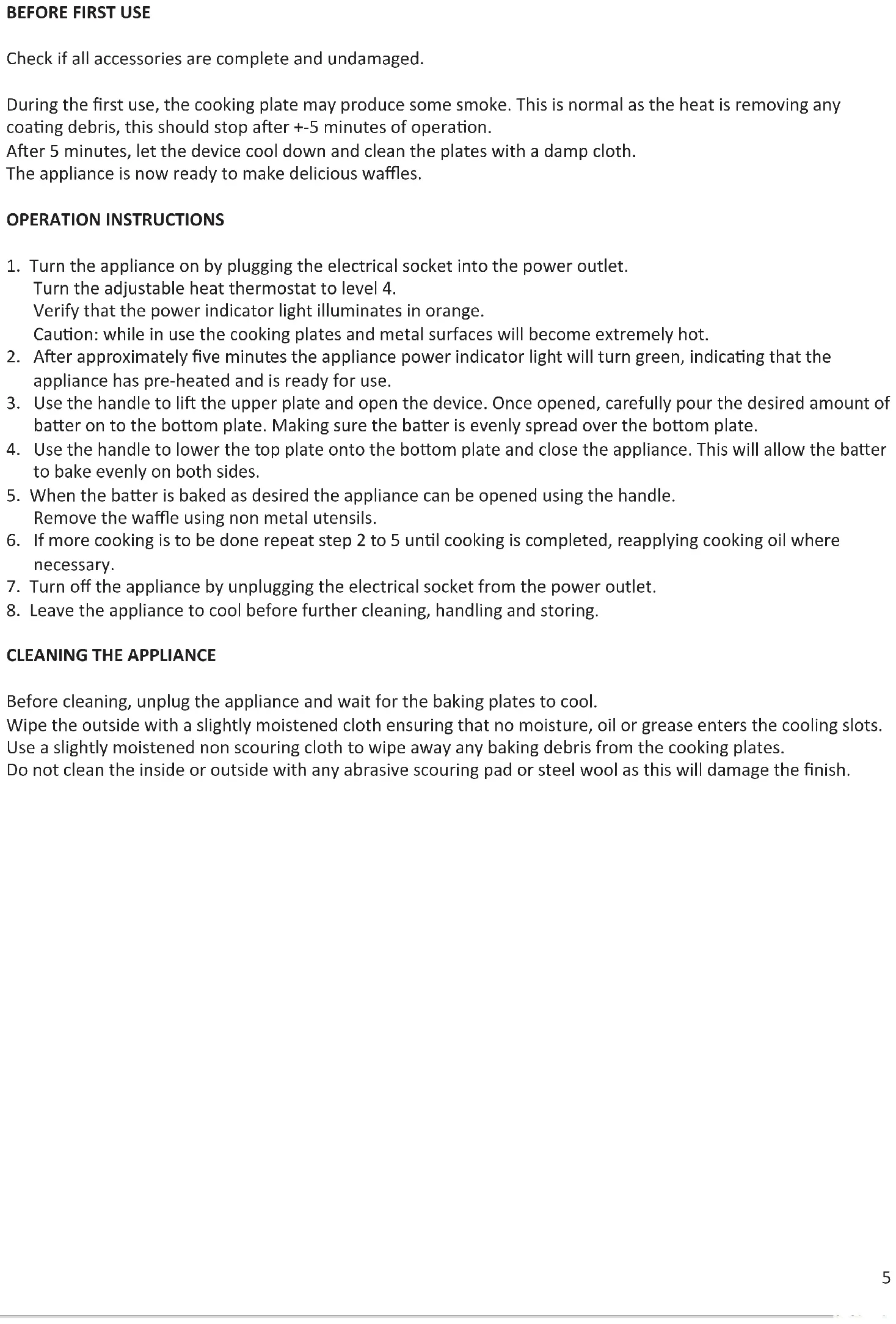

BEFORE FIRST USE

Check if all accessories are complete and undamaged.

During the first use, the cooking plate may produce some smoke. This is normal as the heat is removing any coating debris, this should stop after +-5 minutes of operation.

After 5 minutes, let the device cool down and clean the plates with a damp cloth.

The appliance is now ready to make delicious waffles.

OPERATION INSTRUCTIONS

1. Turn the appliance on by plugging the electrical socket into the power outlet.

Turn the adjustable heat thermostat to level 4.

Verify that the power indicator light illuminates in orange.

Caution: while in use the cooking plates and metal surfaces will become extremely hot.

1. After approximately five minutes the appliance power indicator light will turn green, indicating that the appliance has pre-heated and is ready for use.
2. Use the handle to lift the upper plate and open the device. Once opened, carefully pour the desired amount of batter on to the bottom plate. Making sure the batter is evenly spread over the bottom plate.
3. Use the handle to lower the top plate onto the bottom plate and close the appliance. This will allow the batter to bake evenly on both sides.
4. When the batter is baked as desired the appliance can be opened using the handle.
   Remove the waffle using non metal utensils.
5. If more cooking is to be done repeat step 2 to 5 until cooking is completed, reapplying cooking oil where necessary.
6. Turn off the appliance by unplugging the electrical socket from the power outlet.
7. Leave the appliance to cool before further cleaning, handling and storing.

CLEANING THE APPLIANCE

Before cleaning, unplug the appliance and wait for the baking plates to cool.

Wipe the outside with a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.

Use a slightly moistened non scouring cloth to wipe away any baking debris from the cooking plates.

Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

WAFFLE RECIPE

BASIC WAFFLE RECIPE

Ingredients (Serves 15 waffles)

Self-raising baking flour 250gr

Sugar 250gr

Butter 250gr

Eggs 4 pcs

Instructions

1. Melt the butter, mix in a bowl with the sugar and 4 yolks (save the egg white)
2. Add the self raising baking flour and mix
3. Add the left over egg white and mix until a smooth air filled mixture forms.
4. Fill the hot waffle maker (Green indicator light) with batter, close the lid and wait until golden brown.

RAISIN WAFFLE RECIPE

Ingredients (Serves 10 waffles)

Raisins 100gr

Flour 250gr

Yeast 30gr

Milk lukewarm 3dl

Eggs 4pcs

Granulated sugar 1 Tbs

Melted butter 125gr

Instructions

1. Soak the raisins in water or rum.
2. Put the flour in a mixing bowl, make a dimple in the flour.
3. Add the yeast to the lukewarm milk and add to the flour dimple.
4. Mix the ingredients in the bowl.
5. Add the bit of salt, the eggs, granulated sugar, soaked raisins and the melted butter to the mixing bowl.
6. Mix until a smooth mixture is formed.
7. Proof the mixture until it doubles in size.
8. Fill the hot waffle maker (green indicator light) with batter, close the lid and wait until golden brown.

DISCARDING OLD EQUIPMENT

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable waste.

REMARK

• Use the collection points available in your community and recycle old electric and electronic devices. Contact your town hall, the local waste disposal company or your dealer for more information.
• Make sure that your old device, until it's picked up, is safely stored out of reach of children.

WARRANTY

• We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials.
• Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this.
• The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warrant.
• This device is designed for household use and has the right performance levels.
• Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use.
• In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems.

All possible manufacturing faults must be reported within 14 days of delivery. All further claims are excluded. When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

TECHNICAL DETAILS

-Model: 13100 - Waffle maker heart shaped
-Voltage: 220V-240V; 50/60Hz
-Power consumption: 1000 W
-Capacity: 5 Waffles
-Product dimensions: 110x195x250mm
-Weight: 1.4kg

SERVICE

If you have any further questions regarding the product after having read the user's manual, please contact the Trebs customer service:

CE Regulations

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

CE

Nederlands

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN

3D CAD model of a mechanical component with cylindrical and rectangular parts, no visible text or symbols

Illustration of a waffle grater with open lid and side panels (no text or symbols)

RECEPT VOOR STANDAARD WAFELS

3D CAD model of a mechanical component with cylindrical and rectangular parts, no visible text or symbols

Illustration of a waffle grater with open lid and internal meshing (no text or symbols)

3D CAD model of a mechanical component with cylindrical and rectangular parts, no visible text or symbols

Illustration of a waffle grater with open lid and side panels (no text or symbols)

AVANT LA PREMIÈRE UTILISATION

3D CAD model of a mechanical component with cylindrical and rectangular parts, no visible text or symbols

Illustration of a waffle grater with open lid and internal meshing (no text or symbols)

ANTES DE UTILIZARLO POR PRIMERA VEZ

3D CAD model of a mechanical component with cylindrical and rectangular parts, no visible text or symbols

Illustration of a waffle grater with open lid and internal meshing (no text or symbols)

OPERAZIONI PRELIMINARI

3D CAD model of a mechanical component with cylindrical body and mounting flanges (no text or symbols)

Illustration of a waffle grater with open lid and side panels (no text or symbols)

FÖRE FÖRSTA ANVÄNDNING

RECEPT PÅ VÄFFELSMET

GRUNDRECEPT PÅ VÄFFELSMET

3D CAD model of a mechanical component with cylindrical body and mounting flanges (no text or symbols)

Illustration of a waffle grater with open lid and side panels (no text or symbols)

İLK KULLANIMDAN ÖNCE
