DRC4310 - Rear Camera Pro-User - Free user manual and instructions

Product Type	Wireless Reverse Camera
Brand	Pro-User
Model	DRC4310
Screen Size	12 cm (4.3 inches)
Screen Resolution	480 x 272 pixels
Camera Resolution	640 x 480 pixels
Sensor	CMOS
Lens	F1.7 mm / F2.4
Power Supply	8-28 V DC
Camera Consumption	< 120 mA (without IR); < 170 mA (with IR)
Monitor Consumption (standby)	< 50 mA
Monitor Consumption (active)	< 200 mA
Transmission Frequency	2.4 GHz (ISM band)
Range (free field)	100 m
Operating Temperature	-10°C to +45°C
Warranty	2 years
Box Contents	Monitor with mount, camera with mounting plate, mounting accessories, power cable
Main Functions	Wireless transmission, distance grid, adjustable image orientation, camera-monitor pairing
Installation	Camera on license plate, monitor on windshield or dashboard

Frequently Asked Questions - DRC4310 Pro-User

How to install the camera on the vehicle?

Attach the mounting plate behind the license plate, then screw the camera onto the plate. Route the power cable into the trunk and connect it to the reverse light (positive and negative). Consult a professional if necessary.

How to pair the camera and monitor?

Turn on the monitor, press MENU, select 'PAIR' with the arrows, then confirm with POWER. Then press the rubber button under the camera. 'OK' appears when pairing is successful.

Why does the screen stay black when reverse gear is engaged?

Check that the monitor is on (POWER button) and the blue LED is steady. If it blinks, pairing is lost: repeat the procedure. Also ensure the camera power is properly connected.

How to adjust brightness, contrast, and color?

Press MENU, select 'Screen' with the arrows, confirm with POWER. Use the arrows to choose the setting (brightness, contrast, color), then POWER to adjust. Press MENU to save and exit.

Can I change the image orientation if the camera is installed upside down?

Yes, in the 'Picture direction' menu, press POWER to cycle through possible orientations. The image flips with each press. Press MENU to save.

How to activate the distance grid?

Press the GUIDELINE button on the monitor. The grid toggles on/off with each press. It helps assess distance from obstacles.

What is the power consumption of the system?

The camera consumes less than 120 mA (without IR) or 170 mA (with IR). The monitor consumes less than 50 mA in standby and less than 200 mA in operation. Power supply must be 8-28 V DC.

What to do if the image is blurry or has interference?

Check that the camera is properly oriented and its field of view is clear. Move away from interference sources (phones, GPS, routers). If the problem persists, repeat the pairing.

How to maintain the system?

Clean the screen and camera with a soft dry cloth. Do not use chemicals. Regularly check electrical connections. Do not open the devices as this will void the warranty.

What to do in case of a malfunction?

Contact your dealer or a Pro-User representative with the purchase receipt. The 2-year warranty covers labor and parts. Do not attempt to repair yourself.

USER MANUAL DRC4310 Pro-User

with 12cm / 4.3" monitor

The Pro-User DRC4310 is a member of the family of advanced car back-up systems manufactured by Pro User International Ltd.

The Pro-User Digital Back-up Camera and Monitor with built in transmitter box, when used as described, will improve your ability to see behind your car, camper, trailer, or mini-van. We have taken numerous measures in quality control to ensure that your product arrives in top condition, and will perform to your satisfaction.

Please carefully read and follow the following safety and operating instructions.

IMPORTANT SAFETY INSTRUCTIONS

Before You Install

If you are not confident working with 12V/24V DC vehicle wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, contact the vehicle's manufacturer, or consider having the camera system professionally installed.

Interference

This device is free from interferences coming from Bluetooth, cell phones, Wi-Fi routers, power lines and other various electrical equipment.

Repair

The camera system should not be opened. Any attempt at modification or repair by the user will entail the loss of your guarantee.

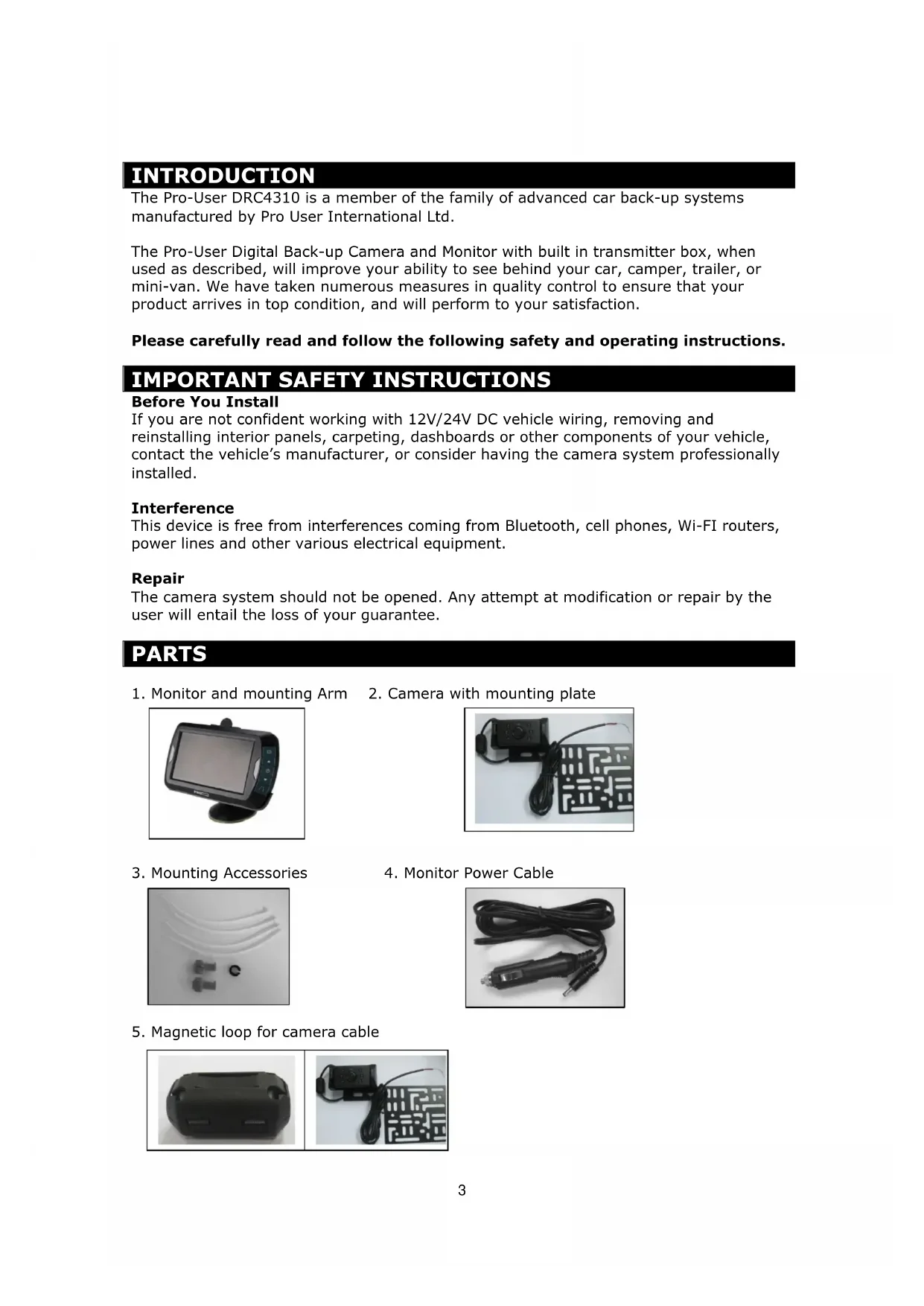

PARTS

1. Monitor and mounting Arm

1. Camera with mounting plate

1. Mounting Accessories

1. Monitor Power Cable

1. Magnetic loop for camera cable

INSTALLATION

These instructions do not apply to all vehicles. They are only meant as a general guide due to the number of different makes & models. For vehicle specific questions contact your vehicle's manufacturer.

Camera installation

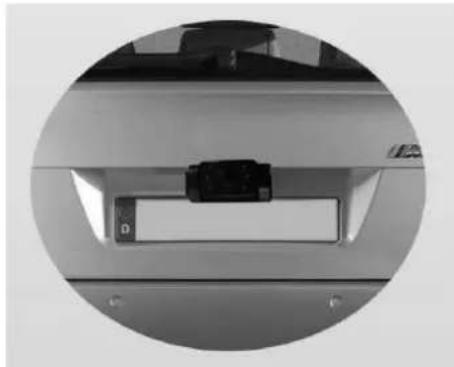

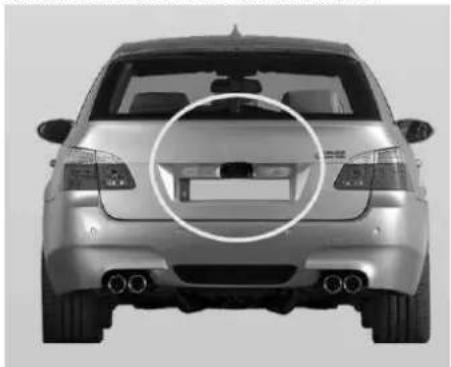

There are several ways to mount the camera on the back of your car. But the most convenient is to mount it near the license plate. Supplied is one mounting plate that can be fixed behind the license plate, and the mounting plate have been installed in the camera.

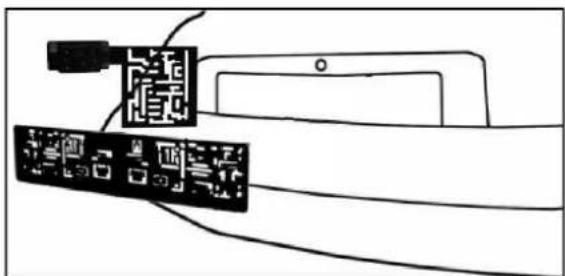

The camera itself is screwed on the mounting plate. The camera is tiltable, camera angle can be adjusted manually on vertical direction. Make sure that its field of view and detection are not obstructed.

With some type of cars it is not possible to mount the camera near the license plate. You may have to find another spot at the back of your car to mount it.

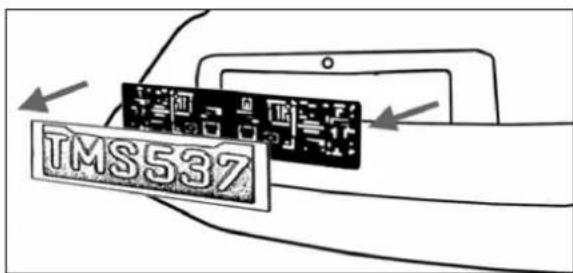

1. Remove the rear license plate, and then loosen the license plate bolts/screws.

1. Position the supplied mounting plates (with camera together) behind the license plate bracket. Secure both license plate bracket and mounting plates with the license plate bracket bolts/screws.

1. Mount the license plate on the license plate bracket.

1. Choose a routing path for the camera's power cable through the vehicle's body to the reverse light circuit. If in doubt, seek professional installation assistance.

2. Some vehicles may have a hole available to pass the wire through, such as where the license plate light is mounted, or you can drill a hole close to where the power cable is attached to the camera. Once you have chosen where the cable will enter the vehicle's body, remove the camera. If you are able to use an existing opening, skip the next two steps.

3. Before you drill a hole you MUST CHECK and see WHAT IS BEHIND WHERE YOU ARE DRILLING. If there are any vehicle components, such as electrical parts or fuel system components behind where you are drilling, you must take whatever precaution is necessary not to damage them. Remove the license plate and camera before drilling.

4. After you have drilled the hole, insert the supplied grommet, then pass the camera cables through the grommet into the vehicle. You must use the grommet to prevent the metal edge of the hole from cutting the camera cable.

5. Next you'll need to find the vehicle's reverse lights. Turn the vehicle's ignition key to the accessory position, engage the parking brake and put the car in reverse. Look at the vehicle's tail lights to see where the reverse lights are located, they are the white lights. To locate the reverse light's 12V / 24V+ wire it will be necessary to gain access to the rear of the vehicle's tail light. For help locating the vehicle's reverse light circuit contact your vehicle's manufacturer for vehicle specific wiring diagrams.

6. Once you have located the reverse light circuit you will have to route the camera cable to that location. You must securely fasten the power cable to prevent it from being caught on any vehicle component such as the trunk hinge. Never route the cable on the outside of the vehicle!

7. The reverse light sockets on most vehicles have two wires connected to them. Usually the negative wire is black and the positive wire is a colored wire. If you are uncertain about the wiring, you can use a 12V/24V multimeter available at most auto parts stores to determine which is the positive wire. Follow the manufacturer's instructions for the safe use of the multimeter.

1. After determining which wire is the positive and which is the negative, turn off the ignition key, then remove the battery's negative cable.

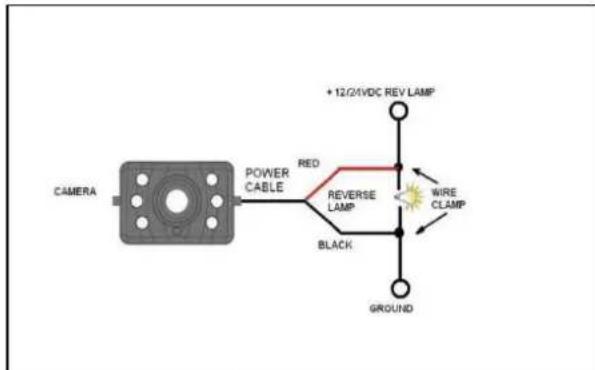

2. Splice the red wire using the supplied in-line wire connectors to the reverse light's positive (+) wire. Use a set of slip joint pliers to squeeze the TAP and insure good connection.

1. Next splice the black wire of the camera power cable to the reverse light's negative (-) wire or ground.
2. Replace the reverse light bulb, and then re-install the light socket. Secure all the wires with cable ties or electrical tape.
3. Re-attach the negative battery cable to the battery.

Monitor Installation

When choosing a location to mount the monitor, make sure the monitor is in an area that will not obstruct your vision while driving.

1. Before mounting the monitor, clean the mounting surface well.
2. Position the suction mount to the smooth surface which suits your requirement.
3. Press the suction cap against the smooth surface and press the lock down to attach and fix the mount to the surface.

Snap in the monitor to the suction mount.

1. Adjust the mounting arms to suit your view angle to the monitor and tighten the screws on the mount to fix the position.

1. Route the power cable to the vehicle's cigarette lighter socket 12V/24V power outlet. The cable must not interfere with the safe operation of the vehicle.
2. Insert the small 12V/24V DC plug of the power cable into the right side of the monitor.
3. Plug the 12V/24V cigarette lighter plug into the vehicle's cigarette lighter socket.
   To maximize the effectiveness of the suction mount, it is recommended that the application be performed under the following conditions:
4. Surface temperature should be between 21 and 38 degrees Celsius.
5. Application below 10 degrees should be avoided.
   Application should not occur in direct sunlight.
   Mounting should be protected from exposure to direct sunlight for a period of 24 hours.

NOTE: UNDER EXTREME BRIGHT LIGHT CONDITIONS, THE SCREEN IMAGE MAY TAKE A FEW SECONDS TO STABILIZE. PLEASE WAIT UNTIL THE IMAGE HAS STABILIZED BEFORE BACKING UP.

System testing

1. Reattach the vehicle's negative battery cable.
2. Turn the ignition key to the accessory position, do not start the vehicle.
3. Engage the parking brake, and then put the shifter in the reverse position.

4. After testing the unit and you are satisfied with the route you have chosen for the cabling, you must permanently install it.

5. Route all wires behind interior panels or under carpeting so they are hidden. Use supplied cable ties to neatly gather any excess wire.

OPERATION

Please always pair the monitor and camera before the 1^st operation, please refer to below "Pairing" step.

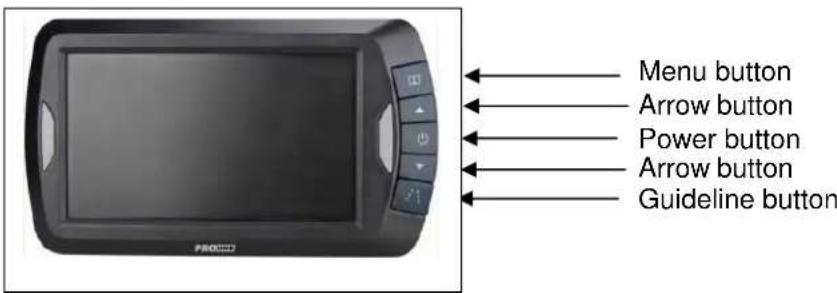

There are 5 control buttons available for users to have their controls:

Power button

Press the POWER button to supply power to the monitor. The picture on the monitor will automatically turn on when the vehicle is in reverse gear (when already paired as described below). When the monitor gets an image, the blue LED will be lit. If there is power to the monitor, but the monitor does not get any image, the blue LED will blink on and off. When the monitor power is off, no picture can appear on the screen and the blue LED will be off.

Menu button

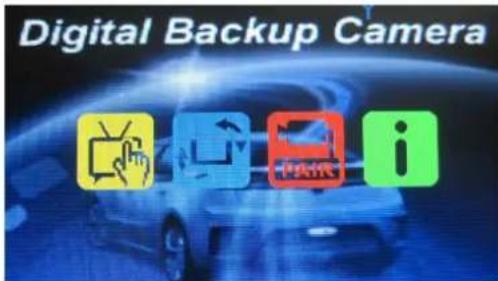

Press the Menu button to enter the menu screen as shown below: Picture SPEC, Picture Direction, Pair, Product Information.

In general please select the desired menu by pressing the arrow buttons and confirm your choice with the Power Button..

Pairing:

Select the "Pair" icon with the arrow buttons and press the Power button. Shortly after please press the rubber button on the bottom of camera until the signal is well received by the monitor and "OK" appears on the screen. The unit will work properly and will automatically pair by itself in the future operation. Press the menu button to exit the selection or it will automatically exit after 30s.

Picture SPEC:

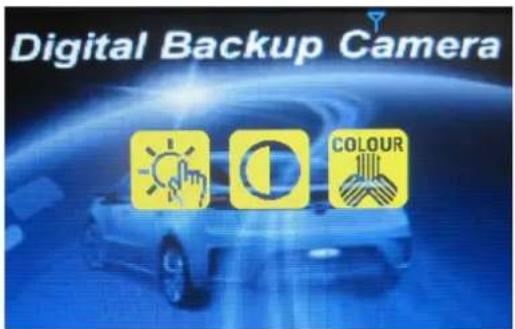

Please chose the menu "Picture Spec" with the arrow buttons and confirm with the Power Button. In this menu you can change brightness, contrast or colour of the picture.

Chose the desired function with the arrow buttons, confirm by pressing the Power button and change the values with the arrow buttons.

To save the settings and exit the screen please press the menu button.

Orientation:

In the Menu "Picture direction" you can change the orientation of the picture. These different views allow you to mount the camera and monitor in any position with keeping the right picture on the monitor. Simply enter the "Picture direction" menu by choosing it and pressing the Power button. The orientation of the picture will change every time pressing the Power button.

To save the settings and exit the screen please press the menu button.

Guideline button

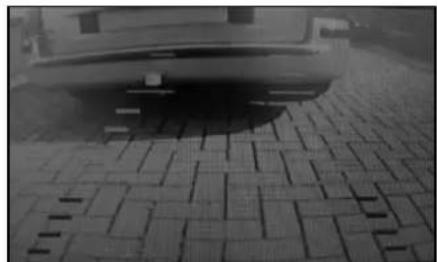

This camera system has the option to show distance-guidelines on the display. This helps you to visually see the distance between the objects behind your car. By pressing the guideline button, you can switch this option on and off.

TECHNICAL SPECIFICATIONS

Camera
Operating Voltage 8-28V DC
Current consumption <120mA(IRLED OFF); <170mA(IRLED ON);
Image sensor CMOS
No. of pixel 640x480
Optical lens F1.7mm / F2.4
Transmission frequency 2.4G (ISM band)
RF transmission distance (open space) 100M
LCD monitor
Operation Voltage 8-28V DC
Standby Current <50mA
Operation Current <200mA
LCD display screen size 12cm / 4.3 inch
No. of pixel 480x272
Operation temperature -10 to +45 degree Celsius

This model may be operated in EU countries.

R&TTE approved CE0560

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

WARRANTY

Pro-User warrants this product for a period of 2 years from the date of purchase to the original purchaser. Warranty is not transferable. Warranty covers defect against workmanship and materials only. To obtain warranty service, please return the unit to the place of purchase or authorized Pro-User dealer together with your proof of purchase. The warranty is void if the product has been damaged or not used as described in this manual. Warranty is void if a non-authorized repair has been performed. Pro-User makes no other warranty expressed or implied. Pro-User is only responsible for repair or replacement (at Pro-Users' Discretion) of the defective product and is not responsible for any consequential damage or inconvenience caused by the defect.
