USER MANUAL APB 100 Pro-User

WIRELESS REAR VIEW CAMERA SYSTEM WITH MIRROR DISPLAY

R&TTE approved CE 0560

CE ！ E2410R-041029

PROUSER

INTRODUCTION

The Pro-User APB100 is member of the family of advanced car Rear view back-up systems manufactured by Pro User International Ltd.

The Pro-User Wireless Rear view Camera System, when used as described, will improve your ability to see behind your car, camper, trailer, or mini-van. We have taken numerous measures in quality control to ensure that your product arrives in top condition, and will perform to your satisfaction.

Please carefully read and follow the following safety and operating instructions.

IMPORTANT SAFETY INSTRUCTIONS

Before You Install

If you are not confident working with 12 volt DC vehicle wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, contact the vehicle's manufacturer, or consider having the camera system professionally installed.

Interference

This device, as well as all other wireless devices, may be subject to interference. Interference may be caused by cell phones, Bluetooth headsets, Wi-Fi routers, power lines and other various electrical equipment, etc.

Repair

The camera system should not be opened. Any attempt at modification or repair by the user will entail the loss of your guarantee.

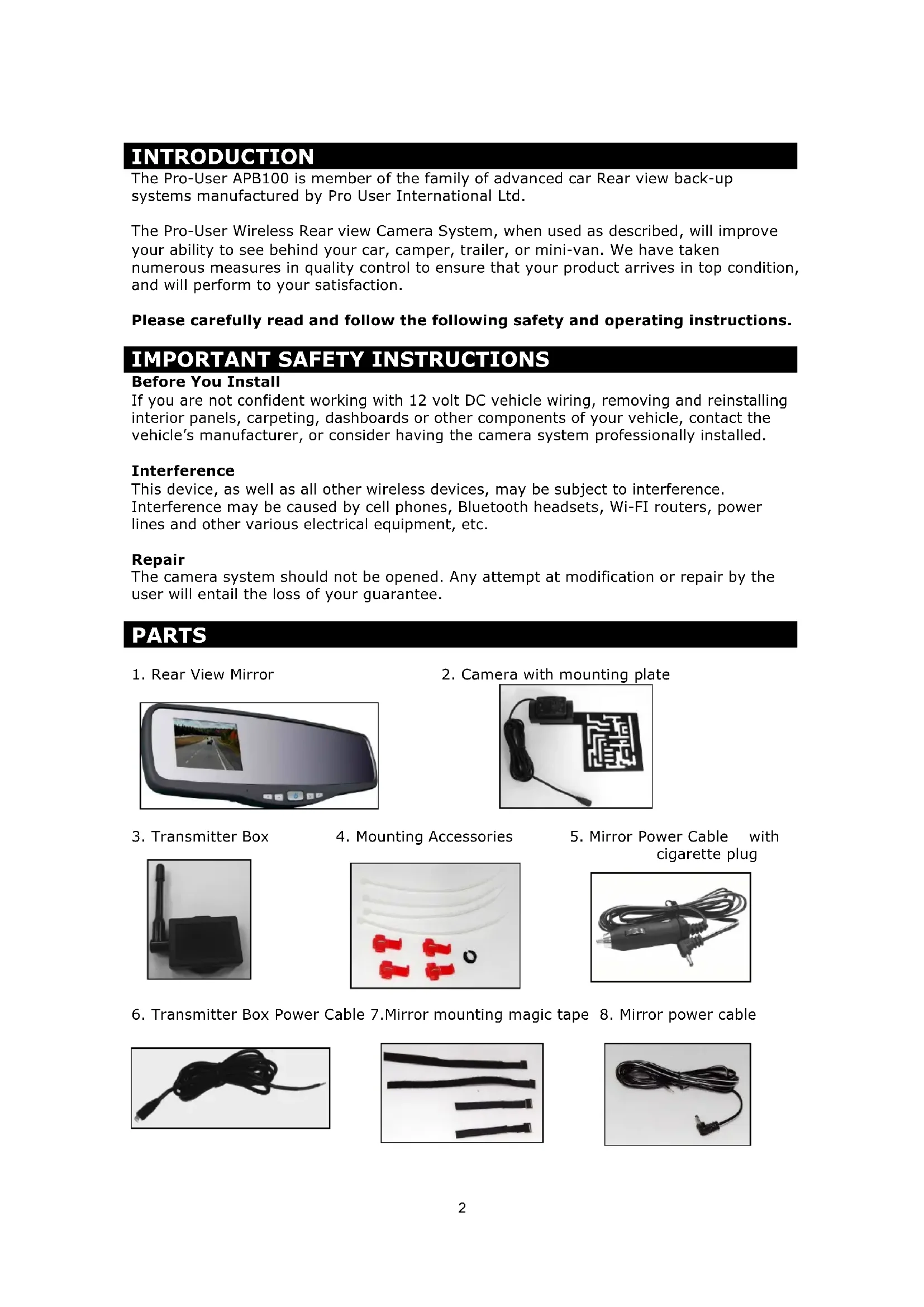

PARTS

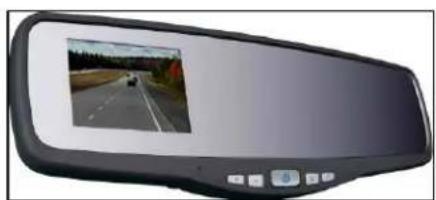

1. Rear View Mirror

1. Camera with mounting plate

1. Transmitter Box

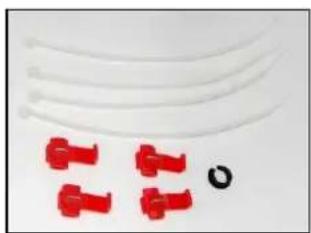

1. Mounting Accessories

1. Mirror Power Cable with cigarette plug

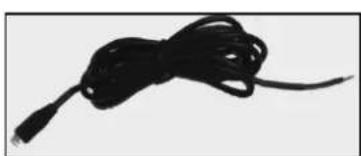

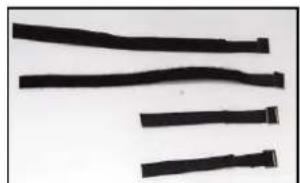

1. Transmitter Box Power Cable 7.Mirror mounting magic tape 8. Mirror power cable

INSTALLATION

These instructions do not apply to all vehicles. They are only meant as a general guide due to the number of different makes & models. For vehicle specific questions contact your vehicle's manufacturer.

Camera installation

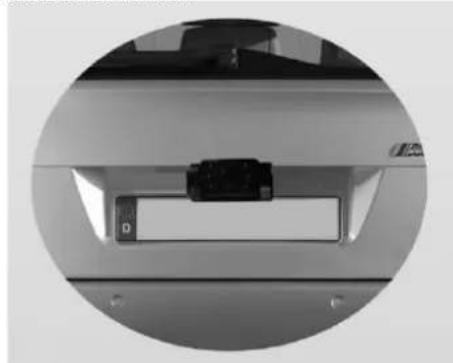

There are several ways to mount the camera on the back of your car. But the most convenient is to mount it near the license plate of the car. Supplied is one mounting plate that can be fixed behind the license plate, and the mounting plate have been installed in the camera.

The camera is tiltable, camera angle can be adjusted manually on vertical direction. Make sure that its field of view and detection are not obstructed.

At some type of cars it is not possible to mount the camera near the license plate. You may have to find another spot at the back of your car to mount the camera.

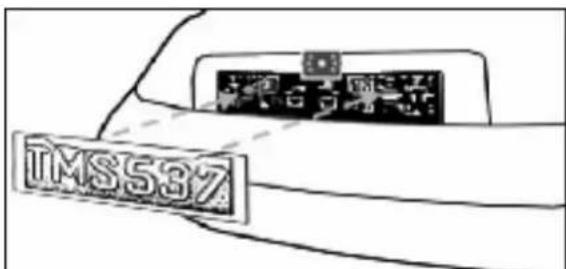

1. Remove the rear license plate, and then loosen the license plate bolts/screws.

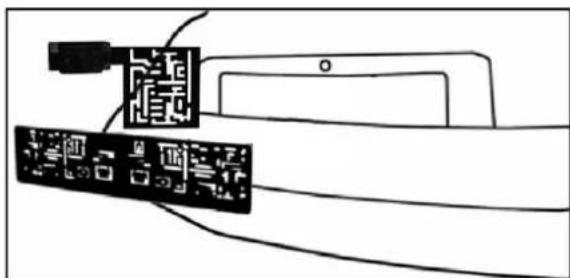

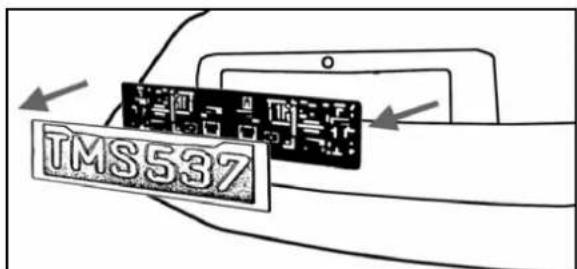

1. Position the supplied mounting plates (with camera together) behind the license plate bracket. Secure both license plate bracket and mounting plates with the license plate bracket bolts/screws.

1. Mount the license plate on the license plate bracket.

1. Choose a routing path for the camera's power cable through the vehicle's body to the reverse light circuit. If in doubt, seek professional installation assistance.

2. Some vehicles may have a hole available to pass the wire through, such as where the license plate light is mounted, or you can drill a hole close to where the power cable is attached to the camera. Once you have chosen where the cable will enter the vehicle's body, remove the camera. If you are able to use an existing opening, skip the next two steps.

3. Before you drill a hole you MUST CHECK and see WHAT IS BEHIND WHERE YOU ARE DRILLING. If there are any vehicle components, such as electrical parts or fuel system components behind where you are drilling, you must take whatever precaution is necessary not to damage them. Remove the license plate and camera before drilling.

4. After you have drilled the hole, insert the supplied grommet, then pass the camera cables through the grommet into the vehicle. You must use the grommet to prevent the metal edge of the hole from cutting the camera cable.

5. Mount the transmitter box inside the trunk. Connect the camera's power cable and the transmitter box power cable to the transmitter box.

6. Next you'll need to find the vehicle's reverse lights. Turn the vehicle's ignition key to the accessory position, engage the parking brake and put the car in reverse. Look at the vehicle's tail lights to see where the reverse lights are located, they are the white lights. To locate the reverse light's 12V+ wire it will be necessary to gain access to the rear of the vehicle's tail light. For help locating the vehicle's reverse light circuit contact your vehicle's manufacturer for vehicle specific wiring diagrams.

7. Once you have located the reverse light circuit you will have to route the transmitter box power cable to that location. You must securely fasten the power cable to prevent it from being caught on any vehicle component such as the trunk hinge. Never route the cable on the outside of the vehicle!

8. The reverse light sockets on most vehicles have two wires connected to them. Usually the negative wire is black and the positive wire is a colored wire. If you are uncertain about the wiring, you can use a 12 volt multimeter available at most auto parts stores to determine which is the positive wire. Follow the manufacturer's instructions for the safe use of the multimeter.

9. After determining which wire is the positive and which is the negative, turn off the ignition ke

10. Splice the red wire using the supplied in-line wire connectors to the reverse light's positive (+) wire. Use a set of slip joint pliers to squeeze the TAP and insure good connection.

1. Next splice the black wire of the transmitter box power cable to the reverse light's negative (-) wire or ground.
2. Replace the reverse light bulb, and then re-install the light socket. Secure all the wires with cable ties or electrical tape.
3. Re-attach the negative battery cable to the battery.

Rear View Mirror Installation

When mounting the mirror, please double check the width of your car's rear view mirror ≤slant 80mm to avoid cannot be installed.

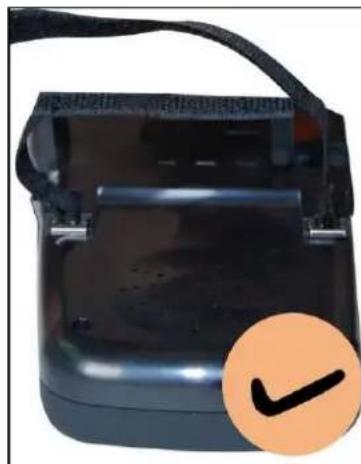

1. Place the spring loaded top clips underneath the car's existing rear view mirror.

1. Press down the mirror extend the bottom clips, then tilt the mirror towards the existing rear view mirror.

1. Left the spring loaded

clips close around the mirror.

Adjust the Rear View Mirror

for the best rear view.

1. Tighten the magic tape to fix the position.

Remark: Please make sure the male and female of the magic tape are matched perfectly before you connect the metal buckle of the magic tape to the main unit, once you connect them, you can not pull the metal buckle out.

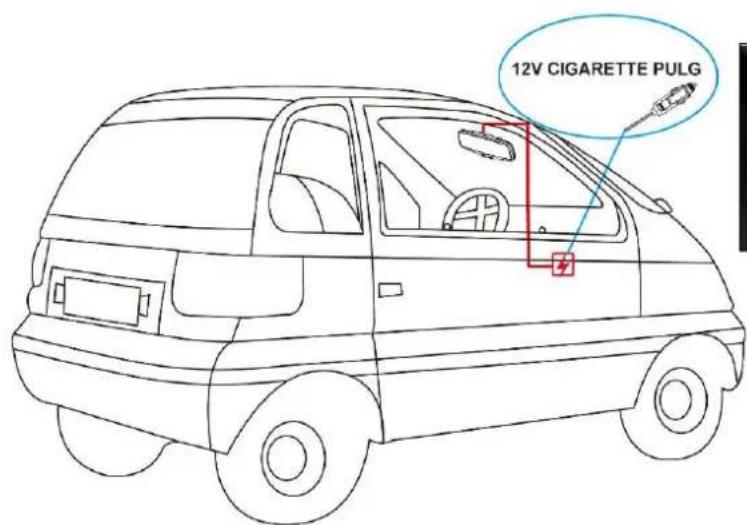

1. Choose a Location and Install Power Cable as below alternative methods showed in the pics:
   a. Choose a location on windshield or dashboard of your car, where does not obstruct your vision.

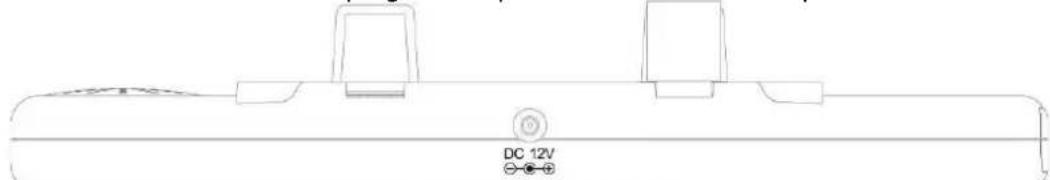

   b. Insert the small 12 Volt DC plug of the power cable into the top of the mirror.

c. Connect the Cigarette DC plug cable (provided) with the cigarette lighter socket/12V power outlet of vehicle.

Remark: The cable must not interfere the safe operation of the vehicle.

APB100 DIY INSTALLATION

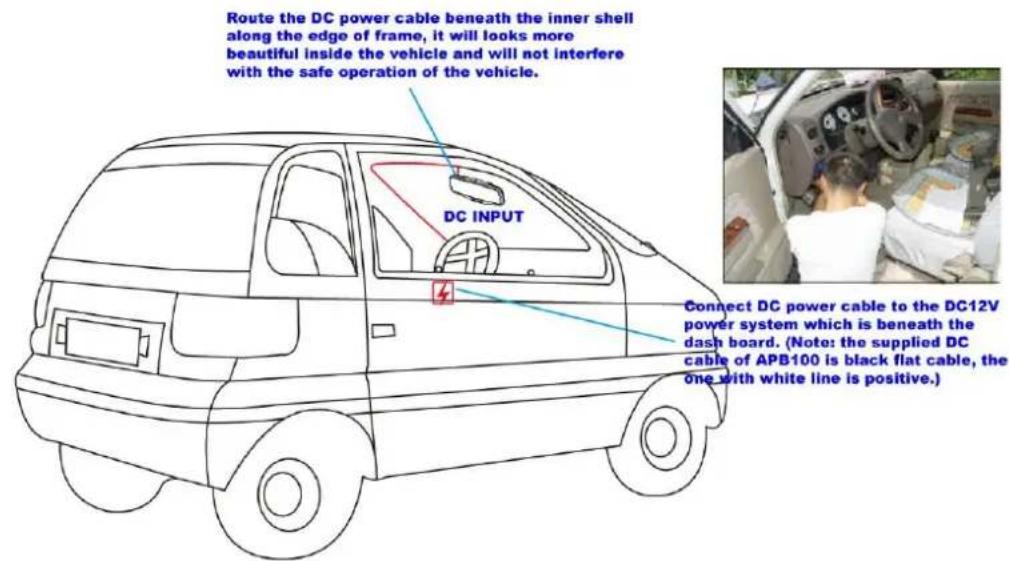

APB100 PROFESSIONAL INSTALLATION

For professional installation, refer to the illustration above, if doubt please seek professional assistant.

NOTE: UNDER EXTREME BRIGHT LIGHT CONDITIONS, THE SCREEN IMAGE MAY TAKE A FEW SECONDS TO STABLIZE. PLEASE WAIT UNTIL THE IMAGE HAS STABLIZED BEFORE BACKING UP.

System testing

1. Reattach the vehicle's negative battery cable.
2. Turn the ignition key to the accessory position, do not start the vehicle.
3. Engage the parking brake, and then put the shifter in the reverse position.

After testing the unit and you are satisfied with the route you have chosen for the cabling, you must permanently install it.

Route all wires behind interior panels or under carpeting so they are hidden. Use supplied cable ties to neatly gather any excess wire.

OPERATION

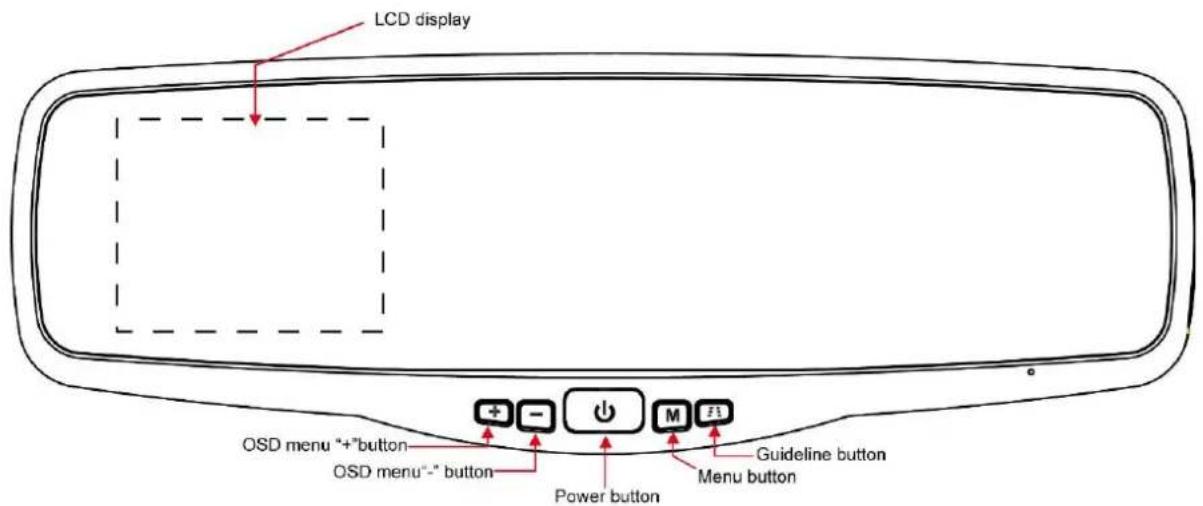

The mirror will automatically turn on when the vehicle is in reverse gear. There are 5 control buttons available for users to have their controls:

Power button

Press the POWER button to supply power to the mirror. When the mirror image is on, the blue LED(beneath the power button) will be off. If there is power to the mirror, but the mirror image is OFF, the blue LED will on. When the monitor power is off, no picture can appear on the screen and the blue LED will be off.

Menu button

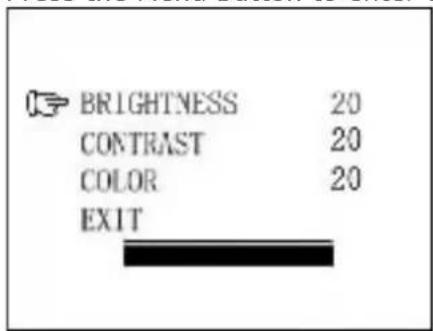

Press the Menu button to enter the menu screen as shown below:

Repeat pressing the Menu button to select Brightness, contrast or colour of the picture.

Press the + button or - button to adjust settings within the control selected. Press the + button to increase the value and press the - button to decrease the value.

To exit the menu screen, select exit on the screen using the MENU button and press either + or - to exit the menu screen.

Guideline button

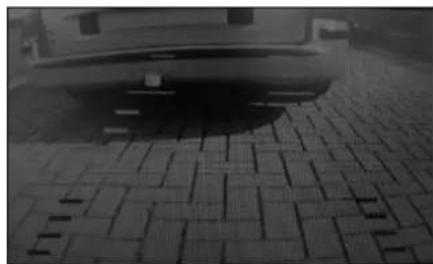

The unit has the option to show distance-guidelines on the display. This helps you to visually see the distance between the objects behind your car. By pressing the guideline button, you can switch this option on and off.

TECHNICAL SPECIFICATIONS

Camera
Operating Voltage	5V DC
Current consumption(include transmitter box)	<160mA
Image sensor	CMOS
No. of pixel	640x480
Resolution (Horizontal)	>330 TVL
Optical lens	2,4mm / F2,1
Wireless transmitter
Transmission frequency	2414MHz
RF transmission distance (open space)	>80M
LCD monitor
Operation Voltage	12V DC
Standby Current	<70mA
Operation Current	<350mA
LCD display screen size	8,9cm / 3,5inch
No. of pixel	320x240
Operation temperature	-10 to +45 degree Celsius

R&TTE approved

CE

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

WARRANTY

Pro-User warrants this product for a period of 2 years from the date of purchase to the original purchaser. Warranty is not transferable. Warranty covers defect against workmanship and materials only. To obtain warranty service, please return the unit to the place of purchase or authorized Pro-User dealer together with your proof of purchase. The warranty is void if the product has been damaged or not used as described in this manual. Warranty is void if a non-authorized repair has been performed. Pro-User makes no other warranty expressed or implied. Pro-User is only responsible for repair or replacement (at Pro-Users' Discretion) of the defective product and is not responsible for any consequential damage or inconvenience caused by the defect.
