| Product type | Cordless reciprocating saw (sabre saw) |
| Brand | Stanley |
| Model | FME365 |
| Power supply | Corded, 230 V, 50/60 Hz |
| Power | 1050 W |
| No-load speed | 0 - 3500 strokes/min (SPM) |
| Maximum blade length | 305 mm |
| Weight | 3.5 kg |
| Sound pressure level (LpA) | 87 dB(A), uncertainty K=3 dB(A) |
| Sound power level (LWA) | 98 dB(A), uncertainty K=3 dB(A) |
| Vibrations (cutting boards) | 14.7 m/s², uncertainty K=1.5 m/s² |
| Vibrations (cutting wooden beams) | 15.8 m/s², uncertainty K=1.5 m/s² |
| Protection class | Double insulation (class II) |
| Materials that can be cut | Wood, metal, plastic |
| Orbital movement function | Yes, pendulum selector (straight line or elliptical) |
| Adjustable shoe | Yes, to adjust cutting depth |
| Variable speed | Yes, speed selector |
| Blade change system | Tool-less, rotating collar |
| Cable length | Approximately 3 m |
| Warranty | 12 months (professional), statutory warranty for consumers |
| Maintenance | Clean ventilation slots with a soft brush, clean motor compartment with a damp cloth |
Frequently Asked Questions - FME365 STANLEY
User questions about FME365 STANLEY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual FME365 - STANLEY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FME365 by STANLEY.
USER MANUAL FME365 STANLEY

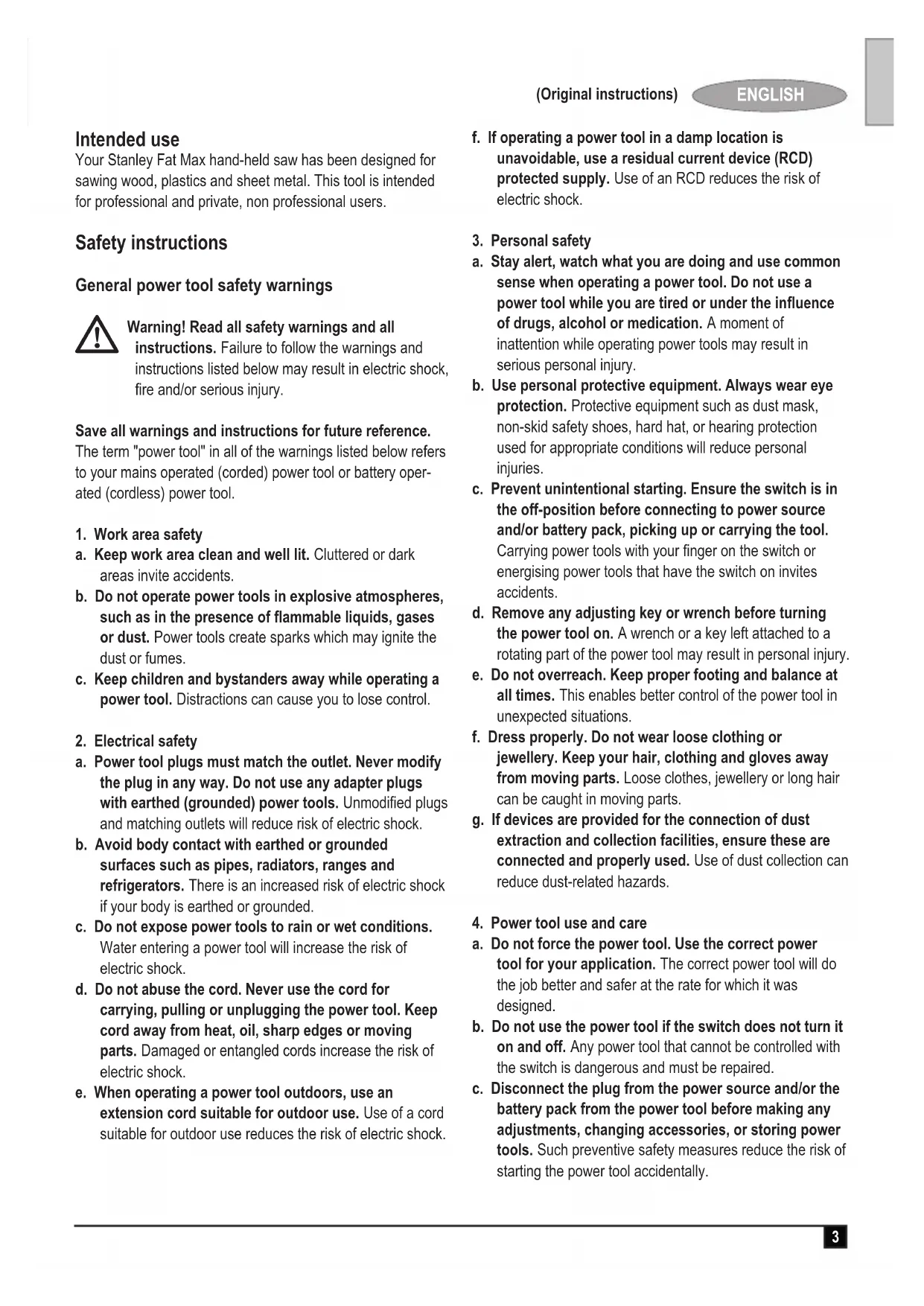

Your Stanley Fat Max hand-held saw has been designed for sawing wood, plastics and sheet metal. This tool is intended for professional and private, non professional users.
Safety instructions
General power tool safety warnings
Warning! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Additional power tool safety warnings
Warning! Warning! Additional safety warnings for hand-held saws.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
- Keep hands away from cutting area. Never reach underneath the work piece any reason. Do not insert fingers or thumb into the vicinity of the reciprocating blade and blade clamp. Do not stabilize the saw by gripping the shoe.
Keep blades sharp. Dull or damaged blades may cause the saw to swerve or stall under pressure. Always use the appropriate type of saw blade for the workpiece material and type of cut.
When cutting pipe or conduit, make sure that they are free from water, electrical wiring, etc.
Do not touch the workpiece or the blade immediately after operating the tool. They can become very hot.
Be aware of hidden hazards, before cutting into walls, floors or ceilings, check for the location of wiring and pipes.
The blade will continue to move after releasing the switch. Always switch the tool off and wait for the saw blade to come to a complete standstill before putting the tool down.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.
Safety of others
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Residual risks.
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:
Injuries caused by touching any rotating/moving parts.
Injuries caused when changing any parts, blades or accessories.
Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
Impairment of hearing.
Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)
Vibration
The declared vibration emission values stated in the technical data and the declaration of conformity have been measured in accordance with a standard test method provided by EN 60745 and may be used for comparing one tool with another. The declared vibration emission value may also be used in a preliminary assessment of exposure.
Warning! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used. The vibration level may increase above the level stated.
When assessing vibration exposure to determine safety measures required by 2002/44/EC to protect persons regularly using power tools in employment, an estimation of vibration exposure should consider, the actual conditions of use and the way the tool is used, including taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time.
Labels on tool
The following pictograms are shown on the tool:
Warning! To reduce the risk of injury, the user must read the instruction manual.
Electrical safety
is tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised Stanley Fat Max Service Centre in order to avoid a hazard.
Using an extension cable
Always use an approved extension cable suitable for the power input of this appliance (see technical data). The extension cable must be suitable for outdoor use and marked accordingly. Up to 30m of 1.5mm2 HO5VV-F extension cable can be used without loss of product performance. Before use, inspect the extension cable for signs of damage, wear and ageing. Replace the extension cable if damaged or defective. When using a cable reel, always unwind the cable completely.
Features
This tol includes some or all of the following features.
- Adjustable shoe
- Blade clamp collar
- Pendulum selector switch
- Variable speed on/off switch
- Shoe release button
Assembly
Warning! Before attempting any of the following operations, make sure that the tool is switched off and unplugged and that the saw blade has stopped. Used saw blades may be hot.
Fitting the saw blade (fig. B)
Hold the tool away from the body
Rotate the blade clamp collar (2).
Insert the shank of the blade (6) fully into the blade clamp collar (2).
Release the blade clamp collar (2) to lock the blade into position
Note: The blade can be installed with the teeth up to assist in flush cutting
Removing the saw blade (fig. B)
Warning! Burn hazard: Do not touch the blade immediately after use. Contact with the blade may result in personal injury.
Rotate the blade clamp collar (2) to the release position
Remove blade (6)
Adjustable shoe (fig. C)
The shoe (1) will adjust to limit the depth of cut.
Press the shoe release button (5)
Slide the shoe (1) to the desired position
Warning! To prevent loss of control, never use tool without shoe.
Use
Switching on and off (fig. D)
The variable speed on/off switch offers a choice of speeds for greatly improved cutting rates in various materials.
To switch the tool on, squeeze the variable speed on/off switch (4).
To switch the tool off, release the variable speed on/off switch (4).
Pendulum action selector (fig. E)
The FME365 has dual blade motion: straight reciprocating motion or orbital motion.
Straight reciprocating motion is used for all metal cutting operations and for wood cutting applications where finish is more important than speed.
To set the saw for straight reciprocating motion, turn the selector to the position marked
Orbital motion is used for fast cutting of wood.
To set the saw for orbital action, turn the selector to the position marked
Sawing (fig. A)
Always hold the tool with both hands.
Let the blade run freely for a few seconds before starting the cut.
Apply only a gentle pressure to the tool while performing the cut.
If possible, work with the shoe (1) pressed against the workpiece. This will improve tool control and reduce tool vibration, as well as prevent the blade from being damaged.
Hints for optimum use
Sawing wood
Clamp the workpiece securely and remove all nails and metal objects.
Holding the tool with both hands, work with the shoe (1) pressed against the workpiece.
Flush cutting
The compact design of the reciprocating saw motor housing and pivoting shoe permit close cutting to floors, corners and other difficult areas.
To maximize flush cutting capabilities:
Insert the blade shaft into the blade clamp with the teeth of the blade facing up.
Turn the saw upside down so you are as close to the work surface as possible.
Sawing metal
Be aware that sawing metal takes much more time than sawing wood.
Use a saw blade suitable for sawing metal. Use a fine-tooth saw blade for ferrous metals and a coarser saw blade for non-ferrous metals.
- When cutting thin sheet metal, clamp a piece of scrap wood to the back surface of the workpiece and cut through this sandwich.
Spread a film of oil along the intended line of cut.
Pocket cutting in wood
Measure and mark the required pocket cut.
Fit a saw blade suitable for pocket cutting.
Rest the shoe (1) on the workpiece in such a position that the blade forms an appropriate angle for the pocket cut.
Switch on the tool and slowly feed the blade into the workpiece. Make sure that the shoe (1) remains in contact with the workpiece at all times.
Cutting branches
Branches up to 25mm in diameter can be cut with this tool.
Warning! Do not use the tool while in a tree, on a ladder or on any other unstable surface. Be aware of where the branch will fall.
Cut downward and away from your body.
Make the cut close to the main branch or tree body.
Vertical cutting
The tool allows close cutting to corners and other difficult areas.
Insert the shank of the saw blade into the blade holder with the teeth of the blade facing upward.
Hold the tool with the shoe (1) facing downward so that you are as close to the work surface as possible.
Cut forward and away from your body.
Accessories
The performance of your tool depends on the accessory used. Stanley Fat Max accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.
Blades
The saw will accept a blade up to 305 mm long. Always use the shortest blade suitable for your project but long enough to keep the blade cutting through the material. Longer blades are more likely to be bent or damaged during use. During operation some longer blades may vibrate or shake if the saw is not kept in contact with the workpiece.
Maintenance
Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning
Warning! Before performing any maintenance on corded/ cordless power tools:
Switch off and unplug the appliance/tool.
Regularly clean the ventilation slots in your appliance/tool/ charger using a soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
Mains plug replacement (U.K. & Ireland only)
If a new mains plug needs to be fitted:
Safely dispose of the old plug.
Connect the brown lead to the live terminal in the new plug.
Connect the blue lead to the neutral terminal.
Warning! No connection is to be made to the earth terminal. Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 10 A.
Protecting the environment
Separate collection. This product must not be disposed of with normal household waste.
Should you find one day that your Stanley Fat Max product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.
Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
Stanley Europe provides a facility for the collection and recycling of Stanley Fat Max products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local Stanley Europe office at the address indicated in this manual. Alternatively, a list of authorised Stanley Europe repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com
Technical data
| FME365 (Type 1) | ||
| Input voltage V | ∞ | 230 |
| Power input | W | 1050 |
| No-load speed (SPM) min | 0 - 3500 | |
| Max. blade length | mm | 305 |
| Weight kg | 3.5 |
| \( {\mathrm{L}}_{\mathrm{{pa}}} \) (sound pressure) \( {87}\mathrm{\;{dB}}\left( \mathrm{\;A}\right) \) ,Uncertainty (K) 3 dB(A) |
| \( {\mathrm{L}}_{\mathrm{{wa}}} \) (sound power) \( {98}\mathrm{\;{dB}}\left( \mathrm{\;A}\right) \) ,Uncertainty (K) \( 3\mathrm{\;{dB}}\left( \mathrm{\;A}\right) \) |
| Vibration total values (triax vector sum) according to EN 60745: |
| Cutting wooden boards \( \left( {a}_{s}\right) {14.7}\mathrm{\;m}/\mathrm{s} \) ,uncertainty (K) \( {1.5}\mathrm{\;m}/\mathrm{s} \) |
| Cutting wooden beams \( \left( {a}_{w}\right) {15.8}\mathrm{\;m}/\mathrm{s} \) ,uncertainty (K) \( {1.5}\mathrm{\;m}/\mathrm{s} \) |
EC declaration of conformity MACHINERY DIRECTIVE
FME365
Stanley Europe declares that these products described under
"technical data" are in compliance with: 2006/42/EC, EN 60745-1, EN 60745-2-11
These products also comply with Directive 2004/108/EC and 2011/65/EU. For more information, please contact Stanley Europe at the following address or refer to the back of the manual.
The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Stanley Europe.
Kevin Hewitt
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgium
29/01/2013
Guarantee
Stanley Europe is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
ONE-YEAR FULL WARRANTY
If your Stanley Fat Max product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, Stanley Europe guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:
The product has not been misused and has been used in accordance with the instruction manual.
The product has been subject to fair wear and tear;
Repairs have not been attempted by unauthorised persons:
Proof of purchase is produced.
The Stanley Fat Max product is returned complete with all original components
If you wish to make a claim, contact your seller or check the location of your nearest authorised Stanley Fat Max repair agent in the Stanley Fat Max catalogue or contact your local Stanley office at the address indicated in this manual. A list of authorised Stanley Fat Max repair agents and full details of our after sales service is available on the internet at: www.stanley.eu/3
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat 14-18,
2800 Mechelen, Belgien
29/01/2013
Garantie
GARANTIE TOTALE UN AN
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgio
29/01/2013
Garanzia
Opening zagen in hout
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgie
29/01/2013
Garantie
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgien
29/01/2013
Garanti
ETT ARS FULL GARANTI
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgia
29/01/2013
Garanti
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat14-18,
2800 Mechelen, Belgien
29/01/2013
Garanti
Vice-President Global Engineering
Stanley Europe, Egide Walschaertsstraat 14-18,
2800 Mechelen, Belgium
29/01/2013
Takuu
H eueia nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnne
Ia puOmuon Tns oEvac Oe EuOeia PaAloevn Kivnon, TEpiotpeyete Tov EIIAOyea OTN OeON Nou Fepei To
H naiivdpouikk kivonxpoioiieitai yia tnv konn gauou.
Ia puOuion Tns Oeyac OE TaaivDpouiK kivon, TEpiotpeyete Tov EIIayea OTN OeON Tnou opei To 0
Pioviogia (EIK.A)
NaVtvaKpataTeToepyaaEioKaIeTaDuo xepia.
ApnoTe Tn Aupa va KivnEi EeUeepa Yia Aiya 6eutepeoAETTTIPOTOU EKIVnOETNKVOTIN.
Katá tvv ekTeAeOtn ts Kottns, εφapuOcTe μovo μikpn TIEO nTo epyaAeo.
Eav evai duvato, epyaoteite etoi wote to nediAo (1) va TIEZEI EINAVW OTO AVIKIeVc. KATI TEOIO BELIWVEI TOV EAEYxo Tou epyaieou kai eiwvei TIG Dovnoeic, ETIONC TPOOTATEUEI TIV NPIOVOAma aio ZnuiEc.
Koipko kovtao e tnpaveia
O ouptaync oxediaouoc tou TepiBnpatos tns
Taalipoikncs eyaac kai Tepiotpepoevo Tediolo
ETITpTTOUV TO Koiuio Kovtae datteda, ywviec kai aAae
DuaKoae Tepioxec.
Ia va jeviototoinoete TIC IKAVOTNECS KOTINK OVTa OE ETTiPaveIEC:
Eioayayete to oWma Tpiovolamae oOa OTO OphiKtnpa Tpiovolamae ta dovtia va 8entouv npoc ta eTavw.
TupioTe Tn oEya avantooba etoI wote va TAnoiAcTe oOTo duvato tv EtniPaveia epyaOiaC.
Pniovioua eTalau
Na 5epTe oTI TO pioviOma eTALou PAipVEI TLOU TAPaTAVW xpovo aTO pioviOma Eulou.
Xpnoiopoioite iia pirovoala kataaann yia to
piovma eTaalou. Xpnoiopoioite iia pirovoala a
AeTTa dovtia yia oIbnpouxa metaa kai ia TIO xovtpn
pirovoala yia un oIbnpouxa metaa.
Otav KoBETe AETTtA metaAIA kEAAOpa, OTEPEWOTe E To opiyKTnpa eva KOpMaTI axpOnTOU uAUo OTNv TIOw ETIqaveia TOU AVTIKEIeVou UTO ETEEpyaOia KAI KOyTe AVaMeOa OE AUTO TO aAVTOUIc.
AIIwote eva aeTTO Otpwa laoiou kata uKoc ts ypaunnc TOU OKOTUEVE VA Koyete.
KópsiO eYkOTIWv ΕeIuO
Metrhoote kai onuaedeiyte nvy aataouueyn ekyotn konnc.
ToTIOeTnOtemu TpioVoaqa KaTAAAnyia KoiupeyKoTTv.
AkouptnoTe TnEIO (1) OTO TEpaxio EpyaiaC OE Tetoia
Theon Wote n TpiovolaVa va Oxnuatiei KataalAn ywvia
Yia To Koiipo Tns EyKoTnS.
Evpyoioe To epyaieo kai apya eiaayayte TnV piovoala oTo Teuxo epyaicac. Bebaiwthe 01 to Tiedilo (1) npaevei ouxwoc Etnapn Me To Teuxo epyaiac.
KoTn klaaiov
Me To epyaIeio auto mtopeite va koyete Klaia a E diaetpo expi 25 mm.
Ppoeiobtoinon! Mn xnpoiotoiite to evyaieio evw Bpiokote navw oE devtro, oe kala n oe otioahtnote aaan aotaoh etipaveia. Exete utouyn oac tny kateuohuvon TpoC tvnoia 0a neoi to klaoi.
KoβeTe TTPOc Ta KAtW Kai paKpiαnto oμaσac.
Ipaayatotoinote TIGOTEC Kovt aOTo Kupio klaa i oTov Kopu tod evtpu.
Katakópuo kópsi
To epyaieio eTTIeTIeI TO Koipmo KovTa OE ywvieC kai aaaa duokola onueia.
Eioayayete to otExoc tsnpovolapaac eoa otny UTOOxH TcL aapac me ta dovtia va BAnouv Ppoc Ta ETTAVW.
KpatnoTe to epyaIeio eTo TneIao (1) va BaeTIE Ippoc Ta KATW ETOI WATE VA TAnoiAoTE OoO To Duvato TnV EtIqAveia epyaOiaC.
KoBTe TPOC Ta EPTPOC KAI paKpia aT0 to Owpa aoc
Aεσouαρ
H aTIOOoTou epyaaleiouacEgapTaai ato ta aEeouap TPOXPOIOTIOUVTai. Ta aEeouap nC Stanley Fat Max exouv kataoekuaotei mnxavika me potuua uynlnc TIOIOTnac Kai evai oxediaouevaia vEvioxouv tv aTIOOoTou epyaieiouac.XpnoiopoTIOwtaucauta ta aEeouap 0a laBete tnpeyiotn aTIOOoT aoTO epyaaleio oac.
Piovλαες
H oey a mtopei va dexte npiovolapa u nkoes 305 mm. Iavtox npnaioioite nTv kovtutep n piovlola a Tou eivai katalnn yia tn vepyaia og aala a epke To nkoct Toi wote n piovlola a va koe ouvecx to uiko. OI piovlaoec meyalutepuu nkouc eivai TIO thavo va otpaawouv na utooauv znua kata tn xpon. Kata tn leitoupyia, opieve cpiovolae c meyalutepuu nkouc mtopei va eupaviouv kpaabao n va tpeouv, evn oey a dev biatnpne i e eTnqn eTo poc eteepyaia avtkieuevo.
Suvtnpnon
AutoTo epyaIeio exei oxediaotei etoi wote va aeitoupyei yia
peyalo xpvikó diaoTmae Tny elayiotn duvatn ouvtnpon.
HaiaaleTTN kai kavotoinTKI aeitoupyia eaptatai aoTn
Owotn opovtida tou epyaIeou kai tov taktko kaqapioTOU.
PpoEIOOInOn! PIV PPaymuTOnIOIeTe OTIOaHnTne OuvtnpOOn e nAekTpKa epyAeia e Kaawio/chiopc Kaawio:
AeVpyoTIOIOTe KAI aTOOuvDeTe Tn OOUKEu/epyaaleo anTo nTv pica.
Na kaapieTAKIKA TIG EYKOTcEgAepioou Tc Ouakeun/cepyaleiou/phiTIOHmuia aalakn BOUptoan e Eva OTeyvO navi.
Na kaapizete TAKIKA TO TEPIBAnu taou potepe eva uypo trivi. Mn xpoioite Aiaavikn uypa Kaapoiou TPOEiyov diautika.
AvtikataoTou pEuMaToaHnTTn (H.B. & IpAavdelta muvo)
Av xpeiaotei va ekataotnoete evav kaivoupio peuatoahttnn (q15):
AToppiye aqpaanTpOTo TtAio
SuvoTeTovKaFeaywoOToVnAekTpopoApkpoEeKtou Voeupeuaotan.
Suvodote TOV mIe aywyo oTOv ouoTepe akpOektn.
Ppoeiobtoinon! xpeiazetaikai kajia ouvdeon otov akpoektn veiwons. Akoaloutheta TIC odnyiec toTIOtheTnOng TTOIAPexovtai ME TOUC KAAN TIOITNTAC peuatoaNTTEC (p1C). Pnpoeivoeyn aopala tngs: 10 A.
PpOoTaia Tou nepiBaaovtoC
ETIIAEKTKI INEPIOUAAOyN.ATO TO TPOIOV DEVTPETEI VA aToppiTTETaI aCi Ie TA KOIVa oIKIaKa aToppmuata.
Eav katoia pepa diattio wote ot to tpoiov oc Stany Fat Max xpeiaetai avikataaon n oTt dev to xpeiaceote aallo, mnv to atoppipye ta zi ta koiva oikiaka atoppmuata aaia diatheta auto to tpoiov yia exwpiotn peipoulloyn.
H Exwpiotn Tepouauoyn Tov mExeipioevv w Tpoivw kai twuikw oukeuaia c EITPETI Tnv avakkawon kai eTavaxnpoiotoin Twv uikw.
Me Tnv ETTavaxpnoiotoinTuw avakukwevuv uikov aTOTpeTTaI n moUVon Tou TepiBaAlovtoc kai peiwetai n ttnon npwv uow.
Oi kavoviooiou iou ioxouov oTnv Tepioxn oac EvdeXetai va TPOBtouv Tnv Ecxwpiotn Tepiouaoyn Tuv nAektpikwv OoKEuwuou Ptoepxovta aTo voIKOKupia eDnoutikec Eykataotaoic n aTo tv eUtopo otavayopaeTe eva KaivOpvio Tpoiov.
H Stanley Europe divei t n duvatotnla avakukawong tuv
Tpoiovtwv tnc Stanley Fat Max Tnou exouv ouuunnpwoei
Tdiapkeia zwns touc. Ia va xpnoiotoinoente autnv
Tnu utnpesia, etioptpeyte to Tpoiov oac oe otioobntote
Egouioobtoevo kvtpo eiokeuwv, onou tha to npapaalabouv
EKmuoc.
Evnpwte yia to pnootepo eoouoobotnevo kvtpo
ETIOKEUW TnTepioxns Oac, EIKOIVWvVtac Me ta ypaeeia
tns Stanley Europe otn dieuuvon nou avaypapetai oTo
Eyxepidio. Etionc, ia Aota me ta eouoobotneva kevtpa
ETIOKEUW TnSTanley Europe kai paneis aeTTOppeies
yia tC uTnpoeic c Tnupapexovtai meta tny Tiwnon kaowc
kai 0toixia ETIKoivwia c utapxouv oTo diaiktuO, otn
dieuuvon: www.2helpU.com
TexviKa xapaktnpiOTIKa
