USER MANUAL TX600 REX

Model: TX-600 Treadmill

TX-800 Treadmill

Preface GB-27
Identification of important notes GB-27
Important safety instructions GB-28
Exploded view GB-30
Parts list GB-31
Assembly GB-34
Folding mechanism/Transport GB-36

Exercise 10.37

Exercise Notes 20
A Intensity GB-37
B Frequency GB-37
C Motivation GB-37
D Organisation of workout sessions GB-37
1. Warming up phase GB-37
2. Workout phase GB-38
3. Cooling down phase . GB-38
E Muscle development . GB-38
F Weight Loss GB-38

Operation GB-39

Default settings GB-39
Overvoltage Protection . GB-39
Safety key. GB-39
Button functions GB-39
Display informationen. GB-40
Workout programmes . GB-40
A P1-P12 GB-40
B Trainings-Parameter GB-42
C Manual . GB-42

Care/Maintenance GB-43
Technical data GB-45
Disposal GB-45
Warranty GB-47

Preface

Congratulations on your purchase of our fit tness machine. You have purchased a really excellent product and will certainly enjoy using it.

To avoid injuring yourself or damaging the machine, please read the operating instructions carefully

before using the machine for the first time. Keep the operating instructions in a safe place.

Identificati on of important notes

Particularly important notes are identified in the operating instructions as follows:

This warning alerts you to possible hazards to your health or life or that of other persons which may occur with the handling or operation of this machine.

This information provides you with additional advice and tips.

This note alerts you to possible hazards for your machine.

Important safety instructions

Keep the operating instructions in a safe place. Make sure they are included in case you sell or pass the fitness machine on to someone else.

It is important for you to read through the instructions completely before assembling and using the machine.

The safe and highly productive use can only be achieved if the machine is properly assembled, maintained and used correctly. It is your obligation to inform all users of this machine about the hazards and safety precautions before use.

The machine complies with DIN EN 957-1/6 and is suitable only for private home use and may not be used commercially or for therapeutic purposes.

Use the machine only in dry indoor rooms at room temperature. Protect it from moisture, dust/dirt and extreme temperature fluctuations.

Only set up the machine on a solid, level surface and use a protective cover for the floor/carpet. Remove all sharp-edged objects from the surroundings and leave a free space of at least 0.5m around the machine.

Make sure to prevent liquids (including perspiration!) from leaking into the inside of the machine or in the fitness computer.

Use the machine only as specified! If you find defective components during the assembly or the inspection, or if you hear unusual noises during use, stop your training immediately. Do not use the machine until the problem has been remedied.

Before using the exercise machine, check to see if all screws and nuts have been securely fastened and tightened.

The safety level of the machine can only be maintained if it is regularly checked for damage and wear. Have professionals carry out repairs and use only original spare parts.

Keep the machine away from children and house pets. It is only suitable for adults.

The machine is not designed for use by persons with restricted physical, sensory or mental abilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the machine from such a person.

The approved maximum weight of the user may not exceed 100kg

Before you begin training, consult your doctor to determine whether training could represent a risk to your health. Your doctor's advice is imperative if you are taking medication that affects your heart rate, blood pressure or cholesterol level.

Be aware of your body's signals! Incorrect or excessive training can impair your health or even damage it. Stop if any of the following symptoms occur: pain, tightness of chest, irregular heartbeat, shortness of breath, feelings of lightheadedness, dizziness or nausea. If only one of these conditions occurs, consult your doctor before continuing your exercise programme.

Wear suitable clothing when working out! Do not wear loose clothing with which you could get caught in the machine or which could restrict or hinder your movements. Always wear sturdy footwear during your workout.

The safety key is used to immediately stop the treadmill in case someone falls, or if there is an emergency situation. Therefore, never use the treadmill without carefully attaching the safety clip to your clothing. Before you begin your workout, make sure the safety clip cannot detach itself from your clothing unintentionally.

In an emergency situation (e.g. sudden dizziness, pain, etc.), step off from the exercise machine as follows:

1. Hold on to the side handgrips.
2. Step onto the side bases.
3. Remove the safety key.

Never jump onto a running treadmill!

DANGER

Keep the operating instructions in a safe place. Make sure they are included in case you sell or pass the fitness machine on to someone else.

WARNING

Let the belt fully come to stand still before you descend.

Shut off the fi tness machine after the workout, or when cleaning or maintaining the device and disconnect the mains plug from the power outlet.

Use caution when lifting and moving the machine to, e. g., prevent injuries to your back. Always use lifting techniques if possible, or get someone to help you.

Exploded view

Parts list

79.

95.

96.

77.

81.

94.

99.

97.

Stückliste

No. Description Size Quantity
1 Main frame 1
2 Base frame 1
3 Frame part right 1
4 Frame part left 1
5 Frame part front 1
6 Outer cable 1
7 Inner cable 1
8 Incline adjustment 1
9 Sleeve 2
10 Locking knob 1
11 Belt guide 2
12 Motor mount		1
13 Motor		1
14 V-belt		1
15 Running surface 1
16 Walking belt		1
17 Roller front 1
17-1 Magnet		1
18 Roller rear		1
19 Housing cover		1
20 Computer		1
20~1	Computer display		1
20~2	Cover		1
20~4	Safety switch cable		1
20~8	Sheet metal screw	3 x 10	2
20~9	Sheet metal screw	3,5 x 12	5
21 Motor lid		1
24 Socket incline adjustment		2
25 Rear foot (L)		1
26 Rear foot (R)		1
27 Motor cover		1
28 Advancing wheel		2
29 Wheel cover		2
30 Rubber base	Ø6.5 x Ø26 x 10	2
31 Skirting strip		2
32 Rubber base		6
33	End cap	25x50	2
34 Rubber base	Ø4.5 x Ø25 x 15	2
35 Insulator		2
36 Incline adjustment (L)		1
37 Incline adjustment (R)		1
38 Wire rubber-protection sleeve		1
41 Grommet		1
43 Soft handle (L)		1
44 Safety key		1
45 Computer cable 900 mm (top)		1
46 Computer cable 1,650 mm (bottom)		1
47 Cable 100 mm x 764 x 764 (black)		1
48 Cable 250 mm x 764 x 764 (white)		1
49 Cable 250 mm x 764 x 764 (black)		1
50 Motor control		1
51 Disconnector		1
52 AC circuit-breaker		1
53 Power cable		1
No. Description Size Quantity
54 Hand pulse sensor 2
55 Cable 1000 mm (hand pulse sensor) 2
57 Sensor cable 1000 mm 1
58 Sensor holder 1
59 End cap 1" x 1" 1
60 End cap 21.4 x 21.4 1
61 Hexagon head screw 1/2" x 3-1/2" 2
62 Hexagon head screw		3/8" x 3/4"	4
63 Hexagon head screw	3/8" x 1-3/4" 1
64 Hexagon head screw	3/8" x 1-1/2" 1
65 Hexagon head screw	M8 x 60	1
66 Hexagon head screw	3/8" x 2-1/2" 1
67 Countersunk screw	3/8" x 2"	2
68 Allen screw	5/16" x 1-1/4"	2
69 Allen screw	5/16" x 1-3/4"	2
70 Cylinder screw bolt	1/4" x 60	2
71 Countersunk screw	M6 x 20	6
72 Phillips screw	M5 x 10	2
73 Spring clip	3/8" x 2T	4
74 Nut	M8 x 8T 1
75 Nut	1/2" x 8T	2
76 Nut	5/16" x 7T 2
77 Nut	3/8" x 7T	8
78 Washer	3/8" x 25 x 2T	5
79 Washer	5/16" x 18 x 1.5T	4
80 Washer	1/2" x 26 x 2T	2
81 Washer	3/8" x 19 x 1.5T	12
82 Washer	5/16" x 35 x 1.5T	2
83 Sheet metal screw	5 x 25	6
84 Sheet metal screw	5 x 16	7
85 Sheet metal screw	5 x 16	18
86 Spring clip		2
87 Sheet metal screw	4 x 12	4
88 Toothed washer	5 mm	2
89 Sheet metal screw	4 x 25	3
90 Hexagon head screw M8 x 12		2
91 Spring clip	M8 x 1.5T	2
92 Cap	Ø8.5 x Ø36	2
93 Screw	5 x 19	8
94 Allen screw	5/16" x 1/2"	2
95 Allen screw	3/8" x 3-1/4" 4
96 Allen screw	3/8" x 46	4
97 Allen wrench		M5/M6	1

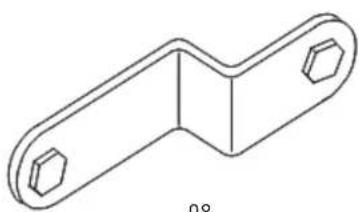

98 Spanner		13/14
99 Lubricant		1
100 Rear roller plate			2
101 Screw		3.5 x 16	6
102 Cable tie			6
103 Cap			2
104 Covering cap			2
105 Countersunk screw		M6 x 25	2
106 Speed selector switch cable			1
107 Soft handle (R)			1

Assembly

STEP1

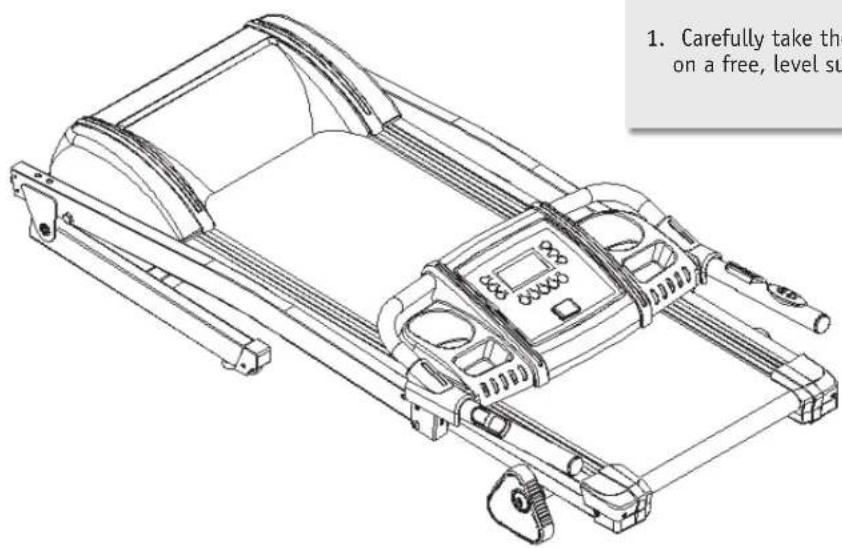

1. Carefully take the treadmill out of the box and lay it on a free, level surface.

STEP2

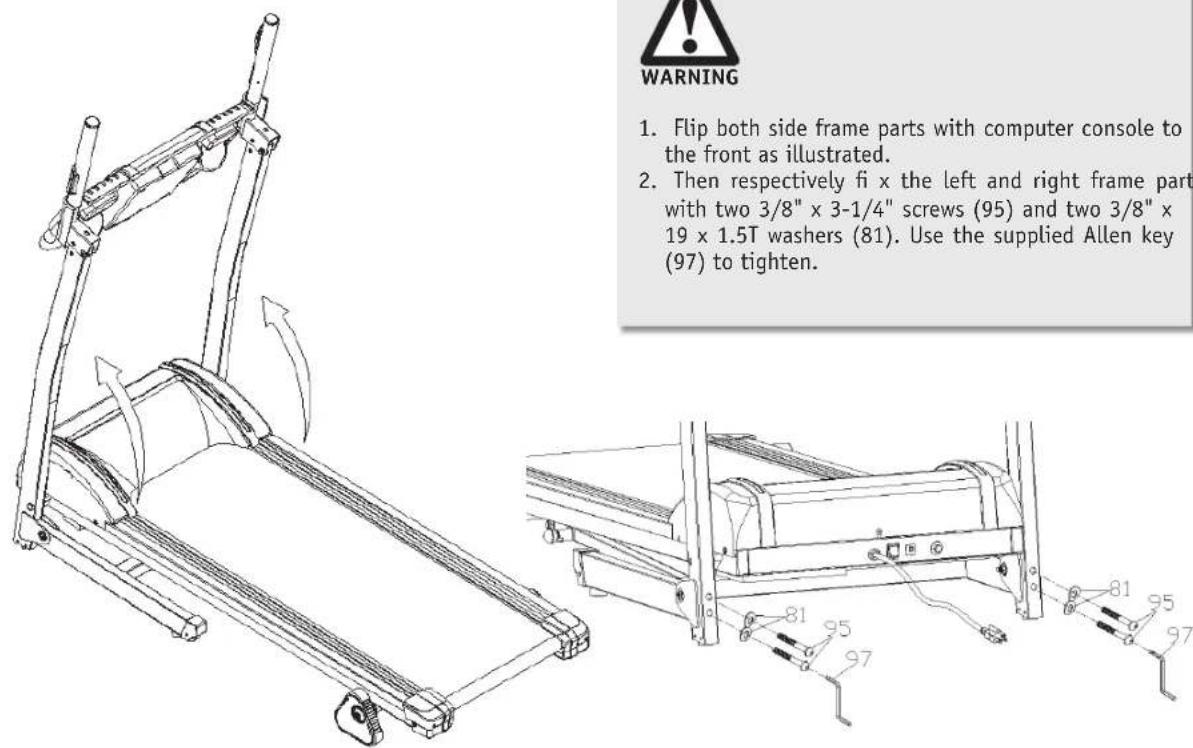

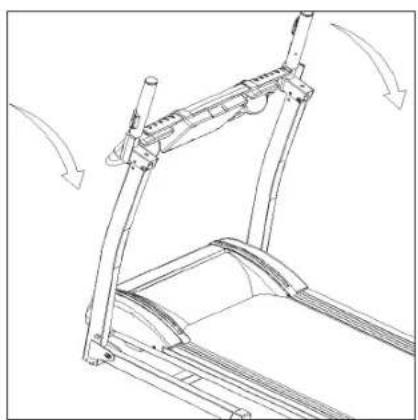

1. Flip both side frame parts with computer console to the front as illustrated.
2. Then respectively fi x the left and right frame part with two 3/8'' × 3-1/4'' screws (95) and two 3/8'' × 19 × 1.5T washers (81). Use the supplied Allen key (97) to tighten.

Assembly

STEP3

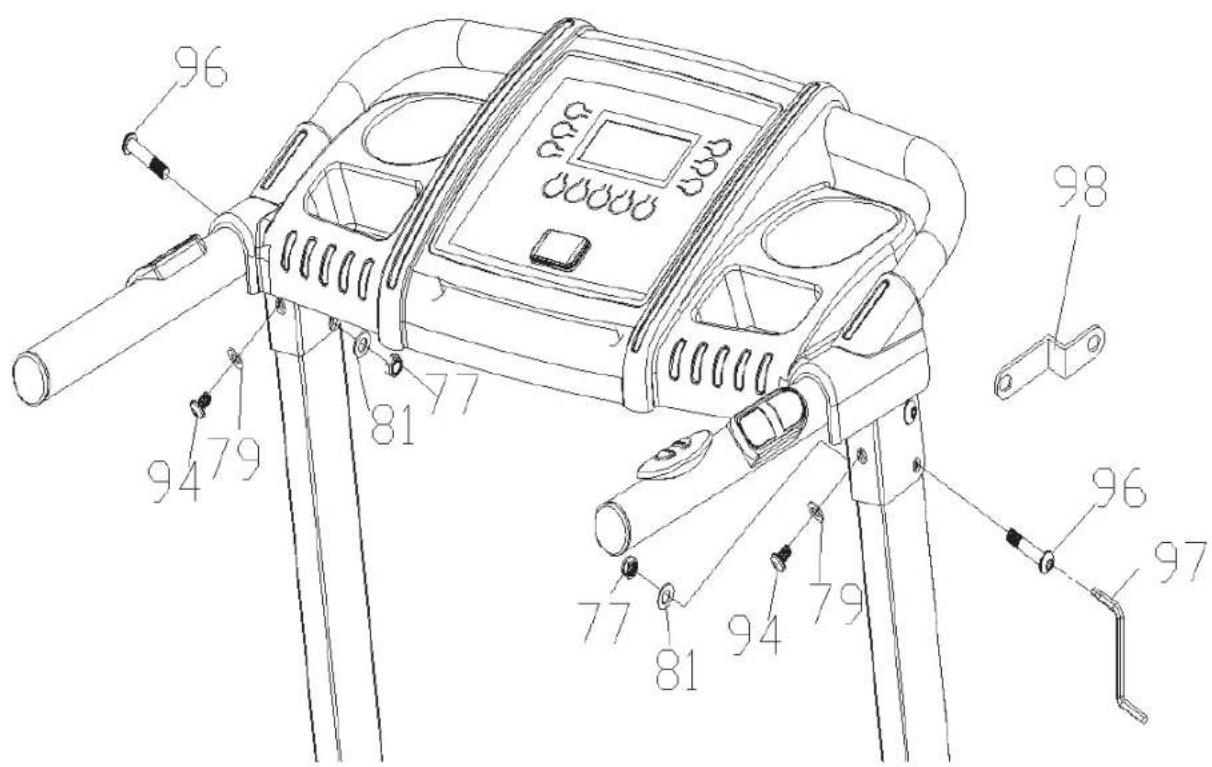

1. Press down the front frame part (5) as illustrated so that it can be fastened to the side frame parts (3) + 4).
2. First secure the frame parts on the side with two 3/8'' × 46 Allen screws (96), two 3/8'' × 19 × 1.5T washers (81) and two 3/8'' × 7T nuts (77) and then use two 5/16'' × 1/2'' Allen screws (94) and two 5/16'' × 18 × 1.5T washers (79).
3. Firmly tighten the screws using the supplied tools (98) + (97).

Folding mechanism/Transport

Opening out

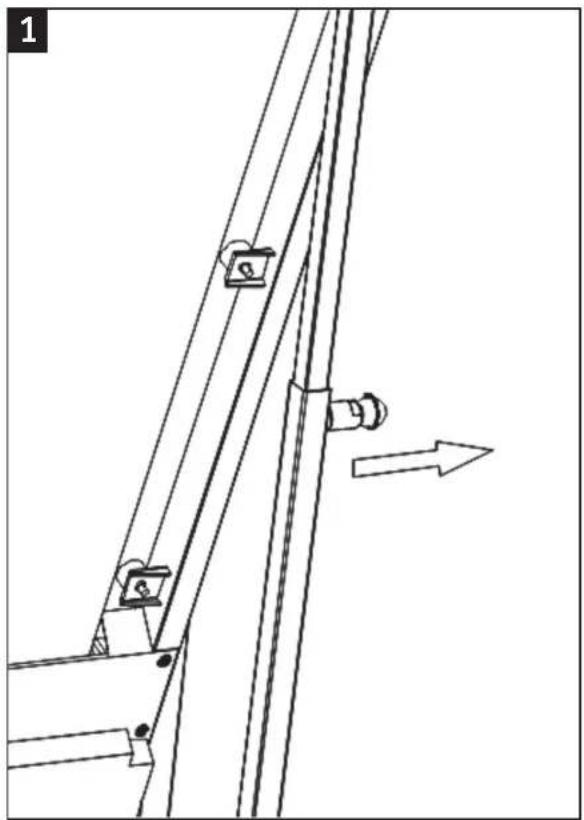

1. Stand behind the machine and pull the locking knob (Fig. 1)

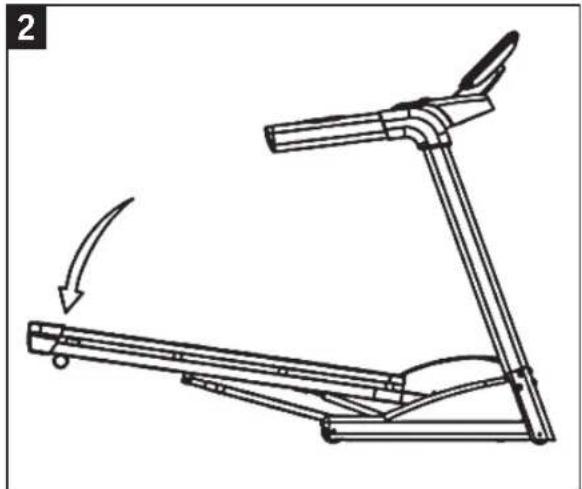

2. Slowly lower the treadmill onto the ground. (Fig. 2)

Folding together

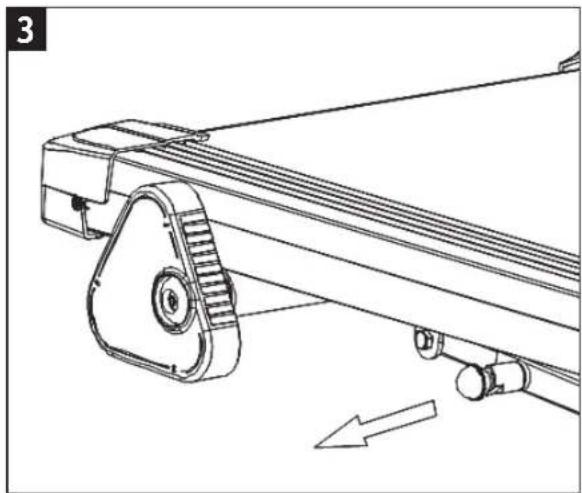

1. Pull the locking knob (Fig. 3) with your right hand and with your left hand lift up the treadmill to approx. 30cm height.

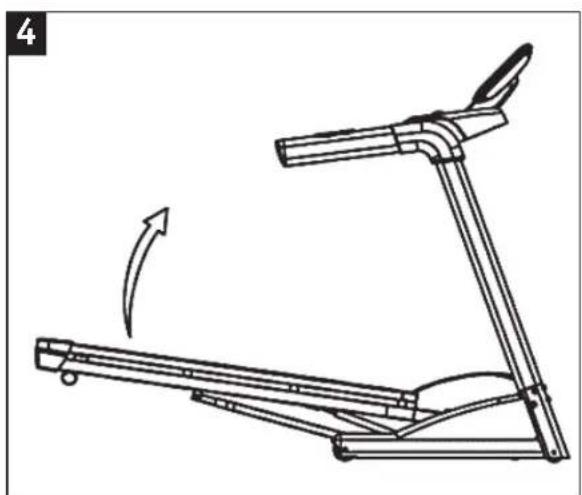

2. Now lift the treadmill with both hands until it firmly engages in the locking mechanism. (Fig. 4)

Transport

To shift the treadmill, the machine must be first folded together (see point "Folding together"). Make sure that the locking knob is engaged.

Slowly tilt the treadmill back until it stands on the transport rolls. You may now carefully move the device to the desired location. When choosing a suitable location, please observe the safety instructions at the beginning of these operating instructions.

Exercise

Using your fitness machine will provide you with numerous advantages. It will improve your physical fitness, emphasize your muscles, and help you lose weight in conjunction with a calorie-reduced diet.

DESIGNING YOUR WORKOUT/NOTES

To achieve an optimal workout, you should consider several important things regarding the manner (of working out) and organization of your workout before you begin. To improve your health and body, you should consider the following factors when planning your workout:

A Intensity

The workout must be organised in such a way that the physical effort during the workout is higher than your normal effort. But breathlessness or exhaustion may not occur. During an effective workout, your pulse should be between 70% and 85% of your maximum pulse (see also the "Workout Phase" chapter).

During the first few weeks of your workout, your pulse should be at roughly 70% of your maximum pulse and slowly increase to 85% of your maximum pulse in the following weeks and months. The workout requirements could be increased, e.g., by extending the workout duration and/or increasing the levels of difficulty according to your increasing condition. The following resources can help you to check your pulse rate:

a) You can feel your pulse rate yourself and count the beats per minute (e.g. at your wrist) Measurement of pulse rate by the usual methods.
b) You can measure your pulse with the sensor surfaces attached to the handle.
c) You can also determine your pulse rate using specific calibrated pulse measuring devices.

Pulse measurement by sensor is only an orientation, as movement, friction, perspiration etc. can cause deviations from the actual pulse. The pulse beat related electrodermal effect of some people is so low that the result is insufficient for accurate pulse measurement.

B Frequency

Experts recommend 3-5 workout sessions per week, depending on your training goal. Your workout should be accompanied by a balanced and healthy diet. An average adult requires at least 3 workout sessions per week to change their body weight or improve their condition, or 2 workout sessions per week to maintain their current condition.

C Motivation

To successfully complete a training programme, regularity is a very important point. Mental preparation as well as a fixed time period and space per workout session will also contribute to that goal. We recommend you always keep your personal goal in sight and if possible, to workout only when you are in a good mood. Work out continuously so that each day helps you come closer to your training objective.

D Organisation of workout sessions

There are three workout phases that should be done during every workout:

a) Warming up phase
b)Workout phase
c) Cooling down phase

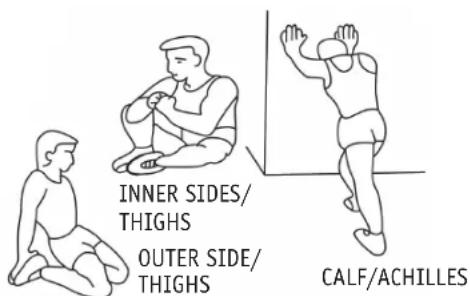

1. Warming up phase

This phase contributes to improved circulation in your body and correct muscle function. It also decreases the risk of cramps and muscle injury. It is therefore recommended to start with a few stretching exercises (see figure) before every workout session. Each exercise should last approx. 30 seconds. Avoid sudden movements and do not strain your muscles. Stop the stretching exercise as soon as it hurts.

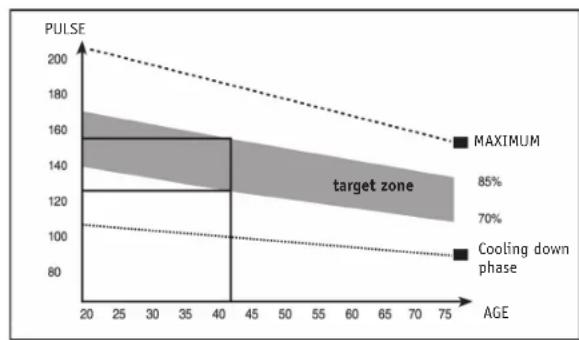

2. Workout phase

When working out, make sure you keep an even and consistent speed. Optimal training means choosing a workout that keeps your pulse at a value of approx. 70% - 85% of your maximum pulse (target zone). Use the graphic to read the matching target zone for you.

The workout phase should last at least 12 minutes. At the beginning, a workout time of approx. 15-20 minutes is usual.

Once you have reached a higher degree of fitness, you may have to work out longer and harder.

Watch your posture during the workout:

• Keep your torso upright
• Keep your eyes directed forwards
• Movement should occur from your legs
• Do not exercise without holding on! - Your arms are meant to stabilize your body.
• Lift your heels up slightly during the workout just as for the classic cross-country method.
• Change your grip position regularly

3. Cooling down phase

This phase is intended to relax your muscles and your cardiovascular system. To do so, e.g. reduce your speed for approx. 5 minutes. Then repeat the stretching exercises as described in Phase 1. Remember not to make any sudden movements in this phase and do not strain your muscles.

E Muscle development

To develop your muscles with the home exercise machine, you will have to choose a higher workout intensity. You may discover that your fitness is not suffi cient enough to keep to the workout programme in its entirety.

In this case, modify your workout plan as follows:

You should work out during the warm up and cool down phase as usual. But at the end of the exercise phase, increase the intensity so that your legs receive a more intense workout. However, if you exceed the target zone of your pulse, you will have to decrease your speed!

F Weight loss

For your body to work correctly, it will need "fuel" just like a motor. The muscles receive oxygen from the cardiovascular system of the body. This oxygen supplies energy to the muscles on the one hand and is also used to burn carbohydrates or fats on the other hand. Due to the chemical composition, the conversion of body fats to energy can only then occur, if you do aerobic training, meaning you have sufficient oxygen while exercising. An aerobic training ("being breathless") causes oxygen deficiency, which means fat cannot be broken down. The body still has enough oxygen at 50% to 80% of the maximum pulse (maximum pulse = 220 - age ) and can achieve the best results in this area regarding fat burning. Fat burning is increased the more often and longer you complete such a workout.

Operation

DEFAULT SETTINGS

Insert the mains plug into a 220/240 V power outlet (observe the safety instructions!) and switch on the fitness machine by using the master switch on the rear side (see Fig.1).

OVERVOLTAGE PROTECTION

To avoid damage caused by overvoltage, the finness machine has been provided with an overvoltage protection switch. The protective switch is located on the rear side of the machine, directly next to the master switch (see Fig. 2). In the event of overvoltage, the protective switch pops out and breaks the electric circuit.

The fi tness machine is thus completely deactivated. To put the treadmill back into operation after such an event, first switch off the machine with the master switch and disconnect the mains plug from the power outlet. Now press the protective switch back in; the fi tness machine is now ready for operation again.

SAFETY KEY

WARNING

Therefore, never use the treadmill without carefully attaching the safety clip to your clothing. Before you begin your workout, make sure the safety clip cannot detach itself from your clothing.

The treadmill can only be put into operation if the safety key ② is inserted in the contact point of the computer console.

The safety key is used to immediately stop the treadmill in case someone falls, or if there are other emergencies.

If the safety key ② is inserted back into the console, then all previously entered workout programmes or parameters will have to be entered again!

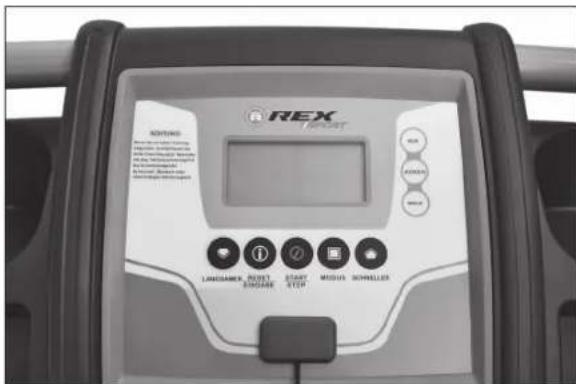

BUTTON FUNCTIONS

START/STOP:

Your workout is started or paused with the START/STOP button. If the button is pressed during your workout, the speed of the treadmill is slowly reduced until standstill. If the button is pressed again, the workout programme that was paused with the standstill of the treadmill can then be continued.

MODUS:

The MODUS button lets you choose the workout programme, or switch between display information during the workout.

RESET/EINGABE:

You can enter the workout parameters with the RESET/EINGABE button (LOSCHEN/or reset the selected programmes and settings.

LANGSAMER (SLower):

You can set the workout parameters with the LANGSAMER button, or reduce the speed in 0.5km / h increments during your workout.

SCHNELLER (FASTER):

You can set the workout parameters with the SCHNELLER button, or increase the speed in 0.5km / h increments during your workout.

RUN/JOGGEN/WALK:

You can set a specified speed with the RUN, JOGGEN, WALK buttons.

RUN: 7 km/h JOGGEN: 5 km/h WALK: 3 km/h

DISPLAY INFORMATION

The display information in the large display changes automatically during the workout (SCAN). You can also select the display information manually by using the MODUS button. Should the display information change automatically again, then you must select the SCAN function with the MODUS button.

The following display information can be called up:

1. TIME

The computer displays the current workout time. When a specified time is entered, the time runs backwards (countdown). Once the specified value is reached, the machine stops and an acoustic signal sounds.

2. SPEED

The computer displays the set target speed in km/h.

3. DISTANCE

The computer shows you the distance you've travelled. When a specified distance is entered, the display runs backwards (countdown). Once the specified value is reached, the machine stops and an acoustic signal sounds.

4.CALORIES

The computer shows you the calories you have burned during the workout. After the number of calories to be burned has been entered, the display runs backwards (countdown) to zero. Once the specified value is reached, the machine stops and an acoustic signal sounds.

The PULSE display refects your current pulse rate in heartbeats per minutes. The display can only reflect the correct values if you properly grasp both sensors with the palms of your hands. Under the circumstances, it can take up to 2 minutes until the pulse rate is displayed.

WORKOUT PROGRAMMES

Incline adjustment

Regardless of the chosen workout programme, you can individually adjust the incline of the treadmill and thus the intensity. There are 3 incline angles to choose from. The following exercise programmes are available:

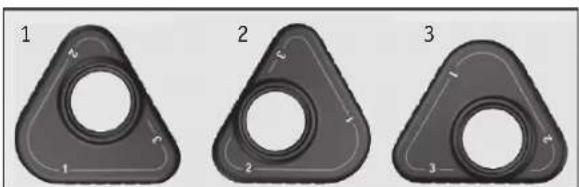

Level 1: 1,5^ Level 2: 3,5^ Level 3: 5,5^

Setting

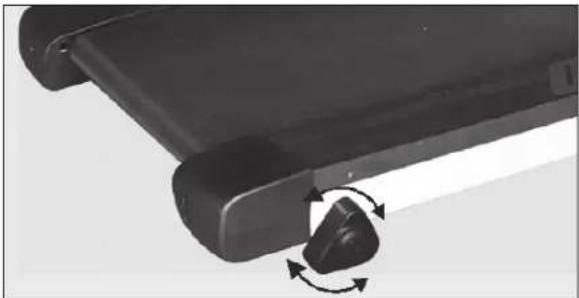

Lift up the treadmill with your left hand at the rear end and turn the incline adjustment with your right hand. (see Fig.)

A Workout programmes (P1-P12)

There are 12 different available workout programmes. They differ in the sequence and the treadmill speed. One workout session lasts respectively 30 minutes.

You can select one of the 12 workout programmes with the MODUS button. The current workout programme is displayed in the top right display area (P1-P12). You start the selected programme by pressing the START/STOP button.

PROGRAM SERVEY

Program P1

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 1 2	2 2	3 3	4 4	4 4	5 5	5 5	6 6	6 6	6 7	7 7	7 8	8 8	8 9	9

Program P2

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2
km/h 9 9	9 8	8 8 8	8 7	7 7	6 6	6 6	5 5	5 4	4 4	4 3	3 3	2 2	1

Program P3

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 4 4	4 5	5 5 6	6 6	6 7	7 7 8	8 8	8 9 9	8 8 8	7 7 7	6 5	4 4 4	4

Program P4

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 4 4	4 5	5 5 6	6 6	6 7	6 6	6 7	7 7 8	8 8	9 9 9	8 8	8 6 5	4

Program P5

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 4 5	5 5	6 6	8 8	8 5	5 5	6 6	9 9	5 5	5 5	5 9	9 9	6 6	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5	5

Program P6

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 6 6	7 7	7 8 8	8 8	9 9 9	9 9 8	8 8	9 8 8	9 9 8	9 9 8	9 9 8	9 8 8	8

Program P7

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2
km/h 4 4	4 5	5 5 6	6 6	6 7	7 7	7 8	8 8	9 9	9 8	8 8	7 7	6 6	5	5

Program P8

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 3 3	3 4	4 5	6 6	7 7 9	9 9 9	8 8 7	7 6	6 8 8	9 9 9	9 9 8	8 8 7	7

Program P9

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 4 4	4 5	5 5 6	6 6	6 7	7 6 6	6 7	7 7 8	8 8 9	9 9 9	8 8	8 6 5	4

Program P10

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2
km/h 3 4	5 6	5 6 6	5 4	2 1	2 3 6	7 6	5 4	2 6	5 3 6	4 3	6 5 4	2

Program P11

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2
km/h 5 5	5 5	5 5	5 5	5 5	5 5	5 5	5 5	5 5	5 5	5 5	5 5	5 5	5 5	5

Program P12

Mi n	1	2	3	4	5	6	7	8	9	1	0	1	1	1	2	1	3	1	4	1	5	1	6	1	7	1	8	1	9	2	0	2	1	2	2	2	3	2	4
km/h 5 5	3 3	3 9 9	9 9	7 7	6 6	9 9	9 9	5 5	7 7	7 7	6 6	6 6	6

B Working out with workout parameters

You can set one of the three available workout parameters in this programme. Workout parameters are ob jec

ti ves which you can set according to your personal level of fitness, motivation or available time.

The following workout parameters are available:

Parameter	Setting	range	Step
TIME 0:00~99:00 Min ± 1:00	specifi ed value = 5:00 min
DIST (distance)	0.00~99.0 km	± 1	specified value = 5 km
CAL (calories)	10~9990 Cal	± 10	specified value = 500 Cal

Remark

Press the RESET/EINGABE button to choose the required workout parameter and then enter the required value with the SCHNELLER/LANGSAMER button.

If a workout parameter is not specified, you can use the RESET/EINGABE button to jump to the subsequent parameter.

After having entered all of the required workout parameters, you may begin running. Press the START/STOP button to do so. The machine emits an acoustic signal directly before the treadmill begins to move. You can individually adjust the speed using the SCHNELLER/LANGSAMER buttons, or by using the RUN/JOGGEN/WALK buttons. The treadmill reaches the specified target speed after a short time.

Training is ended as soon as the specified workout parameter has been reached.

C Manual

Instead of working with one of the specified workout programmes or workout parameters, you can also work out in the so-called manual workout programme. In this programme you can manually set the speed or adjust it at any time during your workout.

You start the manual workout programme by pressing the START/STOP button. If you have set one of the workout parameters or selected one of the 12 workout programmes, briefly y remove the safety key to delete the entered values. The machine emits an acoustic signal directly before the treadmill begins to move. The beginning speed is 1km / h . You can individually adjust the speed with the SCHNELLER/LANGSAMER buttons or with the RUN/JOGGEN/WALK buttons at any time during your workout. The machine reaches the specified target speed after a few seconds.

Care/Maintenance

You must disconnect the mains plug from the power outlet before any care and maintenance work! MORTAL DANGER!

We recommend checking all machine parts that could loosen (screws, nuts, etc.) regularly every 2 to 4 weeks, depending on the frequency of use. Use a soft, perhaps slightly moistened cloth to clean. Do not use aggressive cleaning agents. Keep liquids of any type away from the computer and the machine interior, as the liquids could cause considerable functional impairments. The belt in the lower area of the exercise machine can develop rubber skid marks. This is completely normal.

Treadmill adjustment

Make sure the treadmill is not in operation during the adjustment. Remove the safety key to ensure your safety.

After a longer period of use or after transport, the walking belt may no longer be centred or may "slip away" during your workout. In this case you will have to readjust the walking belt, as damage and functional impairments could occur.

Centring the walking belt:

You can adjust the walking belt with an M6 Allen key at the right rear end of the main frame (see Fig.).

If the walking belt has slipped over to the right, turn the right adjusting screw clockwise (no more than a 1/4 revolution). Then let the treadmill run for at least 2 revolutions to check if the adjustment is suffcient. Repeat this procedure until the belt is centred.

If the walking belt has slipped over to the left, turn the right adjusting screw anti-clockwise (no more than a 1/4 revolution). Then let the treadmill run for at least 2 revolutions to check if the adjustment is suffi cients. Repeat this procedure until the belt is centred.

Tensioning the walking belt:

Make sure not to tension the walking belt too strongly as this results in increased wear or even damage.

You can tension the walking belt with the two adjusting screws at the right rear end of the main frame (see Fig.). Turn the left and right adjusting screws evenly a quarter turn to the right (clockwise). Use an M6 Allen key for this. Then switch on the treadmill and check if it is suffi ciently tensioned.

Repeat the procedure until the walking belt stops "slipping away" during running. However, never turn the adjusting screws more than a quarter turn after each check. If the walking belt is adjusted too tightly, evenly loosen both adjusting screws.

Treadmill lubrication

WARNING

Make sure the treadmill is not in operation during the adjustment. Remove the safety key to ensure your safety.

The treadmill has been constructed so that it only required minimum maintenance effort. However, it is necessary to lubricate the deck from time to time. Thorough lubrication guarantees proper function and increases the service life of the machine. We recommend the first lubrication after the first 25 operating hours (2-3 months) and then every 50 operating hours (approx. 5-8 months). Therefore use commercially available silicone oil or spray.

Inspection

Lift up one side of the walking belt and feel the top side of the deck. If you can still feel the silicon, then lubrication is not necessary. But if the surface feels dry, you must relubricate the deck.

Lubrication

DANGER

Do not apply too much lubricant - no more than half a tube per application! Use a cloth to wipe off excess lubricant that may ooze out at the sides. DANGER OF FALLING!

1. Lift up one side of the walking belt.

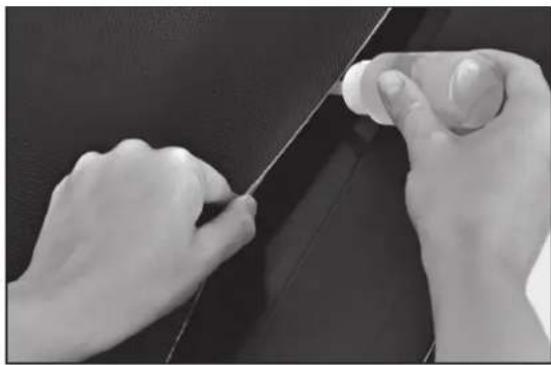

2. Apply no more than half of the lubricant tube (included in the delivery) onto the surface of the deck. (see Fig.)
3. Then run on the treadmill for approx. 3-5 minutes at a low speed to help distribute the lubricant.

Technical data

Dimensions: approx. ca. 155 cm (L) × 73 cm (B)×126 cm (H)

running speed: 1-12 km/h

Weight: approx. ca. 56 kg

pitch adjustment: 3-fold (1,5^ - 5,5^)

ClassificatiOn: HC

Max. continuous output power: 1,0 KW

Max. Weight load: 100 kg

Maximum output: 1,8 KW

Disposal

Disposing of the fitness machine

At the end of its useful life, the fitness ma chine may not be disposed of in normal household rubbish. Instead, it must be de posited at a collection point for the recyc- cling of electrical and electronic devices.

Packaging recycling

The packaging material is partially re-useable. Dispose of the packaging in an environmentally friendly manner and add it to the recyclable waste. Dispose of the packaging at a public collection point. Enquire of your city/municipal administration for your nearest available disposal point.

CE Declaration of Conformity

prophe

keep moving

Index-01

Company: Prophete GmbH u. Co.KG

Adress: Lindenstr. 50

Designation: New York

Model: TX-600 Treadmill

TX-800 Treadmill

For the designated product we hereby confirm that it complies with the requirements of the following European directives.

2004/108/EC EMC Directive

Directive of the European Parliament and of the Council dated 15.12.2004

2006/95/EC Low Voltage Directive

Directive of the European Parliament and of the Council dated 12.12.2006

The product conforms to the directives as is proven by full compliance with the listed harmonized and non-harmonized standards:

EN 55014 Electromagnetic compatibility, requirements

EN 60335 Safety of electrical devices for household use

EN 61000-6-1 Electromagnetic compatibility, generic standard

EN 61000-6-3 Electromagnetic compatibility, generic standard

EN 61000-6-6 Electromagnetic compatibility, generic standard

Andre Fuchs

Technical Management

Prophete GmbH & Co. KG

Torsten Wynarski

Conformance Officer

Prophete GmbH & Co. KG

Place of issue, Rheda-Wiedenbrück, dated 04.04.2012

This declaration certifies the conformance to the stated directives, but does not guarantee any attributes in the meaning of the product liability act.

Warranty

1. You may only assert warranty claims within a period of max. 2 years as of the purchase date. Our warranty is limited to the elimination of material and fabrication defects, or the replacement of the machine. Realisation occurs according to our choice through repair to the machine. Our warranty is free of charge.

The malfunction and its causes are always examined by our customer service and includes:

• Spare parts delivery for the repair work within the scope of the warranty

Repair or replacement of the defective component

(Replaced spare parts will be passed to our possession.)

1. For eligible warranty claims, the costs for shipping and the costs for disassembly and installation will be charged at our expense. Warranty claims must be verified by submitting the purchase receipt.
2. The buyer agrees to use the purchased machine for no other purpose than as designated in the operating instructions.
3. The warranty expires if the machine is modified by third parties, or changed by installing outside parts, or defects that occurred in initial conjunction with the change. Further, the warranty claim also expires if the regulations regarding the management of the machine were not observed.

4. Not included in the warranty:

5. Expendable items not associated with repair work on recognised malfunctions.

6. All maintenance work or other work that developed due to wear, accident or operating conditions as well as use with disregard to the manufacturers' specific cations.

All events, such as noise development, vibrations, wear, D

etc. that do not affect the machine qualities.

• Damage caused by:
• installing parts by third parties or the efforts of the user to remedy the damage himself.

not using original spare parts

• Components subject to wear or use (except clear material or manufacturer defects), such as: - Bearings - Lamps - Stickers - Belts - Batteries, etc.
  Costs for maintenance, inspection and cleaning work.

• Warranty claims only authorize the customer to demand the elimination of the defect. Claims for return or reduction of the purchase price only apply after subsequent improvement fails.

• The examination and decision about a warranty claim is incumbent upon the manufacturer.
• The replacement of direct or indirect damage will not be granted.
• Warranty claims will only be considered if lodged with SI-Zweirad-Service-GmbH directly after finding the defect.
• An executed warranty will neither renew nor extend the period of warranty. Asserting warranty claims after the period of warranty has expired is precluded.
• Arrangements other than the above-mentioned only then apply if they are confirmed by the manufacturer in writing.
• If your machine sustained damage during the delivery, please record all damage on the delivery note. Have the supplier (market, carrier) sign the damage report and then contact us immediately.
• Should you have a technical problem with the machine you have acquired, our customer service staff are avail able:

SI-Zweirad-Service GmbH Phone:[phone]

Lindenstraße 50 Fax: [phone]
33378 Rheda-Wiedenbrück E-Mail: [e-mail]
Germany www.rex-sport.de

AT CH

Palier 1: 1,5^ Palier 2: 3,5^ Palier 3: 5,5^

Réglage

Trap 1: 1,5^ Trap 2: 3,5^ Trap 3: 5,5^

Installing
