CA9400I-X - Range hood REX - Free user manual and instructions

Product type	Extractor hood
Brand	Rex
Model	CA9400I-X
Color	Stainless steel
Dimensions (W x D x H)	90 cm x 50 cm x 60 cm
Weight	15 kg
Power supply	220-240 V, 50 Hz
Motor power	250 W
Maximum airflow	650 m³/h
Maximum noise level	65 dB(A)
Filtration type	Metal grease filter + activated charcoal filter (optional)
Number of speeds	3
Lighting	LED 2 x 3 W
Installation type	Wall-mounted / Island
Evacuation mode	Recirculation or external evacuation
Outlet diameter	150 mm
Energy class	A+
Controls	Touch panel or buttons
Grease filter maintenance	Dishwasher or hand wash every 2 months
Charcoal filter maintenance	Replacement every 6 months
Safety	Automatic shut-off, anti-backdraft
Spare parts	Available through Rex after-sales service or authorized dealers
Repairability	Repairability index: 8.2/10

Frequently Asked Questions - CA9400I-X REX

How to install the CA9400I-X hood?

Installation must be carried out by a qualified professional. The hood is mounted on the wall or an island using appropriate anchors. Make sure to maintain a minimum distance of 65 cm between the hood and an electric hob, and 75 cm for a gas hob.

What maintenance for the grease filter?

The metal grease filter must be cleaned every 2 months in the dishwasher or by hand with detergent. A dirty filter reduces efficiency and may cause a fire.

Is a charcoal filter required for recirculation?

Yes, if your hood operates in recirculation mode (without external evacuation), an activated charcoal filter is necessary to absorb odors. It must be replaced every 6 months.

What to do if the hood does not turn on?

First check the power supply and fuse. If the problem persists, the motor or control panel may be defective. Contact after-sales service.

How to reduce the noise of the hood?

Use a lower speed to reduce noise. Also check that the exhaust duct is not blocked and that the hood is securely fastened to avoid vibrations.

Can the hood be used without external evacuation?

Yes, the hood can be used in recirculation mode with an activated charcoal filter. In this case, the air is filtered and returned to the kitchen.

How to change the LED bulb?

The LED bulbs are integrated and cannot be changed individually. In case of failure, the entire lighting module must be replaced by a professional.

What is the warranty for the Rex CA9400I-X hood?

The legal warranty is 2 years. Rex may offer an extended warranty depending on the retailer. Keep the purchase receipt.

How to clean the stainless steel surface?

Use a soft cloth and a special stainless steel cleaner. Avoid abrasive products that could scratch the surface. Wipe in the direction of the brush grain.

Where to find spare parts?

Spare parts (filters, bulbs, etc.) are available from Rex after-sales service or authorized dealers. Use the model reference CA9400I-X.

USER MANUAL CA9400I-X REX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time. Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

SAFETY INSTRUCTIONS

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may become hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

2. USE

The hood serves to aspirate the fumes and vapors resulting from cooking.

The attached installation manual indicates the version to be used depending on the model you have, the suction version with

external evacuation or filtering with internal recirculation

3. INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Before re-connecting the suit to the mains supply and the efficient function, always at the mains cable is correctly d.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 50cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

4. MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket. The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

4.1 Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Hand holding a mechanical clamp or bracket with a tool, no visible text or symbols

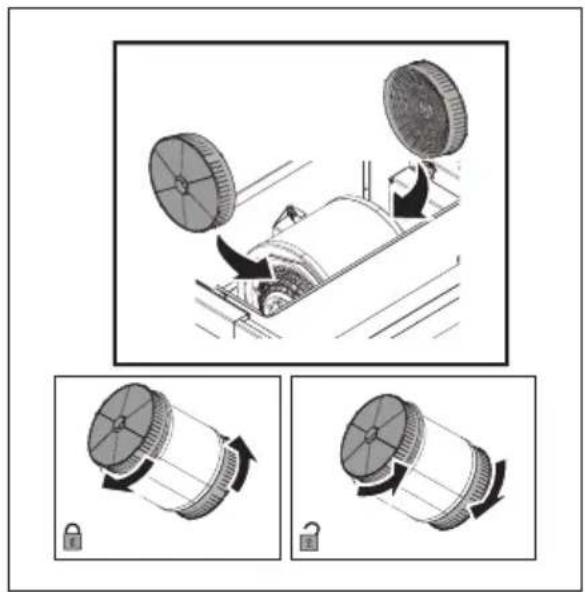

4.2 Washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four mounths. The charcoal filter may NOT be washed or regenerated.

Three-panel illustration showing mechanical components with rotating parts and directional arrows, no text or symbols present.

5. CONTROLS

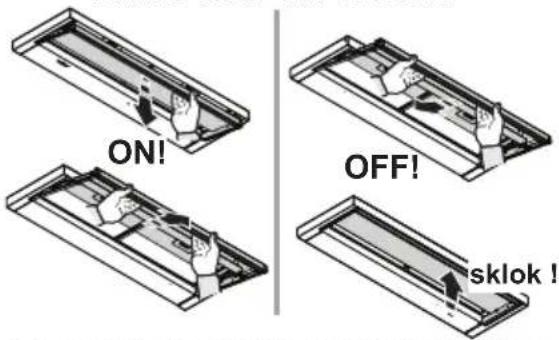

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

The speed control is on the front of the hood.

1 ON/OFF lights
2 ON/OFF motors
Minimum suction power
3 Medium suction power
4 Maximum suction power

6. LIGHTING

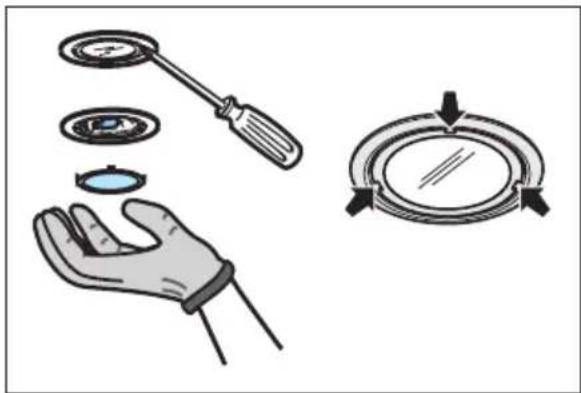

Disconnect the hood from the electricity. Warning! Prior to touching the light bulbs ensure they are cooled down. Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

Illustration of a hand holding a screwdriver, a close-up of a circular component, and a circular dial with arrows indicating rotation (no text or symbols)
