Brand	Swingline
Model	StackandShred 100X
Product Type	Automatic and manual feed document shredder
Auto Feed Capacity	100 sheets (80 g/m²)
Manual Feed Capacity	6 sheets (80 g/m²)
Power Supply	120 V / 60 Hz
Current Consumption	1.5 A
Motor Power	200 W (100X)
Duty Cycle	5 min on / 30 min off
Initial Cold Operating Time	10 min
Automatic Shutdown	After 2 min in automatic mode (goes to standby)
Auto Feed Technology	Automatic feed up to 100 sheets, accepts staples and small paper clips
Control Functions	Continuous forward, Reverse, Auto mode, Indicators (lid/bin open/full, jam, cooling)
Safety	Safety switch on lid, automatic shutdown if bin or lid open, overload protection
Credit Card Destruction	Yes, via dedicated slot (no CD/DVD)
Self-Cleaning Blades	Yes, self-cleaning cycle after bin emptying
Automatic Jam Release	Yes, automatic reverse/forward, if persistent use manual buttons
Lubrication	Use only Swingline lubricating sheets (in manual slot)
Maintenance	Clean rollers with dry cloth, IR sensor with cotton swab
Included Accessories	Recyclable waste bags (ref. 1765031, 20 bags per box)
Warranty	2 years on cutters and all other parts
Compliance	UL 60950-1, EN 60950-1, FCC Class B, Canada NMB-003

Frequently Asked Questions - StackandShred 100X Swingline

What is the maximum sheet capacity for auto feed ?

The auto feed accepts up to 100 sheets of 80 g/m² paper. Do not exceed this number to avoid damaging the device.

Can I shred stapled documents or documents with paper clips ?

Yes, the shredder accepts staples 26/6 and 24/6 or smaller, as well as small paper clips (up to 32 mm long), provided they are placed within 25 mm of the corner of the sheet. For paper clips, use only the manual slot on the 100X model.

How to clear a paper jam ?

In case of a jam, the shredder automatically tries to clear the paper by alternating reverse and forward. If the jam persists, use the reverse button (◀) or the continuous forward button (▶). If necessary, open the lid and remove the jammed sheets manually.

How to lubricate the shredder ?

Use only Swingline lubricating sheets. Insert a lubricating sheet into the manual feed slot (never into the automatic compartment) to avoid contaminating the rollers.

Can the shredder destroy credit cards ?

Yes, it can destroy credit cards via the dedicated opening above the manual slot. It does not destroy CDs, DVDs, or thick plastics.

What to do if the red cooling light turns on ?

The red light with a thermometer indicates that the device has overheated after prolonged use (about 10 minutes). Let it cool down. It will restart automatically once the temperature is acceptable.

How to clean the infrared auto-start sensor ?

If the shredder keeps running without paper, turn off the device (switch on the back) and clean the sensor located in the feed slot with a dry cotton swab.

What types of papers cannot be shredded ?

The shredder cannot process laminated sheets, plastic folders, adhesive labels, bound documents (magazines), large paper clips, high-capacity staples (more than 6 mm high), and double clip binders.

Why does the shredder not work even though the bin seems empty ?

The bin full light may turn on if the bin is not inserted properly or if the sensor is obstructed. Remove and reinsert the bin. If the problem persists, make sure the compartment lid is properly closed.

What is the warranty period ?

The limited warranty is 2 years on the cutters and all other parts. For any repair, contact Swingline customer service at 1-800-541-0094 (USA) or visit www.swingline.com.

USER MANUAL StackandShred 100X Swingline

FEATURE COMPARISON	LIGHT USE		EVERYDAY USE					HEAVY USE
Model	60X	80X	100X	100M	200X	300X	300M	500X	500M	750X	750M
Security level	P3		P3	P5	P3	P3	P5	P4	P5	P4	P5
Bin Capacity (sheets)	100	150	150	280	325	450	670	850	1100	1250	1400
Users	1		1-2		1-5	5-10		10-20		20+
HANDS FREE SHREDDING
Sheet Capacity	60	80	100	100	200	250	250	500	500	750	750
Staples and Paper Clips	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Intelligent Jam Clearance		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Lockable Chamber					Optional	✓	✓	✓	✓	✓	✓
MANUAL FEED SHREDDING
Manual feed sheet capacity	5	6	6	6	7	8	8	10	9	12	10
Jam Assist			✓	✓	✓	✓	✓	✓	✓	✓	✓
Bin Capacity (Gallons)	4gal	5gal	7gal	7gal	9gal	11gal	11gal	21gal	21gal	31gal	31gal
Shreds Credit Cards	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Intelligent™ Power Save		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Bin Full Indicator		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Illuminated Status Symbols			✓	✓	✓	✓	✓	✓	✓	✓	✓
Shreds CDs					✓	✓	✓	✓	✓	✓	✓
Castors for Mobility					✓	✓	✓	✓	✓	✓	✓
Intelligent™ SelfOil™								✓	✓	✓	✓
Continuous operation								✓	✓	✓	✓

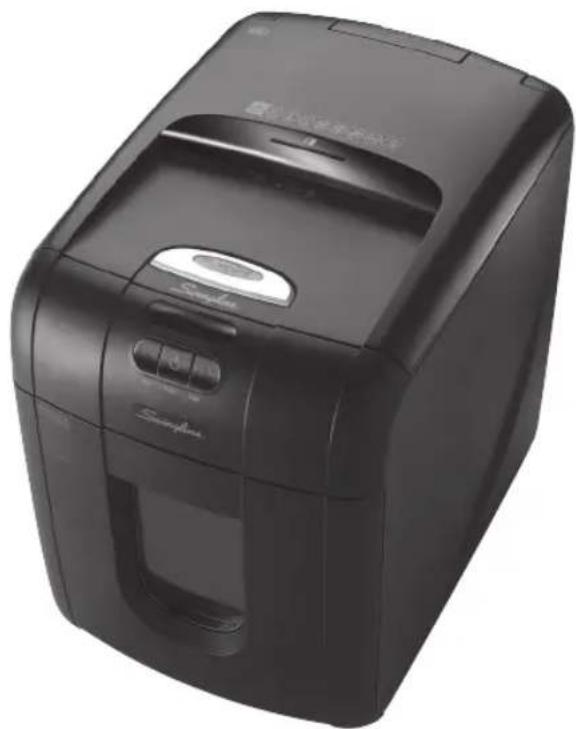

STACK-AND-SHRED100X&100M

SHREDDERS

English instruction manual 6

The Stack and Shred 100X/100M has been designed to automatically shred up to 100 sheets from the auto-feed chamber and up to 6 sheets through the manual feed slot. The auto-feed mechanism has been designed to handle paper fastened with staples and paper clips and to only pull a few sheets of paper into the cutting mechanism to minimise the risk of paper jams.

To guard against injury, the following basic safety precautions must be observed in the set-up of this product.

• Ensure the machine is plugged into an easily accessible power outlet, and ensure the cable is not likely to trip up a passer by.
• Any attempt to repair this unit by unqualified personnel will invalidate the warranty. Please return to supplier.
• Unplug your shredder before moving it or when it is not in use for an extended period of time.
• Do not operate with a damaged power supply cord or plug, after it malfunctions, or after it has been damaged in any manner.
• Do not overload electrical outlets beyond capacity as this can result in fire or electrical shock.
• The socket-outlet should be installed near the equipment and shall be easily accessible.
• Do not alter the attachment plug. The plug is configured for the appropriate electrical supply.
• Do not use near water.
• Do not use aerosol dusters or cleaners.
• Do NOT spray anything into the shredder.
• Do NOT load the autofeed chamber with junk mail, magazines, bound documents etc.

Although this shredder has been designed to comply with UL 60950-1 EN 60950-1 safety standards including the "probe accessibility tests", do not operate the shredder near children or pets.

There is a 'cross shaped' integral safety device, located on the left of the internal loading bay, which is designed to prevent the shredder from operating when the loading door is open. You must NOT under any circumstances tamper with this switch, add any object into the cross-shaped interlock switch other than the interlock actuator, as to do so would activate the cutting blades.

warning symbols

Safety First

This means you should be careful because long hair can become entangled in the cutting head.

This means be careful of ties and other loose clothing which could become entangled in the cutting head.

This means be careful of loose jewellery which could become entangeld in the cutting head.

This means don't reach into the feed opening of the cutting head.

This means keep children away from shredder.

This means no aerosols.

Sheet capacity of manual feed entry slot.

This means the shredder can accept small staples.

This means the shredder can accept small paperclips.

This means no oil lubrication, use Swingline oil sheets only.

control panel and indicators

Auto

Continuous Jam BoostReverse

Paper Loading Door/Bin Door Open or Bin Full indicator - This means either:

• Loading door is open
• Bin is open
• Bin is full

Cool Down indicator - This means the machine is cooling down.

Paper jam indicator - This means there is a paper jam in the auto feed chamber.

If this symbol is flashing the shredder is attempting to clear a paper jam automatically.

If this symbol is permanently illuminated red please follow the instructions under 'Rare Occasion of Jamming'.

technical specifications

Swingline Stack-and-Shred 100X/100M

Sheet capacity: Manual feed slot	6 sheets (80gsm)
Sheet capacity: Autofeed chamber	100 sheets (80gsm)
Auto shutdown After 2 minutes
Duty Cycle 5 min ON / 30 min OFF

Run time from cold 10 minutes
Volts / Hz 120V / 60Hz
Amperage 1.5 Amps
Motor Watts 100X: 200 Watts	100M: 350 Watts

English

Stack and Shred 100X/100M shredding capability

Stack and Shred 100X/100M CAN shred the following:

100 sheets
- Stapled paper, 25mm within the corner
26/6 and 24/6 or smaller staples
- Small sized paper loaded centrally

100 sheets
- Paper clip paper, 25mm within the corner (100M through manual feed slot ONLY)
- Capable of shredding small/medium paper clips (max. wire thickness = 0.9 mm)
- >80/100gsm paper (through manual feed slot ONLY)

A3 folded in half max. 2 sheets
100 sheets
80 gsm paper
- Letter and Legal
- A3 single sheet folded in half to make A4

Stack and Shred 100X/100M CAN shred (through the manual feed slot):

Thick paper or card.

Multiple folded sheets (e.g. A3 sheets folded in half).

Unopened mail (e.g. junk mail).

Glossy paper or a sheet covered with print on both sides.

Stack and Shred 100X/100M CANNOT shred the following:

Heavy duty staples. Check the staple leg length is not greater than 6mm.

Large clips. Check the length of the paperclip is not longer than 32mm

Plastic sheets, laminated documents, plastic folders.

Bulldog clips

Bound documents

Adhesive labels.

Magazines or other documents bound by multiple staples or clips.

1. operation

1 After unpacking the product, pull out the shredder bin. Remove and fit the recyclable paper bag (as per instructions printed on the bag).
2 Connect the shredder to mains supply.
3 Ensure the on/off button on the back of the machine is in the on position.
4 To commence shredding, press the central Auto button ( ). This will illuminate the blue standby symbol on the auto button and sets the shredder into auto mode. You are now ready to shred.
5 Press the loading door button to open the loading door. Load up to 100 sheets at a time into the feed chamber. Do not fill above the 100 MAX level, this could damage the shredder.
6 Close the loading door without pressing the loading door button. The shredder will now start automatically.
7 If there is still paper in the Autofeed tray after first attempt, open and re-close paper loading door a second time.
8 If you only have up to 6 sheets to shred, you can use the manual feed entry slot, provided the auto feed chamber is empty.
9 If the shredder is left in auto mode for more than 2 minutes without being used, it will automatically turn to sleep mode to save power.
10 The shredder will automatically operate from standby mode when paper is inserted into the manual feed entry slot. Opening either the loading door, empting the bin or pressing any button will return the product to auto mode.

2. reverse function

1 Should you wish to reverse paper out whilst shredding, a reverse button ( ) has been fitted for your convenience. The jam indicator will illuminate.
2 To resume shredding, turn the shredder on using the ON/OFF switch at the rear of the shredder. Return the switch to the auto position (O).

3. credit card shredding

Stack and Shred 100X and 100M can shred credit cards, not CDs or DVDs. Switch the shredder to auto mode and insert the credit card into the opening on top of the manual feed entry slot. Swingline encourages customers to recycle shredded paper. Please note that shredded paper can not be recycled if mixed with credit card shards. If recycling, please separate shredded paper and credit cards.

Swingline encourages customers to recycle shredded paper.

Please note that shredded paper cannot be recycled if mixed with credit card shards. If recycling, please separate shredded paper and credit cards.

bin or loading door open safety function

As a safety precaution, if the bin or loading door is opened during shredding, the shredder will stop and the bin full indicator will illuminate (

English

over heating

If the Stack and Shred 100X/100M is used continuously for over 10 minutes the shredder may overheat and the cool down indicator will flash red ( ). Please allow the shredder to cool down. When the shredder is ready to be used the thermometer symbol will no longer illuminate. If the shredder needs to cool down while shredding, no action is needed. The shredder will automatically restart shredding paper once it has cooled down after periods of continuous use. All you need to do is ensure paper is loaded into the chamber and the bin is empty when the machine is cooling down.

4. self-cleaning cutters

After emptying and replacing a full bin, the shredder will run in forward for 4 seconds, stop for 2 seconds and then reverse for 4 seconds to clear away any remaining paper from the cutter mechanism. This unique 'self-cleaning' mechanism is additional jam prevention technology from Swingline.

rare occasions of jamming

If after this auto jam clearance cycle the shredder still has a paper jam, it will stop and the jam indicator illuminate (8). Try clearing the jam using the reverse (▶) and continuous jam boost (▶) buttons. If this is unsuccessful, open the loading door, remove the remaining stack of paper, then pull the jammed paper free of the cutting mechanism.

automatic jam clearance

In the unlikely event of the shredder jamming, the Stack and Shred 100X and 100M will automatically reverse and forward the engine three times to clear a jam. During this operation the Paper Jam indicator will flash (8V).

5. bin full

The shredder will not function when the bin is full and the bin full symbol ( )s illuminated. You should empty the bin.

• Pull open the bin slowly to empty.
• Push the empty bin back into place and press the auto button to resume shredding.

lubrication of the shredder

Only use oil sheets to lubricate. ACCO Brands accepts no liability for product performance or safety when other types of lubricants are used on any part(s) of this machine. Insert the oil sheet into the manual feed slot and NOT in the auto-feed chamber. Using an oil sheet in the auto-feed chamber will contaminate the feed rollers preventing the auto-feed mechanism shredding. Follow the maintenance instructions if the rollers become contaminated. Do not directly oil the shredder.

service

We recommend these machines are serviced every 6 to 12 months by a Swingline service engineer - see back of this booklet for the contact details of your local service centre and for enquiries about maintenance contracts.

6. maintenance

The rollers on the auto-feed mechanism may become dirty over time, please wipe clean with a dry cloth to maintain maximum product performance.

The auto-start infra-red sensor, located in the paper feed entry-slot, can occasionally become covered in paper-dust causing the shredder to run despite no paper being fed into the machine. Switch the shredder off at the rear of the machine and carefully clean the sensor using a cotton-swab.

shredder accessories

Accessory Part Number Box Quantity
Recycling Waste Sack 1765031 20

Limited Warranty

Limited 2 year Cutter Warranty for Stack and Shred 100X/100M Shredder and Limited 2 Year Warranty for all other Parts

ACCO Brands USA LLC, Four Corporate Drive, Lake Zurich, IL 60047-8997 (in Canada, ACCO Brands Canada Inc., 5 Precidio Court, Brampton, ON L6S 6B7; and in Mexico, ACCO Mexicana, S.A. de C.V. Av. Circuito Industrial Norte #6 Parque Industrial Lerma 52000, Lerma Edo. De Mexico) (each, respectively, "ACCO Brands") warrants to the original purchaser that the cutters of this Swingline™ Stack and Shred 100X/100M Shredder are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase and all other parts are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase.

ACCO Brands' obligation under this warranty is limited to replacement or repair, at ACCO Brands' option, of any warranted part found defective by ACCO Brands without charge for material or labor. Any replacement, at ACCO Brands' option, may be the same product or a substantially similar product that may contain remanufactured or refurbished parts. This warranty shall be void in the following circumstances:

(i) if the product has been misused,

(ii) if the product has been damaged by negligence or accident, or

(iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands' authorized agents.

For warranty execution, please call:

1-800-541-0094 in the USA

1-800-263-1063 in Canada

01-(55)-1500-5700/5778 in Mexico

Or go to www.swingline.com.

TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTY. REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS. TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY IMPLIED WARRANTY (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL OR SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.

To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disposes of the product.

This warranty gives you specific legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.

FCC CLASS B NOTICE

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CANADA CLASS B NOTICE

This Class B digital apparatus complies with Canadian ICES-003

MODIFICATIONS

Any modifications made to this device may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment.

ACCO is a registered trademark of ACCO Brands.

Copyright © 2013 ACCO Brands. All rights reserved.

Issue August 2013

Fusion is a registered trademark of ACCO Brands.

Français
