Product Type	Automatic and manual feed document shredder
Brand and Model	Swingline StackandShred 60X
Dimensions (approx.)	40 × 30 × 30 cm
Weight (approx.)	5 kg
Power supply	120 V / 60 Hz, 0.8 A, 180 W
Shredding capacity (manual feed slot)	5 sheets (80 g/m²)
Shredding capacity (auto-feed compartment)	60 sheets (80 g/m²)
Duty cycle	6 minutes on / 40 minutes off
Initial cold operating time	8 minutes
Cut type	Strip cut (size not specified)
Main functions	Auto-feed, forward/reverse, cooling indicator, automatic stop if basket or lid open
Maintenance and cleaning	Clean rollers with a dry cloth; use only Swingline lubricating sheets
Safety	Automatic stop if basket or lid open; overload protection; do not use near children
Spare parts and repairability	2-year warranty on knives and parts; recommended service every 6 to 12 months by an authorized repairer
General information	Can shred stapled or small paperclip sheets, bank cards; do not shred plastics, bound documents, adhesives

Frequently Asked Questions - StackandShred 60X Swingline

What is the maximum capacity of the auto-feed?

The auto-feed compartment can hold up to 60 sheets of standard paper (80 g/m²).

Can I shred stapled or paperclipped sheets?

Yes, the StackandShred 60X accepts sheets with small staples (26/6 and 24/6) and small/medium paperclips (wire max 0.9 mm, length max 32 mm) within 25 mm of the edge.

How to use the manual feed slot?

The manual slot is used to shred up to 5 sheets at a time. Make sure the auto-feed compartment is empty before using it.

What to do in case of overheating?

If the red cooling indicator lights up, let the device cool down. The cooling cycle is automatic and shredding will resume once normal temperature is restored.

How to clear a paper jam?

Switch to reverse (K) to push the paper back out, then to continuous forward to clear. If the jam persists, follow the manual instructions.

Should I lubricate the shredder?

Yes, use only Swingline lubricating sheets in the manual slot. Never directly lubricate the blades with oil.

What are the important safety instructions?

Do not wear loose clothing or jewelry near the slot. Keep the shredder out of reach of children. Do not spray any product into the device. Unplug it before moving.

Can I shred bank cards?

Yes, insert one bank card at a time into the manual slot. Do not mix residue with recycled paper.

What if the basket is full?

The device stops automatically. Empty the basket by pulling it out slowly, then replace it to resume shredding.

What is the warranty period?

The warranty is 2 years on knives and all other parts. It does not cover abuse, neglect, or unauthorized modifications.

USER MANUAL StackandShred 60X Swingline

FEATURE COMPARISON	LIGHT USE		EVERYDAY USE					HEAVY USE
Model	60X	80X	100X	100M	200X	300X	300M	500X	500M	750X	750M
Security level	P3		P3	P5	P3	P3	P5	P4	P5	P4	P5
Bin Capacity (sheets)	100	150	150	280	325	450	670	850	1100	1250	1400
Users	1		1-2		1-5	5-10		10-20		20+
HANDS FREE SHREDDING
Sheet Capacity	60	80	100	100	200	250	250	500	500	750	750
Staples and Paper Clips	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Intelligent Jam Clearance		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Lockable Chamber					Optional	✓	✓	✓	✓	✓	✓
MANUAL FEED SHREDDING
Manual feed sheet capacity	5	6	6	6	7	8	8	10	9	12	10
Jam Assist			✓	✓	✓	✓	✓	✓	✓	✓	✓
Bin Capacity (Gallons)	4gal	5gal	7gal	7gal	9gal	11gal	11gal	21gal	21gal	31gal	31gal
Shreds Credit Cards	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Intelligent™ Power Save		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Bin Full Indicator		✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
Illuminated Status Symbols			✓	✓	✓	✓	✓	✓	✓	✓	✓
Shreds CDs					✓	✓	✓	✓	✓	✓	✓
Castors for Mobility					✓	✓	✓	✓	✓	✓	✓
Intelligent™ SelfOil™								✓	✓	✓	✓
Continuous operation								✓	✓	✓	✓

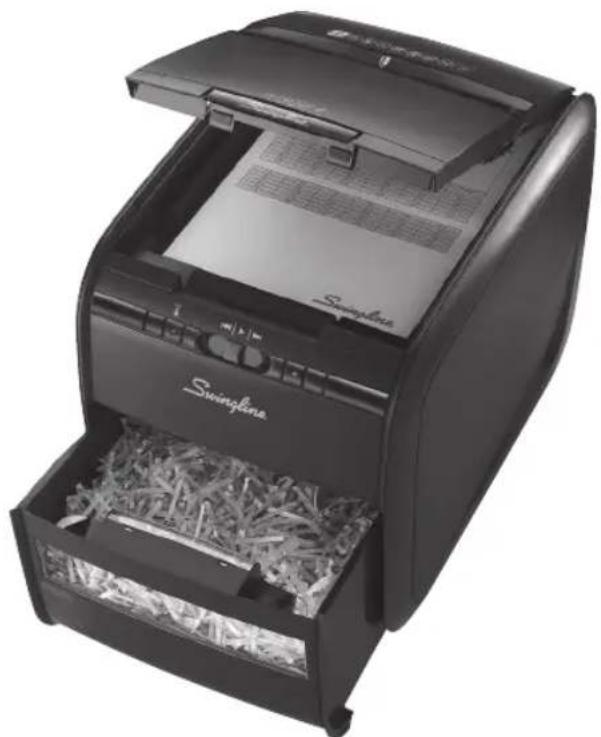

STACK-AND-SHRED60X

SHREDDERS

English instruction manual 6

The Stack and Shred 60X has been designed to automatically shred up to 60 sheets from the auto-feed chamber and up to 5 sheets through the manual feed slot. The auto-feed mechanism has been designed to handle paper fastened with staples and paper clips and to only pull a few sheets of paper into the cutting mechanism to minimise the risk of paper jams.

To guard against injury, the following basic safety precautions must be observed in the set-up of this product.

• Ensure the machine is plugged into an easily accessible power outlet, and ensure the cable is not likely to trip up a passer by.
• Any attempt to repair this unit by unqualified personnel will invalidate the warranty. Please return to supplier.
• Unplug your shredder before moving it or when it is not in use for an extended period of time.
• Do NOT operate with a damaged power supply cord or plug, after it malfunctions, or after it has been damaged in any manner.
• Do NOT overload electrical outlets beyond capacity as this can result in fire or electrical shock.
• The socket-outlet should be installed near the equipment and shall be easily accessible.
• Do NOT alter the attachment plug. The plug is configured for the appropriate electrical supply.
• Do NOT use near water.
• Do NOT use aerosolusters or cleaners.
• Do NOT spray anything into the shredder.
• Do NOT load the auto-feed chamber with unopened junk mail, magazines, bound documents etc.

Although this shredder has been designed to comply with UL 60950-1 EN 60950-1 safety standards including the "probe accessibility tests", do not operate the shredder near children or pets.

technical specifications

Swingline Stack and Shred 60X

Sheet capacity: Manual feed slot	5 sheets (80gsm)
Sheet capacity: Autofeed chamber	60 sheets (80gsm)
Duty Cycle 6 min ON / 40 min OFF

Run time from cold 8 minutes
Volts / Hz 120V / 60Hz
Amperage 0.8 Amps
Motor Watts 180 Watts

warning symbols

Safety First

This means you should be careful because long hair can become entangled in the cutting head.

This means be careful of ties and other loose clothing which could become entangled in the cutting head.

This means be careful of loose jewellery which could become entangeld in the cutting head.

This means don't reach into the feed opening of the cutting head.

This means keep children away from shredder.

This means no aerosols.

Sheet capacity of manual feed entry slot.

This means the shredder can accept small staples.

This means the shredder can accept small paperclips.

This means no oil lubrication, use Swingline oil sheets only.

control panel and indicators

Auto

Continuous Jam BoostReverse

Cool Down indicator - This means the machine is cooling down.

English

Stack and Shred 60X shredding capability

Stack and Shred 60X CAN shred the following:

• 60 sheets
• Stapled paper, 25mm within the corner
  26/6 and 24/6 or smaller staples
• Small sized paper loaded centrally

60 sheets
- Paper clip paper, 25mm within the corner
- Capable of shredding small/medium paper clips (max. wire thickness = 0.9 mm)
- >100gsm paper (through manual feed slot ONLY)

A3 folded in half max. 2 sheets
- 60 sheets
80 gsm paper
- Letter and Legal
- A3 single sheet folded in half to make A4

Stack and Shred 60X CAN shred (through the manual feed slot):

Thick paper or card.

Multiple folded sheets (e.g. A3 sheets folded in half).

Unopened mail (e.g. junk mail).

Glossy paper or a sheet covered with print on both sides.

Stack and Shred 60X CANNOT shred the following:

Heavy duty staples. Check the staple leg length is not greater than 6mm.

Large clips. Check the length of the paperclip is not longer than 32mm

Plastic sheets, laminated documents, plastic folders.

Bulldog clips

Bound documents

Adhesive labels.

Magazines or other documents bound by multiple staples or clips.

1. operation

1 Unpack the product.
2 Connect the shredder to mains supply.
3 Ensure the on/off switch on the back of the shredder is in the 'ON' position.
4 To commence shredding, move the slide switch to the Auto position (▶) which sets the shredder into auto mode. You are now ready to shred.
5 To load the shredder, simply lift the loading door catch to open the loading door and insert documents. You can open the door further to 90 degrees for easier access if required. Load up to 60 sheets at a time into the feed chamber. Do NOT fill above the MAX level, this could damage the shredder.
6 The shredder will start shredding automatically ONLY after closing the loading door.
7 If there is still paper in the Autofeed tray after first attempt, open and re-close paper loading door a second time.
8 If you only have up to 5 sheets to shred, you can use the manual feed slot, provided the auto feed chamber is empty.

2. reverse function

1 Should you wish to reverse paper out whilst shredding, a reverse button (K) has been fitted for your convenience.
2 Reverse the paper out then turn the shredder off using the ON/OFF switch at the rear of the shredder. Remove the paper from the manual feed slot (if being used) or open the loading door, remove the remaining stack of paper, then pull the jammed paper free of the cutting mechanism.
3 To resume shredding return the slide switch to the auto position () and turn on the machine by using the ON/OFF switch at the rear of the shredder.

3. credit card shredding

The Stack and Shred 60X can shred credit cards. Switch the shredder to auto mode and insert the credit card between the markings in the manual feed slot. Only shred one credit card at a time.

Swingline encourages customers to recycle shredded paper.

Please note that shredded paper cannot be recycled if mixed with credit card shards. If recycling, please separate shredded paper and credit cards.

English

over heating

If the Stack and Shred 60X is used continuously for over 8 minutes the shredder may overheat and the cool down indicator will flash red ( ). Please allow the shredder to cool down. When the shredder is ready to be used the thermometer symbol will no longer illuminate. If the shredder needs to cool down while shredding, no action is needed. The shredder will automatically restart shredding paper once it has cooled down after periods of continuous use. All you need to do is ensure paper is loaded into the chamber and the bin is empty when the machine is cooling down.

bin or loading door open safety function

As a safety precaution, if the bin or loading door is opened during shredding, the shredder will stop.

rare occasions of jamming

In the unlikely event of the shredder jamming, the Stack and Shred 60X will stop shredding. Check that the bin is not full then try clearing the jam using the reverse (▶) and continuous jam boost (▶) switch then return to Auto mode (▶). If this is unsuccessful follow the reverse function instructions.

4. bin full

Should the shredder stop shredding, the bin may be full. Check first by looking through the viewing window and if full you should empty the bin.

• Pull open the bin slowly to empty.
• Push the empty bin back into place and the machine will resume shredding.

lubrication of the shredder

Only use oil sheets to lubricate. ACCO Brands accepts no liability for product performance or safety when other types of lubricants are used on any part(s) of this machine. Insert the oil sheet into the manual feed slot and NOT in the auto-feed chamber. Using an oil sheet in the auto-feed chamber will contaminate the feed rollers preventing the auto-feed mechanism shredding. Follow the maintenance instructions if the rollers become contaminated. Do not directly oil the shredder.

5. maintenance

The rollers on the auto-feed mechanism may become dirty over time, please wipe clean with a dry cloth to maintain maximum product performance.

service

We recommend these machines are serviced every 6 to 12 months by a Swingline service engineer - see back of this booklet for the contact details of your local service centre and for enquiries about maintenance contracts.

Limited Warranty

Limited 2 year Cutter Warranty for Stack and Shred 60X Shredder and Limited 2 Year Warranty for all other Parts

ACCO Brands USA LLC, Four Corporate Drive, Lake Zurich, IL 60047-8997 (in Canada, ACCO Brands Canada Inc., 5 Precidio Court, Brampton, ON L6S 6B7; and in Mexico, ACCO Mexicana, S.A. de C.V. Av. Circuito Industrial Norte #6 Parque Industrial Lerma 52000, Lerma Edo. De Mexico) (each, respectively, "ACCO Brands") warrants to the original purchaser that the cutters of this Swingline™ Stack and Shred 60X Shredder are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase and all other parts are free from defects in workmanship and material under normal use and service for a period of 2 years after purchase.

ACCO Brands' obligation under this warranty is limited to replacement or repair, at ACCO Brands' option, of any warranted part found defective by ACCO Brands without charge for material or labor. Any replacement, at ACCO Brands' option, may be the same product or a substantially similar product that may contain remanufactured or refurbished parts. This warranty shall be void in the following circumstances:

(i) if the product has been misused,

(ii) if the product has been damaged by negligence or accident, or

(iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands' authorized agents.

For warranty execution, please call:

1-800-541-0094 in the USA

1-800-263-1063 in Canada

01-(55)-1500-5700/5778 in Mexico

Or go to www.swingline.com.

TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED WARRANTY. REPRESENTATIONS OR PROMISES INCONSISTENT WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE BINDING ON ACCO BRANDS. TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY IMPLIED WARRANTY (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL OR SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.

FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.

To the extent permitted by law, this warranty is not transferable and will automatically terminate if the original product purchaser sells or otherwise disposes of the product.

This warranty gives you specific legal rights. Other rights, which vary from jurisdiction to jurisdiction, may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii) limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain types of costs and/or damages, so the above limitations may not apply.

FCCCLASSBNOTICE

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CANADA CLASS B NOTICE

This Class B digital apparatus complies with Canadian ICES-003

MODIFICATIONS

Any modifications made to this device may void the authority granted to the user by the FCC and/or by Industry Canada to operate this equipment.

ACCO is a registered trademark of ACCO Brands.

Copyright © 2013 ACCO Brands. All rights reserved.

Issue August 2013

Fusion is a registered trademark of ACCO Brands.
