Product type	Clock radio
Brand	Daewoo
Model	DCP29
Mains power	230 V ~ 50 Hz
Backup battery	1 x CR2032 (included)
Radio frequency	FM 87.5 – 108 MHz
Antenna	External cable
Output power	500 mW max
Speaker	50 mm, 8 ohms x 1
Display	LCD with backlight
Time projection	Yes, with focus and angle adjustment
Dual alarm	Yes (radio alarm or buzzer)
Snooze (repetition)	9 minutes, up to 1 hour
Sleep timer	90, 60, 30 or 15 minutes
Number of radio presets	10 stations
Alarm by radio or buzzer	Yes
Automatic radio shut-off	Yes (sleep timer)
12/24 hour setting	Yes
Date and day display	Yes
Warranty	2 years
Maintenance	Clean with a dry cloth

Frequently Asked Questions - DCP29 DAEWOO

How to set the time on the Daewoo DCP29 clock clock radio?

In clock mode, press and hold the SET button. Use SCAN - and SCAN + to adjust the hours, then press SET to confirm. Repeat for minutes, 12/24 hour format, year, month, and day.

How to set the alarm?

Press AL1 or AL2 to access the setting. Press again to choose the source (Radio or Buzzer). Then press SET to set the minutes and hours. For radio, first pre-select a station.

How to program a radio station?

In Radio mode, use SCAN - and SCAN + to find a station. Press and hold the MEMO button, then select a preset number (1 to 10) with SCAN -/SCAN +. Press MEMO again to confirm.

How to use the snooze function?

While the alarm is sounding, press the SNOOZE/LIGHT button. The alarm stops and triggers again after 9 minutes. This snooze can last up to one hour.

How to use the time projector?

In normal state, briefly press SNOOZE/LIGHT to turn on the projector for 60 seconds. For continuous on, press and hold the button until the projector stays on. Use the FOCUS and IMAGE ROTATING dials to adjust the sharpness and projection angle.

How to set the sleep timer?

In Radio mode, press SLEEP to choose the auto-off duration: 90, 60, 30, 15 or 0 minutes (off). The radio will automatically turn off after the selected time.

What backup battery to use?

Use a CR2032 battery (3 V). It helps retain time and settings during a power outage. Insert it into the designated compartment.

What to do if the device does not turn on?

Check that the power cord is properly plugged into a 230 V mains outlet. If the device remains off, unplug it, remove the backup battery, wait a few seconds, then plug it back in. If the problem persists, contact technical support.

How to clean the device?

Unplug the device before cleaning. Use a soft, dry cloth to wipe surfaces. Do not use solvents, abrasive products, or water, as they may damage the device.

What are important safety precautions?

Do not expose the device to rain or moisture. Do not place liquid-filled objects (vase) on the device. Keep it away from heat sources. Use only the indicated power supply type. In case of malfunction, have repairs done by a qualified technical service.

USER MANUAL DCP29 DAEWOO

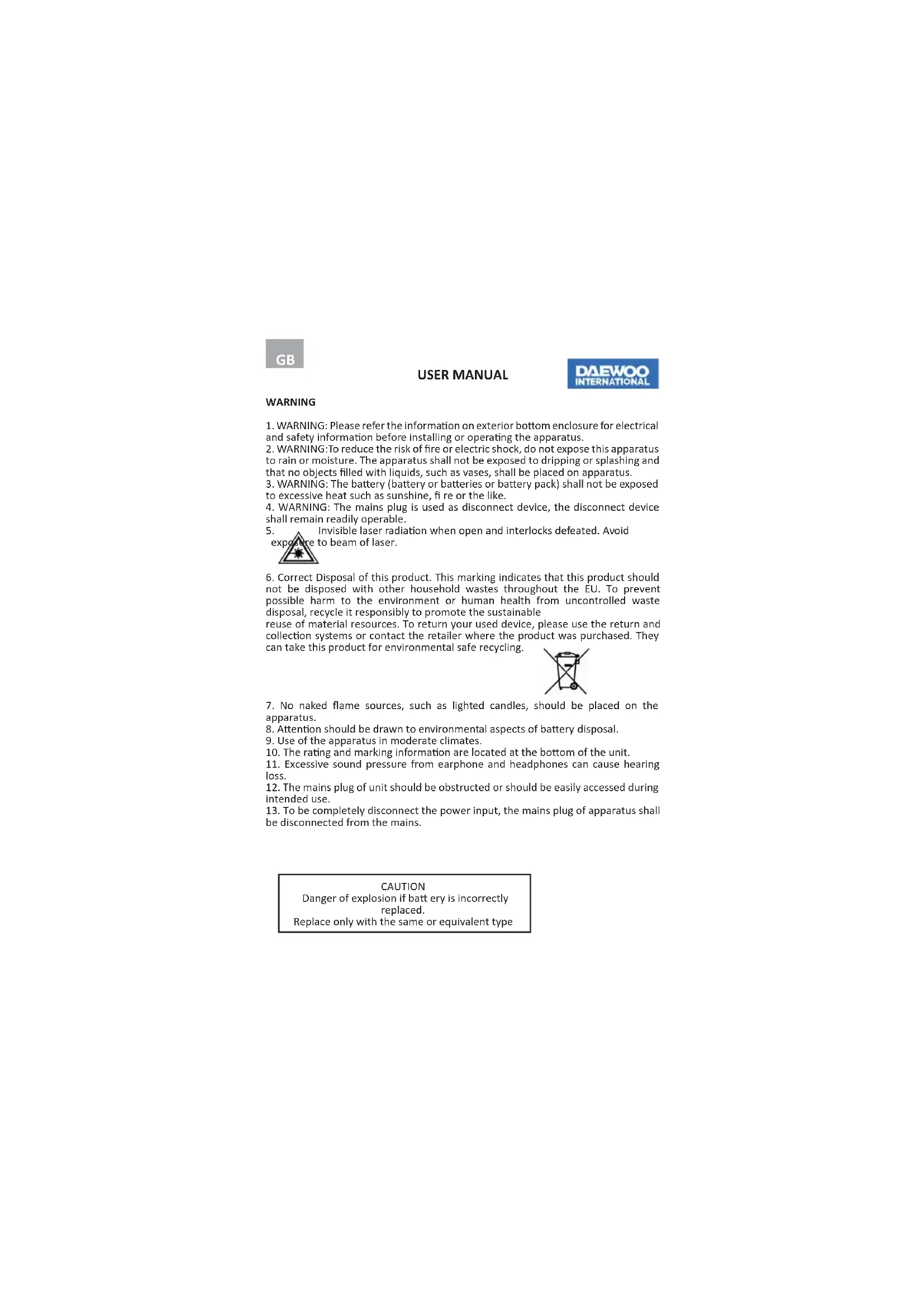

1. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.
2. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
3. WARNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
4. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
5. Invisible laser radiation when open and interlocks defeated. Avoid exposure to beam of laser.

1. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

1. No naked flame sources, such as lighted candles, should be placed on the apparatus.
2. Attention should be drawn to environmental aspects of battery disposal.
3. Use of the apparatus in moderate climates.
4. The rating and marking information are located at the bottom of the unit.
5. Excessive sound pressure from earphone and headphones can cause hearing loss.
6. The mains plug of unit should be obstructed or should be easily accessed during intended use.
7. To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

GB

WARNING

TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

LIGHTNING FLASH WITH ARROWHEAD SYMBOL within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of suffi cient magnitude to consti tude a risk of electric shock to persons.

EXCLAMATION POINT - within an equi-lateral triangle, is used to indicate that a specific component shall be replaced only by the component specifi ed in that documentation on for safety reason.

The following label has been affixed to the unit, listing the proper procedure for working with the laser beam:

CLASS 1 LASER PRODUCT LABEL - This label is attached to the place as illustrated to inform that the apparatus contains a laser component.

WARNING LABEL INFORMING OF RADIATION This label is placed inside the unit. As shown in the illustrati on. To warn against further measures on the unit. The equipment contains a laser radiat ing laser rays according to the limit of laser product of class 1.

GB

DAEWOO INTERNATIONAL

SAFETY INSTRUCTIONS

1. READ INSTRUCTIONS. All the safety and operating instructions should be read before the appliance is operated.

2. RETAIN INSTRUCTIONS. The safety and operating instruction should be retained for future reference.

3. HEED WARNINGs. All warnings on the appliance and in the operating instructions should be adhered to.

4. FOLLOW INSTRUCTIONS. All operating instructions should be followed.

5. WATER AND MOISTURE. The appliance should not be used near water, for example, near a bathtub, washbowl, kitchen sink, laundrytub, swimming pool or in a wet basement.

6. VENTILATION. The appliance should be situated so that its location or position does not interfere with its proper ventilation. Do not place on bed, sofa, rug or similar surface that may block the ventilation openings, in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

7. HEAT - The appliance should be situated away from heat sources such as radiators, stoves, or other appliances (including amplifiers) that produce heat.

8. POWER SOURCE. The appliance should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.

9. POWER CORD PROTECTION. Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.

10. POWER LINES. An outdoor antenna should be located away from power lines.

11. OBJECT and LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

12. ESD WARNING. The display does not function properly or no reaction to operation of any the control may due to the electrostatic discharge. Switch off and unplug the set. Reconnect aft er a few seconds.

13. DAMAGE REQUIRING SERVICE - The appliance should be serviced by qualified service personnel when:

a. The power-supply cord or plug has been damaged.
b. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
c. The appliance has been exposed to rain.
d. The appliance has been dropped, or the enclosure damaged.
e. The appliance does not appear to operate normally.

1. SERVICING - The user should not attempt to service the appliance beyond that described in the user operating instructions. All other servicing should be referred to qualified service personnel

Notes:

a. If an error display or malfunction occurs, disconnect the AC cord and remove all the batt eries. Then turn the power back on.

GB

DAEWOO INTERNATIONAL LOCATION OF CON

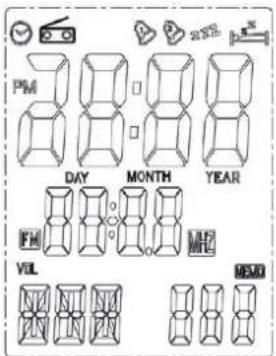

DISPLAY

GB

DAEWOO INTERNATIONAL

FEATURES

• LCD display with backlight
  Clock/Date/Weekday display
• 12/24 Hours display setting
• Dual Alarm
• Wake up by Radio/Buzzer
• SNOOZE functi on
• Sleep Functi on (Radio mode)
  -PLL FM Radio
• 10 Radio Preset Station
  Volume Control. Total 16 levels (defaulted at level 6 at the beginning)
• Button Cell battery backup

FUNCTION KEY

• AL1: Press for checking Alarm1 status & Alarm1 setting
• AL2: Press for checking Alarm2 status & Alarm2 setting
• MODE: For Changing mode, Clock (standby) > Radio
  -SCAN-: (Radio) Press once Radio frequency down,
  Press & hold for radio stat on searching
  -SCAN+: (Radio) Press once for Radio frequency up,
  Press & hold for radio stati on searching
• SET: (Clock) For clock setting
  -MEMO: (Radio) For setting the preset radio station
• SLEEP Press for sleep timer setup (90>60>30>15>0)
  VOL+Volume level UP/DOWN

• SNOOZE/LIGHT:

• Snooze function when in alarm mode (Each press for repeating alarm every 9 minutes, last for 1 hour)

• Light function when in normal state (Press once for LCD backlight and Time Projector ON for 60 seconds) (Press & hold for LCD backlight and Time Projector always ON, then press & hold again for return to normal state)

• FOCUS: Scroll to have a clear time projection image

• IMAGE ROTATING Scroll to have the best angle for time projection

CLOCK OPERATION

Time Setti ng

• Press MODE until you enter the Clock Display Mode (defaulted at Clock Display Mode when you fi rst connect with Electricity)
• Press & hold the SET button to enter Time Setting Mode
• Press SCAN-/SCAN+ to set the desire time, press the SET button to confirm and for next setting

Clock Setting sequence: Minutes>Hour>12/24 hr>Year>Month>Day

DAEWOO INTERNATIONAL

GB

Alarm Time Setti ng

-InClockDisplayMode
- Press AL1/AL2 button to enter the Alarm Time Setting Mode.
- Press AL1/AL2 once again to select the alarm sound source.
The sequence: Off > Radio > Buzzer
- Press the SET butt on to enter the Alarm Time
The Setting sequence for wake up by Radio: Minutes > Hour > Preset radio station
number ≥ Volume (Radio preset station must be set before using this function.
Otherwise, alarm will only wake up to the default station at FM 87.5MHz)
The Setting sequence for wake up by Buzzer: Minutes ≥ Hour
- Press the MODE button any time return to Clock Display Mode.
- Alarm last for 1 hour
- Alarm only available to stop by pressing the related alarm button (AL1/AL2)
- Alarm restart every 9 minutes aft er each press of SNOOZE

RADIO OPERATION

• Press MODE butt on to enter Radio Mode.
• default at FM87.5 when first use
• Last radio frequency memory
• Press SCAN-/SCAN+ once for radio frequency selection. Press & hold for auto radio stati on searching.
• Once the radio station been selected. Press & hold MEMO button to enter the Preset Radio Station Mode. Then press SCAN-/SCAN+ to select the desire preset station number. Then press MEMO again to confirm.
• Repeat the above procedures to store more radio stations (maximum 10 preset radio stations).

Listening to the radio by preset stati on

• In Radio Mode, press the MEMO button to select the desired preset radio station.
• Then press MEMO button again for the next preset station.

SNOOZE/LIGHT FUNCTION

• During the wakeup time, press the SNOOZE/LIGHT button once to temporarily turn off the alarm. After approximately 9 minutes the alarm will sound again. The cycle will repeat when the SNOOZE / LIGHT button is pressed again. Alarm max last for 1 hour

Note:

• When pressing the SNOOZE / LIGHT button, the panel backlight and projection clock will turn on, and will turn off automatically after 1 minute.
• Press and hold SNOOZE/LIGHT for backlight and projection clock always ON, then press and hold again for back to normal

PROJECTOR:

• Scroll the FOCUS for tuning the clear time projection image
• Scroll the IMAGE ROTATING for tuning the best time projection angle

GB

SLEEP FUNCTION

The sleep function is used for automatic switch-off of the Radio - In Radio Mode, press the SLEEP button to set the sleep time in minutes (90 > 60 > 30 > 15 > 0) . The radio will now play and switch off automatically when reach the sleep time.

SPECIFICATIONS

Radio Frequency: FM - 87.5 - 108MHz

Antenna: External Antenna Wire

Output: 500mW Max.

Speaker: 50mm, 8ohm x 1

Power Required: Input 230v 50Hz Clock backup - DC3V, 1 x CR2032 battery (battery included)

While every effort has been made to ensure all information contained in this manual is correct, design and specifications are subject to change without notice.

STATEMENT OF COMPLIANCE:

Flamagas SA hereby declares that the DCP-29 product complies with the requisites and basic safety requirements of: Directive 2004/108/EC on Electromagnetic Compatibility.

For a full copy of the statement of compliance please see: www.electronicaflamagas.com

GUARANTEE

This product is guaranteed against all manufacturing defects for 2 years from the date of purchase. If the care advice and instructions contained in this manual are not followed the guarantee will be automatically void.

For this guarantee to be valid, it is necessary to present the original receipt or invoice. Flamagas S.A. exclusive importer.

DAEWOO INTERNATIONAL
