Lieber Kunde,

Labeled diagram of a cleaning or cleaning device with numbered components for identification

We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The laminating device is used for laminating laminating pouches with a thickness of 80 microns to 125 microns as well as cutting paper and laminating pouches. Any other use is considered improper use. Unauthorised modifications or conversions that are not described in these operating instructions are not permitted and will result in damage to this product. Proper installation and observance of and compliance with the instructions in this operating manual are prerequisites for the intended use of the device.

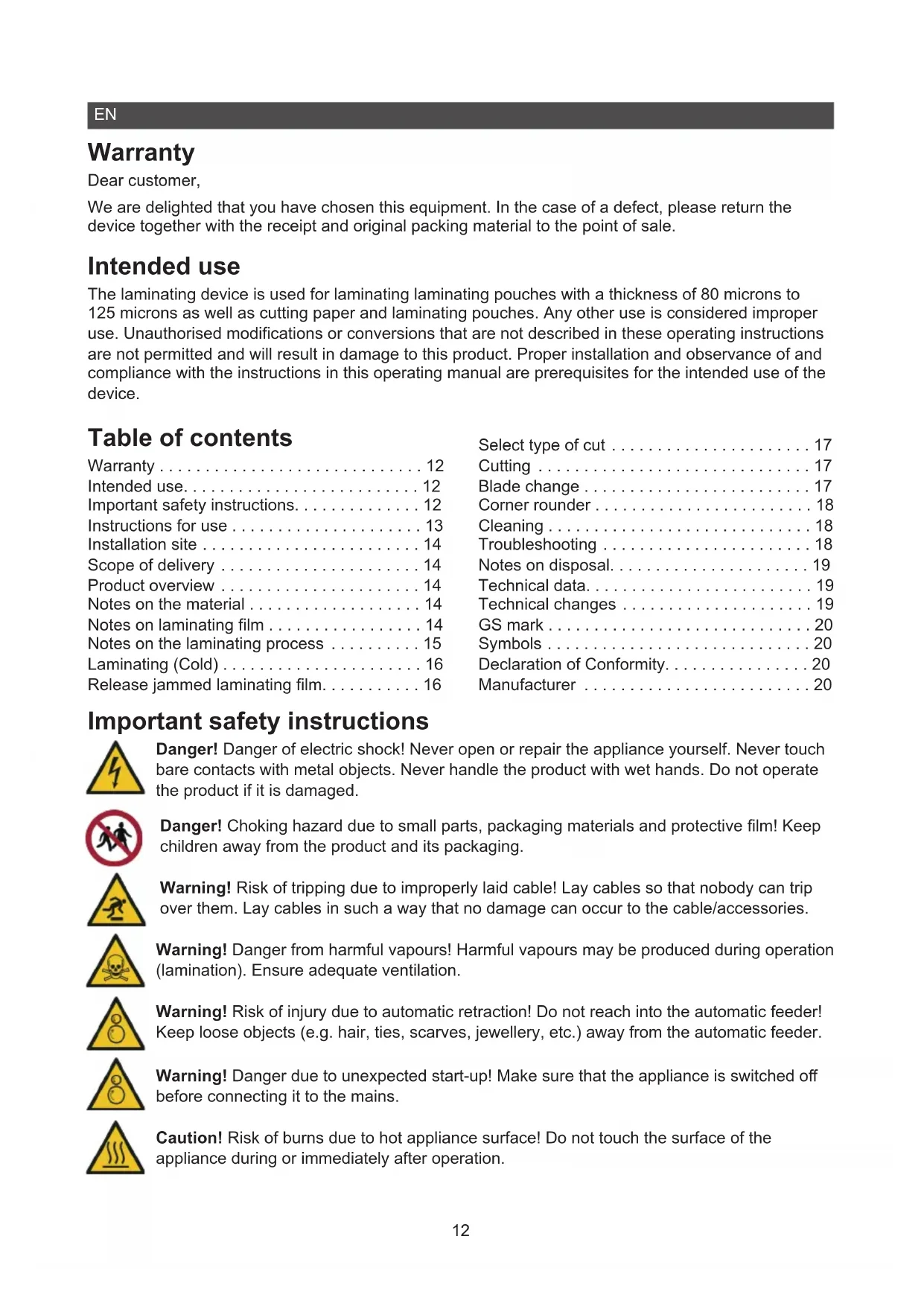

Table of contents

Warranty 12
Intended use....12
Important safety instructions....12
Instructions for use 13
Installation site 14
Scope of delivery 14
Product overview 14
Notes on the material 14
Notes on laminating film 14
Notes on the laminating process ..... 15
Laminating (Cold) 16
Release jammed laminating film. 16

Select type of cut 17
Cutting 17
Blade change 17
Corner rounder 18
Cleaning 18
Troubleshooting 18
Notes on disposal....19
Technical data....19
Technical changes 19
GS mark 20
Symbols 20
Declaration of Conformity....20
Manufacturer 20

Important safety instructions

Danger! Danger of electric shock! Never open or repair the appliance yourself. Never touch bare contacts with metal objects. Never handle the product with wet hands. Do not operate the product if it is damaged.

Danger! Choking hazard due to small parts, packaging materials and protective film! Keep children away from the product and its packaging.

Warning! Risk of tripping due to improperly laid cable! Lay cables so that nobody can trip over them. Lay cables in such a way that no damage can occur to the cable/accessories.

Warning! Danger from harmful vapours! Harmful vapours may be produced during operation (lamination). Ensure adequate ventilation.

Warning! Risk of injury due to automatic retraction! Do not reach into the automatic feeder! Keep loose objects (e.g. hair, ties, scarves, jewellery, etc.) away from the automatic feeder.

Warning! Danger due to unexpected start-up! Make sure that the appliance is switched off before connecting it to the mains.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Caution! Risk of burns from hot laminating film! The laminating film is very hot immediately after lamination. When removing the laminating film, only touch the cooled end.

Caution! Risk of burns due to hot residues! The paper used for cleaning may contain hot residues. The paper is very hot immediately after cleaning. When removing the paper, only touch the cooled end.

Caution! Risk of cuts from sharp blades! Do not touch under the cutting head.

Attention! Material damage due to improper operation! Remove all staples and paper clips before laminating or cutting.

Attention! Material damage due to improper operation! Only use paper and laminating films that fulfil the requirements under Technical data.

Attention! Material damage possible! If the product exhibits unusual characteristics such as noise, odour or smoke, disconnect the power supply immediately.

Attention! Material damage due to improper operation! When not in use, place the knife in a horizontal position / end position. Cut only when the cutting head moves easily.

Attention! Material damage due to improper operation! Do not remove material residues after cutting with sharp or pointed objects.

Attention! Material damage due to improper operation! Do not carry the device by the cutting head or the guide bar.

Attention! Material damage possible! It cannot be ruled out that some varnishes, plastics, or furniture care products may attack and soften the material of the non-slip feet. To avoid marks on furniture, consider placing a non-slip mat under the appliance if necessary.

Instructions for use

Please read these operating instructions before connecting and using the product. Keep these operating instructions for future reference. Hand over all documents when passing the product on to third parties.

• Protect the product from direct sunlight, naked flames, heat sources, moisture, humidity and dust.
• Do not cover the product during operation.
• The product is not intended for commercial use.
• The product may only be used indoors.
• Connect the device only to a properly installed and easily accessible power outlet. Observe the information under Technical data.
• Only use accessories that fulfil the requirements under Technical data.
• Disconnect the appliance from the power supply when not in use to prevent accidental operation.
• Do not leave the appliance unattended during operation.
• Ensure that the appliance is not used unsupervised by children or persons with reduced physical, sensory or mental capabilities.
• The appliance is not suitable for continuous operation.
• The appliance does not have an automatic switch-off function. Switch off the appliance after the laminating process, disconnect the mains plug from the socket and allow the appliance to cool down.

Installation site

Place the appliance on a stable, level surface near a power socket.

Scope of delivery

1 Laminating device 15 Laminating Pouches (3x A4, 4x A5, 4x A6, 4x Card)

1 Corner rounder 1 Operating instructions

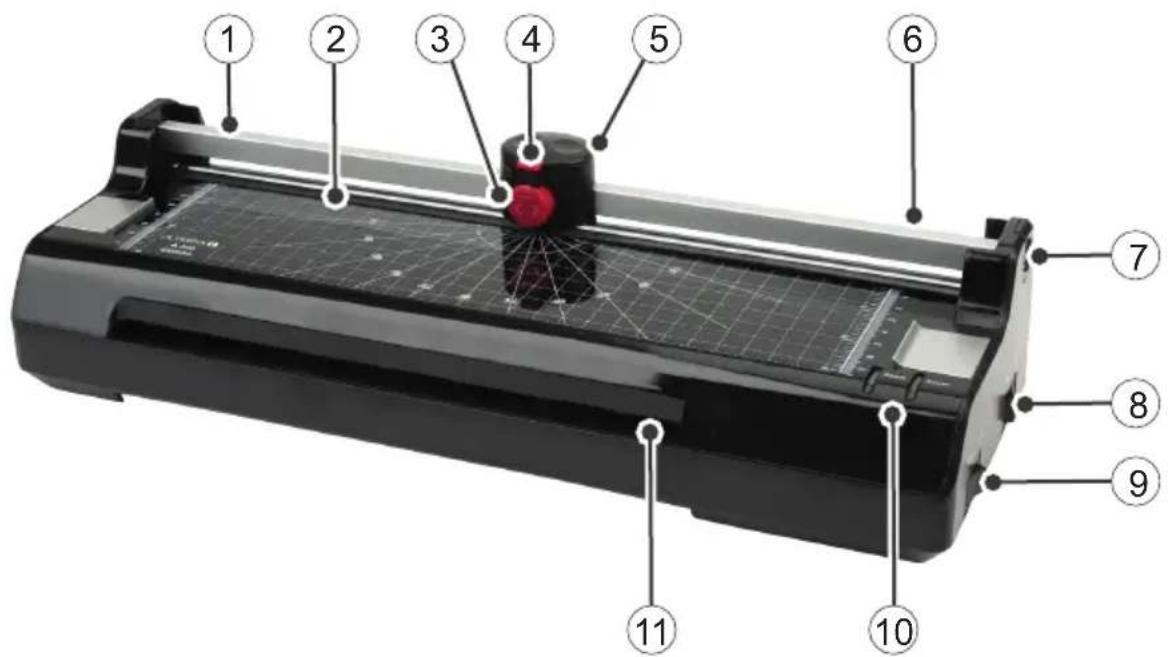

Product overview

Labeled diagram of a paperclip with numbered parts for identification

1 Guide rail 7 Cover for guide rail

2 Print queue 8 On and off switch

3 Rotary knob for selecting the cutting type 9 Hot / Cold Switch

4 Adjustment lock 10 Indicators (Power / Ready)

5 Cutting head 11 Catchment area for laminating

6 Anti-lock button (ABS) 12 Corner rounder (not illustrated)

Notes on the material

- Do not laminate metallic, wet or uneven materials.

- Do not laminate heat-sensitive materials (e.g. thermal paper, ultrasound images).

- The material to be laminated together with the laminating film must not be thicker than 0.5 mm.

- Laminate thin and soft materials with a stronger lamination film.

- Do not use several small pieces of material per film.

Notes on laminating film

- Only use film types intended for lamination.

- Other types of film, such as transparent film, are expressly not suitable for lamination.

- Select the size of the laminating film to suit the material to be laminated.

- Do not adjust laminating foils to size before laminating.

Notes on the laminating process

• Do not insert laminating film without contents into the feed area (front) of the laminator.
• Do not insert the laminating film rolled up into the feed area (front) of the laminator.
• Do not insert the laminating film on one side into the feed area (front) of the laminator.
• Always insert the laminating film with the closed side first - centred and in a straight line - into the feed area (front) of the ready-to-use laminator.
• Do not pull the laminating film out of the output side (reverse side) during lamination.

Laminating (Hot)

Warning! Danger due to unexpected start-up! Make sure that the appliance is switched off before connecting it to the mains.

1 Connect the power plug to a properly installed socket.
2 Switch the appliance to HOT using the hot/cold switch.
3 Switch the device on using the ON/OFF switch.
4 The indicator light Power is on. The device is not yet ready for operation. The appliance heats up.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Note: Wait until the appliance is fully heated up. Do not insert the laminating film beforehand, as this will prevent it from fusing properly.

5 Place the document to be laminated in the laminating film. Make sure that there is a gap of approx. 3 - 5 mm to the edge of the film on all sides.

Attention! Material damage possible! Only use laminating films that are suitable for hot lamination.

6 After about 5 minutes, the LED display lights up Ready and the device is ready for operation.

Attention! Material damage possible! Never insert the lamination foil into the feed area at an angle.

Attention! Material damage possible! Always insert the closed end of the laminating film into the feed area of the laminator first.

Note: Make sure that the laminating film can be dispensed from the back of the device.

7 Guide the laminating film with the closed side straight into the feed area until the laminating film is caught by the transport rollers.
8 The laminating film is automatically pulled through the device.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Caution! Risk of burns from hot laminating film! The laminating film is very hot immediately after lamination. When removing the laminating film, only touch the cooled end.

9 Remove the laminating film at the cooled end.

Tip: To flatten the laminated document, place a book or similar heavy, flat object on top of it.

10 Switch the device off (OFF).

Note: Allow the laminating film to cool before further use.

Laminating (Cold)

Warning! Danger due to unexpected start-up! Make sure that the appliance is switched off before connecting it to the mains.

Note: Allow the device to cool down if you have previously used the Laminating (Hot) function.

1 Connect the power plug to a properly installed socket.
2 Switch the device to cold (COLD) using the hot/cold switch.
3 Switch the device on using the ON/OFF switch.
4 The indicator lights Power and Ready are on. The device is ready for operation.
5 Remove the protective film from the laminating film.
6 Place the document to be laminated in the laminating film. Make sure that there is a gap of approx. 3 - 5 mm to the edge of the film on all sides.

Attention! Material damage possible! Only use laminating films suitable for cold lamination.

Attention! Material damage possible! Never insert the lamination foil into the feed area at an angle.

Attention! Material damage possible! Always insert the closed end of the laminating film into the feed area of the laminator first.

Note: Make sure that the laminating film can be dispensed from the back of the device.

7 Guide the laminating film with the closed side straight into the feed area until the laminating film is caught by the transport rollers.
8 The laminating film is automatically pulled through the device.
9 Remove the lamination foil.

Tip: To flatten the laminated document, place a book or similar heavy, flat object on top of it.

10 Switch the device off (OFF).

Release jammed laminating film

You can use the anti-jamming button (ABS) to release jammed or incorrectly inserted film.

1 Switch off the appliance (OFF) and disconnect the mains plug from the socket.
2 Press and hold the ABS button.

Caution! Risk of burns due to hot appliance surface! Do not touch the surface of the appliance during or immediately after operation.

Caution! Risk of burns from hot laminating film! The laminating film is very hot immediately after lamination. When removing the laminating film, only touch the cooled end.

3 Hold the laminator in a suitable position and pull the laminating film out of the feed area.
4 Release the ABS button.
5 Then clean the transport rollers. Follow the instructions under Cleaning.

Select type of cut

1 Pull the adjustment lock on the cutting head upwards into the Open position.
2 Select the desired cutting mode by turning the rotary switch on the cutting head.
3 The cutting types Straight, Perforation, and Wave are available.
4 Press the adjustment lock on the cutting head downwards into position Lock.

Cutting

Use the cutting device for a straight cut of paper, cardboard, photo paper, or laminating film.

Note: Please note the maximum capacity of 0.3 mm. This corresponds to about 3 sheets of paper (80 g/m ^2 each).

1 Move the cutting head to the outer end of the guide rail.
2 Slide the paper to be cut under the pressure bar.
3 Position the paper to be cut using the markings as a guide.
4 Press the pressure bar down to prevent the paper from slipping while cutting.
5 Move the cutting head along the guide rail with gentle pressure.

Note: Remove the cut material immediately after completing the cut. Do not push the cutting head back again once the material has been inserted in order to avoid a faulty cutting edge.

Blade change

1 Remove the cover at the end of the guide rail.
2 Push the guide rail through the opening out of the device.

Caution! Risk of cuts from sharp blades! Do not touch under the cutting head.

3 Pull the cutting head off the guide rail.
4 Remove the blade from the cutting head and insert a new blade.
5 Push the cutting head back onto the guide rail.
6 Push the guide rail back into the device.
7 Reinstall the cover.

Corner rounder

Use the corner rounder to punch corners out of paper, cardboard, photo paper or laminating film.

Note: Please note the maximum capacity of 0.3 mm. This corresponds to about 3 sheets of paper (80 g/m ^2 each).

1 Slide the material into the corner rounder. Ensure that the edge of the material is correctly aligned.
2 Press the corner rounder downwards.
3 Repeat the process at each corner that is to be rounded.

Cleaning

Housing

Clean the outside of the appliance with a soft, dry, lint-free cloth. Do not use any cleaning agents or solvents.

Transport rollers

Clean the transport rollers if you have removed a jammed laminating film or if the output laminating film contains adhesive residue.

1 Switch the appliance to HOT using the hot/cold switch.
2 Switch the device on using the ON/OFF switch.
3 The indicator light Power is on. The device is not yet ready for operation. The appliance heats up.
4 After about 5 minutes, the LED display lights up Ready and the device is ready for operation.
5 Feed a sheet of paper straight into the feed area until the paper is caught by the transport rollers.
6 The paper is automatically pulled through the device. Adhesive residue on the transport rollers is absorbed by the paper.

Caution! Risk of burns due to hot residues! The paper used for cleaning may contain hot residues. The paper is very hot immediately after cleaning. When removing the paper, only touch the cooled end.

7 Remove the paper at the cooled end.

8 Repeat the process with a clean sheet of paper until there are no more adhesive residues on it.

Troubleshooting

Malfunction Solution

The device does not start Check that the mains plug is plugged in correctly.

The appliance does not heat (any more) If the temperature is too high, the overheating protection function switches on automatically. Allow the appliance to cool down sufficiently.

The device does not laminate or does not laminate correctly

Check whether you are using the correct function depending on the laminating film used (80 mic or 125 mic). Clean the transport rollers.

The laminated foil is not completely transparent.

Laminate the same film again to improve the result.

The blade of the cutting head does not cut or does not cut properly

Check the material to be cut and the maximum capacity.

Check whether there is any material residue under the guide rail.

The corner rounder does not punch correctly

Check whether there are any material residues in the corner rounding.

Notes on disposal

Find out about the options for taking back old appliances free of charge from your dealer.

The packaging is made from environmentally friendly materials that can be disposed of at local recycling centres. Ask your local authority about the options for correct disposal.

Observe the labelling of the packaging material when separating waste; these are marked with abbreviations (b) and numbers (a) with the following meaning: 1–7: Plastics / 20-22: Paper and cardboard / 80-98: Composite materials.

The adjacent symbol means that old electrical and electronic appliances must be disposed of separately from household waste in accordance with legal regulations. Dispose of your appliance at the collection point of your municipal waste disposal organisation.

Technical data

Laminating A240 Combo: max. 238 mm wide

A340 Combo: max. 330 mm wide

Laminating film 80 - 125 Microns

Laminating speed 250 mm/min.

Laminating temperature COLD: max. 25 °C

HOT: 97 - 105 °C

Warm-up time approx. 4-6 minutes

Cooling time approx. 30 minutes

Input voltage A240 Combo: 220 - 240 V, 50 Hz, 1,15 A

A340 Combo: 220 - 240 V, 50 Hz, 1.6 A

Performance A240 Combo: 265 W A340 Combo: 365 W

Weight A240 Combo: 1.3 kg 1.8 kg

Dimensions (W x H x D) A240 Combo: 370 x 128 x 95 mm

A340 Combo: 440 x 128 x 95 mm

Maximum capacity for all functions

0.3 mm (corresponds to approx. 3 sheets of paper (A4 80 g/m ^2 each) or 1 laminating film (80 micron) incl. 1 sheet of paper (A4 100 g/m ^2 each)

Technical changes

These operating instructions are for information purposes only. Their content is not the subject matter of the contract. All data shown are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

GS mark

www.163.com

100002550

The "Tested Safety" seal (GS mark) certifies that the product fulfils the requirements of the German Product Safety Act (ProdSG). The GS mark indicates that the safety and health of the user are not endangered when the labelled product is used as intended and in the event of foreseeable misuse. This is a voluntary safety mark issued by a suitable testing institute.

Symbols

The following symbols can be found on the packaging or the device itself. In this section, you will find out what each of these symbols means.

The symbol indicates that the product's design corresponds to protection class II (double insulation). A safety connection to the electrical ground (earth) is not required.

Only use the product indoors.

Declaration of Conformity

The CE mark on the device confirms conformity. The Declaration of Conformity can be found at: www.go-europe.com

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen, Germany

www.go-europe.de

[e-mail]

FR

Garantie

Cher client,

Modifications techniques 29

Label GS....29

Symboles 30

Labeled diagram of a printer with numbered parts for identification

Modifications techniques

Labeled diagram of a printer with numbered parts for identification

Labeled diagram of a printer with numbered parts for identification

1 Geleiderail 7 Geleiderailafdekking

Labeled diagram of a cleaning or cleaning device with numbered components for identification

Labeled diagram of a printer with numbered parts for identification

Labeled diagram of a cleaning or cleaning device with numbered components for identification

Labeled diagram of a printer with numbered parts for identification

Labeled diagram of a paperclip with numbered parts for identification

1 Vodilica 7 Poklopac vodilice tračne pile

Labeled diagram of a printer with numbered parts for identification

Labeled diagram of a digital printer with numbered parts for identification

Labeled diagram of a printer with numbered parts for identification
