USER MANUAL Grass 300 LE GARLAND

2. Normative and security measures 23

8. Maintenance and service 34

12. Recycling and machine disposal 37

13. Warrantyconditions 38

CE Declaration of conformity 39 ThankyouforchoosingaGarlandmachine.Weare sure that you will appreciate the quality and functions ofthismachinethatwillfacilitateyourdailyworkfor a long time. Remember that this machine has a wide ofnetworkofaftersalesservicestowhichyoucan takeyourmachineforanymaintenancenecessaryon your machine, in case of any troubleshooting and for purchasing spare parts and accessories. Attention! Read all the warning signs and all the instructions. The non observance of the warning and instructions detailed from here on can result in a fire being caused and/or a serious injury. Before using the nachine, read carefully the information in this manual on a secure and correct start up. Only cut grass. Do not use this machine for other uses for which the machine has not been designed to carry out. For example: do not use the lawnmower to cut brush, to cut hay or small bushes and do not use as a shredder. The use of the lawnmower for unintended jobs could result in dangerous situations. Keep all the warning signs and the manual in a safe place for future reference. If you sell or otherwise dispose of the machine, please pass on the instruction manual as it forms part of the machine. Theexpression¨machine¨onthewarningsignsmakes reference to this electric machine connected. The expression ¨switch in the open position¨ means that the switch is disconnected and ¨switch in the closed position¨ means that the switch is connected. Remember that the end user is responsible for accidents and damages caused to himself, to third parties and to things. INDEX 1. INTRODUCTION Ref.:GCCGRASS300LEM1112V1

To avoid an incorrect manipulation of the machine, read all the instructions included in this manual before using it for the first time. All information included in this manual is relevant for your personal security as well as for other people, animals and things found in your surroundings. If you have any doubts about the information included in this manual, pleaseaskaprofessionalorgobacktowhereyou bought the machine to solve your doubts. The following list of dangers and precautions include the most probable causes whilst using the machine. If you find yourself in a situation not explained in this manual, use your common sense and use the machine in the most secure way and if you see any danger, do not use the machine. 2.1. USERS This machine has been designed to be operated by people over 18 and whom have read and understood the instruction manual. Attention! Do not allow underage people to use the machine. Attention! Do not allow people who do not understand the instruction manual to use the machine. Before using the machine familiarize yourself with the machinemakingsureyouknowperfectlywellwhere all the controls can be found as well as all security devices and how all these should be used. If you are not an expert user we recommend you start with some simple jobs and if possible, under the supervision of an expert user. The cutting tool of this machine is sharp. Using this machine inadequately could be dangerous. Attention! Only lend this machine to people who are familiarized with this type of machine and know how to use it. Always lend the instruction manual with the machine so that the new user reads it and understand it prior to carrying out any work. This machine is dangerous in untrained hands. 2.2. PERSONAL SECURITY Be alert and vigilant and use common sense when using the machine. Avoid the accidental start up of the machine. Verify that the switch is in the ¨open¨ position before connecting to the mains. Never transport the machine with your finger on the switch or with the switch in the ¨closed¨ position as it can be dangerous to your security and can cause accidents. Do not use the machine when you are tired or under the influence of drugs, alcohol or medicines. One moments distraction can cause serious personal injury. Never use this machine without the security elements. Do not modify the controls of the machine. Remove all tools from the working area before starting the machine. Anytoolsleftintheworking area can be touched by any moving part of the machine and be hurled causing personal damages. Do not overreach. Maintain both feet firmly on the ground at all times. Do not use this machine on slopes surpassing 15o. Cuttingonsmallhillocks

2. NORMATIVE AND SECURITY

MEASURESEnglish 24/120 English 25/120 canbedangerous.Bevigilantwhenwalkingonsteep inclines and with wet grass. Be particularly careful whenchangingworkingdirectiononanincline. Never cut with the lawnmower running if walkng backwards or pulling the lawnmower towards you. Dress adequately. Do not use the machine barefoot or wearing sandals. Always use resistant shoes and long trousers. Do not place your hands or feet under the lawnmower. Maintain all parts of the body well away from the blade when the machine is running. Before starting the lawnmower, ensure that the blade has not come into contact with any object. Hold the lawnmower with both hands from the handle and place your body behind the lawnmower. If the machine vibrates abnormally, stop the engine andinspectthemachinelookingforthepossible causeandrepaiirit.Ifyoudonotndthemotive,take the machine to your nearest after sales dealer. Donottrytoremovecuttingsfromtheworkareaor from the blade when the machine is in movement. Makesurethemachinehasstoppedcompletely beforecarryingoutanymaintenanceorcleaningwork onthemachineandtheworkingarea. Store all electric machines well away from children.

2.2.1. CLOTHING AND SECURITY APPAREL

Dress adequately. Do not wear loose clothing or jewellery. Maintain your hair, your clothing and gloves well clear of any moving parts. Loose clothing, jewellery or long hair can get tangled on the movng parts. Use this machine with adequate shoes. Never use this machine barefoot or with sandals. Use this machine with long trousers. Whenusingthismachinemakeuseofthefollowing equipment:nonslipperyboots.Werecommendyou uselongtrouserstoreduceriskofpersonalinjury should any projectile be hurled by any moving part of the machine. The correct use of security equipment will reduce the riskofpersonalinjury. You must carry with you:

Do not use the machine in explosive atmospheres or in the presence of inflammable liquids, gases and powders.Electricmachinescanreleasesparks that could ignite the inflammable liquids, gases and powders. Theworkingareahasa15metreradiusaroundthe machineandshouldbeconsideredariskareawere nobodyshouldenterwhilstthemachineisworking (securityarea).Whennecessary,useropeorsignalsto marktheworkingarea. Maintain children, other people and animals well clear of the machine whilst working. Distractions can cause the loss of control. Be vigilant and stop any children, other people and animals coming into the workingarea. Do not use this machine at night, with fog or with reduced visibility that does not allow you to see the workingarea.English 24/120 English 25/120 Whenworkmustbecarriedoutbytwoormorepeople atthesametimemakesureyoucancontroland see the other people so as to maintain an adequate workingdistancebetweenuserstoguaranteesecurity. Maintain the workng area clean and work with good light. Untidyworkingareasanddarkconditionscan cause accidents. Inspecttheworkingareaandremoveallstones,wood, cables and strange objects that could be touched and propelled by the moving parts of the machine. 2.4. ELECTRICAL SECURITY Connect this machine to alternate current 230v/50Hz. The electrical switch of this machine must coincide with the mains switch. Do not modify the switch in any way. If no parts have been modified and they fit perfectly,therewillbenoelectricshockaccidents. Avoid body contact with earthed surfaces such as tubes,radiators,electrickitchensandrefrigerators. Thereisahigherelectricshockpossibilityifyourbody is earthed. Do not expose this machine to rain and wet and humid conditions. If water enters the machine there willbeahigherriskofelectrcshock. Do not touch cables and switches with wet hands. Do not overstretch the cable. Do not use the cable to transport the machine, lift the machine and to unplug the machine. Maintain the cable far away from heat sources, oil, sharp edges or other moving parts.Damagedortangledcablesincreasetheriskof electricshock. Never use this machine if the cable or the plug are damaged. Before connecting the machine check that the cable and the plug are not damaged. If you discover that either of these elements are damaged, take your machine to your nearest after sales dealer. Should the cable be damaged, unplug the machine inmediately. Damaged or tangled cables increase the risk of electric shock. Anyworkcarriedoutonthecableandtheplugmust be done by an authorised after sales dealer. Werecommendthatthemachineisconnecteda residual differential current less than or equal to 30mA.Youmustcheckthedifferentialpriortousing the machine. Never use a connecting base that is damaged or that does not comply with current normatives or with the requisites established for this machine in this manual. Whenusingacableextension,makesurethatits minimum section is 1.5mm2 and no longer than 25 metres, always unrolled and adequate for outdoor use. The use of the cable extension adequate for outdoor use,reducestheriskofelectricshock. Place the cable extension in such a way that it will not get caught in branches or other obstacles and in such awaythatitisnotintheworkingarea.Thecableand any extensions must always be behind the machine and the end user. Maintain the cable well clear of the cutting element at all times. Do not use this machine if the ¨open¨ and ¨closed¨ switchdoesnotwork.Anyelectricmachinethat cannot be controlled by the electric switch is dangerous and must be repaired. Always disconnect the machine before carrying outanyworkonthemachine.OnlymanipulatetheEnglish 26/120 English 27/120 machine when disconnected.cualquier trabajo en esta máquina.

2.5. USAGE AND CARE OF THIS MACHINE

Only cut grass. Do not use this machine for other purposes. For example: do not use the lawnmower to cut brush, to cut hay or small bushes and do not use as a shredder. The use of the lawnmower for unintended jobs could result in dangerous situations. Use this machine, accessories and all its parts accordingtotheinstructionmanualandtakinginto accountworkingconditionsandworkingarea.Theuse of this machine for jobs different to those specified in the instruction manual can cause dangerous situations. Checkthatallsecurityelementsareinstalledandina good state. Remember that the end user is responsible for the dangers and accidents caused to other people and objects. The manufacturer will not be in any case held responsible for damages caused through an inadequate or incorrect usage of this machine. Do not overstretch the machine. Use the machine for thecorrecttask.Theusageofthemachineforthe correct jobs will result in a better job being done as well as a more secure job. Do not use this machine if the ¨open¨ and ¨closed¨ switchdoesnotwork.Anyelectricmachinethat cannot be controlled by the electric switch is dangerous and must be repaired. Lookafterthemachine.Checkthatallmovingparts arewellalignedandthattheyarenotblocked,that therearenobrokenpiecesorotherconditionsthat could affect the proper functioning of the machine. If this machine is damaged, always repair it before using it again. Most accidents occur because of poor maintenance. Maintain the cutting elements sharp and clean. The cutting elements if sharp and clean will cut better, do a better job, have less chance of getting tangled and easier to control. After hitting any strange object, inspect the machine to ensure that there are no damages to the machine. Ensure that the blade is not bent, that the chassis is notbrokenoranyothercoversoranyotherproblem that could affect the proper functioning of the machine andifyouhaveanydoubts,takethemachinetoyour nearest after sales dealer for repair. Disconnectthemachineandmakesurethatthe bladehasstoppedbeforemakinganyadjustments, changing any accessories, unjamming of any tangled grass, emptying of the catcher, transport or storage of thismachine.Thesepreventiveactionsreducetherisk of accidental start up. If the machine starts vibrating in a strange way, disconnect the machine and examine it. If you cannot detectwhythemachinevibrates,takethemachineto your nearest service dealer. Vibrations are always an indication of a problem to the machine. Stopthemachinealwayswhilstnotworking.Incase of a prolonged stoppage time, unplug the machine from the mains. 2.6. MAINTENANCE Take your machine for periodic revision to a qualified after sales dealer and only use original spare parts and accessories. This will guarantee that the security measures of this electris machine can always be complied with.English 26/120 English 27/120 The warning icons on the labels that are attached to this machine and/or in the manual give necessary information which is necessary for a correct usage of this machine. To guarantee a correct use and maintenance of this machine, you will find the following symbols on the machine.

Attention, danger!. People who are not adequately protected should stay well clear and beyond the security distance. Do not use this machine in humid conditions or if it is raining. Attention! Danger of material ejection. Be careful with materials that could be ejected. Danger!Riskofngeramputation. Maintain hands and feet well clear of the cutting elements. Dangerofelectricshock. Read carefully this manual before start up. Maintain the cable well clear of the cutting blades. Dispose of your machine in an ecological way. Do not dispose of the machine together with your domestic rubbish. Complies with EC Directives. Guaranteed level of sound power Lwa, Db(A).

Use cable elongators with a minimum section of 1.5mm

and no longer than 25 metres and always ensure all the cable is unwound. Ø 1,5 mm

Attention! Before carrying out any maintenanceworkorrepair,unplugthe machine from the mains. Press the security button and without letting go of it, pull the switch bar.

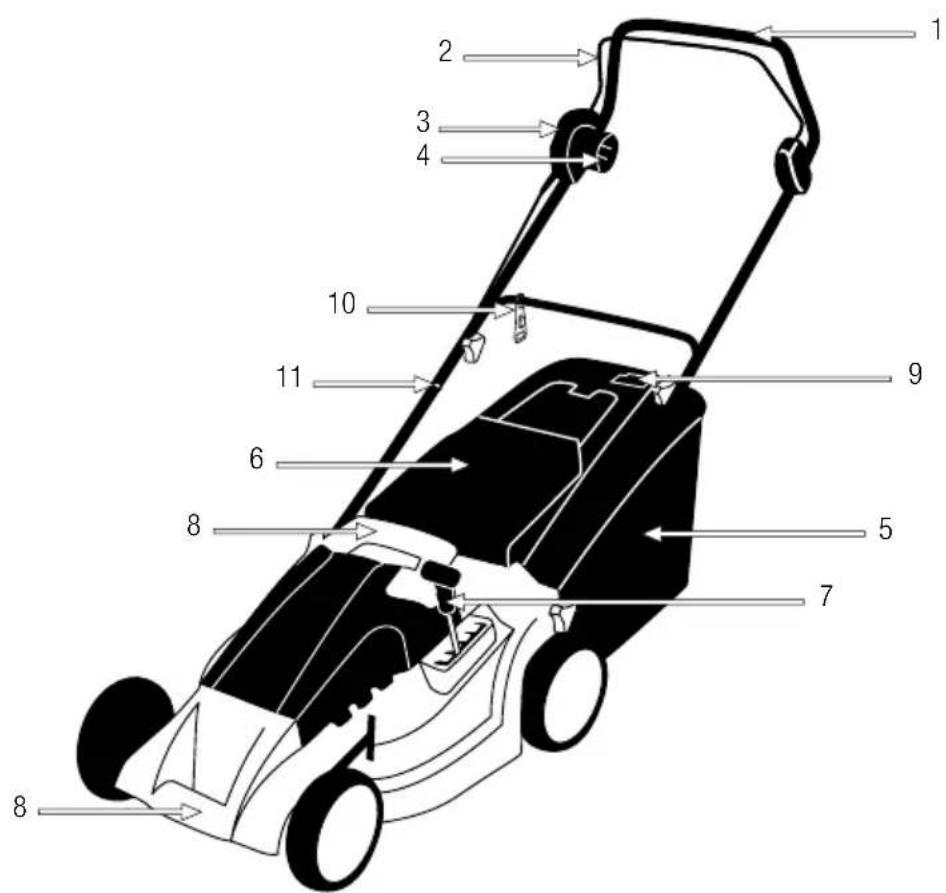

7. Height adjustment lever

11. Cable support clip

5.1. USAGE CONDITIONS Only cut grass. Do not use this machine for other purposes. For example: do not use the lawnmower to cut brush, to cut hay or small bushes and do not use as a shredder. The use of the lawnmower for unintended jobs could result in dangerous situations. Use this machine outdoors, in dry conditions and in temperatures between 5ºC and 45ºC. Remember that the end user is responsible for the dangers and accidents caused to other people and objects. The manufacturer will not be in any case held responsible for damages caused through an inadequate or incorrect usage of this machine.

This machine includes the following elements that you will find inside the box:

• Instructionmanual. Remove carefully all the elements from the box and makesurethatalllistedpartsareincluded.Dueto the quality controls done at the factory it is highly improbable that your machine has any faulty part or that any elements are missing. If you find any damaged part or there are any elements missing, do not use the machine until the problem has been solved or you have been given the missing parts. Usage of the machine with defective or missing parts is dangerous and could result in personal injuries. 6.2. MOUNTING

MACHINE Do not use the machine if it is damaged or not well regulated. Use this machine to do jobs for which it has been designed. Any other use could be dangerous to the end user, for the machine and to other people, animals and things that are nearby. The electric current must conform to those stipulated in the characteristics label on the machine. Checkallthemachineandmakesurethatthereare nolooseparts(screws,nuts,knobsetc)andany damages to the machine. Tighten, repair or replace all necessary equipment prior to using the machine.

6.3.2.CHECKINGTHEELECTRICCONNECTION

Ensure that the cable and the plug are in a perfect state and that they comply with the machines prerequisites. Place the cable elongator in such a way that it does not get tangled with branches and other cutting edges andalsoensureitisnotdanglingacrosstheworking area. The cable elongator must always be behind the machine and the end user.

Before start up, ensure that all moving parts are not in contact with any object. Start up the machine carefully as per the instruction manual and with your feet well clear of the blades. Do not tilt the machine when starting the engine unless it is necessary. In this case, do not tilt the machine more than it is absolutely necessary and only tilt the part furthest away from the end user. Do not start the machine with your body in front of the expelling area.

It is important to ensure that there are no loose parts andtocheckthetemperatureofthemachine.Ifyou detectanythingstrange,stopinmediatelyandcheck carefully.Incaseofanyanomalyorproblemtakethe machine to your nearest service agent for repair. Nevercarryonworkingifthemachinedoesnotseem toworkproperly. Donotusethemachineifbrokenornotwell maintained.

BEnglish 32/120 English 33/120 Use this machine only for jobs for which it has been designed. The use of this machine for any other jobs is dangerous and can cause dangers to the users and/ or to the machine. Cut only with good light. Do not use this machine at night, with fog or with reduced visibility that will not allowyoutocontroltheworkingareacorrectly. Avoid using the machine when the ground is wet or humid. Be specially careful when using the machine after it has rained as the ground will be slippery and you could fall. Do not use this machine in slopes of more than 30o. Cuttinginareaswithhillockscanalsobedangerous. Bealertwhenworkingonsteepground,wetorhumid ground. Be specially careful when changing direction on a slope. Donotcutthegrassbackwardsorpullingthe machine. Do not tilt the machine when starting the engine unless it is necessary. In this case, do not tilt the machine more than it is absolutely necessary and only tilt the part furthest away from the end user. Only do this when starting to cut high grass and only to allow the entry of the lawnmower into the high grass. Stop the engine when transporting the lawnmower from oneworkareatothenext. Do not get near the cutting elements of the machine when the machine is functioning. Do not rely solely on the safety features of the machine. Always be alert and use your common sense. Itisimportanttocheckthatallpartsarewell tightened. If you detect any anomaly, stop the machine straightawayandcheckthemachinecarefully.In caseofanydamage,takethemachinetoyournearest serviceagent.Nevercarryingonworkingifthe machineisnotworkingcorrectly. Cleantheworkareaandeliminateanyobstacles thatcouldcauseaccidents.Checktheworkareaand remove any objects that could get entangled to the cutting elements. Also remove any objects that could be expelled by the machine or its parts when getting in contact with these. Donotallowanybodytoentertheworkngarea. Thsworkingperimeteris15metresandthisisa dangerous zone. Whenmovingfromoneworkingareatothenext,turn off the engine. Never let the machine unattended. Do not use any accessories that are not originals and that have not been recommended by the manufacturer. Use of other accessories can cause accidents and can be dangerous for the end user and those nearby as well as causing damages to the machine. Always follow the security rules that we indicate in the manual. 7.1. HOW TO HOLD THE MACHINE AND GUIDE IT WHILST WORKING Whilstyouwork,holdthelawnmowerwithbothhands. Always be behind the lawnmower and push it whilst you are behind it.

7. MACHINE USAGEEnglish

32/120 English 33/120 Donotrunwhilstworking,walkataconstantpace that allows the machine to cut the grass without too much effort.

7.2. ADJUSTING THE CUTTING HEIGHT

Attention! Stop the machine and wait for the blade to stop before adjusting the height adjustment. The blades need a few moments to stop completely after stopping the engine. To regulate the height adjustment, press the lever outwards and move it or up or down to the desired spot.

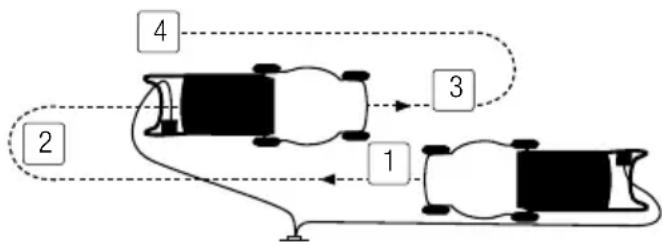

7.3. CUTTING WITH THE LAWNMOWER

Place the lawnmower in one corneroftheworkingarea and adjust the cutting height adjustment to the desired place. Checkthatthecatcheriscorrectlyplaced,checkthat the blade is not in contact with any object and start the lawnmower. Walkatapacethatallowsthegrasstobecut correctly. Do not tilt the machine when starting the engine unless it is necessary. In this case, do not tilt the machine more than it is absolutely necessary and only tilt the part furthest away from the end user. Only do this when starting to cut high grass and only to allow the entry of the lawnmower into the high grass. Stop the engine when transporting the lawnmower from oneworkareatothenext. Note: If the grass is very high, the start up of the engine will be more difficult. If the grass is very high, it is convenient to elevate slightly the front wheels of the lawnmower, pushing the handle slightly downwards and start up the machine in this position. Once the engine has achieved its normal revolutions, stop pressing the handle downwards and allow the front wheels downwards. Another option is to start the machineinaclearplaceandwalkintotheworking area elevating the front wheels slightly when entering theworkingarea. If the engines revolutions fall a lot and the it is difficult to cut the grass, this is a clear signal that the machine is being overstretched. This could be dangerous for the machine. In this case, adjust the height adjustment to the highest position and then do a second cutting at the desired height. Werecommendyouusethefollowingtipssoasto obtainthebestpossibleresultsandreducetheriskof the cable being cut: - Start cutting at the point nearest to the mains switch. - Connect the cable to the mains switch. - Start up the lawnmower. - Cut as shown in the diagram: - Cut from point 1 to 2. - Turn towards your right to point 3. - Turn towards the left to point 4. - Repeat the sequence as many times as necessary.

3English 34/120 English 35/120 Attention!Neverworktowardsthecable. Empty the catcher when full. You will notice that the catcher is full because the machine will start cutting less well, leaving more cut grass on the ground. Empty the catcher as soon as you notice it is full. The cover of the catcher has an alert sign that will remain open when the catcher is not full. As soon as it is not open, this will signal that the catcher is full and you mustemptyit.Whenemptyingthecatcher,always stop the machine, wait for the blade to stop and then empty the catcher. Reccomendations: - Always cut when the grass is dry. Avoid cutting the grass when it is wet. - Cut less than 2 cm each time you cut the grass. If the grass is very high, pass the lawnmower as many times as it is necessary to achieve the desired result. This way you will not force the machine. - Cut the grass frequently, at least once or twice a weekduringspringandsummer. - Do not always cut the grass the same way. It is better to cut the grass in different directions. - If you have to transport the machine from one workingareatoanother,alwaysturntheengineoff. - Sharpening the blade: An unsharpened blade will makecuttingmoredifcult.Abadcutwillresultin a bad cut and that the grass will yellow.

8. MAINTENANCE AND SERVICE

Carry out random inspections on the machine to ensure an efficient use of the machine. For a complete maintenancetakethemachinetoyournearestservice agent. It is always necesaary to stop the machine, wait for the blades to stop before carrying out any cleaning ormaintenanceworkonthemachineandwhen transporting the machine. Neverattempttocarryoutanymaintenancework on the machine if the machine is running. Carry out all maintenanceworkonaatsurfaceandonaclearsurface. Alwayscarryoutmaintenanceworkwiththe machine unplugged from the mains. WARNING!Donotchangethemachineoritscutting elements. An incorrect change to these elements could cause SEVERE PERSONAL DAMAGES OR DEATH.

Beforecarryingoutanycleaningwork,unplug themachine. Maintain your machine clean and in good conditions. Do not clean the engine with water. The electric engine could stop functioning. Clean the covers of the machine with a damp cloth. Do not use petrol, detergents, water or any other liquid to clean the machine. You can use water to clean the catcher as long as you clean it separetely from the rest of the machine and atEnglish 34/120 English 35/120 a safe distance from the lawnmower. Dry the catcher beforeinstallingbackonthemachine.

8.1.2. CONTROL OF THE ELECTRIC CABLE

Inspect the cable for possible damages. If the cable isnotinagoodcondition,takethemachinetoyour nearest service agent. Do not use the machine if the cable is damaged.

Checkthecatcher.Ifitistornorwornout,substitute. 8.2. PERIODIC MAINTENANCE Use always original spare parts and accessories so as to achieve the best performance from the machine and to avoid damages to the end user and the machine. The use of non original spare parts and accessories can cause accidents, personal damages andmachinebreakage.

8.2.1. BLADE SHARPENING

Blade sharpening must be carried out by the service dealer. Do not sharpen the blade yourself. The blade must be sharpened guaranteeing the cutting angle and blade equilibrium. Blade sharpening carried out by a non expert will result in the machine vibrating and will eventually cause damages to the machine and usage problems to the end user. Takeyourbladeforsharpeningifwhencuttingyou see that the grass is not properly cut and small specksofyellowgrassappearshortlyaftercutting. Whencheckingtheblade,rememberthatforafew moments after switching the machine off, the blade will carry on moving.

8.2.2. VENTILATION ENGINE CONDUCTS

Eliminate any dirt in the ventilation conducts so as not damage the engine and avoid the machine overheating and even burning.English 36/120 English 37/120 Depending on the symptons of the machine, we can detect the probable cause of the problem and solve the problem:

PROBLEM CAUSE ACTION

Theenginedoesnotwork The machine is not switched to the mains Switch the machine to the mains Mains in a bad state Try another mains switch. If the machine stilldoesnotworktaketotheaftersales dealer Damaged cable Takeyourmachinetotheaftersales dealer Switch in a bad state Takeyourmachinetotheaftersales dealer The machine functions intermittently Cableinbadworkingcondition Checkthecableandsubstituteif necessary Internalcableinbadworkingcondition Takeyourmachinetotheaftersales dealer The blade does not rotate Bladeblockedbyastrangeelement Stop the machine, unplug from the mainsswitchandunblocktheblade Excessive vibrations and noise Bladebrokenorbent Takeyourmachinetotheaftersales dealer Engine problem Takeyourmachinetotheaftersales dealerEnglish 36/120 English 37/120 Before transporting the machine, disconnect the machine. Always transport the machine with the engine stopped. Takeintoaccounttheweightofthemachineshould youneedtoelevateit.Checktheweightunderthe technical characteristics of the machine. To raise use the handles. If you are going to transport the machine in a vehicle, fasten it securely to avoid the machine slipping and turning over. Store this machine in a place not accessible to children and secure. It should also be dry, clean and within the temperature range 0ºC and 45ºC. Before storing the machine follow the points of the maintenance chapter. Disconnect the machine before storing. Get rid of your machine in an ecological way.Weshouldnotgetridofthe machine with the domestic rubbish. Its plastic and metallic parts can be clasified and can be recycled. All materials used to box this machine are recycable. Please, do not dispose of the box with your domestic rubbish. Throw thesepartsinanofcialecologialresidualpickup point.

12. RECYCLING AND MACHINE

DISPOSALEnglish 38/120 English 39/120 13.1. WARRANTY PERIOD - According to the following described terms (1999/44CE)thewarrantyperiodis2yearsfrom the purchase date, and it will cover faulty pieces owing to an incorrect manufacture. 13.2. EXCLUSIONS Garland warranty will not cover: - Pieces worn out due to wear and tear. - Baduse,negligence,lackofmaintenance. - Failures that turn out because of an incorrect use of the product, Garland will not be responsible if the replaced parts of the machine are not from Garland and if the machine has been modified in any way. 13.3. TERRITORY - Garland warranty covers the country.

13.4. IN CASE OF INCIDENCE

- The warranty should be correctly filled in with all the information requested, and the invoice or the purchaseticketshouldbeattached.

THEMACHINEANDMAXIMUMSECURITY,WEASK YOU TO READ THE INSTRUCTION MANUAL FULLY AND CAREFULLY PRIOR TO USING THE MACHINE.English 38/120 English 39/120 C/ La Fragua, 22 Pol. Ind. Los Rosales 28933MÓSTOLES(Madrid)ESPAÑA Whohassignedbelow,JuanPalacios,authorisedbyGlasswelt,S.L.,withthefollowingaddressC/LaFragua22, 28933,Móstoles,España,declaresthattheproductsbrandGarlandmodelsGRASS300LE(ZF6123B)withserial numberofyear2013on(theyearofmanufactureisclearlyindicatedonthetoolidenticationplate,followed theserialnumber)andwhosefunctionis“machinewithgrass-cuttingattachment(s)wherethecuttingdevice operates in a plane approximately parallel to the ground and which uses the ground to determine the height of cutbymeansofwheels,aircushionorskids,etc.,andwhichutilisesanengineoranelectricmotorforapower source. The cutting devices are either rigid cutting elements”, comply with all the requirements stated by the Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery. These tools also comply with the requirements of the following community directives:

• Directive2006/95/EcOfTheEuropeanParliamentAndOfTheCouncilOf12December2006OnThe HarmonisationOfTheLawsOfMemberStatesRelatingToElectricalEquipmentDesignedForUseWithin Certain Voltage Limits.

• Directive2000/14/ECoftheEuropeanParliamentandoftheCouncilof8May2000ontheapproximationof the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors.

• Directive2004/108/ECoftheEuropeanParliamentandoftheCouncilof15December2004onthe approximation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive 89/336/EEC. The examinations of the European Community Directives have been carried out by the following notified bodies whose Certificate numbers figure below:

CE DECLARATION OF CONFORMITY

SEE YOUR SERVICE MANUAL
