USER MANUAL JC1419 Joycare

COS'E' LA MASSA OSSEA

Levels of body hydration, lifestyle and daily habits can influence the detection of the percentage of body fat. A detection performed during the early hours of the morning will calculate a higher percentage of fat because after a long nights sleep, the body tends to be dehydrated. For a more accurate reading and in order to compare different detections it is recommendable to use the product at the same hour of the day and under the same conditions.

Before measuring it is important to remember that:

• The percentage could be lower after having taken a bath
• The percentage could be higher after eating or drinking
• Detections could be irregular during a woman's menstrual cycle
• The percentage of water in our body can be reduced after having been ill or after heavy physical activity, as these conditions make us sweat more than usual.

WHAT IS THE PERCENTAGE OF WATER IN THE BODY?

The percentage of water present in the human body corresponds to the quantity of liquids expressed in a percentage, according to the total weight of the individual, and it is calculated using a particular scientific formula, also used by expert dieticians. It is important to know that the water inside our body performs a fundamental function and is in all tissue and body organs: approximately 50 - 65% of our body is made of water. Thanks to these scales it is possible to keep the percentage of water under control, which is fundamental for correct functioning of our body. The percentage value of water present in a healthy individual is as follows:

WOMEN from 45-60%

MEN from 50 - 65%

VARIATION OF THE PERCENTAGE OFWATER THROUGHOUT THE DAY

To obtain a reliable detection it is recommended to measure the percentage of water in the evening (before dinner) as hydration levels are more normal during this hour of the day. In any case, to relate various measurements it is always recommendable to respect established hours. The percentage of water tends to be lower if detected in the morning and this is because the body dehydrates during sleep and above all because during the night liquids tend to concentrate in the torso (whereas during the day thanks to the force of gravity they spread out in a homogeneous manner). Factors that tend to modify the percentage of water are: sleeping, eating and/or drinking, physical activity, having a bath, consumption of medicines, physical conditions and urination.

WHAT IS MUSCLE MASS?

Muscle mass is defined as the complete volume of muscle of the human body. Themuscle system is the all the tissues that permit the locomotion of the organism itself and the flow of internal organic substances such as blood and food. Control of muscle mass is especially important for people who have problems with weight and fat. Seeing as the body needs muscle to demolish fat cushions, a reduction of weight can give positive lasting results but only if accompanied by the strengthening of muscles.

WHAT IS BONE MASS?

Bone tissue is a tissue characterised by a noticeable hardness and resistance. Bone tissue makes up bones that

in turn make up the endoskeleton of vertebrates, performing the function of supporting the body, protecting vital organs (as is the case of the rib cage) and together with muscles permit movement. Even though bone structure does not tend to suffer changes that are detectable in short periods of time, it is important to develop and keep your bones healthy by following a balanced diet and performing lots of exercise.

IMPORTANTWARNINGS AND SAFETY RULES

The values obtained by this body fatMonitor are indicative data that for no reason whatsoever should replace a doctor's opinion. Do not forget: self-measuring means control, not diagnosis or treatment. Unusual values should always be discussed with your doctor.

Under no circumstances should you modify the dosage of any medicine prescribed by your doctor.

The scales should not be used by:

• People with pacemakers or any other internal device as the weak electric signal could in fact interfere with correct functioning of the device.
• People with oedema, osteoporosis or fever
• People in dialysis
• If taking medicine for cardiovascular problems
• Pregnant women
• Athletes that practise more than 10 hours of intensive training per week
• People who have a resting pulse frequency that is equal to or below 60 beats per minute.

Only use the scales for the intentions indicated in this instruction manual and exclusively for domestic use. Any other type of use is to be considered improper and therefore dangerous. Check that the appliance is whole and is not damaged before use. If in doubt, do not use the product and consult a specialised after sales centre. To not attempt to repair the product yourself, always go to a specialised after sales centre. To avoid any interference it is recommendable to use the product away from appliances with a strong magnetic field.

Never place the scales on wet or slippery surfaces. Never immerse the product in water and never put it away in a damp place. Always keep the product away from sources of heat, direct sunlight, cutting objects or similar objects. When the appliance is not used for a long time, it is recommendable to remove the battery as leaking of fluids could damage the product. Also, seeing that the quality of batteries varies between models, the warranty does not cover damage caused by any possible leaking of fluids. Never leave the product unattended when children are present and always put it away out of their reach.

FEATURES

Capacity: 180kg

Division: 100g

Weight unit: kg / lb / st

Height unit of measurement: cm/ft:in

Fat grade indication : increment of 0,1 %

Water grade indication : increment of 0,1 %

% muscle

Bone mass

Athlete measuring mode

Age range: 10-80

Display: REVERSE

User No: 10 profiles available

Battery replacement indication

Overload indication

Battery: 4x1,5V AAA (test batteries are included)

Auto off function

Use of the buttons

SET button: press to select mode and confirm

Use the arrow buttons to scroll through and program the values.

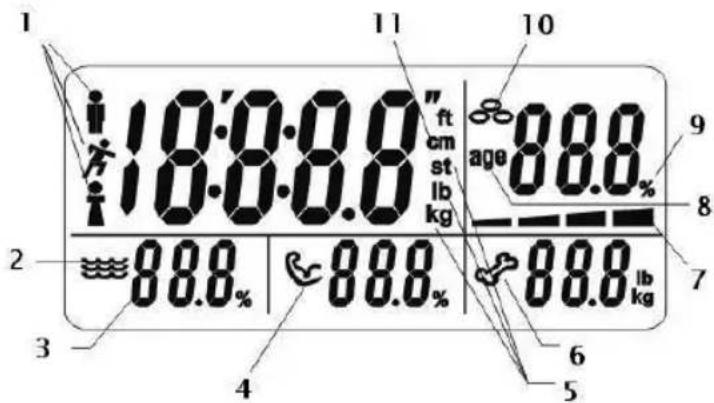

LCD Display

1 - Male/female/athlete
2-% water
3 - User code memory
4 - % muscle
5 - Weight unit of measurement
6-Bone
7 - Fat indication
8-Age
9 - Percentage value
10-%fat
11 - Height unit of measurement

Using the product

Open the battery compartment and insert 4 × AAA batteries, ensuring polarity order is respected. Put the scales on a flat and stable surface (not on a carpet). The scale is pressure activated. Place both feet on the scales to weigh yourself. To change the unit of measurement (you can choose between kg-lb) press the Unit button (on the back of the scales). The scales turn off 10 seconds after the weight appears on the display.

Body monitor functions

Press the SET button to program the user data.

Enter the user data in the following order: user number; gender; age; height.

When all the data are entered, "0.0kg" reappears on the display.

It is possible to store up to 10 profiles.

Setting the user number:

Setting the gender and athlete

(male or female, or male athlete or female athlete)

Age: between 10 and 80 years old

Height: between 60 and 220~cm

After entering all the data, set weight calculation mode and stand on the scales to weigh yourself. When the weight is stabilized on the display, the data associated with the user's body fat, water, muscle and bone appear in the lower part of the display (as shown below).

Error messages

"----": appears on the display when the scales are overloaded

"LO": appears on the display when the battery needs to be changed. The supplied batteries are for trial use only and they may have a shorter life.

"Err": appears on the display when measurement is carried out incorrectly

"Err": appears on the display if the percentage of body fat calculated is less than 5% or more than 50% .

Other

Always take off your shoes and socks before standing on the scales to measure the percentage of fat and water. Ensure the scales and your feet are always clean for correct measurement. To ensure correct measurement, we suggest carrying out measurement at set times of the day (e.g. 7pm - 9pm ).

Body fat, water, muscle and bone range

a) The body fat

Age	Female				Male
	Underfat	Healty	Overfat	Obese	Underfat	Healty	Overfat	Obese
<=30	5.0-16.90	17.0-22.9	23.0-27.9	28.0-50	5.0-19.9	20.0-29.9	30.0-34.9	35.0-50.0
>30	5.0-17.9	18.0-24.9	25.0-29.9	30.0-50.0	5.0-21.9	22.0-31.9	32.0-36.9	37.0-50.0

b) The body water

Age	Female				Male
	Underfat	Healthy	Overfat	Obese	Underfat	Healthy	Overfat	Obese
<=30	66.0-54.7	54.6-51.6	51.5-47.8	47.7-13.8	66.0-58.1	58.0-55.0	54.9-51.9	51.8-13.8
>30	66.0-51.6	51.5-48.1	48.0-44.7	44.6-13.8	66.0-55.4	55.3-52.3	52.2-49.2	49.1-13.8

c) The body muscle

Age	Female	Male
	Healthy	Healthy
16-50	>31	>38

d) The bone

Age	Female	Male
	Healthy	Healthy
16-50	>8	>10

CLEANING AND MAINTENANCE

Use a soft cloth to clean the platform. It is also possible to use a slightly dampened cloth. Do not use chemical or abrasive substances. After cleaning the platform make sure it is completely dry before carrying out a measurement. If the surface is wet or damp it could become slippery. Always position the scales on a stable and flat surface. Avoid rugs and similar objects. Avoid jumping on the scales, dropping them or subjecting them to particular knocks. As well as for precision, the internal mechanisms are in fact very delicate, and could easily be damaged. Avoid exposing the product to electromagnetic waves that could cause the loss of data in the memory. The seller is not responsible for loss of data memorised in the scales.

WARNING

These scales should not be used to weigh objects or substances in commercial transactions, to produce medicines, to calculate tolls, tariffs, taxes, premiums, fines, remunerations, indemnities or fees of a similar kind determined by weight. These BFW scales are to be used for keeping one's own personal body weight, and percentages of fat and water, under control and are not to be used for making diagnoses or for medical treatment. Values that may seem unusual or outside the norm should always be discussed with your doctor.

In order to avoid danger to the user of this device, the doses of any drug or therapy prescribed by one's own doctor should in no circumstances be modified on the basis of data calculated by this device.

The product is made conforming with all the applicable European regulations.

DISPOSAL

The device (including its removable parts and accessories) must not be disposed of together with municipal waste at the end of its life, but in compliance with European Directive 2002/96/EC. Since it must be handled separately from household waste, either carry it to a separately-collected waste disposal centre for electrical and electronic appliances or give it back to the retailer on purchasing a new device with the same purpose. Any infringement will be severely prosecuted. The batteries used in this device must be disposed of in the special bins at the end of their life.

NOTE: Specifications and designs are based on the latest information available at the time of printing and subject to change without notice.

JC-1414/JC-1419 BODY MONITOR

VARIATION DU POURCENTAGE DE GRAISSE AU COURS DE LA JOURNEE

Age	Female	Male
	Healthy	Healthy
16-50	>31	>38

d)Fourchette relative aux os

Âge	Femme	Homme
	Enonne sanTE	Enonne sanTE
	>816-50	>10

NETTOYAGE ET MAINTENANCE

WORUM HANDELT ES SICH BEI DER MUSLKELMASSE

INdkaTop 3a cbCTOHHeTo Ha 6aTePnTa

INdkaTop 3a npBnweHo MaKcImaJIHO TeIIO

BaTePn: 4x1,5V AAA BkIIOueHn BaTePm (npo6Hn)

Функцяза abTomaTNUHоИЗКЛIOUBaHe

H3noJ3BaHe Ha 6yToHnTe

BytoH SET:HaTncheTe,3a da n36epete pexma n da notBbprnte

Ipi 3aabahe Ha cToHocHTe, 3a DnHexHe n3non3BaTe 6yToHnte cbc CTpeNka.

LCDdncnnne

1-MbX/JeHa/atnetu
2-%B0da
3- Namet 3a kOJ ha noTpe6nteJI
4-% MYCKyN
5-Mephaeunuca3a terno
6-Koctn
7-Инданкадузma3HHH
8-Bb3pact
9-CTOnHOCTBnpoeHTN

10-%Ma3HHH
11-MepHa eDHHua 3a BVCOunHa

EkcnnoataaHa ypea

OTBopTe OTdeneHnTo 3a 6aTePm n noCTaBeTe 4 6aTePm AAA, KaTO cna3BaTe nocOHeHTo pa3noJoxKeHne Ha nonIOcNte.

IocTabete Be3HaTa Bbpy paBHa n CTa6nHa NOBbpxHOCT (KNIMITE He ca npenopbHTeHN). Ta3n Be3Ha Ce BKIOHb pni HaTNC. 3a n3MepBaHe Ha TERJTO, CTbneTe Bbpy Be3HaTa C DbTa KaKa.

Ako JeenaTe Da npomehnte MepHaTa eDHHuca (Bb3MOXHOCT 3a n36op MeKdy kg-ΦyHT), HaTnCHeTe 6yToHa Unit (KOITo Ce HAMnpa OT 3aDHaTA CTPaHa HA Be3HaTA).

IOM TERIOTO OCTaHe I3nicaHo Ha dncnpe, Be3HaTa Ce n3KIOUbA cne 10 cekyHdN.

(MbX INNKeHa, MbX CnOPTNCT INN KeHa CNOPTNCTKa

Bb3pact:ot10do80roDHH

BvocuHa:ot60do220cm

LOM BbBeTeTe DaHHnTe, HAcTpOte Be3HaTa BpeKIM OTHTaHe Ha TERIOTO

I CTbne Te Bpxy He, 3a Da ce npeternnte. Korato noka3aHHeTo 3a TereNto Ce cta6nH3npa Ha dnCnner, B DOHaT My uact Ce noBBAat daHHnTe 3a KOHTPOHa Ha TeLeCHnTe Ma3HNH, BOaTa, MYCKyInTe N KcCTnTe 3a CBoTBeTHn Notpe6nten (KakTo e noka3aHo Ha fHyypata No-dony).

Cb06eHn3a rpeWka

----”：POBBAceHaDnCnJIeKOraTOBe3HaTa e npetoBaPeHa

A test monitor fungcioi

Joycare S.p.A., a company with a sole shareholder, offers a period of 3 year warranty after the date of purchase.

The warranty does not cover damage caused by accidental breakage, transportation, incorrect maintenance or cleaning, misuse, tampering or repairs carried out by non authorised third parties. The following is also excluded: damage caused by incorrect product installation, and damage caused by wear and tear, obviously including parts subject to wear and tear. In order to obtain the replacement/repair of products under warranty in cases other than those mentioned above, but which are instead caused by manufacturing defects, please contact your local importer/distributor. Goods that are not held to be in good condition because of the aforesaid causes must be accompanied by this certificate, duly filled-in, as well as a receipt for the goods (invoices and transport documents) and purchasing documentation.

Please keep the original packaging of the product.

F: CARTE DE GARANTIE
