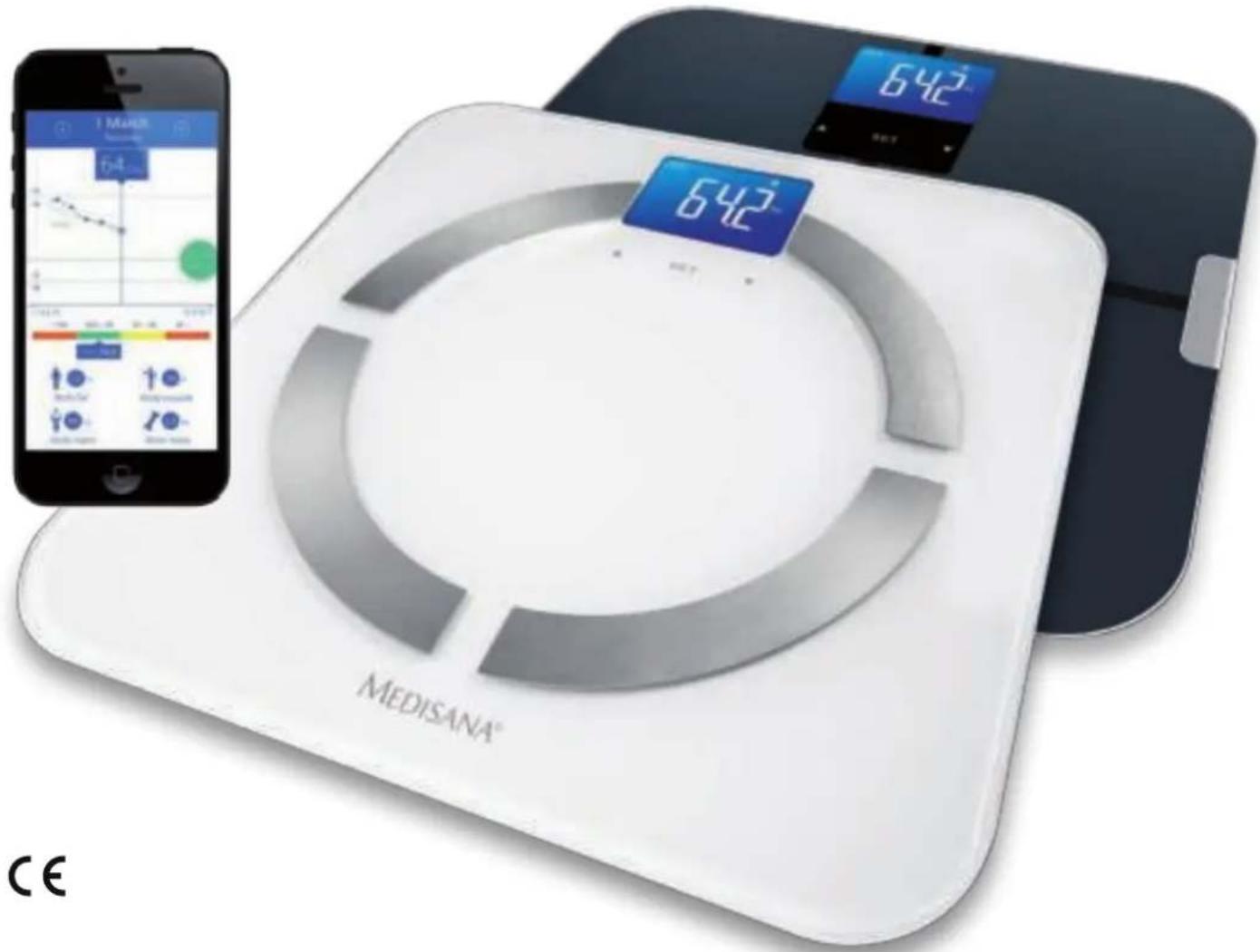

USER MANUAL BS 430 Connect MEDISANA

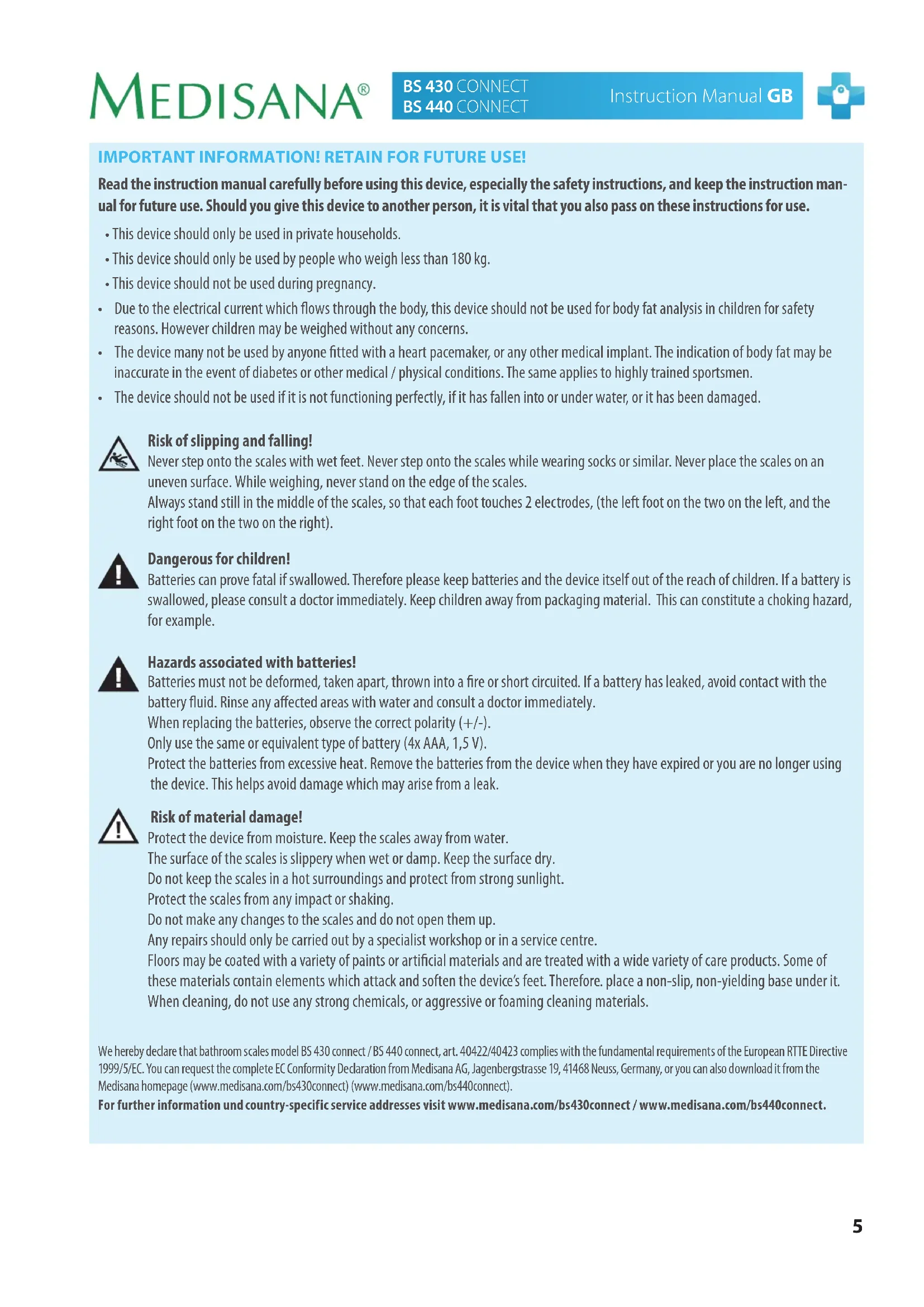

• This device should only be used in private households.

• This device should only be used by people who weigh less than 180 kg.

• This device should not be used during pregnancy.

• Due to the electrical current which ows through the body, this device should not be used for body fat analysis in children for safety reasons. However children may be weighed without any concerns.

• The device many not be used by anyone tted with a heart pacemaker, or any other medical implant. The indication of body fat may be inaccurate in the event of diabetes or other medical / physical conditions. The same applies to highly trained sportsmen.

• The device should not be used if it is not functioning perfectly, if it has fallen into or under water, or it has been damaged. Risk of slipping and falling! Never step onto the scales with wet feet. Never step onto the scales while wearing socks or similar. Never place the scales on an uneven surface. While weighing, never stand on the edge of the scales. Always stand still in the middle of the scales, so that each foot touches 2 electrodes, (the left foot on the two on the left, and the right foot on the two on the right). Dangerous for children! Batteries can prove fatal if swallowed. Therefore please keep batteries and the device itself out of the reach of children. If a battery is swallowed, please consult a doctor immediately. Keep children away from packaging material. This can constitute a choking hazard, for example. Hazards associated with batteries! Batteries must not be deformed, taken apart, thrown into a re or short circuited. If a battery has leaked, avoid contact with the battery uid. Rinse any aected areas with water and consult a doctor immediately. When replacing the batteries, observe the correct polarity (+/-). Only use the same or equivalent type of battery (4x AAA, 1,5 V). Protect the batteries from excessive heat. Remove the batteries from the device when they have expired or you are no longer using the device. This helps avoid damage which may arise from a leak. Risk of material damage! Protect the device from moisture. Keep the scales away from water. The surface of the scales is slippery when wet or damp. Keep the surface dry. Do not keep the scales in a hot surroundings and protect from strong sunlight. Protect the scales from any impact or shaking. Do not make any changes to the scales and do not open them up. Any repairs should only be carried out by a specialist workshop or in a service centre. Floors may be coated with a variety of paints or articial materials and are treated with a wide variety of care products. Some of these materials contain elements which attack and soften the device’s feet. Therefore. place a non-slip, non-yielding base under it. When cleaning, do not use any strong chemicals, or aggressive or foaming cleaning materials. We hereby declare that bathroom scales model BS 430 connect / BS 440 connect, art. 40422/40423 complies with the fundamental requirements of the European RTTE Directive 1999/5/EC. You can request the complete EC Conformity Declaration from Medisana AG, Jagenbergstrasse 19, 41468 Neuss, Germany, or you can also download it from the Medisana homepage (www.medisana.com/bs430connect) (www.medisana.com/bs440connect). For further information und country-specific service addresses visit www.medisana.com/bs430connect / www.medisana.com/bs440connect.6 Bluetooth Devices General Bluetooth

C) Connect your scales with your smartphone*

Activate Bluetooth® on your iOS or Android appliance.

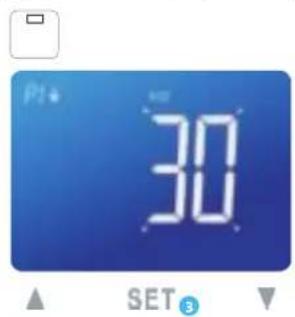

Free download of the VitaDock+ app in the app store or Google Play store. Please carry out the personal setting process on the scales as described in point B). The scales and the smart phone must be paired as per Blue- tooth® 4.0 /Bluetooth® Smart®. Install the current VitaDock+ app and follow the instruction steps given in the following. B) Setting the personal data in the scales The scales can store the data (gender, athlete mode, height, age) for 8 people with up to 30 memory locations each. The values preset in the scales are: Male, 165 cm, 30 years old, kg.

Press the SET button until the disk space blinks in the display.

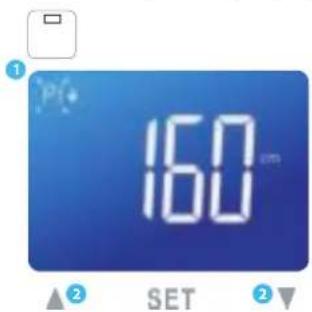

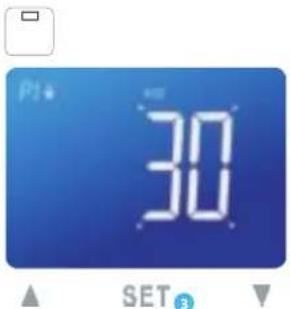

Press the SET button to save the selection. Continue accordingly to make the settings for gender, athletic condition, height and age.

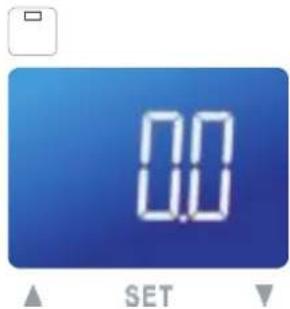

After you have set your personal data, the display shows “0.0”.

To nish the scale settings, simply stand barefoot on the scales.

The display shows the following measurements:

• Proportion body water

• Proportion muscle mass

• BMR (calory requirement)

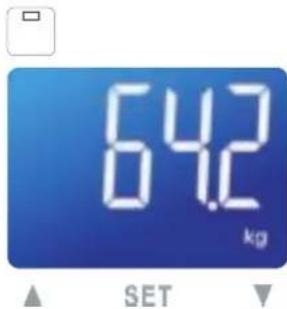

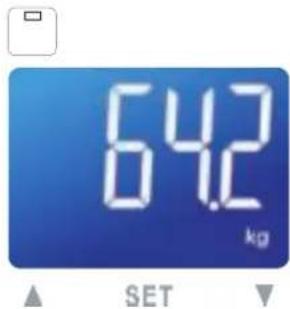

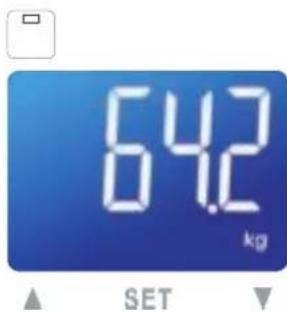

Your weight is shown.

Start the app. Ensure that there is a stable connection to the internet (3G or WLAN). Register now with your VitaDock online account. If you don’t have your own account yet, you can register free now at VitaDock Online.

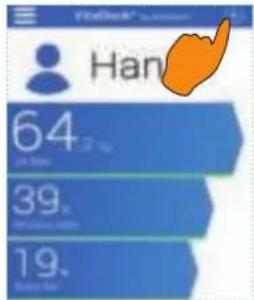

Tap the symbol “Ξ” top left in the app, to get into the settings in the app. *iOS: iPhone 4S and later, iPad 3 and later. Android: Devices which support Google- Android-Version 4.3 and Bluetooth® 4.0 technology. BS 430 CONNECT BS 440 CONNECT GB Instruction Manual7 BS 430 CONNECT BS 440 CONNECT Instruction Manual GB D) Weight measurement using your smartphone and the VitaDock+ app

Stand on the scales barefoot and carry out a complete mea- surement (conrmed at the end by a beep).

Now select the symbol “⊕” on the top right in the app. Now se- lect the green button “Connect” beside the “Medisana Analysis Scales” displayed.

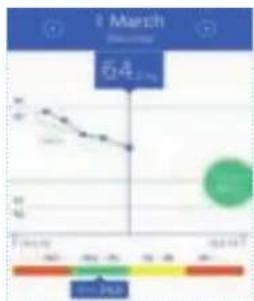

The measurement data are automatically transfered to and stored by the app.

The display shows the following measurements:

• Proportion body water

• Proportion muscle mass

• BMR (calory requirement)

• BMI In the course of continuous product optimisation, we reserve the right to regularly update the VitaDock+ app. Therefore, we recommend that you periodically perform an update. The included images serve only as a reference.

To establish a connection be- tween smart phone / tablet and scales press the SET button and select your memory location, which you dened in step

tand on the scales barefoot (without socks or similar) and carry out a complete measure- ment (conrmed at the end by a beep).

The scales appear after the beep in the menu “My devices” in the app.

Now select the blue button “Connect” beside the “Medisana Analysis Scales” displayed. Note: If the scales are already paired with your mobile device, the button will be green.

Now select the symbol “⊕”. on the top right. This will bring you to the menu “My devices”.

Tap the symbol “Ξ” top left again, now select “Weight” and enter your information. Finally click on “ S a ve”.

The measurement data are automatically transfered to and stored by the app VitaDock+. Note: If the measurement data was not transferred to the app, repeat the measure- ment. Note: A stable internet con- nection is required to synchro- nise the scales with the app.
