Product Type	Bathroom scale with body fat and water analysis
Brand	Bomann
Model	PW 1405 CB
Power supply	1 x 9V block battery (6LR61, not included)
Maximum weight	150 kg
Weight measurement accuracy	0.1 kg
Body fat measurement range	4% to 45%
Body water measurement range	37.8% to 66%
Number of user memories	8 memory slots
Adjustable height range	100 to 250 cm
Adjustable age range	10 to 100 years
Display	LCD segment display
Surface material	Glass
Functions	Weighing, body fat and water analysis, BMI calculation via programming
Maintenance	Clean with a slightly damp cloth and mild dish soap
Warranty	24 months
Safety	Do not use by persons with a pacemaker, children under 10 years old, pregnant women, etc.
Spare parts	Batteries not included; replacement under warranty by the dealer

Frequently Asked Questions - PW 1405 CB BOMANN

How to install the batteries?

Open the battery compartment on the back, insert a 9V block battery (6LR61) and close. Batteries are not included.

Why does the screen show 'LO'?

The battery level is too low. Replace the battery with a new one.

How to program my personal data?

Press the on button, select a memory with ▲/▼, press on to set gender, height and age. Confirm each step with the on button.

Why does the screen show '----'?

The scale is incorrectly positioned or the weight is less than 2 kg. Place it on a hard, flat surface and step on gently.

Can I use the scale with shoes?

No, to measure body fat, you must be barefoot and have dry feet on the contacts.

What does the 'Err' symbol mean?

General error: the scale is poorly placed or overloaded (over 150 kg). Check the surface and weight.

How to interpret body fat percentages?

Refer to the table in the manual: depending on age and gender, ranges indicate if you are too thin, normal, strong, etc. These are only indicative values.

Can the scale be used by a pregnant woman?

No, pregnant women should not use the body fat analysis. Simple weighing is still possible without programming.

How to clean the scale?

Use a slightly damp cloth with a little dish soap. Dry well. Never immerse the scale in water.

What to do if the screen remains off?

Check the battery: if it is dead, replace it. If the problem persists, remove the battery for a few moments to reset.

USER MANUAL PW 1405 CB BOMANN

D-47906 Kempen/Germany

6 Lichaamslength in cm

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• The body fat scales are not suitable for the following people:

Children under 10 and adults over 80
- Individuals with symptoms of fever, oedemas or osteoporosis
People undergoing dialysis treatment
- Those taking cardiovascular medication
Pregnant women
- Sportsmen and women who do more than 5 hours of intense sporting activity a day
People with a pulse of less than 60 beats a minute

• The device can bear a maximum body weight of 150kg ! A larger weight can damage the device!

Overview of the Components

1 / Selection arrow keys
2 On/off switch
3 Storage button for personal values
4 Contact surfaces
5 Display

6 Body size in cm

7 Percentage ratio

8 Age

9 Body weight in kg

10 Body fat/body water display

11 Body fat bar display

12 Memory
13 Female
14 Male

location

Inserting the batteries (not supplied)

1. Open the battery compartment on the back of the device.

2. Insert one 9V E-Block = 6 LR61 into the battery holder.

3. Close the battery compartment again.

Note: Do not dispose of batteries in the domestic waste. Please return used batteries to the relevant collection points or the shop where they were bought.

Never throw batteries into a fire.

Attention: The batteries have a life of approx. 1 year if used regularly and are to be changed when this period elapses.

Information for body fat measurement

People who use a heart pacemaker or another type of medical implant with electronic components are advised not to use these scales, as otherwise the performance of the implant may be impaired or endangered.

The device functions correctly if your feet are bare and dry and if you are in standing position.

The basic principle of these scales is measurement of the electrical impedance of the body. The scales send a weak, imperceptible electrical signal through your body in order to determine the current values.

Under normal circumstances the signal is completely harmless! Nevertheless you should read our special safety instructions!

The measurement is known as "biometric impedance analysis" (BIA), a factor which is associated with the body fat and body water ratio and which is subject to other biological aspects (age, sex, height).

There are heavy people with a well-balanced relation between fat and muscular mass and there are apparently slender people with substantially higher body fat values. Fat is a factor that contributes to burdening the body and, in particular, the circulatory system. Te checks of both values (fat and weight) are hence a basic prerequisite for health and fitness.

Body Fat

Body fat is an important part of the body. Fat plays an important role in your body ranging from the protection of joints with its reserve of vitamins to the regulation of the body temperature. The goal is not to reduce drastically the quantity of fat in your body, but to reach and maintain a balanced relation between the muscular mass and the fat mass.

The signifi cantc of water for our health

The human organism consists of approximately 55 - 60% water, with this quantity varying according to age and sex.

Water has a number of tasks to fulfil in the body:

• It is a building block of our cells. This means that all cells in the body, whether these are skin, gland, muscle, brain or other cells, can only function if they receive enough water.
  It is a solvent for important substances in our organism.
• It is a means of transport for nutrients, the body's own substances and metabolic products.

Please see the table of guideline values for the reference value for your fitness profile. It shows that there is a relation between the body fat values and your age and sex. Always bear in mind that, as in the case of the water balance in your body, also the share of fat is subject to great variations. Therefore, weigh yourself always at the same hour of the day to obtain a comparable value.

The results of the analysis of the body fat and body water ratio are only reference values. They are not recommended for use for medical purposes. You should always consult your doctor if you have any questions about medical treatment or a diet to achieve your normal weight.

Technical Features

Memory presets:

Memory Sex Height Age
1 Male 165 cm 25

Memory locations 8

Height setting from 100 to 250~cm

Age from 10 to 100 years

Minimum weight: 2.0kg

Maximum weight:

Weight measurement acc.: 0.1 kg steps

Body fat measurement range: 4 - 45 %

Body water measurement range: 37.8-66%

Reference Value Table (approx. and in %)

Age	Women		Men		Tendency
	Fat	Hydration	Fat	Hydration
Up to 30	4,0-16,0%	66,0-57,8%	4,0-11,0%	66,0-61,2%	too thin
	16.1-20,5%	57,7-54,7%	11,1-15,5%	61,1-58,1%	thin
	20,6-25,0%	54,6-51,6%	15,6-20,0%	58,0-55,0%	normal
	25,1-30,5%	51,5-47,8%	20,1-24,5%	54,9-51,9%	high
	30.6-45,0%	47,7-37,8%	24,6-45,0%	51.8-37,8%	very high
Over 30	4,0-20,0%	66,0-55,0%	4,0-15,0%	66,0-58,4%	too thin
	20,1-25,0%	54,9-51,6%	15,1-19,5%	58,3-55,3%	thin
	25,1-30,0%	51,5-48,1%	19,6-24,0%	55,2-52,3%	normal
	30,1-35,0%	48,0-44,7%	24,1-28,5%	52,2-49,2%	high
	35,1-45,0%	44,6-37,8%	28,6-45,0%	49,1-37,8%	very high

Attention: Owing to great variations in the level of body fat it is difficult to obtain a reference value. On average for adult men the best time for the measurement is between 6 and 8 o'clock p.m. because the level of body fat is very constant during this period!

Putting into service

Simple Weighing Function

Position the balance on a hard, fl at surface (avoid carpets). Uneven fl oors lead to imprecise readings.

1. Switch on the scales by pressing lightly with your foot or toes on the glass surface.

Note: "88888" appears in the display.

1. After a few seconds "0.0" appears in the display (5). Now stand with both feet on the contact surfaces (4) of the scales. Spread your weight out evenly and wait while the scales calculate your weight.
2. Your weight is shown on the display (5). After a few seconds the device shuts off automatically!

Programming your personal data

Attention: Carry out the following operations one after the other and within a few seconds or the device will automatically interrupt the programming mode!

1. Press the on switch to switch on the device. For a short time all segments appear in the display (5); then the „memory location“ display (12) flashes.
2. Select a memory location with the / arrow keys.
3. Press the switch-on button again to reach the programming mode.
4. A female (13) or male (14) symbol flashes in the display. Use the / arrow keys to select a setting.
5. Press the switch-on button again to reach the "height" setting. Use the arrow keys / to select a value between 100 and 250~cm
6. Press the settings button again to reach the "age" setting. Use the arrow keys / to select a value between 10 and 100 years.
7. Press the switch-on button again to return to the "memory location" display. Here you can choose between two alternatives:

a. Press the switch-on button again to review all the settings and change if necessary.
b. Press the storage button to reach the body fat measurement mode.

The memory location and the height that has been set appear in the display for a few seconds before the display changes to "0.0". See also section 4 "Determining your Weight, Body Fat and Body Water Ratio".

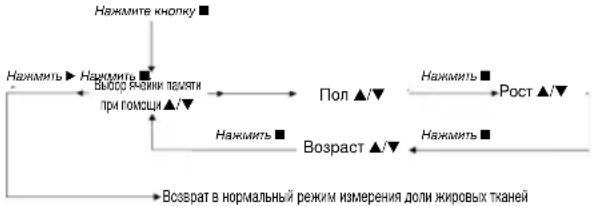

The following function diagram will help you to understand this more easily:

Your personal values are now saved in the selected memory slot.

A total of 8 memory slots are available. It is therefore possible to store not only your own personal values but also those of your family members in seven additional memory locations.

Determining your Weight, Body Fat and Body Water Ratio

First save your personal data in a memory slot.

Note: The measurement can only be performed if you are barefoot. If necessary, wipe the contact surfaces to improve conduction of the electricity. Place each of your bare feet on 2 of the 4 contact surfaces.

1. Press the switch-on button to switch the device on. All segments appear briefly in the display (5); then the "memory location" display (12) fl ashes.
2. Use the / arrow keys to select a memory location.

3. Press the storage button to enter the body fat measurement mode.

4. The memory location and the height that has been set appear in the display for a few seconds before the display changes to "0.0".

5. Place both your feet on the contact surfaces (4) of the scales.

6. At first your weight is shown in the display.

7. Within a few seconds the scales calculate your body fat and body water ratio automatically.
8. The display then shows your body fat percentage ("BF" symbol), followed by the body water percentage ("BW" symbol).
9. Then the LCD display alternates fi ve times between the values for the body fat and the body water percentage before switching off automatically.

Display and Error Messages

General

If an error message (Err) appears in the display please wait until the scales switch off. Then switch them on again to continue using them.

For a complete reset remove the battery for a moment and then reconnect it.

Messages

Switching on	All segments light up simultaneously. This is a check that the displays are working correctly.
,----“	The scales are not positi- ned correctly or the weight to be measured is too low.	Correct operation is not possible. Place the scales on a fl at and solid surface.
,Err“	The scales are not positioned correctly or overloaded.	Place the scales on a fl at and solid surface.
		Is the weight being measu- red greater than 150kg?
,LO“	The battery charge is too low.
,Err-h“	The calculated body fat % ratio is above the upper limit of the measurement range.
,Err-I“	The calculated body fat % ratio is below the lower limit of the measurement range.

Usage and care tips

• Weigh yourself without any clothes or shoes on before meals and always at the same hour of the day.
  The balance rounds off weight to the closest 100g
• If you weigh yourself twice and two different values are given, it means that your weight is comprised between both values.
• Do not immerse the balance in water: the electronic components can be damaged.
• Remove the batterie if the balance is not to be used for a long period of time.
• Handle the balance with care, as it is a precise measuring instrument. Do not drop it or jump on it.
• Absolutely no need for maintenance.
• Do not load the appliance with more than 150kg to avoid damaging the device.

Cleaning

• Clean the device with a slightly moist cloth. Make sure that no humidity or waters seeps into the device!
• Do not use abrasive detergents! These can damage the casing of the device!
• Use a commercially sold detergent or soap for cleaning.
• Dry the device well after cleaning with a dry and soft cloth.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

BCTaBHeHne 6aTapeek (6aTapeHH B KOMnIeK T NOCTaBKn He BXOJrT)

1. OtkpoTe OTceK dIaTaapeek Ha o6paTHoCTopoHe npHbopa.

2. BctabBeB DepeKaTeIb 6aTapeKny Tnpa 9V E-Block = 6LR61.

3. 3akpoTe oTceK dIa6aTaapeek.

BhMaHHe: He BbIbpaCbBaIte 6aTapeKn B DOMaShn Mycop. PoxkanyuCTa CdaIte Otpa6ToHHBe 6aTapeKn Ha CneuaJIbHbI pyHKT npHema HIN B TOPROyTOtky.

Hn B Koem clyuae He 6pocai Te 6atapeKn B orOhb.

PpmeHne! Pn perynAphom noIb3OBAHN np6opom 6aataeKn cnykat OKoI Ora, nocne 3TOr Hx HeoXoNDMO 3aMeHtB!

Hhopmaun K TeMe H3MepeHne MaccbI HnpoBbIX OTIOJKeHH B OprHaH3Me

HnuaM，HocuHcepdeHbIWAROpE HnI DpyroMeuHcKnHMnHaHTa，peylnpyeMbIe 3JIeKTPoHKnO，He peKOMeHNyETcNlB3OBaTBc3TmMn BECaM.NHOrTHerATNBHO NOBnIbTaHa npabHbHoe FyHKUHOHPoBaHne HmPiHaNTaOB.

Pp60p FyHKUHpyET npaBnIbHO TOnbKO B TOM cnuyae,ecnn npaBnIbHO BCTaTb Ha KOHTaKTHyIO nOIOKKy 6oCkOM,CyXmM Horamn!

PnHnnpa6OtblBecOBOCHOBHHeH3MepeHHN 3JIeKTPnueCKTOCNPOTNBHeHHOPraHH3Ma.DIa 3TOrO BeCbIpOnyckAOTYepe3OpraHH3M Cna6bi, HeycTBNTelHBn3JIeKTPnueCKn CnIHan, YTO6bTaKaMM 06pa3OM Co6paTb DaHHble Oero AKTyaNbHOM COCTOHHHN.

CnHn, B 06uem, a6cOnHO 6e3oNaCeH! HecMOTpHa 3TO, Co6NIOaIte BCE-TAKn HaLIH CneUaJIbHbIe yKa3aHnno TExNHke 6e3oNaCHOCTn!

3TOT npoceDpya n3BecTHa noHa3BaHnem BnO3NeKtpnuecka DnaHocTHka" (BIA), KaTOpOM, KOTOpbI 3aBNCIT OT DOJIHKINPOBbIX TKaHEI/BODbI B OPraHn3Me, a TaKKe CBr3aH B ONpeJeHHo INpONOpcN c DpyHMn 6nOIOrueckmnpapamTpamn (Bo3paCT, non, poCT).

PYCCN

N3BecTHO, YTO eCTb TOCTbIE IIOID C ypaBHOBeWeHNO npONOpUeH MEXdy MyCKyIbHO H JINPOBOM MAccOH N eCTb, KaKyUeNEc CTPOHbIMN, IIOID C CnIbHO 3aBblEHHbM 3NaueHHeM MACCbI XIKPOBbIX OTNoXeHNI. XIKPOBbIe OTNoXeHNI 3TOΦaKTop, KOtOpbIe CNIbHO 06PemHeT OPraHN3M QEnOBeKa, B OOCoEHNOCTH cepDeuHO-CocYdNCTyO CNTeMy. POnTOMy, KOHTpOB b OBxN napaMeTPOB (McyKyIbHO H JINPOBOM Maccbl), RBAIRETCA OCHOBHO pPeDnOCbIKKOJ 3DOPOBbI N IOCTNXeH N XopoWero CaMOyCTBn.

HkpOBbIe TkaHN

KInpoBbIe OTIOKeHnRAIBNHTcBaHHoYacTbO
opraHn3Ma. OHn nepeHmHaOT pa3NIuHbIe, OyeHb
BaKHe, FyHKuIN B OpraHn3Me, OT 3aUNTB CYCTaBOB IN
HaKOpJIeHn BITAMHOB, Do peryJrCIN TEmnpaTpbl.
Io3Tomy, KOeHuOH ueJIbIO RBnEETc He paAnKaIbHOe
ymHeBWeHne Maccbl KInpOBbIX OTIOKeHIn, a
IOCTNXeHne I NOdepKgAnHe ypaBHOBeJeHHO
IpONOpUIM MeKdy MyCKyIbHOH IN KInpOBoiMaccOi.

Ponb BOdbI IaHaawero 3DopOBBa

Yelenobueeckn opraHn3M COCTOHT npimepno Ha 55-60% n3 BOJBI, 60JIe HIN MEHeE B 3aBNCIMOCTN OT BO3paCTa n nona.

Boda BbInonHReT cIeIb pIaHaN B opraHn3Me:

OHa RnIeTc OCHOBOK KaJDoK KJIeTKN.3To 03NaHaeT, YTO KaJDaK JKeTka OprAHN3Ma: TO JIN 3TO KNeTka KOxN, NOp, MyCKyI, Mo3ra IIN JIO6aIpyra, TOnbKO ToTgA JxN3HeCnOCo6Ha, ECIN CoepKHT DOCTaTOUHOE KOJIuYeCTBO BObl.
- Oha cnjxnt pactbopntem BaKHeuX BeueCTB B Haem opraHn3Me.
TpaHcnpTpnyet nIaTeIbHbIe BeIecCTBa,BeIecCTBa CO3daBaEMbIe CaMM OpraHn3MOM I npOdyKTbl O6MeHa BeIecTB.

CpaBHTeBHeIaHbIeIaONpeTeHnBaWero npoHnI npBBeHb B TaBInue peKOMeHyMbIX 3NaueHNI. OHa NOKa3bIBaET 3aBNCIMOCTb DOJI Maccbl JNPObIX OTIOKeHn B OprAHn3Me OT Bo3pacta I NOJa. He 3a6bBAite, YTO DOJI XnpoBOIM MacCb IB OprAHn3Me MeHReTcB TeueHn CYtOK, TaXke KaK I DOJI BOdBi B HEM. NOrToMBy, DIA IOCTNXKeHn CON3MEpmMbIX 3NaueHNI, PpOBOnTE H3MepeHn B ODHO TOKe BpeM CyTok.

Pe3yIbTaTbI N3MpeHn D0JI JKNPOBbIX TKAHeN/BOdbI B
opraHn3Me HocrT ToJbKO INHOpMaTHBHy XapaKTeP. He
peKOMeHdyETcR npIMeHrTB IV B MEINHCKNX CEJAX.
O6paTntec 3a KOHCyIbTaUeN K COOTBeTCTByIOUeMy
BpaCy, ECIN y Bac BO3HNKIn BOIpocbl NO JueEHNO IINI
BONpocbl No DInete C cIeIbIO DOCTNKeHn HOpMaJIbHOro
Beca.

TexHueckne xapaKTepeNCTnKn

BbOaHaHbIX BnAmrTb:

Hnana3OH n3MepeHHI DOJI KHP. TkaHe: 4-45%

Huaana30H H3MepeHn DOnn BOdbI: 37,8-66%

Ta6JIHua KOHTPOJIbHbIX 3HaueHH (nphM. B %)

Возрact	Женины		Мужчины		Теменяи
	Дола жира	Дола вордь	Дола жира	Дола вордь
До 30	4.0-16,0%	66.0-57,8%	4.0-11,0%	66.0-61,2%	Стейшом мано
	16.1-20,5%	57,7-54,7%	11,1-15,5%	61,1-58,1%	Мало
	20,6-25,0%	54,6-51,6%	15,6-20,0%	58,0-55,0%	Hормалho
	25,1-30,5%	51,5-47,8%	20,1-24,5%	54,9-51,9%	MHOrо
	30,6-45,0%	47,7-37,8%	24,6-45,0%	51,8-37,8%	Стейшом мано
Старш 30	4.0-20,0%	66.0-55,0%	4.0-15,0%	66.0-58,4%	Стейшом мано
	20,1-25,0%	54,9-51,6%	15,1-19,5%	58,3-55,3%	Мало
	25,1-30,0%	51,5-48,1%	19,6-24,0%	55,2-52,3%	Hормалho
	30,1-35,0%	48,0-44,7%	24,1-28,5%	52,2-49,2%	MHOrо
	35,1-45,0%	44,6-37,8%	28,6-45,0%	49,1-37,8%	Стейшом мано

PnmeHne! No npnHne cnIbHoro Kone6aHn HkpOBoM MaccB OprAHn3Me YeNoBeka, OeyHcNoKHO NaTH KOHTPOlbHoe 3NaueHne 3TO rnapaMetpa. B CpeHem MOxHc KsA3aTb, CaMOE ONTMaJIbHoe BpEmd Ira PNOBeHn H3MepeHn y B3PoCnOro YeNoBeka Jeknt MeJky 18.00 n 20.00, TaK KaB 3To BpEmr HkpOBaM Macca opraHn3Ma IMeet OTHOCHTbHo CTaBnIbHoe 3NaueHne.

Pnodrotobka K pa6oTe

CHTO B3BeWbHae

YcTaHOBnTe BeCb Ha TBepDyIO NIOCKyIO OCHOBy (N36eAaTe KObpy I TOMy NIOO6Hoe). HepOBhI NOI pINBOoNT K IOXHbIM NOKa3AHnM.

1. BkHIOUHTe BeCbI, CnerKa HauKAB HOrO INIIN IaJIbuaMn HOrn Ha ee CTekJIaHHyIO NOBepxHOCTb.
   Ппмочанne:Ндсплгппогьгетсг"88888"
2. Yepe3 HeckoIbKO CeKHyHa HuaCnnee (5) NORBHTCR "0.0". BCTaHbTe O6eMn HOrAMn Ha KOHTaKTHyHO nloaAky (4) BecOB. PacnPedeNITE Bec paBHOMepHO NO NOBepXHOCTn I NOOJKeTte, NOKa Becbl 3aKOHuat N3MepeHne I paCet..
3. BaW Bec OTo6paKaetcHa dncnnee (5).Yepe3 HeCKoJIbKO CekyHd npIbOp aBTOMaTHueeKn BbIKHOHTcR!

PporpaMMHPOBaHne HnHbNdyaIbHbIX daHHbIX

PnmuemueHne! Cneyouuie Warr Heo6xOIMo npOBeCTN NocneobateBHO B TeeyHN HeCKoJIbKnx cekyHa, Hnaue peXHM nporpaMMpoBaHn npepBeTcA

1. HaKMnTe Ha KhoNky BkHIOUaTeIra ■, YTO6bl BkHIOHTb np6Op. Ha KOPOTKe BpEMraOpTcB BCE CeMHeTb DInCnIeR (5), 3aTeM HauHET MIRAtb coo6uHHe (12), RueKa nAmrTa"
   2.Пи пOMOи KHOJOK co CTePENKAMN ▲▼ ВьбepNTe RHei Ky nAMrTn.
2. Haxmnte noBtOPOKHO KhoNky ,TO6bI BOHTBpeXIM npOrpaMMnpoBaHnR.

3. Ha nncnnee haueHET MIRaTB CMMBON KeHUNHBI (13) INN MyxuHbI (14). Pn NOMOUs KNHOOK CO CTpeKamn ▲/▼ CdeNaTE COOTBETCTByUOn BbOp

4. HaKMITE NOBTOPO KHONKY, YTO6bI BOITN B MEHO "PoCT". Ipn NOMOUN KHONOK CO CTpeKAMN ▲/cdeNaTe Bb6Op MEXdy POCTOM OT 100 do 250 cm.

5. Haxmnte NOBtropno KhoNky , YTObI BOITn B MeHIO "Bo3pact". Pnp NOMOu KNOHOK CO CTpeKAMn A/▼ CdeNaTe BB6op MEXdy Bo3pactom OT 10 do 100 net.
6. HaMMte NOBtOPO KHOKNy ,YTObI BOITN B MeHIO "AueKna naMTn." IMeETcAB DE Bo3MOXHOCTN:

a. HaKMMTe KhoNky ,YTO6bI eue pa3 npocMOTpeTb IN pRn HeoXoHMOCTN H3MeHHTb 3aHeceHHBe B nAMrTb daHHbe.
b. HaKMMTe KONky, YTO6bl BOITN B peKIM 3MEpeHn I paCteTa DOJIN JIKPOBbIX TKAHei. Ha HeckOJIbKO CekyHd HA DnCnIe NORBtCR HOMep RyeKn I naMTr N BBeDeHHoe 3HaueHne poCTa, 3aTEM NOKa3AHn CmEHrTc H a "0.0". DaJeE cmOTPi NyHKT 4 "3MEpeHne BEca, paCET OJIN JIKPOBbIX TKAHei N BOJb I OPraHN3Me"

IyUyuWero noHmAMnO3HaKOMTecBo CNeDyUoSei FyHKUHOHaJIbHOI CXEMOI:

Tenepb ININBnDyaybHbIe daHHbIe 3aNcAhbl B nAMrTb NOB bIbpaHHbIM HOMepoM.

B BaWem pacnopRKeHHn HaxoJrTc8 RyeKn namrTaKmOBpa3OM,BBaWem pacnopRKeHHn HaxoJrTc7raeek naMRTn 4aONMHAHn BaWix daHHbIX ININHbIX daHHbIX dpyHX YHeOB CEMbn.

H3mepenHe Beca, paCyeTdoJIH XnpoBbIX TkaHei BOdbI B OprAHN3Me

Ipeep 3TNM BHeCnTE B ONDHy I3 Ryeek NaMRTN BaUN INHINBnDyalbHbIe DaHHbIe.

PnmeuHne: n3MepeHnHaIO npoBOHTb C 6OcBIMn Horamn. Pn HEOxOAnMOCTn IpOTnE KOHTKTHYIO nlouaKny, YTObI yMeHbWntb ee cnpOTNBJIeHne. BctaHbTe KaKDoBocOn HOrO Ha 2 N3 4 KOHTAKThbIX nlouaDOK.

1. HαKMnTe KHOHky ,YTO6bI BKNIOUHTb BeCbI. HaKOpOTKoe BpEm 3aOropTcBce CeRMENTbl DnCnner (5), 3aTeM NaHET MmTaB coo6uHHe (12) ,JyueKa naMaTn'.
   2.Пи пOMOДИ KHONOK CO CTpeKamN △/▼ BbIePnte Ryei Ky nAMrTn.
2. Haxmte KhoNky YTObI BOITB PexHIM mMepenHn paCeta DOnn JnpoBbIX TkaHei.

Ha Heckonbko CekyHd Ha DnCnIe NORBtC HOMep RyeKn NamrN BBeDeHHoe 3HaueHne poCTa, 3aTEM NOKa3AHn CMeHrTcH a "0.0".

1. BCTaHbTe 06eHMn HOrAMn Ha KOHTaKTHyO IIIOuaIky (4) BEcOB.

2. Chaujana Ha duinnee nokaKeTcBac Bec.
   B TeueHn HeckOJIbKIn CekHyD BeCbl aTOMaTHueCKn paCCHTaOT DOJIIO JNPOBbIX TkaHe N BObl B OprHaHn3Me.

3. Pocne 3TOrO Ha dncnnee nOBHTC npoceHTHOE 3aHmPocJeT npoeHTHOe 3aHcBON "BF" BDBI (CMBOJ "BW").
   3TN 3NaHEnn6ydy5pa3nonepemehNOBnTbCnHaDnCnIe，noCne3TOOBcblABTomATnueckn BbIKIOUoyatcN.

Poka3aHnIuNCJIeN u COo6ueHnO6 Own6kax

06uhe noJooKeHHa

Ecnn Ha ncnnnee noaBnTc coo6ueHne 06 oun6Ke (Err), nooJxnte noka Becbi BbIKHOuATc. Nocne 3toro BKIOHHTe IN ONTb.

YTO6bI nonHOCTbO c6pocntb (Reset) BeCb I nCXoHoe COCTOHaHE OTKIOHHTe Ha KOPOTKoe BpeM 6aTaapeNKn, a 3aTEM IOKDIOHHTe IN ONrTb.

Coo6eHH
