USER MANUAL PW 1406 CB BOMANN

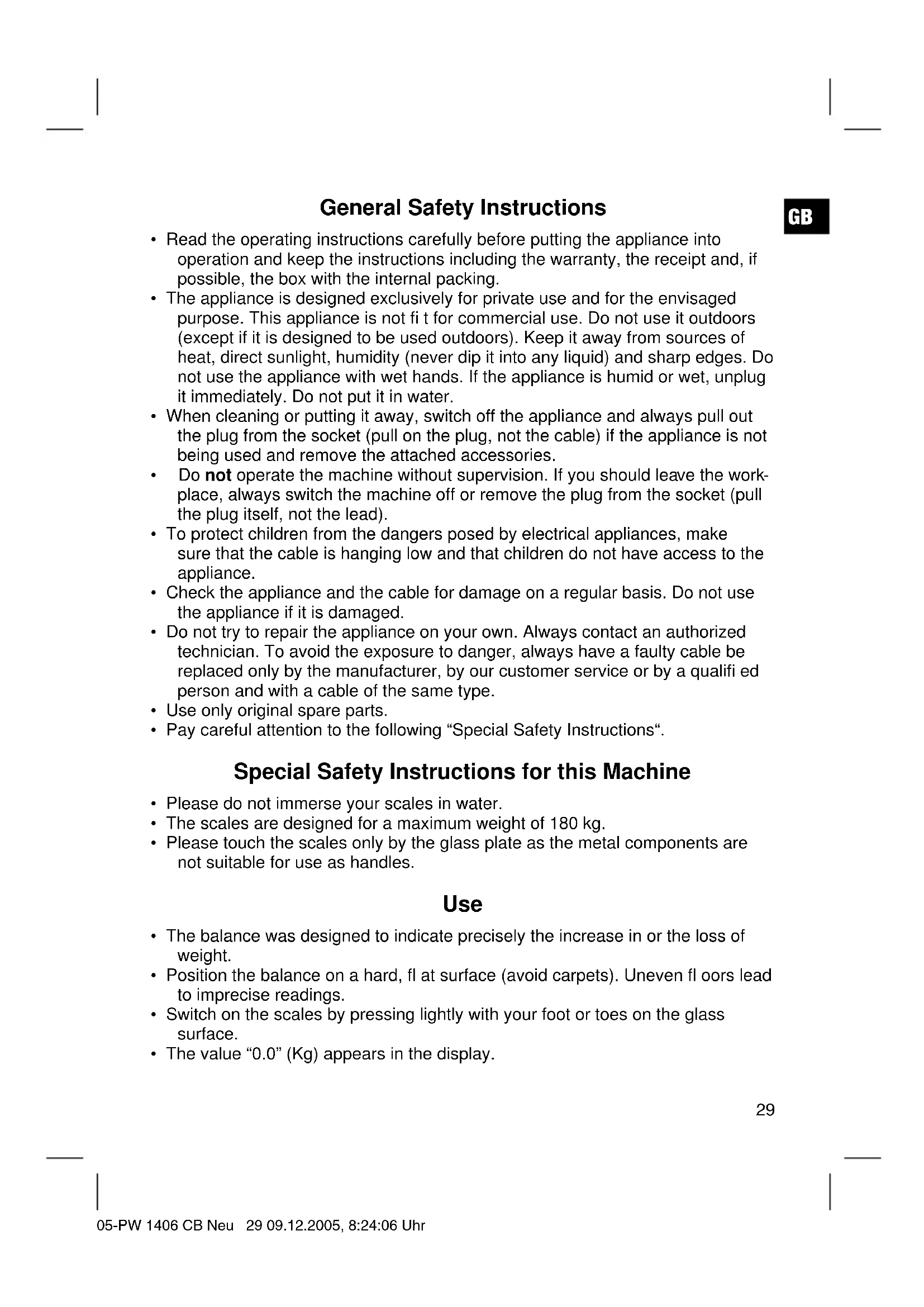

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• Please do not immerse your scales in water.
• The scales are designed for a maximum weight of 180kg .
• Please touch the scales only by the glass plate as the metal components are not suitable for use as handles.

Use

• The balance was designed to indicate precisely the increase in or the loss of weight.
• Position the balance on a hard, fl at surface (avoid carpets). Uneven fl oors lead to imprecise readings.
• Switch on the scales by pressing lightly with your foot or toes on the glass surface.
• The value "0.0" (Kg) appears in the display.

GB

• With the switch in the battery compartment you can select between the settings "St-lb", "lb" and "kg".
• Step on the balance. Distribute your weight equally on the balance and wait for the balance to calculate your weight.
• The display fl ashes three times at first and then your exact weight is shown.
• When you have got down from the scales they switch off automatically after 10 seconds in order to prolong battery life.

Batteries

(Batteries not supplied)

The batteries are two long-life lithium cells. If the letters "LO" appear in the display this means that the batteries need replacing as follows:

• Open the battery compartment on the back of the scales.
• Replace the batteries with two cells of type "CR 2032". Please ensure the correct polarity (see fl oor of battery compartment or printed symbol on the exterior).
• Close the lid of the battery compartment.

Note: Do not dispose of batteries in the domestic waste. Please return used batteries to the relevant collection points or the shop where they were bought.

Never throw batteries into a fire.

Usage and care tips

• Weigh yourself without any clothes or shoes on before meals and always at the same hour of the day. The best time to weigh yourself is when you wake up in the morning.
• The balance rounds off weight to the closest 100g .
• If you weigh yourself twice and two different values are given, it means that your weight is comprised between both values.
• Do not immerse the balance in water: the electronic components can be damaged.
• Remove the batteries if the scales are not going to be used for a prolonged period.
• Handle the balance with care, as it is a precise measuring instrument. Do not drop it or jump on it.
• Absolutely no need for maintenance.
• If the display shows "LO", change the batteries.
• Do not load the appliance with more than 180kg to avoid damaging the device.
  If the letters "Err" (error) appear, the weight is above 180kg .

Cleaning

• Clean the device with a slightly moist cloth. Make sure that no humidity or waters seeps into the device!
• Do not use abrasive detergents! These can damage the casing of the device!
• Use a commercially sold detergent or soap for cleaning.
• Dry the device well after cleaning with a dry and soft cloth.

Technical Data

Model: PW 1406 CB

Power supply: 2X 3 V CR 2032

Min. / max. weight load: 2 kg / 180 kg

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

GB

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

In many EU countries the disposal of electrical and electronic equipment in the domestic waste is prohibited from August 13, 2005 on.

In Germany from March 23, 2006 on.

TapaHTnHoe 6aTeJIbCTBO

TapaHTnHbI cpoK Ha TeppHTOpH N PocChNcKo Fedepaun yCTaHaBnBaETCn NOHOMOHyIMN ppeCTaBnTeJrMn.

KaccobbyuekraBnErcraPapHTnHbIM TaHOHm.Be3 Hero HeBO3MOKeH 6ecnNaTHbI pemOHr Hnn 3aMeHa N3dEInr.

B clyuae BO3HKnHOBxHn npnteH3n no rapaHTn, npeIbBAte H3dEne B NOJHOKOMNKeTauH, C oprrnHaBHO ynaKOBKO n KaccOBbIM YekOM ToproBOI TOUKe, npoDaBwe 3TO n3dEne.

*) Depekti npnaadJeKHOte He cnykaT npuHOn dIa ABToMaTHueCKo 3aMeHb BCero n3dEINB. B 3tOM cnyae no3BOHnTe Ham, noKaanycta, no ropaye IHH! Pa3bIbe cTeKJIHHbIe nNoLOMaHbIe pIaCTMaCCOBbIe DeTaJIb BO3MeUaOTcra Toblko 3a DOnONHInTeJbHyO ONLaty!

DeΦeKtBi n3HaUHbAembIX npHnAdJIeKHOCTe NII TpyuXcR DeTanei (HaPmep KOHTaKTbIe IeTKMOTOpOB, CMeCInTeBHbIE KpIOKN, PnpBOdHbIe peMHN, 3aNaCHbIe NylbTBI ynpabLeHHN, 3aNaChbIe 3y6HbIe IeTKN, NIIbHbIe NOIoTHa N.T.D.), a TaKHe YnCTKa, TexO6cJyKbAHne NII 3aMeHa TpyuXcR DeTanei He NOnaDaIOT NOr rapaHTHIO, INo3ToMy npoBOdTcR 3a OTdeJIbHyO onnATy!

TapaHTn TepaETc npB BCKpbITn N3dEINN NOCTOPOHHmN Iuamn.

Pocne rapaHTn

Iocne OKOHuaHnca cpoKa rapaHTnn, peMOHT n3deenn npOn3BOoNTc 3a OnlaTy, COOTBETCTByUOuMMN MaCTepCKMn nnnyHKtAmn CepBnCHOrO 06CnyXNBaHH.

BOMANN®

C. Bomann GmbH

Heinrich-Horten-Str. 17·47906 Kempen

Tel.: [phone] · Fax: [phone]

e-mail: [e-mail] · Internet: www.bomann.de
