USER MANUAL Body Balance Caribic SOEHNLE

Operating Instructions

Mode d'emploi

Illustration showing a hand pressing down on a device with directional arrows indicating motion (no text or symbols)

Diagram showing two rectangular blocks on a textured surface with intersecting lines, no text or symbols present

Illustration showing a faucet and a pipe with a cross-shaped tool, both without any text or symbols.

59.3 kg i

Simple diagram with abstract shapes and a small human figure, no text or symbols present

Simple diagram with abstract shapes and a small human figure, no text or symbols present

Lo ① ② ③ E ④ H% ⑤ L%

Batteriewechsel

2 x 3 V CR 2430 3V CR2430 + 3V CR2430

3V CR2430 + - 3V CR2430 + - 2 x 3 V CR 2430

Garantie

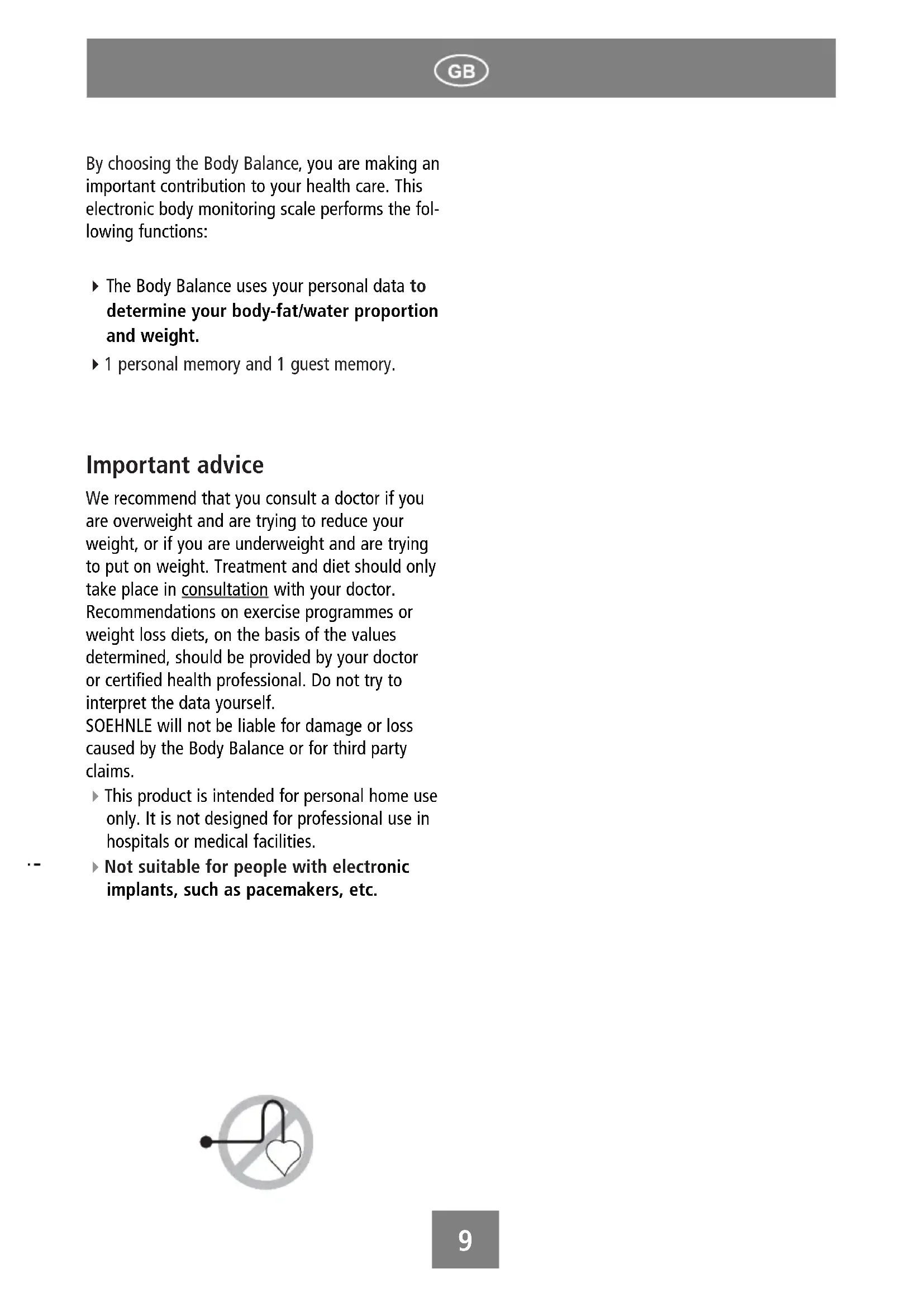

By choosing the Body Balance, you are making an important contribution to your health care. This electronic body monitoring scale performs the following functions:

The Body Balance uses your personal data to determine your body-fat/water proportion and weight.
▶ 1 personal memory and 1 guest memory.

Important advice

We recommend that you consult a doctor if you are overweight and are trying to reduce your weight, or if you are underweight and are trying to put on weight. Treatment and diet should only take place in consultation with your doctor. Recommendations on exercise programmes or weight loss diets, on the basis of the values determined, should be provided by your doctor or certified health professional. Do not try to interpret the data yourself.

SOEHNLE will not be liable for damage or loss caused by the Body Balance or for third party claims.

This product is intended for personal home use only. It is not designed for professional use in hospitals or medical facilities.
Not suitable for people with electronic implants, such as pacemakers, etc.

Preparation for use

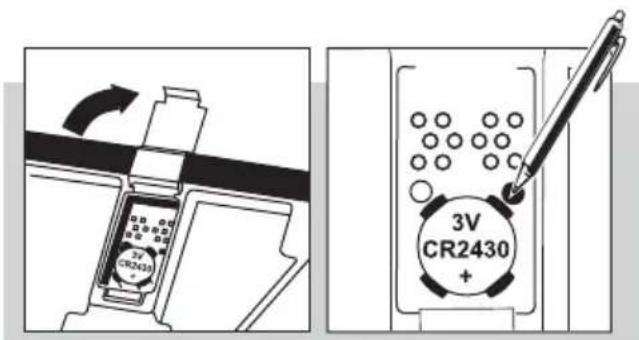

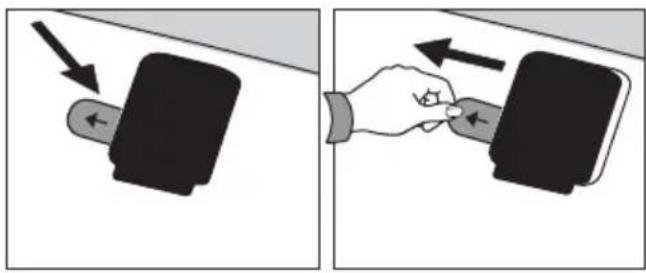

① Insert batteries

Illustration showing a hand pressing a button on a device, with arrows indicating motion (no text or symbols)

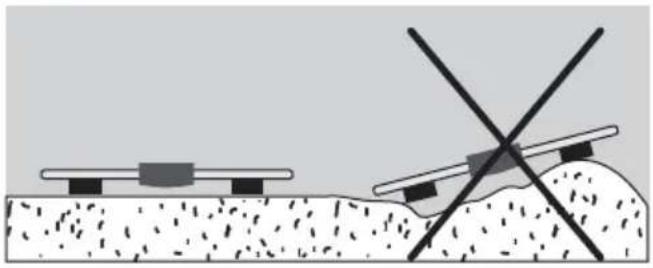

② Always place the scale on a level, firm surface for measurements.

Diagram showing two tools interacting with a textured surface, no text or symbols present

③ Caution: danger of slipping on wet surface.

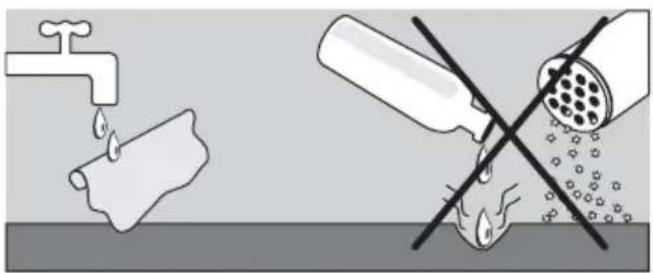

④ Cleaning and care: clean only with a damp cloth. Never use solvents or abrasives. Do not immerse the scale in water.

Illustration showing a faucet and a pipe with a cross-shaped tool, both without any text or symbols.

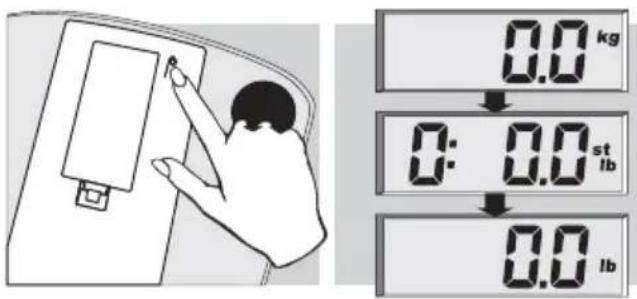

⑤ Country-specific settings: the scale can be switched from kg/cm to lb/in or st/in (applies to the English-language versions only).
For glass scales:

0.0 kg 0: 0.0 st lb 0.0 lb

For plastic scales:

3V CR2430 + 3V CR2430

Programming

① Place scale on a table for programming
② Switch on scale (→) and wait for 0.0 to appear in the display.
③ Start programming (←).

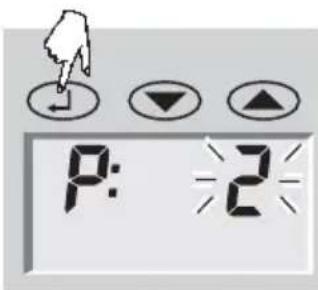

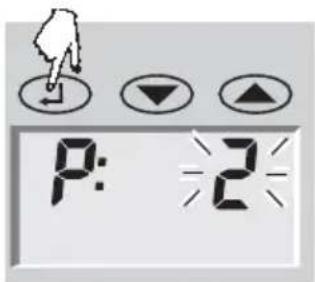

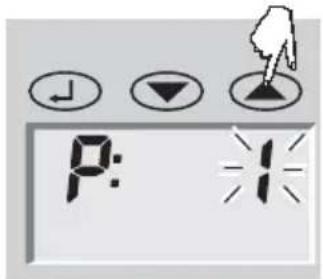

④ Memory location (P1 ... P2) select (▼ = minus, ▲ = plus) and confirm (←).

P: 1

P: -2

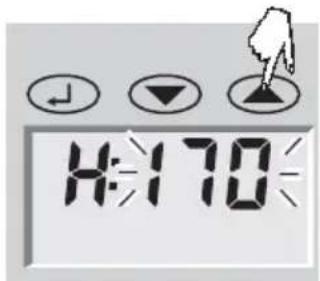

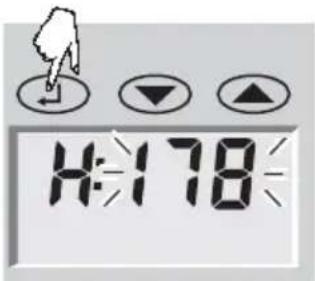

⑤ Enter your height (▼ = minus, ▲ = plus) and confirm ( ).

H:170

1:178

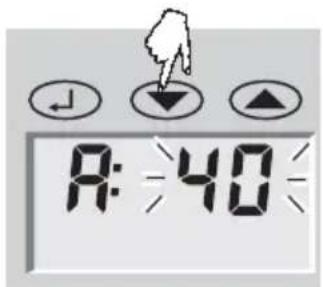

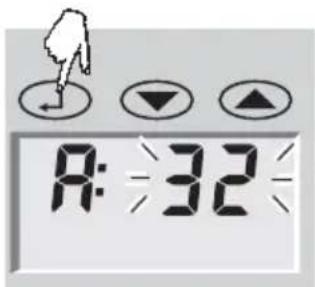

⑥ Enter your age (▼ = minus, ▲ = plus) and confirm ( ).

8:40

A: -32

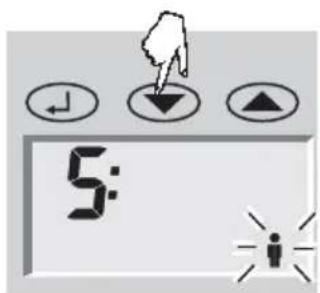

⑦ Input your gender (▼ = male or ▲ = i female) ...

5:

5:

...and press for 3 sec. to confirm ( )

Note

The scale has an energy-saving mode that switches it off automatically if no keys are pressed for approximately 1 minute.

Body monitoring

Always measure in bare feet. Personal data must be programmed first (page 11).

① Step on to the scale.

The display will now show your weight...

59.3 kg i

... and – while analysis is taking place (25-30 seconds) – a running bar display. Stand still until analysis is complete.

Simple diagram with black shapes and a small human figure, no text or symbols present

② Analysis takes place automatically with the data in personal memory P1.

① Select guest memory P2, as required, before the measuring process, by pressing the button,

P: -2

0.0

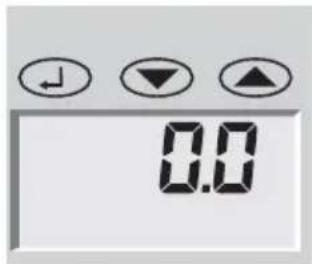

Wait for 0.0 to be displayed.

② Step on to the scale.

As long as the analysis continues (25-30 sec.), a running segment display appears. Stand still until analysis is complete.

③ Indication of body weight and running segment display, ...

Simple diagram with black shapes and a human figure, no text or symbols present

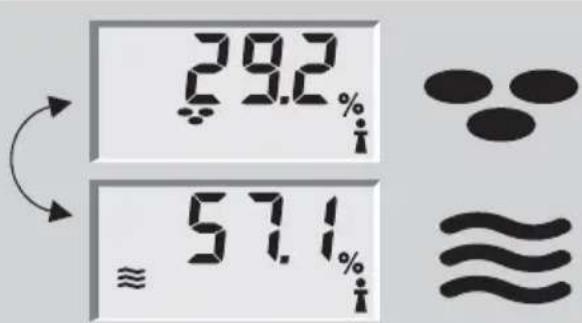

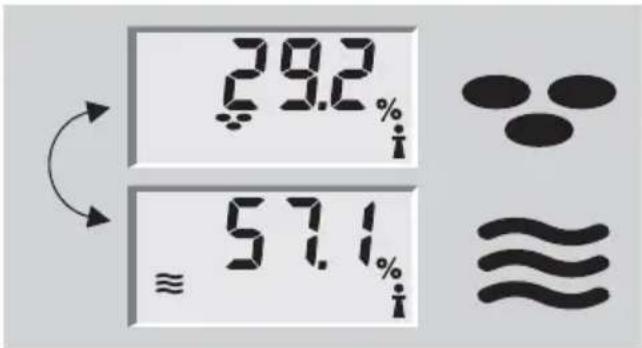

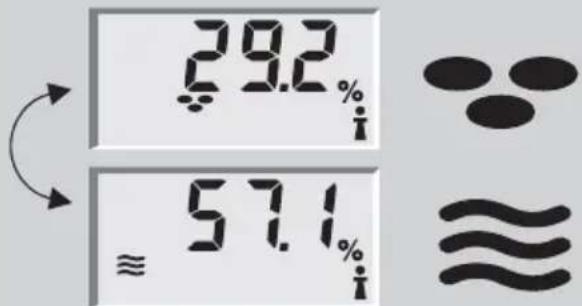

Body-water ( ) and body-fat proportions ( ) are displayed alternately.

③ Step off the scale. The scale switches off automatically when the person steps off.

Note that you will only obtain a weight reading – and no body monitoring data – if you step on the scale with your shoes or socks on!

Factors influencing measurement readings

Analysis is based on the measurement of the body's electrical resistance. Eating and drinking habits during the course of the day and individual lifestyle affect the water balance. This is noticeable by the fluctuations in the display.

In order to ensure that the results of analysis are a accurate and consistent as possible, keep the measurement conditions constant, as only in this way will you be able to observe changes over an extended period.

Other factors can affect water balance:

▶ After a bath, the body fat reading may be too low and the body water reading too high.
▶ After a meal, readings can be higher.
Women may experience fluctuations due to the menstrual cycle.

▶ Due to loss of water caused by illness or after physical activity (sport). After taking exercise, wait for 6 to 8 hours before carrying out the next measurement.

Varying or implausible results can occur in the case of:

▶ Persons with a high temperature, symptoms of oedema or osteoporosis
▶ Persons undergoing dialysis treatment
▶ Persons taking cardiovascular medicine
▶ Pregnant women
Athletes who undertake more than 10 hours of intensive training per week and have a resting pulse rate of under 60/min
▶ Competitive athletes and body builders
▶ Persons under the age of 17.

Health experts recommend the following percentages :

Men
Age	Body fat				Body water	Body fat				Body water
	low normal high			very high	normal low	normal high			very high	normal
10-12	< 8	8-18	18-24	>24	>64	<12	12-23	23-30	>30	>60
12-18	<8	8-18	18-24	>24	>63,5	<15	15-25	25-33	>33	>58,5
18-30	<8	8-18	18-24	>24	>62,5	<20	20-29	29-36	>36	>56
30-40	<11	11-20	20-26	>26	>61	<22	22-31	31-38	>38	>53
40-50	<13	13-22	22-28	>28	>60	<24	24-33	33-40	>40	>52
50-60	<15	15-24	24-30	>30	>59	<26	26-35	35-42	>42	>51
60+	<17	17-26	26-34	>34	>58	<28	28-37	37-47	>47	>50

Technical data

▶ Weighing capacity x graduation = max. 150kg x 100g
▶ Display resolution: Body-fat proportion: 0.1%
▶ Display resolution: Body-water proportion: 0,1%
▶ Height: 100 -250 cm
▶ Age: 10-99 years
▶ 1 personal memory and 1 guest memory.
▶ Size of LCD screen
▶ Measuring circuit: 0.035 mA RMS, 50 kHz
▶ Batteries: 2 x 3 V CR 2430 Batteries supplied with unit.

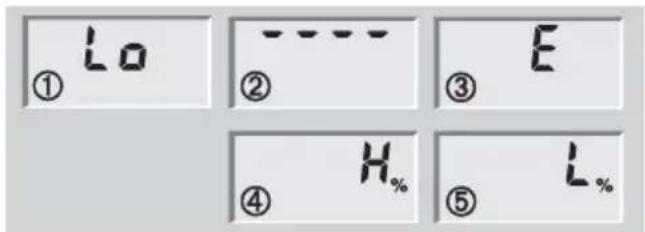

Symbols

① Batteries spent.
② Overload: From 150 kg.
③ Implausible analysis result – check individual programming
④ Bad foot-contact:
+ clean scale or feet or check for sufficient skin moisture.
⑤ If skin is too dry – moisten feet or carry out measurement after taking a bath or shower.

① Lo ② ③ E ④ H% ⑤ L%

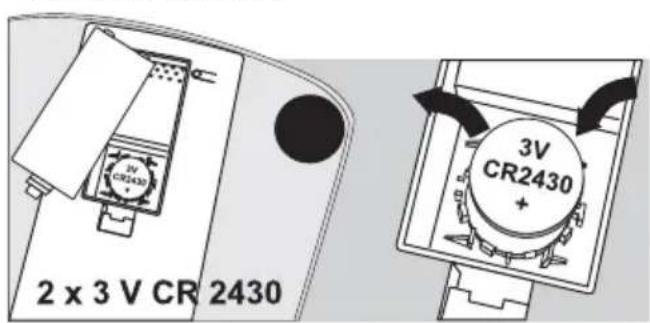

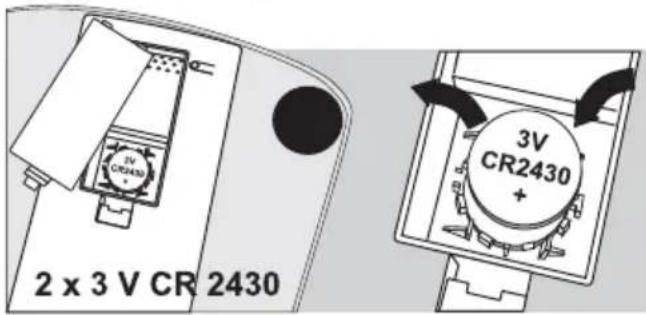

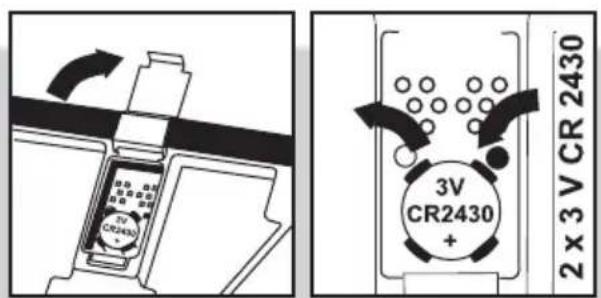

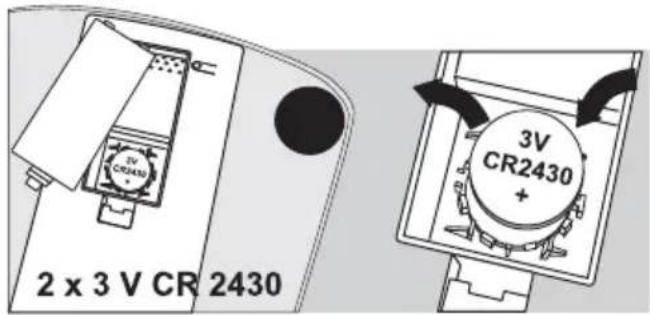

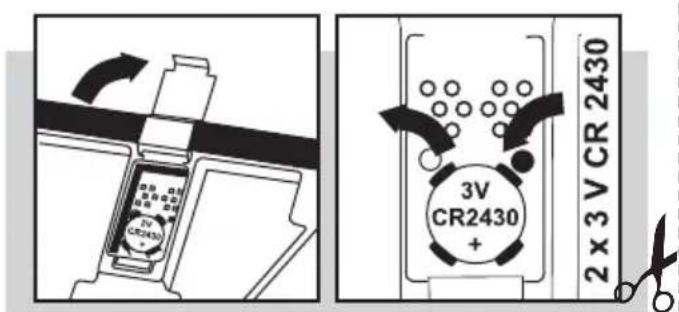

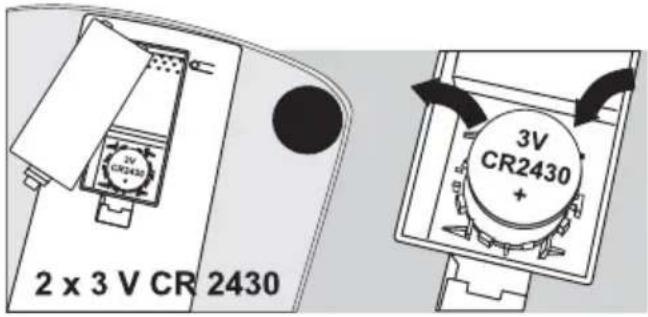

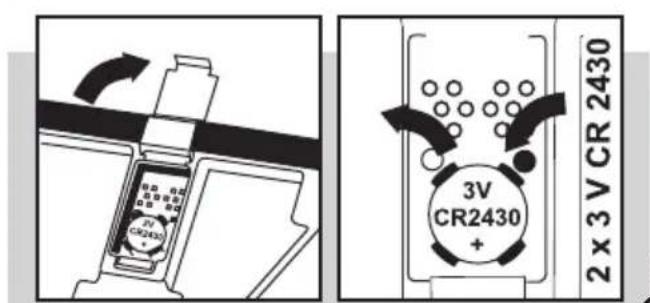

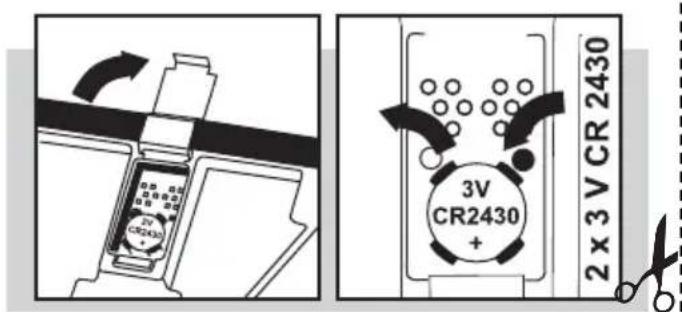

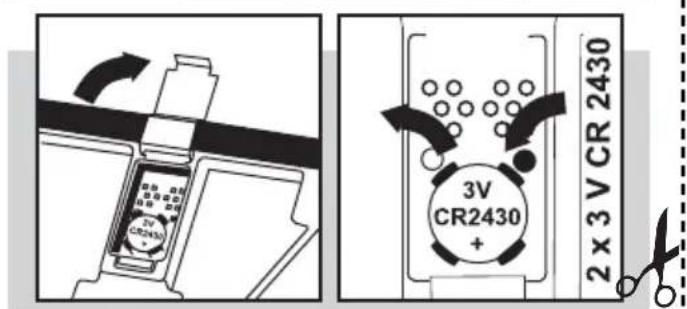

Change batteries

2 x 3 V CR 2430 3V CR2430 +

P2 CR2430 + - 3V CR2430 + - 2 x 3 V CR 2430

Warranty

SOEHNLE guarantees that all defects due to materials or manufacturing faults will be remedied by replacement or repair, free of charge, for a period of 3 years from the date of purchase. Please keep your purchase receipt and the guarantee card in a safe place. If you have any complaints, please return the scale to your dealer with the guarantee card and receipt.

This device is screened in accordance with the applicable EC Directive 89/336/EEC.

Note: the display value may be affected by extreme electromagnetic influences, e.g. when a radio is operated in the immediate vicinity of the device. The product can be used for its intended purpose again when the interference disappears (a reset may be required)

Disposal of spent batteries: Batteries must not be disposed of as normal household waste. Note that you are legally obliged to dispose of used batteries in a correct way. You can return spent batteries either to public collection points in your town or to any outlet selling batteries of the same kind.

Pb = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

Guarantee card

If you have any complaints, p lease return the scale to your dealer with the guarantee card and your receipt.

Sender

Reason for complaint

Illustration showing a hand pressing a button on a device, with arrows indicating motion (no text or symbols)

Diagram showing a cross-shaped object on a textured surface with two horizontal bars and a diagonal line intersecting it (no text or symbols)

Illustration showing a faucet and pipe with water droplets, alongside a bottle pouring liquid into a container (no text or symbols)

59.3 kg i

Simple diagram with abstract shapes and a small human figure, no text or symbols present

≈ 57.1% i

Simple diagram with three oval shapes and a small human figure, no text or symbols present

① Lo ② ③ E ④ H% ⑤ L%

Illustration showing a hand pressing down on a device with directional arrows indicating motion (no text or symbols)

Diagram showing a cross-shaped object on a textured surface with two horizontal bars and a diagonal line intersecting it (no text or symbols)

Illustration showing a faucet and pipe with water droplets, alongside a cross-lined tube with bubbles (no text or symbols)

59.3 kg i

Simple diagram with black shapes and a human figure, no text or symbols present

Simple diagram with four abstract shapes and a small human figure, no text or symbols present

① Lo ② ③ E ④ H% ⑤ L%

Illustration showing a hand pressing down on a device with directional arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a textured surface, no text or symbols present

Illustration showing a faucet and a pipe with water, separated by a crossed-out tube (no text or symbols)

59.3 kg i

Simple diagram with black shapes and a small human figure, no text or symbols present

Simple diagram with abstract shapes and a small human figure at the bottom (no text or symbols)

① Lo ② ③ E ④ H% ⑤ L%

Batterijen vervangen

2 x 3 V CR 2430 3V CR2430 + 3V CR2430

2V CR2430 + 3V CR2430 + 2 x 3 V CR 2430

Garantie

Illustration showing a hand pressing down on a device with directional arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a surface, no text or symbols present

Illustration showing a faucet and pipe with water droplets, alongside a bottle pouring liquid into a container (no text or symbols)

P: -1 P: -2

H:170 H:178

59.3 kg i

Simple diagram with black shapes and a small human figure, no text or symbols present

Simple 3D diagram showing a person standing next to four abstract shapes (no text or symbols)

① Lo ② ③ E ④ H% ⑤ L%

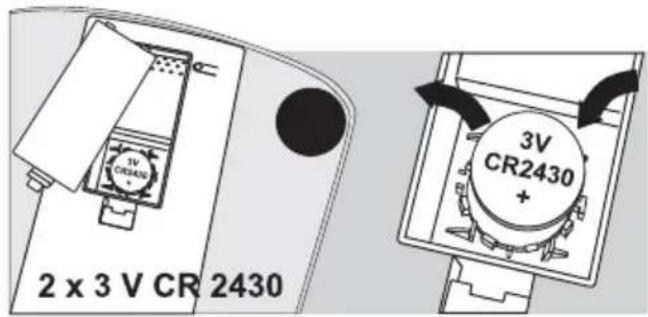

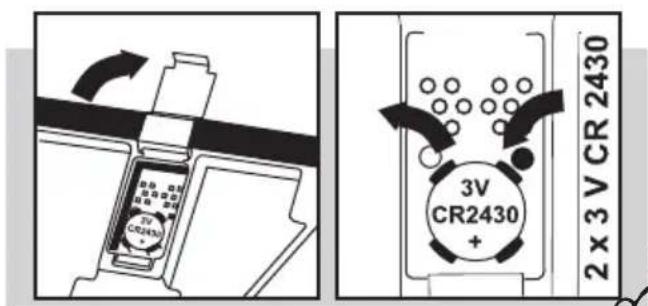

Cambio de baterías

2 x 3 V CR 2430 3V CREANS 3V CR2430 +

2V CR2430 3V CR2430 + 2 x 3 V CR 2430

Garantia

Illustration showing a hand pressing a button on a device, with arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a textured surface, no text or symbols present

Illustration showing a faucet pouring liquid into a pipe, and a bottle pouring liquid into a tube with a cross-lined tube (no text or symbols)

59.3 kg i

Simple diagram with black shapes and a small human figure, no text or symbols present

Simple diagram with black shapes and a small human figure, no text or symbols present

① Lo ② ③ E ④ H% ⑤ L%

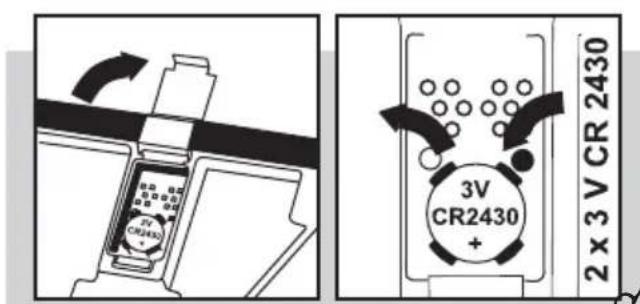

Troca de pilhas

2 x 3 V CR 2430 3V CR2430 3V CR2430 +

FY CR2430 + 3V CR2430 + 2 x 3 V CR 2430

Garantia

Illustration showing a hand pressing a button on a device, with arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a textured surface, no text or symbols present

Illustration showing a faucet and a bottle pouring liquid into a pipe, with a hand holding a container emitting particles (no text or symbols)

P: -1 P: -2

H:170 H:178

59.3 kg i

Simple diagram with abstract shapes and a human figure, no text or symbols present

Simple diagram with three small shapes and a small human figure, no text or symbols present

① Lo ② ③ E ④ H% ⑤ L%

Batteribyte

2 x 3 V CR 2430 3V CR2430 + 3V CR2430

TV CR2430 + 3V CR2430 + 2 x 3 V CR 2430

Garanti

Illustration showing a hand pressing down on a device with arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a surface, no text or symbols present

Illustration showing a faucet and a pipe with water, separated by a crossed-out tool (no text or symbols)

P: -1 P: -2

H:170 H:178

A: 40 A: 32

59.3 kg i

Simple diagram with black shapes and a small human figure, no text or symbols present

Simple diagram with abstract shapes and a small human figure, no text or symbols present

① Lo ② ③ E ④ H% ⑤ L%

Garanti

Illustration showing a hand pressing down on a device with arrows indicating motion (no text or symbols)

Diagram showing two tools on a textured surface with intersecting lines (no text or symbols)

Illustration showing a faucet and a pipe with water, separated by a crossed-out pipe (no text or symbols)

59.3 kg i

Simple diagram with four black oval shapes and a small human figure at the bottom right (no text or symbols)

Simple diagram with four black oval shapes and a small human figure, no text or symbols present

① Lo ② ③ E ④ H% ⑤ L%

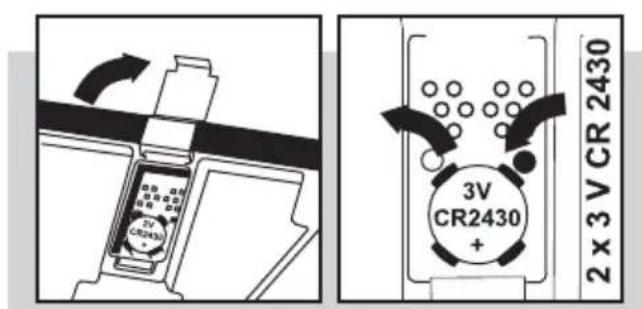

Pariston vaihto

2 x 3 V CR 2430 3V CR2430 +

2V CR2430 + 3V CR2430 + 2 x 3 V CR 2430

Takuu

Illustration showing a hand pressing down on a device with arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a textured surface, no text or symbols present

Illustration showing a faucet and a pipe with flames, separated by a fire extinguisher (no text or symbols)

59.3 kg i

Simple diagram with five black shapes and a small human figure, no text or symbols present

59.3 kg i

① Lo ② ③ E ④ H% ⑤ L%

Elemcsere

2 x 3 V CR 2430 3V CR2430 +

3V CR2430 + 3V CR2430 + 2 x 3 V CR 2430

Garancia

Illustration showing a hand pressing down on a device with directional arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a pile of material, no text or symbols present

Illustration showing a faucet and a fire extinguisher with a cross symbol (no text or labels)

59.3 kg i

Simple diagram with four black oval shapes and a small human figure icon (no text or labels)

59.3 kg i

① Lo ② ③ E ④ H% ⑤ L%

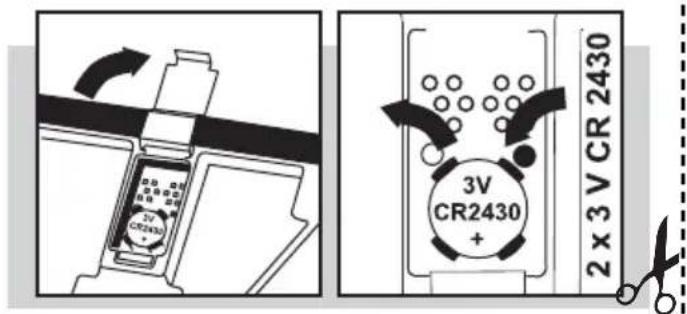

Wymiana baterii

2 x 3 V CR 2430 3V CR2430 3V CR2430 +

2V CR2430 + - 3V CR2430 + - 2 x 3 V CR 2430

Gwarancja

Illustration showing a hand pressing down on a device with arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a textured surface, no text or symbols present

Illustration showing a faucet and pipe with water droplets, alongside a pipe with a cross-lined drain (no text or symbols)

P: -1 P: -2

H:170 H:178

A: 40 A: 32

59.3 kg i

Simple diagram with black shapes and a small human figure, no text or symbols present

Simple diagram with abstract shapes and a small human figure, no text or symbols present

Illustration showing a hand pressing down on a belt switch, with arrows indicating force direction (no text or symbols)

Diagram showing two rectangular blocks on a textured surface with intersecting lines, no text or symbols present

Illustration showing a faucet and pipe with water droplets, alongside a gas cylinder with a cross mark (no text or symbols)

59.3 kg i

Simple diagram with abstract shapes and a small human figure, no text or symbols present

Simple 3D diagram showing a person standing near a small object with five circular objects, no text or symbols present.

① Lo ② ③ E ④ H% ⑤ L%

Замена батарей I

2 x 3 V CR 2430 3V CR2430 3V CR2430 +

3V CR2430 + 3V CR2430 + 2 x 3 V CR 2430

Гарантия

Illustration showing a hand pressing down on a belt switch, with arrows indicating force direction (no text or symbols)

Diagram showing two tools on a textured surface with intersecting lines (no text or symbols)

Illustration showing a faucet and a pipe with water droplets, separated by a crossed-out tube (no text or symbols)

59.3 kg i

Simple diagram with black shapes and a human figure, no text or symbols present

Simple diagram with five black shapes and a small human figure, no text or symbols present

① Lo ② ③ E ④ H% ⑤ L%

Pil değiştirme

2 x 3 V CR 2430 3V CR2430 3V CR2430 +

3V CR2430 3V CR2430 + 2 x 3 V CR 2430

Garanti

Illustration showing a hand pressing down on a device with arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a textured surface, no text or symbols present

Illustration showing a faucet and a pipe with water droplets, separated by a crossed-out pipe (no text or symbols)

59.3 kg i

Simple diagram with black shapes and a small human figure, no text or symbols present

Simple diagram with abstract shapes and a small human figure (no text or symbols)

① Lo ② ③ E ④ H% ⑤ L%

Αλλαγή μπαταριών

2 x 3 V CR 2430 3V CR2430 3V CR2430 +

3V CR2430 3V CR2430 + 2 x 3 V CR 2430

Εγγύηση

Illustration showing a hand pressing down on a device with arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a textured surface, no text or symbols present

Illustration showing a faucet and a pipe with water, separated by a crossed-out tube (no text or symbols)

59.3 kg i

... in tako dolgo, kot traja analiza (25-30 sek.)

Simple diagram with black shapes and a small human figure, no text or symbols present

Simple diagram with abstract shapes and a small human figure, no text or symbols present

izmenično se prikažejo delež telesne vode (≈) in delež telesne maščobe (★

① Lo ② ③ E ④ H% ⑤ L%

Menjava baterij

2 x 3 V CR 2430 3V CR2430 +

2V CR2430 3V CR2430 + 2 x 3 V CR 2430

Garancija

Illustration showing a hand pressing down on a device with directional arrows indicating motion (no text or symbols)

Diagram showing two tools interacting with a pile of material, no text or symbols present

Illustration showing a faucet and a pipe with water droplets, separated by a crossed-out tube (no text or symbols)

59.3 kg i

... i sve dok analiza traje (25-30 sekundi), pri-kazivat će se pokazivač napredovanja.

Ostanite u mirujućem položaju sve dok se analiza ne okonča.

Simple diagram with black shapes and a small human figure, no text or symbols present

59.3 kg i

29.2% ≈ 57.1%

④ Sidite s vage. Nakon što vaga prikaže mjesto spremanja, automatski se isključuje.

① Lo ② ③ E ④ H% ⑤ L%

Zamjena baterija

2 x 3 V CR 2430 3V CR2430 +

2V CR2430 3V CR2430 + 2 x 3 V CR 2430

Jamstvo

SOEHNLE - a Company of the LEIFHEIT Group

SOEHNLE-Waagen GmbH & Co. KG Wilhelm-Soehnle-Straße 2, D-71540 Murrhardt / Germany Tel [phone], Fax [phone] email: [e-mail], www.soehnle.com

www.soehnle-bodybalance.com
