USER MANUAL Cardiff Christopeit

Assembly and exercise instructions for Order No. 1260

NL

1. Summary of Parts Page 3
2. Important Recommendations and Safety Information Page 10
3. Parts List Page 11 - 12
4. Assembly Instructions With Exploded Diagrams Page 13-14
5. Computer instructions Page 15
6. Operating and exercising instructions Page 15
7. Training Instructions Page 16

Dear customer,

We congratulate you on your purchase of this home training sports unit and hope that we will have a great deal of pleasure with it. Please take heed of the enclosed notes and instructions and follow them closely concerning assembly and use.

Please do not hesitate to contact us at any time if you should have any questions.

Important Recommendations and Safety Instructions

Our products are all TUV-GS tested and therefore represent the highest current safety standards. However, this fact does not make it unnecessary to observe the following principles strictly.

1. Assembly the machine exactly as described in the installation instructions and use only the enclosed, specific parts of the machine. Before assembling, verify the completeness of the delivery against the delivery notice and the completeness of the carton against the assembly steps in the installation and operating instructions.
2. Check the firm seating off all screws, nuts and other connections before using the machine for the first time and at regular intervals to ensure that the trainer is in a safe condition.
3. Set up the machine in a dry, level place and protect it from moisture and water. Uneven parts of the floor must be compensated by suitable measures and by the provided adjustable parts of the machine if such are installed. Ensure that no contact occurs with moisture or water.
4. Place a suitable base (e.g. rubber mat, wooden board etc.) beneath the machine if the area of the machine must be specially protected against indentations, dirt etc.
5. Before beginning training, remove all objects within a radius of 2 metres from the machine.
6. Do not use aggressive cleaning agents to clean the machine and employ only the supplied tools or suitable tools of your own to assemble the machine and for any necessary repairs. Remove drops of sweat from the machine immediately after finishing training.
7. WARNING! Systems of the heart frequency supervision can be inexact. Excessive training can lead to serious health damage or to the death. Consult a doctor before beginning a planned training programme. He can define the maximum exertion (pulse, Watts, duration of training etc.) to which you may expose yourself and can give you precise information on the correct posture during training, the targets of your training and your diet. Never train after eating large meals.
8. Only train on the machine when it is in correct working order. Use original spare parts only for any necessary repairs. WARNING! Replace the worm parts immediately and keep this equipment out of use until repaired.
9. When setting the adjustable parts, observe the correct position and the marked, maximum setting positions and ensure that the newly adjusted position is correctly secured.

10. Unless otherwise described in the instructions, the machine must only be used for training by one person at a time. The exercise time should not overtake 60 min./daily.

11. Wear training clothes and shoes which are suitable for fitness training with the machine. Your clothes must be such that they cannot catch during training due to their shape (e.g. length). Your training shoes should be appropriate for the trainer, must support your feet firmly and must have non-slip soles.

12. WARNING! If you notice a feeling of dizziness, sickness, chest pain or other abnormal symptoms, stop training and consult a doctor.
13. Never forget that sports machines are not toys. They must therefore only be used according to their purpose and by suitably informed and instructed persons.
14. People such as children, invalids and handicapped persons should only use the machine in the presence of another person who can give aid and advice. Take suitable measures to ensure that children never use the machine without supervision.
15. Ensure that the person conducting training and other people never move or hold any parts of their body into the vicinity of moving parts.
16. At the end of its life span this product is not allowed to dispose over the normal household waste, but it must be given to an assembly point for the recycling of electric and electronic components. You may find the symbol on the product, on the instructions or on the packing.
    The materials are reusable in accordance with their marking. With the re-use, the material utilization or the protection of our environment. Please ask the local administration for the responsible disposal place.
17. To protect the environment, do not dispose of the packaging materials, used batteries or parts of the machine as household waste. Put these in the appropriate collection bins or bring them to a suitable collection point.
18. This machine is a speed in-dependant machine.
19. The machine is equipped with 8-speed resistance adjustment. This makes it possible to reduce or increase the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards stage 1 reduces the braking resistance and thereby the training exertion. Turning the adjusting knob for the resistance setting towards stage 8 increases the braking resistance and thereby the training exertion.
20. This machine has been tested and certified in compliance with EN 957-1 and -7 "H.C". The maximum permissible load (=body weight) is specified as 120kg . This item's computer corresponds to the basic demands of the EMV Directive of 2004/108/EC.

Parts List - Spare Parts List

Cardiff Order No. 1260

Technical data: Issue: 01.08.2012

stimulating most of users muscles
Magnetic brake system
8- way adjustable resistance
- comfortable seat with slide rollers
- foldable for save space
Computer showing time, beats, beats per minute and approx calories
Max. body weight 120 kg
Space requirement approx L 177, W 52, H 47 cm
Space requirement foldable approx L 68, W 52 x H 125 cm
items weight = 26Kg

Please check after opening the packing that all the parts shown in the following assembly steps are there. Once you are sure that this is the case, you can start assembly.

Please contact us if any components are defective or missing, or if you need any spare parts or replacements in future:

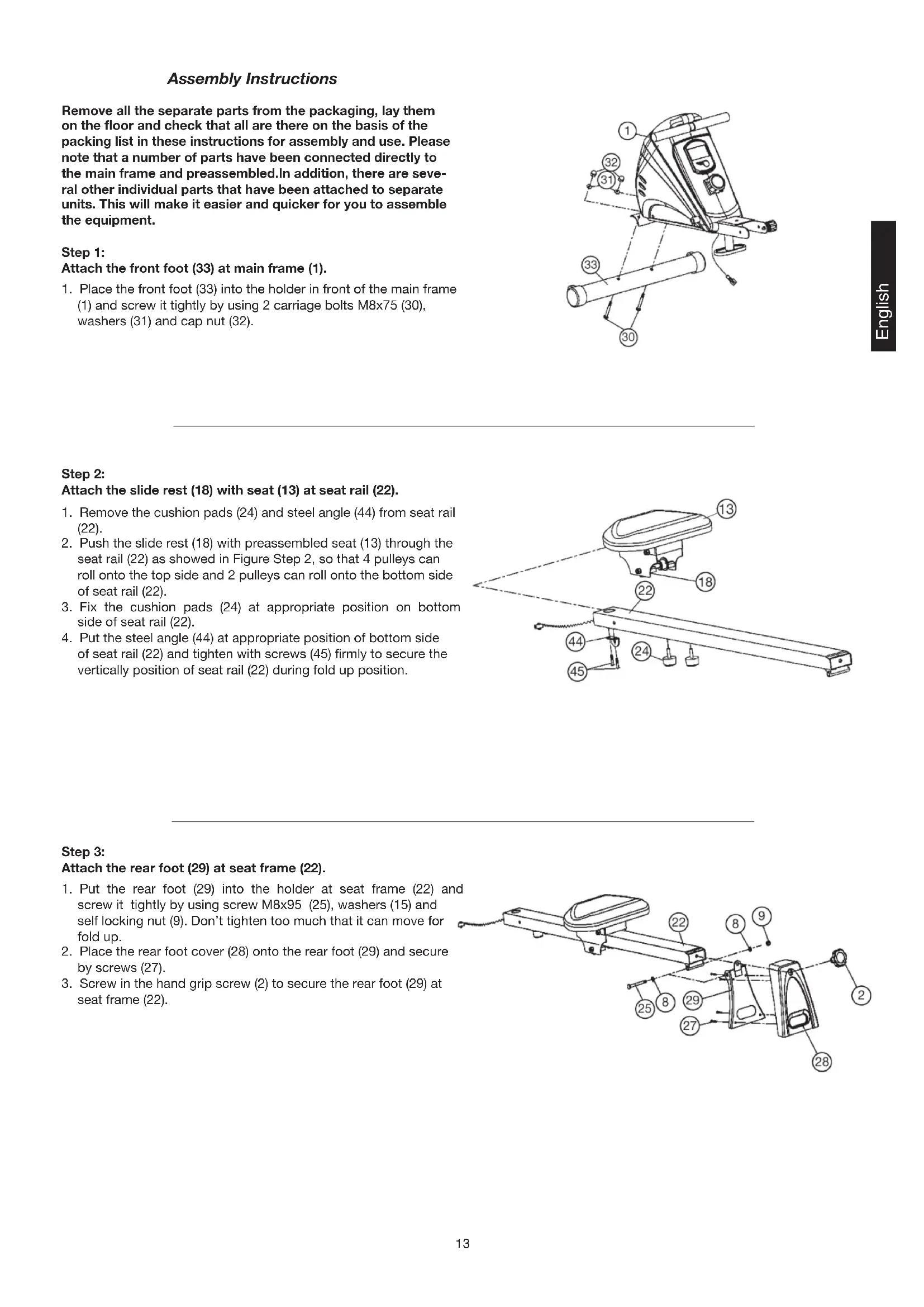

Assembly Instructions

Remove all the separate parts from the packaging, lay them on the floor and check that all are there on the basis of the packing list in these instructions for assembly and use. Please note that a number of parts have been connected directly to the main frame and preassembled. In addition, there are several other individual parts that have been attached to separate units. This will make it easier and quicker for you to assemble the equipment.

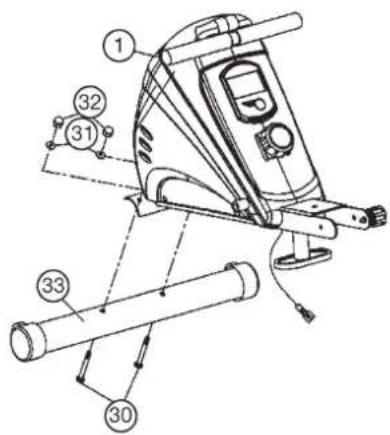

Step 1: Attach the front foot (33) at main frame (1).

1. Place the front foot (33) into the holder in front of the main frame (1) and screw it tightly by using 2 carriage bolts M8x75 (30), washers (31) and cap nut (32).

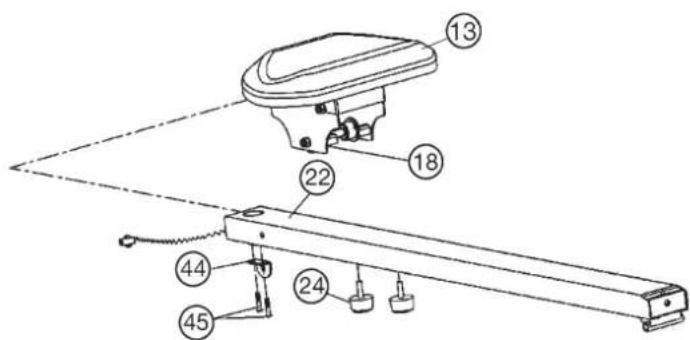

Step 2: Attach the slide rest (18) with seat (13) at seat rail (22).

1. Remove the cushion pads (24) and steel angle (44) from seat rail (22).
2. Push the slide rest (18) with preassembled seat (13) through the seat rail (22) as showed in Figure Step 2, so that 4 pulleys can roll onto the top side and 2 pulleys can roll onto the bottom side of seat rail (22).
3. Fix the cushion pads (24) at appropriate position on bottom side of seat rail (22).
4. Put the steel angle (44) at appropriate position of bottom side of seat rail (22) and tighten with screws (45) firmly to secure the vertically position of seat rail (22) during fold up position.

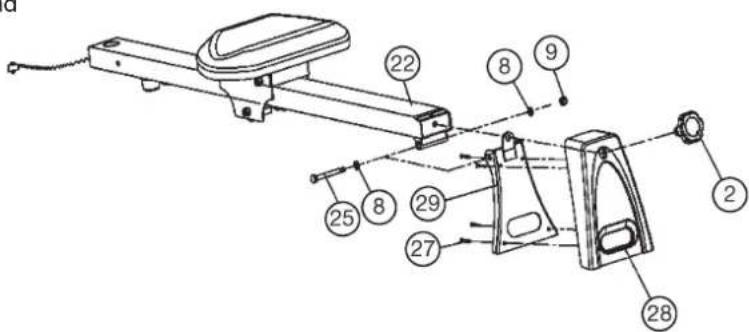

Step 3: Attach the rear foot (29) at seat frame (22).

1. Put the rear foot (29) into the holder at seat frame (22) and screw it tightly by using screw M8x95 (25), washers (15) and self locking nut (9). Don't tighten too much that it can move for fold up.
2. Place the rear foot cover (28) onto the rear foot (29) and secure by screws (27).
3. Screw in the hand grip screw (2) to secure the rear foot (29) at seat frame (22).

Step 4:

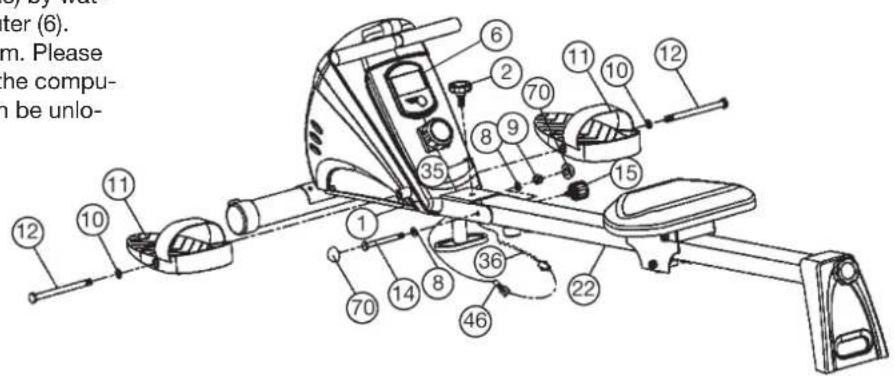

Attach the seat rail (22) and pedals (11) at main frame (1).

1. Place the seat rail (22) against the main frame (1) and connect the sensor cable (36) with connection cable (46).
2. Place the seat rail (22) into the holder of main frame (1), so that the holes pattern and screw the seat rail (22) at main frame (1) by using screw M10x100 (14), washer (8) and nut (9).

(Don't tighten too much, the seat rail (22) should be fold up easily.)

1. Secure the seat frame (22) during training by screw in the hand grip screw (2) with washer (35).
2. Put a washer (10) and a pedal (11) on screw M12x155 (12) and tighten the pedals (11) at main frame (1) into appropriate position.
3. Take the computer (6) that has been preassembled at main cover and insert the batteries (Type "AA"-1.5 V pencells) by watching for the right polarity on the back of the computer (6).

(Batteries for the computer are not included in this item. Please buy them at your located market.) At the bottom of the computer is in the middle an arrest which the computer can be unlocked and removed from the case.

Step 5:

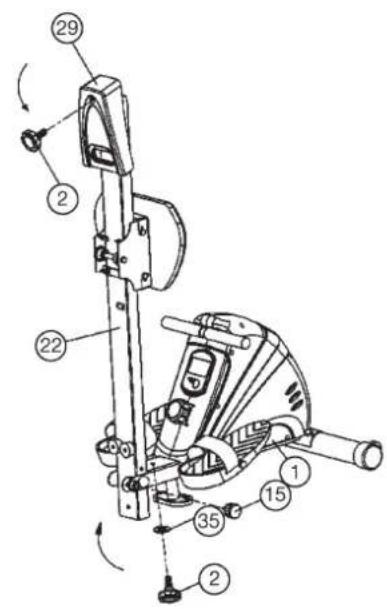

1. To storage the item, screw out the hand grip screw (2) totally and turn/pull the quick release (15) to unlock the seat rail (22). Fold up the seat rail (22) into vertically position and secure this position with turn/pull the quick release (15) at bottom side of main frame (1).
2. The rear foot (29) can fold up too, by removing the hand grip screw (2).

Step 6:

Checks

1. Check the correct installation and function of all screwed and plug connections. Installation is thereby complete.
2. When everything is in order, familiarise yourself with the machine at a low resistance setting and make your individual adjustments.

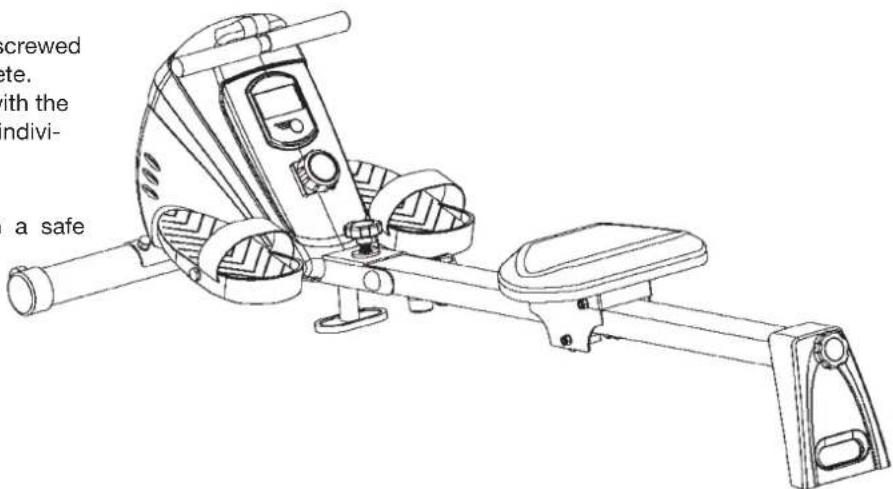

Note:

Please keep the tool set and the instructions in a safe place as these may be required for repairs or spare parts orders becoming necessary later.

Computer instructions for 1260

The supplied computer allows the most convenient training. Every value relevant to training is displayed in a corresponding window.

From the beginning of the training session, the required time, distance, rower beats, the approximate calorie consumption and the beats Total are displayed. All values are counted from zero upwards.

The computer is switched on by briefly pressing the F^ -key or simply by beginning training. The computer begins to register and display all values. To stop the computer, just stop training. The computer stops all measurements and retains the last attained values. The last attained values in the functions TIME, POWER BEATS, CALORIES are stored and training can continue with these values when training is resumed.

The computer switches of automatically approx. 4 minutes after training is stopped. All values attained until that time are stored and are displayed again when training is resumed. It is then possible to continue training from these values.

Displays:

1. Zeit display:

The currently required time is displayed in minutes and seconds.

The values last attained by this function are stored.

The current rowing beats are displayed. The values last attained by this function are stored

3. "Schläge/Minute" (beats per minute) display:

The current speed in beats per minute is displayed. The values most recently reached can not be saved in this function, as described above.

(Max. display limit is 199 beats per minute)

4. Kalorien display:

The current status of the consumed calories is displayed.

The values last attained by this function are stored.

5. Schläge-Total display:

The current rowing beats of all trainings sessions are displayed.

The values last attained by this function are stored

6. "SCAN" function:

If this function is selected, the current values of all functions are displayed successively in a constant sequence approx. every 5 seconds.

Keys:

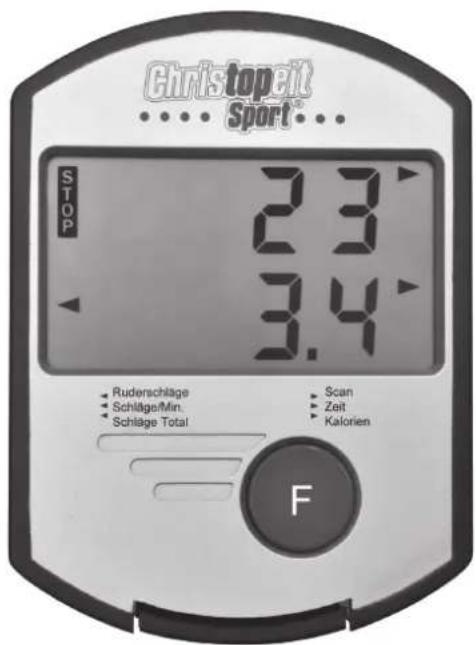

1.Mode/“F”-key:

Pressing this key once briefly makes it possible to change from one function to another. The currently selected function is indicated by an icon in the respective window.

If the key is held longer (approx. 3 seconds), all last attained values are deleted with the exception of the values in the "Schläge-Total" display.

Operating and exercising instructions

Exercise 1

a) Begin this exercise with your legs straight, knees together and the upper part of your body upright.
b) Bend forward without bending your knees, grip the handle bar and pull back until the upper part of your body is upright again.

Important: The oar levers should be pulled back with the arms (and not with the body) until your hands have reached your body.

c) Bring the handle bar back to the starting position again.
d) Rest for a moment and then carry out the exercise again, repeating it quietly and continuously.

Exercise 2

a) Begin this exercise sitting upright with the seat as far forward as possible and your knees bent.
b) Push back with the legs keeping your knees together and at the same time pulling the handle bar towards you.
c) Continue pulling until your legs are straight and your hands have reached your body.
d) Relax your arms and legs and let the seat slide forward until you have reached the start position (a) again and then repeat the exercise again.

Training instructions

You must consider the following factors in determining the amount of training effort required in order to attain tangible physical and health benefits:

1. Intensity:

The level of physical exertion in training must exceed the level of normal exertion without reaching the point of breathlessness and / or exhaustion.

A suitable guideline for effective training can be taken from the pulse rate.

During training this should rise to the region of between 70% to 85% of the maximum pulse rate (see the table and formular for determination and calculation of this).

During the first weeks, the pulse rate should remain at the lower end of this region, at around 70% of the maximum pulse rate. In the course of the following weeks and months, the pulse rate should be slowly raised to the upper limit of 85% of the maximum pulse rate. The better the physical condition of the person doing the exercise, the more the level of training should be increased to remain in the region of between 70% to 85% of the maximum pulse rate. This should be done by lengthening the time for the training and / or increasing the level of difficulty.

If the pulse rate is not shown on the computer display or if for safety reasons you wish to check your pulse rate, which could have been displayed wrongly due to error in use, etc., you can do the following:

a. Pulse rate measurement in the conventional way (feeling the pulse at the wrist, for example, and counting the number of beats in one minute).
b. Pulse rate measurement with a suitable specialised device (available from dealers specialising in health-related equipment).

2.Frequency

Most experts recommend a combination of health-conscious nutrition, which must be determined on the basis of your training goal, and physical training three times a week. A normal adult must train twice a week to maintain his current level of condition. At least three training sessions a week are required to improve one's condition and reduce one's weight. Of course the ideal frequency of training is five sessions a week.

3. Planning the training

Each training session should consist of three phases: the warm-up phase, the training phase, and the cool-down phase. The body temperature and oxygen intake should be raised slowly in the warm-up phase. This can be done with gymnastic exercises lasting five to ten minutes.

Then the actual training (training phase) should begin. The training exertion should be relatively low for the first few minutes and then raised over a period of 15 to 30 minutes such that the pulse rate reaches the region of between 70% to 85% of the maximum pulse rate.

In order to support the circulation after the training phase and to prevent aching or strained muscles later, it is necessary to follow the training phase with a cool-down phase. This should be consist of stretching exercises and / or light gymnastic exercises for a period of five to ten minutes.

You find further information on the subject warm-up exercises, stretch exercises or general gymnastics exercises in our download area under www.christopeit-sport.com

4. Motivation

The key to a successful program is regular training. You should set a fixed time and place for each day of training and prepare yourself mentally for the training. Only train when you are in the mood for it and always have your goal in view. With continuous training you will be able to see how you are progressing day by day and are approaching your personal training goal bit by bit.

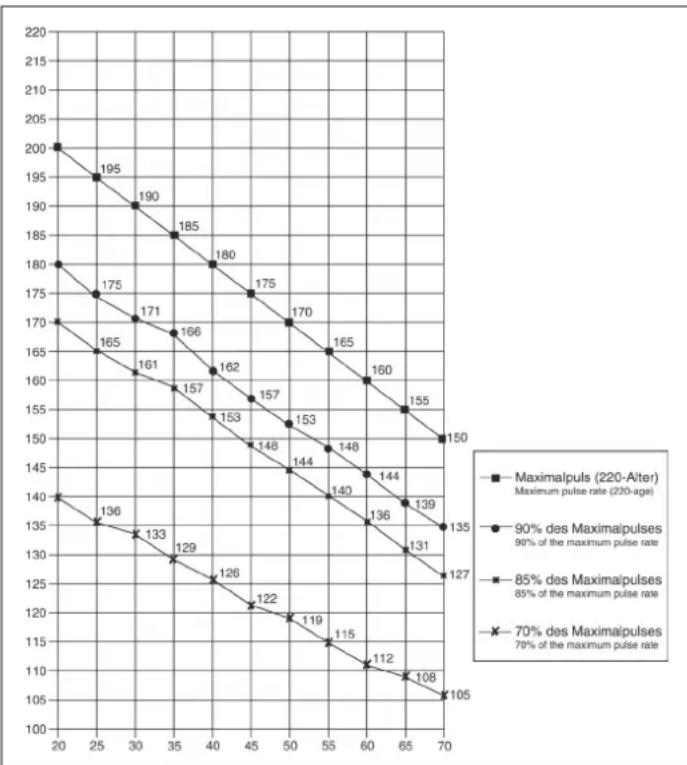

Calculation formula: Maximum pulse rate = 220 - age (220 minus your age)

90% of the maximum pulse rate = (220 - age) x 0.9

85% of the maximum pulse rate = (220 - age) x 0.85

70% of the maximum pulse rate = (220 - age) x 0.7

Sommaire

Chere cliente, cher client.

3. Planning van de training

90% OT MaKc. YacToTb nyIbca = (220 - Bo3pact) x 0.9

85% OT MaKc. YacToTbI NylbCa = (220 - Bo3pact) x 0.85

70% OT MaKc. qactotbI nyIbca = (220 - Bo3pact) x 0.7

Reverse Logistics Group

© by Top-Sports Gilles GmbH
D-42551 Velbert (Germany)

Service:

Tel.: [phone]
