TLPA4016P - Powerline Adapter TP-LINK - Free user manual and instructions

Brand	TP-Link
Model	TL-PA4016P
Product type	Powerline Adapter
Dimensions	Approximately 95 x 56 x 31 mm
Weight	Approximately 150 g
Power supply	Directly via the power outlet (100-240 V AC)
Power consumption	Approximately 3 W (standby) / 5 W (active)
Network interface	1 Gigabit Ethernet RJ-45 port
Max speed	Up to 600 Mbps
Network range	Up to 300 meters on electrical circuit
Pair button	To secure the powerline network
LED indicators	Power, Powerline, Ethernet
Security	AES 128-bit encryption (via Pair button)
Main features	Home network extension via powerline, Plug and Play, secure pairing
Compatibility	HomePlug AV standard, compatible with all HomePlug AV powerline adapters
Maintenance and cleaning	Unplug before cleaning; use a soft, dry cloth
Safety	Do not immerse in water; avoid direct power strips; do not disassemble
Spare parts and repairability	Not user-serviceable; no spare parts available
General information	Limited 3-year warranty; CE declaration of conformity available online

Frequently Asked Questions - TLPA4016P TP-LINK

How to set up the powerline network?

Connect one adapter to the router via an Ethernet cable, plug both adapters into outlets on the same electrical circuit, then press the Pair button on each adapter for 1 second to pair them.

What to do if the Powerline LED does not light up?

Check that the adapters are on the same electrical circuit. If necessary, re-pair them by pressing the Pair button. Also ensure Ethernet connections are correct.

How to add a new adapter to the existing network?

Press the Pair button on an already connected adapter for 1 second, then within 2 minutes press the Pair button on the new adapter for 1 second. The Powerline LED will light up to confirm.

Can I plug the adapter into a power strip?

No, it is recommended to plug the powerline adapters directly into a wall outlet. If your adapter has a pass-through outlet, plug the power strip into that.

How to reset the adapter to factory settings?

While the adapter is plugged in, press and hold the Pair button until the Power LED briefly turns off. Then release the button.

Why is my internet connection slow via Powerline?

Performance can be affected by electrical interference (appliances like dryer, air conditioner), too long distance, or outlets on different circuits. Move disruptive devices away or use the pass-through outlet of the adapter to filter noise.

Does the adapter work with different power outlets?

Yes, as long as the outlets are on the same electrical circuit (same meter). Powerline works on any standard outlet (100-240 V).

How to update the adapter's firmware?

Download the tpPLC utility from the TP-Link website, install it, then use the firmware update option. Follow the on-screen instructions.

What if the adapters do not reconnect after moving?

Try plugging them into other outlets on the same circuit. If that does not work, re-pair them using the Pair button. Also check for interference nearby.

Is the adapter compatible with internet boxes?

Yes, it connects to any router or box with an Ethernet port. Simply connect the adapter to the router with an RJ-45 cable.

USER MANUAL TLPA4016P TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2018 TP-Link Technologies Co., Ltd. All rights reserved.

MADE IN CHINA

7106507904 REV2.1.1

tp-link

Quick Installation Guide

Powerline Adapter

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

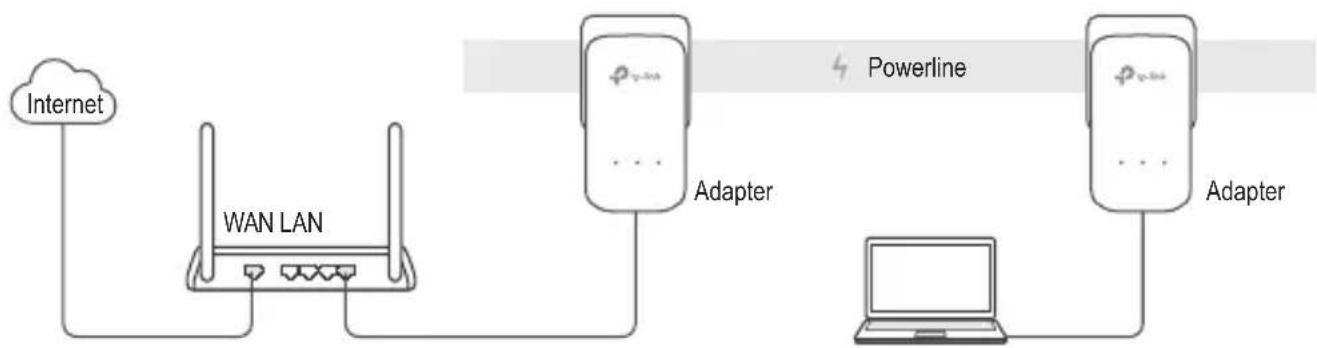

Plug and Play

1. Connect one adapter to a LAN port of your router using an Ethernet cable.
2. Plug the other adapter into the wall outlets on the same electrical circuit.
3. Wait until the Powerline LED 📁 on any adapter turns on.
4. Connect your computer to the adapter using an Ethernet cable.
5. Enjoy!

More: To add additional Powerline adapters and extenders with the default settings, simply plug them into the wall outlets on the same electrical circuit.

English

Attention

• Plug the powerline devices directly into the wall outlets but not the power strips.
• For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Secure the Powerline Network with the Pair Button

Tips: We recommend that you plug in the powerline devices near each other when pairing.

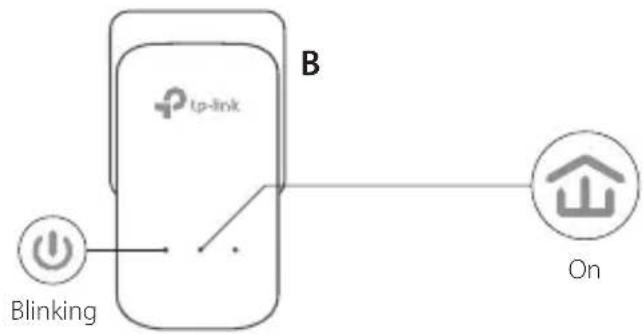

Set up a secure network:

1 Press the Pair button for 1 second on one adapter.

2 Within 2 minutes, press the Pair button for 1 second on another adapter.

3 Done.

If you have more than 2 powerline devices, repeat the steps below on each additional devices to be configured:

1 Press the Pair button for 1 second on any powerline device in the secure network.

2 Within 2 minutes, press the Pair button for 1 second on the additional powerline device.

3 Done.

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline adapter?

A1. With the powerline adapter plugged into to the electrical outlet, press and hold the Pair button until the Power LED ⏻ goes off momentarily and comes back on.

A2. Use the tpPLC Utility to reset the powerline adapter.

English

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Make sure all Powerline LEDs are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

A5. Make sure your computer's IP address is in the same segment as your router's.

Q3. What can I do if a successfully-paired powerline device does not reconnect after it has been moved to a new location?

A1. Try another socket and make sure it is on the same electrical circuit.

A2. Try to pair it again, and make sure the Powerline LED is on.

A3. Check for possible interference, such as a washer, air conditioner or other household appliances that may be too close to one of the powerline devices. Plug the appliance into the integrated electrical socket (if the powerline device has one) to remove some electrical noise.

More advanced configurations, such as firmware upgrade and QoS configuration, can be accessed through the tpPLC Utility. You can install the tpPLC Utility from the TP-Link official website.

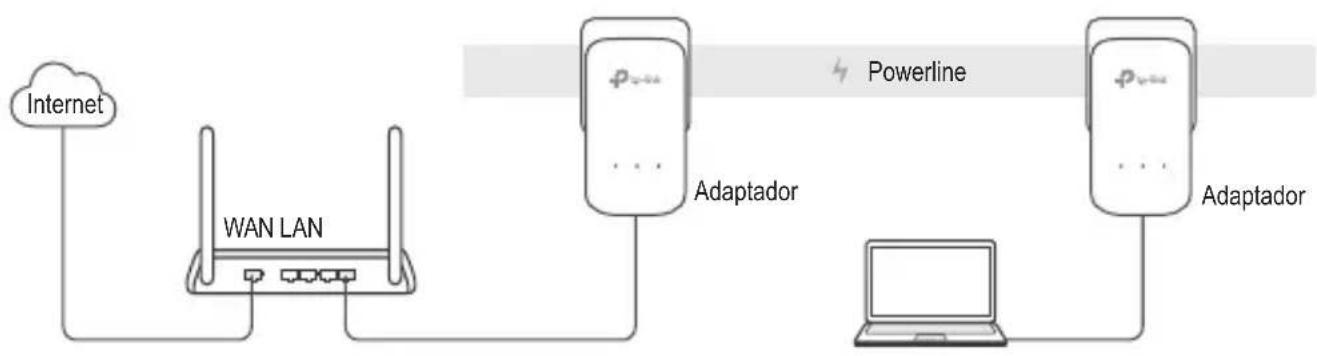

Plug and Play

FAQ (Perguntas Frequentes)

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Español
