USER MANUAL WG771 WORX

L28 3-in-1 Cordless Lawn Mower EN

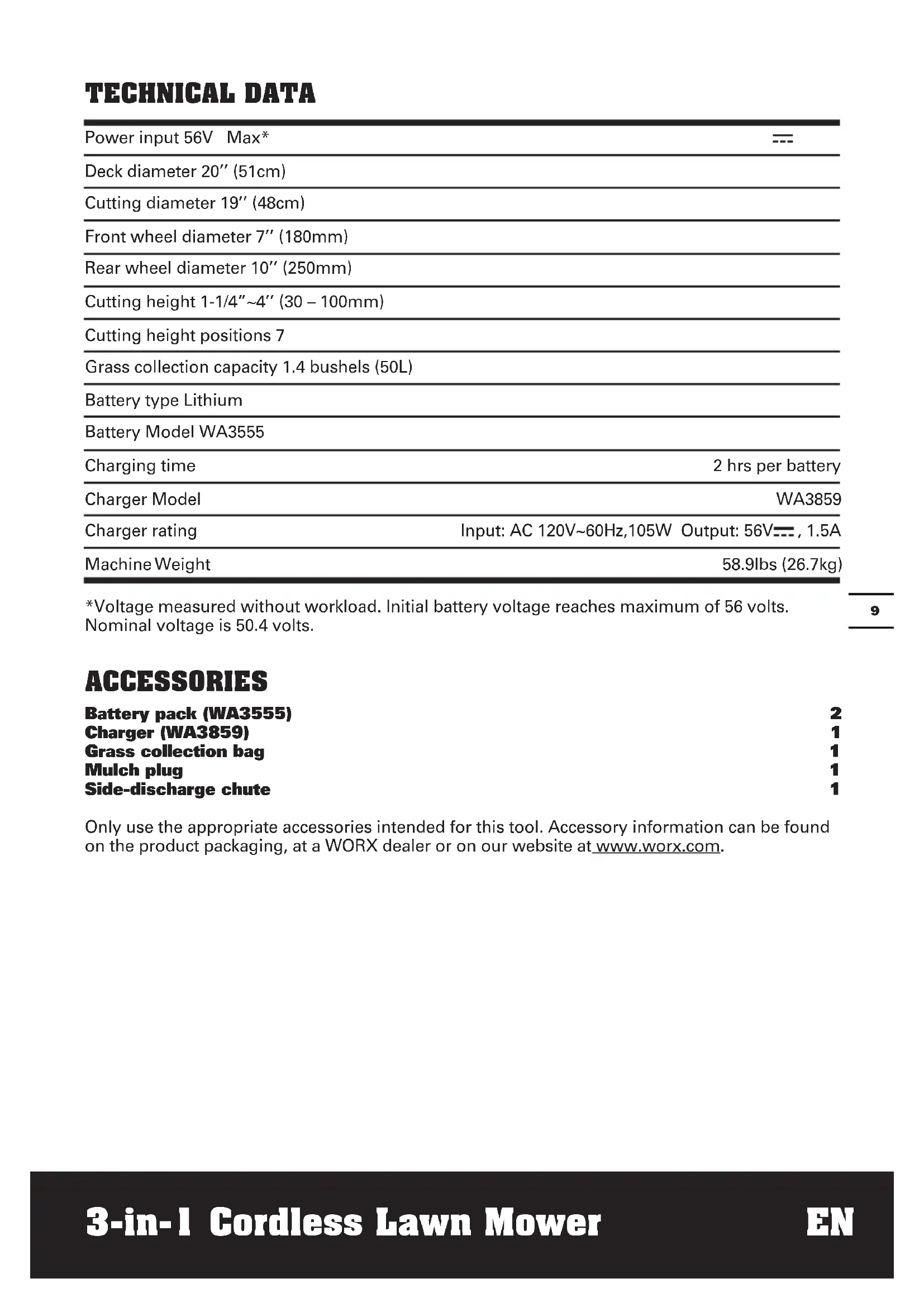

Not all the accessories illustrated or described are included in standard delivery.9 3-in-1 Cordless Lawn Mower EN TECHNICAL DATA Power input 56V Max* Deck diameter 20’’ (51cm) Cutting diameter 19’’ (48cm) Front wheel diameter 7’’ (180mm) Rear wheel diameter 10’’ (250mm) Cutting height 1-1/4”~4’’ (30 – 100mm) Cutting height positions 7 Grass collection capacity 1.4 bushels (50L) Battery type Lithium Battery Model WA3555 Charging time 2 hrs per battery Charger Model WA3859 Charger rating Input: AC 120V~60Hz,105W Output: 56V , 1.5A Machine Weight 58.9lbs (26.7kg) *Voltage measured without workload. Initial battery voltage reaches maximum of 56 volts. Nominal voltage is 50.4 volts. ACCESSORIES Battery pack (WA3555) 2 Charger (WA3859) 1 Grass collection bag 1 Mulch plug 1 Side-discharge chute 1 Only use the appropriate accessories intended for this tool. Accessory information can be found on the product packaging, at a WORX dealer or on our website at www.worx.com.10 3-in-1 Cordless Lawn Mower EN SAFETY INSTRUCTIONS

WARNING: Some dust created by

power sanding, sawing, grinding, drilling and other construction activities contains chemicals known to the state of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints;

• Crystalline silica from bricks and cement and other masonry products and

• Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemical: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

WARNING: This product maybe

contains lead, phthalate or other chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. Please wash your hands after use.

WARNING: Battery posts, terminals

and related accessories contain lead and lead compounds. Wash hands after handling.

READ ALL INSTRUCTIONS

WARNING: When using electric lawn

mowers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

WARNING: Risk of injury could occur

if the lawn mower is operated without the catcher assembly attached.

WARNING: the use of any other

accessory or attachment might increase the risk of injury CAUTION: For battery-operated lawn mowers, use only identical replacement batteries WA3555.

use lawn mowers in damp or wet locations.

2) Don’t Use In Rain.

3) Keep Children Away - All visitors should

be kept a safe distance from work area.

4) Dress Properly - Do not wear loose

clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and footwear is recommended when working outdoors.

5) Use Safety Glasses - Always use face or

dust mask if operation is dusty.

6) Use Right Appliance - Do not use lawn

mower for any job except that for which it is intended.

7) Don’t Force Lawn Mower - It will do the

job better and safer at the rate for which it was designed.

8) Don’t Overreach - Keep proper footing

and balance at all times.

9) Stay Alert - Watch what you are doing.

Use common sense. Do not operate lawn mower when you are tired.

10) Store Idle Lawn Mower Indoors - When

not in use, lawn mower should be stored in an indoor dry and locked-up place - out of reach of children.

11) Maintain Lawn Mower With Care - Keep

cutting edges sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and free from oil and grease.

12) Keep guards in place and in working

14) Keep hands and feet away from cutting

15) Objects struck by the lawn mower blade

can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

i) Stop lawn mower. Release the switch.

ii) Inspect for damage.

iii) Repair any damage before restarting and11

3-in-1 Cordless Lawn Mower EN operating the lawn mower.

17) Use identical replacement blades only.

SUPPLEMENT SA-BATTERY-OPERATED LAWN MOWERS a) Do not charge lawn mower in rain, or in wet locations. b) Do not use battery-operated lawn mower in rain. c) Remove or disconnect battery before servicing, cleaning, or removing material from the lawn mower. For all battery-operated products employing a detachable or separable battery a) Use only the following type and model battery(ies): WA3555. b) Do not dispose of the battery(ies) in a fire. The cell may explode. Check with local codes for possible special disposal instructions. c) Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed. d) Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor may overheat and cause burns. For a battery-operated lawn mower employing a vented wet cell battery supply intended to be initially or periodically filled by the user: CAUTION: The electrolyte is a dilute sulfuric acid that is harmful to the skin and eyes. It is electrically conductive and corrosive. The following procedures should be observed: a) Wear full eye protection and protective clothing. b) If electrolyte contacts the skin, wash it off immediately with water. c) If electrolyte contacts the eyes, flush thoroughly and immediately with water. Seek medical attention. IMPORTANT Safe Practices for Walk-Behind Mowers

I. GENERAL OPERATION

1. Read, understand, and follow all

instructions on the machine and in the manual(s) before starting.

2. Do not put hands or feet near or under

the machine. Keep clear of the discharge opening at all times.

3. Only allow responsible adults, who are

familiar with the instructions, to operate this machine.

4. Clear the area of objects such as rocks,

wire, toys, etc., which could be thrown by the blade. Stay behind the handle when the engine (motor) is running.

5. Be sure the area is clear of bystanders

before operating. Stop machine if anyone enters the area.

6. Do not operate machine barefooted or

while wearing sandals. Always wear substantial footwear.

7. Do not pull machine backward unless

absolutely necessary. Always look down and behind before and while moving backward.

8. Never direct discharged material toward

anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the blade when crossing gravel surfaces.

9. Do not operate machine without the

entire grass catcher, discharge guard, rear guard, or other safety protective devices in place and working.

10. Never leave a running machine

11. Stop the engine (motor) and wait until

the blade comes to a complete stop before cleaning the machine, removing grass catcher, or unclogging the discharge guard.

12. Operate machine only in daylight or

good artificial light.

13. Do not operate machine while under the

influence of alcohol or drugs.

14. Never operate mower in wet grass.

Always be sure of your footing; walk;12 3-in-1 Cordless Lawn Mower EN never run.

15. Disengage the drive system, if so

equipped, before starting the engine (motor).

16. If the machine should start to vibrate

abnormally, stop the engine (motor) and check for the cause immediately. Vibration is generally a warning of trouble.

proper operation and installation of accessories. Only use accessories approved by the manufacturer.

Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

1. Mow across the face of slopes; never

up and down. Exercise extreme caution when changing direction on slopes.

2. Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.

3. Do not mow on wet grass or excessively

steep slopes. Poor footing could cause a slip and fall accident.

4. Do not mow near drop-offs, ditches,

or embankments. You could lose your footing or balance.

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

1. Keep children out of the mowing

area and under the watchful care of a responsible adult other than the operator.

3. Never allow children to operate the

4. Use extra care when approaching blind

corners, shrubs, trees, or other objects that may block your view of a child.

1. Keep all nuts and bolts tight to be

sure the equipment is in safe working condition.

2. Never tamper with safety devices. Check

their proper operation regularly.

3. Keep machine free of grass, leaves, or

other debris build-up.

4. If you strike a foreign object, stop and

inspect the machine. Repair, if necessary, before starting.

5. Never make any adjustments or repairs

with the engine (motor) running.

6. Check grass catcher components and the

discharge guard frequently and replace with manufacturer’s recommended parts, when necessary.

7. Mower blades are sharp. Wrap the blade

or wear gloves, and use extra caution when servicing them.

8. Maintain or replace safety and instruction

labels, as necessary. SAVE THESE INSTRUCTIONS Safe Operation Practices for Walk- Behind Mowers

a) Read the operating and service instruction manual carefully. Be thoroughly familiar with the controls and the proper use of the equipment. b) Never allow children to operate a power mower. c) Keep the area of operation clear of all persons, particularly small children, and pets. d) Do not use a mower for any job except that for which it is intended.13 3-in-1 Cordless Lawn Mower EN

a) Thoroughly inspect the area where the equipment is to be used and remove all stones, sticks, wires, bones, and other foreign objects. b) Do not operate the equipment when barefoot or wearing sandals. Always wear substantial footwear. c) Disengage the self-propelled mechanism or drive clutch on units so equipped before starting the motor. d) Never attempt to make a wheel height adjustment while the motor is running. e) Mow only in daylight or in good artificial light. f) Never operate the equipment on wet grass. Always be sure of your footing. Keep a firm hold on the handle and walk, never run.

a) Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times. b) Stop the blade(s) when crossing gravel drives, walks, or roads. c) After striking a foreign object, stop the motor, unplug, thoroughly inspect the mower for any damage, and repair the damage before restarting and operating the mower. d) If the equipment should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble. e) Stop the motor and unplug whenever you leave the equipment, before cleaning the mower housing, and before making any repairs or inspections. f) Shut the motor off and wait until the blade comes to a complete stop before removing the grass catcher or before unclogging the chute. g) Mow across the face of slopes, never up and down. Exercise extreme caution when changing direction on slopes. Do not mow excessively steep slopes. h) Never operate the mower without proper guards, plates, or other safety protective devices in place.

i) Do not wash with a hose, avoid

getting water in motor and electrical connections.

a) Check the blade and the engine mounting bolts at frequent intervals for proper tightness. b) Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition. c) Check bag frequently for deterioration and wear, and replace worn bags. Check that replacement bags comply with the original manufacturer’s recommendations or specifications. d) Replace the blade if it is bent or cracked. An unbalanced blade causes vibration that could damage the motor drive unit or cause personal injury. e) Sharpen a dull blade equally at each end to maintain the balance. f) Clear the blade thoroughly and check its balance by supporting it horizontally on a thin nail through its center hole. The nail should also be in a horizontal position. If either end of the blade rotates downward, remove some metal from the heavy or lower end until the blade is balanced. It is balanced when neither end drops. GENERAL SAFETY

1) WARNING: Risk of fire and burns.

Do not disassemble, heat above 100°C (212°F), or incinerate. Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.

2) Dispose of used battery promptly.

When disposing of secondary cells or batteries, keep cells or batteries of different electrochemical systems separate from each other.

3) Keep battery out of reach of

children and in original package until ready to use.

4) Never put batteries in mouth. If14

3-in-1 Cordless Lawn Mower EN swallowed, contact your physician or local poison control center.

5) CAUTION – The battery used in this

device may present a risk of fire or chemical burn if mistreated. Replace battery with WORX only. Use of another battery may present a risk of fire or explosion.

6) Warning: Do not use a visibly

damaged battery pack or appliance as applicable.

7) Warning: Do not modify or attempt

to repair the appliance or the battery pack as applicable.

8) BATTERY MUST BE RECYCLED

9) Do not short-circuit a cell or battery.

Do not store cells or batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials.

10) Do not subject cells or batteries to

11) Keep cells and batteries clean and

dry. Wipe the cell or battery terminals with a clean dry cloth if they become dirty.

12) Do not maintain secondary cells and

batteries on charge when not in use.

13) Retain the original cell and battery

literature for future reference.

14) Do not use any charger other than

that specifically provided for use with the equipment. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer’s instructions or equipment manual for proper charging instructions.

15) When possible, remove the battery from

the equipment when not in use.

16) Prevent unintentional starting. Ensure

the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.

17) Disconnect the battery pack from

the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.

18) Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

19) Have servicing performed by a qualified

repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.15 3-in-1 Cordless Lawn Mower EN SYMBOLS KEEP HANDS AND FEET AWAYGARDER MAINS ET PIEDS À DISTANCE CPSC Danger label Severing of toes or fingers-Rotary mower blade Thrown objects from mower deck Keep bystanders/children away Safety alert Slip on slope Read the operator’s manual Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them. Wear protective gloves. Remove battery from the socket before carrying out any adjustment, servicing or maintenance. Li-Ion Li-Ion battery, battery must be recycled Remove the key Lock Unlock POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries’ life cycle is ended, then please call 1.800-822-8837 for a free service that will properly dispose of the battery.16 3-in-1 Cordless Lawn Mower EN ASSEMBLY & OPERATION Action Figure Assemble Assembling the handle bar See Fig. A1 Adjustment Handle’s height See Fig. A2 Assembling the grass collection bag See Fig. B Assembling the Grass Collection Bag to the Lawn Mower See Fig. C1, C2, C3 REMOVING/EMPTYING the Grass Collection Bag See Fig. C4 INSTALLING SIDE-DISCHARGE CHUTE See Fig.D1, D2 Installing Mulching Plug See Fig. D3

REMOVING THE BATTERY

Pack Note: The Battery Pack is shipped uncharged. The Battery must be fully charged before the first mow. See Fig. E1 Checking the battery charge condition See Fig. E2 Charging the battery pack More details can be found in WA3859’s manual See Fig. E3 Fitting the battery pack See Fig. F OPERATION Starting See Fig. G1, G2 Stopping See Fig. G3 Selecting the WORK MODE DIAL ECO MODE Set the IntelliCut Dial (3) to ECO mode when mowing in everyday conditions, removing approximately 1 inch of grass at a time. TURBO MODE Set the IntelliCut Dial to POWER mode when cutting dense or overgrown grass. See Fig. H Battery Power indicator on machine See Fig. I Adjusting The Cutting Height Note: Pull the rear wheel cutting height adjustment lever to adjust the rear of the mower height only. Pull the Front Caster Wheel Height Adjustment Lever (7) to adjust the Front Wheel Height in the same time to adjust the same cutting height. See Fig .J1 Lock/Unlock Front Caster Wheel Note: When the mower climb slopes, the Front Caster Wheel Control Button should be locked to keep straight. But in the smooth garden, the Front Caster Wheel Control Button should be unlocked to keep maneuverability. See Fig. J2, J3 Cleaning The Mower

Warning: Plug the hose on

MULCHING MOWING TIPS

When using the mulching plug, your new mower is designed to cut the grass clippings into small pieces and distribute them back into the lawn, using mulching fins located inside the mower deck. Under normal conditions, the mulched grass will biodegrade quickly to provide nutrients to the lawn. Please review the following recommendations for optimum mulching performance,

1) Avoid mowing when the grass is

wet from rain or dew. Wet grass may form clumps which interfere with the mulching action and reduce runtime. The best time to mow grass is in the late afternoon when the grass is dry and the newly cut area will not be exposed to direct sunlight.

2) For best mulching performance, set17

3-in-1 Cordless Lawn Mower EN the cutting height to remove about one third of the grass blade length, ideally no more than 1.5” inches at one time. If the lawn is overgrown, it may be necessary to increase the cut height to reduce the pushing effort and prevent overloading the motor. For extremely heavy mulching, it is advisable to first cut at a high cut height setting, and then re-cut to the final cut height. Otherwise, make narrower cuts and mow slowly.

3) For best performance, keep the mower

housing free of built-up grass. From time to time turn off mower and wait for the blade to come to a complete stop. Then unplug the Safety Key(6) and turn mower on its side. Using an object such as a stick, wipe out any accumulation of grass in the blade area. Be careful of the sharp edges of the blade. Clean often in wet, new grass, and always after every use.

4) Certain types of grass or grass conditions

may require that an area be mulched a second time to fully disperse the grass throughout the lawn. If cutting a second time, it is advisable to cut perpendicular (across) the first cut pattern. DO NOT

CHANGE CUT PATTERN IN ANY WAY

THAT WOULD CAUSE MOWING DOWN A

5) Change your cutting pattern from week

to week. This will help prevent matting and graining of the lawn. MAINTENANCE

WARNING: Stop the mower and

remove the Safety Key before removing the Grass Collection Bag. Note: To ensure long and reliable service, perform the following maintenance procedures regularly. Check for obvious defects such as a loose, dislodged or a damaged blade, loose fittings, and worn or damaged components. Check that the covers and guards are all undamaged and are correctly attached to mower. Carry out any necessary maintenance or repairs before operating mower. If the mower should happen to fail despite regular maintenance, please call our customer helpline 1-866-354- 9679 for advice. BLADE (18) SHARPENING

CUT GRASS CLEANLY OR MULCH PROPERLY.

WEAR PROPER EYE PROTECTION WHILE

REMOVING, SHARPENING, AND INSTALLING

BLADE. ENSURE THAT SAFETY KEY IS

REMOVED. Sharpening the blade twice during a mowing season is usually sufficient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required.

REPLACE BENT OR DAMAGED BLADE

IMMEDIATELY. WHEN SHARPENING THE BLADE: (See Fig. M)

1. Make sure blade remains balanced.

2. Sharpen blade at the original cutting

3. Sharpen cutting edges on both ends of

blade to keep it balanced, removing equal amounts of material from both ends. Note:

1. Be sure the mower is turned off and

2. Place the mower in stand up storage

mode. BLADE BALANCING (See Fig. N) Check balance of blade by placing center hole in blade N-1 over a nail or screwdriver shank N-2, clamped horizontally in a vise N-3. If either end of the blade rotates downward, file that end. Blade is properly balanced when neither end drops. BLADE MAINTENANCE (See Fig. O1, O2) Replace your metal Blade (18) after 50 hours mowing or 2 years, which ever is the sooner- regardless of condition. Follow these procedures to remove and replace the Blade. You will need garden gloves (not provided) and a spanner wrench (not provided) to remove the Blade. Hold the Blade and unscrew the Blade Bolt (17) counter- clockwise using a spanner wrench, and then remove the Blade. To re-assemble, position the Blade with the cutting edges towards the ground. Then securely tighten the Blade Bolt.18 3-in-1 Cordless Lawn Mower EN STORAGE: (See Fig. L1,L2,L3) Stop the mower and always remove the Safety Key. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots. Turn the machine on its side and clean the blade area. If grass cuttings are compacted in the blade area, remove with a wooden or plastic implement. Store the machine in a dry place. Do not place other objects on top of the machine. To aid storage, release the handle release knobs (14), and rotate or fold the upper handle. TROUBLESHOOTING Problem Solution

1. Mower doesn’t run

when switch lever is activated. A. Check to make sure safety key has been installed and is fully seated and that button on switch housing is being completely pushed. B. Release switch lever to turn mower off. Remove safety key, turn mower over and check that blade is free to turn. If not free, return to an authorized servicer. Blade should turn freely. C. Has battery been fully charged? Plug in charger and wait for green light to come on.

2. Motor stops while

mowing. A. Release switch lever to turn mower off. Remove safety key, turn mower over and check that blade is free to turn. If not free, return to an authorized servicer. Blade should turn freely. B. Raise cutting height of wheels to highest position and start mower. C. Has battery been fully charged? Plug in charger and wait for green light to come on. D. Avoid overloading the mower. Slow down the cutting pace by pushing mower slower or raise the cut height. Or both.

cutting performance is unsatisfactory, or does not cut entire lawn. A. Has battery been fully charged? Plug in charger and wait for green light to come on.” B. Release switch lever to turn mower off. Remove safety key. Turn mower over and check: Blade for sharpness - Keep blade sharp. Deck and discharge chute for clogging. C. Wheel height adjustment may be set too low for grass condition. Raise cutting height.

4. Mower is too hard to

push. A. Raise cutting height to reduce deck drag on grass. Check each wheel for free rotation.

5. Mower is abnormally

noisy and vibrates. A. Release switch lever to turn mower off. Remove safety key. Turn mower on side and check blade to ensure it has not been bent or damaged. If blade is damaged, replace with a replacement blade. If the underside of the deck is damaged return mower to an Authorized service center. B. If there is no visible damage to the blade and the mower still vibrates: Release switch lever to turn mower off, remove safety key and remove blade. Rotate blade 180 degrees and retighten. If mower still vibrates, return the mower to an authorized service center.19 3-in-1 Cordless Lawn Mower EN

6. Battery charger LED’s

not on. A. Check plug connection. B. Replace charger.

7. Battery charger LED

does not flip to green. A. Battery needs to be diagnosed. Take to authorized service center.

8. Mower not picking up

clippings with the Grass Collection Bag. A. Remove mulch plate when bagging. B. Chute clogged. Release switch lever to turn mower off. Remove safety key. Clear chute of grass clippings. C. Too much cut grass. Raise cutting height of wheels to shorten length of the cut. D. Bag full. Empty bag more often.

9. When mulching there

are clippings visible. A. Too much cut grass. Raise cutting height of wheels to shorten length of the cut. Do not cut off more than 1/3 of total length. B. Check blade for sharpness. Always keep blade sharp.

10. Low or diminished run-

time after many uses A. Return to Authorized Service location - may need new battery.20 FTondeuse à gazon sans fil 3 en 1
