USER MANUAL AST09UW4SVETG10 HISENSE

USE AND INSTALLATION INSTRUCTIONS

Thank you very much for purchasing this Air Conditioner. Please read this use and installation instructions carefully before installing and using this appliance and keep this manual for future reference.

Contents

safety instructions 1

Preparation before use 2

Safety Precautions 3

Identification of parts 4

Indoor unit 4

Outdoor unit 4

Display introduction 5

Maintenance 6

Protection 7

Troubleshooting 8

Installation instructions 9

Installation diagram 9

Select the installation locations 10

Indoor unit installation 11

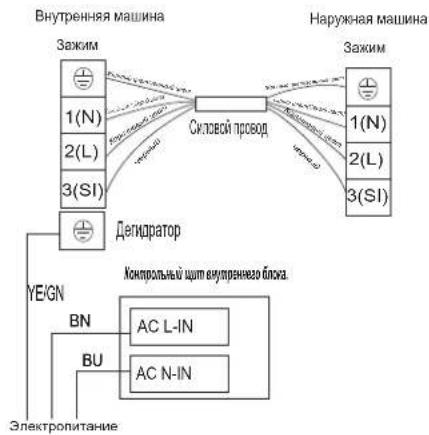

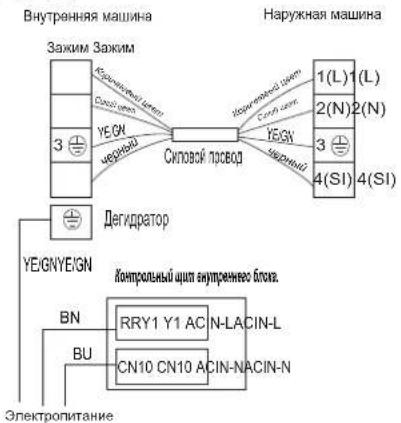

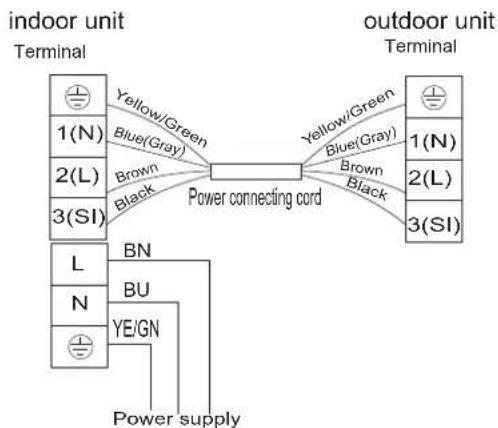

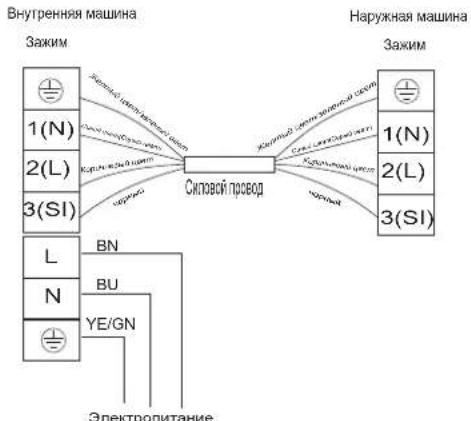

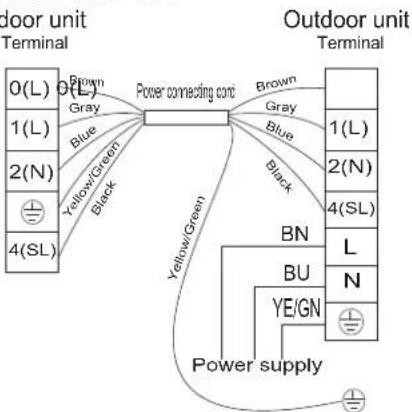

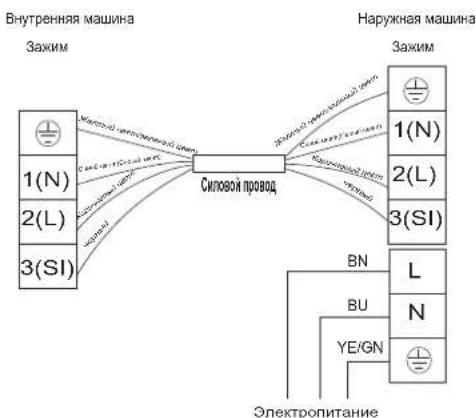

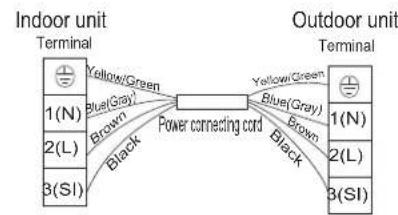

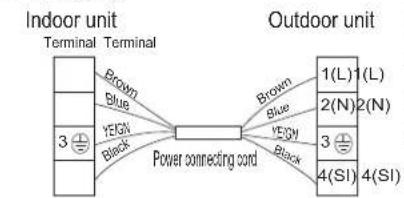

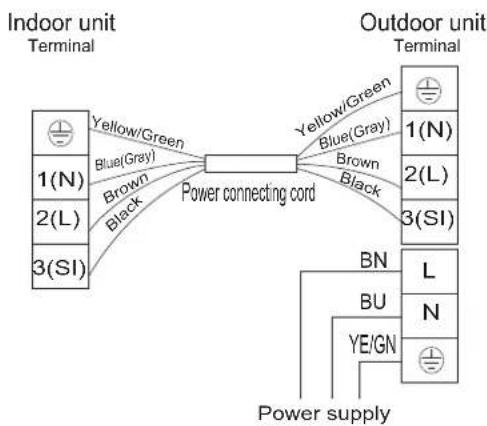

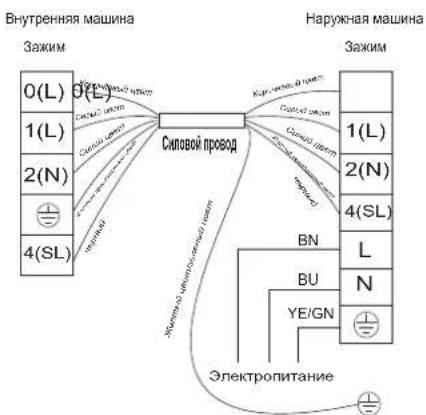

Wiring diagram 14

Outdoor unit installation 15

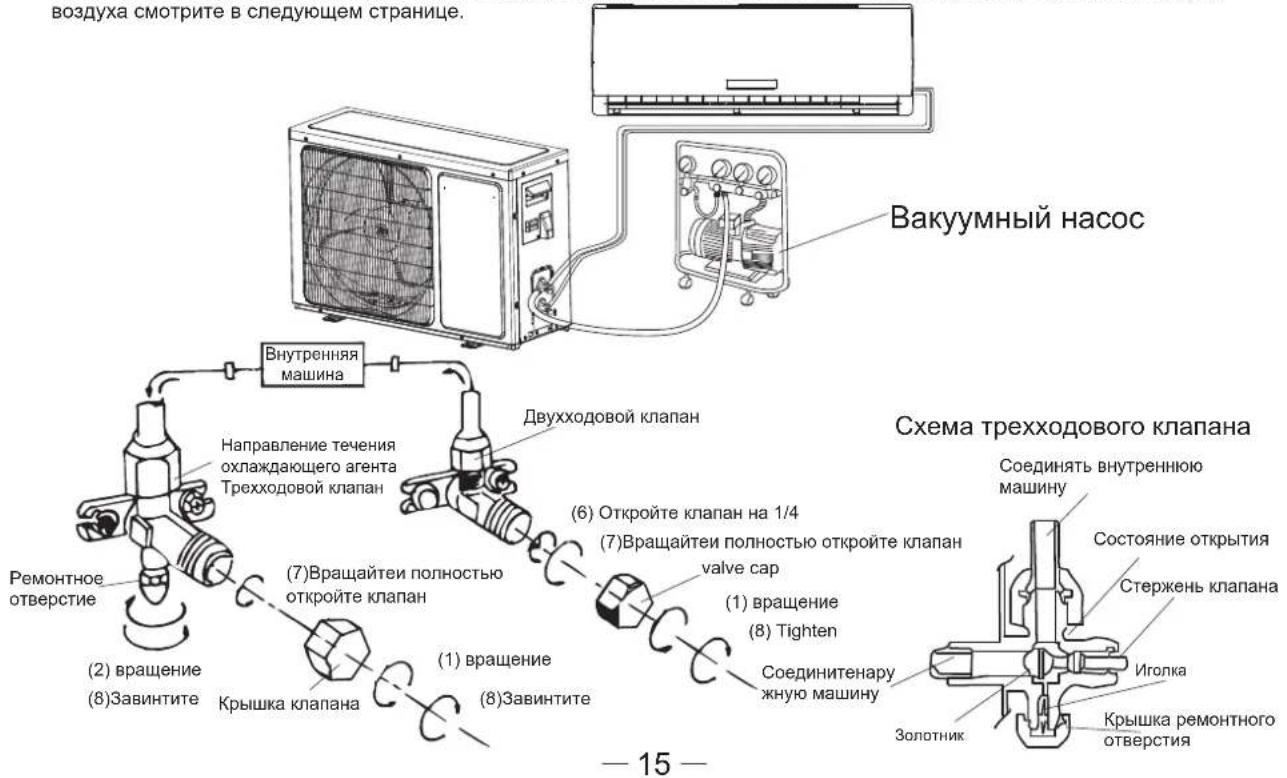

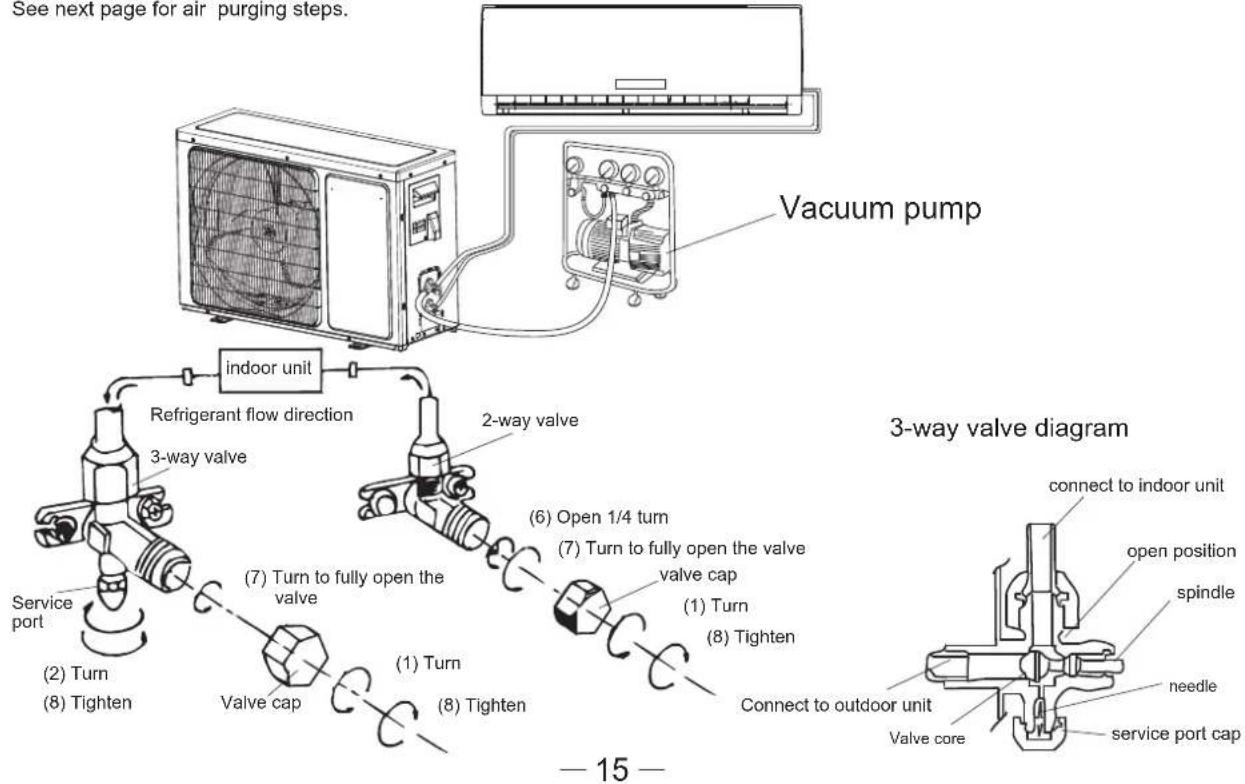

Air purging 15

Remote controller operating instructions. See"remote controller instructions".

Safety instructions

• To guarantee the unit work normally, please read the manual carefully before installation, and try to install strictly according to this manual.
• Do not let air enter the refrigeration system or discharge refrigerant when moving the air conditioner.
• Properly ground the air conditioner into the earth.
• Check the connecting cables and pipes carefully, make sure they are correct and firm before connecting the power of the air conditioner.
• There must be an air-break switch.
• After installing, the consumer must operate the air conditioner correctly according to this manual, keep a suitable storage for maintenance and moving of the air conditioner in the future.
• Fuse of indoor unit: T 3.15A 250V.
  For 7k 12k models , f T 15A 250V or T 20A 250V . ~ use of outdoor unit:
  For 14k models, f 20A 250V. ~18k use of outdoor unit: T
  For 21k 30k models , f T 30A 250V . ~ use of outdoor unit:
• A residual current device(RCD)with the rating of above 10mA shall be incorporated in the fixed wiring according to the national rule
• Warning: Risk of electric shock can cause injury or death: Disconnect all remote electric power supplies before servicing.
• The maximum length of the connecting pipe between the indoor unit and outdoor unit should be less than 5 meters. It will affect the efficiency of the air conditioner if the distance longer than that length.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenanceshall not be made by children without supervision.
• The batteries in remote controller must be recycled or disposed of properly. Disposal of Scrap Batteries --- Please discard the batteries as sorted municipal waste at the accessible collection point.
• If the appliance is fixed wiring, the appliance must be fitted with means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under over voltage category III conditions, and these means must be incorporated in the fixed wiring in accordance with the wiring rules.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The appliance shall be installed in accordance with national wiring regulations.
  The air conditioner must be installed by professional or qualified persons.
• The appliance shall not be installed in the laundry.

Preparation before use

Note

• When charging refrigerant into the system, make sure to charge in liquid state, if the refrigerant of the appliance is R410A. Otherwise, chemical composition of refrigerant (R410A) inside the system may change and thus affect performance of the air conditioner.

• According to the character of refrigerant (R410A, the value of GWP is 1975), the pressure of the tube is very high, so be sure to be careful when you install and repair the appliance.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The air conditioner must be installed by a professional engineer.

• The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.

Preset

Before using the air conditioner, be sure to check and preset the following.
- Remote Control presetting

Each time after the remote control is replaced with new batteries or is energized, rautotpresetting heat pump.If the air conditioner you purchased is a Cooling Only one, heat pump remote controller can also be used.

• Back-light function (optional) of Remote Control

Hold down any button on remote control to activate the back light. It automatically shuts off 10 seconds later.

Note: Back-light is an optional function.

• Auto Restart Presetting

The air conditioner has an Auto-Restart function.

Safeguarding the environment

This appliance is made of recyclable or re-usable material. Scrapping must be carried out in compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the mains cord so that the appliance cannot be re-used.

For more detailed information on handling and recycling this product, contact your local authorities who deal with the separate collection of rubbish or the shop where you bought the appliance.

SCRAPPING OF APPLIANCE

This appliance is marked according to the European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Safety precautions

Symbols in this Use and Care Manual are interpreted as shown below.

Be sure not to do.

Grounding is essential.

Pay attention to such a situation.

Warning: Incorrect handling could cause a serious hazard, such as death, serious injury, etc.

Use correct power supply in accordance with the rating plate requirement. Otherwise, serious faults or hazard may occur or a fire maybe break out.

Keep the power supply circuit breaker or plug from dirt. Connect the power supply cord to it firmly and correctly, lest an electric shock or a fire break out due to insufficient contact.

Do not use the power supply circuit breaker or pull off the plug to turn it off during operation. This may cause a fire due to spark, etc.

It is the user's responsibility to make the appliance be grounded according to local codes or ordinances by a licenced technician.

It is harmful to your health if the cool air reaches you for a long time. It is advisable to let the air flow be deflected to all the room.

Prevent the air flow from reaching the gas burners and stove.

Do not touch the operation buttons when your hands are wet.

Turn off the appliance by remote control firstly before cutting off power supply if malfunction occurs.

Never insert a stick or similar obstacle to the unit. Since the fan rotates at high speed, this may cause an injury.

Do not repair the appliance by yourself. If this is done incorrectly, it may cause an electric shock, etc.

Do not put any objects on the outdoor unit.

Do not knit, pull or press the power supply cord, lest the power supply cord be broken. An electric shock or fire is probably caused by a broken power supply cord.

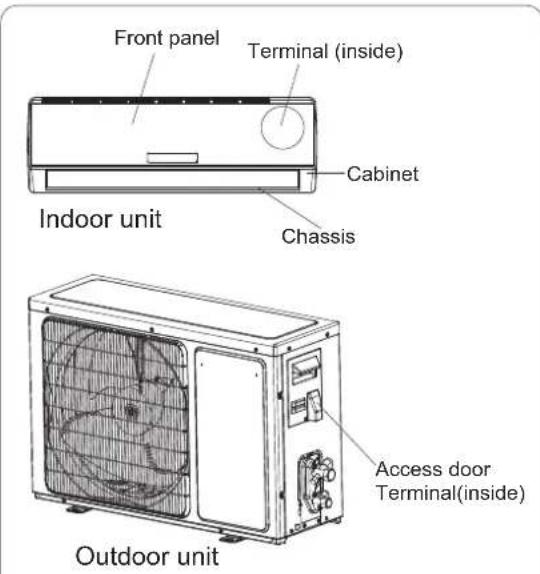

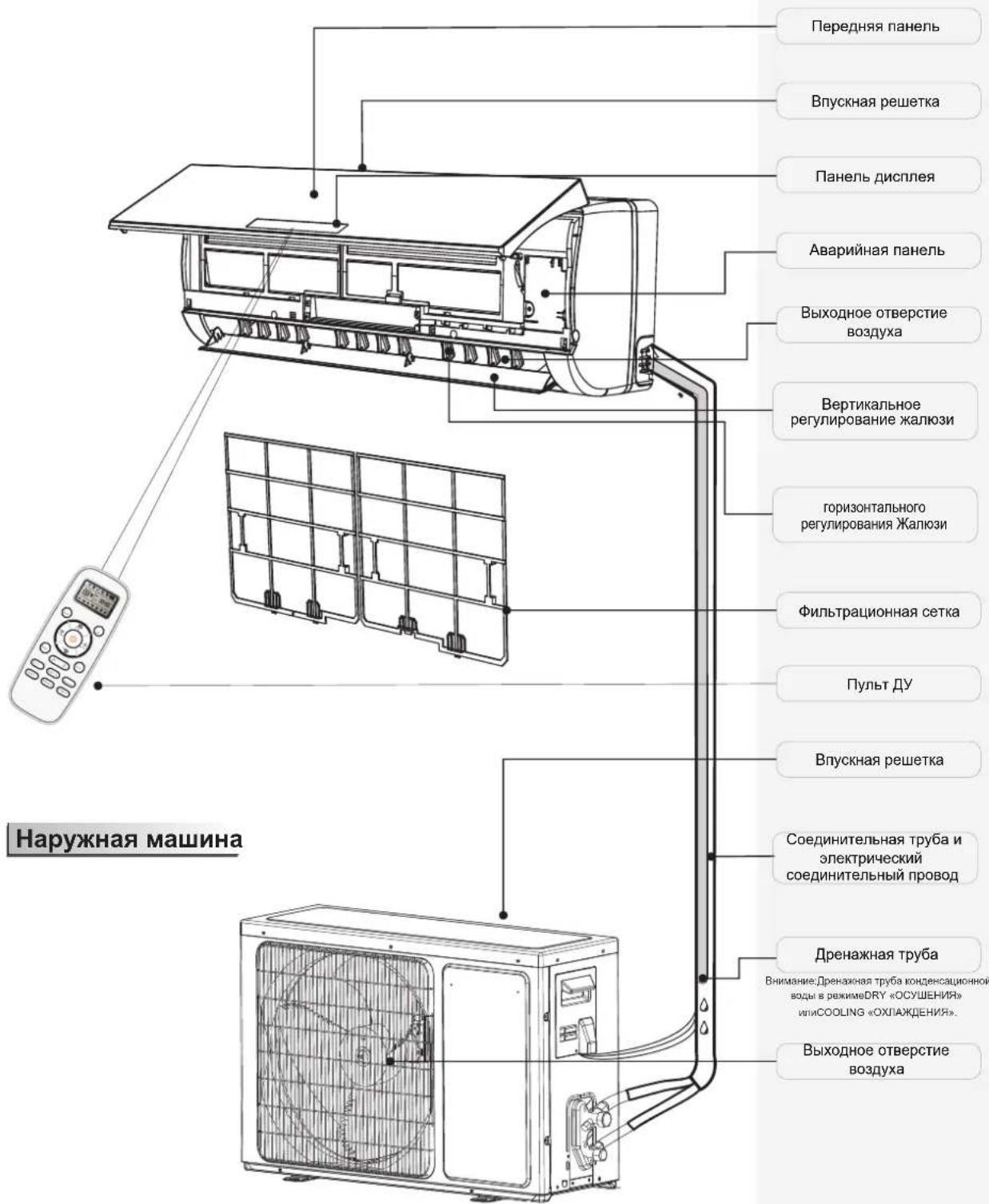

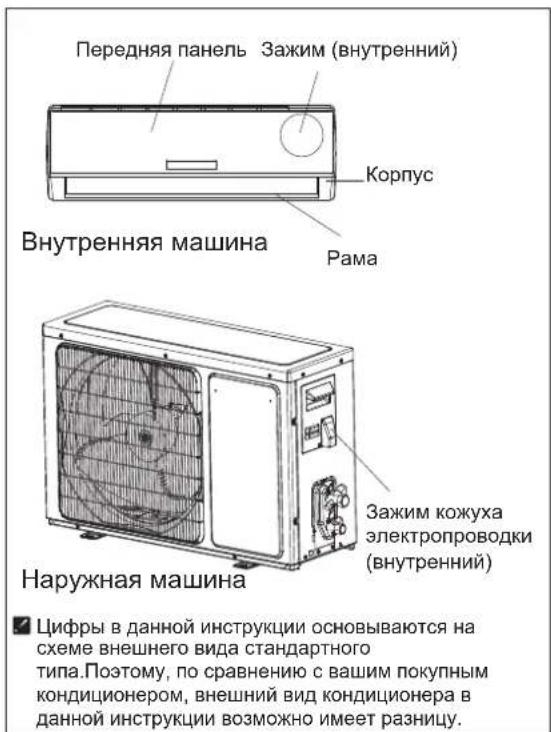

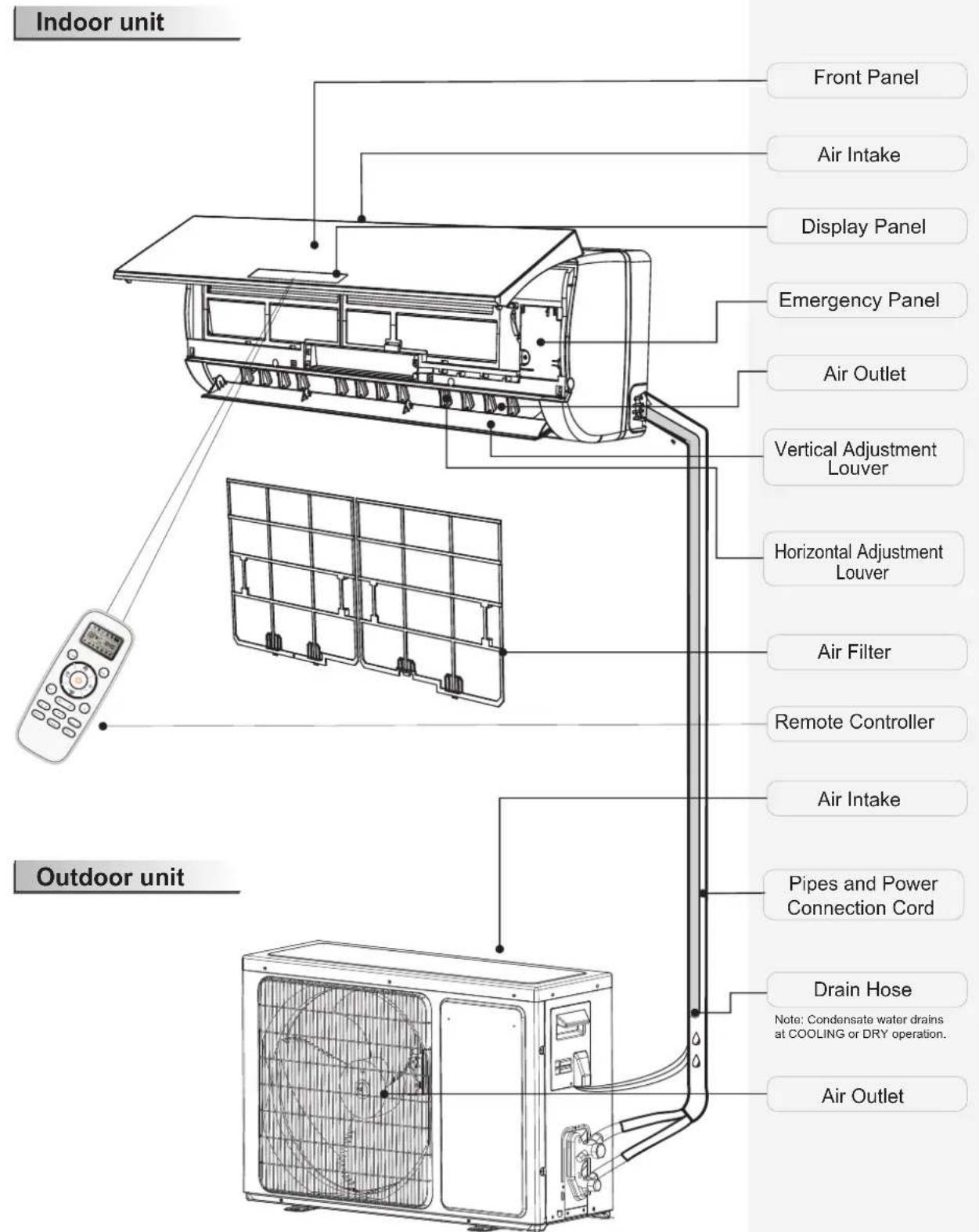

Identification of parts

The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

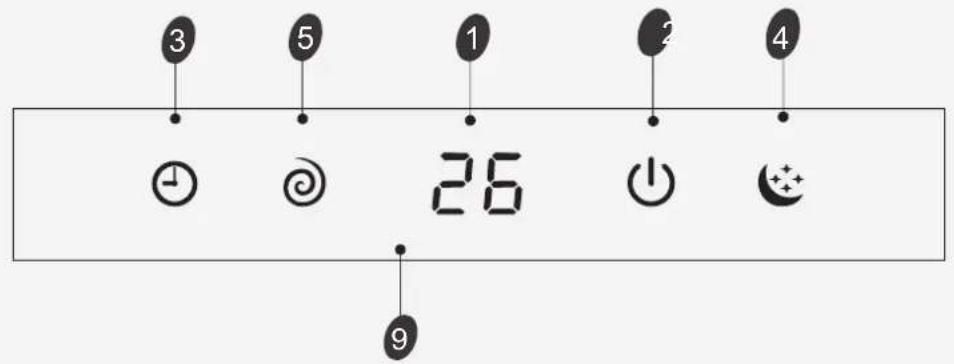

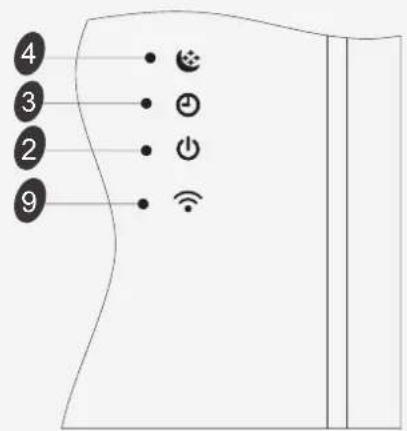

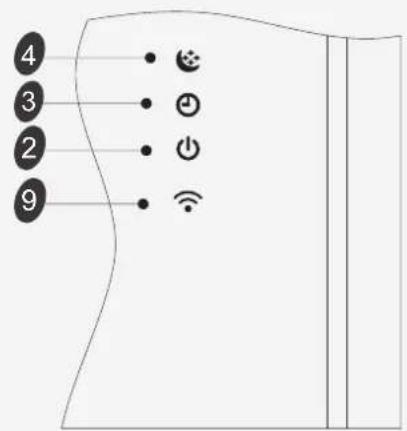

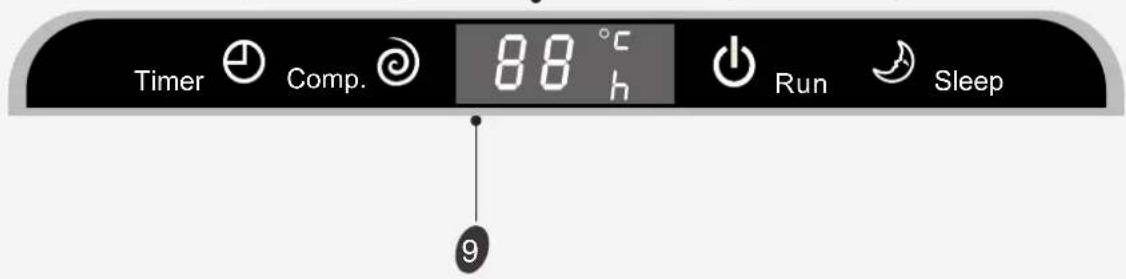

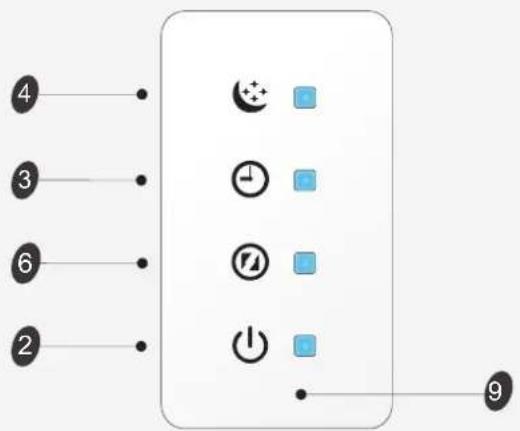

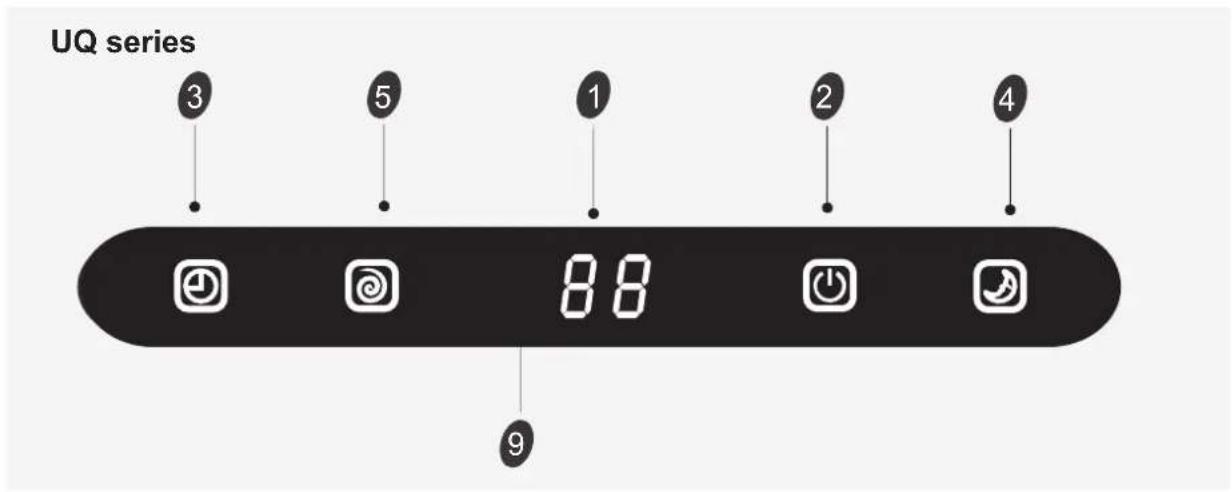

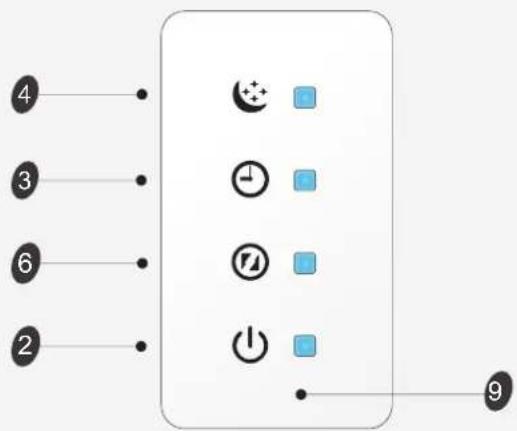

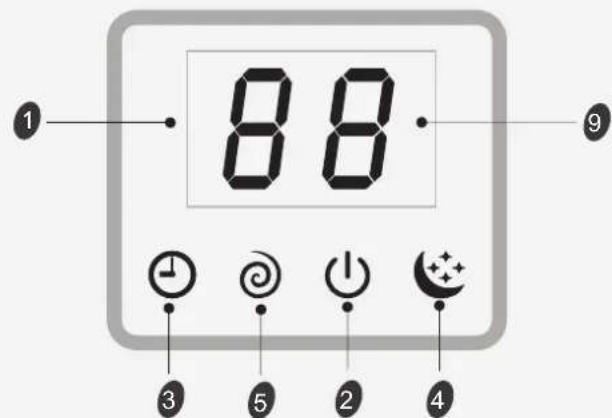

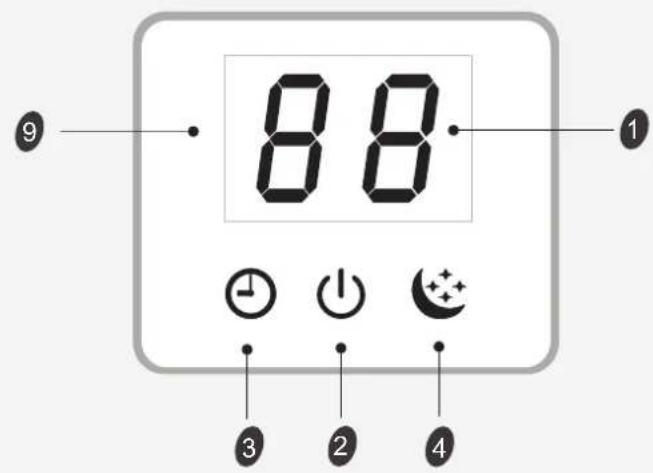

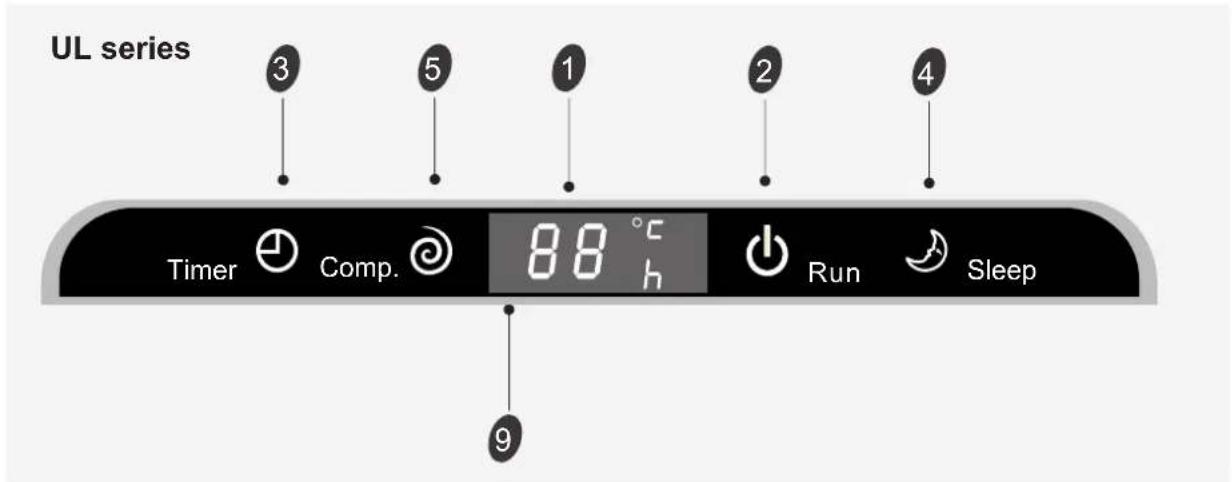

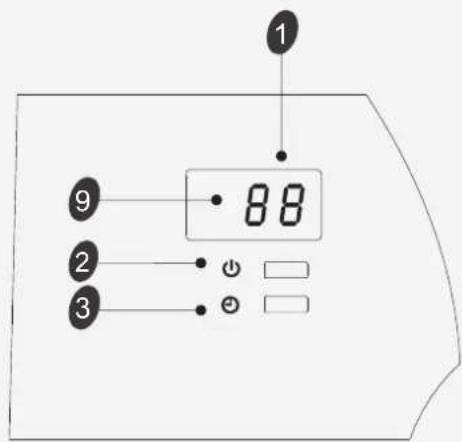

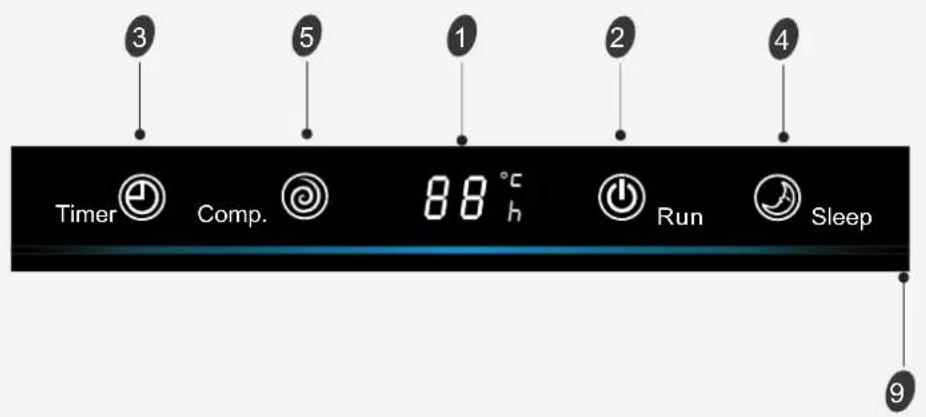

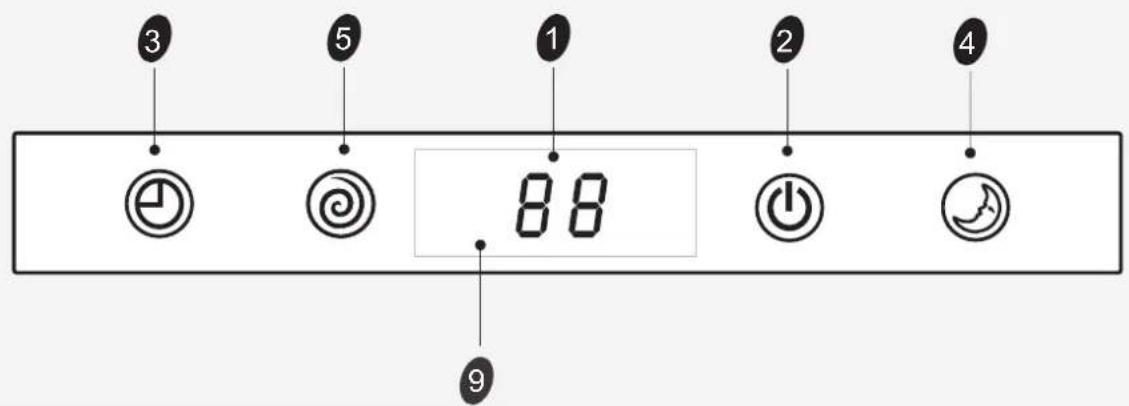

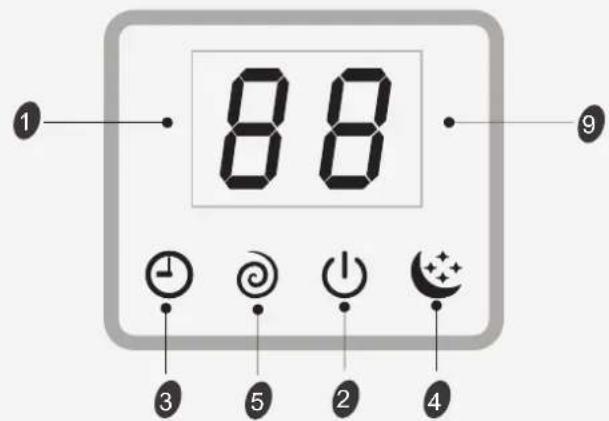

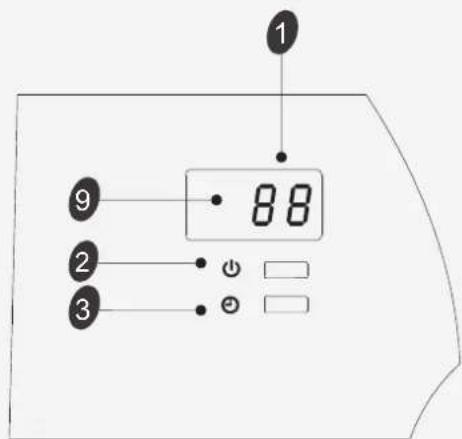

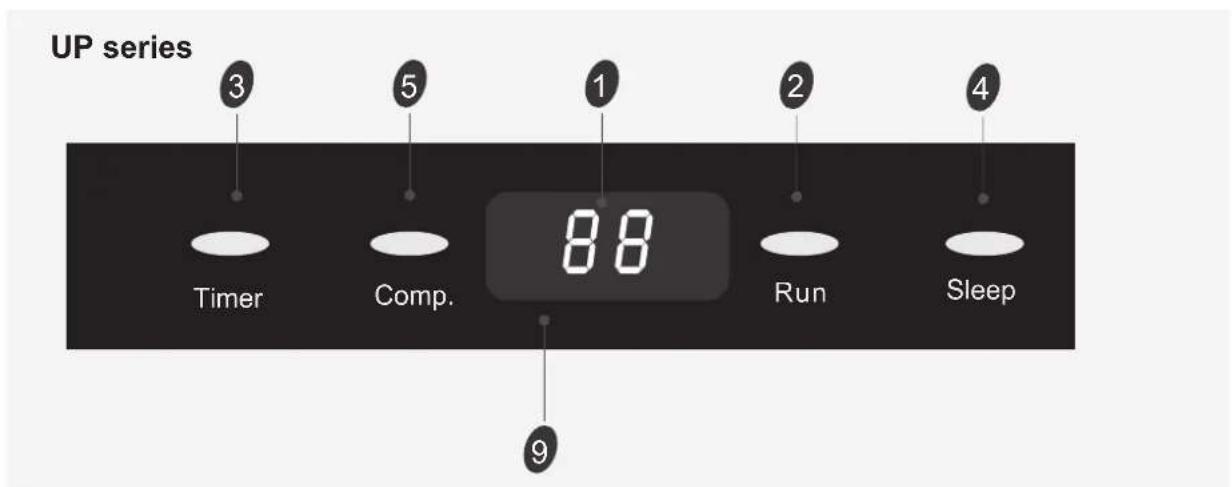

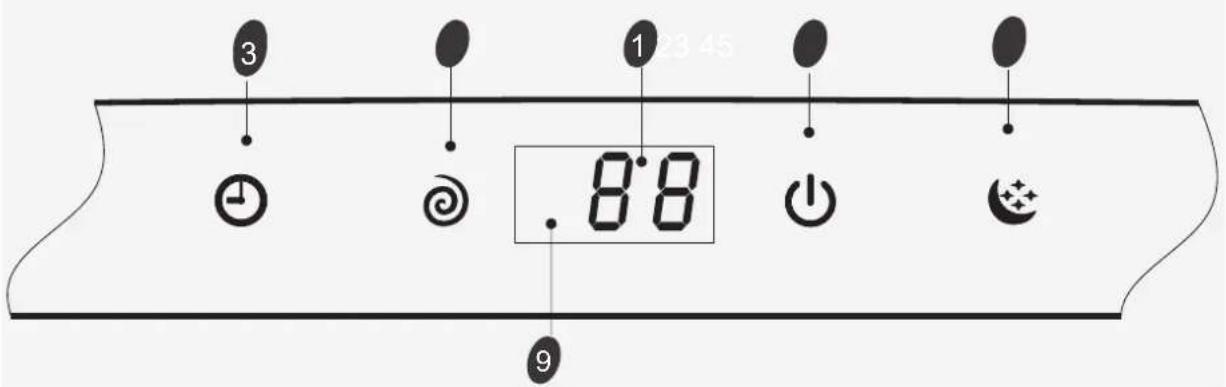

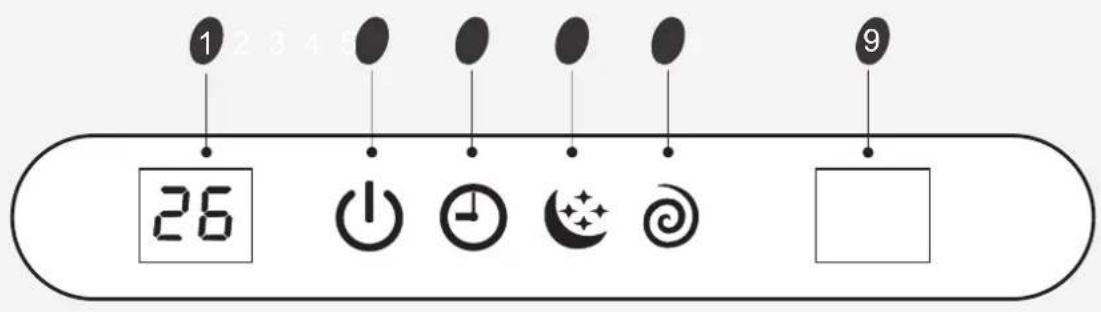

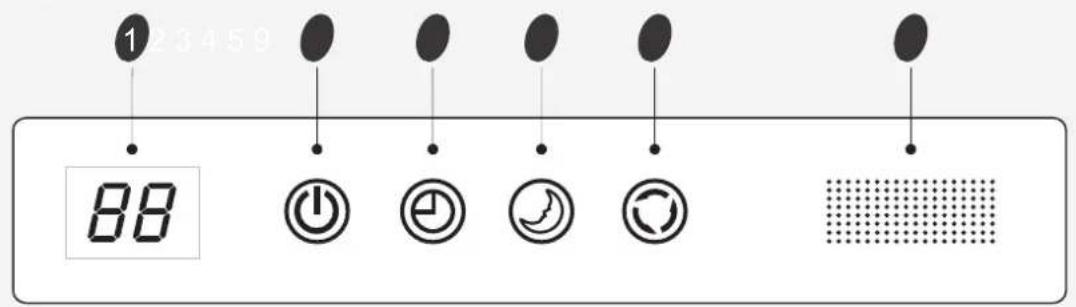

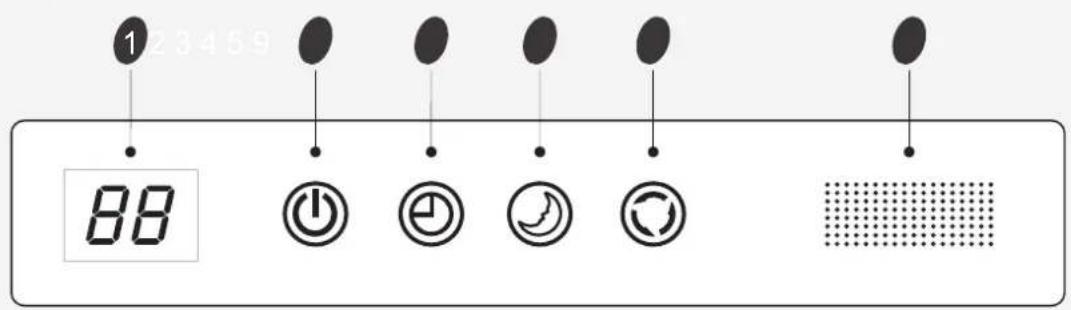

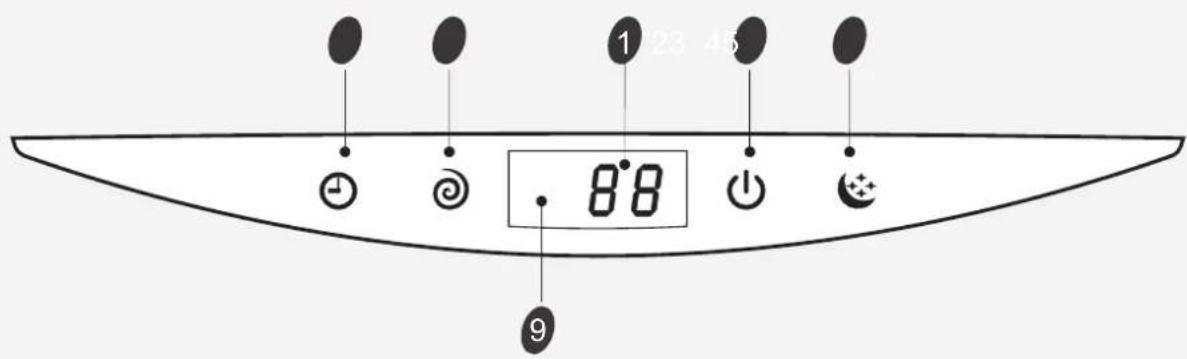

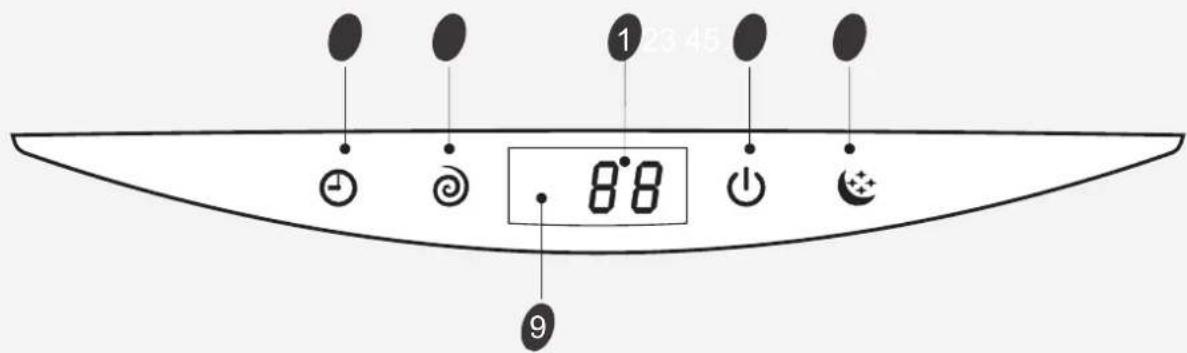

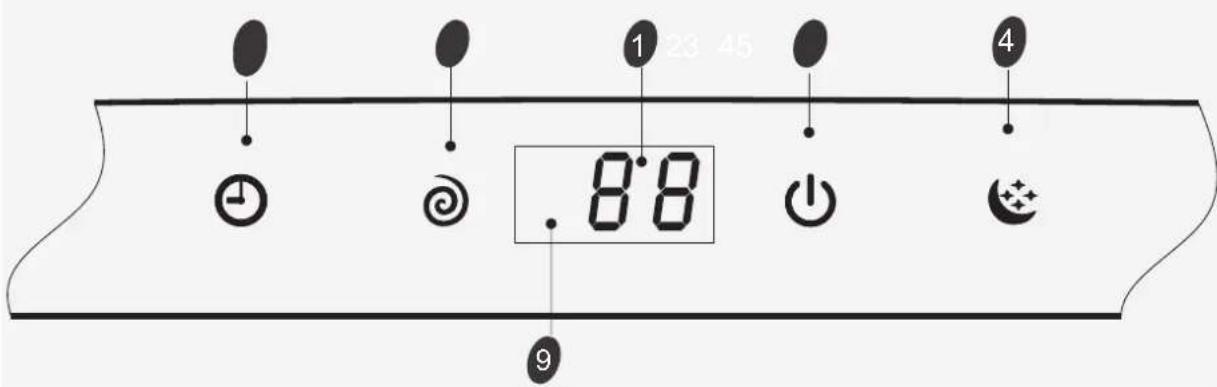

Display introduction

Temperature indicator 1

Display set temperature.

It shows FC after 200 hours of usage as reminder to clean the filter.

After filter cleaning press the filter reset button located on the indoor unit behind the front panel in order to reset the display. (optional)

Running indicator 2

It lights up when the AC is running.

It flashes during defrosting.

Timer indicator 3

It lights up during set time.

Sleep indicator 4

It lights up in sleep mode.

Compressor indicator 5

It lights up when the compressor is on.

Super indicator 6

It lights up in super mode.

Mode indicator

Heating displays orange, others display white

Fan speed indicator 8

Signal Receptor 9

VG/VL series

The symbols may be different from these models, but the functions are similar.

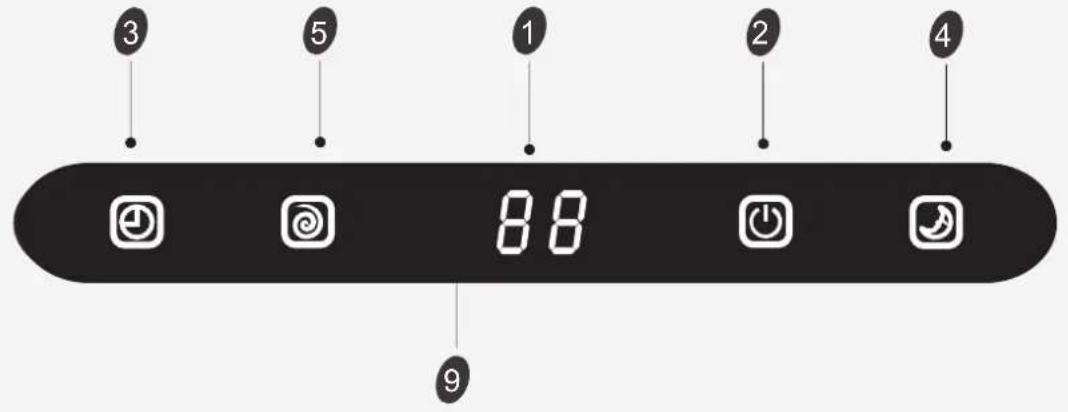

Display introduction

VT series

SF series/DG(Right side)

SE series

The symbols may be different from these models, but the functions are similar.

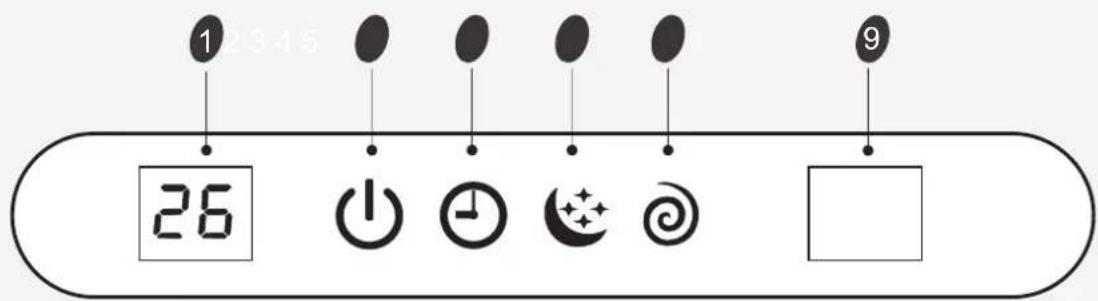

Display introduction

The symbols may be different from these models, but the functions are similar.

Display introduction

NS/DE series

NT series

VQ/TE/TF/DA/DG(Middle)/DH series

The symbols may be different from these models, but the functions are similar.

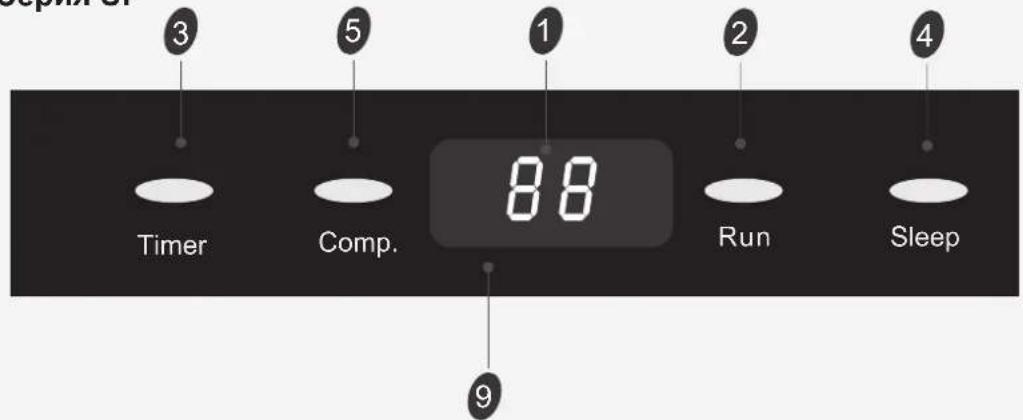

Display introduction

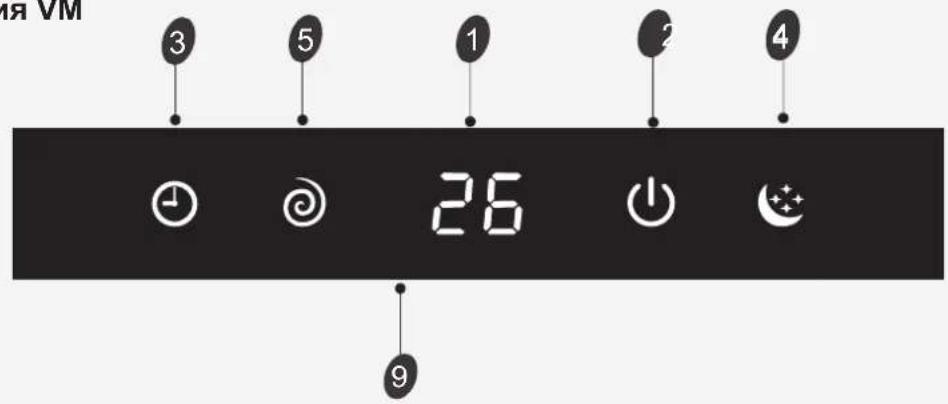

VM series

NM/DF series NK series

TA/TC series

The symbols may be different from these models, but the functions are similar.

Display introduction

VC series

SA/TD/TG/DB/DC series

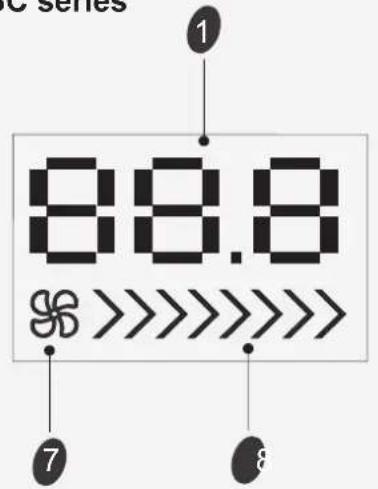

SC series

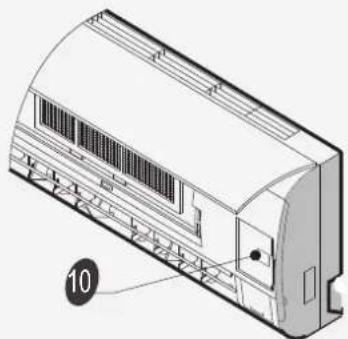

Emergency button

ON/OFF To let the AC run or stop by pressing the button.

The symbols may be different from these models, but the functions are similar.

Maintenance

Front panel maintenance

1 Cut off the power supply Turn off the appliance first before disconnecting from power supply.	2 Grasp position "a" and pull outward to remove the front panel.
3 Wipe with a soft and dry cloth. Use soft moisture cloth to clean if the front panel is very dirty;	4 Never use volatile substance such as gasoline or polishing powder to clean the appliance.
5 Never sprinkle water onto the indoor unit	6 Reinstall and shut the front panel. Reinstall and shut the front panel by pressing position "b" downward.

Air filter maintenance

1 Stop the appliance and remove the air filter. 1 Open the front panel. 2 Press the handle of the filter gently from the front. 3. Grasp the handle and slide out the filter.	2 Clean and reinstall the air filter. If the dirt is conspicuous, wash it with a solution of detergent in lukewarm water. After cleaning, dry well in shade.
3 Close the front panel again. Clean the air filter every two weeks if the air conditioner operates in an extremely dusty environment.	It is necessary to clean the air filter after using it for about 100 hours.

Protection

Operating condition

The protective device maybe trip and stop the appliance in the cases listed below.

HEATING	Outdoor air temperature is over 24°C
	Outdoor air temperature is below -10°C
	Room temperature is over 27°C
	COOLING	Outdoor air temperature is over *43°C
	Room temperature is below 21°C
	DRY	Room temperature is below 18°C

*For Tropical (T3) Climate condition models, the temperature point is 55^ instead of 43^ . The temperature of some products is allowed beyond the range. In specific situation, please consult the merchant. If the air conditioner runs in COOLING or DRY mode withdoor or window opened for a long time when relative humidity is above 80% , dew may drip down from the outlet.

Noise pollution

Install the air conditioner at a place that can bear its weight in order to operate more quietly.
- Install the outdoor unit at a place where the air discharged and the operation noise would not annoy your neighbors.
Do not place any obstacles in front of the air outlet of the outdoor unit lest it increases the noise level.

Features of protector

1. The protective device will work at following cases.

2. Restarting the unit at once after operation stops or changing mode during operation, you need to wait for 3 minutes.
   Connect to power supply and turn on the unit at once, it may start 20 seconds later.

3. If all operation has stopped, press ON/OFF button again to restart, Timer should be set again if it has been canceled.

Features of HEATING mode

Preheat

At the beginning of the HEATING operation, the airflow from the indoor unit is discharged 2-5 minutes later.

Defrost

In HEATING operation the appliance will defrost (de-ice) automatically to raise efficiency. This procedure usually lasts 2-10 minutes. During defrosting, fans stop operation.

After defrosting completes, it returns to HEATING mode automatically.

Note: Heating is NOT available for cooling only air conditioner models.

Troubleshooting

The following cases may not always be a malfunction, please check it before asking for service.

Trouble Analysis
Does not run	If the protector trip or fuse is blown. Please wait for 3 minutes and start again, protector device may be preventing unit to work. If batteries in the remote controller exhausted. If the plug is not properly plugged.
No cooling or heating air	Is the air filter dirty? Are the intakes and outlets of the air conditioner blocked? Is the temperature set properly?
Ineffective control	If strong interference(from excessive static electricity discharge, power supply voltage abnormality) presents, operation will be abnormal. At this time, disconnect from the power supply and connect back 2-3 seconds later.
Does not operate immediately	Changing mode during operation, 3 minutes will delay.
Peculiar odor	This odor may come from another source such as furniture, cigarette etc, which is sucked in the unit and blows out with the air.
A sound of flowing water	Caused by the flow of refrigerant in the air conditioner, not a trouble. Defrosting sound in heating mode.
Cracking sound is heard	The sound may be generated by the expansion or contraction of the front panel due to change of temperature.
Spray mist from the outlet	Mist appears when the room air becomes very cold because of cool air discharged from indoor unit during COOLING or DRY operation mode.
The compressor indicator(red) lights on constantly, and indoor fan stops.	The unit is shifting from heating mode to defrost. The indicator will lights off within ten minutes and returns to heating mode.

Installation instructions

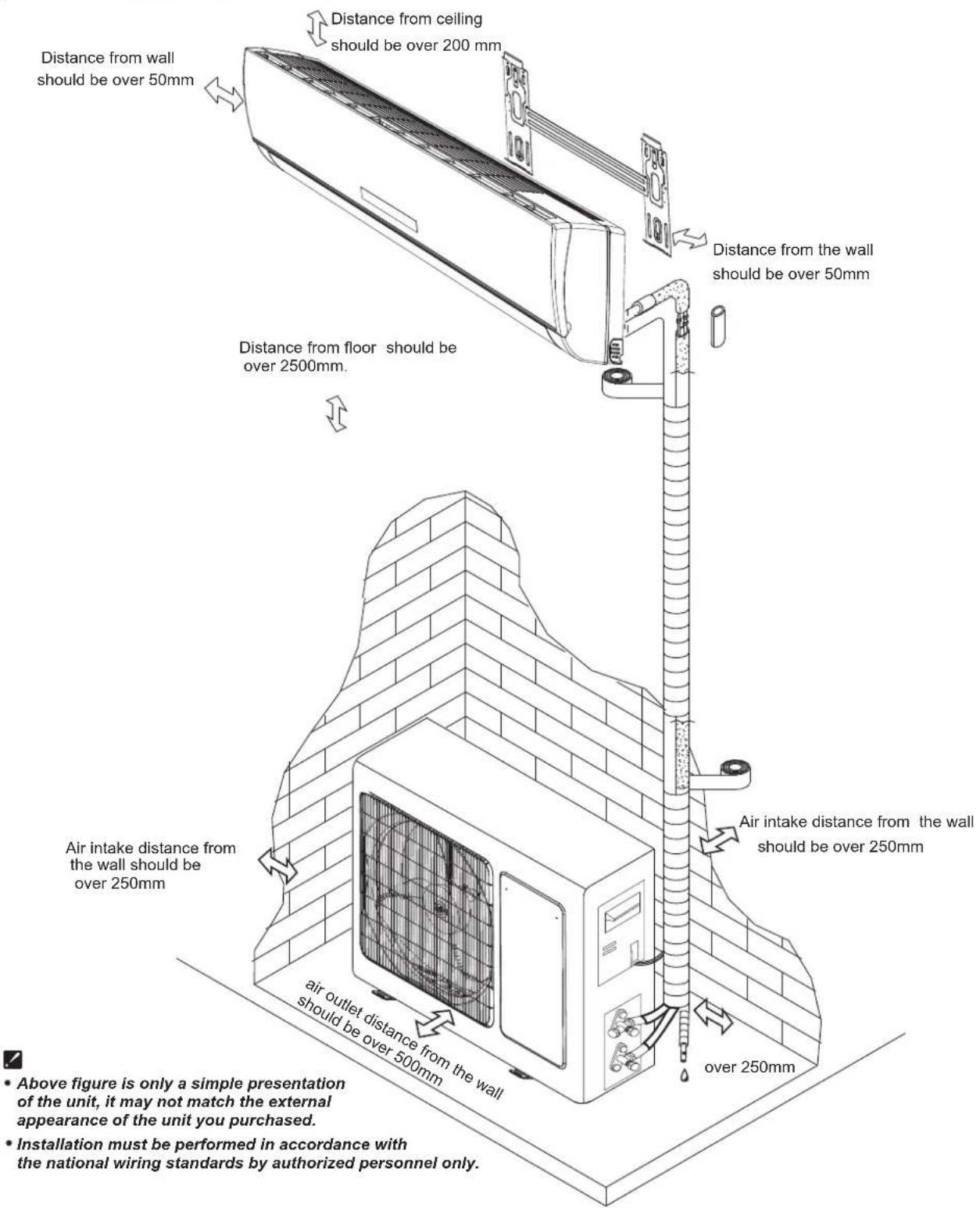

Installation diagram

Installation instructions

Select the installation location

Location for Installing Indoor Unit

• Where there is no obstacle near the air outlet and air can be easily blown to every corner.
• Where piping and wall hole can be easily arranged.
• Keep the required space from the unit to the ceiling and wall according to the installation diagram on previous page.
• Where the air filter can be easily removed.
• Keep the unit and remote controller 1m or more apart from television, radio etc.
• keep as far as possible from fluorescent lamps.
• Do not put anything near the air inlet to obstruct it from air absorption.
  Install on a wall that is strong enough to bear the weight of the unit.
  Install in a place that will not increase operation noise and vibration
• Keep away from direct sunlight and heating sources. Do not place flammable materials or combustion apparatuses on top of the unit.

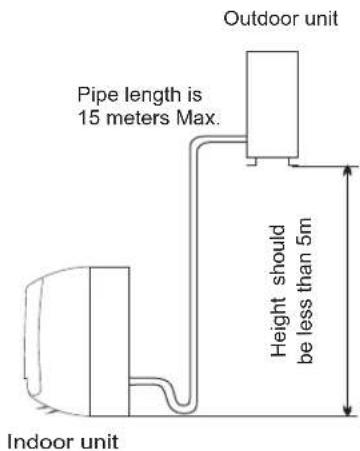

Location for Installing Outdoor Unit

• Where it is convenient to install and well ventilated.
• Avoid installing it where flammable gas could leak.
• Keep the required distance apart from the wall.

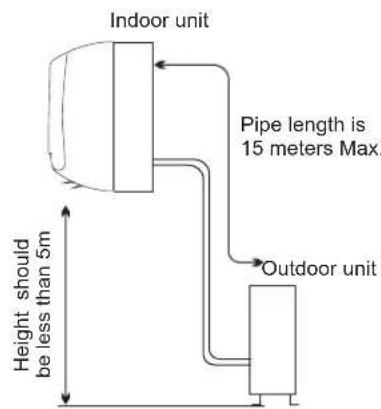

• The distance between Indoor and outdoor unit should be 5 meters and can go up to maximum 15 meters with additional refrigerant charge.
• Keep the outdoor unit away from greasy dirt, vulcanization gas exit.
• Avoid installing it by the roadside where there is a risk of muddy water.
  A fixed base where it is not subject to increased operation noise.
• Where there is not any blockage of the air outlet.
• Avoid installing under direct sunlight, in an aisle or sidewalk, or near heat sources and ventilation fans. Keep away from flammable materials, thick oil fog, and wet or uneven places.

Model	Max. Allowable Tubing Length at Shipment (m)	Limit of Tubing Length (m)	Limit of Elevation Difference H (m)	Required amount of additional refrigerant (g/m)
7K~18K	5	15	5	20
21K 25K~	5	15	5	30
30K	5	15	5	40

If the height or pipe length is out of the scope of the table, please consult the merchant.

Installation instructions

Indoor unit installation

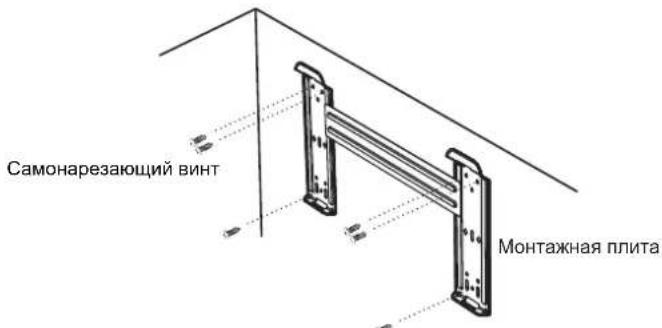

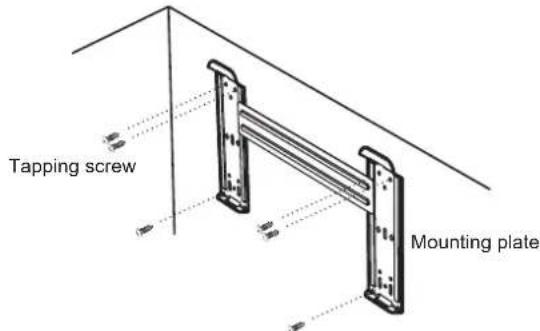

1. Installing the Mounting Plate

• Decide an installing location for the mounting plate according to the indoor unit location and piping direction.
• Keep the mounting plate horizontal with a horizontal ruler or dropping line.
• Drill holes of 32mm in depth on the wall for fixing the plate.
• Insert the plastic plugs to the hole, fix the mounting plate with tapping screws.
• Inspect if the mounting plate is well fixed. Then drill a hole for piping.

Note: The shape of your mounting plate may be different from the one above, but the installation method is similar. Note: As the above figure shown, the six holes matched with tapping screw on the mounting plate must be used to fix the mounting plate, the others are prepared.

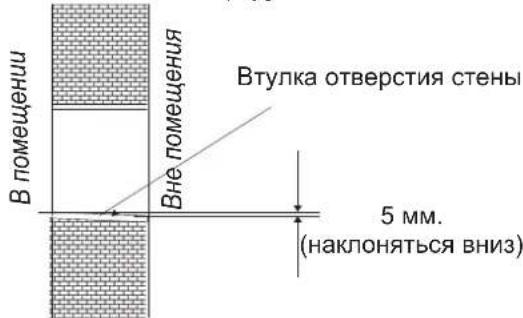

2. Drill a Hole for Piping

• Decide the position of the hole for piping according to the location of mounting plate.
• Drill a hole in the wall. The hole should tilt a little downward toward outside.
• Install a sleeve through the wall hole to keep the wall tidy and clean.

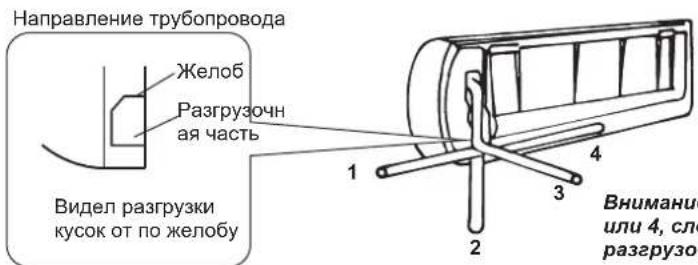

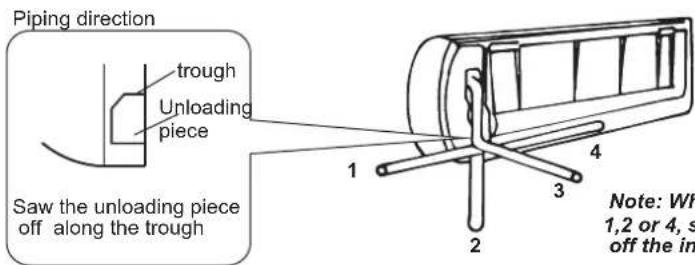

3. Indoor Unit Piping Installation

• Put the piping (liquid and gas pipe) and cables through the wall hole from outside or put them through from inside after indoor piping and cables connection is complete to connect to the outdoor unit.
• Decide whether to saw the unloading piece off in accordance with the piping direction.(as shown below)

Note: When installing the pipe at the directions 1,2 or 4, saw the corresponding unloading piece off the indoor unit base.

• After connecting the piping, install the drain hose. Then connect the power cords. After connecting, wrap the piping, cords and drain hose together with thermal insulation materials.

Installation instructions

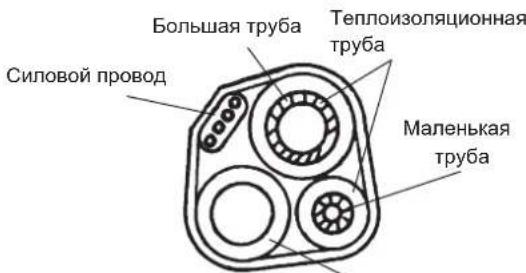

• Piping Joints Thermal Insulation:

Wrap the piping joints with thermal insulation materials and then wrap with a vinyl tape.

Thermal insulation

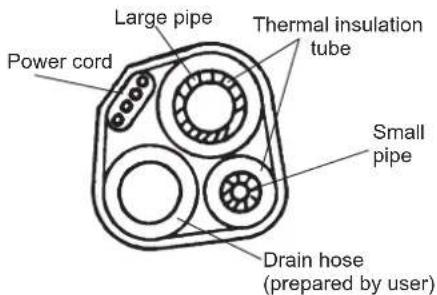

• Piping Thermal Insulation:

a. Place the drain hose under the piping.

b. Insulation material uses polythene foam over 6mm in thickness.

Note: Drain hose is prepared by user.

• Do not arrange the drain pipe in a way that leaves it twisted, sticking out or waving around. Do not immerse the end of it in water.
• If an extension drain hose is connected to the drain pipe, make sure to insulated when passing along the indoor unit.

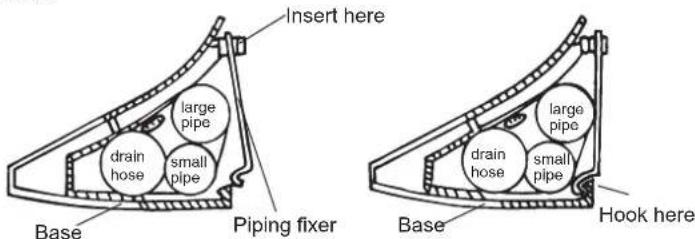

• When the piping is directed to the right, piping, power Cord and drain pipe should be thermal insulated and fixed onto the back of the unit with a piping fixer.

A. Insert the pipe fixer to the slot.

B. Press to hook the pipe fixer onto the base.

Piping Connection:

a. Connect indoor unit pipes with two wrenches. Pay special attention to the allowed torque as shown below to prevent the pipes, connectors and flare nuts from being deformed and damaged.
b. Pre-tighten them with fingers at first, then use the wrenches.

Model	Pipe size	Torque	Nut width	Min.thickness
7,8,9,10,12,14,18K	Liquid Side ( 1/4 inch) φ6mm or	15~20N·m	17mm	0.5mm
18K*,21,22,24,25,30K	Liquid Side ( 3/8 inch) φ9.53mm or	30~35N·m	22mm	0.6mm
7,8,9,10,12K	Gas Side ( 3/8 inch) φ9.53mm or	30~35N·m	22mm	0.6mm
12K*,14K,18K	Gas Side ( inch) φ12mm or 1/2	50~55N·m	24mm	0.6mm
18K*,21,22,24,25,30K	Gas Side ( 5/8 inch) φ16mm or	60~65N·m	27mm	0.6mm

*The unit of 12 K^ * is bigger than the unit of 12 K . The unit of 18 K^ * is bigger than the unit of 18 K .

Installation instructions

4. Connecting of the Cable

• Indoor Unit

Connect the power cord to the indoor unit by connecting the wires to the terminals on the control board individually in accordance with the outdoor unit connection.

Note: For some models, it is necessary to remove the cabinet to connect to the indoor unit terminal.

• Outdoor Unit

1) Remove the access door from the unit by loosening the screw. Connect the wires to the terminals on the control board individually as follows.
2) Secure the power cord onto the control board with cable clamp.
3) Reinstall the access door to the original position with the screw.
4) Use a recognized circuit breaker for 24K model between the power source and the unit. A disconnecting device to adequately disconnect all supply lines must be fitted.

The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

Caution:

1. Never fail to have an individual power circuit specifically for the air conditioner. As for the method of wiring, refer to the circuit diagram posted on the inside of the access door.
2. Confirm that the cable thickness is as specified in the power source specification.
3. Check the wires and make sure that they are all tightly fastened after cable connection.
4. Be sure to install an earth leakage circuit breaker in wet or moist areas.

Cable Specifications

Capacity (Btu/h)	Power cord		Power connecting cord
		Normal cross - sectional area	Type Type	Normal cross - sectional area
7K~12K	H07RN-F	H07RN/F.5X3		1.0 mm X5/1.5
7 12K*~ K*		1.0/1.5mmX3	H07RN-FH	0.5mm-5mmX4
14K~18K	H07RN-F	1.5mmX3	H07RN-F	1.5mmX5
14K*~ K*18	H05VV-F	1.5/2.5mmX3	H07RN-F	1.5mmX4
21K~30K	H07RN-F	2.5mmX3	H07RN-F	0.75mmX4
	H07RN-F	2.5mmX3	H07RN-F	2.5mmX5
21K*~30K*		2.5mmX3	H07RN-FH	0.5mmX4

NOTE: K^ means the this model comes from indoor unit.power supply of

Attention:

The plug must be accessible even after the installation of the appliance in case there is a need to disconnect it. If not possible, connect appliance to a double-pole switching device with contact separation of at least 3mm^2 placed in an accessible position even after installation.

Installation instructions

Wiring diagram

Make sure that the color of the wires in the outdoor unit and terminal No. are the same as those of the indoor unit.

- 7K12K Model~

- 14K^30K^ Model~

- 7K 30K Model~

For * models, the power supply is connected from the indoor unit with a circuit breaker. The diagram is reference only, and the actual terminal shall prevail.

Installation instructions

Outdoor unit installation

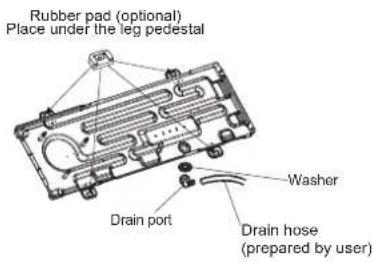

1. Install Drain Port and Drain Hose (for heat-pump model only)

The condensate drains from the outdoor unit when the unit operates in heating mode. In order not to disturb your neighbor and protect the environment, install a drain port and a drain hose to direct the condensate water. Just install the drain port and rubber washer to the chassis of the outdoor unit, then connect a drain hose to the port as the right figure demonstrates.

1. Install and Fix Outdoor Unit

Fix with bolts and nuts tightly on a flat and strong floor.

If installed on the wall or roof, make sure to fix the supporter well to prevent it from shaking due to serious vibration or strong wind.

1. Outdoor Unit Piping Connection

2. Remove the valve caps from the 2-way and 3-way valve.

3. Connect the pipes to the 2-way and 3-way valves separately according to the required torque.

4. Outdoor Unit Cable Connection (see previous page)

Air purging

The air which contains moisture remaining in the refrigeration cycle may cause a malfunction on the compressor. After connecting the indoor and outdoor units, release air and moisture from the refrigerant cycle using a vacuum pump, as shown below.

Note: To protect the environment, be sure not to discharge the refrigerant to the air directly.

See next page for air purging steps.

Installation instructions

How to Purge Air Tubes:

(1) Unscrew and remove caps from 2 and 3-way valves.
(2) Unscrew and remove cap from service valve.
(3) Connect vacuum pump flexible hose to the service valve.
(4) Start vacuum pump for 10-15 minutes until reaching a vacuum of 10 mmHg absolutes.
(5) With vacuum pump still running close the low pressure knob on vacuum pump manifold. Then stop the vacuum pump.
(6) Open 2-way valve, 1/4 turn, then close it after 10 seconds. Check tightness of all joints using liquid soap or an electronic leak detector.
(7) Turn 2 and 3-way valves stem to fully close the valves. Disconnect the flexible vacuum pump hose.
(8) Replace and tighten all valve caps.

Hisense

Safeguarding the environment

Manutenção do painei frontal

A Harding is essentieel.

VQ/TE/TF/DA/DG(Middle)/DH series

NM/DF series NK series

TA/TC series

Installatie-instructions

Installatie diagram

Installatie-instructions

Installatie-instructions

3. Indoor Unit Piping Installation

Installatie-instructions

Installatie-instructions

Installatie-instructions

Bedrangdisdiagram

Installatie-instructions

Preparation pre-installation 2

Bb6op MeCTa yCTaHOBKn 10

MOHTAX BHyTpEHHeMaunHbI 11

Cxema coeHHnHn 14

MoHTaX HApUxHoi MaunHbI 15

BbIpyck Bo3dyxa 15

Hcmpkyu no 3Kcnnyamauu npIbma DY, cmompume«Hcmpkyu no 3Kcnnyamauu npIbma DY

OncuHue 6e3oNaChocMu

• UTo6bI rapaHTnPOBaTb HOpMaJIbHOe IcNoJIb3OBaHHeJaHHOrO KOHNuHOpe, nepei MOHTaxKOM Heo6XoIMTO TuaTeJIbHO IpOuHTaTb DaHHyIO IHCTpyKUHO, IN Heo6xOIMO YCTaHOBtB NO IHCTpyKUIN.
• Pn nepemeueHnn KOHnCnoHepa, Heo6xOIMO npeDoTbpaaTaB BCTyIeHne BO3dyxa BoXnaJdaIOUcTeMy nn yTeuKy OxJaQIoero areHTa.
  Heo6xOIMO rapaHTnpOBaTb 3a3eMJIeHne KaKJOrO KOHNIOHOpe.
• IpeEi NOIKNHHeHem KOHNIOHepa K cETn, Heo6xOIMTO TuaTeNbHO npOBeprKaBeJIb n COeINHTeNBHyTO Ty6v, rapaHTnpOBaTb NX HAdekKHOCTb COeINHeHnI
• PPOUHOCTb. Heo6xOIMO VCTaHOBnTb BO3dYHbI BbIKJHOaTeJIb.
• Iocne MoHTaxa, Heo6xOIMo IpaBnIbHO NCIOJIb3OBaTb KOHdNcNOHeP NO daHHoH INCTpyKUIN; TuaTeNbHO XpaHNTb yNaKOBOHybI RAUK KOHNcNoHEpa N.T.D., DJa TaJIbHeuSeRo peMOHTa n IepMeueHry KOHNcNoHEpa.
• 3NeKTpOpeIOxpaHHTeJIb BVHTpeHHeRo 6Joka:T 3.15A 250V.
  -Д�� модени 7k-12k,эльктponрedoхразиь Всшero 6лoka:T 15A 250V nnn T 20A 250V.
  -Д�� модал 14k-18k,элькtronрд氧ханть Всшero 6лoka:T 20A 250V.
• Дд модал 21k-30k.эльктponрedoхразнель Всшпero 6лoka:T 30A 250V.
• No yctaHOBJeHnM CTpaHbI, HeNoBnKHaJ 3neKtpoPBOdKa DoJxHa yCTaHOBNTb 3aHTHOE YCTPOJCTBO OCTaTOHOr TOka HOMHaJIbHbIM TOKOMBblue 10mA.
• PpeynpeXeHne: IopaxeHne TOKOM MOKeT npINBOuNTb K IInyHomy NOBpeXeHNo Hm Cmeptn!Ipeed TexHueckm OBCnyxuBaHne M KOHNIOHepa, HeoBXOIMO OTKIOHTb INCTaHUNOHoe NITAHne.
  MaKcImaJIbHaIINHa CoeIHHTeHbHO Tpy6bIMexy BHyTpEHHeMaHInHO HApJxHO MaHnHO KOHNIOHEpaOJXHa 6bTb He 6oJe 5 MeTPOB.B Cnyae Bblue 5 MeTPOB,6vET BnA rTa Ha aDfKeTINBHOCT KOHNIHOHePA.
• DeTAM HIXe 8 let a6cOIOTHo HeIb3a ynpabJIb TB KOHdNcNoHepOM; nepcoHaI, IMeIoUm IopOK, opraHbI yVBCTB MeIINTEJIbHbIe, NCNXuYeCKyHO HeONHOueHHOCtB, INn IepCOHaJI, KOTOPOro He XBaIT ONbIT N 3HaHnE 3KcIIyatauIN, NepeD ynpabJIeHNEM KOHdNcNoHepOM HeOBxOIMO OKa3aTB pyKOBOcTBO I XOpOio 3HaTb BO3MOxHoe NOBpeXeHne B npOecce pa60Tb. DeTAM HeIb3a nIpaTb NyIbT DyNytB KaueCTBe INpyuKn. Be3 KOHTPOJRA B3PocJIbIX DeTAM HeIb3a YxaXNBaTb INN OYNCNTB KOHdNcNoHep.
• BaTapeN nyIbTa Dy doJnxHbI pereHepuPoBaT bnn TuaTeNbHO 6pa6aTBiBaTb.Obpa6oTKa Otpa6oTaHHbIX 6aTapee-B KaueCTBe KnaCCnΦnUPOBaHnHO MyHnCnPaIbHOrO Mycopa DoCTaBnTb Otpa6oTaHHbIe 6aTapee B 6JIHKaIsh NpyHKT c6opa.
• Pn IcnoIb3OBaHn HeNoDBHXHOJ 3JeKTPoPBOOKn, KOHNIOHOp DOJKeH yCTaHOBtB BbIKHoueHHyU yCTaHOBky C MaNCTpaNbIO 3JeKTPoCHa6XeHnA, MeKdY NOIocAMN CNeDyET rapaHTnpoBaTb IpomExyTOK KOHTaKTOB, YTObI rapaHTnpoBaTb NOHoe BbIKHoueHne B yCNOBnX CTeneHn NpeHAnpJxKeHn III, Heo6xoDnMo CoeINHrTb HEnoDBHXHyIO 3JeKTPoPBOOKn BY DaHHOE YCTPOICTBO NO IpabNlAm 3JeKTPoPBOOKn.
  Bo n36exaHne BO3HNKHOBeHn NOBpeXDeHn, npOn3BOAnTeNb, 06cnykBaOu an areHT nn NepcoHaI, mEIOUnc COOTBETCTByOuYIO KBaINΦnKaUIO DOJXHbI OTBeuaTb 3a npo6JeMv NOBpeXDeHn 3JIeKTPoPBODoB.
• 3JIeKTpOpiPOBOdKa KOHdNcNoHepa DoJXHa COOTBeTCTBOBaTb MEcTHbIM npaBnIam 3JIeKTpOpiPOBOdKn.
  CneunnCT nIeTexHueckn nepcoHaJI, IMeIOuN KBaIINpKaUIO OTBeuaOT 3a MOHTaK KOHNHOHepa.
  HeIb3y yCTaHOBNTb KOHdUcNoHep B npaueHyIO.

Iodzomobka neped 3Kcnnyamauee

BhimaHne

Korda do6abntb oxnaqdaiou an areHT B cnCTemy, ecn oxnaqdaiou an areHT KOHNIOHepa YBJIaTeCRA410A,TO oxnaqdaiou an areHT DOJKeH 6bITb XNkIM. B npOTNBOM cnyae, XMMueckn coCTab oxnaqdaiouero areHa R410A B cnCTeMe 6ydet N3MeHrTb,TeM caMbIM BJIraTB Ha xapaKTepncTNky KOHNIOHepa.
- 13-3a co6cTBeHHbIX OC6eHHocTe OXnaJdaHooIero areHTa (HaPnIMep, BeINuHnA GWP R410A coCTaBnIeT 1975), TempepaTypa Tpy6oNpOBOda OueHb BbICOKa, NO3Tomy Heo6xoDmO OCTOpoxHO B IpoUceCE MOHTaKa n peMOHTa KOHNIOHePa.

-Bo n36ekahne Bo3HnKHOBeHnna NobpejdeHnna, npOn3BOOnTeNb, o6cnykBaOuun areHT nnnpepcoHaJI, IMeIOUm COOTBeTCTByOuYKBAJINΦnKaUH OTBeaOT 3a npo6JeMy nobpejdeHnna 3NeKTpOpnpOBoDOb.
CneunabHbHnHKeHepOTBeaetMOHTaK KOHNIOHepa.
- TemnepaTypa KOHTypa OxnaJdaHouJero areHt a OueHb BbICOKa, CoeHHTeHbHbI Ka6JIb DOJKeH OTdAJIbTcR oT MeHOn Tpy6bl.

3apaHee HacTpoiKa

Ipeed 3Kcnnyataunei KOHNIOHepa, Heo6xOIMO npOBepaTb cJeDyUOuyo fYHKnIO.
- PpeepaumenbHo ycmahoumb ducmahuOHbI nylbm.

Iocne cmehbl 6batapeynyblta DYnnnoKIOUeHnK CETn,nybT DY 6ydt ABtOMaTHueckn npOn3Bectn npedbapntbHyO yCTaHOBY TENNOBORO HAcoca.EcnBaW KOHNIOHep IMeet OXnaXdaHOUYo FyHKuIO, TAKKE MOxHO NcNoJIb3OBaTB NyblT DY TENNOBORO HAcoca.
-Функцuaфоhoeo2o ceemaДY(ebiopouHa)

HaKMTe KaKyIO-H6yDb KHOIIky Ha Dy dIa AKTINBtIpOBaHna FOHOBOrO CBeta. OH 6ydet ABTomatNueckn 3aKpbIT uepe3 10 cekyHd

BHumHue:PhHKuur 3adHe2o Ceema aenmecm eblupaemou fynkuue.

• Ppeepumenbna ycmahokka aemomamueeckozo noemophozo nycka.

KoHdIuHOep HMeet yHKUIO abTOMaTHueCKORIO nobTOpHOrO nycka.

OxpaHa OkpykaIoueI cpeIbI

DAnHbAnnapat n3rOToBHeH n3 NOBtOpHo nCNOJb3oBaHHOro MaTePnHa. BpaKOBka Heo6xOdmo BbIOJIHeHa B COOTBeTCTBm C MeCTHBIMn npaBnJaM yTINn3aun OTXoOB. PepeI erO 6paKOBkOf OKJIIOHTe Ka6eIb 3NEKTPoNITAHn, YTO6bI daHbI Annapat He MO CHOBA mCOJb3oBaTbcra.

ДяболгпнгИнфоги O npableni N NOBtOPOHcNOnb3OBaHm DaHHoro annapata, CBJNTecb C BaHIM MeCTbIM IpeDCTaBHTeIeM, KOtOpBiy peWnt COptIpOBOUHb c6op OTxODB nnn Mara3INHom, rDe Bby KynnNi DaHHb annapat.

Бракова annapata

Дань annapat n3roTOBJIeH B COOTBeTCTBn C Ebponeckm pykoBoIcTBOM 2002/96/EC, OTxoIbIMN 3NeKtpuYeCKM n 3NeKtpoHHbIM o6OpydoBaHNEM(WEEE).

DaHHa OTMeTka O3Haayet, YTO B CtpaHax EC DaHHyIO npOdyKUHO Heh3raO6pa6aTaBbBaB BmecTe c DpyrMM 6bITOBbIMn OTXoDAMn BO n36exKaHne NToEHuaNbHorO NOBpeXeHnO OKykaUoSe CpeDbI INn 3dOpOBbY eNoBeka H3-3a O6pa6OTKn OTXoDob, Heo6xOdmo perEhepnpOBaTB INn INn HnpepbIBHORO NOBtOPHoro INcNOJb3OBaHnMaTePnaNbHbIX pecypcoB. Pn BO3BpaTe OTPabOTAHORO KOHNzHOepaMOKeTe INcNOJb3OBaTB CNCTEmy cbopa n pereHepaun, INn CB3aTbcR C pO3HnHybIM TOpROBcEM daHHORO KOHNzHOepa.OHm MOyT 6e30NaCHO IN kOJIoNueckn pereHepnpOBaTB DaHHyo npOdykUHO.

3aMeuHua 6e3oNaChocmu

HnXecJeDyUoune YBnIOTcpa3bYcHeHEm N OINcaHEm BO3HNKUnx 3HaKOB B daHHo HNCTpyKunno 3Kcnnyatau.

3anpeueHne.

TapaHTnPOBaHHe 3a3eMJIeHnI.

O6paTb BnMaHne Ha daHHbI cnyaI.

PpeDynpexJeHne:HenpaBnIbHa pa6Ota MoKet npBODntb K TaeJOMy NOBpeJdeHIO, KaC CMeptb, TaKeJIoE paHeHne I T.D.

Heo6xOJIMnNCOnb30BaTbNHTaHne, COOTBETCTBYIOUe Tpe6OBaHNAM 3aBOcCKo TabuHKn DaHHoro KOHNIOHepa.B nPTOBHOM CNYae, MoKHO pINBOINTb K TAKEOMY NOBpExDeHIO, HEcNpABHOCTM INI NOkApy.

Heo6Odmo NdoepkXbBt YNCTOTy BbKIOUaTeI NITAHIN INI UTENCeJI. PpOHO npAABInbHO CoeIMHnTE CNOBOH npBOD, I36eRanopaxKeHHN TOKOM INI BO3HHKOBHeN NOxApa I3-3a HNOCTAOuHOro KOHTAKT.

Pp pa6ote KOHmiohepa, a6c01nHO HeB3N NCNOB3OBaTb BblKIOUChTeB NHTAHH INB BtAAuTB wENTecB NdBBKIOUeHHO KOHmioHePA.Tak 6ydt Bo3HKaTb NOKap H3-3a BO3HKnHOBeHHMckpl.

IOTpe6ntenb IMeet OTBETCTBEHHOCb, YTO
TEXHIK, IMEOUIN CBNDETeBCTBO 3aEEMNHT
KOHUNOHEP NO MECTHBIM npABnAM INM
3aOKHAM.

3ToBpeHNOIINBaUJero3OpOBb,ecnBBoKpyr BAcNoTROcuiEeCTByETC XoNIOHb BO3DyX.3To NPOXOHT,TOB KOMHaTe HAnOIHeHO B03dyUHBM NOTOKOM

PepoTbpaaaiTe TeueHne Bo3dyuHoro notoKa doBo3dyuHOn ropeKn HArpeBaTeJ.

HnB3a HauKaTb KhoNk Onepaun BaWM MOKpbIM pykAm.

KoJa KOHdNIOHOEP BO3HnKaET HEnCnPaBHOCTb, NepeO TKNIOeHMe NITAHIN, DOnJXHb BBeIKNoHTb KOHdNIOHOEPnyIbTom D.

HeIb3BCTaBnTb nanky nnn ananornuHbIe
PnepnTCTBn B6nok. Bcnyae, 4TO BEHTINrTOP
BpaauTeCn PnBbCOKOn CKoPCtN, 3To 6yDet
PnpBOuNTb N KOBpeXeHNo

Bam camomy Hnbl3peMOnHtpoBaTb dAnHHbI annapat. Ecnm HnpabInbHO cdeAtoT, 3TO 6ydt npBODHTK nopaxHeHIO TOKOM

HnB3a nnoJoxNt KaKHe-Nb6yIb npEmdTb Ha BHeuHem bNoke.

HeIb3ra Taunltb n daBntb CnNOBo npBOOd
HnN 3aB3aTb y3en, n6EeTa NOBpeKDeHHA
CnNOBO rno pNOBa. NoBpeKDeHne CnNOBOrO
PNOBOa MOKET PnBDOHT K NOpaKeHHo
TOkOM HnN NOxApy.

Cocmae KOHouuOhepa

BHytpenMaunHa

LHpBb B DAHHN HCTpyKUNO OCHOBBaOTc HA HApXHOM BnDE CTAHdAPTHORO Tnna. T.K.NO CpABHeHIO C BAWM NOKYHM BOKDNIHOHEPOM,BHEWNI BND KOHNIOHepaB DaHHO HCTpyKUNMOKET 6bTb HEONHAKOBBIM.

Onucahue ducnner

88

Ioka3aHne TempepaTpybI 1

Ioka3aTb yctahOBnHHyIO TEMpepatypy

Yepe3 200 yacob nCnoB3OBAHnKoHnIeHepa,6yTeT nKa3bBaTb FC,03HaayeT,TO

BbIdoJXHbOCHNTbPbTpaNHOHHyCetKy.

Pocne ounctkn nIbtpaunHOHcTeKn, HaxMNTe Bo3BpaTHyIO KhoNkY

Фиьтрацнонс CBKn B 3aДн eTopoHne npeDHe naneBHyTppeHHe MaunHbI,

（akyntaTnBhie）

HdkaTop pa60TbI 2

Pn pa6ote KOHdNIOHepa, daHHa JAMna CBepkaeT. Pn OTanBaHm KOHdNIOHepa, daHHa JAMna CBepkaeT.

HdkaTop no TaMepy 3

CbepkaeT B yctaHOBneHHoe BpeM

Cnlaa Hndkaue 4

B cπaμe mpekme, daHna lamna cbepkaet

HnkaTop Komppeccopa 5

Korda komnpeccop pa6oTaET, daHHa JAMnacBepkaeT

CynepeHnDnKaTOp 6

B pexnme cynp, daHna JAMna CBepkaeT

HdkatoppeKIma 7

Harpe noka3bIbaeT opaHkeBbI cBET, npyrne noka3bIbaOT 6JIbI cBET.

HdkatopckopocnBeHTnIaTopa 8

PpneMhoe OKHO cnHaJa 9

Cepnia VG/VL

AHHbIe 3Haku EO3MOxHO omnuaHOMc om eaue oNokynhoo muna, odHako ux fynkuraenemcn nodo6hoi.

Onucahue duçnner

Cepnia VT

Cepnia SF/DG (npaba a ctopoHa)

Cepnia SE

Dahhble 3nku 603mno omnuaomc om sauee no kynho muna, odhako ux yHKua rnaemcn ndo6ho.

Onucahue duçnnej

Cepnia UL

Cepnia UQ

Cepnia UP

AHHbIe 3Haku 603MOxHO omnuaiomc om baueeo NOKyHoo muna, oHaKo ux fynkuiaaemcn nodo6ho.

Onucahue duçnpej

Cepnia NS/DE

Cepnia NT

Cepnia VQ/TE/TF/DA/DG (npomexkytohaj)/DH

AHHbIe 3Haku eoMoxHo omnuaIomc om eaue oNoknhoo muna, odhako ux fynkua Jernemc nodo6ho.

Onucahue ducnner

Cepnia VM

ycnoBne pa6oTbI

B cIeNyIOx yCIOBnX, 3aIHTHOe yCTPOJCTBO MOKeT OTKJIIOHTb N OCTaHOBTb DaHHbIKoHdNtioHep.

Harpea	Temnepatypa Bo3dya BHe NOMESEHIN BbIe 24C
	Temnepatypa Bo3dya BHe NOMESEHIN HIXe -10C
	KomHaTHa Temnepatypa BbIe 27C

ocobehnoctbpekma HEATING(HARPEBA)

Iodoapee

Ppna pa6oTe BpeXnmeHEATING(HAFPEBA),doJnxHbJxdaTb 2-5 MmhyT

Ommaeahue

Ppna pa6oTe B pexnme HEATING(HAPEBA), KOHnCIOHeP MoKET ATOMaTHueCKn Ipon3BecTN OTaunBaHne (ydaeneHne JbDa) dIra yBeJIuHcHn 3OpeKTHBHOCTN.

Данньnpоцсобуно npoюжael2-10 mHyT.B npoцсce OTaunBaHn, BeHTnIaTOp 6ydet OCTaHOBtBpauSHeHne.

Iocne 3aBepWeHnO TAnBaHn, KOHnCIOHeP aBTOMaTnueckn Bo3BpaUaet BpeKIM HEATING(HARPEBA).

BHumane: muna mawuHbi, umeoue o monbko oxnaqdouyo yHKuHO, He uemeemc haapeamelha yHKua.

PeweHue HeucnpaBocmeu

Cneyuui ciyuai He 03Hauem 6o3HukHOe Hue HeucnpaHocmeu KOduuOhepa, neped pemohm Heo6xodmo muamelbno npoeepmb.

Ecnn qaktnueckar BbICota nnI dInHa Tpy6bl npeBbIaOT yCTaHOBneHHyO cfepy B BbiyeKa3aHHo Ta6nue, MoKeTe KOHCyIbTnpOBaTb C NOCTaUHKOM.

Onucahue MOhmaKa npoodykuu

MOHTAX BHYTpeHHeMaUNHbI

1. YcmaHozumume MoHmazHyio nIumy

• Bb6epnte MeTo yCTaHOKMOHTaxHOn pINrTbI no HApBaBHeHIO Tpy6bl I MeCTy BHyTpHeHMaUNHbI.
• PndepkmbaTeOpntaHbHOCTb MOHTaXHOI NITb BaTePnACOM INBtNkAIBHOJINHHe.
  Cbeprnte cTeHy rny6Hoh 32 MM., nCIOJIb3yETcA JnKpeJIeHHa MOHTaXHOI PNTbl.
  Bctabnte nlaactmaccoby npo6ky B OTBepctne, kpeinb MOHTaxHyio pINTy pe3b6OHape3aIOIM BVHTOM.
• PpOBepnTe npOuHOCb MOHTaXHOI pNtBi. IOTOM CpeJIte dIpy6oPBOBa.

BHumae:No cpaheHIO c bIweyka3aHou cxmou, eHeuH uD eaue MOhmaxHO nnumb603MOxHO UMeem pa3HuOy, oHaKO MoHmXHbI MeoM oRnemr noo6HbIM.

BHumae: Ka nokaaHO Ha eepxHem puckyHke, ymo uecmb omeepcmu, coeymaHbIe c caMoHaepaioum BuHmam Ha MOmaxKHe naHenu Heo6xodumo 6bIMb UcnoJIb3ObaHbI dner pemohma MoMaXHo nnHenu, dpyeue nodeomoeymca.

2. Ceeplume omeepcmue dnn mpybnonpoedda.

• Mo MeCTy MOHTaXHoN PnNTbI ONpeDeJIte MeCTO OTBepCTnA DnTpy6oPBOBa.
  CbeprnteOTBepCTne.DaHHoeOTBepCTne DOJXHO 6bITb HEMHOKO BHN3 K HapyKHOuACTn.
  BCTABNTE BTVIky BOTBepCTNE CTeHbI, YTO6bl NOIDepKINBaTb YNCTOTy CTeHbI.

3. MoHmax mpy6bI bHympenHeMaunHbI

BdepnTe Tpy6y (xuikyo Tpy6y u ra30byo Tpy6y) KabeJIb BHe CteHb BTBepCTne CTehb I NOMeueHne, INI Nocne CoeINHeHm MExdy Ka6eHem N Tpy6OpoBOdom B NOMEueHn, BdepHyTb INX B OTBepCTne CTehb IB HapyKHOe MeCTo, UTO6bl CoeINHrTB HApYkHyIO MaunHy.
- No hampablenno Tpy6o npoboda cHraTb pa3rpy30Hyu qactb (cmOTpnte cneDyUOxmy)

• Pocne coeHHeHn Tpy6bl No npabnam, yctaHObntb dpehaXHy To py6y. IOTOM coeHNHTe cHIOBOI npoBOD. Pocne coeHHeHn CINOBOr npoBoa, 6MaTbBaTe Tpy6y, CINOBO INPOBOID, dpeHaXHy TO py6y BmecTe C TeNlON3OnAunOHbIM MaTePnAION.

Onucahue Mohmaka npodykuuu

Tennou30raue coedunhumeIbHO2o Mecma mpy6bl: O6matbaiTe COeHNHTelbHOE MECTO Tpy6bl TENON30JLAUHOHHBMATEPHAOM,NOTOM 6MaTaBaiTe N3OJIauHOHHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIOHIO

TENIOn3OJIaCn

06MaTaBaIe N3OJyUHHOJIeHToN3NOJXNOPBHNHa.

• Tennou30raum py6bl:

a. Пложиные денихнию трубу подтубов.
b. TENNON30JNHOHHb MaTePua NcNoB3yET NOIN3TNHeBOHy NeHy ToIuHOn 6 MM.

Bhumue:nompe6umelbcamzomoeum dpehaeknympy6y.

HeIb3a HAKNOHATb IINBbITrRnBaTb DpeHaxHyTOpy6y,nnn Norpykatab Ond Hy CTOpOHy B Bodv. Ecnn dpeHaxHaa Tpy6a Tpe6yET coeINHtB ydInHnteNbHy TOpy6y, Heo6xOIMO rapaHTnpoBaTb TeNIOUN30JUIO npn npoxOJe Upe3 BHyTpEHHO MaunHy.
Korda Tpy6a HnpanBaIeT Hanpabo, Tpy6a, CInIOBo IpoBOD n DpeHaxHna Tpy6a Tpe6yIOT TENNON3OJNIO, IN KpeINrB 3aAnHO CTOpOHy BHyTpHeH MaunHbI fKcATOpOM Tpy6bl.

Дренинаятура (notpebntenb roTOBNT)

Ba3a
ФИКСATOP trpy6bonpoBoDa

CoeINHeHne Tpy6OpPobOa:

a. CoeINHnTe TpybONpOBoD BHyTpeHNHe MaunHb DByMa raeHbIM KIOUAMN. Oco6o ydeJrB HmMaHne DoynCTHMOMy MOMHTy Cnbl, Yka3aHHOMy B CneIyUoe cxeme, UTO6bl IpeOnTbpaauTaB NOBpeKdHne Nn DeΦOpMauHIO TpybONpOBOda, coeINHeHn nnraek CoeINHnTeHbHO Tpy6bl.
b. Chayana noTgRnBaIte naIbIaMn, NOTOM 3aBnHTntb raeYHbIM KIOyOM.

Тин	Раимер трубов现代物流	Моемен син�	ШирINA гаек	Минимальни толочипа
7,8,9,10,12,14,18K	Бokobая.stорona.jждков.Tрубы(Ф6 MM.Iлл дюм 1/4)	15~20N·m	17mm	0.5mm
18K*,21,22,24,25,30K	Бokobая.storopona.jждков.Tрубы(Ф9.53 MM.Iлл дюм 3/8)	30~35N·m	22mm	0.6mm
7,8,9,10,12K	Бokobая.storopona.razobov.Tрубы(Ф9.53 MM.Iлл дюм 3/8)	30~35N·m	22mm	0.6mm
12K*,14K,18K	Бokobая.storopona.razobov.Tрубы(Ф12 MM.Iлл дюм 1/2)	50~55N·m	24mm	0.6mm
18K*,21,22,24,25,30K	Бokobая.storopona.razobov.Tрубы(Ф16 MM.Iлл дюм 5/8)	60~65N·m	27mm	0.6mm

*Tn KOHdNIOHepa12K* 60JIbwe, Yem 12K.Tn KOHdNIOHepa18K* 60JIbwe, Yem 18K.

Onucahue MOhmaKa npoodykuuu

4. CoeunHeHne Ka6eJra

BHytpenHMaunHa

3NeKtpnueckoe coeHHeHne BHyTppeHne MaunHbI 3aKnIOuAetcB TOM, yTO NO MeTOny COeHNHeHn npOBOD HApYKHO MaUNHbI OTJeJIbHo COeHNrTb 3NeKtpnpoBOc 3axmOM NaHeJy npabNHeHn.

BHHMaHHe:JnH HeKToOpbIX TINOB, Tpe6yET CHrTb KOpNyc, YTO6bl COeHNHTb C 3axHMOM BHYTpEHHei MaunHbI.

HapyxHaMaunHa

1).BbIBNHTIe BnHT n CHaTB KOxyx 3JeKTPoPpOBOkN n3 HapyXHO MaunHbI.CoEINrTb CnIOBOI npOBd C 3axHMOM naHeY npabNeHn (KaK NOKa3aHO B HnKeCneDyUOxN nyHKTx).
2).Kpenite cniloBoI npOoB B naHEnb ynpabHeHnca NOMOsbIO ka6eJIbHOr3axnma.
3).YCTaHOBtBeB BnHTaMn KOxuy 3NeKTPoPpOBoDkn B NCXODHoe NOJIOKeHne.
4).Длг.TINOB MaUNHb 24 K n Bblwe, MEXdy NITaHnem IN KOHNIOHOpeM CneDyET yCTaHOBNT bCTAHdAPTHbI BbIKNoCuTeJIb.

Heo6xOIMO yCTaHOBtB BbIKIOuAIOUe yCtpoIcTBO, KOToPOe MOKe T npABNJbHO BbIKIOUHTb BCE CINOBbie npoBObl.

BHHMaHHe:

1. Heo6xOIMO CneuaJIbHO yCTaHOBIT b OTJeIbHbIK KOHTyp nTAnHra JIOKOnuHepa.MeToJ 3NeKTpOpBOdKn CMOTpuTe 3NeKTpUeCKyO CXemy B KOKyXe 3NeKTpOpBOdKn.
   2.Диametр ka6eJrdoJIkeH COOTBETCTBOBATb npabNJAM cTahdapTa 3NeKTponNTAHnA.
   3.Поверпге Линник и rapаHTироваь пpoчhoe крpenлеленпоссе-coeINHЯкбяЯ.
   4.ДЯВlaЖнОЗ30HbHeO6XODmO yCTaHOBnTbпрьBaTeNbHa 3eMnIO.

CTaHdApT Ka6eJra

Емкость кабел (Вtu/h)	Силовий правор		Силовий правор
	Тун	Hopmanshoe посерчhoe сейесни	Тун	Hopmanshoe посерчhoe сейесни
7K~12K	H07RN-F	1.0 mm/1.5X3	H07RN-F	1.0 mm X5/1.5
7 12K*~ K*		1.0/1.5mm²X3	H07RN-FH	060Mx-5mm²X4
14K~18K	H07RN-F	1.5mm²X3	H07RN-F	1.5mm²X5
14K*~ K*18	H05VV-F	1.5/2.5mm²X3	H07RN-F	1.5mm²X4
21K~30K	H07RN-F	2.5mm²X3	H07RN-F	0.75mm²X4
	H07RN-F	2.5mm²X3	H07RN-F	2.5mm²X5
21K*~30K*		2.5mm²X3	H07RN-FH	052/5mm²X4

Ппмачанг: K' 03начael,ЧТОЗКТрОПТанг ДАнHо MОдели ИЗ BHYтpeHero 6лoka.

BHHMaHHe:

Tencelb Heo6xOJIMO 6bIb JERKOOCTyHbIM nocJe yCTaHOBKn daHHoro annapata B cnyuae Heo6xOJMOCTn ero HecoeDHeHna. EcIn HeBO3MOXHo, CoeHNHTe annapat C KOMMyTAUHOHoi

annapaTpyo n DByMa NOnIOcmN, B TOM YnCne OTdeJeHHe KOHTaKaK MHNmym 3mm² B DOCTynHom MeCTe daxe nocne yctahOBKn.

Onucahue Mohmaka npodykuuu

Cxema 3JekTpponpoBokn

FapahmupymeoHaKobuueem cuioo20 npooba u Homep 3axumoe Meky eHympeHHeu Mauhou u Hapyxho Mauhou.

Tun 7K^12K^

Tun14K* 30K*~

-Tun 7K 30K~

Длma moJIeN K*, 3neKtpOnnTaHHe coeHHeNo n3 BHyTpEHHero 6Ioka C BbIKNUOHTaTeJIeM. 3TOT rpaФNK TOnbKO dЯ cnpaBKn, ФakTNueckn TepMNHaJ YBJIeTcR peaJIbHbIM.

Onucahue MOhmaKa npodykuuu

MoHTaX HApxKHO MaunHbI

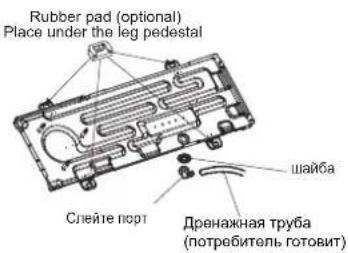

1.YctaHOBnte BbInyckHoe OTBepCTne I dpeHaxHyTo Tpy6y (TOnbko TnI TenTnIOBoro Hacoca).

Korda KOHduuHep pa6oTaET BpeXMe «HaPeBa», HapyxHa MaunHa BbIyckaet KOHdeHcauHNOHyIO BODy.

Tc06bI He MeMaTaB HopMaJIbHOJ K3Hn BaUero Coceda n 3aUuTaB OkpyKaIOUyO cpedy, cIeDyEY UCTaHOBt BByInyCKHoe OTBepCTne I dpeHaXHyTO py6y DNr TeChENKoHDeHCAUHOH BOdy. ToNkO yCTaHOBt DEpaHXHoe OTBepCTne I pe3INHOy Oa6y Dn r NOdoHa BHeuHero 6NoKA, NOTOM CoedHHte DpeHaXHy TOpy6y C OTBepCTmE, KaN oKa3aHO Ha npaBOM pncyHke.

2.YcTaHOBnTe IN KpeINrHApyKHyO MaunHy.

IpouHO yctAHOBNTe 6oTn raiKn Ha pOBHOM, npOCHOM noJy.

Ecnn Tpe6yETcYcTaHOBnTb Ha cTeHe NnHa KpbIe, Heo6xOJIMO rapaHTnpOBaT npouHoe KpenneHne onOpbl, He cNeDuYeT BO3HnKaTb TpRceHne n3-3a CnIbHoro KoJe6aHn Nn CnIbHoro Betpa.

3.CoeHHeHHe Tpy6oPbOBoHa HApXHoMaunHbI

• ChnIMTe KpbIuKy DByxxOIOBOrO KJIanaHa N TpexxoIOBOrO KJIanaHa.

• YcTaHOBJIeHHOM My MOMeHTy CINbI CoeINHrTb Tpy6OpOBoC DByXXOIOBBIM KJIanaHOM IN TPexxOIOBbIM KJIanaHOM.

• CoeDInHeHne Ka6en HapyKHO MaunHbI (CMOTpTe npdeBdyuin JnCT)

Bbinyck Bo3dyxa

OCTaTOHbI BO3dyB OXJaXdaIOSeI cIPKylqun IMeET BnaXHOCTb, MoKeT npINBOIDnB K BO3HNKHOBeHHIO HeNCpabHOCTe KOMPpeccopa. Iocne CoeINHeHMaJy BHyTpENHe MaIHHO HApJHKoMaIHOO, C NOMOuB BaKyHMOrO HAcoca BblNyCKaTb OCTaTOHbI BO3dyX N BNaXHOCTb B OXJaXdaIOSeI cIPKylqun, KaK NOKa3aHO Ha CneDyUoem pncyHke.

BHHaHHe:B cIeX 3aunbIokpykaOeI cpebl, HnIb3y nprrMo BbInyckaTb oxnaJdaOuAn areHT B aTMocfepy.lar BbInycka BO3dyxa CMOTPITe B cIeNyUoem CTpaHnue.

Onucahue MOhmaKa npodykuuu

Kak ounctntb ra30BbI Tpy6oPBOO;

(1).BbINHTe BnHT n CHMnTe KpbIshky DByXXoOBOrO KnaHa n TpeXoOBOrO KnaHa.
(2).BbIBnHTNe BnHT n CHIMnTe KpbIiKy peMOHTHO r KJanaHa.
(3). CoeHHnte pykab BakyMHO hAcOcA c peMOHTbIM KJIaTahOM.
(4).IyCTnTe BakyymHbH hAcoc n pa6oTaTb OKOIO 10~15 MUN.,BnNoTb DO TORO, KOrDa BakyM DoCTnr 10 MM.PTyTHORO CTOn6a.
(5).Пи pa6Ote BaKyyMHoro HAcOca,ЗakpoIe KhoIky Hn3KOrO DaBJIeHnB MaHnФoJbDe BaKyyMHoro HacOca.ПOTOM OCTaHOBIne BaKyyMHbI HAcOC.
(6).OTKpoTe DByxxoIOB0 Knaan Ha 1/4,chepe3 10 cek.choBa 3akpbIb erO.C nOMOuHO MbIbHOrpactbopa nn 3NEKTOPHHORO yKa3aTeJyTEUKN pOBepTb repMeTHUHOCTb COeINHeHn.
(7).BpaaaTe 2 n 3 KnaanHoro pbuara dny noJnoHocTbO 3akpbita Knaana. OTKIIOHTe ng6kn WnA H BAKyUMHO R HACoca.
(8).3 ameHnte n 3aBHTnTe KpbliKy KnaHa.

Hisense
