USER MANUAL VTM12 Eurom

Model: VTM12 & VSM16

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Fan!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Technical specification

Model	VTM12	VSM16
Connected power	220-240V / 50Hz	220-240V / 50Hz
Output capacity	35W	50W
Ø blades	12"	16"
Weight	3 kg	6,8 kg
Dimensions	25 x 33,5 x 41 cm	40 x 45 x 88 (117) cm

General safety guidelines

1. Only use an earthed socket and check (before use) that the socket you have chosen for the fan corresponds to the voltage indicated on the fan's specification plate: 220-240V / 50Hz.
2. Check fan, plug and cable for damage before use. If you discover any damage, do not use and consult a qualified person for repairs. Never open up the device or carry out repairs yourself.
3. This device is only to be used indoors.
4. First, assemble the fan fully before use.

5. Ensure that the unit is always placed on a sturdy, flat and horizontal surface during use

6. Always remove the plug from the socket before moving the fan, cleaning it or carrying out maintenance.

7. Never pull on the cord or roll and/or wind it too tightly.
8. Never touch the device with wet hands!
9. Never hang anything over the fan and do not use near curtains or other materials that could jam the motor. This could lead to overheating.
10. Never insert a finger, pen, stick or any other object through the protective grille when the fan is in use!
11. Never spray products (anti-insect, cleaning spray etc) on or into the fan; this could lead to physical illnesses (particularly in children) or damage parts.
12. Never connect the fan to a timer or dimmer.
13. Do not use the fan in the vicinity of heating units, in areas with high air humidity (bathrooms etc.) or in dusty rooms.
14. Do not use the device in the vicinity of baths, showers, basins or other receptacles that may contain water/liquids. Never immerse the device, cable or plug in liquid!
15. Do not use the fan in areas where acids, alkalis or oil are stored. These materials could cause the unit to deform or erode and lead to it functioning incorrectly.
16. Never use the fan in spaces where flammable, explosive or gaseous substances are stored. A single spark from the switch could ignite the substances!
17. This device is not suitable for use by persons (incl. Children) with a physical, sensory or mental disability or with a lack of experience and knowledge, unless supervision or responsibility for their wellbeing are present. Keep them, and also pets, away from the device.
18. Do not allow children to play with the device.

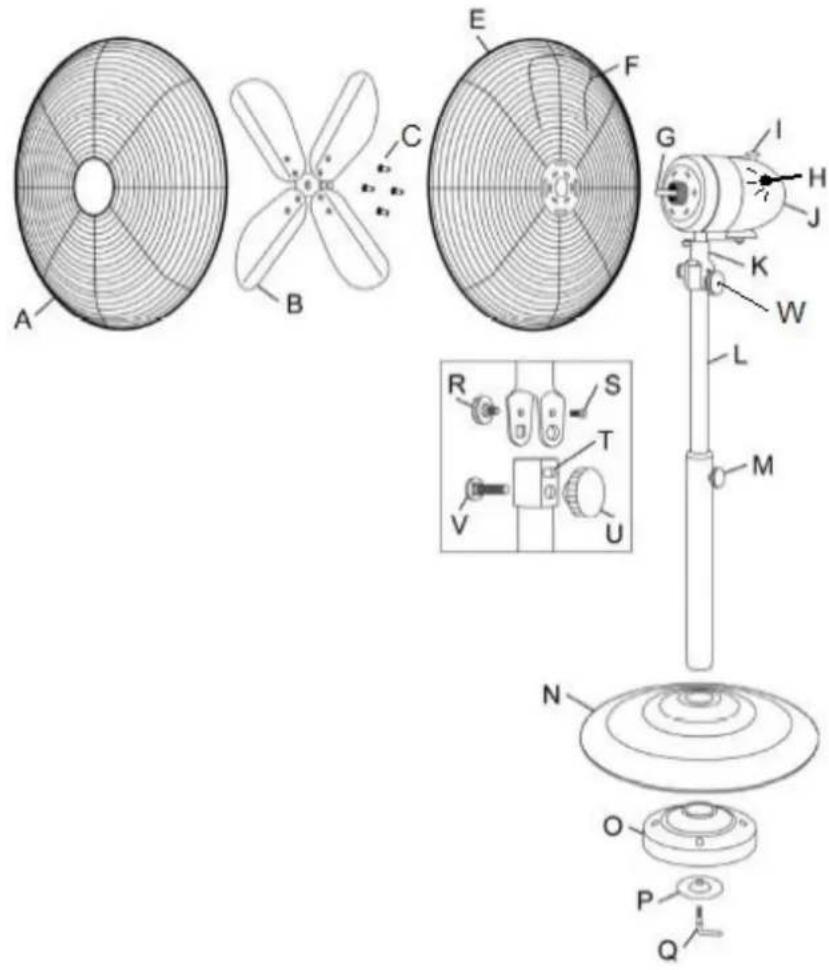

Diagram of components VSM16

A. protective grille front
B. fan turbine
C. screws protective grill back on motor casing
E. protective grille back
F. handle
G. motor axle
H. power button
I. swivel button
J. motor casing
K. fan neck
L. stand
M. height adjustment button
N. foot
O. weight
P. ring
Q. locking screw
R. locking button up/down
S. screw up/down range
T. up/down range screw hole
U. fixing button
V. carriage bolt
W. setting button

Assembly VSM16

Tools required: screwdriver (not supplied)

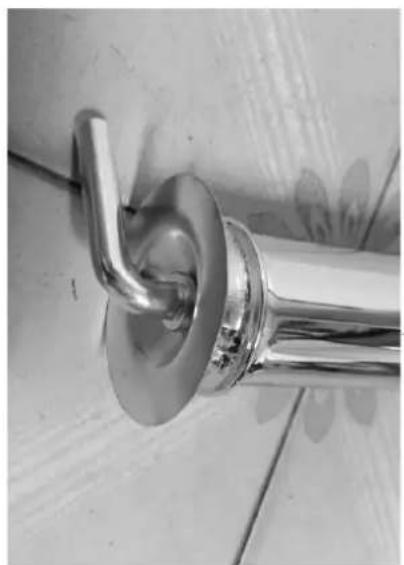

1. Remove packaging materials, keep out of reach of children and undo locking screw (Q).

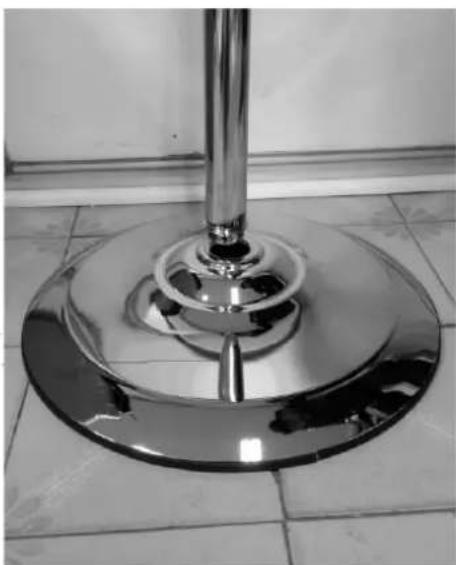

2. Allow the bottom of the stand (L) to drop into the centre of the foot (N).

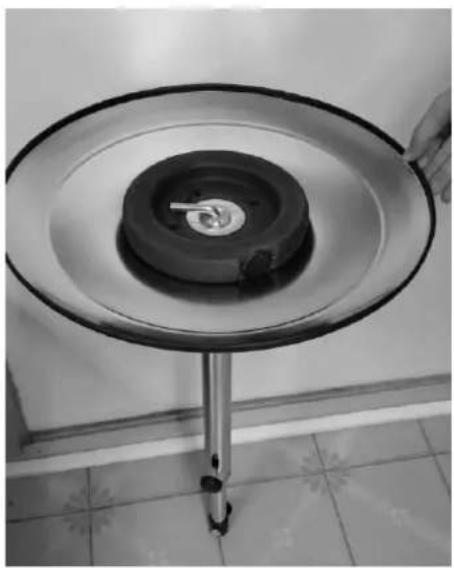

3. Place the whole object upside down and position the black weight (O) on the foot, followed by the ring (P). Insert the locking screw with the thread-end through the hole in the ring and the weight in the base of the stand. Turn clockwise to secure the stand to the foot. Attach securely! Turn the

object the right way up.

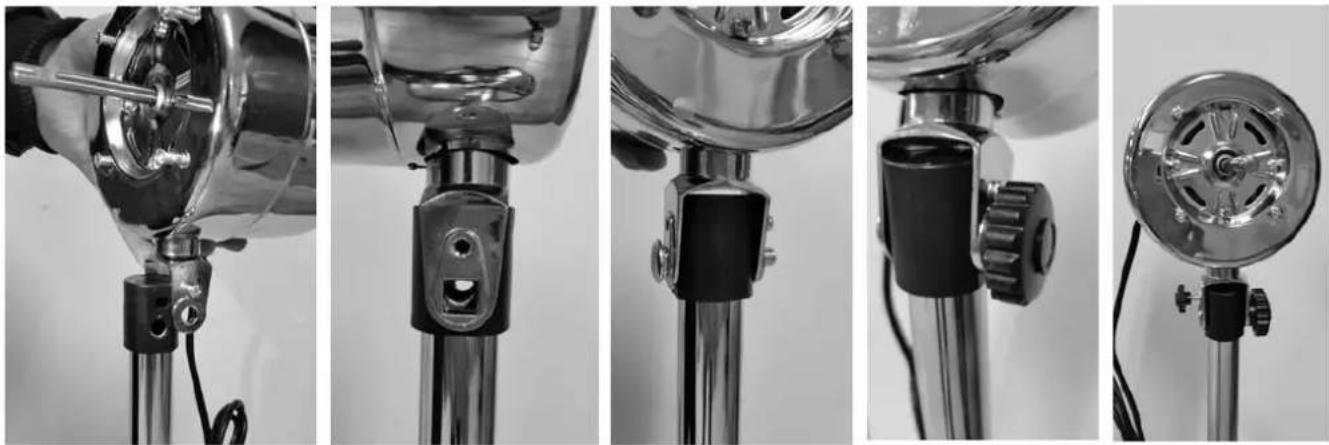

4, 5, 6. Remove the fixing screw, carriage bolt and locking button up/down (U, V & R) from the neck (K). Undo the screw up/down range (S). Allow the fan neck (K) to glide over the top of the stand so that the screw up/down range (S) ends up at the height of the up/down range screw hole (T). Insert the carriage bolt (V) into the square hole on the neck and push it through.
7, 8. Do up the screw up/down range securely in the screw hole (T) and do the same for the fixing button and the up/down button.

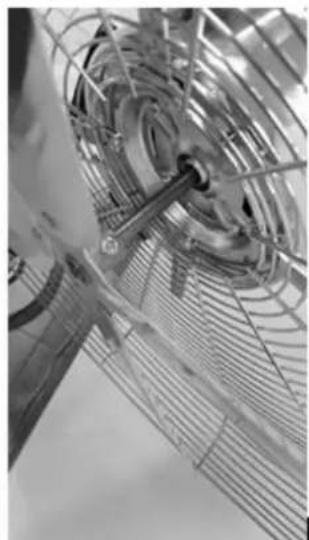

9, 10. Place the back protective grille (E), over the motor spindle (G) with the

handle at the top and secure it to the motor housing using the 4 screws (C). Undo the screw on the protruding drum on the fan turbine (B) slightly. Slide the fan turbine over the motor spindle so that the screw lies on the flattened section of the spindle (front of fan turbine same as

front of spindle). Tighten the screw.

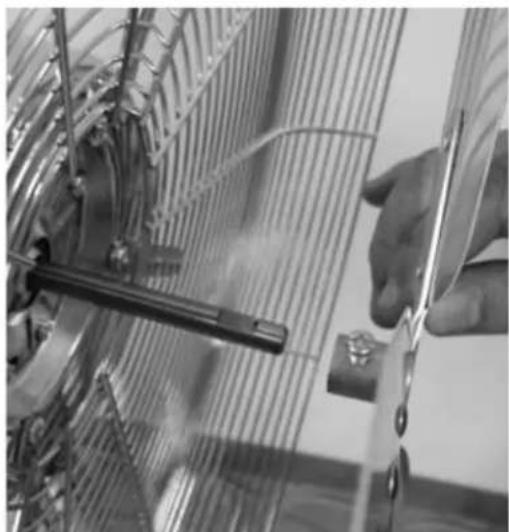

Now, place the front protective grille (A) in front of the fan turbine. To do so, remove the locking screw and bolt that secures the base unit and place the top bracket over the rear grille. Now insert the locking screw on the bottom through both halves of the grille and tighten using the bolt. Finally, secure the 2 × 2 clips on the sides over both grille halves.

1. When removing the protective cover, make sure that the on / off switch is set to 'off' (O) and the plug is removed.

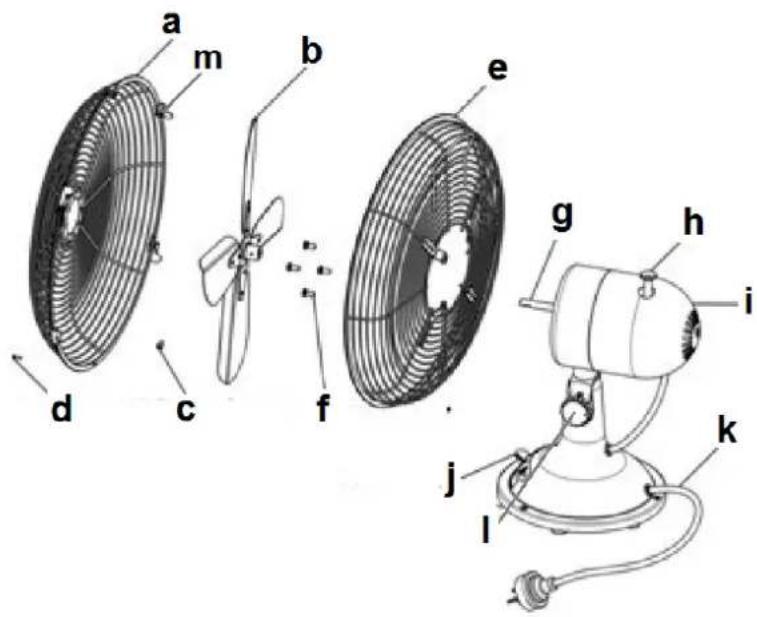

Diagram of components VTM12

a. protective grille front
b. fan turbine
c. fixing screw turbine
d. fixing screw grilles
e. protective grille back
f. screws grilles back
g. motor axle
h. swivel button
i. motor casing
j. power button
k. electrical cable
I. setting button
m.grill clip

Assembly VTM12

As VSM16 point & image 1, then continue from point & image 4 to 11.

Operation

The fans can be set to three different speeds: 0 = off , 1 = low , II = medium and III = high . Both types of fan are equipped with an oscillation function ( 45^ ).

If

• the fan has been fully assembled
• all connections have been properly secured
• all safety guidelines have been taken into account you can use the fan.
• Insert the plug into the socket.
• Choose the output using the power button: 0 = off , I = low , II = medium and III = high . The fan will now begin to work.
• If required, depress the swivel button: the fan will now begin to oscillate through an angle of 45^ . Depressing and releasing this button will turn the swivel function (or oscillation function) off.
• If you would like to angle the fan upwards or downwards, the motor block can be angled further up or down in relation to the foot. Before doing so, however, turn off the fan and remove the plug from the socket! Undo the black setting button slightly, set the fan to the desired position and tighten the button.

In order to turn the fan off, set the power button to 0 (off). If you wish to turn the device off for longer than just a few minutes, you must also remove the plug from the socket.

Cleaning and maintenance

Switch the fan off and remove the plug from the socket if you wish to clean the device or perform maintenance.

The fan only needs general, exterior maintenance. Dust it regularly with a soft cloth or duster or use a vacuum cleaner with a soft brush to clean. If it is very dirty, open the grille and clean grilles and blades using a soft, damp cloth and a mild household cleaning agent. Dry everything thoroughly and allow the fan to dry properly before reassembling and using again. Ensure that water does not come into contact with anything other than the grille and blades. Never rinse or spray the fan!

In order to prevent material discolouration or deformities, never use aggressive or corrosive (cleaning) products.

If the fan is to be stored at the end of the season, repack in its original packaging: this offers the best protection. Store it in a safe and dry place that is not subject to extremes of heat or cold.

Problems and solutions

The fan blades do not rotate even though the device is switched on

• Is the plug in the socket?
• Is there power to the socket?
• Is the button positioned on I, II or III?
• Is the blade blocked, e.g. by damage, a deformity on the grille or a foreign object?

There is strange noise when starting

• Check to ensure the blades are placed as far over the motor axle as possible.
• Check if there are any burrs around the edges of the blades.
• Check whether the blades have become deformed and are touching the protective grille.

Warning: Repairs must be carried out by qualified engineers. This also applies to replacing or repairing the electrical cable and plug. Please request original parts if the device needs to be repaired.

If the device is subjected to modifications or repairs are carried out by unqualified persons, the guarantees from the supplier, importer and manufacturer will become null and void.
