CaféBoXX - Coffee machine BEEM - Free user manual and instructions

Product type	Filter coffee machine
Brand	BEEM
Model	CaféBoXX
Serial number	CM36.001
Dimensions (L x W x H)	162 x 131 x 248 mm
Weight	1.36 kg
Power supply	220-240 V ~ 50/60 Hz
Protection class	I
Water tank capacity	420 ml (14 oz)
Maximum ground coffee capacity	23 g (5 teaspoons)
Filter type	Permanent filter (reusable)
Delivery contents	Permanent filter, filter element, filter compartment, ceramic cup, thermos cup, base
Functions	Single cup preparation, automatic shut-off, two consecutive cups
Safety	Automatic shut-off when tank empty, burn protection
Maintenance	Manual cleaning of parts, periodic descaling
Warranty	Legal warranty + manufacturer extension (HOBERG)

Frequently Asked Questions - CaféBoXX BEEM

How to use the machine for the first time?

Before first use, run the machine once without ground coffee (only water) to rinse the circuit. Discard the resulting water. Then clean the parts as described in the 'Cleaning and maintenance' chapter.

How to descale the CaféBoXX?

Fill the water tank to maximum with descaling solution. Start the brewing. When half the solution has passed, unplug the machine and let it sit for 10 minutes. Plug back in to finish the cycle. Then rinse twice with fresh water.

What to do if the machine does not turn on?

Check that the plug is inserted and the power button (7) is pressed. If the water tank is empty, the appliance turns off automatically after a few seconds. Fill the tank and try again.

What type of ground coffee to use?

Use medium-ground filter coffee. The maximum capacity is 23 g (about 5 teaspoons). Do not exceed this amount.

Can I use pods or capsules?

No, the CaféBoXX is designed for ground coffee with a permanent filter. Pods or capsules are not suitable.

How to clean the parts?

Unplug the appliance and let it cool. Clean the removable parts (filter, cup, etc.) with hot water and a mild detergent. Do not put anything in the dishwasher. Wipe the outside with a damp cloth.

Is the thermos cup insulated?

Yes, the thermos cup (5) keeps the coffee hot. Before use, remove the lid to fill the cup.

Why does the machine stop during brewing?

Automatic shut-off occurs when the cycle is complete or if the water tank is empty. If you wish to interrupt, unplug the appliance. After a few minutes, you can resume.

Can I brew two cups in a row?

Yes, after the first cup, the appliance turns off automatically. Let it cool for about 30 seconds, then refill, add coffee, and press the power button.

Where to find spare parts?

Contact HOBERG customer service or your dealer to obtain spare parts and accessories.

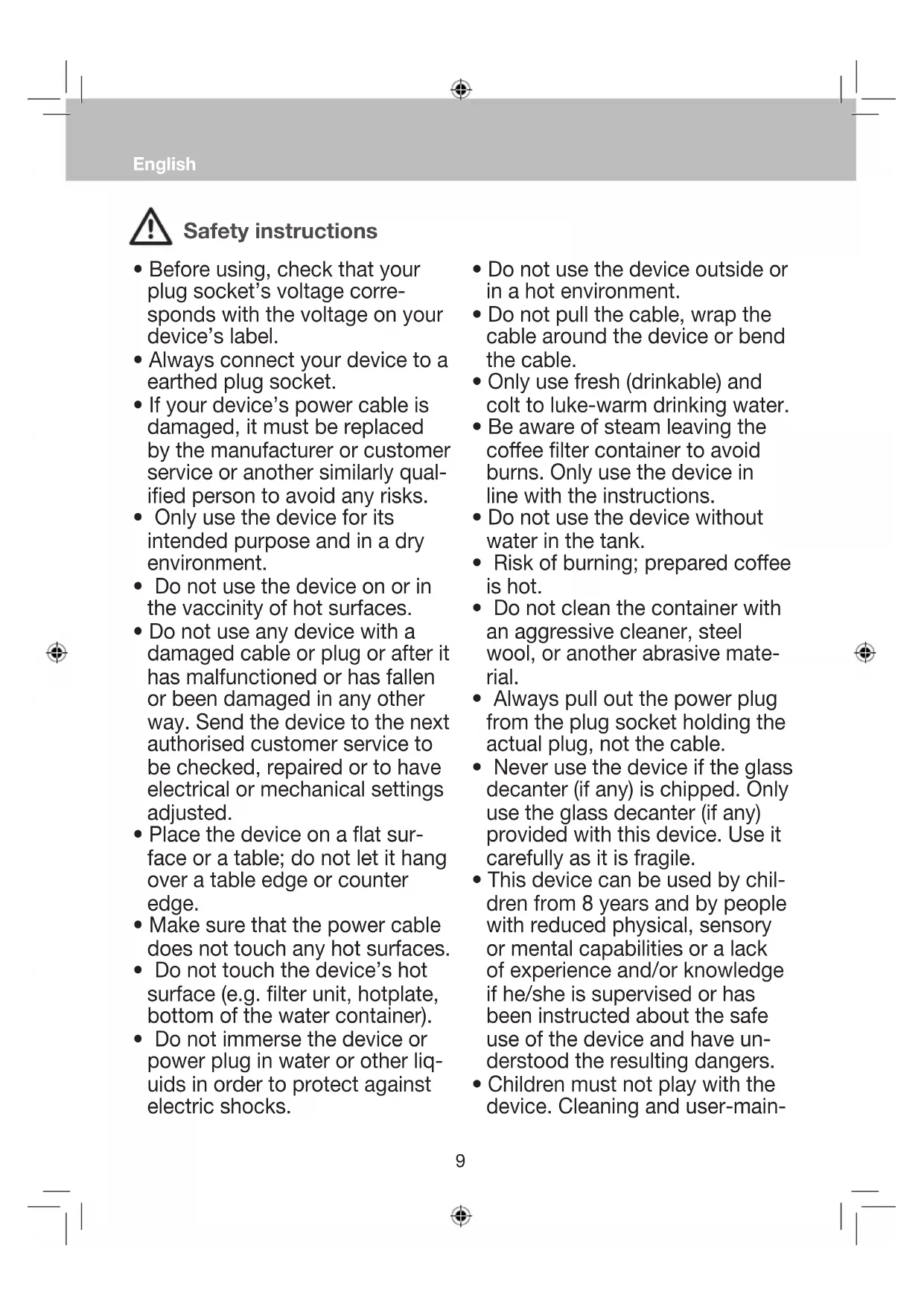

USER MANUAL CaféBoXX BEEM

• Before using, check that your plug socket's voltage corresponds with the voltage on your device's label.
  Always connect your device to a earthed plug socket.
• If your device's power cable is damaged, it must be replaced by the manufacturer or customer service or another similarly qualified person to avoid any risks.
• Only use the device for its intended purpose and in a dry environment.
• Do not use the device on or in the vaccinity of hot surfaces.
• Do not use any device with a damaged cable or plug or after it has malfunctioned or has fallen or been damaged in any other way. Send the device to the next authorised customer service to be checked, repaired or to have electrical or mechanical settings adjusted.
• Place the device on a flat surface or a table; do not let it hang over a table edge or counter edge.
• Make sure that the power cable does not touch any hot surfaces.
• Do not touch the device's hot surface (e.g. filter unit, hotplate, bottom of the water container).

• Do not immerse the device or power plug in water or other liquids in order to protect against electric shocks.

• Do not use the device outside or in a hot environment.

• Do not pull the cable, wrap the cable around the device or bend the cable.
  Only use fresh (drinkable) and colt to luke-warm drinking water.
• Be aware of steam leaving the coffee filter container to avoid burns. Only use the device in line with the instructions.
• Do not use the device without water in the tank.
• Risk of burning; prepared coffee is hot.
• Do not clean the container with an aggressive cleaner, steel wool, or another abrasive material.
• Always pull out the power plug from the plug socket holding the actual plug, not the cable.
• Never use the device if the glass decanter (if any) is chipped. Only use the glass decanter (if any) provided with this device. Use it carefully as it is fragile.
• This device can be used by children from 8 years and by people with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if he/she is supervised or has been instructed about the safe use of the device and have understood the resulting dangers.
  Children must not play with the device. Cleaning and user-main

tenance must not be carried out by children younger than 8 years without supervision.

Children younger than 8 years should be kept away from the device and the power cable.

English

Dear customer!

Congratulations on the purchase of your Café-BoXX. Please read all instructions carefully before you use the appliance, and keep the operating instructions for later use.

Table of contents

Safety instructions 9

Symbols used 11

Intended use 11

Delivery content 12

Before first Use 12

Operation 13

Cleaning and Care 15

Dscaling 15

Technical Data 15

Warranty/Guarantee 16

Limitation of Liability 16

Declaration of Conformity 16

Disposal 16

Intended Use

This appliance is intended only for making coffee. The appliance is intended for use in households or similar non-commercial areas like shops, offices, and similar work environments, in agricultural establishments, by customers in hotels, motels, and other typical residential accommodation, or in bed and breakfast accommodation. Use the appliance according to the instructions given here. Improper use can cause hazards and can void any warranty claims. Observe the safety instructions.

Symbols used

Indicates a hazardous situation that can lead to injury or material damage.

Note:

If the start button (7) was pressed before plugging in the coffee maker, the appliance will be already switched on when the power cord is plugged into a socket.

If the water tank already contains water, the appliance will start brewing. If the water tank is empty, the appliance will switch off automatically after a few seconds. The pilot lamp (8) goes out.

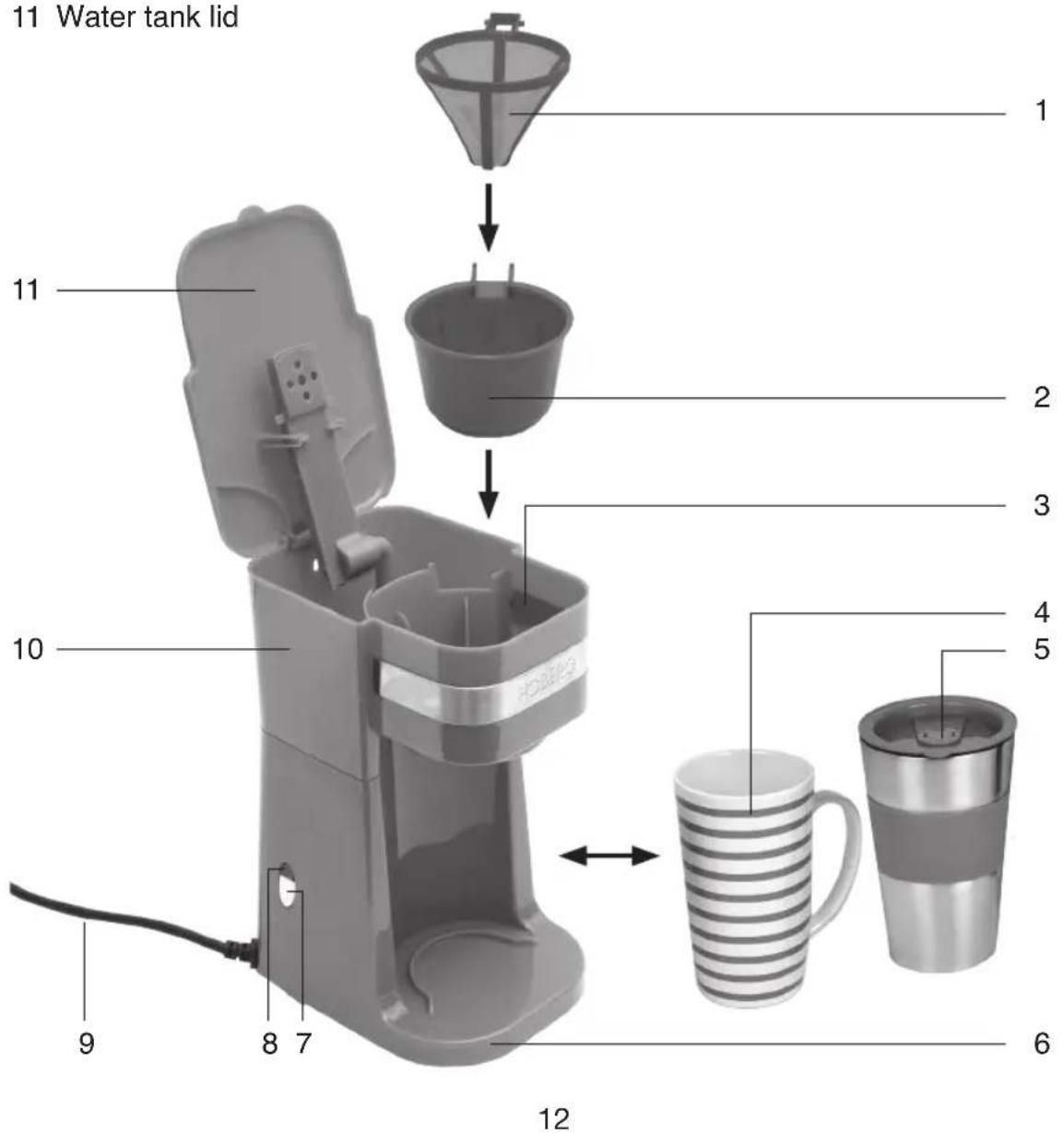

Delivery content

1 Permanent filter
2 Filter element
3 Filter chamber
4 Ceramic mug
5 Thermo mug
6 Base
7 Start button
8 Pilot lamp
9 Power cord
10 Water tank
11 Water tank lid

Before first use

Let coffee run through once. Discard the prepared coffee. Then clean the appliance as described in the chapter "Cleaning and Care".

English

Operation

Fill the required quantity of water into the water tank (10).

Close the water tank lid (11).

The max. water quantity is reached at the top level (14 oz, approx. 420 ml).

Place the ceramic mug (4) under the coffee outlet.

Fill coffee powder into the permanent filter (1), max. 23 g or approx. 5 teaspoons.

When you use the thermo cup (5), first remove the lid.

Insert the permanent filter (1) into the filter element (2).

Plug the plug into a socket.

Insert the filter element (2) into the filter chamber (3). Pay attention to the correct position.

Press the start button (7). If the start button has already been pressed, brewing starts automatically and the pilot lamp lights up.

When brewing has been completed, the appliance switches off automatically and the pilot lamp goes out.

Caution:

Do not open the lid of the water tank during the brewing process. The escaping steam can cause scalding.

Note:

• The appliance cannot be switched off with the start button (7); it switches off automatically.
• Allow all of the coffee to drip from the permanent filter into the cup before you remove the cup.
• To interrupt brewing, pull the plug from the socket. After a few minutes, you can continue brewing.

Brewing two cups of coffee in a row

After brewing the first cup, the appliance is switched off automatically.
- Let the appliance cool down for approx. 30 seconds to prevent overheating.
Prepare the second cup of coffee as described above.
- Press the start button (7) to start brewing.

Caution:

Filling water into the overheated appliance generates steam. The escaping steam can cause scalding.

Cleaning and Care Descaling

Warning:

Before cleaning, pull the plug and allow the appliance to cool down.

• Clean all removable parts with warm water and a mild detergent.
• The inserts are not suitable for cleaning in a dishwasher.
  Clean the appliance with a slightly moistened, lint-free cloth. Do not insert it into water.
  Make sure all parts are completely dry.

• Please contact our customer service for spare parts and accessories.

• Fill with water up to the max. mark with a descending solution.

• Start brewingg.
• Pull the plug after one half of the descending solution has passed through. Let the solution act for ca. 10 minutes.
• Start brewing by plugging the plug into a socket, so that the remaining descending solution can pass through.
• Allow the appliance to cool for a few minutes.
• Repeat brewing twice with fresh water.
• Clean the appliance as described above.

Technical Data

Model: Café-BoXX

Type number: CM36.001

Weight: 1.36 kg

Dimensions

(L× W× H in mm): 162× 131× 248

Rated voltage: 220 to 240 V AC, 50/60Hz

Rated power: 650 to 750 W

Protection class: I

Warranty / Guarantee

In addition to the statutory warranty obligation, HOBERG also grants an extended manufacturer's guarantee for some products. Provided this is granted, the corresponding details for each product can be found either on the productspecific packaging, advertising material or from HOBERG customer service.

Please contact your supplier if you have any questions on guarantee conditions, ordering accessories or service handling outside of Germany.

Limitation of liability

We assume no liability for damage or followup damage in the case of: Failure to observe the instructions in the user manual, use for other than the intended purpose, improper or unsuitable handling, incorrectly performed repairs, unauthorised modifications, use of non-approved parts or spare parts, use of unsuitable supplementary or accessory parts.

Declaration of conformity

HOBERG hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of directives 2004/108/ EC, 2006/95/EC, 2009/125/EC and 2011/65/EU.

Disposal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return appliance and packaging to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

(LxBxH in mm): 162 x 131 x 248

Nominate spanning: 220 tot 240 V AC, 50/60 Hz
