USER MANUAL Thermo Go BEEM

Simple black-and-white icon of a bucket inside a circle (no text or symbols)

DE

On the fold-out page you will find all the illustrations that are referred to in these operating instructions. Open up the page before reading the operating instructions.

FR

Close-up of a mechanical device with a transparent lever and fluid stream, no visible text or symbols

Close-up of a BEEM air fryer with a dark interior and metal casing (no visible text or symbols)

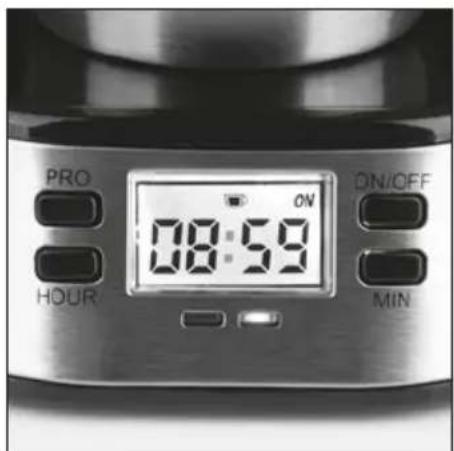

PRO ON HOUR 08:59 ON/OFF MIN

Person holding a smartphone with a BEEM thermosink cup, blurred background (no readable text or symbols)

A 1 2 BEEM 3 14 13 4 BEEM 5 6 7 12 11 08:59 810 9

B 15 17 16

Close-up of a black plastic waste bin with an arrow indicating rotational motion (no text or symbols)

D 8 OZ 10 OZ Hz

Close-up of a mechanical component with circular and rectangular features, no visible text or symbols

Close-up of a hand pressing down on a black circular object with two arrows indicating motion (no text or symbols visible)

Lieferumfang 2

Geräteübersicht 2

Information About Your Operating Instructions 17

Explanation of the Symbols 17

Explanation of the Signal Words 17

Intended Use 17

Safety Instructions 18

Before Initial Use 21

Setting Up and Connecting the Device 21

Handling and Operation 22

Time 22

Filling the Water Tank 22

Inserting the Filter 22

Preparation 23

Making Coffee with a Preset Time 23

Deactivating the Preset Time 24

Cleaning and Care 24

Descaling 24

Storage 25

Troubleshooting 25

Warranty and Limitations of Liability 27

Technical Data 27

Disposal 27

Items Supplied

• Coffee machine
• To-go-coffee-cup
• Permanent filter
• Filter insert
• Operating instructions

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove all packaging materials and any possible protective films and transport protection.

Never remove the rating plate and any possible warnings.

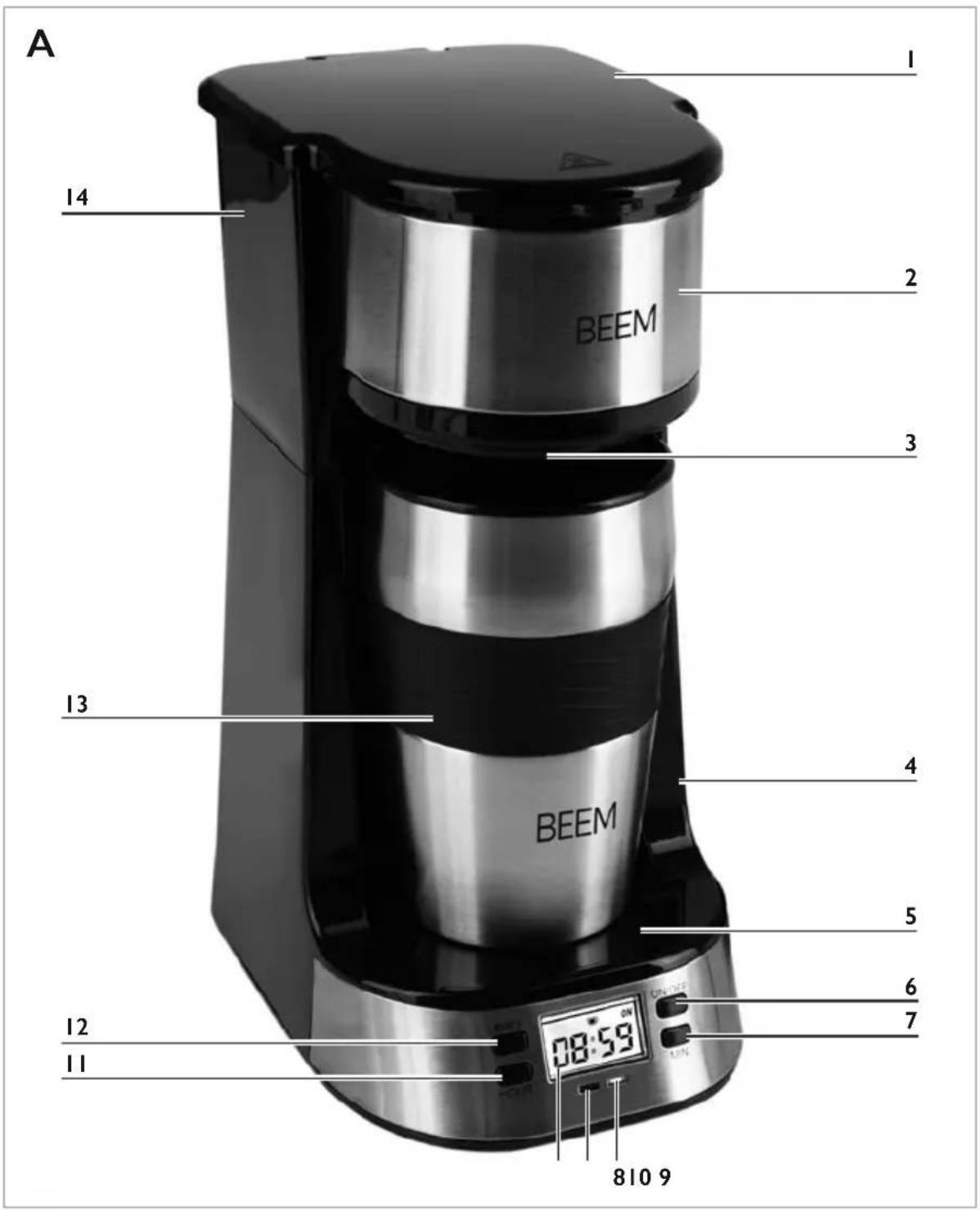

Device Overview

Key

(See fold-out page for illustrations)

I Lid
2 Filter compartment
3 Coffee outlet
4 Main unit
5 Deposit surface
6 ON / OFF button
7 MIN button (setting the minutes)
8 Red operating lamp
9 Green operating lamp
10 Display
II HOUR button (setting the hours)
12 PRO button (setting the timer)
13 To-go coffee cup
14 Water tank

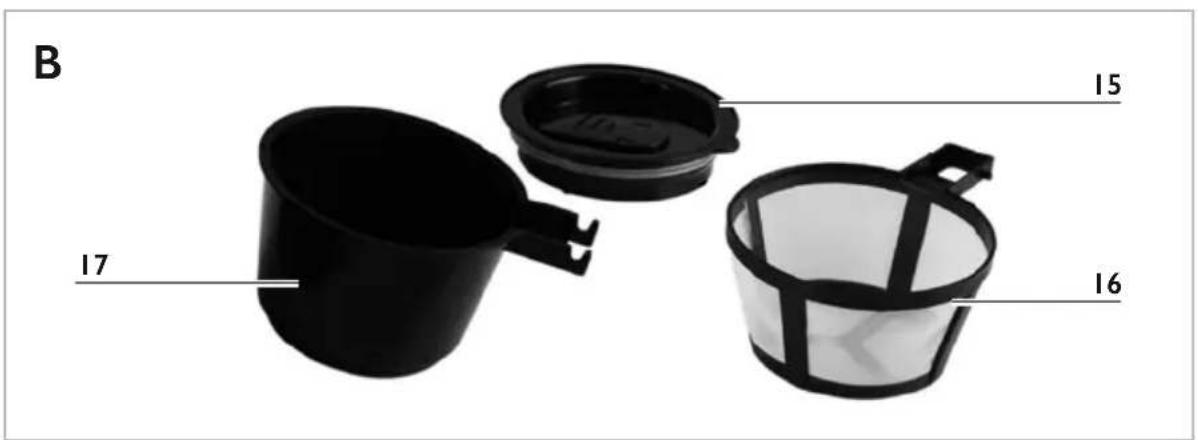

15 Cup lid with slide closure
16 Permanent filter
17 Filter insert

Congratulations!

Dear Customer,

We are delighted that you have chosen this coffee machine.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.beem.de

Information About Your Operating Instructions

Before using the device for the first time, please read through the operating instructions carefully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. The operating instructions are an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury. Read through the associated safety instructions carefully and follow them to prevent personal injury.

Supplementary information

Suitable for food use.

Beware of hot surfaces!

Read operating instructions before use!

Explanation of the Signal Words

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

CAUTION – low risk, may result in minor or moderate injury

NOTICE – may result in risk of damage to material

Intended Use

• This device is only intended to be used to make coffee using coffee powder.
• The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
• The device should only be used as described in the operating instructions. Any other use is deemed to be improper.

Safety Instructions

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  • Children must not play with the device.
• Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.
  • Children younger than 8 years of age and animals must be kept away from the device and the mains cable.

CAUTION: hot surfaces!

The device and the accessories are very hot during and shortly after use. Only touch the buttons while the device is in operation. Allow the device to cool down completely before it is cleaned.

• Never exceed the maximum fill level (approx. 420 ml). If the water tank is overfilled, the water tank or the to-go cup could overflow.
• The device is not designed to be operated with an external timer or a separate remote control system.
• Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.

• The device must always be disconnected from the mains when it is left unattended and before assembling, disassembling, filling or emptying the water tank or cleaning it.

• Do not make any modifications to the device. Do not replace the connecting cable yourself. If the device or the connecting cable of the device is damaged, it must be replaced by the manufacturer, customer service department or a specialist workshop in order to avoid any hazards.

• It is essential to follow the instructions in the “Cleaning and Care” chapter.

DANGER – Danger of Electric Shock

• Use the device only in closed rooms.
• Do not use the device in rooms with high humidity.
• Should the device fall into water, switch off the power supply immediately. Do not attempt to pull it out of the water while it is still connected to the mains power!
• Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
• Make sure that the steam which emerges is not aimed directly at electrical devices and equipment containing electrical components.

WARNING – Danger of Injury

- Keep the packaging material away from children and animals. There is a danger of suffocation!

Danger of scalding from heat, hot steam or condensation!

• Avoid coming into contact with the rising steam. Do not open the water tank lid during the brewing process.
• Be careful when removing the filter insert and the permanent filter after operating the device. There may still be hot water remaining in the filter insert and in the permanent filter! Always allow all parts to cool down first before they are removed / cleaned.
• Never pour water into the water tank when the device is switched on or during the brewing process. Allow the device to cool down before filling it again.

• Do not move the device during the brewing process.

• In the interest of your own safety, inspect the device and the connecting cable for damage each time before you use it. Use the device only if it is in working order.

• Make sure that the connecting cable does not represent a tripping hazard. The connecting cable may not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.

WARNING – Danger of Fire

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper, wood or plastic) in or on the device.
• Do not cover the device during operation.
• In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.

NOTICE – Risk of Damage to Material and Property

• The device should only be used if it has been correctly assembled! Before each use, check whether the filter insert and the permanent filter are inserted correctly and whether the water tank is filled correctly!
• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.
• Never pull or carry the device by the connecting cable. When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!
• Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
• Use only original spare parts from the manufacturer in order to guarantee that there is no interference that may prevent the product from working and to avoid possible damage.

Before Initial Use

I. Wipe the device with a clean, damp cloth. Clean the permanent filter (16), the filter insert (17) and the to-go coffee cup (13) with detergent and warm water or in the dishwasher.
2. Set up the device and connect it (see the "Setting Up and Connecting the Device" chapter).
3. Before you enjoy your first coffee, we recommend that you carry out a trial run with coffee beans to remove any possible production residues in the water system and in the grinder. To do this, follow the instructions in the “Handling and Operation” and “Preparation” chapters.

When the device is first used, production-related additives may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.

1. Repeat this process twice. Do not drink this coffee!

2. Clean the device and accessories (see the "Cleaning and Care" chapter).

Setting Up and Connecting the Device

PLEASE NOTE!

- Only connect the device to a plug socket that is properly installed and matches the technical data of the device. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.

- Lay the connecting cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).

- Do not use the device in conjunction with extension cables.

• Always set up the device with a clear space at the sides (at least 20 cm) and clear space above it (at least 30 cm) on a flat, solid and heat-resistant surface that is resistant to splashing.

- Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!

I. Place the device on the kitchen unit or another dry, clean work surface, following the safety notices and the notices provided at the beginning of this chapter.

1. Fully unwind the connecting cable and insert the mains plug into a properly installed socket that is easily accessible.

Handling and Operation

Time

As soon as the mains plug is plugged into a plug socket, the display lighting turns on and the time display 12:00 starts flashing. The clock has a 24-hour time format.

I. Set the hours by pressing the HOUR button (II).
2. Set the minutes by pressing the MIN button (7).

Hold down the respective button to run through the hours / minutes quickly.

The time is saved until a new time is set or the device has been disconnected from the power supply.

Filling the Water Tank

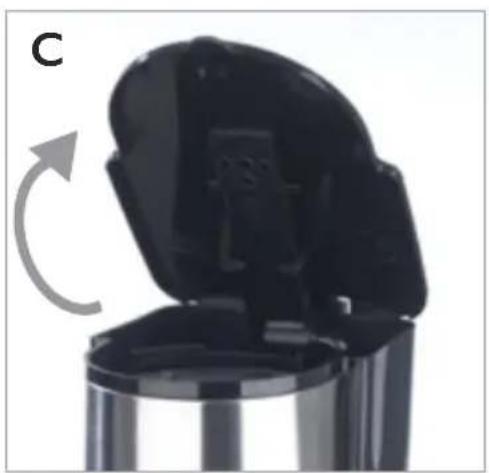

I. Open the lid (I) (Picture C).
2. Pour the quantity of water you want (min. 240 ml, max. 420 ml) into the water tank (14). Pay attention to the fill-level indicator in the water tank (Picture D)! Only ever use water to make coffee; do not pour milk or other liquids into the water tank!

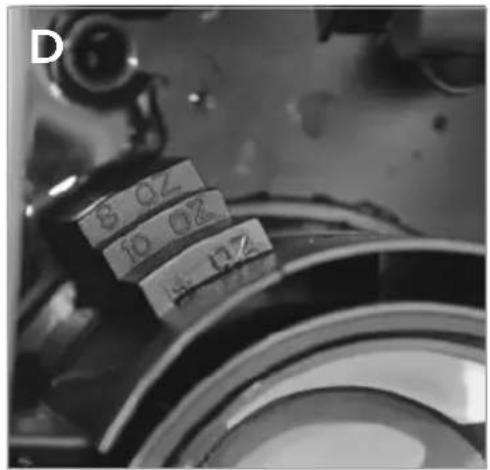

The fill-level indicator is specified in oz (ounces):

$$ 8 \mathrm{oz} = \text { approx. } 2 4 0 \mathrm{ml} (\text { minimum fill level }) $$

$$ 1 0 \mathrm{oz} = \text { a p p r o x . } 3 0 0 \mathrm{ml} $$

$$ 1 4 \mathrm{oz} = \text { approx. } 4 2 0 \mathrm{ml} (\text { maximum fill level }) $$

1. Close the lid.

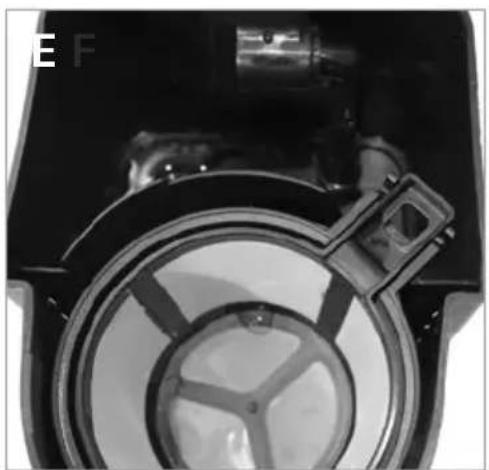

Inserting the Filter

I. Open the lid (I).
2. If you have not already done so, insert the filter insert (17) into the filter compartment (2). When you do this, make sure that the handle fits in the recess which is provided for it in the filter compartment (Picture E).
3. Insert the permanent filter (16) into the filter insert.
4. Close the lid.

Preparation

PLEASE NOTE!

• Do not operate the device without water or with less water than is required to reach the 8 oz mark (approx. 240 ml). If this does happen, the device switches off automatically. In this case, allow the device to cool down before water is poured in and the device is used again.
• Never operate the device without a suitable vessel placed below the coffee outlet.

The filled to-go coffee cup (13) must not be transported in a bag or similar carrier as it cannot be sealed so that it will not drip.

I. Fill the water tank (14) (see the “Handling and Operation” chapter – “Filling the Water Tank”).
2. Insert the filter insert (17) and the permanent filter (16) (see the “Handling and Operation” chapter – “Inserting the Filter”).

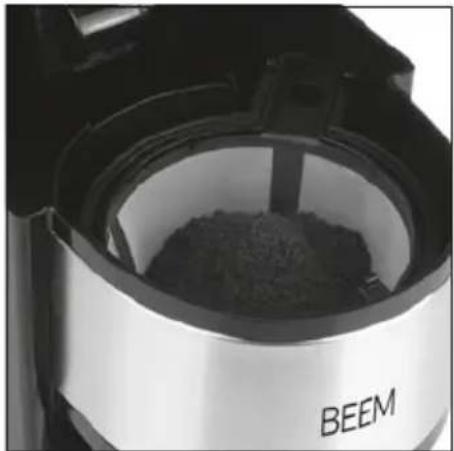

3. Pour the amount of coffee powder you want into the permanent filter using a suitable spoon. We recommend one heaped coffee measuring spoon (not supplied with the device) per 125 ml. Do not overfill the permanent filter!
4. Place the to-go coffee cup under the coffee outlet (3). Make sure that the cup lid (15) is open or not on the cup. Otherwise the coffee cannot run into the to-go coffee cup.

You can also use any other vessel as long as it can hold at least 240 ml and fits under the coffee outlet.

1. Press the ON / OFF button (6) to start the brewing process. The 🎨 and ON symbols appear on the display (10). The red operating lamp (8) flashes during the brewing process. The water is transported from the water tank through the permanent filter into the to-go coffee cup and kept warm inside it.

After the end of the brewing process, the two symbols on the display and the red operating lamp go out. The device automatically switches to stand-by mode.

If the brewing process is to be aborted prematurely, press the ON/OFF button. The device switches back to stand-by mode.

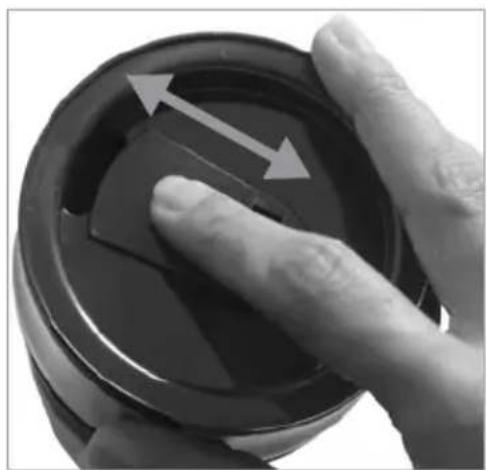

1. Take the to-go coffee cup off the deposit surface (5). Simply slide the slide closure on the lid cup forwards or backwards to open or close the drink opening (Picture F).

Making Coffee with a Preset Time

I. Prepare the coffee machine, pour in water, insert the permanent filter (16), pour in coffee powder (see the previous chapter) and place the to-go coffee cup (13) or another suitable vessel under the coffee outlet (3).
2. Press the PRO button (12). The timer time set most recently (presetting 12:00) and the PROGRAM symbol appears on the display (10).

1. Use the HOUR (II) and MIN (7) buttons to set the start time you want (see the "Handling and Operation" chapter – "Time").
2. If no other button is pressed for around 3 seconds, the preset time is activated and the PROGRAM symbol goes out and the AUTO symbol appears on the display. In addition, the green operating lamp (9) lights up.

Once the preset time is reached, the device switches on automatically. On the display the

AUTO symbol goes out and the 📋 and ON symbols appear. The green operating lamp goes out and the red operating lamp (8) flashes.

Deactivating the Preset Time

To deactivate the preset time which is set again, hold down the PRO button (12) for approx. 5 seconds until the AUTO symbol goes out on the display. The green operating lamp (9) goes out and the programming is deactivated. However, the preset time is saved until a new time is programmed in or the device has been disconnected from the power supply.

The previously set time can be reactivated by pressing the PRO button.

Cleaning and Care

PLEASE NOTE!

- Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the device. These can damage the surface.

I. Clean the permanent filter (16), the filter insert (17) and the to-go coffee cup (13, 15) after every use with mild detergent and warm water or in the dishwasher.
2. Wipe out and wipe down the housing with a damp cloth. If necessary, use a little detergent to remove more intense soiling.
3. Check the connecting cable regularly for any damage.

Descaling

Limescale deposits have an adverse effect not only on the quality of the coffee, but they also cause power losses and shorten the lifespan of the device. The thicker a limescale layer is, the more difficult it is to remove.

We therefore recommend regularly removing limescale deposits with a descaling agent in accordance with the water quality in your area and how often the device is used (approx. every 2 – 6 weeks). The first indications that descaling is required are a large amount of steam being produced and slower brewing of the coffee.

Storage

Disconnect the device from the mains power when it is not going to be used for a prolonged period. Clean the device again if necessary (see the “Cleaning and Care” chapter) and let it dry completely.

Store the device and all accessories in a dry, clean, frost-free place that is protected from direct sunlight and cannot be accessed by children or animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair a electrical device yourself!

Problem Possible cause Fix
Nothing is shown on the display (10).	Is the mains plug inserted in the plug socket correctly?	Insert the mains plug.
	Is the plug socket defective?No mains voltage is present.	Try another plug socket.Check the fuse of the mains connection.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
Water runs out of the device.	Is there too much water in the water tank (14)?	Do not overfill the water tank!
The coffee runs very slowly out of the coffee outlet (3).	The coffee outlet is clogged. Clean	the coffee outlet.
	The device is scale-encrusted.	Scale the device.
The coffee is too weak.	There is too much water in the water tank (14).	Only pour the quantity of water required for the number of cups you want into the water tank
	There is not enough coffee powder in the permanent filter (16).	Pour the quantity of coffee required for the number of cups you want into the filter.
The coffee does not taste very good.	The device needs to be cleaned.	Clean the device.
	The coffee powder has been too finely or too coarsely ground (in a coffee mill).	Adjust the grinding fineness of the coffee (or have it adjusted) if necessary or choose another coffee powder.
	The coffee/water mixture is not ideal.	Adjust the mixture to your own individual taste.
	The water quality is not good.	Check the water quality and filter the water if necessary.
The device switches off during the brewing process.	There is no longer any water in the water tank.	Pour water into the water tank.
A large amount of steam is produced in the brewing process.	The device is scale-encrusted.	Descale the device.
During use, an unpleasant smell is detected.	The device is being used for the first time.	A smell often develops when new devices are first used. The smell should disappear once the device has been used several times.
	Has the device just been descaled?	Rinse out the device with clear water.
The device does not start the brewing process at the set timer time.	The power supply has been cut in between times.	As soon as the power supply is cut, all settings (time, timer) are cancelled.

Warranty and Limitations of Liability

The warranty excludes any defects caused by improper use, calcification, damage or repair attempts. This also applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• Failure to follow the operating instructions
  • Non-designated use
• Improper or unsuitable handling
  • Repairs which are not carried out properly
• Unauthorised modifications
• Use of outside parts or spare parts
• Use of unsuitable additional parts or accessories

Keep the original packaging during the warranty period of the product so that the product can be properly repacked if it needs to be returned. The warranty claim will lapse if any damage is caused during transport.

Technical Data

Article number: 03510

Model number: CM-119A

Voltage supply: 220 – 240 V \~ 50 Hz

Power: 650 – 750 W

Protection class: I

Capacity

-Water tank 240 to 420 ml

- To-go coffee cup: max. 420 ml

ID instruction manual: Z 03510 M BE V5 0721 uh

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

All rights reserved

Composition 29
