USER MANUAL Espresso Grind Profession BEEM

Exterior view of a modern BEEM coffee maker with dual cups (no visible text or symbols)

ESPRESSO-GRIND-PROFESSION

02012

Gebrauchsanleitung

Operating instructions

Mode d'emploi

QR code image containing encoded data, no visible human-readable text

Enjoy intense coffee and tea moments – Discover a variety of preparation methods and experience a special array of flavours with BEEM.

Close-up of a coffee cup with a saucer filled with orange coffee, placed on a saucer (no text or symbols visible)

Close-up of hands pouring light from a cup into a white bowl containing a soft, spiral-shaped swirl (no text or symbols visible)

Three glasses of light-colored beverage on a wooden surface (no text or symbols visible)

DEUTSCH 4

ENGLISH 32

FRANÇAIS 60

ESPAÑOL 89

ITALIANO 117

KUNDENSERVICE / IMPORTEUR

CUSTOMER SERVICE / IMPORTER

SERVICE APRÈS-VENTE / IMPORTATEUR

Close-up of a hand pressing a cylindrical object on a black stove burner (no visible text or symbols)

Close-up of a coffee maker's espresso machine with a wooden mixer and black handle (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand using a black espresso machine to press or adjust its product (no visible text or symbols)

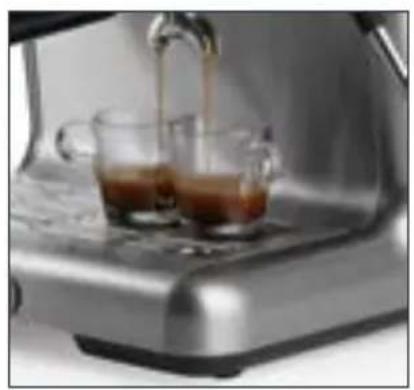

Close-up of a glass coffee machine with two cups pouring brown liquid, no visible text or symbols

Close-up of a hand pouring milk from a glass pitcher into a metal kettle on a stainless steel tray (no text or symbols visible)

8 Lieferumfang

8 Geräteübersicht

Exploded view diagram of a coffee maker with numbered parts for identification

B

22 23 24 25 POWER ISO RANGE PRESSURE CLEAN DISCU STEAM RET WATER 30 2628 2729

C

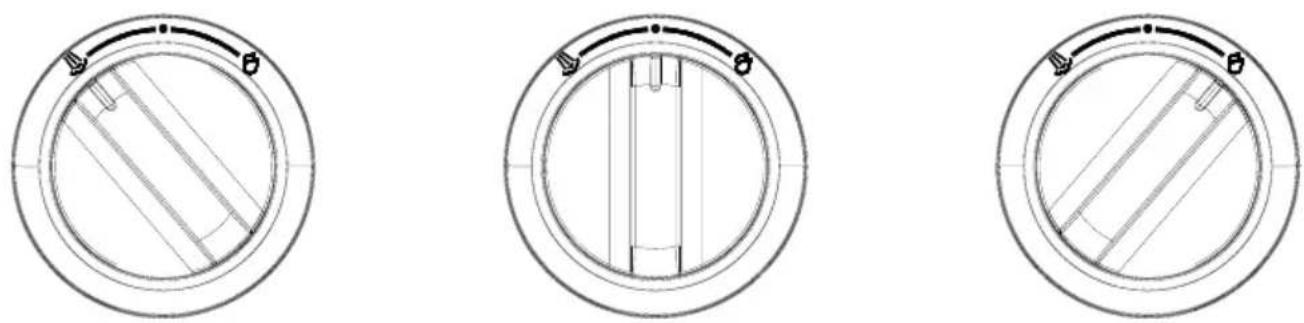

Three circular diagrams showing internal structural components with arrows and dimension lines (no text or symbols)

D

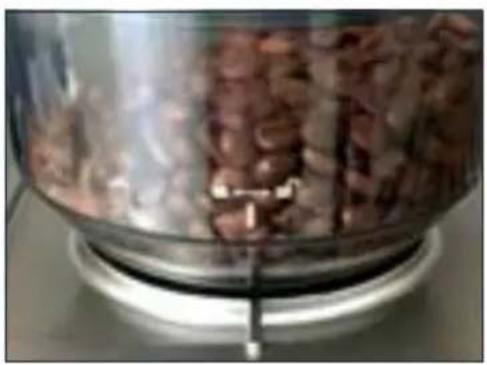

Close-up of a glass beaker containing a metal measuring scale with brown granular substance, placed on a stand (no visible text or symbols)

E

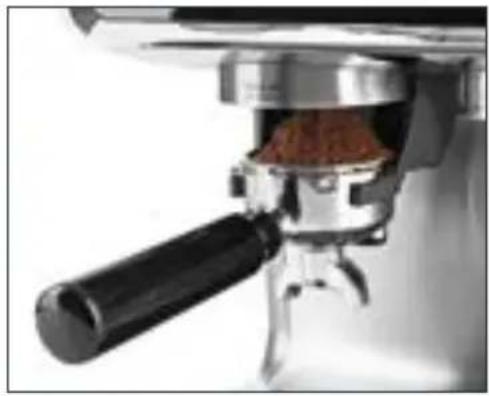

Close-up of a coffee maker's griddle with a wooden handle and spout (no visible text or symbols)

F

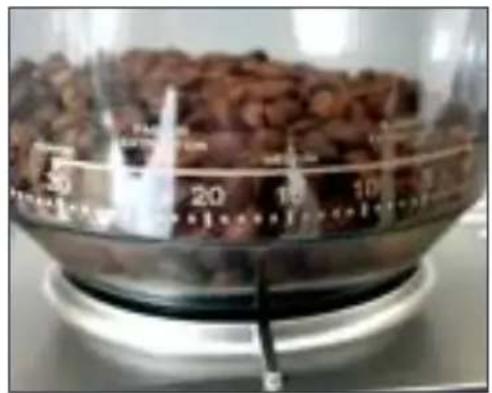

Close-up of a glass bowl containing a container filled with red beans, placed on a stand (no visible text or symbols)

G

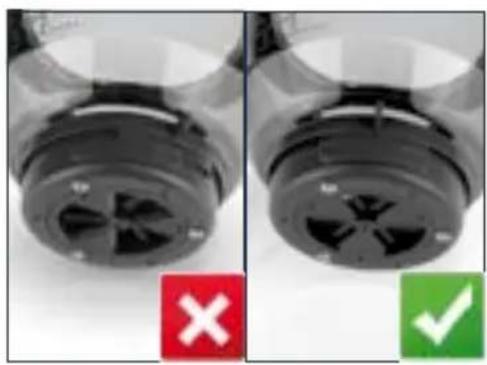

Close-up of a mechanical component with two views: one showing a circular opening and the other showing a crosshair (no text or symbols)

Lieferumfang

Bottle of clear liquid with red cap (no visible text or symbols)

White rectangular product packaging with a small black square top and printed label (no visible text or symbols on the packaging itself)

BEEM Premium Reinigungstabletten

Cleaning tablets

Hand placing a glass pot on a black stove burner (no visible text or symbols)

Close-up of a coffee maker's grache and lever mechanism (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand using a black espresso machine with a pressure gauge and lever handle (no visible text or symbols)

Close-up of a glass coffee machine with two cups pouring liquid, no visible text or symbols

Close-up of a hand pouring milk from a metallic kettle into a small container (no text or symbols visible)

36 Items Supplied

36 Device Overview

37 Information About Your Operating Instructions

37 Intended Use

38 Safety Notices

41 Before Initial Use

41 Setting Up and Connecting the Device

42 Operation and Functions

42 Operating Fields

42 Control Lamps

42 Steam Power Control

43 Hotplate

43 Programming Your Own Settings

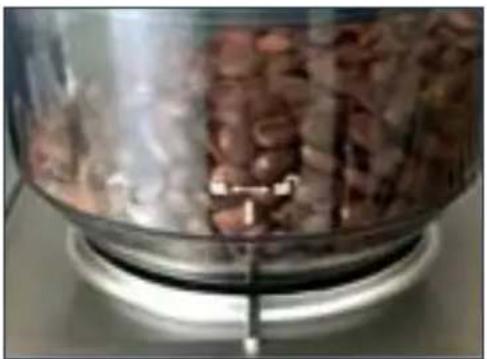

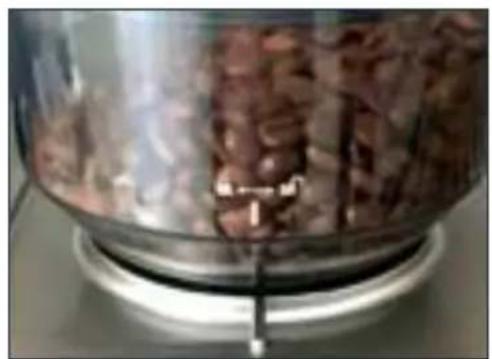

43 Setting the Grinding Fineness

43 Setting the Quantity of Espresso Powder

44 Setting the Water Quantity

44 Setting the Water Temperature

45 Preparation

45 Inserting / Removing the Drip Tray

45 Filling the Water Tank

45 Adding Espresso Beans

46 Inserting / Removing the Sieve Insert

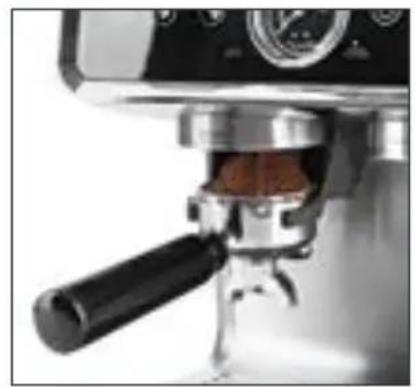

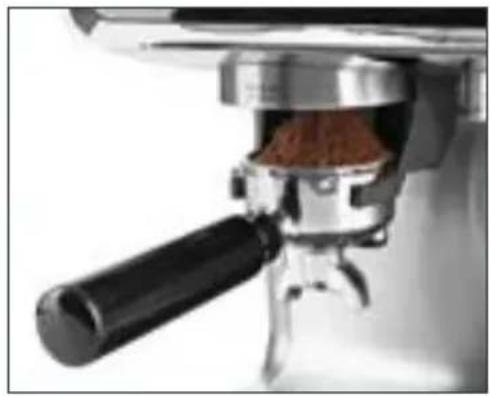

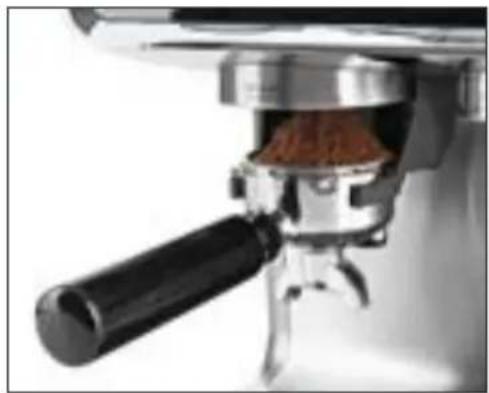

46 Filling the Portafilter

46 Inserting the Portafilter into the Device

46 Removing the Portafilter from the Device

47 Emptying the Sieve Insert

47 Tips

48 Preparation

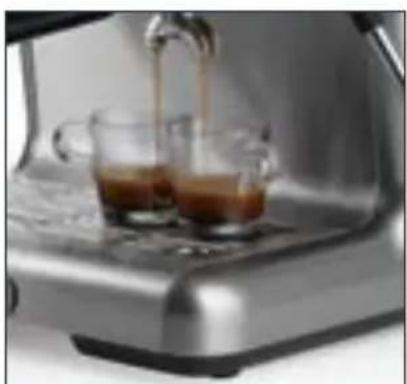

48 Making Espresso

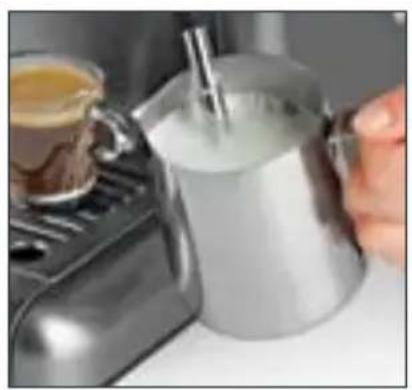

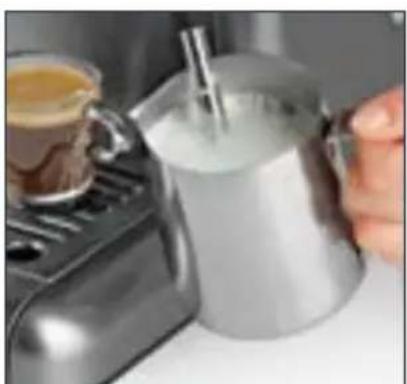

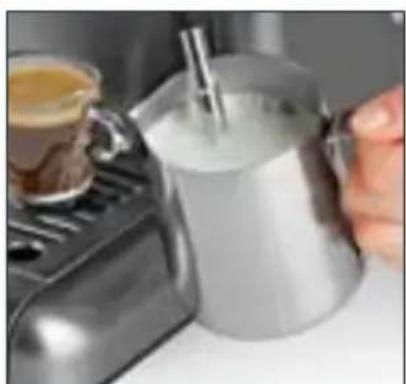

48 Preparing Milk Froth

49 Dispensing Hot Water

50 Recipes for Speciality Coffees

50 Cappuccino

50 Latte Macchiato

51 Caffè Americano

51 Cleaning and Care

51 Cleaning the Steam Nozzle

52 Cleaning the Grinder

53 Descaling

54 Storage

54 Troubleshooting

57 Warranty and Limitations of Liability

58 Technical Data

58 Disposal

A

Exploded view diagram of a coffee maker with numbered parts for identification

B

22 23 24 25 30 2628 2729 PRESSO RANGE PREASURE CLEAN DECALE STEAM RET WATER

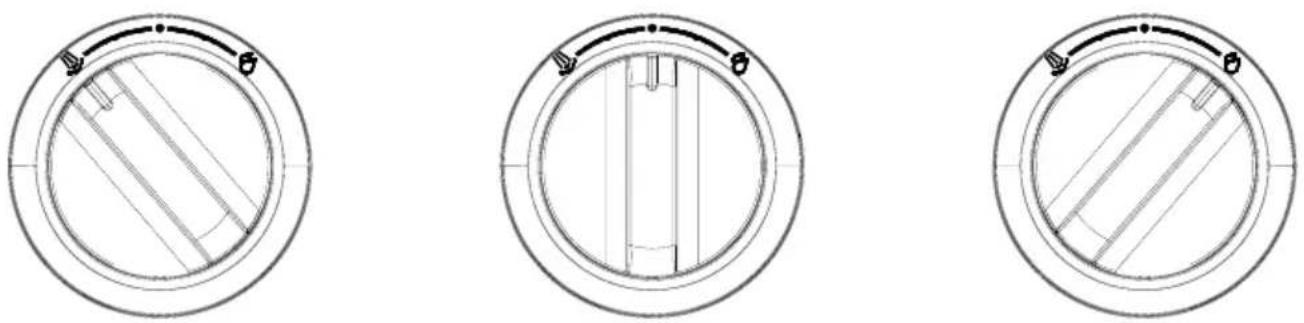

C

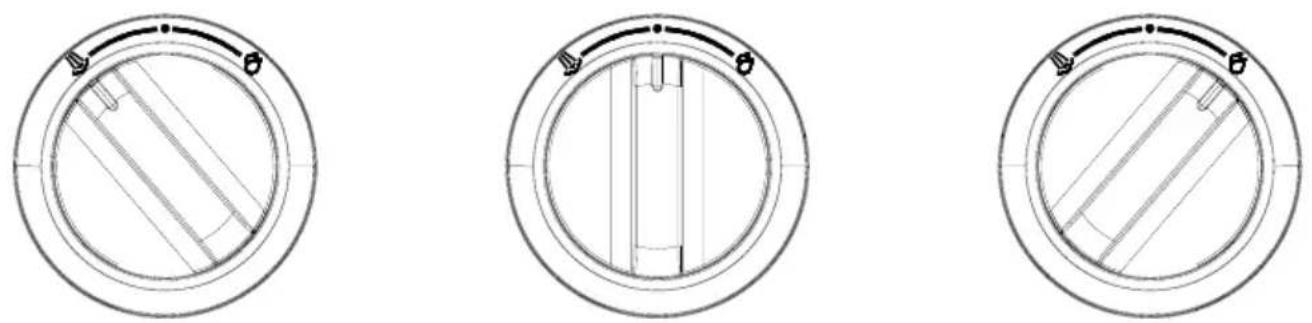

Three circular diagrams showing internal structural components with diagonal lines and arrows, no text or symbols present.

D

Close-up of a glass beaker containing a bowl of brown granular substance, with a pressure scale visible (no text or symbols on the beaker itself)

E

Close-up of a coffee maker's griddle with a wooden handle and spout (no visible text or symbols)

F

Close-up of a glass bowl containing a container with brown granular substance, placed on a stand (no visible text or symbols)

G

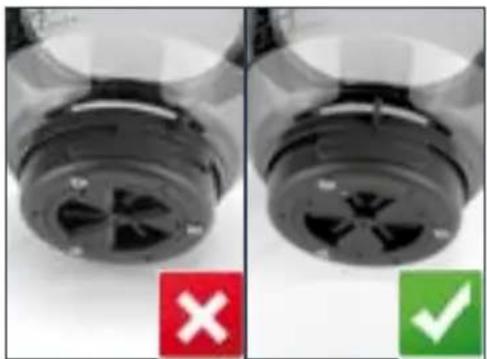

Close-up of a black plastic bottle with circular opening, showing two views (red and green) with checkmark indicators below (no text or symbols on the bottle itself)

Items Supplied

• Main device
  • Water tank with lid
• Bean container with lid
• Drip tray
• Storage plate
• Portafilter

• Large sieve insert for coffee powder for preparing 2 cups of espresso or 1 cup of double espresso

• Small sieve insert for coffee powder for preparing 1 cup of espresso or 1 small cup of coffee

• Cleaning brush
• Cleaning needle
• Small milk jug

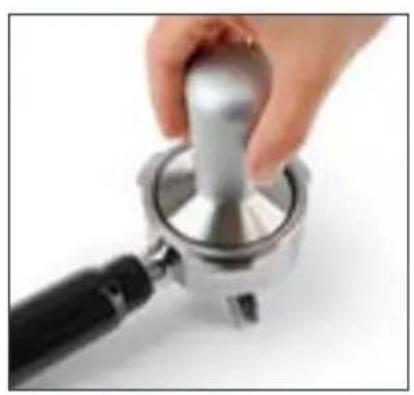

• Tamper
• Operating instructions

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove all packaging materials and any possible protective films and transport protection.

Never remove the rating plate and any possible warnings.

Device Overview

Key

(See first pages for illustrations)

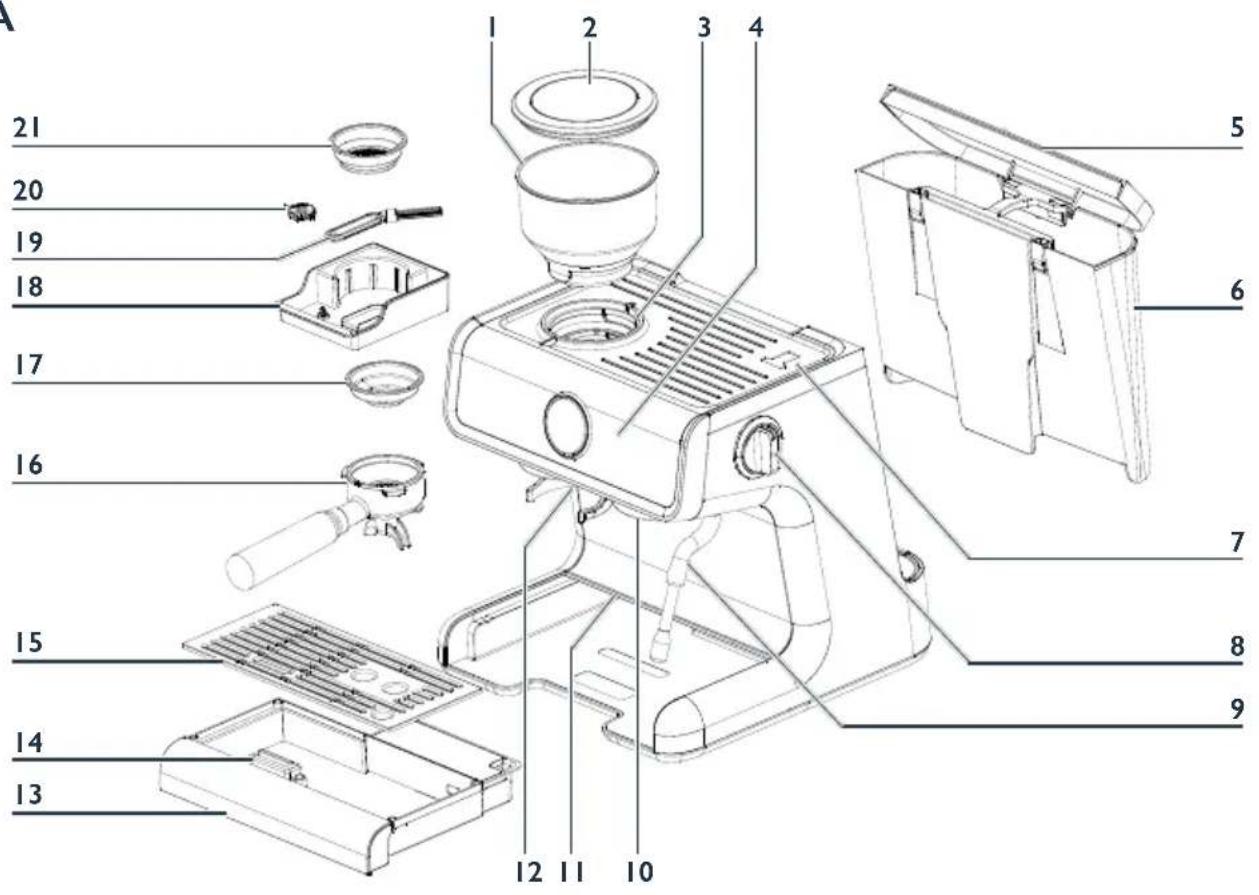

Picture A – Device and Accessories

I Bean container
2 Lid of bean container
3 Grinder
4 Operating field
5 Water tank lid
6 Water tank
7 Hotplate with tamper store
8 Steam power control (steam / hot water)
9 Steam nozzle
10 Portafilter mount
II Compartment for drawer for cleaning utensils
12 Coffee powder outlet
13 Drip tray
14 Float gauge
15 Storage plate
16 Portafilter

17 Single sieve insert
18 Drawer for cleaning utensils
19 Cleaning brush
20 Cleaning needle
21 Double sieve insert

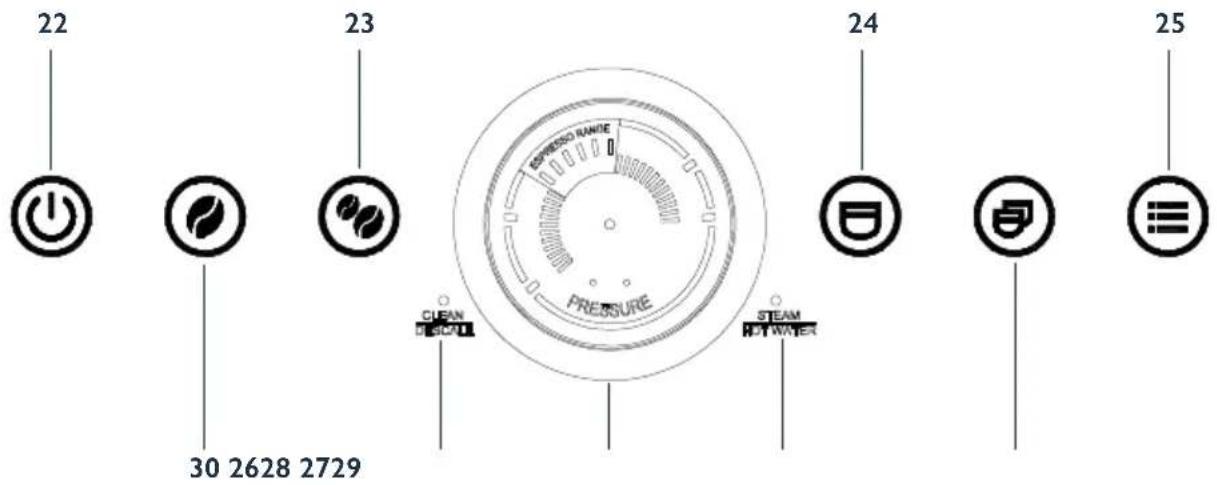

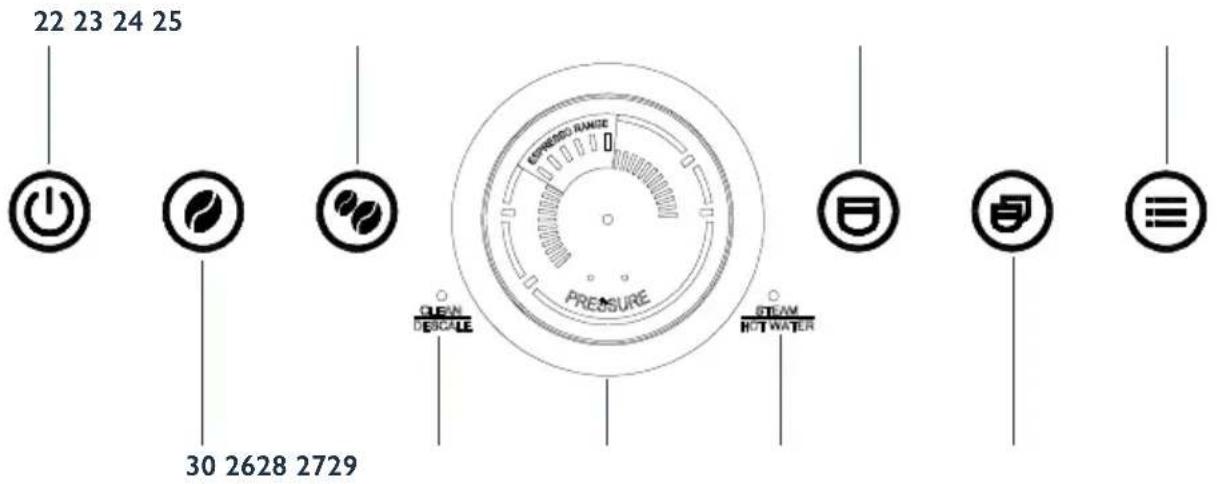

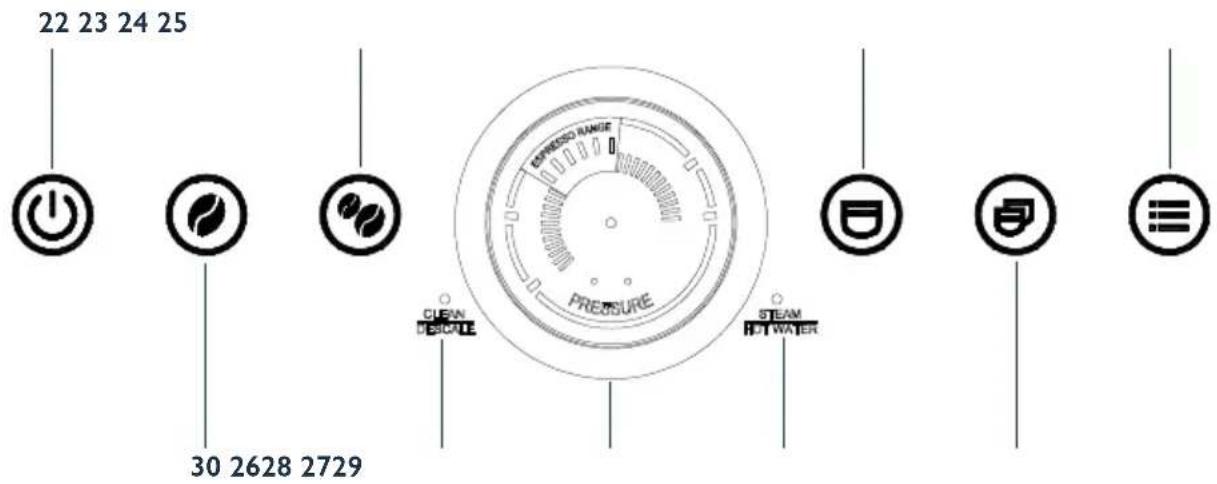

Picture B – Operating field

22 Field ⏻ - On / Off switch
23 Field 🎨 – Double espresso grinding mode
24 Field ☐ – Single espresso brewing mode
25 Field ≡ – Settings
26 Field ☐ – Double espresso brewing mode
27 STEAM / HOT WATER – Operating temperature reached control lamp
28 Pressure display
29 CLEAN / DESCALE – Descale control lamp
30 Field 📋 – Single espresso grinding mode

Congratulations!

Dear Customer,

We are delighted that you have chosen this espresso portafilter machine with grinder.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.beem.de

Information About Your Operating Instructions

Before using the device for the first time, please read through the operating instructions carefully and keep them for future reference. If the device is given to someone else, it should always be accompanied by these operating instructions. The operating instructions are an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

Symbols

Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fire). Read through the associated safety notices carefully and follow them.

Supplementary information

Beware of hot surfaces!

Suitable for use with food.

Read the operating instructions before use!

Signal Words

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

CAUTION – low risk, may result in minor or moderate injury

NOTICE – may result in risk of damage to material

Intended Use

• This device is intended to be used to make espresso using espresso beans. It can also be used to make milk froth.
• The device is for personal use only and is not intended for commercial or domestic-like applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
• The device should only be used as described in the operating instructions. Any other use is deemed to be improper.

Safety Notices

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device.

Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  • Children must not play with the device.
• Cleaning and user maintenance must not be carried out by children, unless they are older than 8 years of age and are supervised.
  • Children younger than 8 years of age and animals must be kept away from the device and the connecting cable.

CAUTION: hot surfaces!

The device and the accessories are very hot during and shortly after use. Only the handles, controls and operating fields may be touched while the device is in operation or immediately after it is switched off. Allow the device to cool down completely before it is cleaned.

• Never exceed the maximum fill level (note the MAX marking). If the water tank is overfilled, it could overflow.
• The device is not designed to be operated with an external timer or a separate remote control system.

• Never immerse the device and the connecting cable in water or other liquids and ensure that these components cannot fall into water or become wet.

• The device must always be disconnected from the mains power when it is left unattended and before assembling, disassembling or cleaning the device.

• Do not make any modifications to the device. Do not replace the connecting cable yourself. If the device or the connecting cable of the device are damaged, they must be replaced by the manufacturer, customer service department or authorised distributors in order to avoid any hazards.
• It is essential to follow the instructions in the “Cleaning and Care” chapter.

DANGER – Danger of Electric Shock

• Use the device only in closed rooms.
• Do not use the device in rooms with high humidity.
• If the device falls into water while it is connected to the mains power, switch off the power supply immediately! Only after this should you pull the device out of the water.
• Never touch the device and the connecting cable with wet hands when these components are connected to the mains power.

WARNING – Danger of Injury

- Keep the packaging material away from children and animals. There is a danger of suffocation!

Danger of scalding from heat, hot steam or condensation!

• Avoid coming into contact with the rising steam. Do not open the water tank lid during the brewing process.
• Do not take out the portafilter during the brewing process. The portafilter will become hot during use.
• Do not touch the steam nozzle after use. It gets hot when steam or hot water is emitted.
• Be careful when removing the portafilter after operating the device. There may still be hot water remaining in / on the portafilter!

• Allow the portafilter to cool down before it is emptied.

• Never pour water into the water tank when the device is switched on or during the brewing process. Allow the device to cool down before filling it again.

• Do not move the device during the brewing process.

• Keep items of clothing such as scarves, shawls, jewellery, ties and long hair away from the bean container and the grinder shaft.

• Do not reach into the bean compartment and the grinder shaft and do not insert any objects when the device is in operation!
• In the interest of your own safety, inspect the device and the connecting cable for damage each time before you use it. Use the device only if it is in working order.
• Make sure that the connecting cable does not present a trip hazard. The connecting cable should not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.

WARNING – Danger of Fire

• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
• Make sure that the steam which emerges does not come into contact with electrical devices and equipment containing electrical components.
• Do not operate the device in the vicinity of combustible materials. Do not place any combustible materials (e.g. cardboard, paper, wood or plastic) in or on the device.
• Do not cover the device during operation.

NOTICE – Risk of Damage to Material and Property

• The device should only be used if it has been correctly assembled! Before each use, check whether the bean container, portafilter and water tank are inserted correctly!
• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.
• When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!
• Never pull or carry the device by the connecting cable.
• Protect the device from other heat sources, fire, sub-zero temperatures, persistent moisture and impacts.
• Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.

Before Initial Use

I. Wipe the device with a clean, damp cloth. Clean all accessories with a little detergent and clear water.
2. When the device is delivered, the water pipe is fitted with transport protection that needs to be removed. Pull the water tank (6) vertically up out of the device. On the water feed on the device there is an orange plug – pull it out. The water tank can now be filled and inserted into the device.
3. Set up the device and connect it (see the "Setting Up and Connecting the Device" chapter).
4. Before you enjoy your first espresso or coffee, we recommend that you carry out a trial run with espresso beans to remove any possible production residues in the grinder and in the water system. To do this, follow the instructions in the “Operation and Functions” and “Preparation” chapters.

When the device is first used, production-related additives may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.

1. Repeat this process twice. Do not drink this espresso!
2. Clean the device and accessories (see the "Cleaning and Care" chapter).

Setting Up and Connecting the Device

PLEASE NOTE!

• Only connect the device to a plug socket that is properly installed. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the technical data of the device.
• Lay the connecting cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).
• Do not use the device in conjunction with extension cables.
• Always set up the device with a clear space at the sides (at least 20 cm) and clear space above it (at least 29 cm) on a flat, solid and heat-resistant surface that is resistant to splashing.
• Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!

I. Place the device on the kitchen unit or another dry, clean work surface, following the safety notices and the notices provided at the beginning of this chapter.
2. Plug the mains plug into a plug socket. The field ⏻ (22) flashes. The device is in standby mode.

Operation and Functions

Operating Fields

The device has six operating fields:

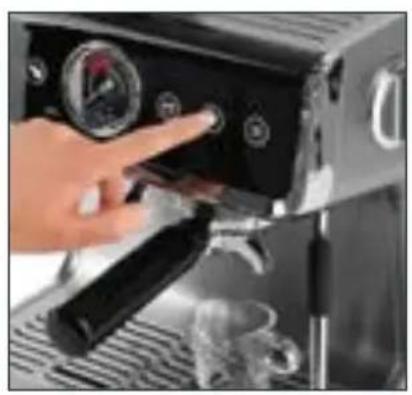

Touch the field (22) to switch the device on and off.

Touch this field (30) to start / stop the grinding process for a single espresso or adjust the quantity of espresso powder.

Touch this field (23) to start / stop the grinding process for a double espresso or adjust the quantity of espresso powder.

Touch this field (24) to start / stop the brewing process for a single espresso or adjust the quantity of water.

Touch this field (26) to start / stop the brewing process for a double espresso or adjust the quantity of water.

Touch this field (25) to adjust the temperature.

The operating fields are simultaneously control lamps which indicate by flashing or being lit that the respective functions are active.

The operating fields also have other functions assigned to them and they are explained in detail in the corresponding chapters.

Control Lamps

The device has two control lamps:

STEAM / HOT WATER

This control lamp (27) lights up as soon as the device has reached operating temperature.

The dual-circuit thermoblock heating system makes it possible to brew espresso at any time and froth milk with steam without having to wait for the temperature to adjust.

CLEAN / DESCALE

This control lamp (29) lights up when the device needs to be descaled and during the descaling process.

Steam Power Control

team power control (8) is used to regulate the emission of steam and hot water (Picture C):

- In this position no steam is emitted.

In this position steam is emitted.

In this position hot water is emitted.

When you switch on the device, always make sure that the steam power control is in the

- position!

Hotplate

On the hotplate (7) you can preheat your cups or keep espresso that you have made warm. As soon as the device heats up, the hotplate is automatically heated at the same time.

Programming Your Own Settings

The grinding fineness and the amount of coffee powder which is ground in each grinding process can be set individually. The amount of water for the single or double espresso can likewise be individually programmed separately.

New settings cancel the factory default settings and are retained even if there is a power cut or when the device is disconnected from the mains power. To restore the device to the factory settings, touch the fields ⏻ (22) and ≡ (25) simultaneously until they all flash and a beep is heard.

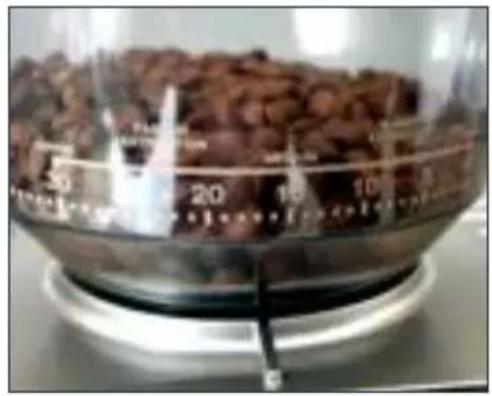

Setting the Grinding Fineness

Twist the bean container (I) to the right or left so that the scale mark on the device points to the position with the grinding fineness you want (Picture D).

PLEASE NOTE: During operation, only twist the bean container from a coarse to a fine setting. Otherwise the grinder (3) could be damaged.

30 different levels can be chosen:

– all the way to the left: coarsest grinding level
– all the way to the right: finest grinding level

We recommend starting with grinding fineness level 15 and gradually working your way up to the perfect setting for your own personal taste.

When you do this, note that grinding fineness levels 20 – 30 are for coarse espresso powder. A coarse grinding fineness affects the flavour of your espresso because coarsely ground espresso powder shortens the extraction time, which makes the espresso weaker.

When you switch to another grinding strength, there will still be espresso powder with the previous grinding strength in the grinder.

Setting the Quantity of Espresso Powder

In the factory, 10-12 g are preset for a single espresso and 16 g for a double espresso.

The device only saves the grinding time when it reaches at least 5 seconds (5-6 g). Shorter figures are ignored. This prevents the programming from being changed accidentally.

I. Make sure that the bean container (I) is filled with enough espresso beans and is inserted correctly (see the “Preparation” chapter – “Adding Espresso Beans”).
2. Place the portafilter (16) with the corresponding sieve insert (17, 21) into the coffee powder outlet (12) (Picture E).

1. Keep touching and holding the field 🎨 (single espresso, 30) or 🎨 (double espresso, 23) until the desired quantity of espresso powder has been dispensed. The corresponding field and the field 📄 (25) flash.
2. Let go of the field. This grinding time is saved. A beep is heard.

Setting the Water Quantity

In the factory, 60 ml are preset for a single espresso and 90 ml for a double espresso. Note that during extraction some of the water remains in the espresso powder, so a full 60 or 90 ml does not end up in the espresso cup.

The device only saves the water quantity if it is between 20 – 125 ml for a single espresso or 20 – 250 ml for a double espresso.

I. Make sure that the water tank (6) is filled with enough water (see the “Preparation” chapter – “Filling the Water Tank”).
2. Fill the portafilter (16) with espresso powder (see the "Preparation" chapter – "Filling the Portafilter"). When you do this, note which water setting you want to adjust – single or double espresso!
3. Insert the portafilter into the device (see the "Preparation" chapter – "Inserting the Portafilter into the Device").
4. Place a cup under the portafilter.

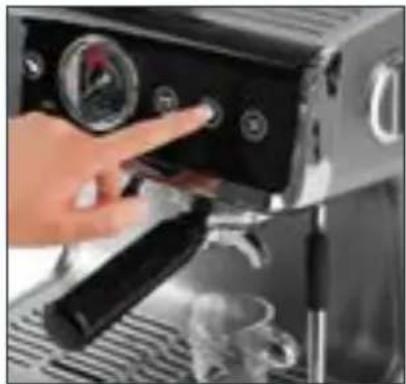

5. Keep touching and holding the field ☐ (single espresso, 24) or ☑ (double espresso, 26) until the desired quantity of water has been dispensed. The corresponding field and the field ☐5) flash.
6. Let go of the field. This quantity of water is saved. A beep is heard.

Setting the Water Temperature

Four different brewing temperatures can be chosen: 90 / 92 / 94 / 96°C. A brewing temperature of 92°C is preset in the factory.

To change this setting, proceed as follows:

I. Touch the field ≡ (25) for approx. 3 seconds. A beep is heard and the field flashes.

If no setting is made within the next 60 seconds, the process is cancelled and the previous setting is retained.

1. The temperatures are saved behind the operating fields. Touch the field you want:

(30) - 90°C (23) - 92 °C (24) - 94 °C (26) - 96 °C

The field ■ flashes and the corresponding chosen temperature field also lights up.

1. Touch the field again. A beep is heard and the setting is saved.

Preparation

Inserting / Removing the Drip Tray

The device is supplied with a drip tray (13) because espresso may drip from the portafilter (16) after the cup has been removed.

I. Insert the drip tray into the bottom of the device. Insert it at a slight angle so that the drip tray can lock in place. Make sure that it fits correctly in the device.
2. Place the storage plate (15) on the drip tray.
3. To remove the drip tray, tilt it forwards slightly and carefully pull it out of the device.

Behind the drip tray there is a small drawer for the cleaning utensils (18). Insert this into the designated compartment (11) before you insert the drip tray.

Filling the Water Tank

PLEASE NOTE!

- Do not pour milk or other liquids into the water tank. Only ever use water!

I. Take the water tank (6) off the device by pulling it upwards.
2. Open the water tank lid (5).
3. Pour water into the water tank. Make sure that you fill it at least up to the MIN marking and no higher than the MAX marking.
4. Close the water tank lid.
5. Insert the water tank into the device by sliding it into the device from above. Make sure that the locking lugs of the water tank sit in the recesses which are provided for them on the device. You must feel it engage.

If the device notices that the water tank does not have enough water in it, all operating fields flash and a beep is heard.

Adding Espresso Beans

I. Make sure that the bean container (I) is inserted correctly (see the “Cleaning and Care” chapter – “Cleaning the Grinder”).
2. Remove the lid (2) from the bean container.
3. Fill the bean container with espresso beans. Do not overfill it!
4. Place the lid back on the bean container.

When you switch to another type of espresso, there will still be coffee powder from the previous type in the grinder (3). The grinder may need to be cleaned beforehand (see the “Cleaning and Care” chapter – “Cleaning the Grinder”).

Inserting / Removing the Sieve Insert

I. Insert the appropriate sieve insert (17, 21) into the portafilter (16).
2. To remove the sieve insert from the portafilter, use the cleaning needle (20) if necessary. This can be slid between the portafilter and sieve insert to lever out the sieve insert.

Filling the Portafilter

I. Touch the field ⏻ (22) to switch on the device.
2. Make sure that the bean container is inserted correctly (see the “Cleaning and Care” chapter – “Cleaning the Grinder”) and is filled with sufficient espresso beans (see the “Preparation” chapter – “Adding Espresso Beans”).
3. If the control lamps in the fields (30) and (23) are lit white, the grinder (3) is ready to operate.

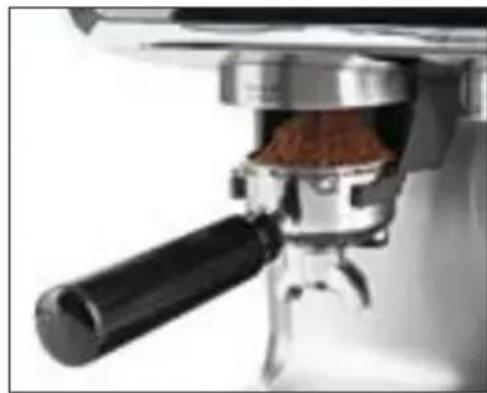

4. Place the portafilter (16) with sieve insert into the coffee powder outlet (12) (Picture E).
5. Touch the field 🎨 (single espresso, 30) or 🎨 (double espresso, 23). The field flashes during the grinding process. Freshly ground espresso powder drops into the portafilter. Once the set quantity of espresso powder has been ground, the grinding process stops automatically. The field is constantly lit.

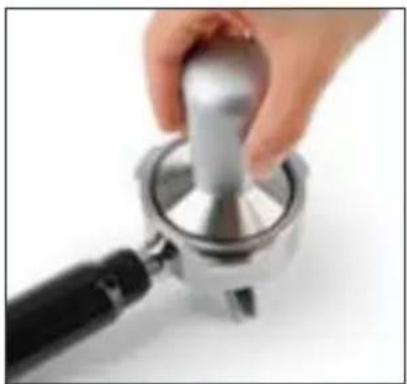

6. Press the espresso powder down well in the portafilter with the tamper.
7. Remove excess espresso powder from the rim of the portafilter.

You can also add espresso powder that has already been ground to the portafilter. Bear in mind that this can also be pressed down well with the tamper.

PLEASE NOTE: If the espresso powder is pressed down too firmly, the water cannot flow through it. The brewing process is then aborted, a warning signal is heard and all fields light up.

Inserting the Portafilter into the Device

I. Hold the filled portafilter (16) firmly by the handle and insert it at a 45^ angle into the portafilter mount (10).
2. Twist the portafilter to the right, as far as it will go. The handle points straight forwards.

Removing the Portafilter from the Device

I. Hold the portafilter (16) by the handle and turn it approx. 45^ to the left.
2. It is released and can be pulled down and out of the device.

Emptying the Sieve Insert

I. Tap out the portafilter over a dustbin or knock box. When you do this, make sure that the sieve insert does not fall out at the same time.
2. Remove the sieve insert (see the “Preparation” chapter – “Inserting / Removing the Sieve Insert”).
3. Clean the sieve insert (see the “Cleaning and Care” chapter).

Do you not have a suitable knock box available? But is opening the dustbin each time too much hassle for you? Not a problem! This is no longer a problem with our BEEM Knock Box (article number 03994). This attractive knock box has a silicone-covered knocking bar – this protects the portafilter and makes it easier to clean later on. And with a capacity of 650 ml, the BEEM Knock Box offers plenty of space for several rounds of making coffee.

Tips

To enjoy an aromatic espresso or coffee, please note the following tips:

• Always preheat the cups on the hotplate (7).
- Rinse out the cups with hot water immediately before using them.
- Always fill the water tank (6) with fresh water. Do not use any water that has been in the water tank for longer than 12 hours.
- After the device has heated up, first allow hot water for 1 – 2 double espressos to run through the sieve insert (17, 21) and the portafilter (16) before you fill them with espresso powder.
- If you want to make milk froth, once the device has heated up first allow hot steam to run through the steam nozzle (9).
- If possible, always use freshly ground espresso powder to achieve an optimum flavour.
- Do not press down the espresso powder in the portafilter too firmly. If the espresso powder is pressed too much, the process may be aborted or the processing time may be increased, thus producing increased levels of bitter compounds.
• Empty and clean the sieve insert after each use.
- Regularly clean and descale the device (see the “Cleaning and Care” chapter – “Descaling”). A dirty and / or furred-up device compromises the flavour.

Preparation

PLEASE NOTE!

• Do not operate the device without water or with less water than is required to reach the MIN marking.
• Never use the device without a suitable cup below the portafilter.

Making Espresso

I. Fill the water tank (6) (see the “Preparation” chapter – “Filling the Water Tank”).
2. Make sure that the steam power control (8) is in the ● (Off) position.
3. Switch on the device by touching the field ⏻(22). The device switches to preheating mode. The field ⏻ flashes slowly and the fields ⏻ (30) and ⏻ (23) light up. Once the preheating has ended, all operating fields and the control lamp STEAM / HOT WATER (27) light up. The device is ready to operate.

1. Prepare the portafilter (16) for the espresso you want in the manner described in the "Preparation" chapter and insert it into the device.

2. Place one or two suitable cup(s) on the storage plate (15) under the portafilter.

With two cups make sure that they are each positioned next to each other below an outlet under the portafilter.

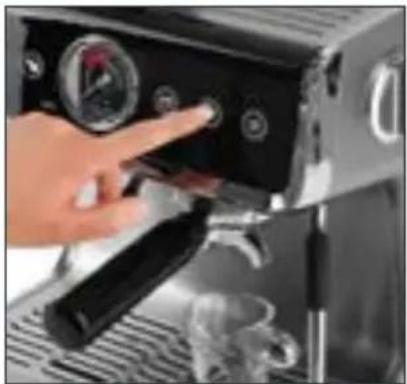

1. Touch the field 📋 (single espresso, 24) or 🌐 (double espresso, 26) to start the brewing process. The corresponding field flashes. The set quantity of water runs through the portafilter into the cup(s). The device then automatically switches to standby mode. All fields and the control lamp STEAM / HOT WATER light up.

2. Switch the device to sleep mode by touching the field ⏻. All fields go out, apart from the field ⏻

If there is no more action, the device automatically switches to sleep mode after approx. 30 minutes. All fields go out, apart from the field 🔒. To switch the device on again, touch the field 🔒

Preparing Milk Froth

I. Fill the water tank (6) (see the "Preparation" chapter – "Filling the Water Tank").
2. Direct the steam nozzle (9) towards the drip tray (13) or into an empty vessel.
3. Switch on the device by touching the field ⏻(22). The device switches to preheating mode. The control lamp STEAM / HOT WATER (27) flashes.
4. Once the device has reached the correct temperature, the control lamp STEAM / HOT WATER lights up constantly. Move the steam power control (8) for a few seconds to position 🚗 (Steam) to drain away any existing condensation.

1. Pour milk at fridge temperature with a fat content of at least 2% to a level of roughly two-thirds into the small milk jug for frothing.

2. Direct the steam nozzle into the small milk jug and immerse it in the milk.

3. Start the frothing process by gradually turning the steam power control to the

position.

1. First hold the steam nozzle just below the surface of the milk to warm it up and draw air under the milk. Once the milk is warm to the touch and a fine milk froth resembling a cream is produced, hold the steam nozzle in the middle of the frothing container so that the milk is swirled around.

2. Once the milk froth is of the desired consistency, turn the steam power control to the position and pull the frothing container down and outwards.

1. Tap the frothing container one to two times on a solid surface to compress the milk froth.

II. Pour the milk froth into the drinking vessel or scoop it with a spoon.

1. Clean the steam nozzle after each use to prevent a blockage (see the “Cleaning and Care” chapter – “Cleaning the Steam Nozzle”).

Empty the drip tray after preparation so that it cannot overflow if you prepare another drink.

1. Switch the device to sleep mode by touching the field ⏻. All fields go out, apart from the field ⏻

If there is no more action, the device automatically switches to sleep mode after approx. 30 minutes. All fields go out, apart from the field 🔒. To switch the device on again, touch the field 🔒

Dispensing Hot Water

I. Fill the water tank (6) (see the “Preparation” chapter – “Filling the Water Tank”).
2. Direct the steam nozzle (9) towards the drip tray (13) or into an empty vessel.

Approx. 190 – 240 ml of hot water are dispensed. Make sure that the vessel is large enough!

1. Switch on the device by touching the field ⏻(22). The device switches to preheating mode. The control lamp STEAM / HOT WATER (27) flashes.
2. Once the device has reached the correct temperature, the control lamp STEAM / HOT WATER lights up.
3. Move the steam power control (8) to position 🔍 (Hot water). Water starts to be dispensed.
4. Turn the steam power control to the position once the desired quantity of hot water has been dispensed.
5. Switch the device to sleep mode by touching the field ⏻. All fields go out, apart from the field ⏻

If there is no more action, the device automatically switches to sleep mode after approx.

30 minutes. All fields go out, apart from the field . To switch the device on again,

touch the field ⏻

Recipes for Speciality Coffees

Cappuccino

Cappuccino is normally made from one third espresso, one third hot milk and one third milk froth.

The cup should be thoroughly preheated as the drink is prepared in several steps.

I. First prepare the espresso (see the “Preparation” chapter – “Making Espresso”).
2. Then place the cup down on the hotplate (7) so that the espresso remains as hot as possible.
3. In comparison to the espresso, pour twice the amount of milk into the small milk jug and froth up half of the milk (see the “Preparation” chapter – “Preparing Milk Froth”). The other half of the milk remains liquid.
4. Hold back the milk froth with a spoon or plastic spatula and pour the hot milk over the espresso.
5. Scoop the milk froth out of the frothing container with a spoon and spread it as a crest on the cappuccino.

Latte Macchiato

Latte macchiato traditionally comprises three layers: a bottom layer of hot milk (2/3), a top layer of frothed milk (1/3) and an espresso which is poured through the milk froth. As milk containing fat has a higher density than espresso, the coffee floats on the milk.

The espresso cup and the latte macchiato glass should be thoroughly preheated as the drink is prepared in several steps.

I. Pour the milk into the small milk jug and froth up a third of the milk (see the “Preparation” chapter – “Preparing Milk Froth”). The rest of the milk is just heated and remains liquid.
2. Pour the hot milk and the milk froth into the latte macchiato glass.
3. Then place the latte macchiato glass down on the hotplate (7) so that the milk remains as hot as possible.
4. Prepare the espresso (see the "Preparation" chapter – "Making Espresso").
5. Pour the hot espresso through the milk froth at the edge of the glass.

Caffè Americano

Caffè Americano is a type of coffee beverage which is prepared by diluting an espresso with hot water. As it contains the same amount of acid and caffeine as a normal espresso, it has a less strong flavour and is a popular alternative to a traditional coffee at the end of a meal.

An original Caffè Americano is mixed 1:1.

I. First prepare hot water (see the “Preparation” chapter – “Dispensing Hot Water”). Allow this to run into a coffee cup.
2. Place the coffee cup under the portafilter and prepare an espresso (see the "Preparation" chapter – "Making Espresso").

Cleaning and Care

PLEASE NOTE!

- Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the device. These may damage the surface.

I. Take the portafilter (16) out of the device and empty it (see the “Preparation” chapter – “Removing the Portafilter from the Device”).
2. Remove the used sieve insert (17, 21) (see the “Preparation” chapter – “Inserting / Removing the Sieve Insert”).
3. Empty the drip tray (13) after each use (see the "Preparation" chapter – "Inserting / Removing the Drip Tray").
4. Clean all used accessories with detergent and warm water.
5. Wipe the housing with a damp cloth. If necessary, use a little detergent to remove more intense soiling.
6. Check the connecting cable regularly for any damage.

Cleaning the Steam Nozzle

To prevent any blockage, the steam nozzle (9) must be cleaned after each use.

I. Turn the steam nozzle over the drip tray (13).
2. Switch on the device by touching the field ⏻(22). The device switches to preheating mode. The control lamp STEAM / HOT WATER (27) flashes.
3. Once the device has reached the correct temperature, the control lamp STEAM / HOT WATERR lights up
4. Move the steam power control (8) to position 🔍 (Hot water). Water starts to be dispensed and milk residues are rinsed out of the steam nozzle.
5. Wipe down the steam nozzle with a damp cloth.

If the steam nozzle has become clogged, you can release the blockage with the cleaning needle.

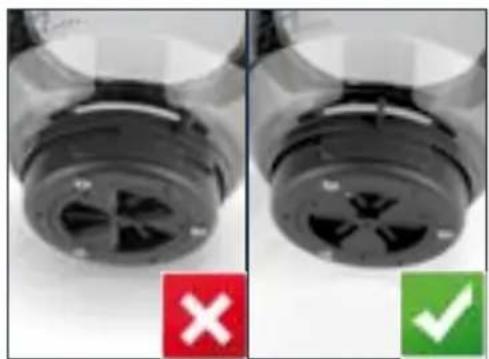

Cleaning the Grinder

I. Make sure that the device has been disconnected from the mains power.
2. Turn the bean container (I) anticlockwise until the scale mark on the device and the scale arrow with the lock symbol on the bean container are aligned (Picture F).
3. Pull the bean container up and off.
4. Empty the bean container and carefully remove the rest of the beans from the grinder (3).
Make sure that the catch at the bottom of the bean container is fully closed (Picture G).
5. Place the bean container back on the grinder: The scale arrow with the lock symbol on the bean container and the scale mark on the device must be aligned. Twist the bean container clockwise until the grinding fineness scale is at the front.

If the bean container is not fitted correctly, the fields (30) and (23) light up red.

1. Plug the mains plug into the plug socket.

2. Switch on the device by touching the field (22). The device switches to preheating mode. The field flashes slowly and the fields and light up. Once the preheating has ended, all operating fields and the control lamp STEAM / HOT WATER (27) light up. The device is ready to operate.

3. Touch the field (30) or (23), possibly several times, to grind the rest of the beans in the grinder. Once the rest of the coffee beans have been ground, you can tell this from the change in the grinding noise.

4. Pull the plug out of the plug socket again.

5. Take off the bean container.

II. Grab the small clip on the grinding collar and twist the grinding collar to the left. It is released from its locking mechanism and can be removed.

1. Clean the grinding collar with the cleaning brush. If necessary, you can also use a little water and cleaning agent.

2. Clean the grinder on the inside with the cleaning brush.

3. Place the grinding collar back on the grinder and twist it to the right until it slides down on the grinder and you feel it engage.
4. Place the bean container back on and fill it again (see the “Preparation” chapter – “Adding Espresso Beans”).

Descaling

Limescale deposits have an adverse effect not only on the quality of the coffee and the water, but they also cause power losses and shorten the lifespan of the device. The thicker a limescale layer is, the more difficult it is to remove.

The device indicates via the control lamp CLEAN / DESCALE (29) when the device needs to be descaled.

If on average you prepare 1 –2 double espressos, we recommend the following regular descaling regime:

• Very hard water (over 26 °dH): roughly every 3 months
• Medium-hard water (15–21 °dH): roughly every 4 months
- Very soft water (0–3 °dH): roughly every 8 months

For descaling we recommend the BEEM Premium Descaler Concentrate. The efficient, food-safe and environmentally friendly BEEM Premium Descaler Concentrate is available from selected specialist stockists, via our website www.beem.de or from our customer service department on request.

Descaling with the BEEM Premium Descaler Concentrate

I. Fill the water tank (6) up to the MAX marking with a concentrate/water solution of no more than 1:20 (one part concentrate to 20 parts water). There should be at least 1 litre in the water tank.
2. Make sure that the drip tray (13) is empty and is fitted in the device correctly and the portafilter (16) with the double sieve insert (21) has been inserted in the portafilter mount (10) (see the "Preparation" chapter).
3. Place a suitable vessel under the portafilter and under the steam nozzle (9).
4. Touch and hold the fields ☐ (24), ☐ (26) and ☐ (25). The device starts the descaling process.

When the control lamp CLEAN / DESCALE (29) flashes quickly, perform the following steps:

1. Move the steam power control (8) to position 🎨 (Steam).
   The control lamp CLEAN / DESCALE lights up and the field ⏻ (22) and the control lamp STEAM / HOT WATER (27) flash.
   The water pump operates, hot water emerges from the portafilter mount and the steam nozzle for approx. 2 minutes.

2. Once water stops coming out, turn the steam power control to position

IMPORTANT: The following two steps must be performed within the next 5 minutes for the descaling process to be continued.

1. Empty the water tank and refill it with clear water.

2. Empty the two vessels.

The whole system is then cleaned:

1. Move the steam power control to position (Hot water).

The control lamp CLEAN / DESCALE lights up and the field ⏻ and the control lamp STEAM / HOT WATER flash.

The water pump operates, hot water emerges from the portafilter mount and the steam nozzle for approx. 2 minutes.

1. Once water stops coming out, turn the steam power control to position ●. The control lamp CLEAN / DESCALE goes out. The other fields light up, a beep is heard and the field 🔒 is lit constantly.

The descaling process has been completed.

Storage

Disconnect the device from the mains power when you are not going to use it for a prolonged period. Clean the device again if necessary (see the “Cleaning and Care” chapter) and let it dry completely.

Store the device and all accessories in a dry, clean, frost-free place that is protected from direct sunlight and cannot be accessed by children or animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact our customer service department.

Do not attempt to repair an electrical device yourself!

Problem Possible cause Fix
The device cannot be switched on.	The mains plug is not inserted correctly in the plug socket.	Correct the fit of the mains plug.
	The plug socket is defective.	Try another plug socket.
	There is no mains voltage.	Check the fuse of the mains connection.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
The brewing process cannot be started.	The device has not yet reached the correct brewing temperature.	Wait until the device has heated up or cooled down sufficiently.
Water runs out of the device.	There is too much water in the water tank (6).	Do not overfill the water tank!
	The steam power control (8) is not in the ● position.	Always move the selector switch to the ● position when there is no vessel under the portafilter outlet or the steam nozzle (9).
	The drip tray (13) is full.	Empty the drip tray.
The portafilter (16) cannot be inserted.	There is too much espresso powder in the portafilter.	Add less espresso powder.
The espresso runs along the outside of the portafilter (16).	The portafilter is not inserted correctly.	Make sure that it fits correctly.
	The rim of the portafilter is contaminated with espresso powder.	Clean the portafilter and the sieve insert (17, 21).
Despite a pumping noise, no water comes out of the device.	There is no water in the water tank (6).	Fill the water tank.
	The water tank is inserted incorrectly.	Take out the water tank and reinsert it. Make sure that it fits correctly.
The espresso does not run or only runs very slowly into the cup.	The espresso powder is pressed too firmly.	Only press down the espresso powder lightly.
	The espresso powder is too finely ground.	Use espresso powder with a coarser grind.
	There is too much espresso powder in the portafilter (16).	Add less espresso powder.
	The transport protection is still attached to the water feed below the water tank (6).	Pull out the orange / red plug before you start operating the device.
	The sieve insert (17, 21) is blocked.	Clean the sieve insert, using the cleaning needle (20) if necessary.
	The device is furred up. Descale the device.
The espresso runs too quickly into the cup.	The espresso powder is not pressed enough.	Press down the espresso pow-der slightly harder.
	The espresso powder is too coarsely ground.	Use espresso powder with a finer grind.
	There is not enough espresso powder in the portafilter (16).	Add more espresso powder.
The grinder (3) does not work. No espresso is ground.	If the grinder operates for longer than 3 minutes without interruption, it is temporarily switched off as a safety measure.	Wait approx. 6 minutes and try again. A break between multiple grinding operations protects the grinder.
	The grinding collar is not inserted in the grinder (3) correctly.	When the grinding collar is locked in place, you must be able to feel obvious resistance. Then flip down the metal clip.
	The grinder (3) is blocked.	Clean the grinder.
	The bean container (1) is not inserted correctly.	Follow the tips in the following lines.
The bean container (1) cannot be placed on.	Coffee beans are blocking the opening of the grinder (3).	Remove from the grinder all coffee beans that are sticking up above the grinding collar.
	The bean container is in the wrong position.	When you insert the bean container, hold it so that the grinding fineness scale at the back and the scale arrow with the lock symbol on the bean container and the scale mark on the device are aligned (Picture F).
	The catch at the bottom of the bean container is not in the correct position.	Twist the catch on the bean container so that it is fully closed (Picture G).
	The grinding collar is not inserted in the grinder (3) correctly.	When the grinding collar is locked in place, you must be able to feel obvious resistance. Then flip down the metal clip.
Espresso or milk has an unpleasant taste.	The espresso beans are too old.	Empty the bean container (1), clean the grinder (3) and add new espresso beans.
	The water in the water tank (6) is no longer fresh.	Clean the water tank and add fresh water. Do not leave water residues standing for a long time.
A large amount of steam is produced in the brewing process.	The device is furred up. Descale the device.
During use, an unpleasant smell is detected.	The device is being used for the first time.	A smell often develops when new devices are first used. The smell should disappear once the device has been used several times.
	The device has previously been descaled.	Rinse out the device with fresh water.

Warranty and Limitations of Liability

The warranty does not cover faults caused by incorrect handling, calcification, damage or attempted repairs. The same applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• failure to follow the operating instructions
  • non-designated use
  • improper or unsuitable handling
  • repairs which are not carried out properly
• unauthorised modifications
  • use of outside parts or spare parts
  • use of unsuitable additional parts or accessories

Keep the original packaging during the warranty period of the device so that the device can be properly packaged up if it needs to be returned. The warranty claim will lapse if any damage is caused during transport.

Technical Data

Article number: 02012

Model number: CM5020D-GS

Voltage supply: 220 - 240 V \~ 50 - 60 Hz

Power: 3000 W

Brewing pressure: 15 bar

Protection class: I

ID of operating instructions: Z 02012 M BE V5 0223 mh

CE

Disposal

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

The adjacent symbol (crossed-out bin underlined) means that used devices should not be disposed of in the domestic waste, but should instead be taken to special collection and return systems.

Owners of used devices from private households can take them free of charge to the collection points of the public waste disposal authorities or the disposal points which are set up by manufacturers and distributors under the Electrical Equipment Act. Businesses which market electrical and electronic devices are also obliged to take back used devices.

All rights reserved.

Optionally available

Simple illustration of a clear glass bottle with a red cap and black label (no text or symbols on the bottle itself)

BEEM Premium Entkalker

Konzentrat

Descaler Concentrate

White rectangular product packaging with printed text and a small square badge (no visible signage or symbols)

BEEM Premium Reinigungstabletten

Cleaning tablets

Hand placing a glass pot on a black stove burner (no visible text or symbols)

Close-up of a coffee maker's grache and lever mechanism (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand using a black espresso machine with a pressure gauge and lever handle (no visible text or symbols)

Close-up of a glass coffee machine with two cups pouring liquid, no visible text or symbols

Close-up of a hand pouring milk from a metallic kettle into a small container (no text or symbols visible)

64 Composition

Three circular mechanical components with internal structural lines and mounting holes, shown from different angles (no text or symbols)

D

Close-up of a glass beaker containing a bowl of brown coffee beans, with a pressure scale visible (no text or symbols on the beaker itself)

E

Close-up of a coffee maker's griddle with a wooden handle and spool of brown coffee (no text or symbols visible)

F

Close-up of a glass bowl containing red beans, with a small white object on the side (no text or symbols visible)

G

Close-up of a black plastic bottle with internal compartments and a red 'X' and green checkmark indicators (no text or symbols on the bottle itself)

Composition

Simple illustration of a clear glass bottle with red cap and black label (no text or symbols)

BEEM Premium Entkalker

Konzentrat

Descaler Concentrate

White rectangular product packaging with a small black square top and printed text (no visible signage or symbols)

BEEM Premium Reinigungstabletten

Cleaning tablets

Close-up of a hand pressing a black cylindrical pot on a stovetop (no visible text or symbols)

Close-up of a coffee machine with a wooden mixer and black handle (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand using a black espresso machine with a pressure gauge and lever handle (no visible text or symbols)

Close-up of a glass coffee machine with two cups pouring liquid, no visible text or symbols

Close-up of a hand pouring milk from a metallic kettle into a small cup on a stovetop (no text or symbols visible)

Exploded view diagram of a coffee maker with numbered parts for identification

B

22 23 24 25 POWER 30 2628 2729 EMISSION RANGE PRESSURE CLEAN DESCALE STEAM HOT WATER

C

Three circular diagrams showing internal structural components with diagonal braces and measurement arrows (no text or symbols)

D

Close-up of a glass beaker containing a dark brown substance, placed on a stand with a scale ruler (no visible text or symbols)

E

Close-up of a coffee maker's griddle with a wooden handle and powder being poured into it (no visible text or symbols)

F

Close-up of a glass bowl containing red granular material, with a scale ruler and pointer indicating measurement (no text or symbols visible)

G

Close-up of a black plastic mechanical component with two side views, one marked with a red 'X' and the other with a green checkmark (no text or symbols on the component itself)

Simple illustration of a clear glass bottle with a red cap and black liquid inside (no text or symbols)

Product packaging image showing a white plastic bag with printed text and a black square badge

BEEM Premium Reinigungstabletten

Cleaning tablets

Close-up of a hand pressing a black cylindrical pot on a stovetop (no visible text or symbols)

Close-up of a coffee maker's espresso machine with a wooden handle and caliper (no visible text or symbols)

Close-up of a hand holding a metallic mechanical component, no visible text or symbols

Close-up of a hand using a black espresso machine with a pressure gauge and lever handle (no visible text or symbols)

Close-up of a glass coffee machine with two cups pouring liquid, no visible text or symbols

Close-up of a hand pouring milk from a metallic kettle into a small cup on a stovetop (no text or symbols visible)

Exploded view diagram of a coffee maker with numbered parts for identification

B

22 30 2628 2729 23 24 25 PRESSO RANGE PREASURE CLEAN STICKU STEAM HOT WATER

C

Three circular diagrams showing internal structural components with diagonal braces and arrows, no text or symbols present.

D

Close-up of a glass beaker containing a container filled with brown granular substance, placed on a stand with a digital scale (no visible text or symbols)

E

Close-up of a coffee maker's griddle with a wooden handle and spout (no visible text or symbols)

F

Close-up of a glass bowl containing dried herbs or seeds, with a small stand and a scale marker (no text or symbols visible)

G

Close-up of a black plastic mechanical component with two side views, one marked with a red 'X' and the other with a green checkmark (no text or symbols on the component itself)

Simple illustration of a clear glass bottle with a red cap and black label (no text or symbols on the bottle itself)

BEEM Premium Entkalker

Konzentrat

Descaler Concentrate

White rectangular product packaging with printed text and a small square badge (no visible signage or symbols)

BEEM Premium Reinigungstabletten

Cleaning tablets

Calls to German landlines are subject to your provider's charges.
