USER MANUAL FreshAromaPerfect Superior BEEM

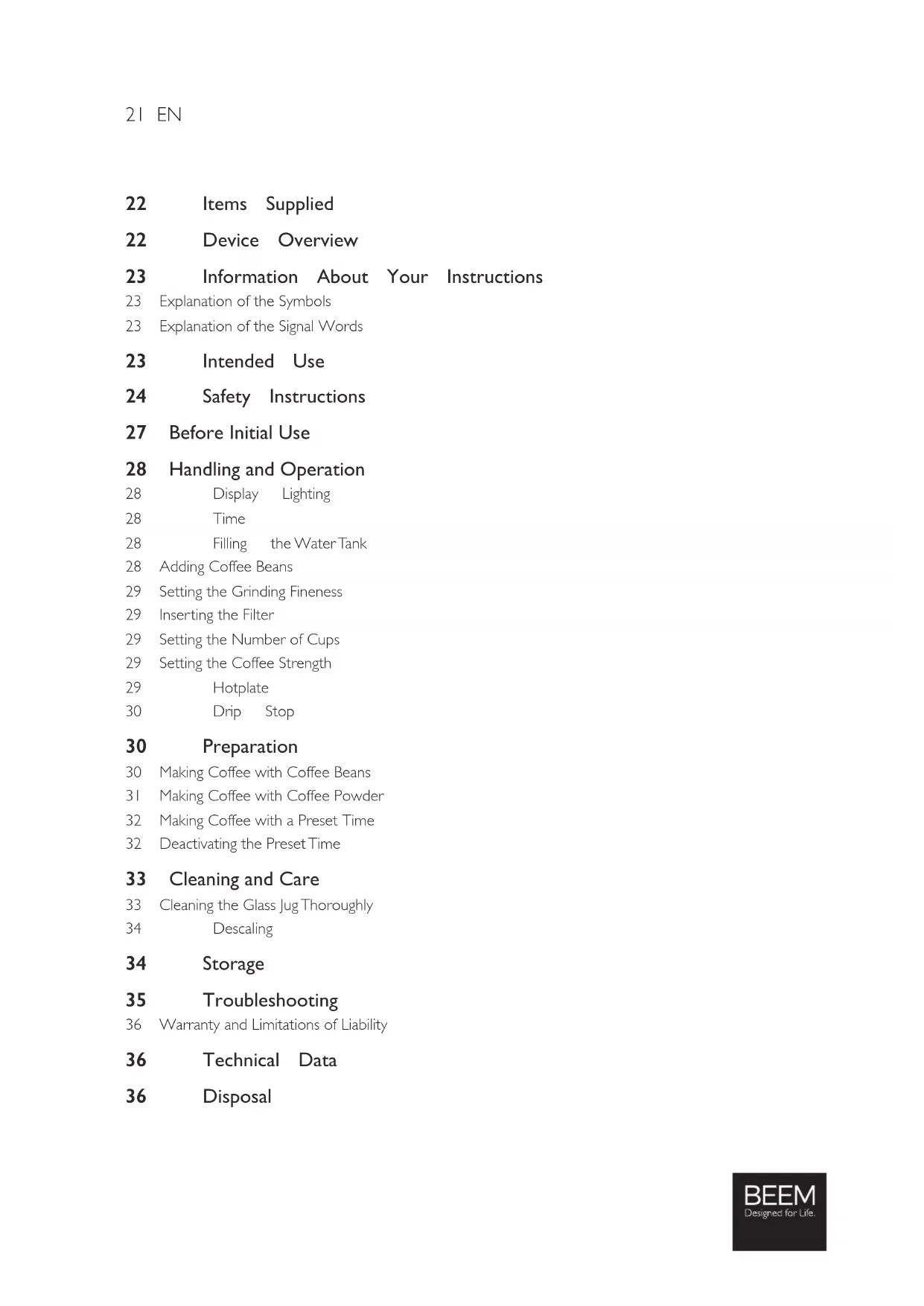

Explanation of the Symbols

Explanation of the Signal Words

Intended Use

Safety Instructions

Before Initial Use

Handling and Operation

Display Lighting

Time

Filling the Water Tank

Adding Coffee Beans

Setting the Grinding Fineness

Inserting the Filter

Setting the Number of Cups

Setting the Coffee Strength

Hotplate

Drip Stop

Preparation

Making Coffee with Coffee Beans

Making Coffee with Coffee Powder

Making Coffee with a Preset Time

Deactivating the Preset Time

Cleaning and Care

Cleaning the Glass Jug Thoroughly

Dscaling

Storage

Troubleshooting

Warranty and Limitations of Liability

Technical Data

Disposal

Items Supplied

• Coffee machine
  Glass jug
  Permanent filter
• Measuring spoon
• Operating instructions

Unpack the items supplied and check them for completeness and transport damage. If the device, the mains plug or the mains cable does have damage, do not use the device (!), but contact our customer service department.

Device Overview

(See front foldout page for illustrations)

Lid for the coffee bean compartment
2 Coffee bean compartment with grinder
3 Steam outlet opening
4 Release button for the filter compartment
5 Fill-level indicator
6 Water tank
7 Drip guard
8 Glass jug with lid
9 Filter insert
10 Permanent filter
Filter compartment
12 Control panel
13 Grinding fineness adjusting knob
14 Button and operating lamp (making coffee with coffee beans)
15 Display
16 Button and operating lamp (making coffee with coffee powder)
17 Button --:00 (setting the minutes)
18 Button 00:-- (setting the hours)
19 Button (setting the number of cups)
20 Button (setting the coffee strength)
21 Button and operating status indicator (setting the preset time)

Congratulations!

Dear Customer,

We are delighted that you have chosen this coffee machine.

If you have any questions about our device and about spare parts / accessories, contact the customer service department via our website: www.beem.de

Information About Your Instructions

Before using the device for the first time, please read the instructions carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury (e.g. from electricity or fire). Read through the associated safety instructions carefully and follow them.

Supplementary information

Suitable for food use.

Beware of hot surfaces!

Read instructions before use!

Explanation of the Signal Words

DANGER Warns of serious injuries and danger to life.

WARNING Warnings of possible serious injuries and danger to life.

CAUTION Warnings of slight to moderate injuries.

NOTICE Warns of damage to property.

Intended Use

• This device is only intended to be used to make coffee using coffee powder or coffee beans.
• This device is only designed for use in a personal household and is not intended for commercial applications.
• The device should only be used as described in these instructions. Any other use is deemed to be improper.

Safety Instructions

Warning: Read all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and / or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  Children must not play with the device.
• Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.
• Children younger than 8 years of age and animals must be kept away from the device and the mains cable.

CAUTION: Hot surfaces!

The device and the accessories are very hot during and shortly after use. Only touch the handles and controls while the device is in operation. Allow the device to cool down completely before it is cleaned.

• Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.
• Never exceed the maximum fill level (12 cups). If the water tank is overfilled, the coffee jug could overflow and the bottom of the device and connecting cable could become wet.

• The device must always be disconnected from the mains when it is left unattended and before assembling, disassembling, fliling or emptying the water tank, fiiter or coffee bean compartment and before cleaning it.

• In the interest of your own safety, inspect the device and the connecting cable for damage each time before you use it. Use the device only if it is in working order.

• Do not make any modifications to the device. Do not replace the mains cable yourself. If the device, the mains cable or the mains plug of the device is damaged, they must be replaced by the manufacturer, customer service department or authorised retailers in order to avoid any hazards.
• It is essential to follow the instructions in the "Cleaning and Care" chapter.

DANGER - Risk of Electric Shock

• Use the device only in closed rooms.
• Do not use the device in rooms with high humidity.
• Should the device fall into water, switch off the power supply immediately. Do not attempt to pull the device out of the water while it is still connected to the mains power!
• Never touch the device and the connecting cable with wet hands when these components are connected to the mains power.
• Make sure that the steam which emerges is not aimed directly at electrical devices and equipment containing electrical components.

WARNING - Danger of Injury

• Danger of suffocation! Keep children and animals away from the packaging material.
• Keep items of clothing such as scarves, shawls, jewellery, ties and long hair away from the coffee bean compartment and the grinder shaft.
• Do not reach into the coffee bean compartment and the grinder shaft and do not insert any objects when the device is in operation!
• Make sure that the connected mains cable does not present a trip hazard. The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.

WARNING - Danger of Scalding

• Avoid coming into contact with the rising steam. Do not open the water tank lid during the brewing process.
• Do not open the filter compartment during the brewing process. The filter insert and the permanent fi liter will become hot during use.
• Be careful when removing the filter insert after operating the device. There may still be hot water remaining in / on the filter insert or permanent filter! Always allow the filter insert and the permanent filter to cool down first before they are removed / cleaned.
• Never pour water into the water tank when the device is switched on or during the brewing process. Allow the device to cool down before fi lling it again.
• Do not move the device during the brewing process.
• The coffee which is prepared is hot! Be careful when handling hot liquids.

WARNING - Danger of Fire

Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
- Do not connect the device along with other devices (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire). Do not use the device in conjunction with extension cables.
- Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper, wood or plastic) in or on the device.
- Do not cover the device during operation.

NOTICE - Risk of Damage to Material and Property

• The device should only be used if it has been correctly assembled! Before each use, check whether the filter insert and the permanent filter are inserted correctly and whether the water tank is filled correctly!
• Lay the mains cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).
• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.
• Never pull or carry the device by the mains cable. When you pull it out of the socket, always pull on the mains plug and never the mains cable!
• Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
• Use only original spare parts from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and prevent any injuries.

Before Initial Use

NOTES

• Only connect the device to a socket with safety contacts that is properly installed and matches the technical data of the device. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
• Always set up the device with a clear space at the sides (at least 20~cm ) and clear space above it (at least 30~cm ) on a flat, solid and heat-resistant surface that is resistant to splashing.
• Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!
• The surfaces of furniture may possibly contain elements which can attack and soften the adjustable feet of the device. If necessary, place a suitable pad below the adjustable feet.

• There may still be some production residues on the device. To avoid harmful effects to your health, clean the device before you first use it (see the "Cleaning and Care" chapter).

• Remove all packaging materials and any possible protective films used for protection during transportation. Never remove the rating plate and any possible warnings!

• Wipe the device with a clean, damp cloth. Clean all parts with a little mild detergent and clear water.
• Place the device in a suitable location, following the safety instructions and the notices provided at the beginning of this chapter.
• Fully unwind the mains cable and insert it into a properly installed plug socket that is easily accessible.
• Before you enjoy your first coffee, we recommend that you carry out a trial run with coffee beans to remove any possible production residues in the water system and in the grinder shaft. To do this, follow the instructions in the "Handling and Operation" and "Preparation" chapters.

When the device is first used, production-related additives (e.g. grease) may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.

1. Repeat this process twice. Caution! Do not drink this coffee!
2. Clean the device and accessories (see the "Cleaning and Care" chapter).

Handling and Operation

NOTES

• Do not pour milk or other liquids into the water tank. Only ever use water to make coffee!
• Never overfill the permanent filter.

Display Lighting

The display lighting goes out 60 seconds after the last button has been pressed, unless the device is in operation. Press any button to switch on the display lighting.

Time

As soon as the mains plug is plugged into a plug socket, the display lighting turns on and the time display 12:00 fl ashes. The clock has a 24-hour time format.

1. Set the hours by pressing the button 003
2. Set the minutes by pressing the button --:00 (17).

The time is saved until a new time is set or the device has been disconnected from the power supply for more than a minute.

Filling the Water Tank

1. Open the water tank lid.
2. Use the glass jug (8) to pour fresh drinking water into the water tank (6). Note the MAX marking (12 cups).
3. Close the water tank lid.

The coffee machine only removes the amount of water from the water tank that is required for the set number of cups.

Adding Coffee Beans

1. Take off the lid of the coffee bean compartment (I).

Ensure that the water tank (6) is closed so that no coffee beans can fall into the water tank.

1. Fill the coffee bean compartment (2) with your favourite beans. Do not overfill it!
2. Place the lid back on the coffee bean compartment.

When you switch to another type of coffee, there will still be coffee powder from the previous type in the grinder shaft.

Setting the Grinding Fineness

Turn the knob for adjusting the grinding fineness (13) to the right or left so that the scale point points to the position with the grinding fineness you want (Picture A).

You can adjust the grinding fineness to eight settings:

• all the way to the left: finest grinding level

-all the way to the right: coarsest grinding level

When you switch to another grinding strength, there will still be coffee powder with the previous grinding strength in the grinder shaft.

Inserting the Filter

1. Press the release button for the filter compartment (4) (Picture B1).
2. Insert the filter insert (9) into the filter compartment (11).
3. Insert either the permanent filter (10) or a basket filter paper into the filter insert (Picture B2).
4. Close the fi Iter compartment. It must engage audibly.

Basket filter papers are available via our website www.beem.de or from our customer service department on request.

Setting the Number of Cups

Keep pressing the button 2-12 (19) until the display (15) shows the number of cups you want (2, 4, 6, 8, 10 or 12 cups).

The selected number of cups is saved until a new number of cups is set or the device has been disconnected from the power supply for more than a minute.

Setting the Coffee Strength

Keep pressing the button (20) until the coffee strength you want is shown on the display (15).

Weak coffee

Medium coffee

Strong coffee

The selected coffee strength is saved until a new coffee strength is set or the device has been disconnected from the power supply for more than a minute.

Hotplate

The device has a hotplate which is switched on automatically after each brewing process. It switches off again automatically after around 35 - 40 minutes. If you want to stop the keep-hot function prematurely, press the button (14) or the button (16) (depending on the chosen preparation type).

Drip Stop

The device has a drip stop which prevents water from dripping out of the filter when the jug has been removed from the device.

When the device is in operation, the filter compartment (11) must be closed and the glass jug (8) with a lid placed on it must be placed beneath the filter compartment. The lid of the jug pushes the drip stop upwards and the coffee can flow from the filter through the lid into the jug.

During the brewing process, the jug must not be removed from the device for longer than 30 seconds as otherwise the filter could overflow.

Preparation

NOTES

• Do not operate the device without water. If this does happen, the device switches off automatically. In this case, allow the device to cool down before water is poured in and the device is used again.
• Do not use any water that has been in the water tank for longer than 24 hours.
• Never use the device without a suitable jug below the coffee outlet.

Making Coffee with Coffee Beans

1. If necessary, fill the water tank (6) with water (see the "Handling and Operation" chapter - "Filling the Water Tank").
2. Fill the coffee bean compartment (2) (see the "Handling and Operation" chapter - "Adding Coffee Beans").
3. Set the grinding fineness which is best suited to the coffee beans and your own personal taste (see the "Handling and Operation" chapter - "Setting the Grinding Fineness").
4. Open the filter compartment (11) by pressing the release button for the filter compartment (4).
5. Insert the permanent filter (10) or a basket filter paper (see the "Handling and Operation" chapter - "Inserting the Filter").
6. Close the filter compartment.
7. Set the desired number of cups with the button 2-12 (19) (see the "Handling and Operation" chapter - "Setting the Number of Cups").
8. Set the coffee strength you want with the button (20) (see the "Handling and Operation" chapter - "Setting the Coffee Strength").
9. Press the button (14) to switch on the grinder and start the brewing process. The operating lamp lights up and the display (15) shows. Freshly ground coffee is transported through the grinder shaft into the filter compartment and then hot water is poured over it to brew it.

If the brewing process is to be aborted prematurely, press the button. The operating lamp goes out and the device is switched off. goes out on the display.

At the end of the brewing process, you will hear three beeps, goes out on the display and the device automatically switches on the hotplate (see the "Handling and Operation" chapter - "Hotplate").

The hotplate switches off automatically after 35 - 40 minutes and the device switches to stand-by mode. The operating lamp goes out.

Making Coffee with Coffee Powder

1. If necessary, fill the water tank (6) with water (see the "Handling and Operation" chapter — "Filling the Water Tank").
2. Open the filter compartment (11) by pressing the release button for the filter compartment (4).
3. Insert the permanent filter (10) or a basket filter paper (see the "Handling and Operation" chapter - "Inserting the Filter").
4. Add the quantity of coffee powder you want to the filter using the measuring spoon which is supplied with the device or another suitable spoon. We recommend one heaped spoon for each 125ml cup.
5. Close the filter compartment.
6. Set the desired number of cups with the button 2-12 (19) (see the "Handling and Operation" chapter - "Setting the Number of Cups").
7. Set the coffee strength you want with the button (20) (see the "Handling and Operation" chapter - "Setting the Coffee Strength").
8. Press the button (16) to start the brewing process. The operating lamp lights up and the display (15) shows Hot water is poured over the coffee powder to brew it.

If the brewing process is to be aborted prematurely, press the button. The operating lamp goes out and the device is switched off. goes out on the display.

At the end of the brewing process, you will hear three beeps, goes out on the display and the device automatically switches on the hotplate (see the "Handling and Operation" chapter - "Hotplate").

The hotplate switches off automatically after 35 - 40 minutes and the device switches to stand-by mode. The operating lamp goes out.

Making Coffee with a Preset Time

To make coffee with a preset time, the clock needs to be set (see the "Handling and Operation" chapter - "Time").

1. Prepare the coffee machine, pour in coffee beans or coffee powder, fill the water tank (6) and insert the permanent filter (10) or a filter paper (see the "Handling and Operation" chapter).
2. Press the button (21) for approx. 3 seconds until the display flashes.
3. Use the buttons 00:-- (18) and --(00) to set the start time you want (see the "Handling and Operation" chapter - "Time").
4. Set the coffee strength and the number of cups you want (see the "Handling and Operation" chapter - "Setting the Coffee Strength" and "Setting the Number of Cups").

5. To activate the preset time, press the button again. The operating status indicator lights up constantly. The preset time is activated.

6. For preparation with coffee powder, press the button (16) once you have activated the preset time. The operating lamp lights up.

7. For preparation with coffee beans, do not press any other button if you have activated the preset time. If the operating lamp is lit up, press the button until it goes out.

Once the preset time is reached, the device switches on automatically. The display (15) shows the programmed settings and

If the display should stop flashing even though the setting has not yet been completed, press the button again for around 3 seconds. The display flashes again and the settings can be resumed.

Deactivating the Preset Time

To deactivate the preset time setting, press the button 21 The operating lamp of the button goes out and the programming is deactivated. However, the preset time is retained and can be reactivated at any time until a new preset time is programmed in or the device has been disconnected from the power supply for more than a minute.

Cleaning and Care

NOTES

• Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the device. These can damage the surface.

• Empty the permanent filter (10) or the filter paper used after each use.

• Clean the permanent filter and the filter insert (9) with mild detergent and warm water or in the dishwasher.
• Clean the glass jug (8) after each use with mild detergent and warm water. It must not be placed in the dishwasher.
• If necessary, wipe down the coffee bean compartment (2) and the lid (1) with a damp cloth.
• Wipe down the housing with a damp cloth. If necessary, use a little mild detergent to remove any stubborn residues.
• Check the connecting cable regularly for any damage.

Cleaning the Glass Jug Thoroughly

Coffee grounds and coffee oil residues can contaminate glass jugs over time. They should therefore be thoroughly cleaned regularly (at least every 4 weeks).

We recommend that you do this using BEEM premium cleaning tablets. They will remove the residues quickly and easily. In addition, the cleaning tablets are gentle on the material and guarantee food-safe and environmentally friendly cleaning - ensuring an authentic coffee flavour. BEEM premium cleaning tablets can be obtained from selected specialist stockists, directly via our website www.beem.de or from our customer service department on request.

Cleaning with the BEEM Premium Cleaning Tablets

1. Dissolve one cleaning tablet in water at 60 - 70^
2. Pour the solution into the glass jug (8).
3. Move the glass jug slowly in circular motions to ensure that the inside is wetted with the cleaning solution.
4. Let the cleaning solution take effect for a few minutes.
5. Empty the jug and rinse it thoroughly several times with clear water.

Caution! The BEEM cleaning tablets do not have any descending effect!

Dscaling

Limescale deposits have an adverse effect not only on the quality of the coffee and the water, but they also cause power losses and shorten the lifespan of the device. The thicker a limescale layer is, the more difficult it is to remove.

We therefore recommend regularly removing limescale deposits with a descending agent in accordance with the water quality in your area and how often the device is used (approx. every 2 - 6 weeks).

The first indications that descending is required are a large amount of steam being produced and slower brewing of the coffee.

For descending we recommend the BEEM premium descaler concentrate. The efficient, food-safe and environmentally friendly BEEM premium descaler concentrate is available from selected specialist stockists, via our website www.beem.de or from our customer service department on request.

Dscaling with the BEEM Premium Descaler Concentrate

1. Fill the water tank (6) up to the MAX marking with a concentrate/water solution of no more than 1:20 (one part concentrate to 20 parts water).
2. Use the button 2-12 (19) to set the number of cups to 2.
3. Press the button to switch on the device. Allow the two cups to run through.
4. Let the remaining descending solution in the water tank take effect for a little while.
5. Use the button 2-12 to set the number of cups to 10.
6. Press the button to switch on the device and allow the rest of the solution to run through.
7. Then rinse the device at least twice by allowing complete tankfuls (12 cups) of clear water to run through. The device is now descaled and ready to be used again.

Storage

Disconnect the device from the mains power when you are not going to use it for a prolonged period. Clean the device again if necessary (see the "Cleaning and Care" chapter) and let it dry completely.

Store the device and all accessories in a dry, clean, frost-free place that is protected from direct sunlight and is out of the reach of children and animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify a problem yourself. If the problem cannot be solved with the steps that are listed, contact our customer service department.

Do not attempt to repair an electrical device yourself!

Problem Possible cause Fix
Nothing is shown on the display (15).	The mains plug is not inserted correctly in the socket.	Insert the mains plug into a plug socket.
	The plug socket is defective. Try another plug socket.
	There is no mains voltage.	Check the fuse of the mains connection.
	The display is defective.	Contact our customer service department.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
Water runs out of the device.	There is too much water in the water tank (6).	Do not overfi ll the water tank!
The coffee runs very slowly into the jug.	The drip stop is blocked.	Clean the fi liter insert (9) with drip protection.
	The device is furred up.	Descale the device (see the "Cleaning and Care" chapter - "Dscaling").
The coffee is too weak / too strong.	The grinding fi neness and the coffee strength are not ideal for the type of coffee.	Vary the grinding fi neness and coffee strength to fi nd the ideal settings for this type of coffee.
A large amount of steam is produced in the brewing process.	The device is furred up.	Descale the device (see the "Cleaning and Care" chapter - "Dscaling").
During use, an unpleasant smell is detected.	Is the device being used for the fi rst time?	A smell often develops when new devices are fi rst used. The smell should disappear once the device has been used several times.
	Has the device just been descaled?	Rinse out the device with clear water.

Warranty and Limitations of Liability

The warranty excludes any defects caused by improper use, calcification, damage or repair attempts. This also applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• Failure to follow the operating instructions
  Non-designated use
• Improper or unsuitable handling
• Repairs which are not carried out properly
• Unauthorised modifications
• Use of outside parts or spare parts
• Use of unsuitable additional parts or accessories

Keep the original packaging during the warranty period of the device so that the device can be properly packaged up if it needs to be returned. The warranty claim will lapse if any damage is caused during transport.

Technical Data

Article number: 03201

Model number: CM4266-A

Power supply: 220 - 240V 50Hz

Power: 900-1050 W

Protection class:

Capacity: 0.25 to 1.5 litres (2 - 12 cups)

Manual ID: Z03201 M BE V2 0119

Disposal

Dispose of the packaging material in an environmentally friendly manner and take it to a recycling centre.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

37 FR

Chere cliente, cher client.

Attention aux surfaces chaudes!
