USER MANUAL Robustica BEEM

On the foldout page of these operating instructions you will find a diagram of the coffee machine, together with all the accessories and illustrations on the operation of the device. Please ensure that this page is visible when you read the operating instructions.

REMARQUE!

20 Information About Your Instructions
20 Explanation of the Symbols
20 Explanation of the Signal Words
20 Intended Use
21 Safety Instructions
24 Items Supplied and Device Overview
25 Before Initial Use
26 Handling and Operation
26 Time
26 Filling the Water Tank
26 Inserting the Filter
27 Setting the Brew Strength
27 Keep-Warm Function
28 Drip
28 Preparation
29 Warming Up Coffee
29 Making Iced Coffee
29 Making Coffee with a Preset Time
29 Deactivating the Preset Time
30 Cleaning and Care
30 Descaling
31 Storage
31 Troubleshooting
33 Warranty and Limitations of Liability
33 Technical Data
34 Disposal

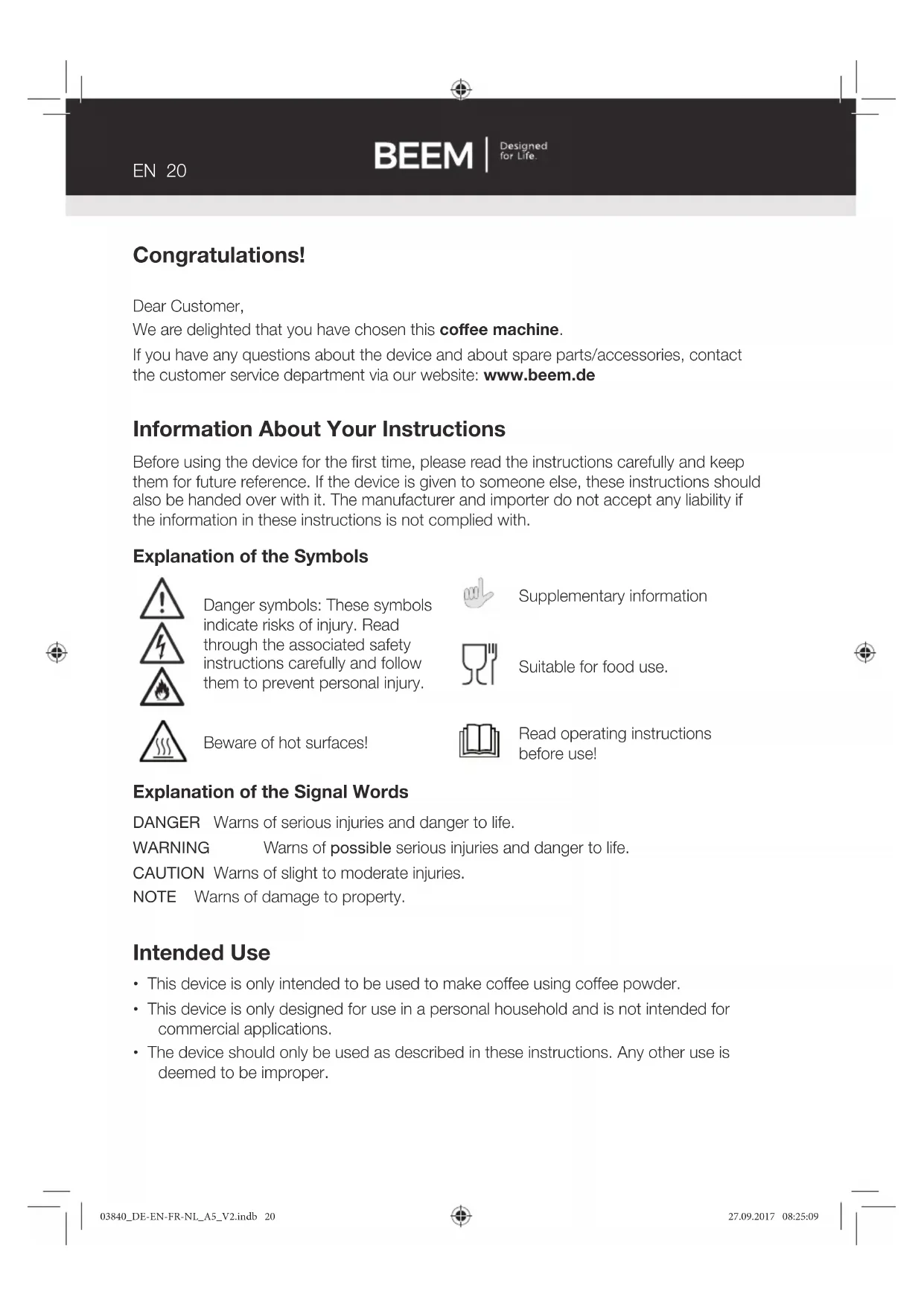

Congratulations!

Dear Customer,

We are delighted that you have chosen this coffee machine.

If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.beem.de

Information About Your Instructions

Before using the device for the first time, please read the instructions carefully and keep them for future reference. If the device is given to someone else, these instructions should also be handed over with it. The manufacturer and importer do not accept any liability if the information in these instructions is not complied with.

Explanation of the Symbols

Danger symbols: These symbols indicate risks of injury. Read through the associated safety instructions carefully and follow them to prevent personal injury.

Supplementary information

Suitable for food use.

Beware of hot surfaces!

Read operating instructions before use!

Explanation of the Signal Words

DANGER Warns of serious injuries and danger to life.

WARNING Warns of possible serious injuries and danger to life.

CAUTION Warns of slight to moderate injuries.

NOTE Warns of damage to property.

Intended Use

• This device is only intended to be used to make coffee using coffee powder.
• This device is only designed for use in a personal household and is not intended for commercial applications.
• The device should only be used as described in these instructions. Any other use is deemed to be improper.

Safety Instructions

The device is equipped with safety features. Nevertheless, the device may still present dangers if it is not used in the intended way and / or is utilised in some other way. Comply with the following safety instructions and the procedures that are specified in these operating instructions.

• This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
  Children must not play with the device.
• Cleaning and user maintenance must not be performed by children, unless they are older than 8 years of age and are supervised.
• Children younger than 8 years of age and animals must be kept away from the device and the mains cable.

CAUTION: hot surfaces!

The device and the accessories are very hot during and shortly after use. Only touch the handles and controls while the device is in operation. Allow the device to cool down completely before it is cleaned.

• Never exceed the maximum fill level (14 cups). If the water tank is overfilled, the coffee tank could overflow.
• The device is not designed to be operated with an external timer or a separate remote control system.

• Never immerse the device, mains cable or mains plug in water or other liquids and ensure that they cannot fall into water or become wet.

• The device must always be disconnected from the mains when it is left unattended and before assembling, disassembling, filling or emptying the water tank or coffee tank and before cleaning it.

• In the interest of your own safety, check the device, the mains cable and the mains plug for damage every time before use. Use the device only if it is in working order.
• Do not make any modifications to the device. Do not replace the mains cable yourself. If the device, the mains cable or the mains plug of the device is damaged, they must be replaced by the manufacturer, customer service department or authorised retailers in order to avoid any hazards.
• It is essential to follow the instructions in the "Cleaning and Care" chapter.

DANGER - Danger of Electric Shock from Water

• Use the device only in closed rooms.
• Do not use the device in rooms with high humidity.
• Should the device fall into water, switch off the power supply immediately. Do not attempt to pull it out of the water while it is still connected to the mains power!
• Never touch the device, mains cable or mains plug with wet hands when these components are connected to the mains power.
• Make sure that the steam which emerges is not aimed directly at electrical devices and equipment containing electrical components.

WARNING - Danger of Electric Shock from Damage and Inappropriate Use

• Only connect the device to a socket with safety contacts that is properly installed and matches the technical data of the device. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
• Do not use the device in conjunction with extension cables.
• Lay the mains cable in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).

WARNING - Danger of Injury

• Danger of suffocation! Keep children and animals away from the packaging material.

Danger of scalding from heat, hot steam or condensation!

• Avoid coming into contact with the rising steam. Do not open the water tank lid during the brewing process.
• Be careful when removing the coffee tank and when taking out the filter insert after operation. There may still be hot water remaining in the coffee tank and in the filter insert and in the permanent filter! Always allow all parts to cool down first before they are removed / cleaned.
• Never pour water into the water tank when the device is switched on or during the brewing process. Allow the device to cool down before filling it again.

• Do not move the device during the brewing process.
  The coffee which is prepared is hot! Be careful when handling hot liquids.

• Make sure that the connected mains cable does not present a trip hazard. The mains cable must not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.

WARNING - Danger of Fire

• Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
• Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
• Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper, wood or plastic) in or on the device.
• Do not cover the device during operation.
• In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.

NOTE - Risk of Damage to Material and Property

• The device should only be used if it has been correctly assembled! Before each use, check whether the coffee tank, filter insert and the permanent filter are inserted correctly and whether the water tank is filled correctly!

• Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation, when there is a power cut or before a thunderstorm.

• Never pull or carry the device by the mains cable. When you pull it out of the plug socket, always pull on the mains plug and never the mains cable!

• Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
• Use only original spare parts from the manufacturer.

Items Supplied and Device Overview

NOTES

• Never remove the rating plate and any possible warnings.
• Keep the original packaging during the warranty period of the device so that the device can be properly packaged up if it needs to be returned. The warranty claim shall lapse if any damage is caused during transport.

Unpack the items supplied and check them for completeness and transport damage. If the device, the mains plug or the mains cable does have damage, do not use the device(!), but contact our customer service department.

Key

(See fold-out page for illustrations)

1 Lid
2 Coffee tank
3 Fill-level indicator (coffee)
4 Control panel
5 Coffee outlet
6 Coffee dispenser
7 Water tank
8 Drip tray (removable)
9 Mount for drip tray
10 Display
11 TIMER button (with operating lamp)
12 WARMHALTEN (KEEP WARM) button
13 M button (setting the minutes)
14 S button (setting the hours)
15 BRUHSTARKE (BREW STRENGTH) button
16 START / STOP button (with operating lamp)

Not shown:

Filter insert

Permanent filter
- Measuring spoon
- Cable compartment (back of the device)
- Operating Instructions

Before Initial Use

NOTES

• Always set up the device with a clear space at the sides (at least 20~cm ) and clear space above it (at least 30~cm ) on a flat, solid and heat-resistant surface that is resistant to splashing.
• Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!
• The surfaces of furniture may possibly contain elements which can attack and soften the adjustable feet of the device. If necessary, place a suitable pad below the adjustable feet.

• There may still be some production residues on the device. To avoid harmful effects to your health, clean the device before you first use it (see the "Cleaning and Care" chapter).

• Wipe down the device with a clean, damp cloth. Rinse the coffee tank (2), the filter insert and the permanent filter as well as the measuring spoon with a little mild detergent and clear water.

• Set up the device in a suitable location, following the safety instructions and the notes provided at the beginning of this chapter.
• Pull the mains cable out of the cable compartment and plug it into a properly installed, easily accessible plug socket.
• Before you enjoy your first coffee, we recommend that you carry out a trial run to remove any possible production residues in the water system. To do this, follow the instructions in the "Preparation" chapter.

When the device is first used, production-related additives (e.g. grease) may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.

1. Carry out this process twice. Caution! Do not drink this coffee!
2. Clean the device and accessories (see the "Cleaning and Care" chapter).

Handling and Operation

NOTES

• Do not pour milk or other liquids into the water tank. Only ever use water to make coffee!
• Never overfill the permanent filter.

Time

As soon as the mains plug is plugged into a plug socket, the display lighting turns on and the time display 0:00 starts flashing. The clock has a 12-hour time format (AM / PM).

1. Set the hours by pressing the S button (14). Note the AM or PM specification! (AM represents the time from midnight to 11:59 in the morning, PM represents the time from midday to 11:59 (23:59) at night).
2. Set the minutes by pressing the M button (13).

Hold down the respective button to run through the hours / minutes quickly.

The time is saved until a new time is set or the device has been disconnected from the power supply.

Filling the Water Tank

1. Open the lid (1).
2. If necessary, remove the fi Iter insert using the handle.
3. Take out the coffee tank (2) by the handle.
4. Pour the quantity of water required for the number of cups you want (maximum 14 cups) into the coffee tank. Pay attention to the fill-level indicator in the coffee tank!

The coffee cup symbol on the fill-level indicator indicates the maximum fill level and corresponds to 14 cups each containing 125ml .

1. Transfer the water from the coffee tank to the water tank (7) (Picture A).
2. Place the coffee tank back in the device.
3. Place the filter insert back in the device.
4. Close the lid.

Inserting the Filter

1. If you have not already done so, insert the filter insert into the coffee tank (2).
2. Insert the permanent filter or a basket filter paper into the filter insert.
3. Close the lid (1).

Basket filter papers are available via our website www.beem.de or from our customer service department on request.

Setting the Brew Strength

The strength of the coffee varies depending on the amount of water and coffee. To ensure that with little water you get a coffee that is not too bitter and with a lot of water you still get a strong coffee, the device has two settings which can be used to influence the brew strength. These can be selected using the BRÜHSTÄRKE (BREW STRENGTH) button (1). The chosen setting is shown on the display (10):

STARK (STRONG) Strong coffee with lots of water (longer brewing time)

1-4 TAssEN (CUPS) Normal, aromatic coffee with little water (shorter brewing time)

A normal brewing time is preset (similar to other coffee machines).

The brew strength MUST be set before starting the brewing process. The setting cannot be changed during the brewing process. If no option has been selected, the coffee machine brews in normal mode (presetting).

Keep-Warm Function

The device has a keep-warm function (1-4 hours), which can be set using the WARMHALTEN (KEEP WARM) button (12).

The keep-warm function is preset to 4 hours. The following settings can be selected:

0 - Iced coffee (see the "Preparation" chapter | "Making Iced Coffee")
1 – The coffee is kept warm for 1 hour after the end of the brewing process
2 - The coffee is kept warm for 2 hours after the end of the brewing process
3 - The coffee is kept warm for 3 hours after the end of the brewing process
4 - The coffee is kept warm for 4 hours after the end of the brewing process

1. Prepare the coffee machine for making coffee with coffee powder (see the "Preparation" chapter).
2. Keep pressing the WARMHALTEN (KEEP WARM) button until the setting you want (0 - 4) appears on the display (10).
3. Start the brewing process (see the "Preparation" chapter). The hotplate remains switched on as per the chosen setting after the end of the brewing process.

This setting can be adjusted before, during or after the brewing process.

1. To end the keep-warm function prematurely, press the START / STOP button (16).

Drip Stop

The device has a drip stop which stops coffee dripping from the coffee tank (2) while the coffee dispenser (6) is not being pressed.

During the brewing process and while the device is in operation, care must be taken to ensure that nothing constantly presses against the coffee dispenser.

Preparation

NOTES

• Do not operate the device without water or with less water than is required to reach the 2 Cups mark. If this does happen, the device switches off automatically. In this case, allow the device to cool down before water is poured in and the device is used again.
• Never detach the coffee tank to transport or serve hot coffee.

• Never press the coffee dispenser without a suitable vessel placed below the coffee outlet.

• Fill the water tank (7) (see the "Handling and Operation" chapter | "Filling the Water Tank").

• Insert the permanent filter or a basket filter paper (see the "Handling and Operation" chapter | "Inserting the Filter").
• Add the quantity of coffee powder you want to the filter using the measuring spoon which is supplied with the device or another suitable spoon. We recommend one heaped measuring spoon for each 125ml cup (Picture B).
• Close the lid (1).
• If necessary, set the desired brew strength with the BRÜHSTÄRKE (BREW STRENGTH) button (15) (see the "Handling and Operation" chapter | "Setting the Brew Strength").
• If you wish, set the keep-warm function using the WARMHALTEN (KEEP WARM) button (12) (see the "Handling and Operation" chapter | "Keep-Warm Function").
• Press the START / STOP button (16) to start the brewing process. The operating lamp in the button lights up. The water is transported from the water tank through the filter into the coffee tank (2) and kept warm inside it (PICTURE C).
• The fill-level indicator (3) indicates how much coffee is in the coffee tank (Picture D). At the end of the brewing process, you will hear a beep and the device automatically switches on the keep-warm function (see the "Handling and Operation" chapter | "Keep-Warm Function"). The operating lamp in the START / STOP button remains switched on.

If the brewing process is to be aborted prematurely, press the START / STOP button. The operating lamp goes out, and the device is in stand-by mode.

1. To remove coffee, carefully press a glass or a coffee mug against the coffee dispenser (6).

After the preset duration of the keep-warm function has expired, the device automatically switches to stand-by mode. The operating lamp in the START / STOP button goes out.

Warming Up Coffee

To warm coffee up again, press the START / STOP button (16) and hold it down for approx. 3 seconds. The preset time for the keep-warm function is activated again and the coffee is reheated (see the "Handling and Operation" chapter | "Keep-Warm Function").

Making Iced Coff ee

1. Prepare the coffee machine, add coffee powder, pour in water, insert a filter and if necessary set the brew strength and the keep-warm function (see the previous chapter). When you do this, make sure that the tank is filled for no more than 6 cups!

The coffee needs to be brewed stronger for iced coffee. We recommend two heaped measuring spoons for each 125ml cup.

1. Fill the coffee tank (2) up to the 10-cup mark on the fill-level indicator with ice cubes.
2. Set the keep-warm function to the 0 setting using the WARMHALTEN (KEEP WARM) button (12) (see the "Handling and Operation" chapter | "Keep-Warm Function").

Making Coff ee with a Preset Time

1. Prepare the coffee machine, add coffee powder, pour in water, insert a filter and if necessary set the brew strength and the keep-warm function (see the previous chapter).
2. Hold down the TIMER button (11). The time display 19:99 flashes on the display (10).
3. Use the buttons S (14) and M (13) to set the start time you want (see the "Handling and Operation" chapter | "Time").
4. Let go of the TIMER button.
5. To activate the preset time, press the TIMER button again. A beep sounds, the operating lamp in the button lights up and START TIMER appears on the display. The preset time is activated.

Once the preset time is reached, the device switches on automatically. The operating lamp in the TIMER button goes out and the operating lamp in the START / STOP button (16) lights up.

Deactivating the Preset Time

To deactivate the preset time setting again, press the TIMER button (11). The operating lamp in the button goes out and the programming is deactivated. However, the preset time is saved until a new time is programmed in or the device has been disconnected from the power supply.

Cleaning and Care

NOTES

• Before commencing the cleaning, note the safety instructions in the "Safety Instructions" chapter!

• Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the device. These can damage the surface.

• Clean the permanent filter and the filter insert after every use with mild detergent and warm water or in the dishwasher. Disposse of any basket filter papers that may have been used in an environmentally friendly way.

• Also clean the coffee tank (2) after every use with mild detergent and warm water. The coffee tank must not be placed in the dishwasher.
• Wipe down the housing with a damp cloth. If necessary, use a little mild detergent to remove more intense soiling.
• Check the mains cable regularly for any damage.

Dscaling

Limescale deposits have an adverse effect not only on the quality of the coffee and the water, but they also cause power losses and shorten the lifespan of the device. The thicker a limescale layer is, the more difficult it is to remove.

We therefore recommend regularly removing limescale deposits with a descending agent in accordance with the water quality in your area and how often the device is used (approx. every 2-6 weeks).

The first indications that descending is required are a large amount of steam being produced and slower brewing of the coffee.

For descending we recommend the BEEM premium descaler concentrate. The efficient, food-safe and environmentally friendly BEEM premium descaler concentrate is available from selected specialist stockists, via our website www.beem.de or from our customer service department on request.

Descaling with the BEEM Premium Descaler Concentrate:

1. Fill the coffee tank (2) up to the coffee cup symbol (14 cups) with a concentrate/water solution of no more than 1:20 (one part concentrate to 20 parts water).
2. Transfer the solution from the coffee tank to the water tank (7).
3. Press the START / STOP button (16) to switch on the device.

4. Allow the descending solution to take effect for some time (min. 20 minutes) and then allow it to run out through the coffee outlet.

5. To rinse the device, allow two tankfuls (14 cups) of clear water to run through it. The device is now descaled and ready to be used again.

The message REINIGEN (CLEAN) regularly appears on the display (10) as a reminder that the device needs to be cleaned or descaled. The symbol disappears again after two run throughs.

Storage

Disconnect the device from the mains power when it is not going to be used for a prolonged period. Clean the device again if necessary (see the "Cleaning and Care" chapter) and let it dry completely.

Store the device and all accessories in a dry, clean, frost-free place that is protected from direct sunlight and cannot be accessed by children or animals.

Troubleshooting

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.

Do not attempt to repair a defective electrical device yourself!

Problem Possible cause Fix
Nothing is shown on the display (10).	Is the mains plug inserted in the plug socket correctly?	Insert the mains plug.
	Is the plug socket defective? No mains voltage is present.	Try another plug socket. Check the fuse of the mains connection.
	Is the display defective?	Contact our customer service department.
The fuse in the fuse box is triggered.	Too many devices connected to the same circuit.	Reduce the number of devices in the circuit.
	No error can be identified.	Contact our customer service department.
Water runs out of the device.	Is there too much water in the water tank (7)?	Do not overfi ll the water tank!
The coffee runs very slowly out of the coffee outlet (5).	Is the coffee outlet clogged?	Clean the coffee outlet.
	Is the device scale-encrusted?	Descale the device (see the "Cleaning and Care" chapter | "Dscaling").
The coffee is too weak.	Is there too much water in the water tank?	Only pour the quantity of water required for the number of cups you want into the water tank.
	Is there not enough coffee powder in the fi lter?	Pour the quantity of coffee required for the number of cups you want into the fi lter.
The coffee does not taste very good.	The device needs to be cleaned.	Clean the device (see the "Cleaning and Care" chapter).
	The coffee powder is too finely or too coarsely ground.	Adjust the grinding fineness of the coffee if necessary or choose another coffee powder.
	The coffee/water mixture is not ideal.	Adjust the mixture to your own individual taste.
	The water quality is not good.	Check the water quality and fi lter the water if necessary.
The device beeps continuously and / or WASSER (WATER) appears on the display.	There is no water in the water tank.	Pour water into the water tank.
A large amount of steam is produced in the brewing process.	Is the device scale-encrusted?	Descale the device (see the "Cleaning and Care" chapter | "Dscaling").

Problem Possible cause Fix

During use, an unpleasant smell is detected.

Is the device being used for the first time?

Has the device just been descaled?

A smell often develops when new devices are first used. The smell should disappear once the device has been used several times.

Rinse out the device with clear water.

Warranty and Limitations of Liability

The warranty excludes any defects caused by improper use, calcification, damage or repair attempts. This also applies to normal wear and tear.

We do not accept any liability for damage or consequential damage resulting from:

• Failure to follow the operating instructions
  Non-designated use
• Improper or unsuitable handling
• Repairs which are not carried out properly
• Unauthorised modifications
• Use of outside parts or spare parts
• Use of unsuitable additional parts or accessories

Technical Data

Article number: 03840

Model number: CJ-656B

Voltage supply: 220 - 240V 50 / 60Hz

Power:

870

1030

W

Protection class: I

Capacity:

0.25 to 1.8 litres (2 - 14 cups)

Disposal

Dispose of the packaging material in an environmentally friendly manner and take it to a recycling centre.

Dispose of the device in an environmentally friendly manner at a recycling centre for used electrical and electronic devices. More information is available from your local authorities.

All rights reserved.

Chere cliente, cher client,

Attention aux surfaces chaudes!

WAARSCHUWING - Brandgevaar

Calls to german landlines are subject to charges. The cost varies depending on the service provider.
