USER MANUAL FreshAromaPerfect DUO BEEM

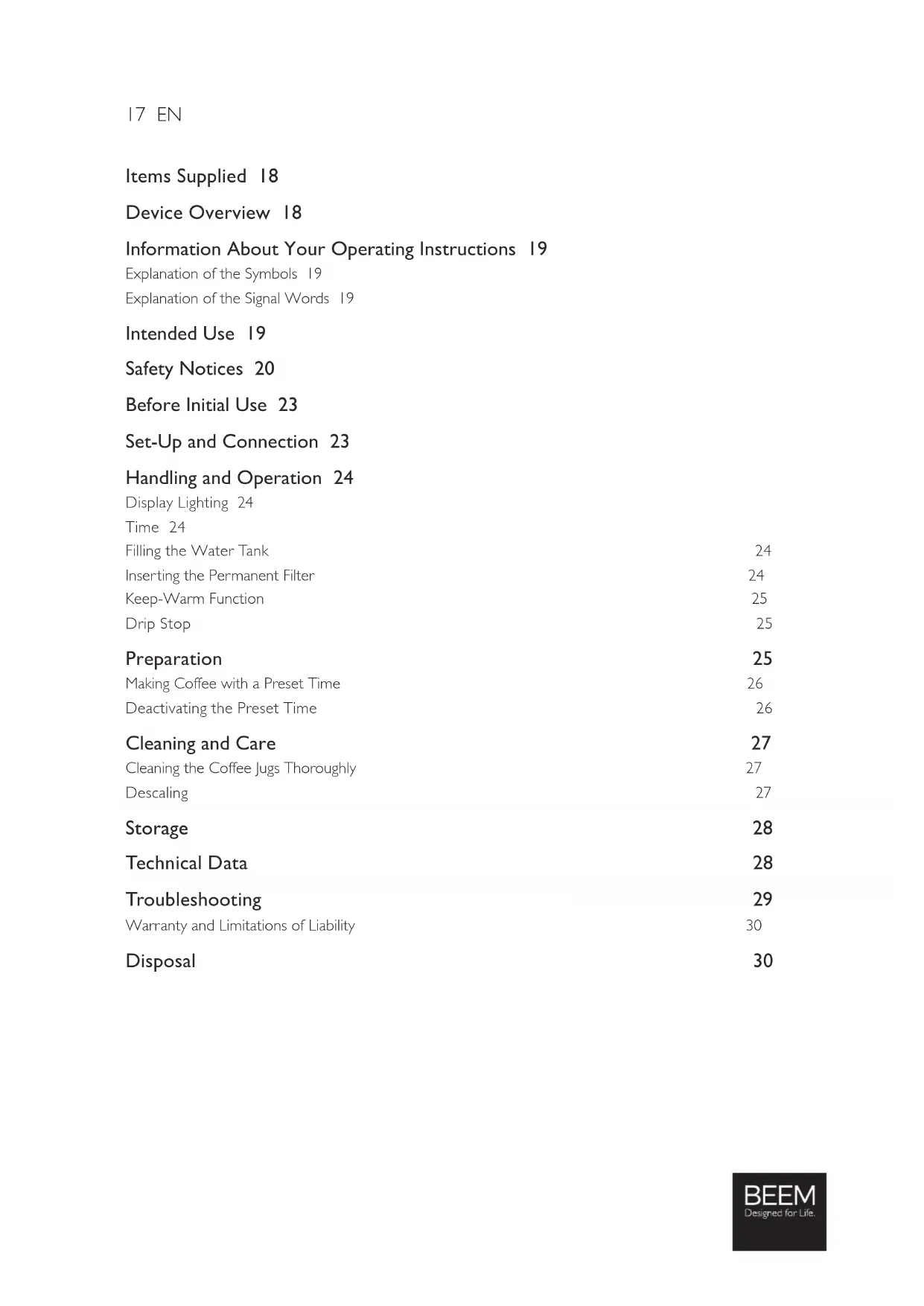

Information About Your Operating Instructions 19
Explanation of the Symbols 19
Explanation of the Signal Words 19
Intended Use 19
Safety Notices 20
Before Initial Use 23
Set-Up and Connection 23
Handling and Operation 24
Display Lighting 24
Time 24
Filling the Water Tank 24
Inserting the Permanent Filter 24
Keep-Warm Function 25
Drip Stop 25
Preparation 25
Making Coffee with a Preset Time 26
Deactivating the Preset Time 26
Cleaning and Care 27
Cleaning the Coffee Jugs Thoroughly 27
Descaling 27
Storage 28
Technical Data 28
Troubleshooting 29
Warranty and Limitations of Liability 30
Disposal 30
Items Supplied
- Main device
- Permanent fi Iter
- Glass jug
- Thermal jug
• Coffee measuring spoon
- Operating instructions
Check the items supplied for completeness and transport damage. If you find any damage to the device or the connection, do not use the device (!), but contact our customer service department.
Device Overview
Key
(See fold-out page for illustrations)
Water tank lid
2 Permanent fi Iter
3 Filter compartment
4 Anti-drip valve in the coffee outlet of the filter compartment
5 Glass jug
6 Hotplate
7 Control panel with display and control lamps
8 Water level indicator
9 Water tank
Control panel
10 PROG button (programming the time / preset time)
11 Operating lamp, red
12 MIN button (setting the minutes)
13 ON / OFF button (On / Off switch)
14 HR button (setting the hours)
15 Preset time control lamp, green
16 AUTO button (activate / deactivate the preset time)
Congratulations!
Dear Customer,
We are delighted that you have chosen this filter coffee machine.
If you have any questions about our device and about spare parts/accessories, contact the customer service department via our website: www.beem.de
Before using the device for the first time, please read the operating instructions carefully and keep them for future reference. If the device is given to someone else, these operating instructions should also be handed over with it. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.
Explanation of the Symbols
Danger symbols: These symbols indicate a risk of injury. Read through the associated safety instructions carefully and follow them to prevent personal injury.
Beware of hot surfaces!
Supplementary information
Suitable for food use.
Read operating instructions before use!
Explanation of the Signal Words
DANGER Warns of serious injuries and danger to life.
WARNING Warns of possible serious injuries and danger to life.
CAUTION Warns of slight to moderate injuries.
NOTICE Warns of damage to property.
Intended Use
• This device is only intended to be used to make coffee using ground coffee.
- This device is for personal domestic use only and is not intended for commercial applications, e.g. in hotels, bed and breakfasts, offices, staff kitchens or similar places.
- The device should only be used as described in the operating instructions. Any other use is deemed to be improper.
Safety Notices
Warning: Read all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.
- This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
• Children must not play with the device.
- Cleaning and user maintenance may not be performed by children, unless they are older than 8 years of age and are supervised.
- Children younger than 8 years of age and animals must be kept away from the device and the connection.
CAUTION: hot surfaces!
The device and the accessories are very hot during and shortly after use. Only touch the buttons on the control panel while the device is in operation. Allow the device to cool down completely before it is cleaned.
- Never exceed the maximum fill level (MAX mark)! If the water tank is overfilled, it or the glass jug could overflow.
- The device is not designed to be operated with an external timer or a separate remote control system.
- Never immerse the device and the connection in water or other liquids and ensure that they cannot fall into water or become wet.
- The device must always be disconnected from the mains when it is left unattended and before assembling, disassembling, filling or emptying the water tank or cleaning it.
21 EN
- In the interest of your own safety, inspect the device and the connection for damage each time before you use it. Use the device only if it is in working order.
- Do not make any modifications to the device. Do not replace the connection yourself. If the device or the connection of the device is damaged, it must be replaced by the manufacturer, customer service department or a specialist workshop in order to avoid any hazards.
- It is essential to follow the instructions in the "Cleaning and Care" chapter.
DANGER – Risk of Electric Shock
- Use the device only in closed rooms.
- Do not use the device in rooms with high humidity.
- Should the device fall into water, switch off the power supply immediately. Do not attempt to pull it out of the water while it is still connected to the mains power!
- Never touch the device and the connection with wet hands when these components are connected to the mains power.
• Make sure that the steam which emerges is not aimed directly at electrical devices and equipment containing electrical components.
WARNING – Danger of Injury
• Danger of suffocation! Keep children and animals away from the packaging material.
Danger of scalding from heat, hot steam or condensation!
- Avoid coming into contact with the rising steam. Do not open the water tank lid during the brewing process.
- Do not open the filter compartment during the brewing process. The filter compartment and the permanent filter will become hot during use.
- Be careful when removing the permanent filter after operation. There may still be hot water remaining in the permanent filter! Always allow everything to cool down first before something is removed / cleaned.
- Never pour water into the water tank when the device is switched on or during the brewing process. Allow the device to cool down before filling it again.
- Do not move the device during the brewing process.
• The coffee which is prepared is hot! Be careful when handling hot liquids.
- Make sure that the connected connection does not present a trip hazard. The connection may not hang down from the surface on which the device is placed in order to prevent the device from being pulled down.
WARNING – Danger of Fire
- Do not use the device in rooms containing easily ignitable dust or poisonous and explosive fumes.
- Do not operate the device in the vicinity of combustible material. Do not place any combustible materials (e.g. cardboard, paper, wood or plastic) in or on the device.
- Do not cover the device during operation.
- Do not connect the device along with other devices (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
- Do not use the device in conjunction with extension cables.
- In the event of a fire: Do not extinguish with water! Smother the flames with a fireproof blanket or a suitable fire extinguisher.
NOTICE – Risk of Damage to Material and Property
- Only connect the device to a socket with safety contacts that is properly installed and matches the technical data of the device. The socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated.
- Lay the connection in such a way that it does not become squashed or bent and does not come into contact with hot surfaces (also applies to the hot surfaces of the device!).
- The device should only be used if it has been correctly assembled! Check before each use whether the permanent filter is inserted correctly, the water tank is filled correctly and the filter compartment is closed correctly!
- Switch off the device and pull the mains plug out of the plug socket if an error occurs during operation or before a thunderstorm.
- Never pull or carry the device by the connection. When you pull it out of the socket, always pull on the mains plug and never the connection!
- Protect the device from other heat sources, naked flames, sub-zero temperatures, persistent moisture, wet conditions and impacts.
- Never place the coffee jugs on hot hobs and protect them from sudden and extreme temperature differences.
- Use only original spare parts from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid damage.
Before Initial Use
I. Remove any films and stickers which are used for advertising or protection during transportation. Never remove the rating plate and any possible warnings.
2. Wipe the device with a clean, damp cloth. Clean the permanent filter (2) and the coffee jugs with mild detergent and warm water.
3. Set up the device (see the "Set-Up and Connection" chapter).
4. Before you enjoy your first coffee, we recommend that you carry out a trial run to remove any possible production residues in the water system. To do this, follow the instructions in the "Preparation" chapter.
When the device is first used, production-related additives (e.g. grease) may cause a small amount of smoke and / or an odour to be produced. This is normal and not a device defect.
- Repeat this process twice. Do not drink this coffee!
- Clean the device and accessories (see the "Cleaning and Care" chapter).
Set-Up and Connection
PLEASE NOTE
- Always set up the device with a clear space at the sides (at least 20 cm) and clear space above it (at least 30 cm) on a flat, solid and heat-resistant surface that is resistant to splashing.
- Do not place the device below kitchen wall units or similar cupboards. The rising steam could cause damage to them!
-
The surfaces of furniture may possibly contain elements which can attack and soften the adjustable feet of the device. If necessary, place a suitable pad below the adjustable feet.
-
Place the device in a suitable location, following the safety notices and the notices provided at the beginning of this chapter.
- Fully unwind the connection and insert the mains plug into a properly installed socket that is easily accessible.
Handling and Operation
PLEASE NOTE
- Do not pour milk or other liquids into the water tank. Only ever use water to make coffee!
• Never overfill the permanent filter.
Display Lighting
The display lighting goes out 60 seconds after the last button has been pressed, unless the device is in operation. Press any button to switch on the display lighting.
Time
As soon as the mains plug is plugged into a plug socket, the display lighting turns on and the time display 12:00 fl ashes. The clock has a 24-hour time format.
I. Press the PROG button (10) once. SETTIME appears on the display.
2. Set the hours by pressing the HR button (14) and set the minutes by pressing the MIN button (12). If the respective button is pressed for an extended period, the fast increment mode is activated.
The time is saved until a new time is set or the device has been disconnected from the power supply.
Filling the Water Tank
I. Open the water tank lid (I).
2. Pour the quantity of water you want (min. 250 ml, max. 1250 ml) into the glass jug (5) or thermal jug and then into the water tank (9). Keep an eye on the water level indicator (8) in the water tank!
3. Close the water tank lid.
All the water in the water tank is always used.
Inserting the Permanent Filter
- Open up the filter compartment (3) to the right.
- Insert the permanent filter (2) into the filter compartment (Picture A).
- Flip the filter compartment shut. You should feel and hear it click into place.
Keep-Warm Function
The device has an automatic keep-warm function which can be switched on or off as you wish before starting the brewing process.
Switching on the hotplate – Press the ON / OFF button (13) just briefly to start the brewing process. The operating lamp (11) lights up red and the hotplate (6) remains switched on for approx. 40 minutes.
Switching off the hotplate – Press the ON / OFF button for at least 2 seconds to start the brewing process. The operating lamp flashes and the hotplate switches off once the brewing process has ended.
PLEASE NOTE: The keep-warm function can also be switched on or off when brewing coffee with a preset time. As the preset time is activated with the AUTO button (16), this button must then be pressed either for a brief time or for at least 2 seconds.
We recommend always switching off the keep-warm function when using the device with a thermal jug.
Drip Stop
The device has a drip stop (4) which prevents water from dripping out of the filter compartment when the jug has been removed from the device (Picture B).
When the device is in operation, the filter compartment (3) must be closed and a jug with a lid placed on it must be placed beneath the filter compartment. The lid of the jug pushes the drip stop upwards and the coffee can flow from the filter through the lid into the jug.
During the brewing process, the jug must not be removed from the device for longer than 30 seconds as otherwise the filter could overflow.
Preparation
PLEASE NOTE
- Do not operate the device without water or with less water than is required to reach the MIN mark (approx. 250 ml). If this does happen, the device switches off automatically. In this case, allow the device to cool down before water is poured in and the device is used again.
- Never start a brewing process without a jug with a closed lid beneath the coffee outlet.
I. Fill the water tank (9) with water (see the "Handling and Operation" chapter | "Filling the WaterTank").
2. Insert the permanent filter (2) into the filter compartment (3) (see the “Handling and Operation” chapter | “Inserting the Permanent Filter”).
3. Pour the amount of ground coffee you want into the permanent filter using a suitable spoon. We recommend one level coffee measuring spoon per 125 ml.
4. Place the glass jug (5) or the thermal jug under the coffee outlet (4).
- Press the ON / OFF button (13) for a brief time or at least 2 seconds to start the brewing process (see the “Handling and Operation” chapter – “Keep-Warm Function”). The operating lamp (11) lights up or flashes during the brewing process. The water is transported from the water tank through the permanent fi Iter into the coffee jug.
- After completing the brewing process, press the ON / OFF button to switch the device to stand-by mode. Bear in mind that the first press of the button only activates the display lighting!
If the coffee is to be kept warm, leave the glass jug on the hotplate with the device switched on (see the “Handling and Operation” chapter – “Keep-Warm Function”).
-
Remove the mains plug from the socket when the device is not in use.
-
After use clean the filter compartment, the permanent filter and the used coffee jug (see the "Cleaning and Care" chapter).
Making Coffee with a Preset Time
To make coffee with a preset time, the clock needs to be set (see the “Handling and Operation” chapter – “Time”).
-
Prepare the coffee machine: insert the permanent filter (2), pour in coffee powder, pour in water (see the “Handling and Operation” chapter) and place a jug under the coffee outlet (4).
-
Press the PROG button (10) twice. SETTIMER appears on the display.
-
Use the HR button (14) and MIN button (12) to set the start time you want (see the "Handling and Operation" chapter – "Time"). If no other button is pressed for approx. 10 seconds, the timer time is saved and the display reverts to the time display.
-
Press the AUTO button (16) for a brief time or at least 2 seconds to activate the preset time (see the "Handling and Operation" chapter – "Keep-Warm Function"). The preset time control lamp (15) lights up. The preset time is activated.
Once the preset time is reached, the device switches on automatically. The operating lamp (11) lights up or fl ashes during the brewing process.
Deactivating the Preset Time
To deactivate the preset time setting, press the AUTO button (16). The preset time control lamp (15) goes out and the programming is deactivated. However, the preset time is retained and can be reactivated at any time until a new preset time is programmed in or the device has been disconnected from the power supply.
Cleaning and Care
PLEASE NOTE
- Do not use any toxic, corrosive or abrasive cleaning agents or scouring sponges to clean the device. These can damage the surface.
I. Wait until the device has completely cooled down.
2. Empty the permanent filter (2).
3. Clean the permanent filter and the glass jug (5) or thermal jug and the coffee measuring spoon after every use with mild detergent and warm water or in the dishwasher.
4. Wipe the housing out and down with a damp cloth. If necessary, use a little mild detergent to remove more intense soiling.
5. Check the connection regularly for any damage.
Cleaning the Coffee Jugs Thoroughly
Coffee grounds and coffee oil residues can contaminate glass jugs and thermal jugs over time. They should therefore be thoroughly cleaned regularly (at least every 4 weeks).
We recommend that you do this using BEEM premium cleaning tablets. They will remove the residues quickly and easily. In addition, the cleaning tablets are gentle on the material and guarantee food-safe and environmentally friendly cleaning - ensuring an authentic coffee flavour. BEEM premium cleaning tablets can be obtained from selected specialist stockists, directly via our website www.beem.de or from our customer service department on request.
Cleaning with the BEEM Premium Cleaning Tablets
I. Dissolve one cleaning tablet in water at 60 – 70°C.
2. Pour the solution into the coffee jug which needs to be cleaned.
3. Move the coffee jug slowly in circular motions to ensure that the inside is wetted with the cleaning solution.
4. Let the cleaning solution take effect for a few minutes.
5. Empty the coffee jug and rinse it thoroughly several times with clear water.
The BEEM cleaning tablets do not have any descaling effect!
Descaling
Limescale deposits have an adverse effect not only on the quality of the coffee, but they also cause power losses and shorten the lifespan of the device. The thicker a limescale layer is, the more difficult it is to remove.
We therefore recommend regularly removing limescale deposits with a descaling agent in accordance with the water quality in your area and how often the device is used (approx. every 2 – 6 weeks).
The first indications that descaling is required are a large amount of steam being produced and slower brewing of the coffee.
For descaling we recommend the BEEM premium descaler concentrate. The efficient, food-safe and environmentally friendly BEEM premium descaler concentrate is available from selected specialist stockists, via our website www.beem.de or from our customer service department on request.
Descaling with the BEEM Premium Descaler Concentrate
- Fill the water tank (9) up to the MAX marking (approx. 1250 ml) with a concentrate/water solution of no more than 1:20 (one part concentrate to 20 parts water) (see the “Handling and Operation” chapter – “Filling the Water Tank”).
- Place the glass jug (5) or the thermal jug under the coffee outlet (4).
- Press the ON / OFF button (13) to switch on the device. Allow the descaling solution to run out through the coffee outlet.
- To rinse the device, allow two tankfuls (approx. 1250 ml each) of clear water to run through it and then clean the used coffee jug (see the "Cleaning and Care" chapter). The device is now descaled and ready to be used again.
Storage
Disconnect the device from the mains power when it is not going to be used for a prolonged period. Clean the device again if necessary (see the “Cleaning and Care” chapter) and let it dry completely.
Store the device and all accessories in a dry, clean, frost-free place that is protected from direct sunlight and cannot be accessed by children or animals.
Technical Data
Article number: 05958
Model number: CM-931T
Voltage supply: 220 – 240 V \~ 50 / 60 Hz
Power: 1000 W
Protection class: I
Capacity:
Glas jug: max. 1250 ml (approx. 10 cups)
Thermal jug: max. 1000 ml (approx. 8 cups)
ID of operating instructions: Z 05958 M DS V2 0319
Troubleshooting
If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps that are listed, contact the customer service department.
Do not attempt to repair an electrical device yourself!
| Problem Possible cause Fix | |
| The device cannot be switched on. | The mains plug is not inserted correctly in the plug socket. | Correct the fi t of the mains plug. |
| The plug socket is defective. Try another plug socket. |
| There is no mains voltage. | Check the fuse of the mains connection. |
| The fuse in the fuse box is triggered. | Too many devices connected to the same circuit. | Reduce the number of devices in the circuit. |
| Water runs out of the device. | There is too much water in the water tank (9). | Do not overfi ll the water tank! |
| The coffee runs very slowly out of the coffee outlet (4). | The coffee outlet is blocked. Clean the coffee outlet. |
| The anti-drip valve is blocked. Remove the blockage. |
| The device is furred up. | Descale the device (see the “Cleaning and Care” chapter – “Descaling”). |
| The coffee is too weak. | There is too much water in the water tank. | Only pour the quantity of water required for the number of cups you want into the water tank (see the “Handling and Operation” chapter – “Filling the WaterTank”). |
| There is not enough coffee powder in the permanent filter (2). | Pour the quantity of coffee required for the number of cups you want into the permanent filter (see the “Preparation” chapter). |
| The coffee does not taste very good. | The device needs to be cleaned. | Clean the device (see the "Cleaning and Care" chapter). |
| The coffee has been too finely or too coarsely ground (in a coffee mill). | Adjust the grinding fineness of the coffee or use another coffee powder. |
| The coffee/water mixture is not ideal. | Adjust the mixture to your own individual taste. |
| The water quality is not good. | Check the water quality and filter the water if necessary. |
| The device switches off during the brewing process. | There is no longer any water in the water tank. | Pour water into the water tank (see the “Handling and Operation” chapter – “Filling the Water Tank”). |
| A large amount of steam is produced in the brewing process. | The device is furred up. | Descale the device (see the “Cleaning and Care” chapter – “Descaling”). |
| During use, an unpleasant smell is detected. | The device is being used for the first time. | A smell often develops when new devices are first used. The smell should disappear once the device has been used several times. |
| The device has previously been descaled. | Rinse out the device with clear water. |
Warranty and Limitations of Liability
The warranty excludes any defects caused by improper use, calcification, damage or repair attempts. This also applies to normal wear and tear.
We do not accept any liability for damage or consequential damage resulting from:
- Failure to follow the operating instructions
• Non-designated use
- Improper or unsuitable handling
• Repairs which are not carried out properly
- Unauthorised modifications
- Use of outside parts or spare parts
- Use of unsuitable additional parts or accessories
Keep the original packaging during the warranty period of the device so that the device can be properly packaged up if it needs to be returned. The warranty claim will lapse if any damage is caused during transport.
Disposal
Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.
This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.
31 FR
Composition 32
